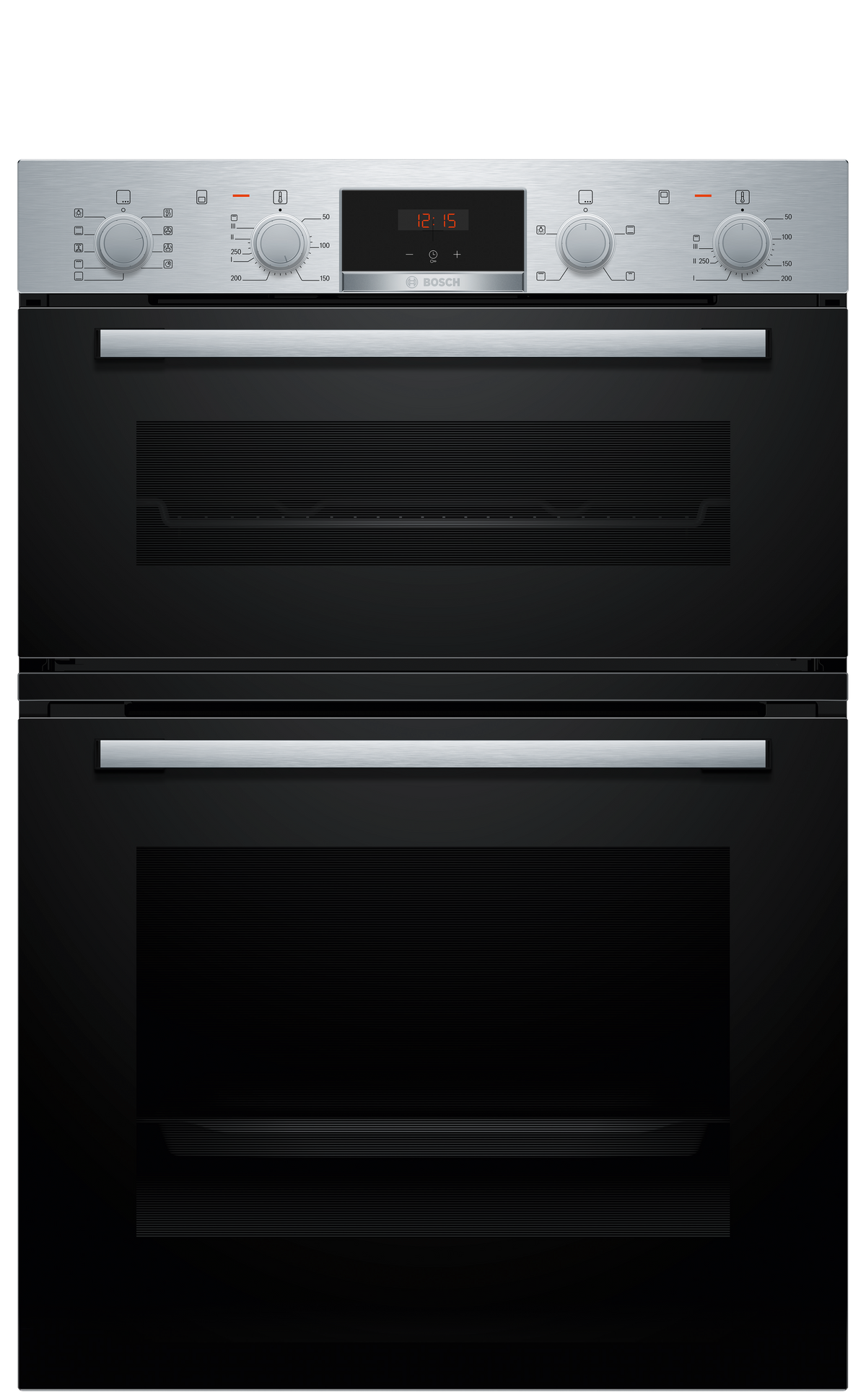

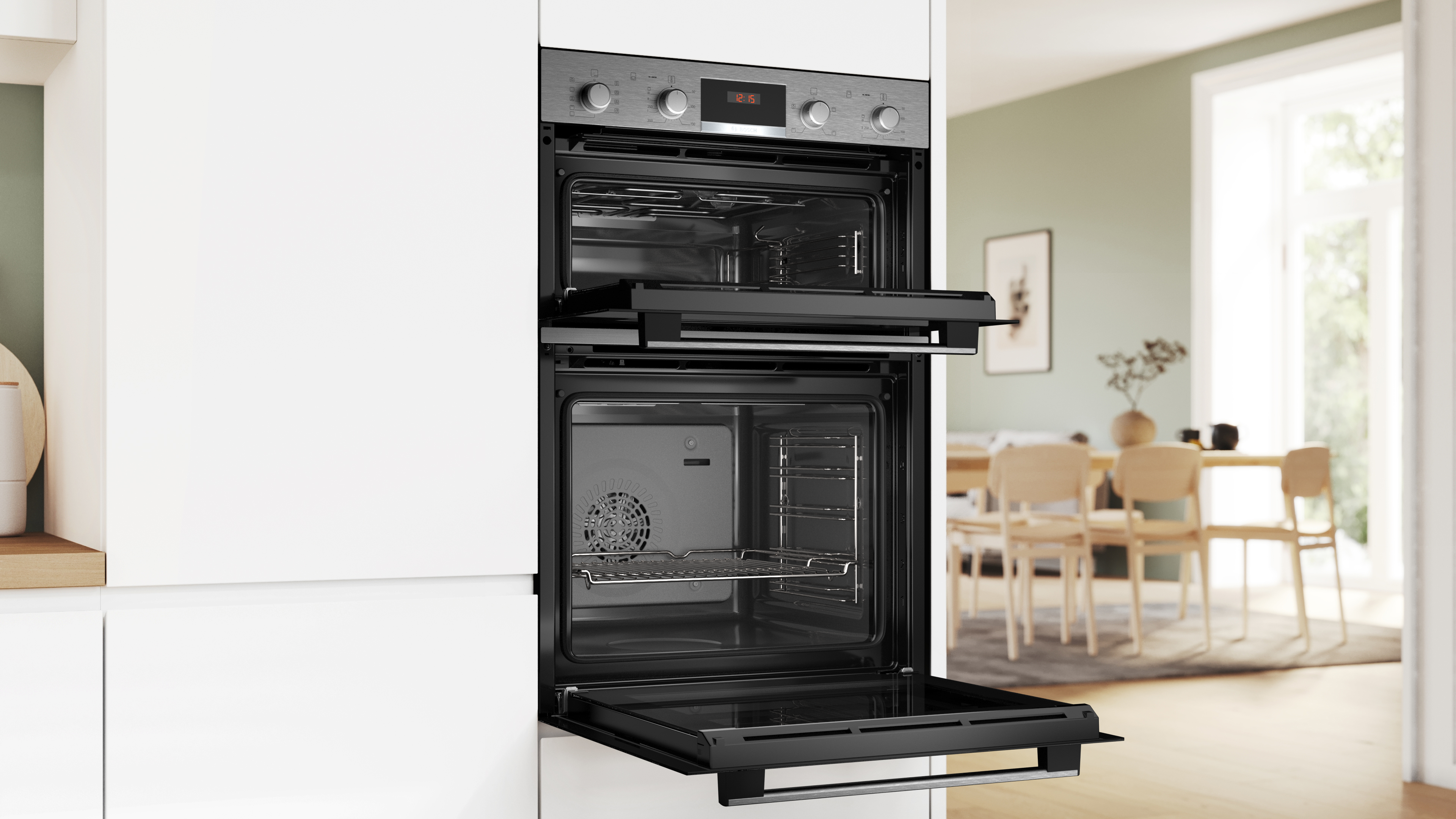

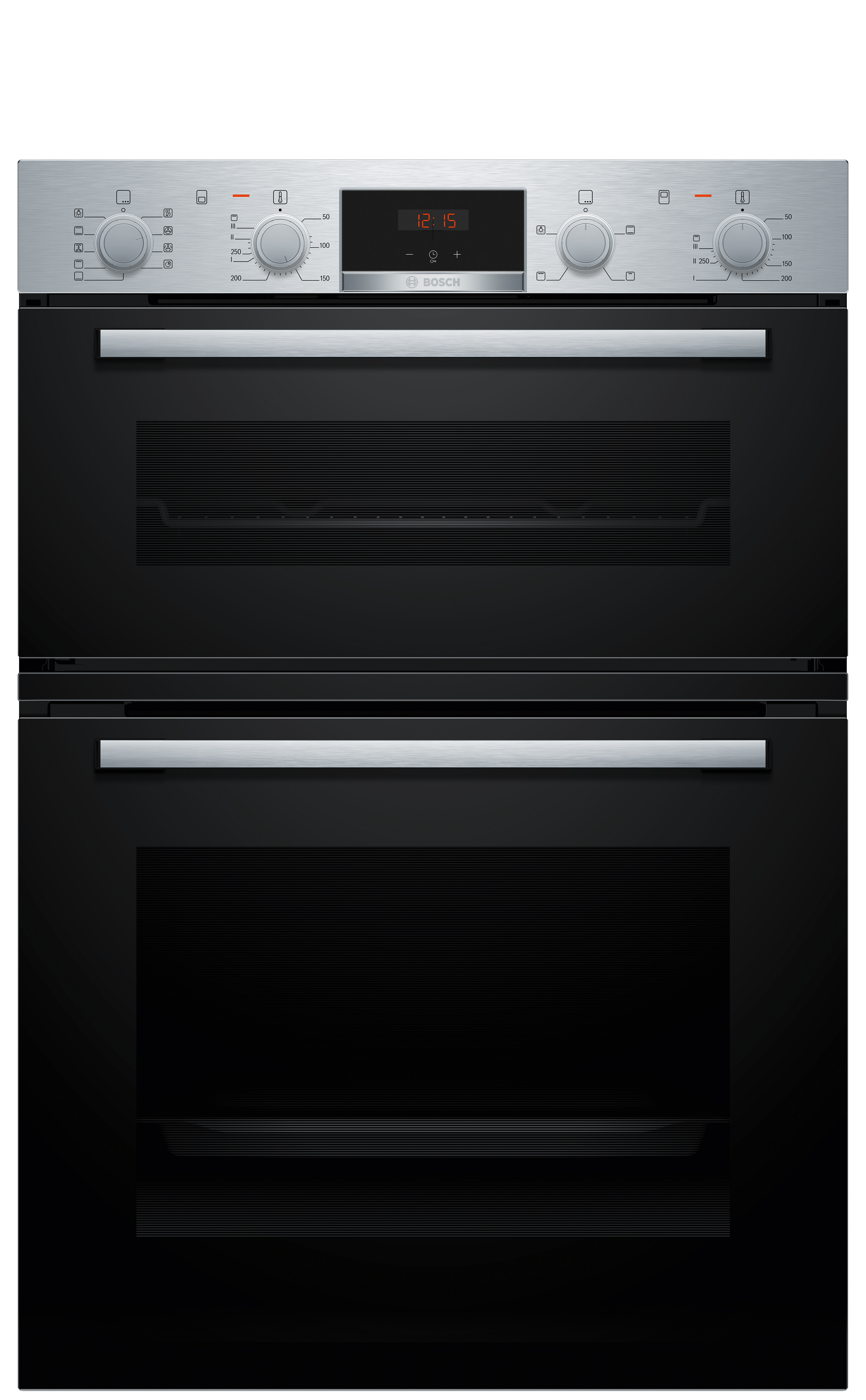

• Double oven configuration: separate upper and lower cavities for flexible simultaneous cooking.

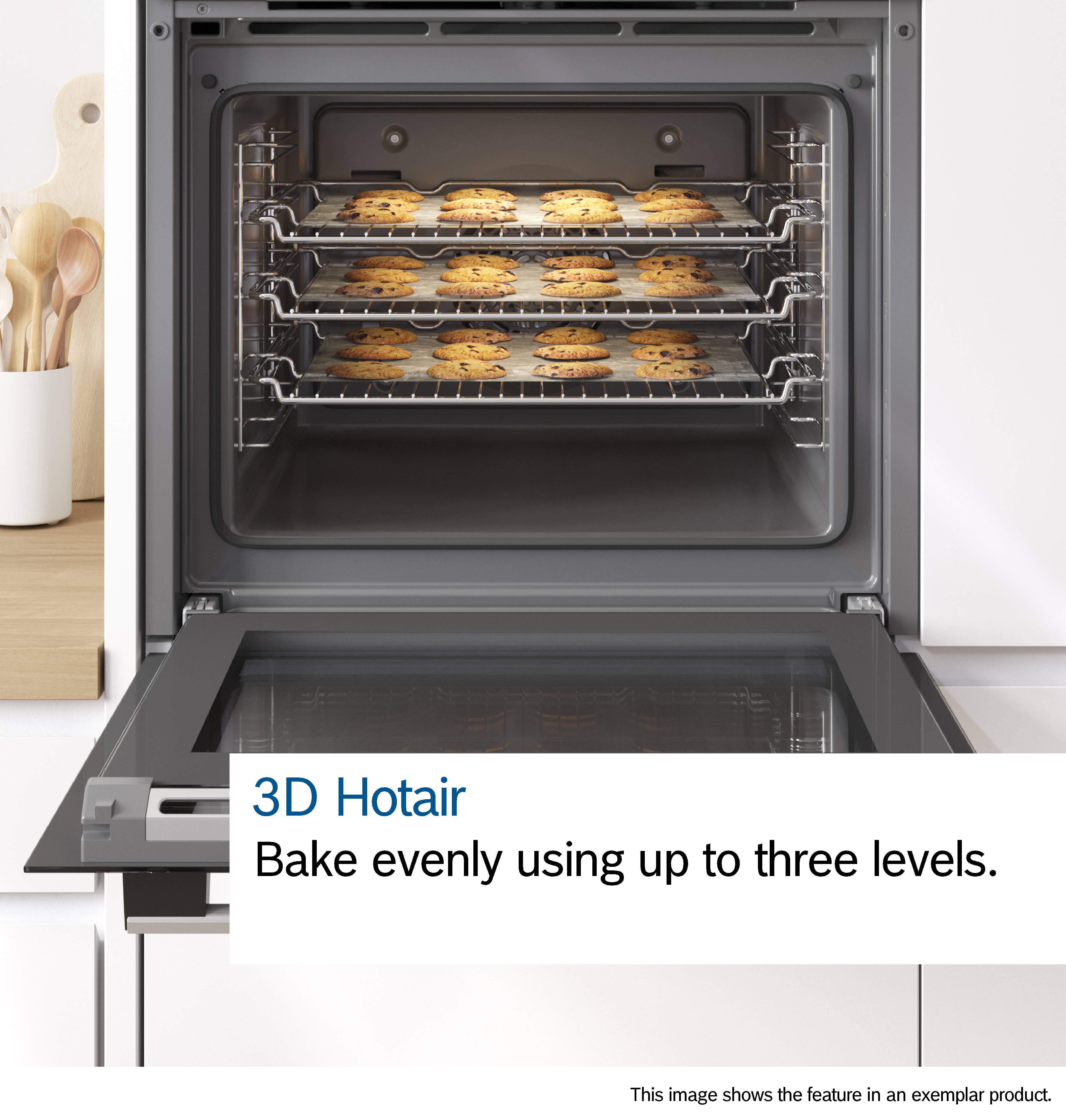

• 3D Hotair: even heat distribution across multiple shelf levels for consistent baking and roasting.
• Rapid heating: reduces preheating time before cooking begins.
• EcoClean Direct: specialised rear-wall coating assists in reducing manual cleaning requirements.
• 7 heating functions: supports a wide range of cooking methods including fan cooking, grilling and pizza settings.
• Secondary cavity grilling: upper cavity supports independent grilling and conventional heating functions.

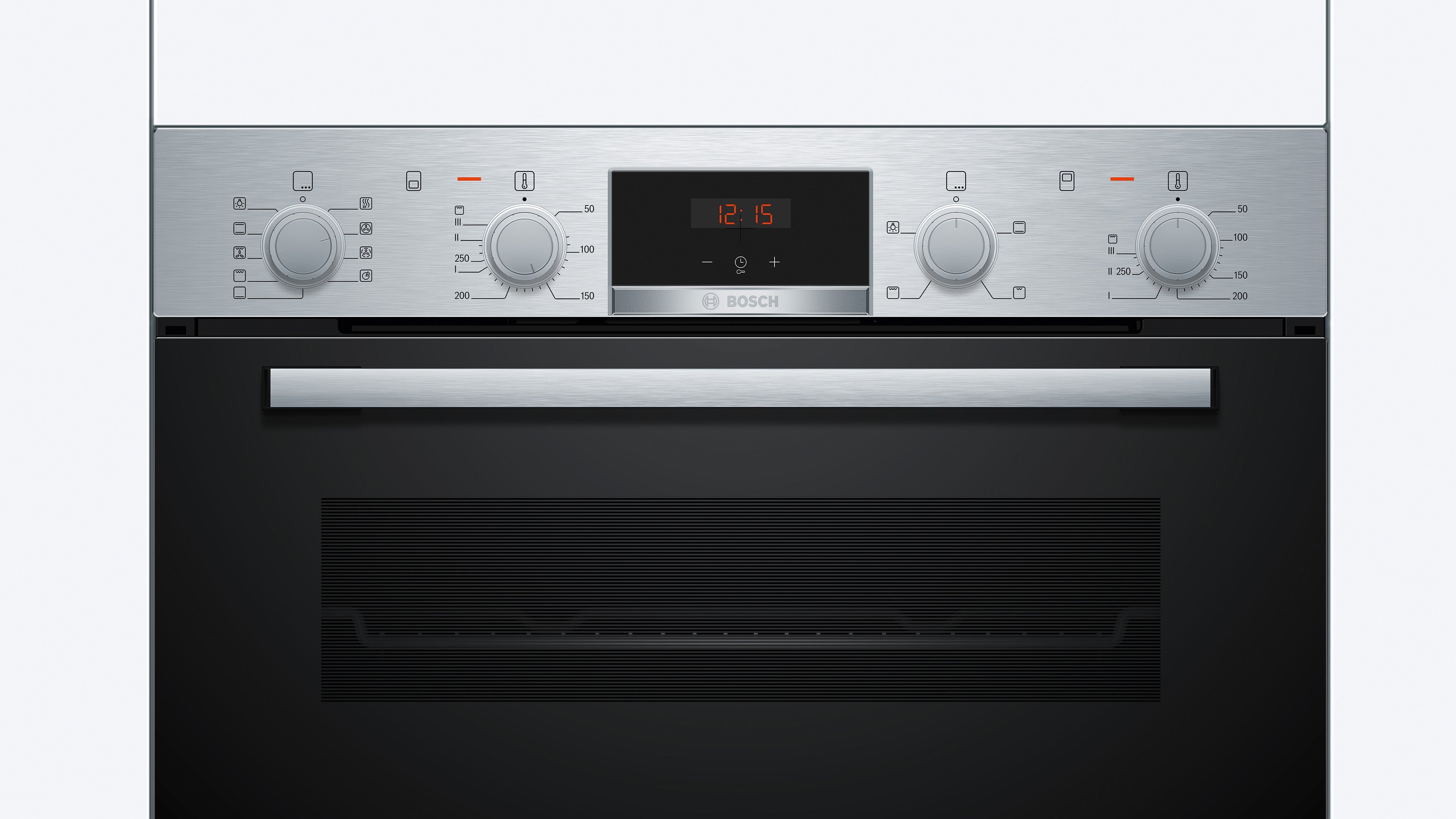

• Pop-out controls: retractable rotary controls maintain a cleaner fascia appearance.
• Red LED display: electronic timer display with clear function visibility.
• Triple glazed door: improved insulation and cooler external door temperatures during operation.
• Halogen interior lighting: improved cavity visibility during cooking.
• Child lock: helps prevent unintended operation changes.
• Full glass inner door: smoother internal surface for simplified cleaning access.
• Optional telescopic rails: compatible with Bosch accessory telescopic shelf systems.

Main Oven Functions:

• 3D Hotair: evenly circulates heat across multiple shelf levels for consistent multi-tray cooking.
• Hot Air Gentle: energy-efficient fan cooking mode suited to gentle baking and roasting.
• Conventional Heat: traditional top and bottom heating ideal for cakes, pastries and roasts.
• Hot Air Grilling: combines fan circulation with grilling for roasting larger cuts of meat evenly.
• Full Width Grill: high-intensity grilling across the full grill surface for larger quantities.
• Pizza Setting: combines bottom heat and fan circulation for crisp pizza bases and baked dishes.
• Bottom Heat: concentrated lower heat ideal for browning bases and finishing dishes.

Upper Oven Functions:

• Full Width Grill: full grill coverage suited to toast, grilling and browning larger portions.
• Half Width Grill: smaller grill area for reduced energy use when cooking smaller portions.
• Conventional Heat: traditional upper cavity heating for smaller baking and reheating tasks.

• Product type: Built-in double oven
• Series: Bosch Series 4
• Fuel type: Electric
• Main oven capacity: 71 L net
• Secondary oven capacity: 34 L net
• Total oven capacity: 105 L net
• Number of heating functions: 7 main oven functions
• Temperature range: 50°C – 275°C
• Shelf positions: 5
• Control type: Rotary pop-out controls with LED display
• Display type: Red LED display
• Door glazing: Triple glazed
• Interior lighting: Halogen
• Cooling system: Integrated cooling fan
• Cleaning system: EcoClean Direct rear-wall coating
• Oven cavity material: Enamel interior
• Energy efficiency class (main cavity): A
• Energy efficiency class (upper cavity): B
• Connected load: 5.9 kW
• Maximum current rating: 25 A
• Voltage: 220–240 V
• Frequency: 50 Hz
• Home Connect: No
• Steam functionality: No
• Microwave functionality: No

• Installation type: Built-in
• Connection type: Hardwired
• Plug type: No plug supplied
• Electrical connection: Installation by licensed electrician required
• Connected load: 5.9 kW
• Maximum current rating: 25 A
• Power supply: 220–240 V / 50 Hz

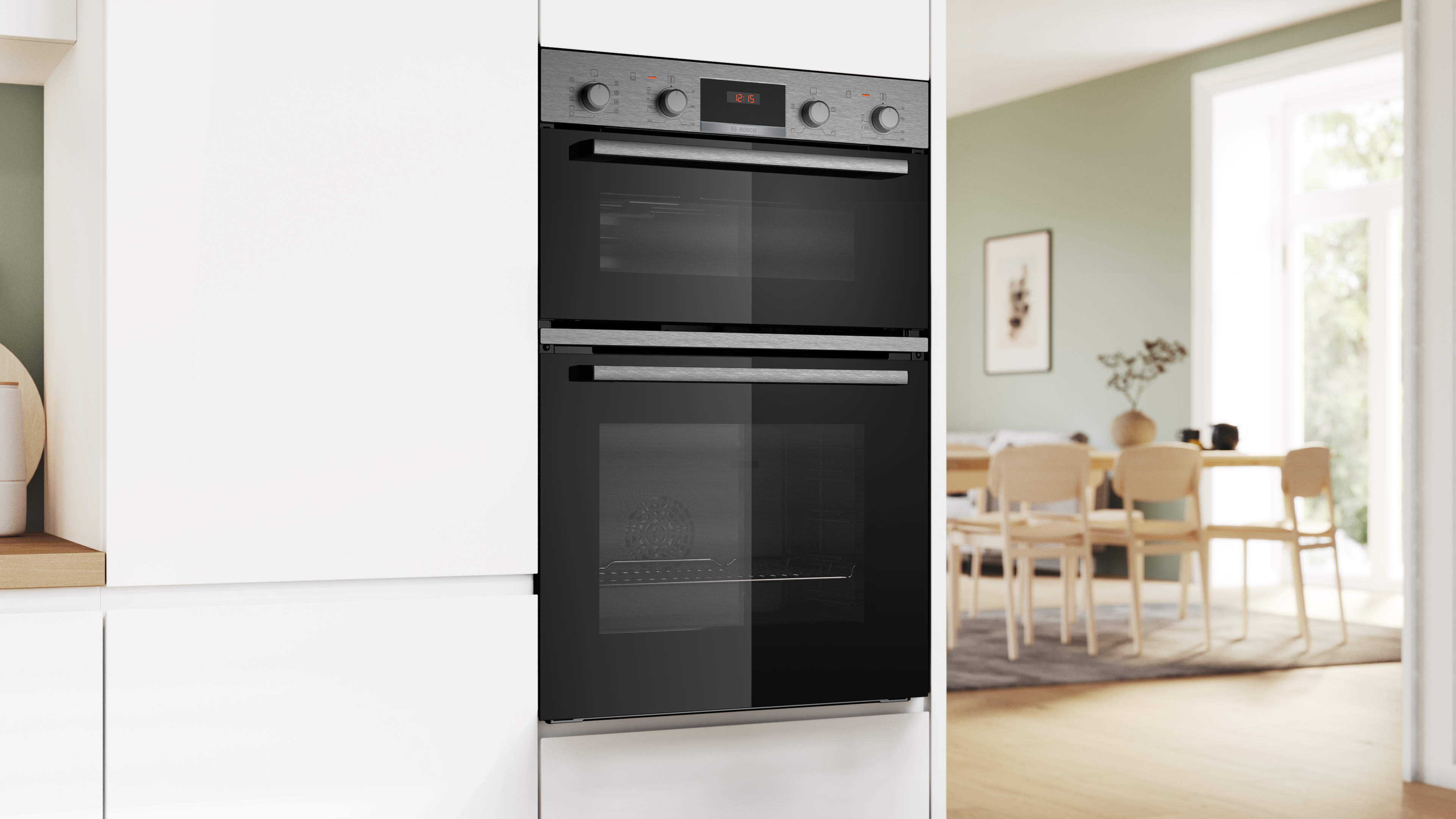

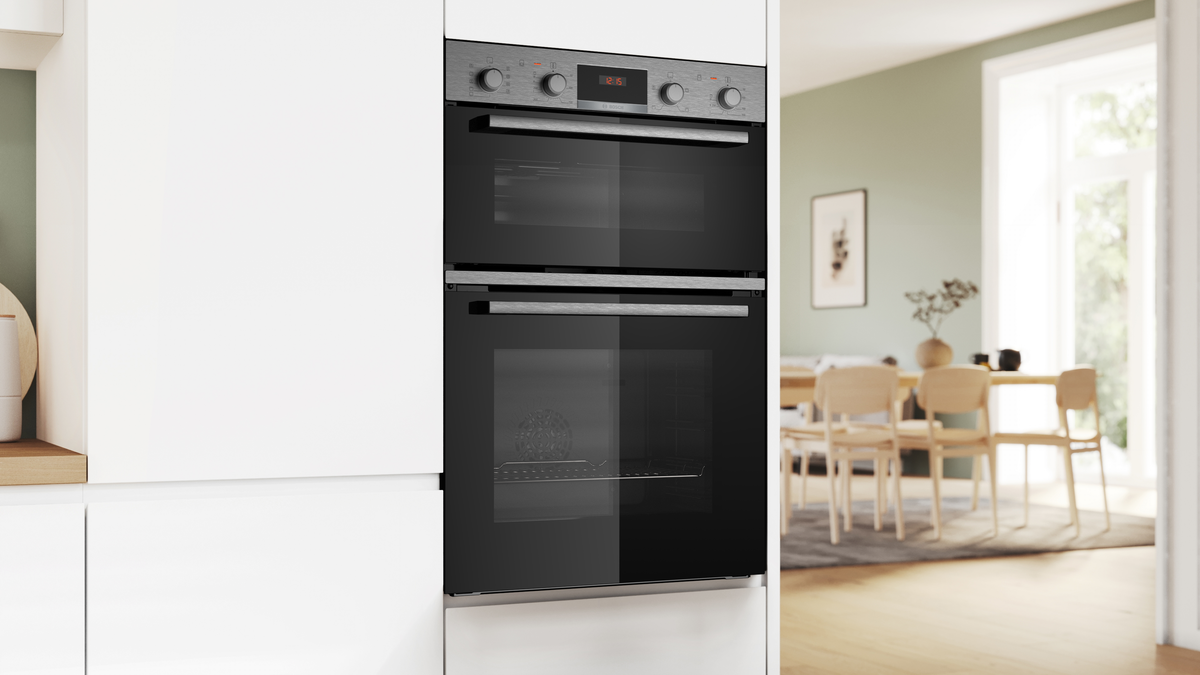

• Cabinet compatibility: standard 60cm built-in tall cabinetry
• Ventilation requirements: refer to Bosch installation instructions

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

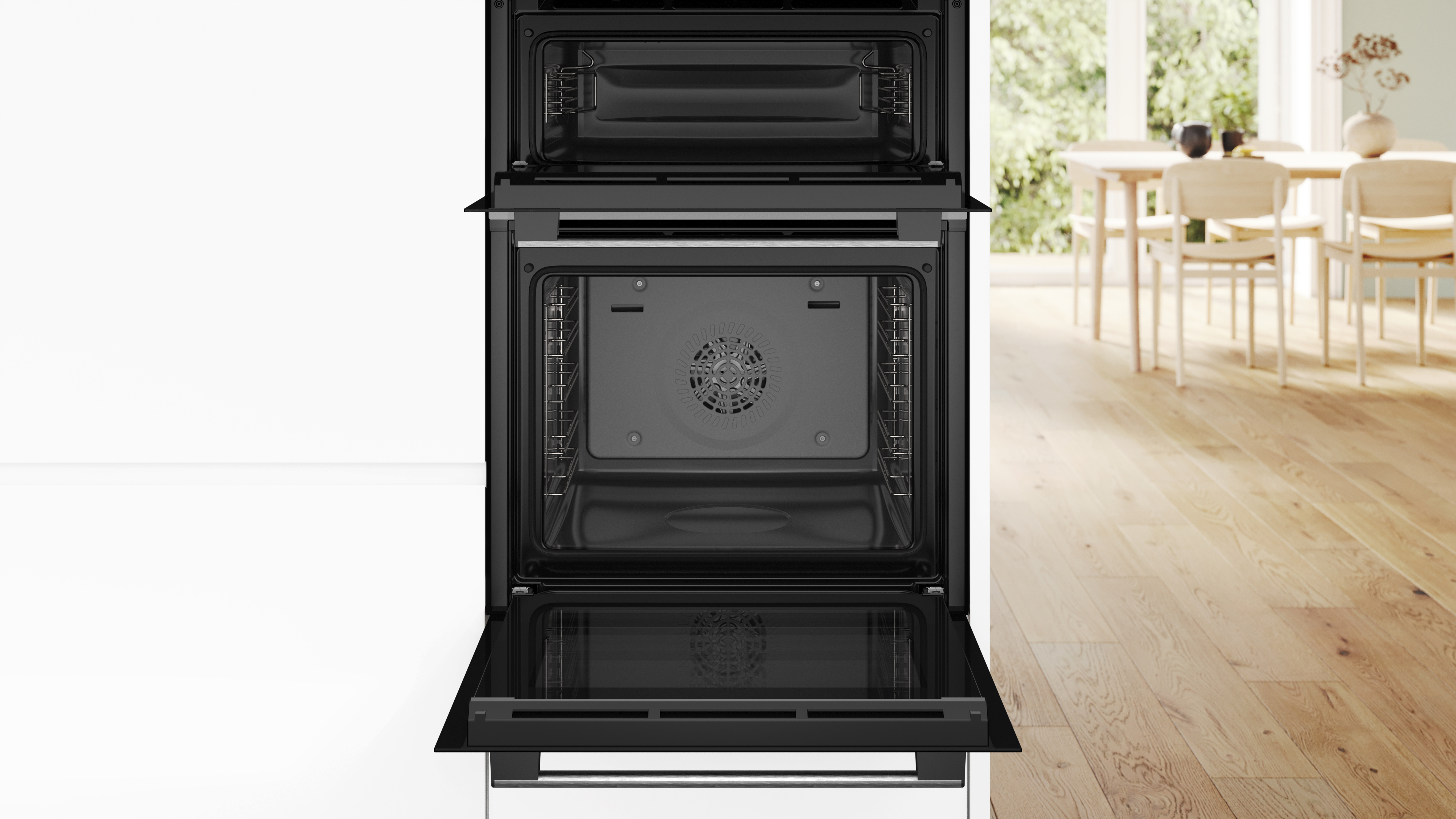

The MBA534BS3A combines two independent cooking cavities within a single 60cm built-in footprint, allowing separate grilling and baking operation simultaneously. Bosch 3D Hotair technology is designed to maintain consistent heat circulation throughout the main cavity, supporting even cooking results across multiple shelf positions without significant flavour transfer between trays.

EcoClean Direct uses a specialised microfine ceramic coating positioned on the rear wall of the lower cavity. During normal cooking operation, the coating assists in breaking down grease deposits to reduce long-term cleaning maintenance requirements.

The appliance includes Bosch’s red LED timer display with end-time programming functionality, integrated cooling fan system, and removable accessory supports for easier cavity access during cleaning and maintenance.

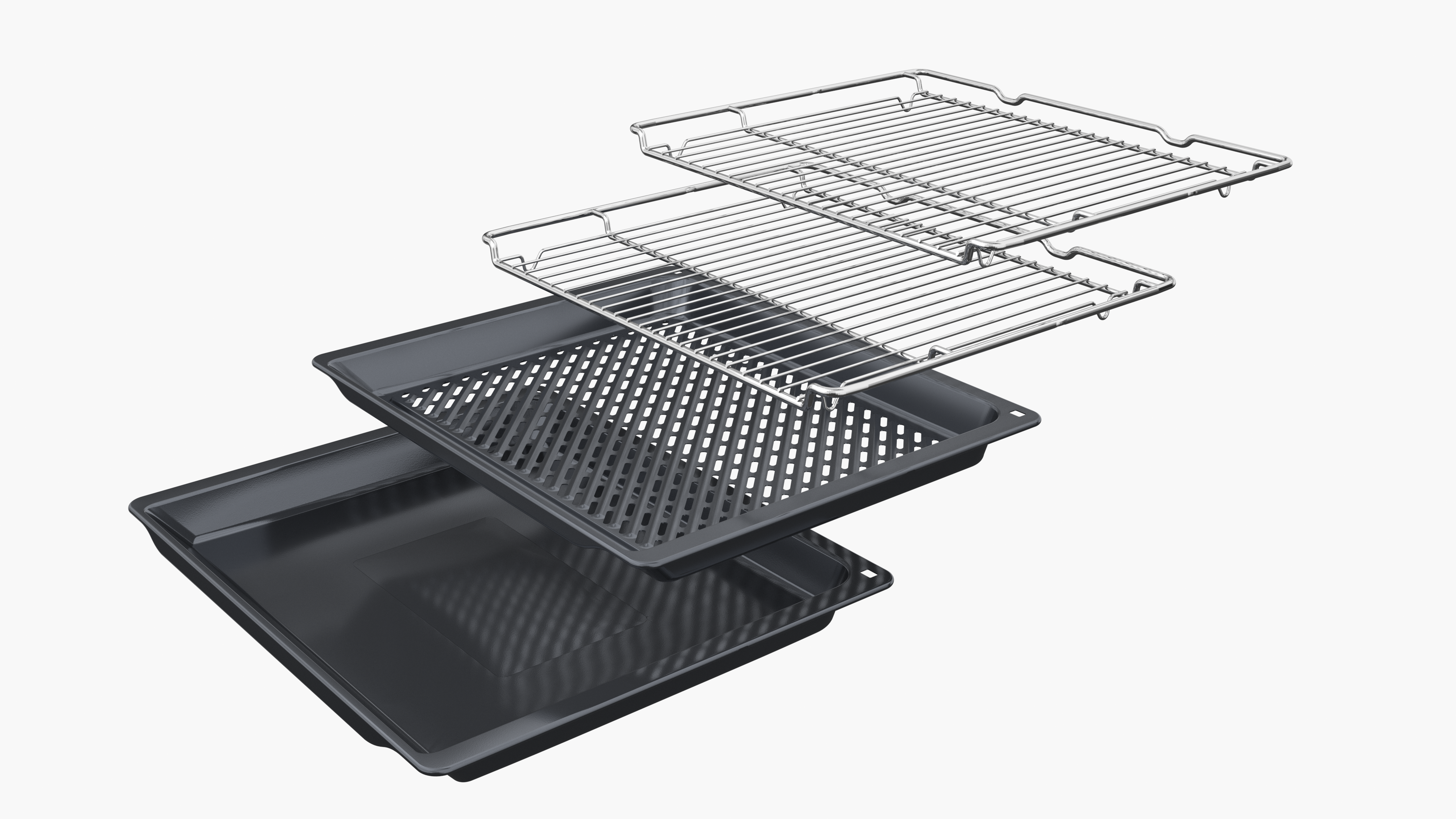

• 1 x Air Fry & Grill Tray
• 2 x Combination Grid Shelves
• 1 x Universal Pan
• Installation documentation
