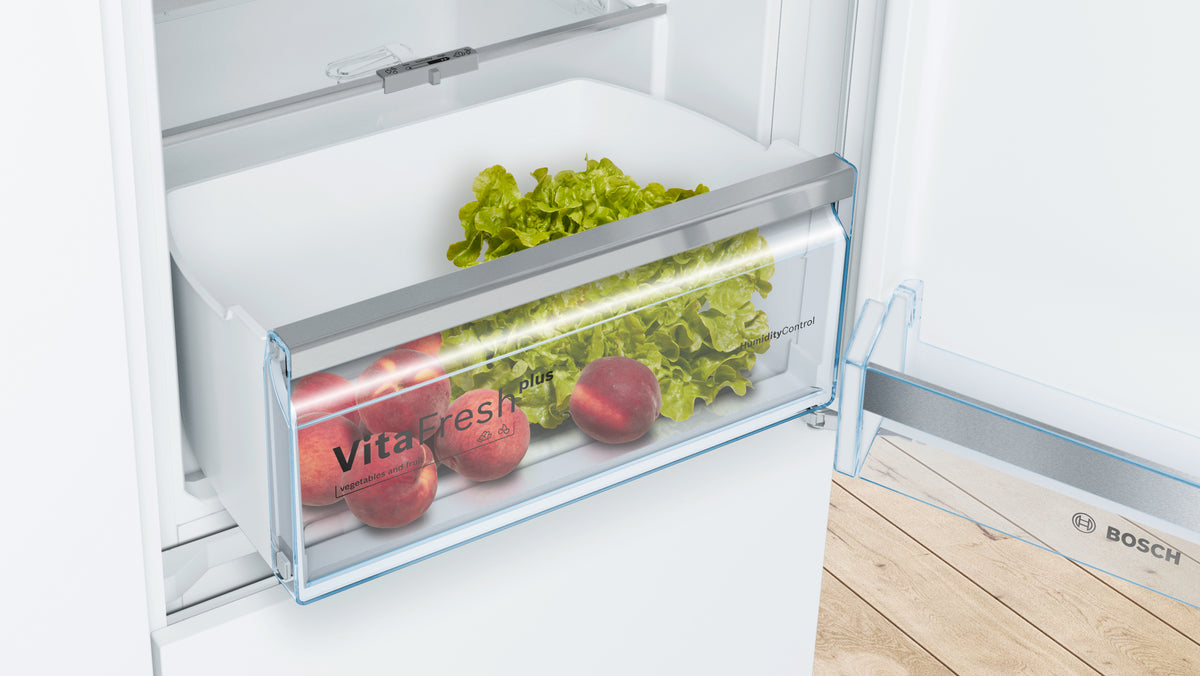

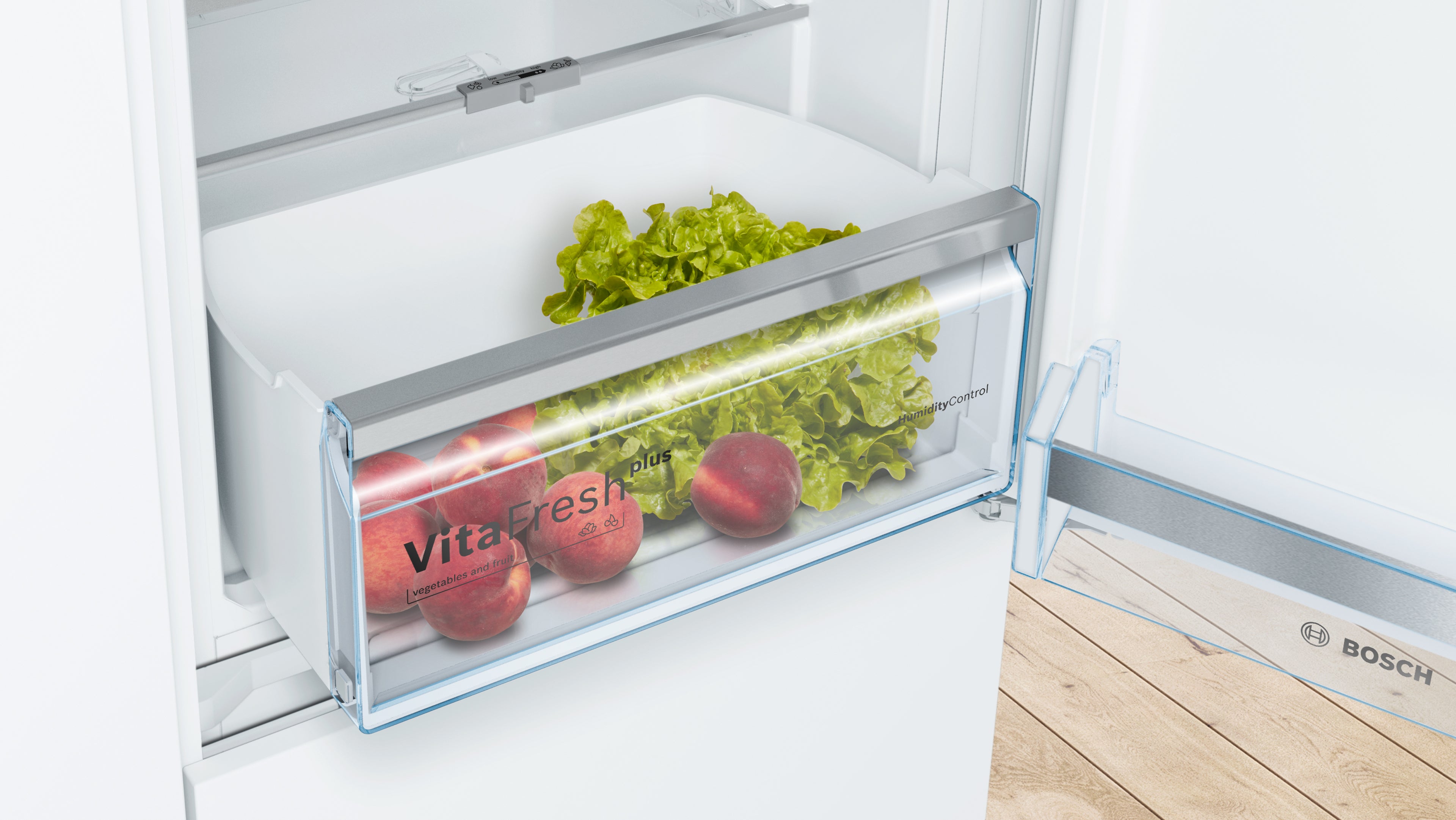

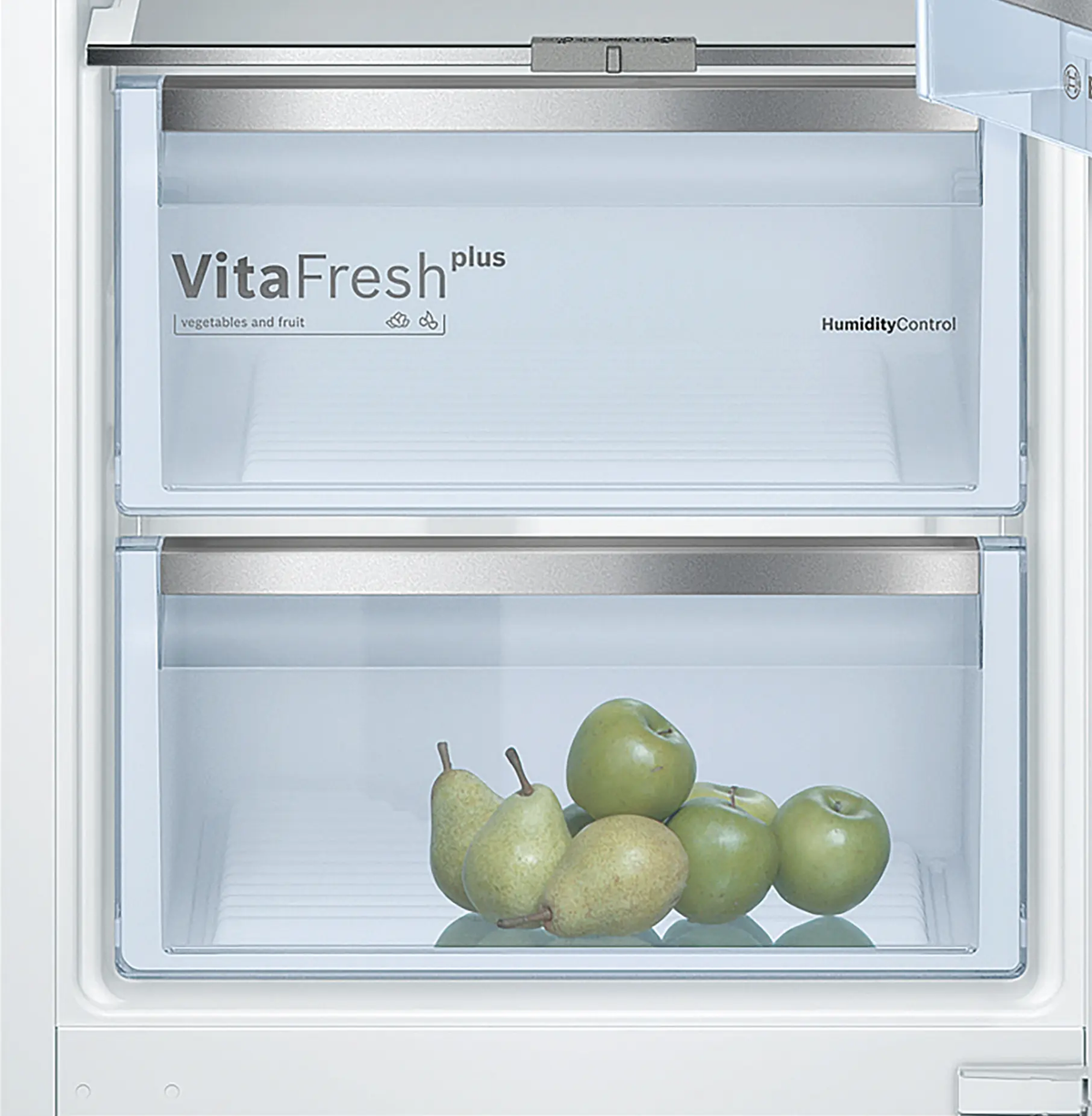

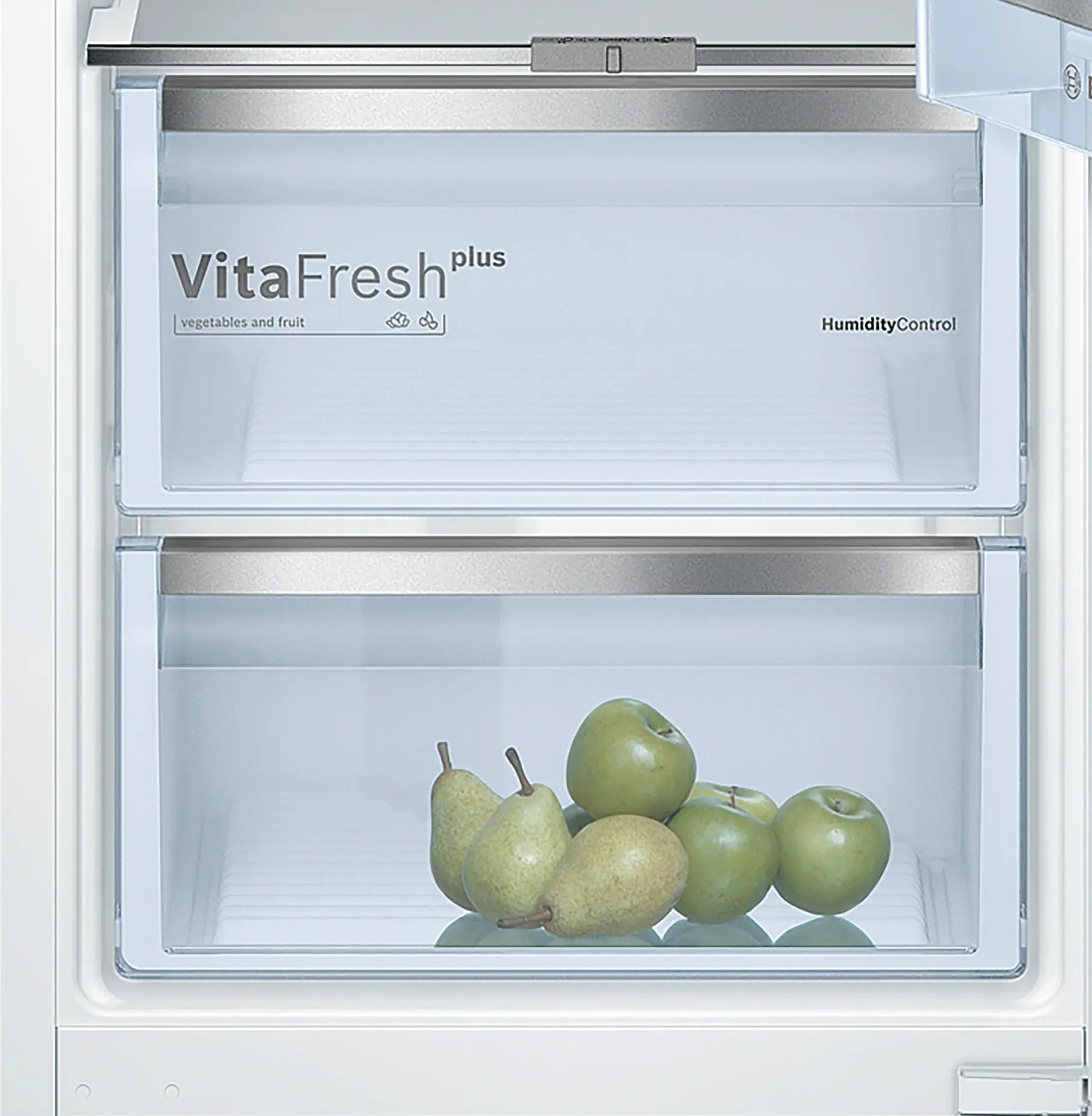

• VitaFresh Plus drawer: humidity-controlled storage compartment designed to help maintain freshness of fruit and vegetables for longer.
• EasyAccess shelf: pull-out glass shelf improves visibility and access to stored items.
• SuperCooling function: rapidly lowers internal temperature when fresh groceries are added.

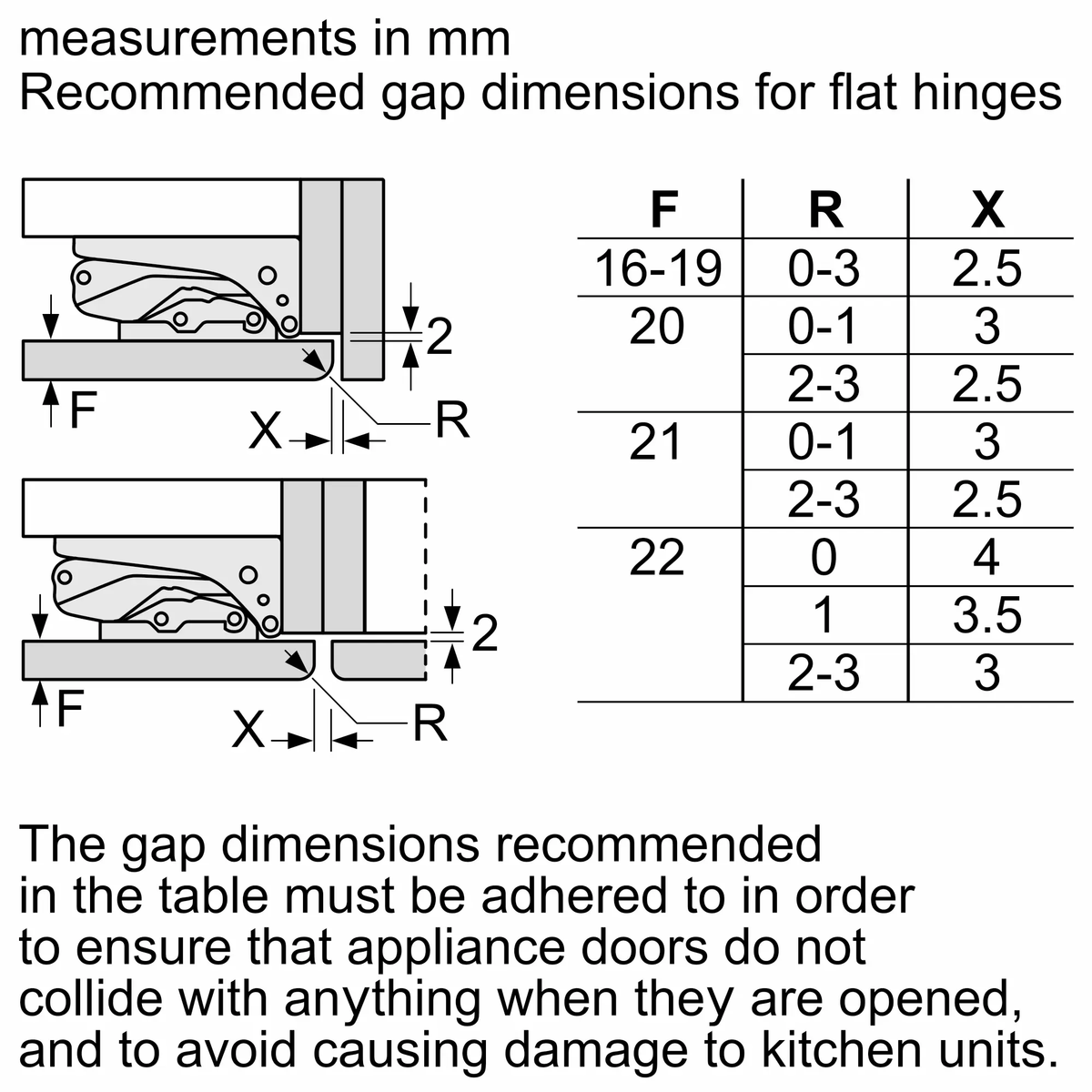

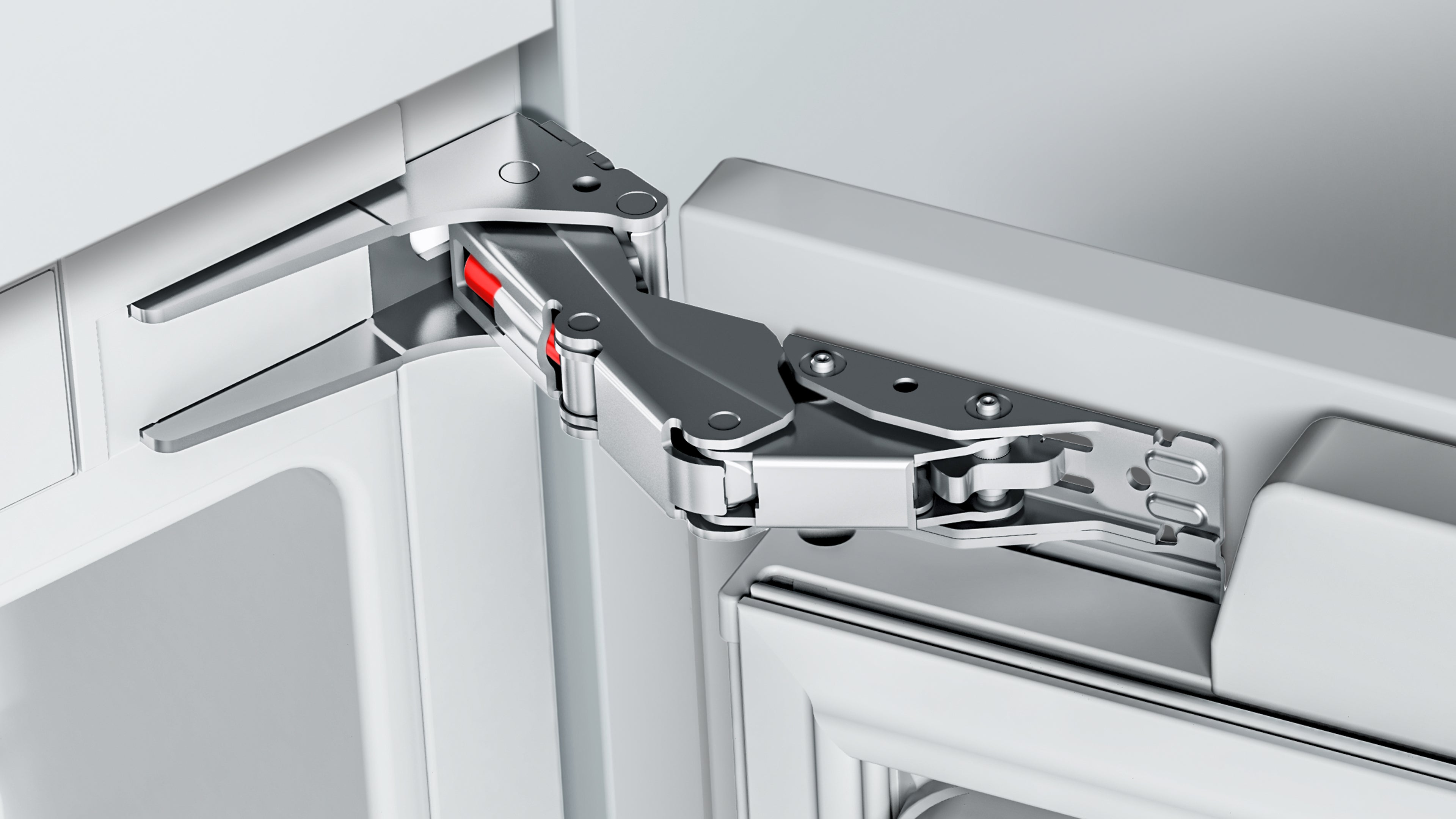

• SoftClose flat hinge system: door closes softly and automatically when nearly shut.
• MultiAirflow system: supports more even cold air distribution throughout the refrigerator cavity.
• LED lighting: low-energy internal illumination with reduced glare.

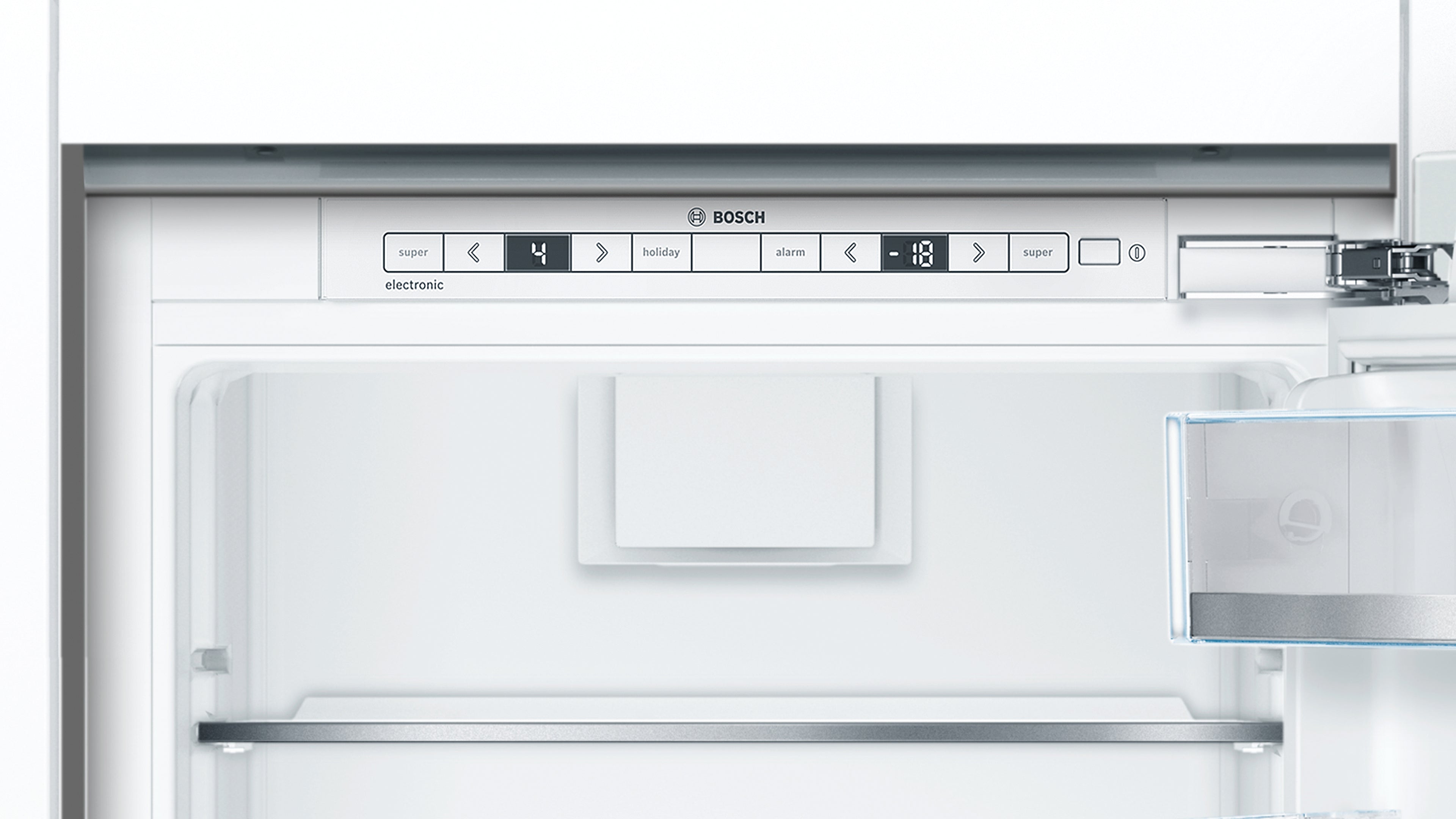

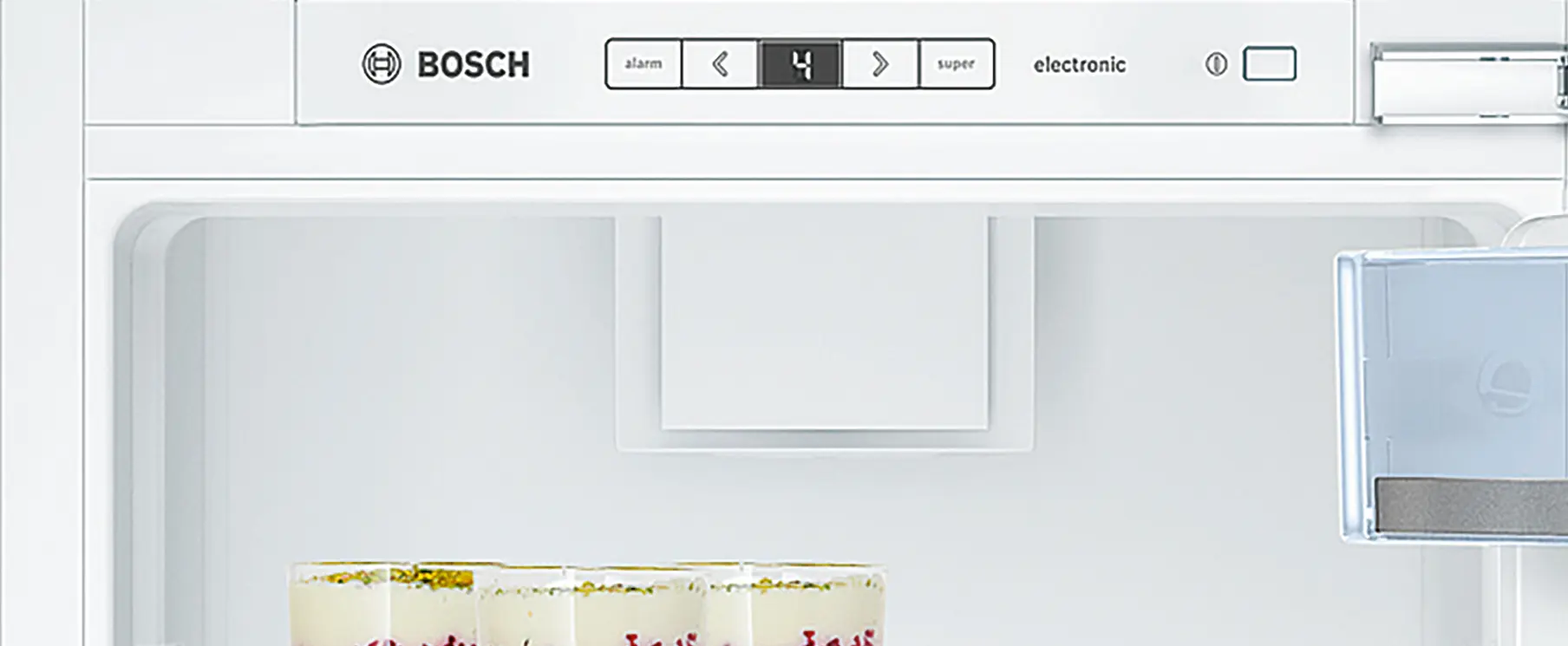

• Electronic temperature control: internal digital control system for precise temperature adjustment.
• Acoustic door alarm: audible alert when the refrigerator door remains open.

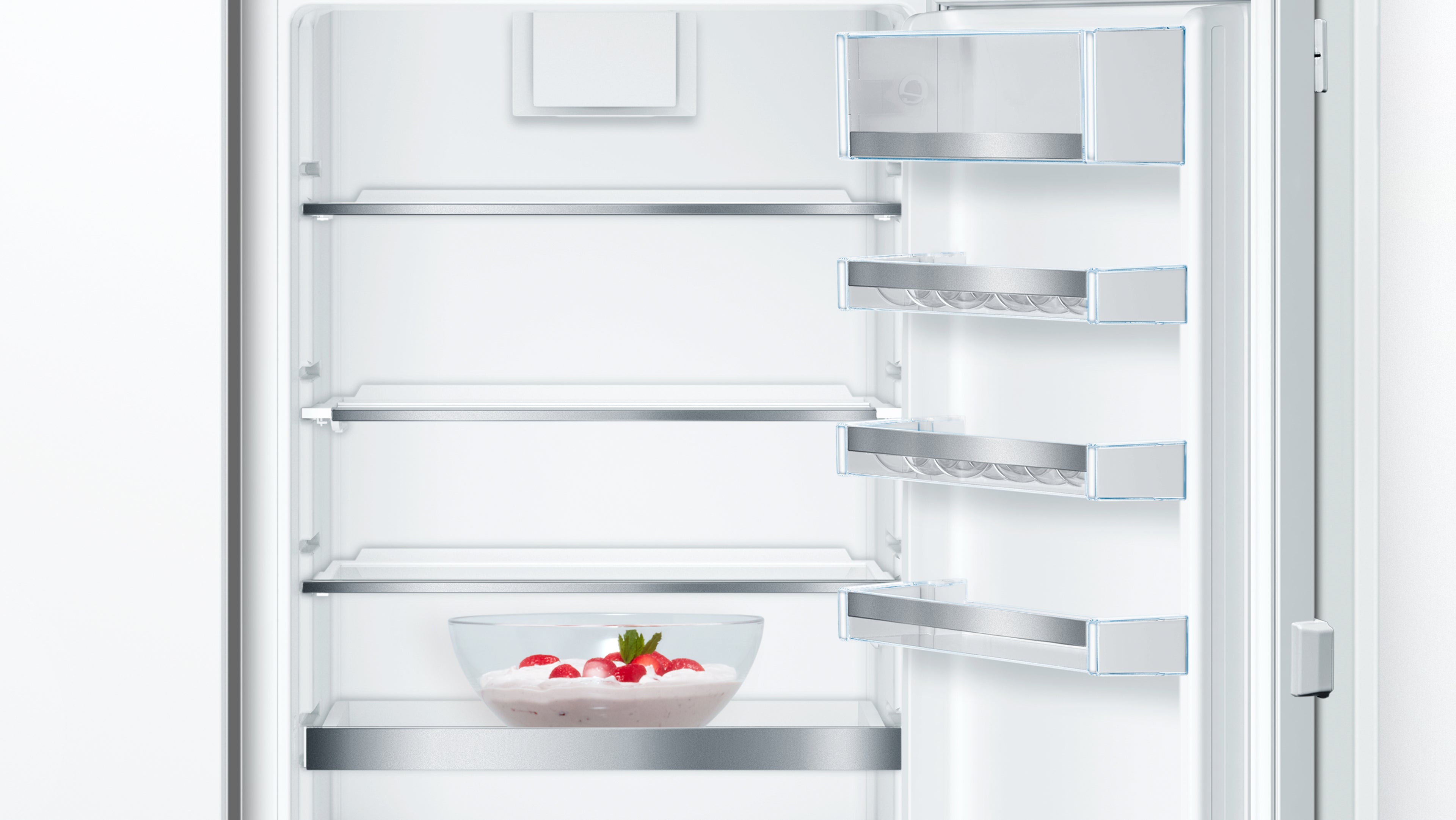

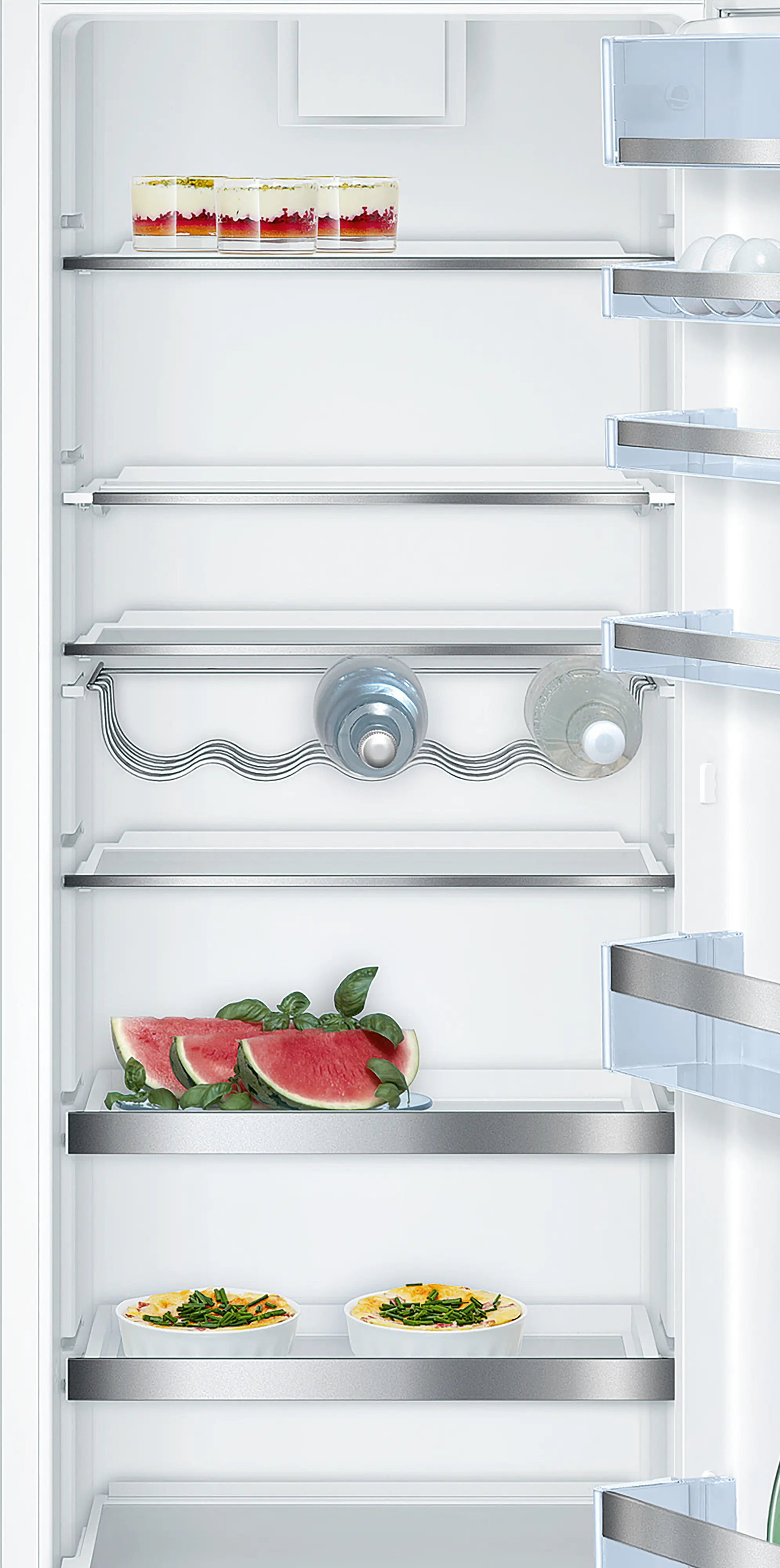

• Safety glass shelving: reinforced glass shelves designed for stable food storage.
• Metal wine rack: dedicated bottle storage integrated into the shelving system.
• Automatic fridge defrost: automatic defrosting within the refrigerator compartment.
• Reversible door hinge: right-hand hinge supplied, reversible during installation.

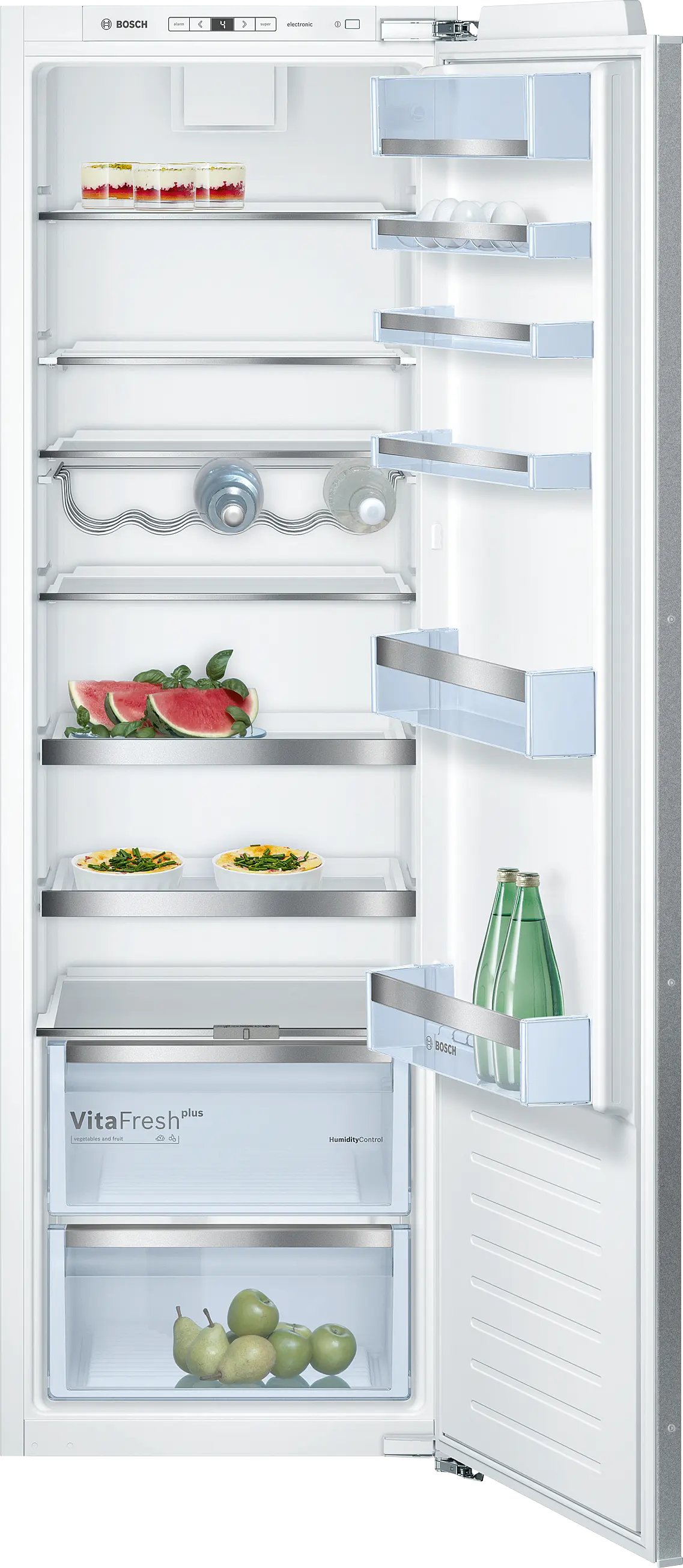

• Product type: Fully integrated refrigerator
• Series: Series 6
• Installation type: Built-in integrated
• Hinge system: SoftClose flat hinge
• Total net capacity: 319 L
• Fridge net capacity: 319 L
• Freezer section: No freezer compartment
• Climate class: SN-T
• Energy rating: 3 stars
• Annual energy consumption: 199 kWh per annum
• Noise level: 37 dB(A)
• Cooling system: MultiAirflow cooling
• Defrost system: Automatic fridge defrost
• Control type: Electronic touch controls
• Interior lighting: LED
• Number of shelves: 7 safety glass shelves
• Adjustable shelves: 6 height-adjustable shelves
• Vegetable drawers: 2 VitaFresh Plus drawers
• Door bins: 6
• Bottle rack: Metal wine rack
• Door alarm: Yes
• SuperCooling: Yes
• Egg trays: 2
• Ice maker: No
• Water dispenser: No
• Plumbing required: No

• Installation type: Fully integrated built-in refrigerator

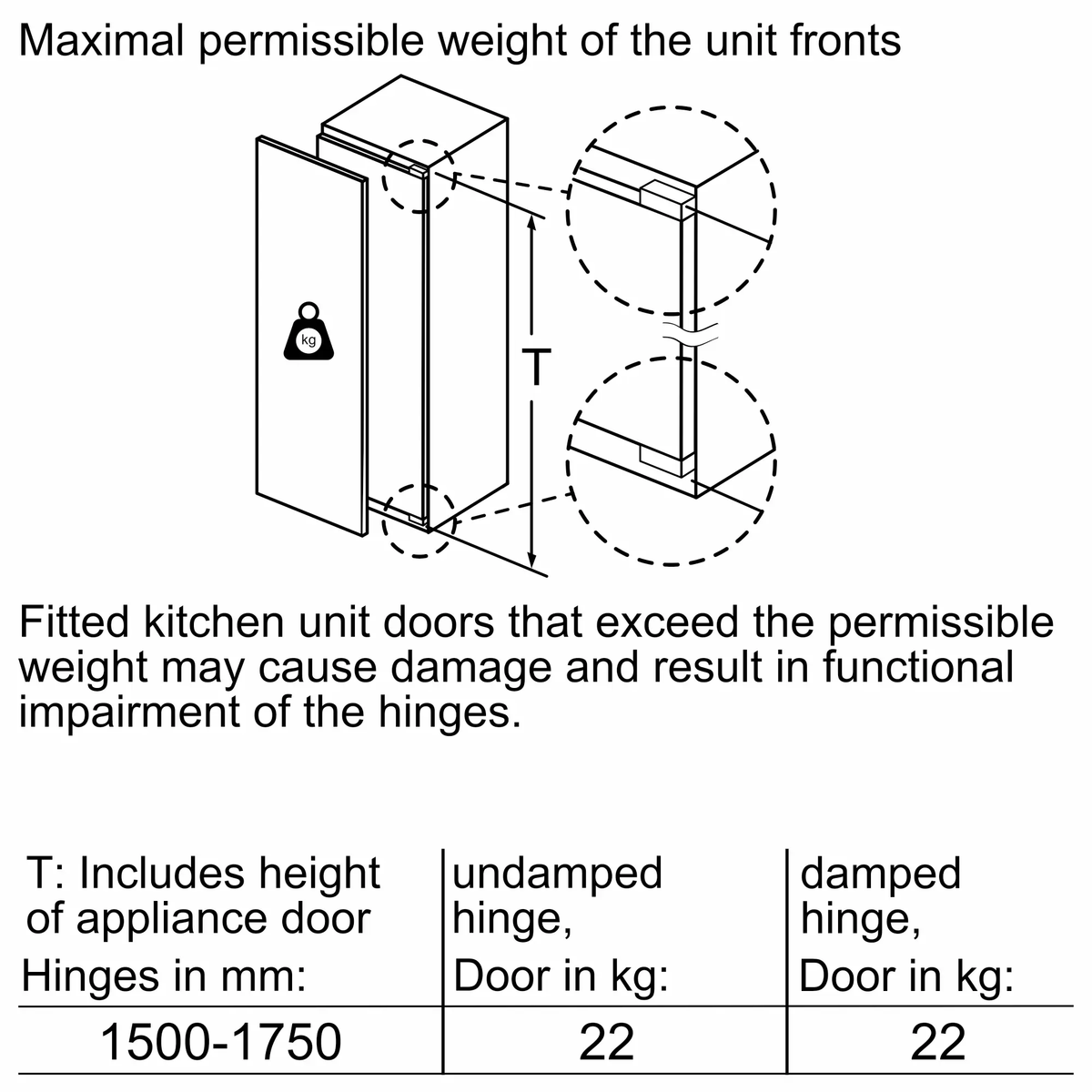

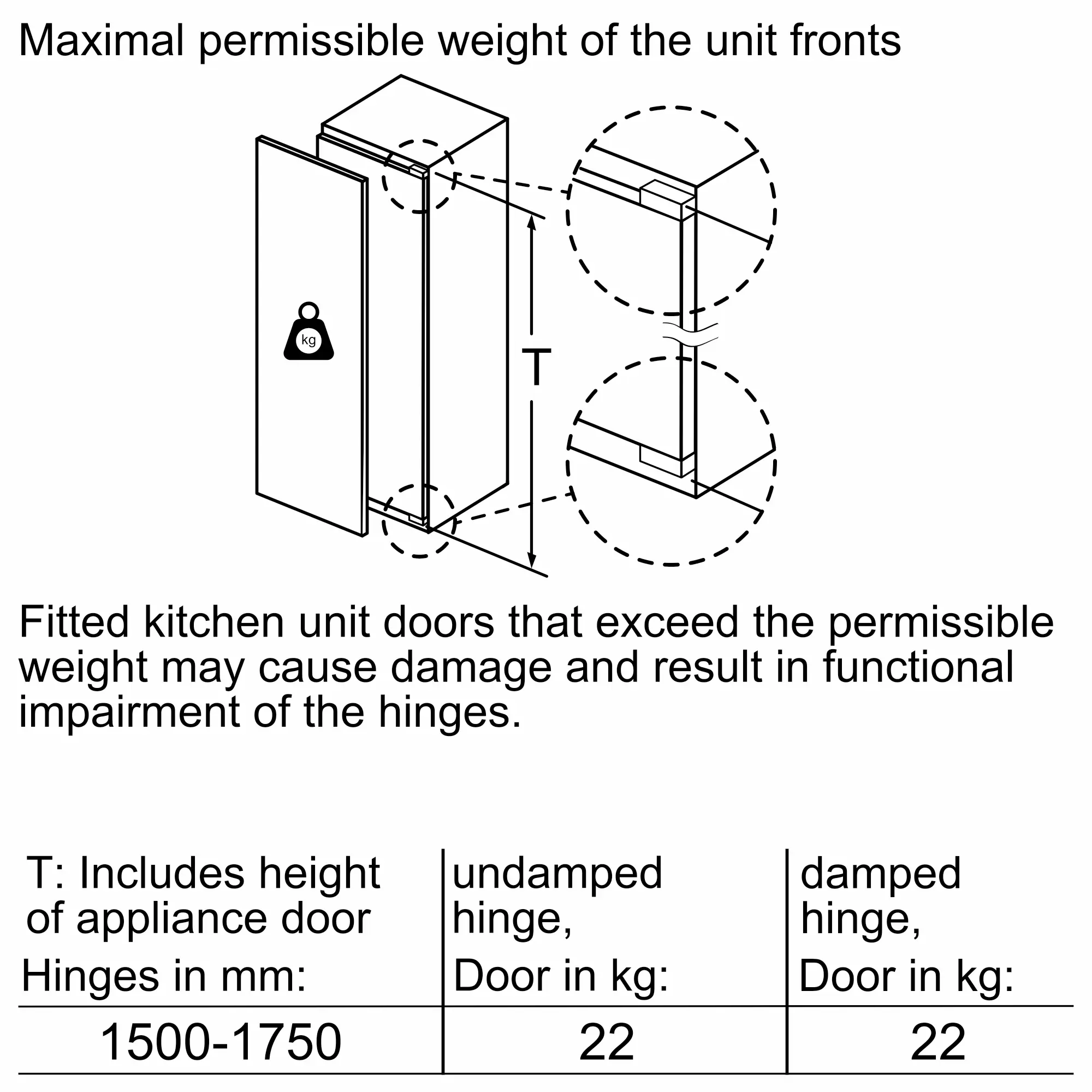

• Cabinet panel: Custom cabinetry panel required
• Door hinge: Right-hand hinge supplied, reversible
• Hinge mechanism: Flat hinge with SoftClose
• Power supply: 220–240 V / 50 Hz
• Connection rating: 90 W
• Fuse protection: 10 A
• Connection cable length: 230 cm

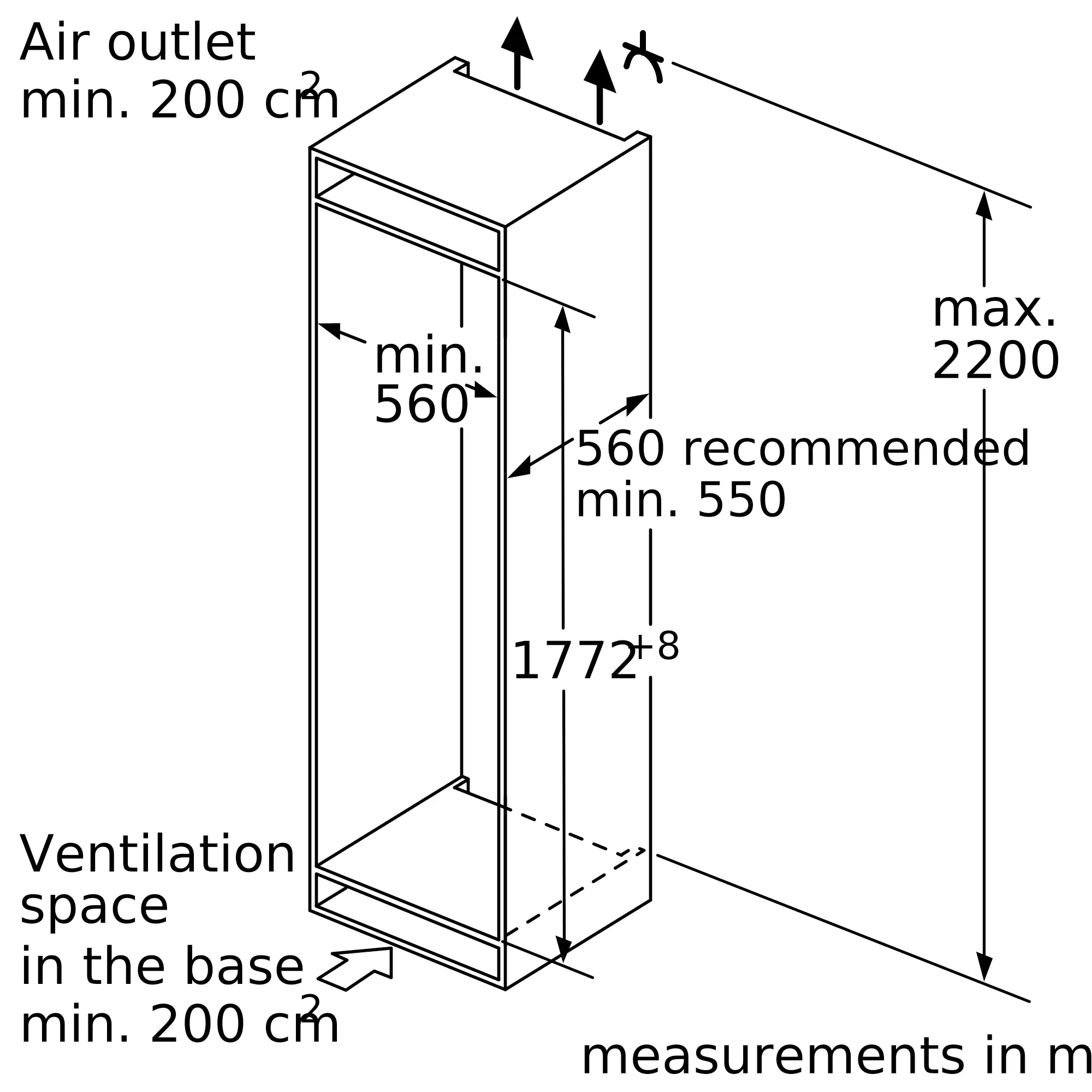

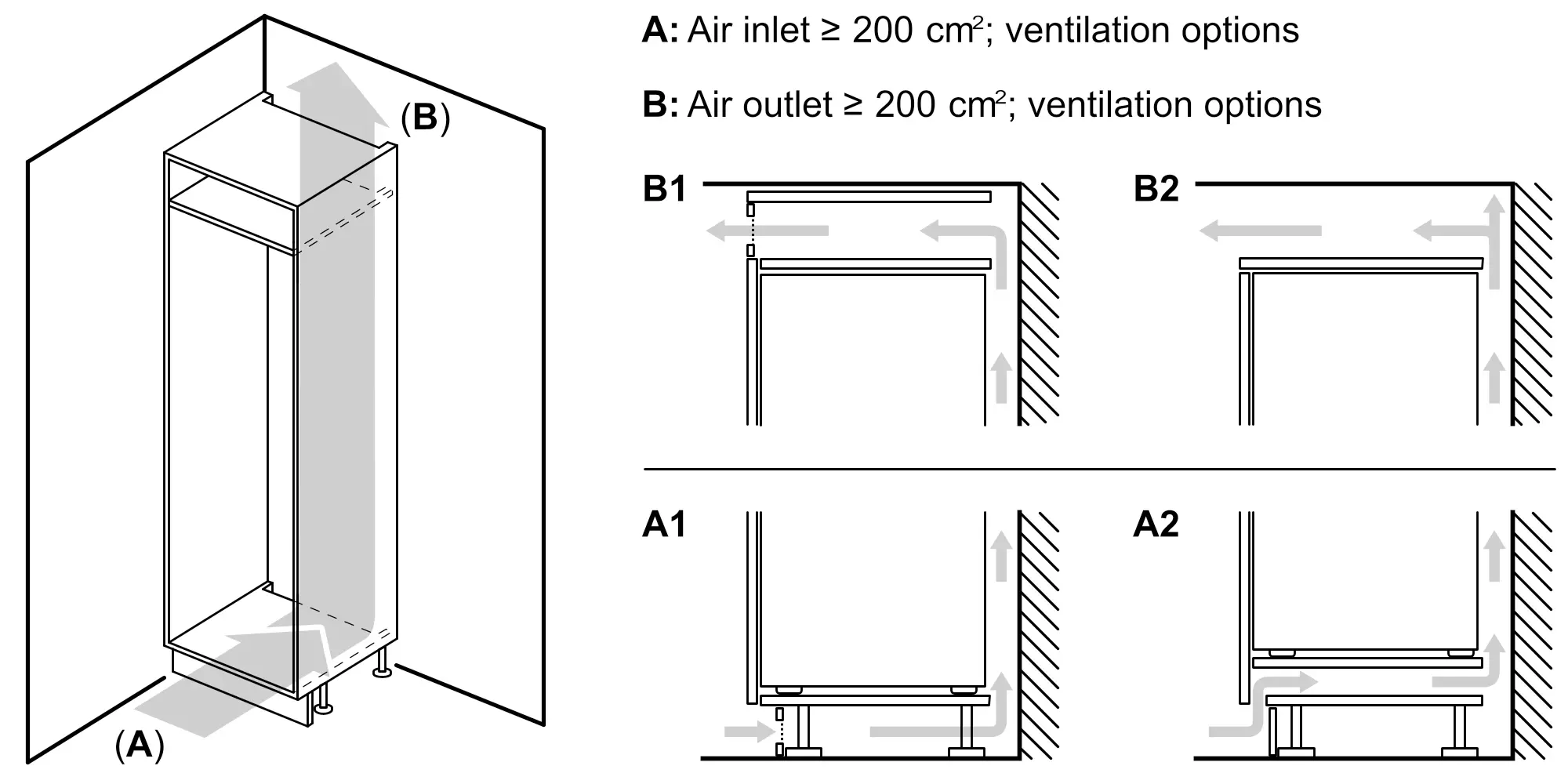

• Ventilation clearance: Refer to Bosch installation instructions
• Plumbing required: No plumbing connection required

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

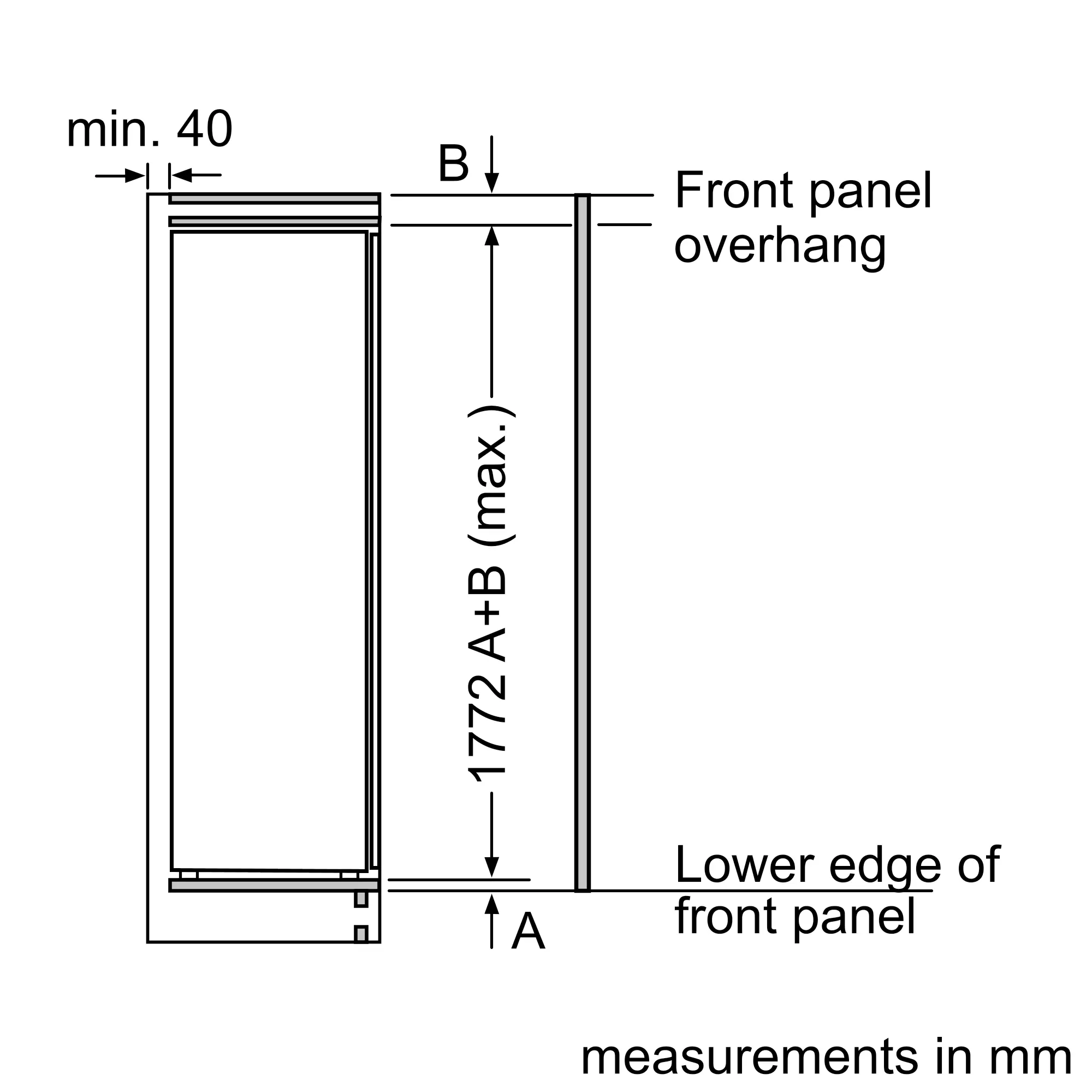

The KIR81AD30A is designed for integration behind a custom cabinetry door panel, allowing the appliance to visually align with surrounding kitchen cabinetry. The flat hinge installation system allows the furniture door and appliance door to operate together while maintaining a concealed appearance.

Bosch VitaFresh Plus storage technology provides a humidity-controlled environment intended to support extended freshness for fruit and vegetables. The MultiAirflow cooling system circulates chilled air evenly throughout the cavity to help minimise temperature fluctuations across shelving zones.

The EasyAccess pull-out shelf is designed to improve visibility to items positioned toward the rear of the refrigerator cavity. Safety glass shelving supports stable loading and easier cleaning within the compartment. The integrated LED lighting system provides full-width internal illumination while reducing energy consumption relative to traditional incandescent lighting systems.

• 2 x egg trays
• Metal wine rack
• Integrated bottle holder
• Installation hardware
• Installation instructions
