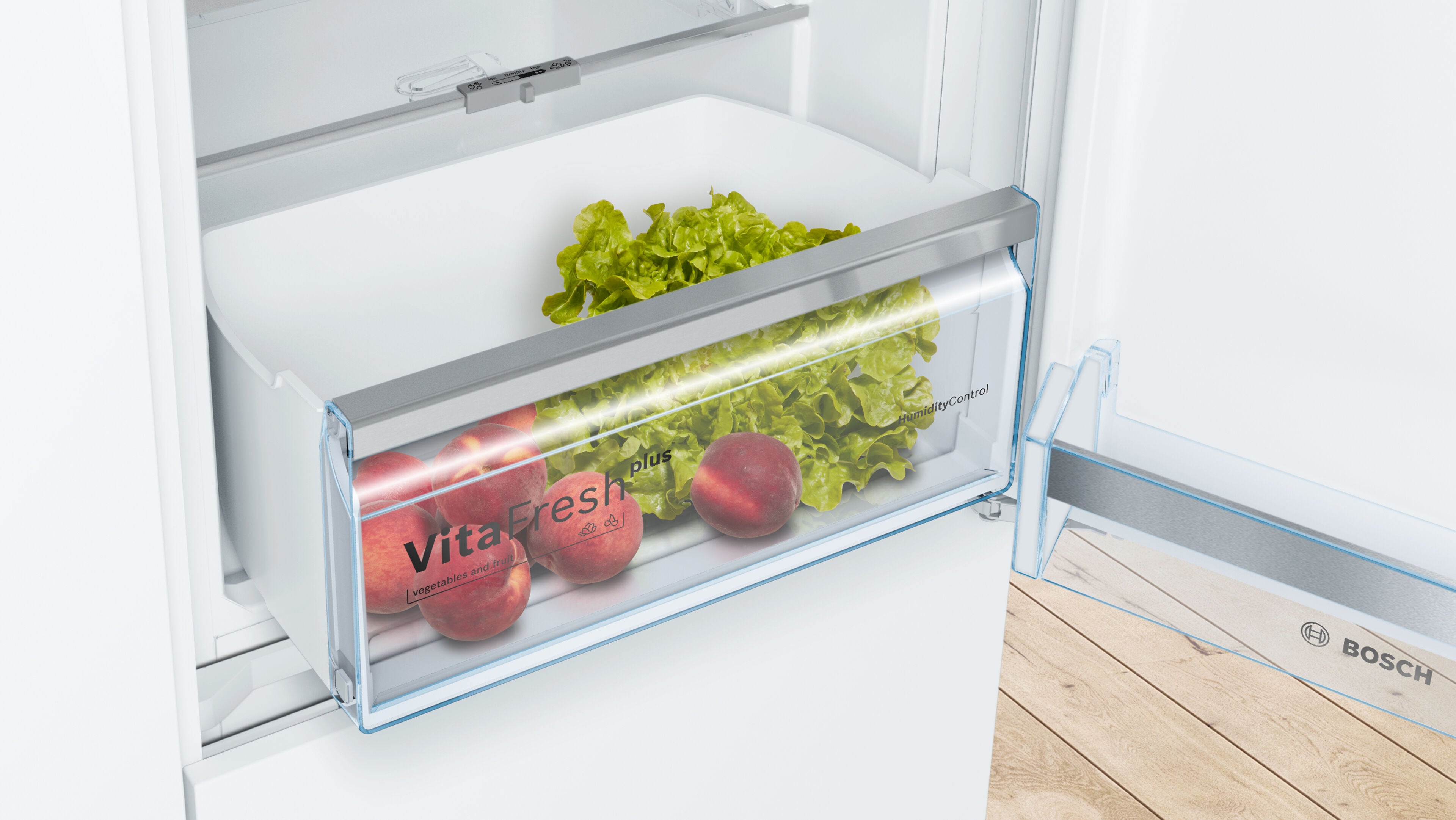

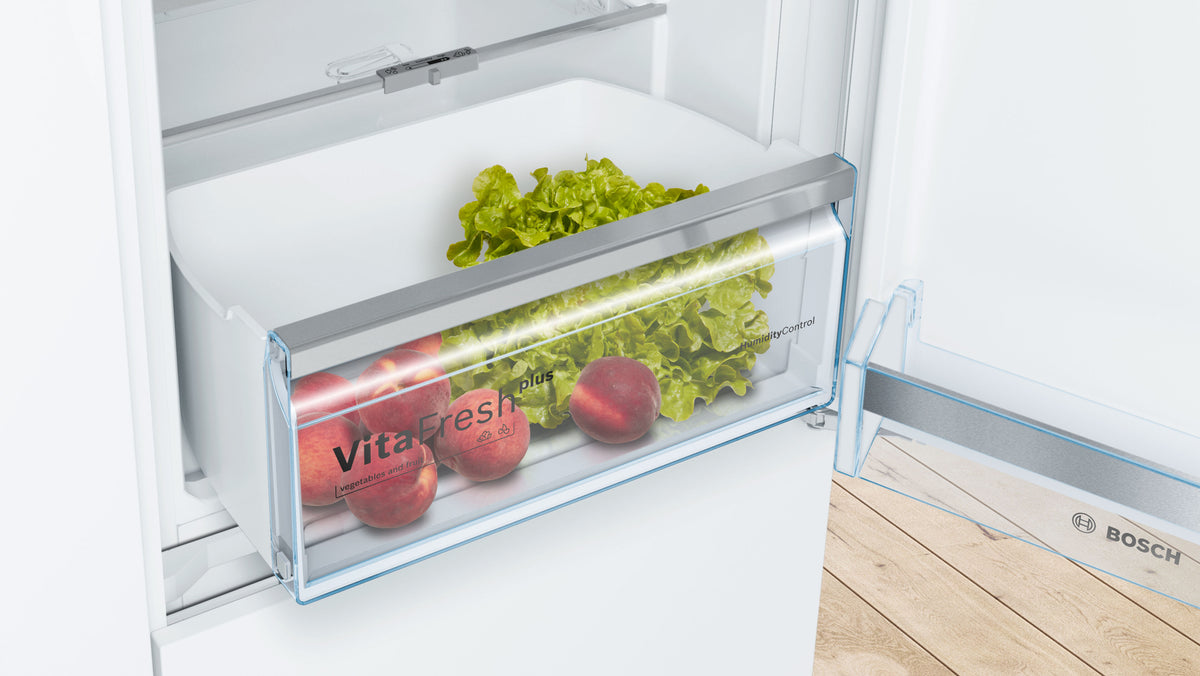

• VitaFresh climate-controlled drawer: helps maintain freshness of fruit and vegetables for longer storage periods.
• No Frost freezer technology: prevents ice build-up and removes the need for manual freezer defrosting.
• Easy Access Shelf: pull-out glass shelf improves visibility and access to stored items.

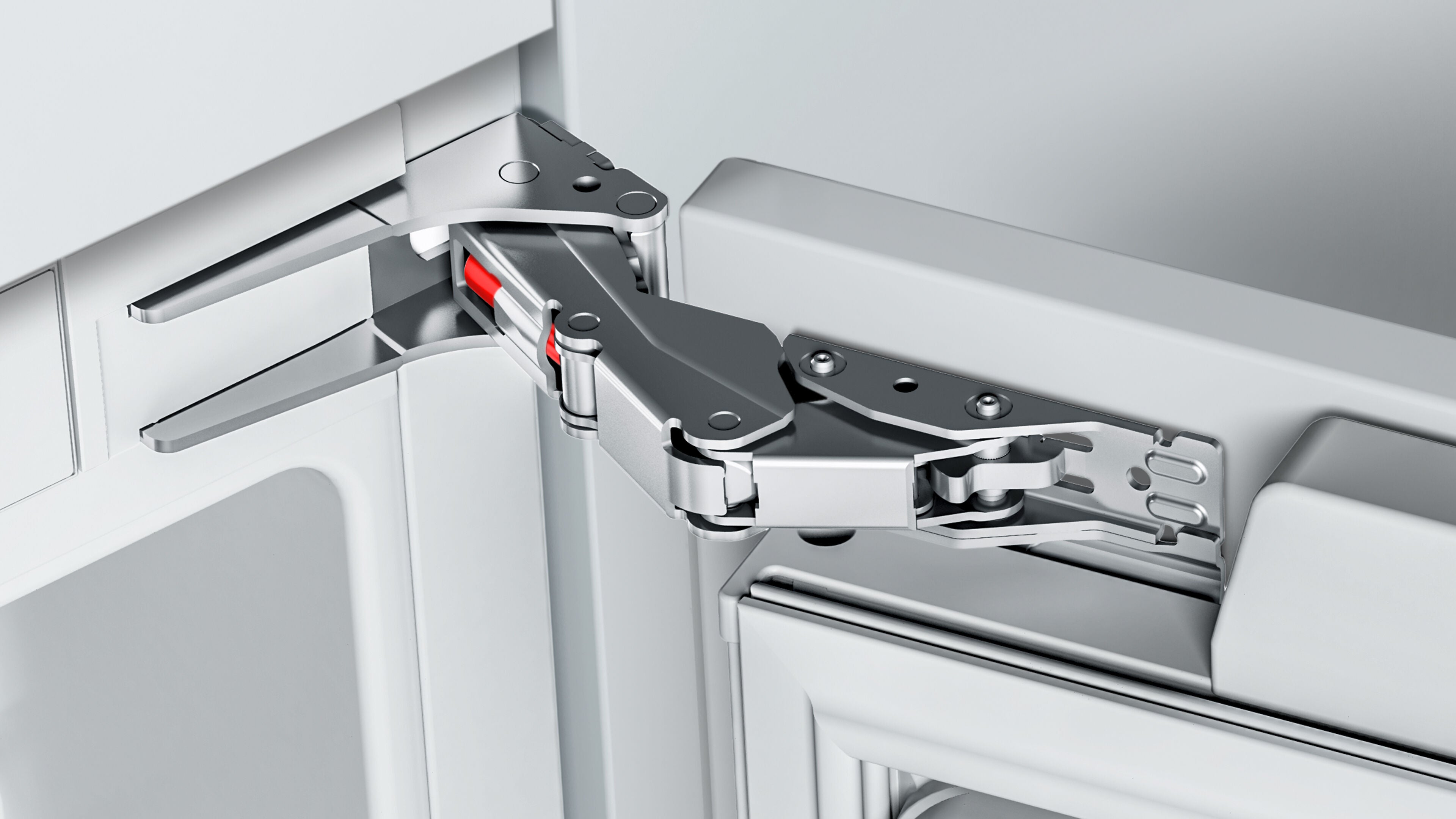

• SoftClosing Door: automatically closes softly and quietly from approximately 20° open position.
• SuperCooling function: rapidly lowers fridge temperature when loading groceries.
• SuperFreezing function: rapidly lowers freezer temperature to protect frozen items during loading.
• Independent cooling systems: separate fridge and freezer cooling control reduces odour transfer between compartments.
• LED internal lighting: energy-efficient internal illumination with clear cabinet visibility.

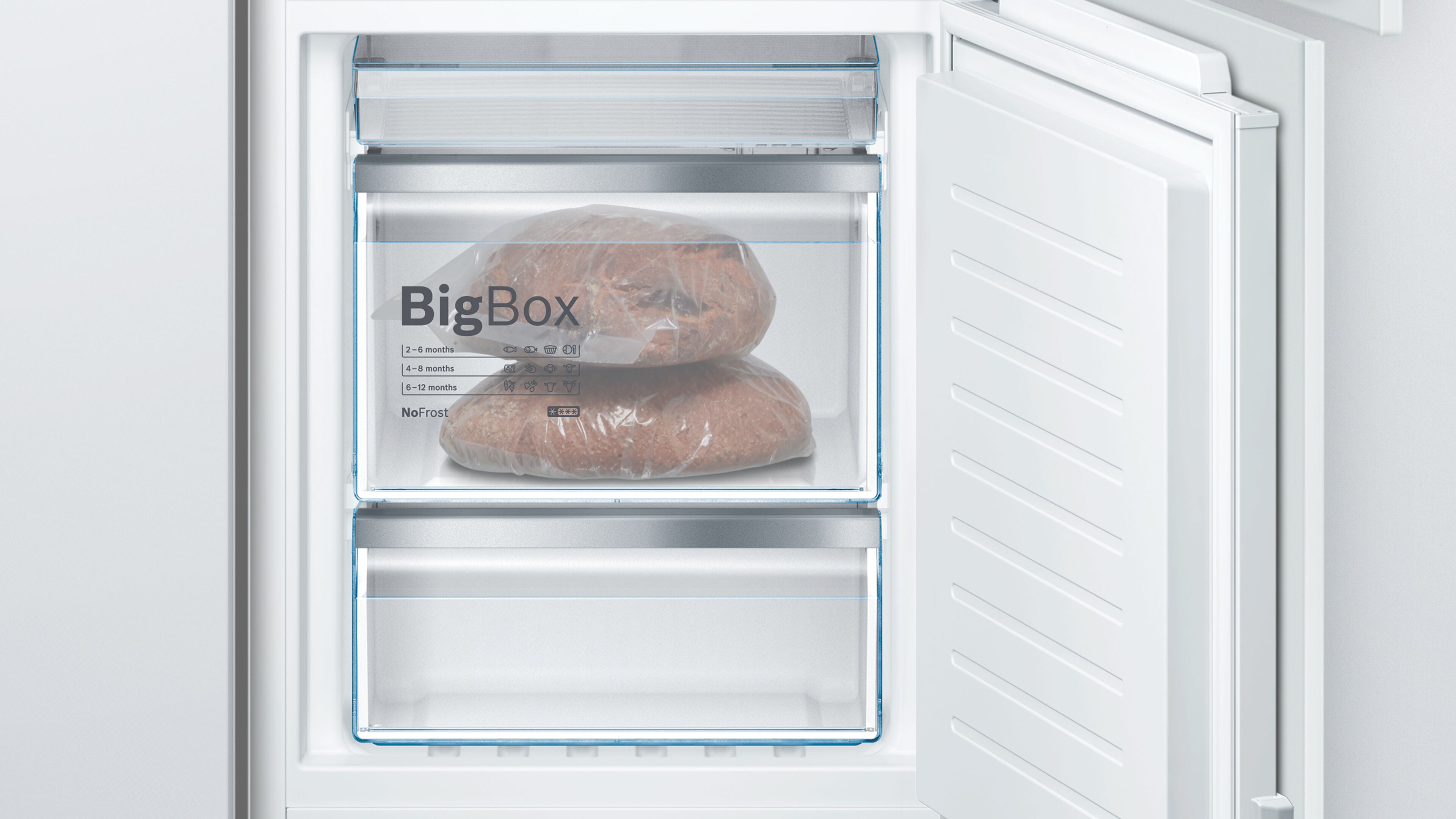

• BigBox freezer drawer: oversized freezer drawer suited to larger frozen food items.
• Acoustic door alarm: alerts when fridge or freezer door remains open.
• Safety glass shelves: durable tempered glass shelving throughout fridge compartment.
• Reversible door hinge: allows installation flexibility depending on kitchen layout.

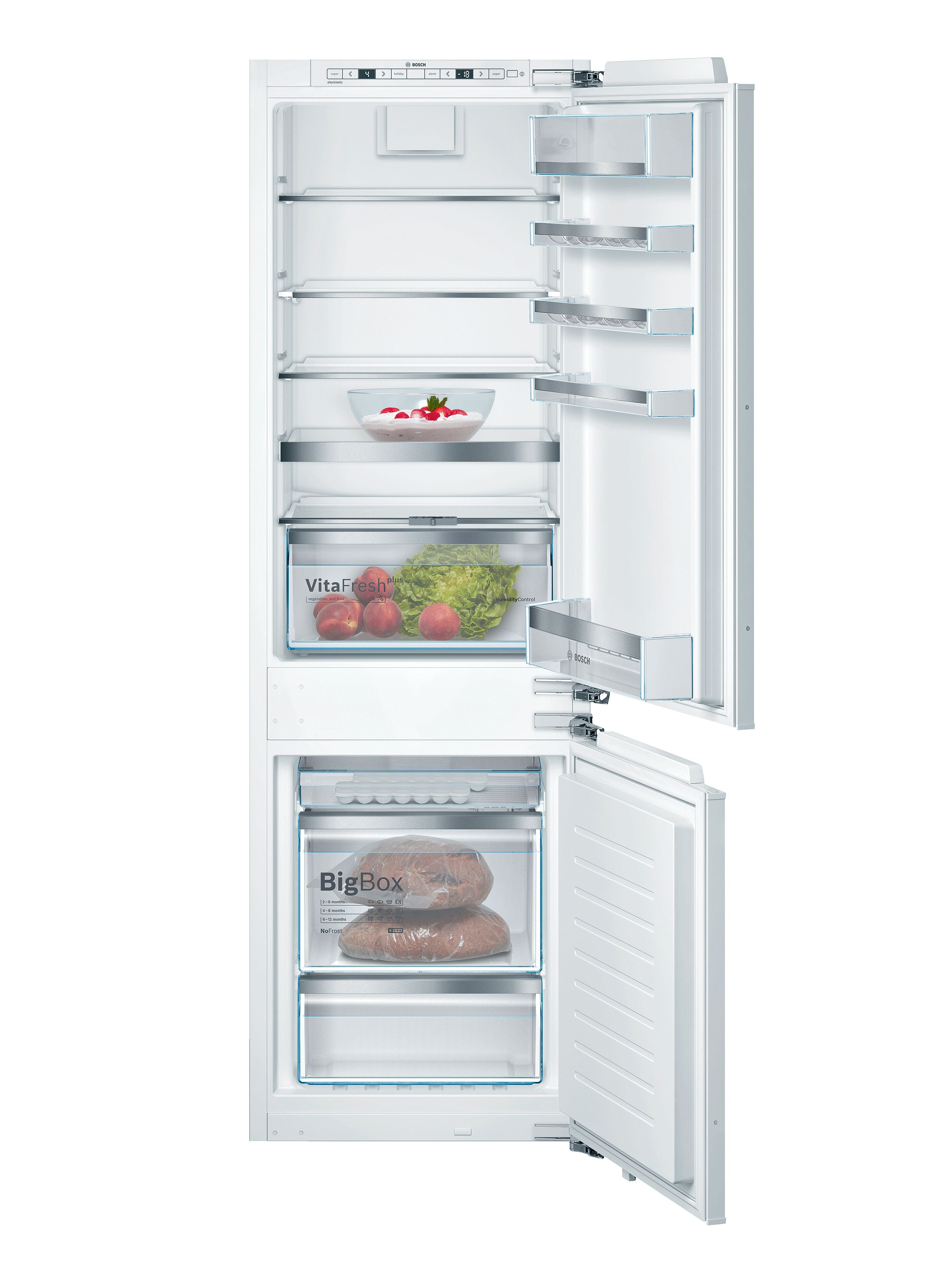

• Appliance type: Integrated bottom mount fridge-freezer
• Product range: Bosch Series 6
• Total net capacity: 254 L
• Total gross capacity: 273 L
• Fridge net capacity: 187 L
• Freezer net capacity: 67 L
• Fridge gross capacity: 189 L
• Freezer gross capacity: 84 L
• Cooling system: Dual independent cooling systems
• Freshness system: VitaFresh
• Defrost system: No Frost freezer
• Energy rating: 3.5 stars
• Annual energy consumption: 276 kWh
• Noise level: 38 dB(A)
• Climate class: SN-ST
• Freezing capacity: 8 kg / 24 hours
• Temperature rise time: 13 hours

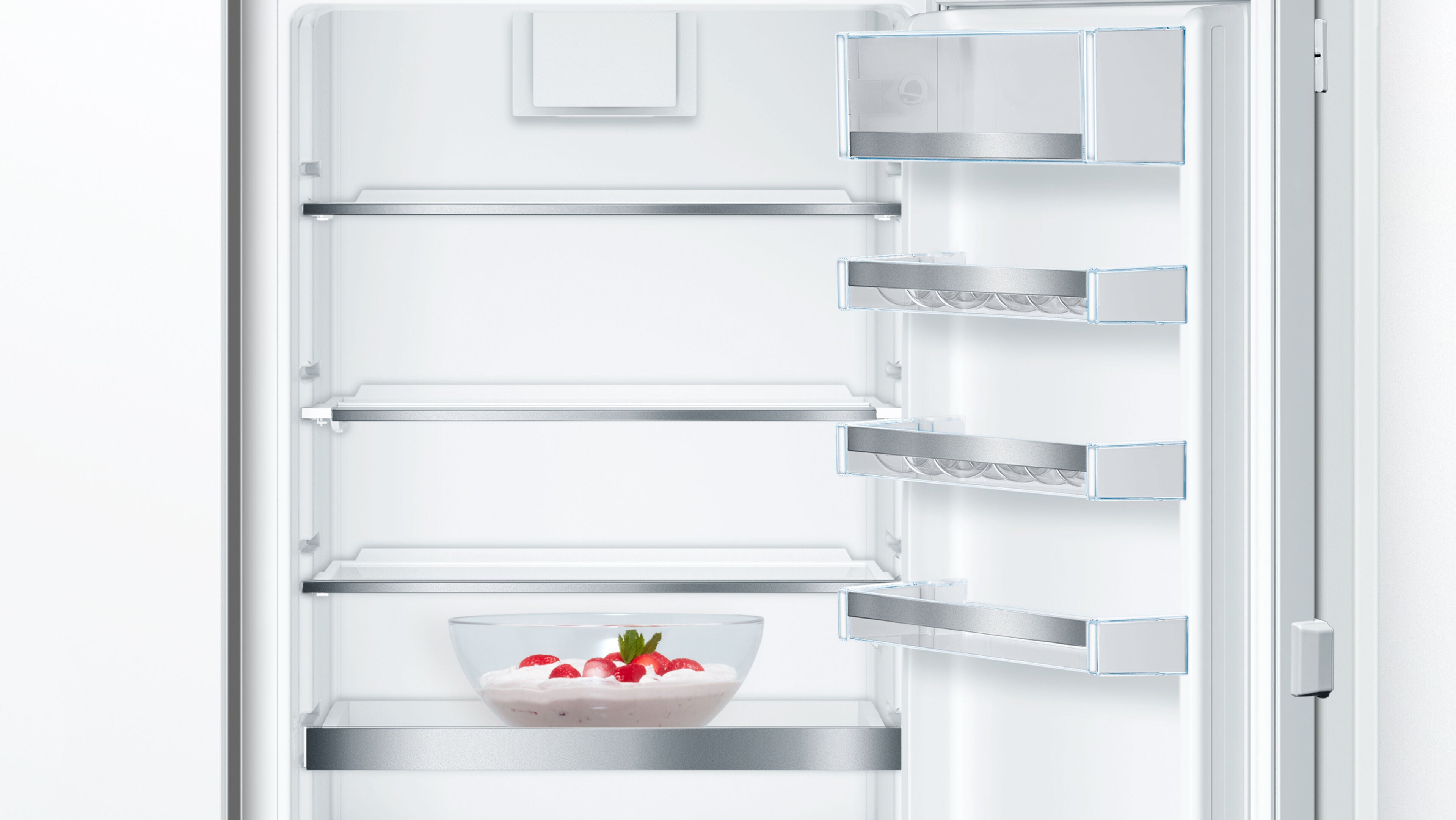

• Number of fridge shelves: 5
• Adjustable fridge shelves: 4
• Shelf material: Safety glass
• Number of freezer drawers: 3
• BigBox freezer drawer: Yes
• Interior lighting: LED
• Door hinge: Right reversible
• Water dispenser: No
• Ice dispenser: No
• Plumbing required: No
• Home Connect: No
• Main colour of product: Not applicable — integrated cabinetry finish

• Installation type: Fully integrated built-in

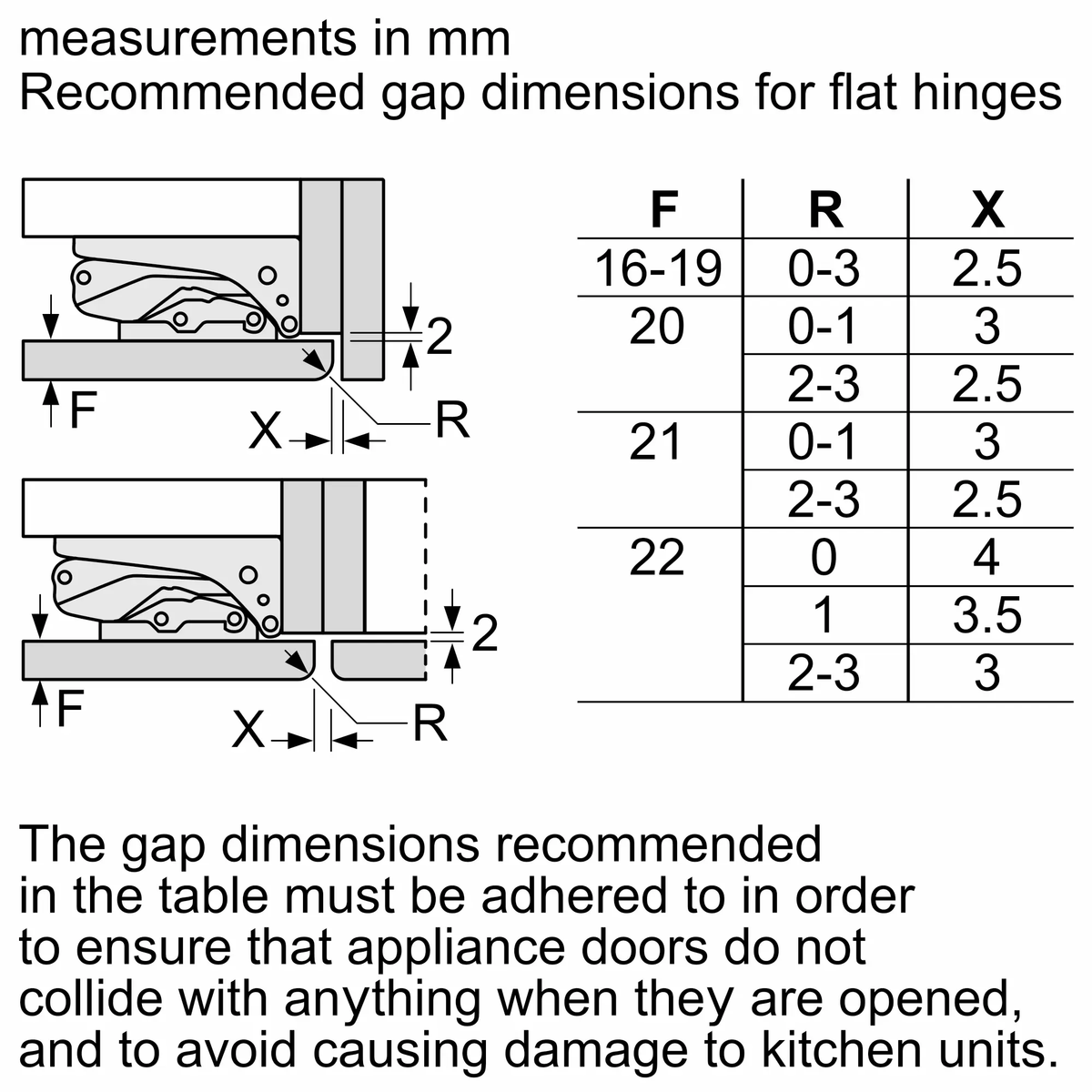

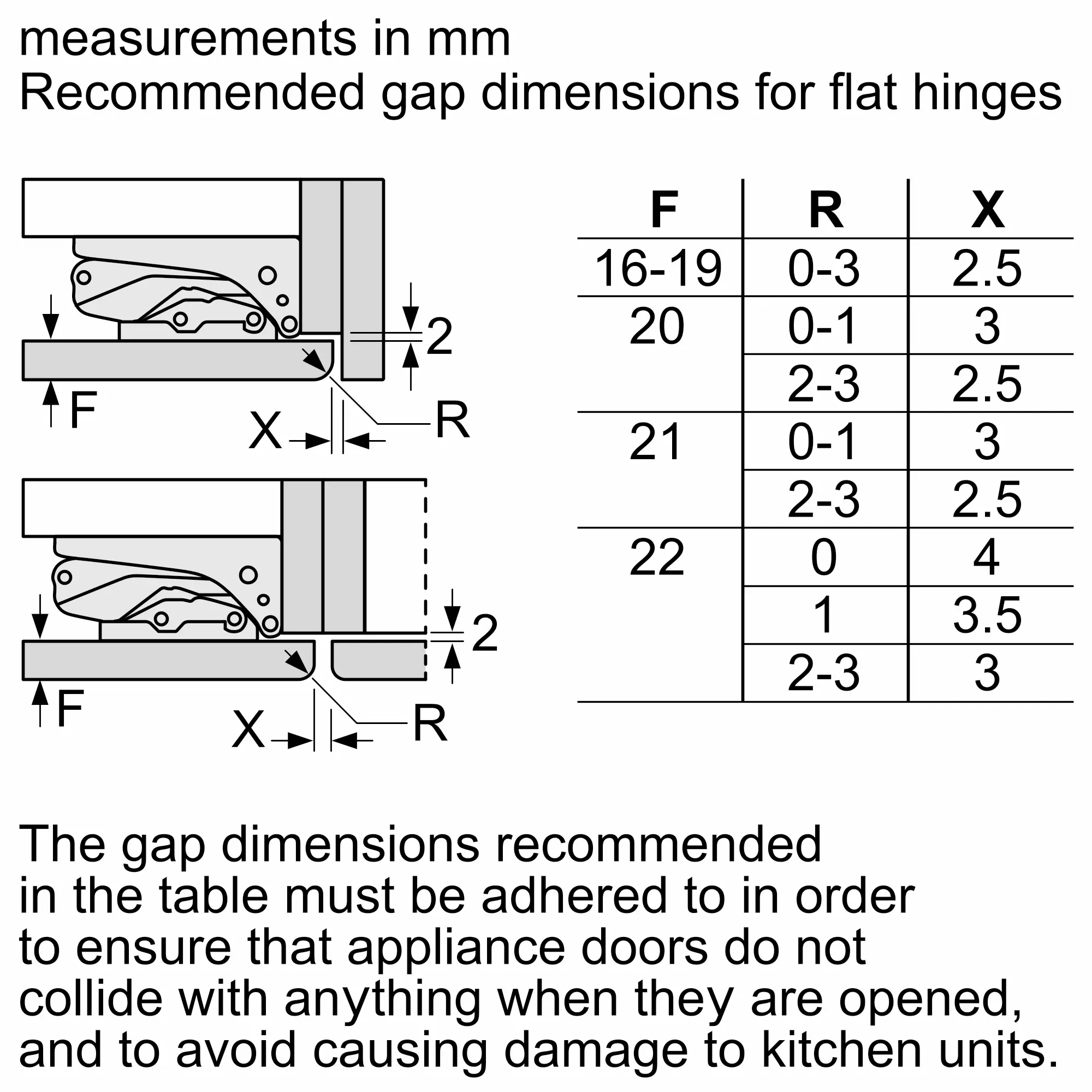

• Door system: Flat hinge
• Cabinetry panel required: Yes — supplied separately
• Connection type: Plug-in
• Power supply: 220–240 V / 50 Hz
• Connection rating: 90 W
• Current requirement: 10 A
• Power cord length: 230 cm

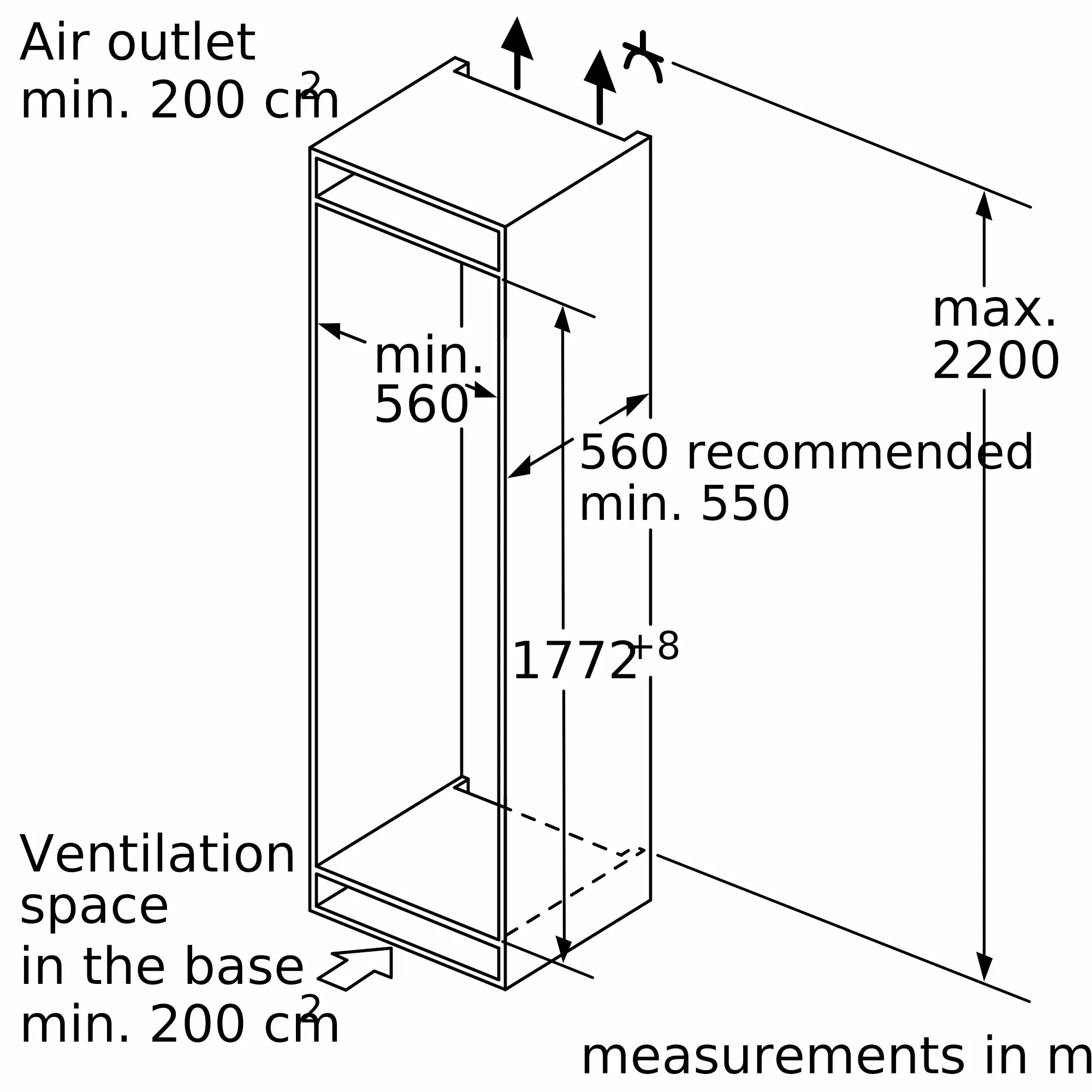

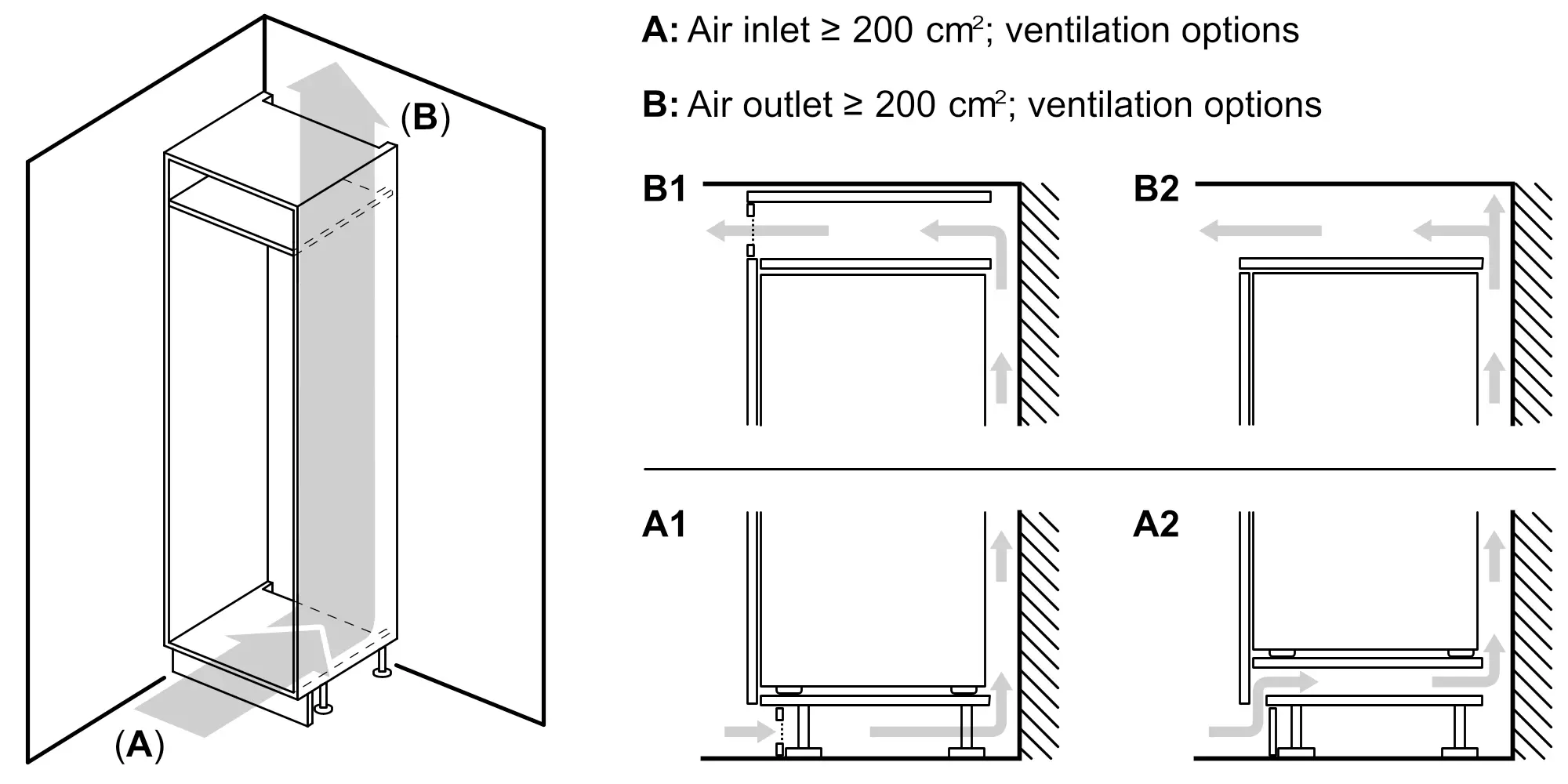

• Ventilation requirements: Refer to installation guide
• Door hinge configuration: Right reversible
• Plumbing requirement: None

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

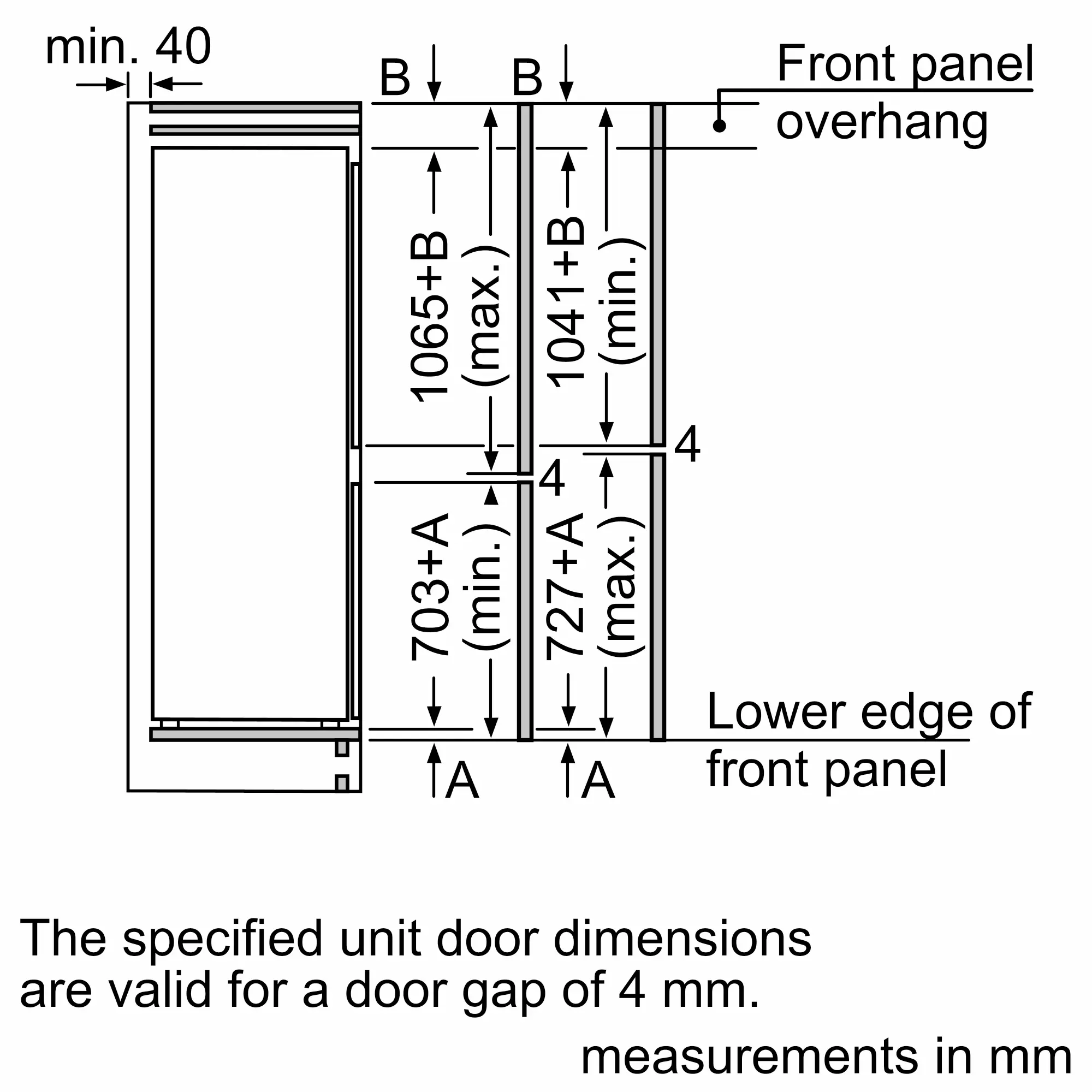

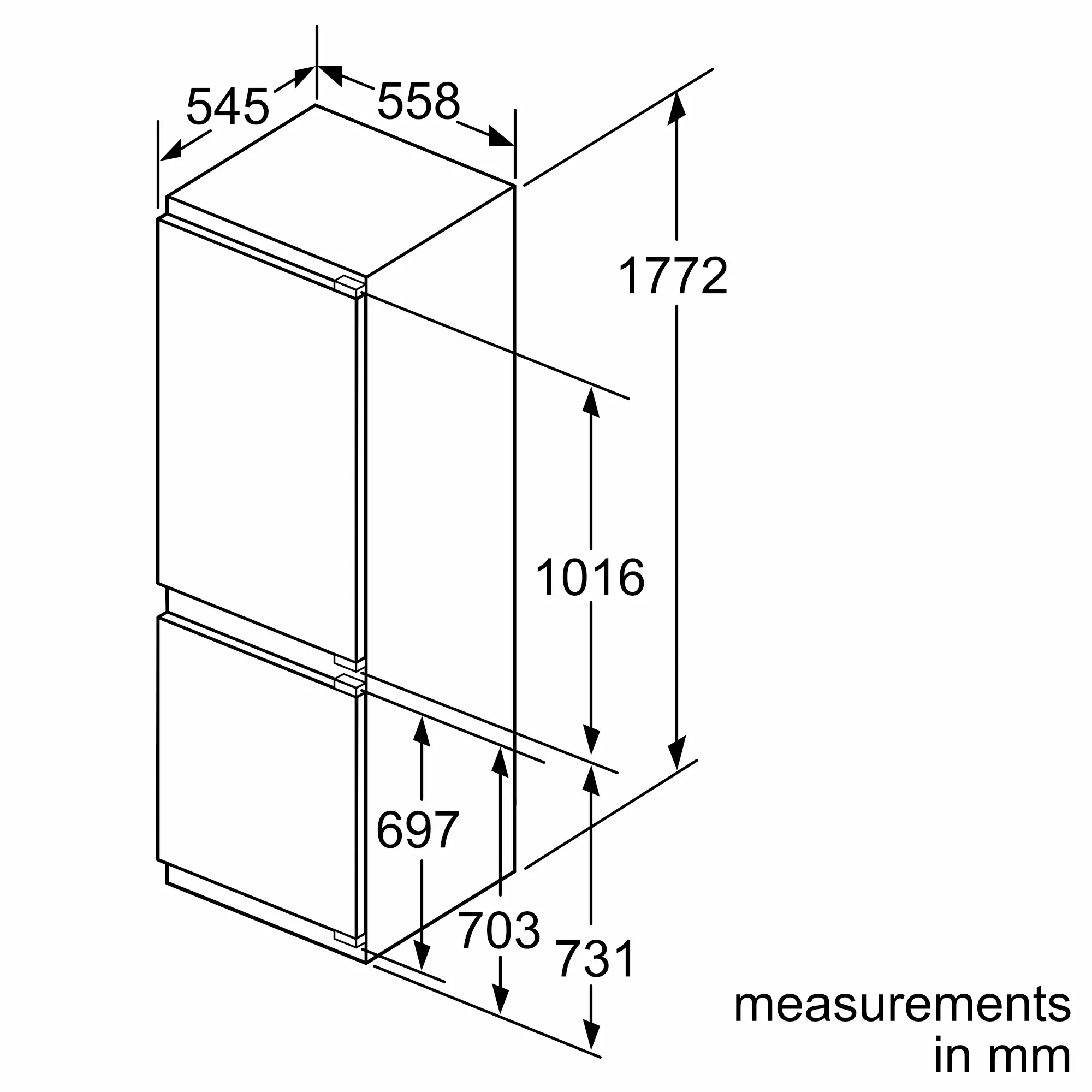

The KIN86AD30A is designed for full integration into kitchen cabinetry and does not include visible external appliance doors. Cabinetry panels are supplied separately by the kitchen manufacturer or installer to match surrounding joinery finishes.

Bosch SoftClosing technology automatically guides the integrated door closed when partially open, helping reduce slamming and improving long-term hinge operation. The Easy Access pull-out shelf system allows stored contents at the rear of the refrigerator compartment to remain more visible and accessible without unloading front items.

The VitaFresh storage compartment provides adjustable humidity control intended to assist with longer-term storage of fresh produce. Independent cooling systems help reduce moisture and odour transfer between the refrigerator and freezer compartments.

• Ice cube tray
• Bottle holder
• 2 x cold accumulator packs
• Egg tray
• Installation hardware kit
• User documentation

• SPECIFICATIONS SHEET (PDF)
• USER MANUAL (PDF)
• INSTALLATION INSTRUCTIONS (PDF)
• SUPPLEMENTRY SHEET (PDF)
