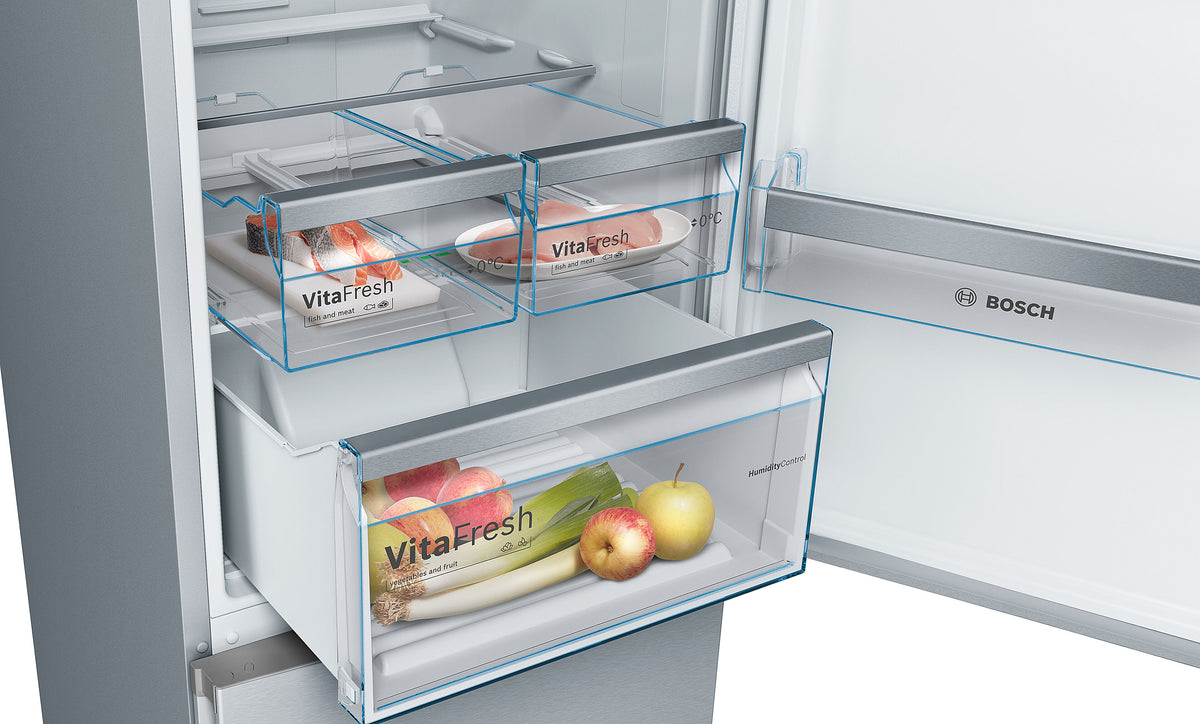

• VitaFresh system: climate-controlled storage compartments designed to help preserve freshness and texture in fresh food.
• Humidity-controlled produce drawers: adjustable humidity settings for fruit and vegetable storage.
• Near 0°C storage compartment: lower-temperature zone suited to meat, poultry, fish, and dairy products.
• NoFrost technology: prevents internal ice build-up and removes the need for manual freezer defrosting.

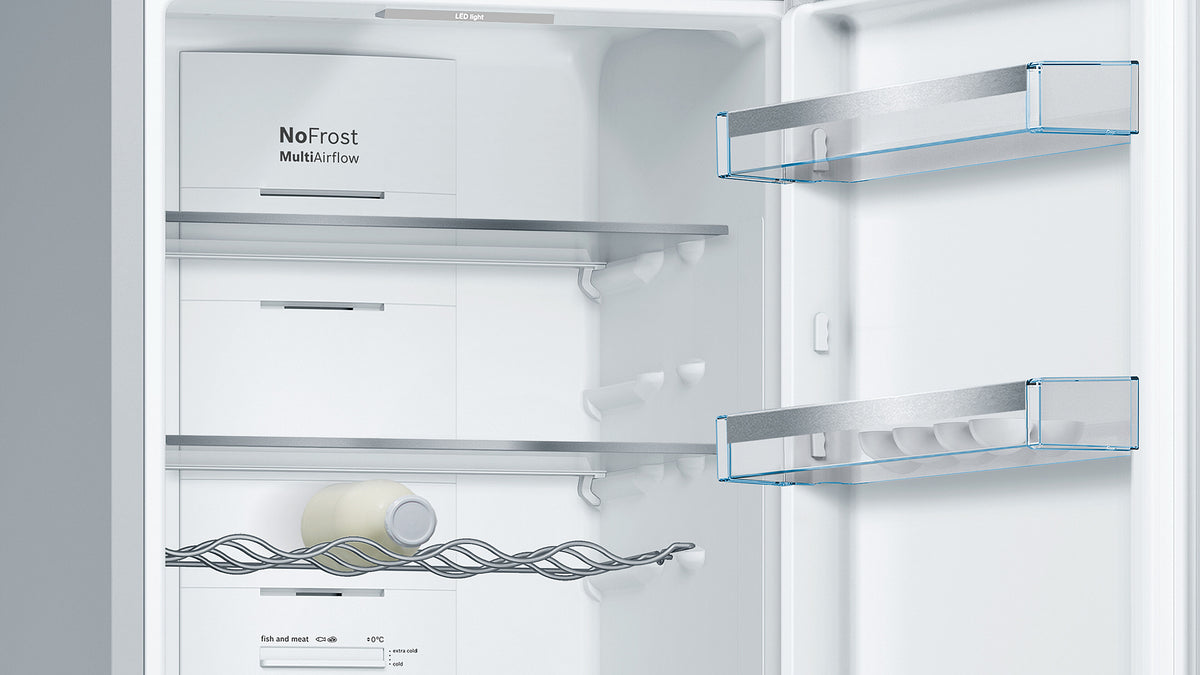

• MultiAirflow cooling system: fan-assisted air circulation supports more even internal temperature distribution.
• SuperCooling function: rapidly lowers refrigerator temperature after loading groceries.

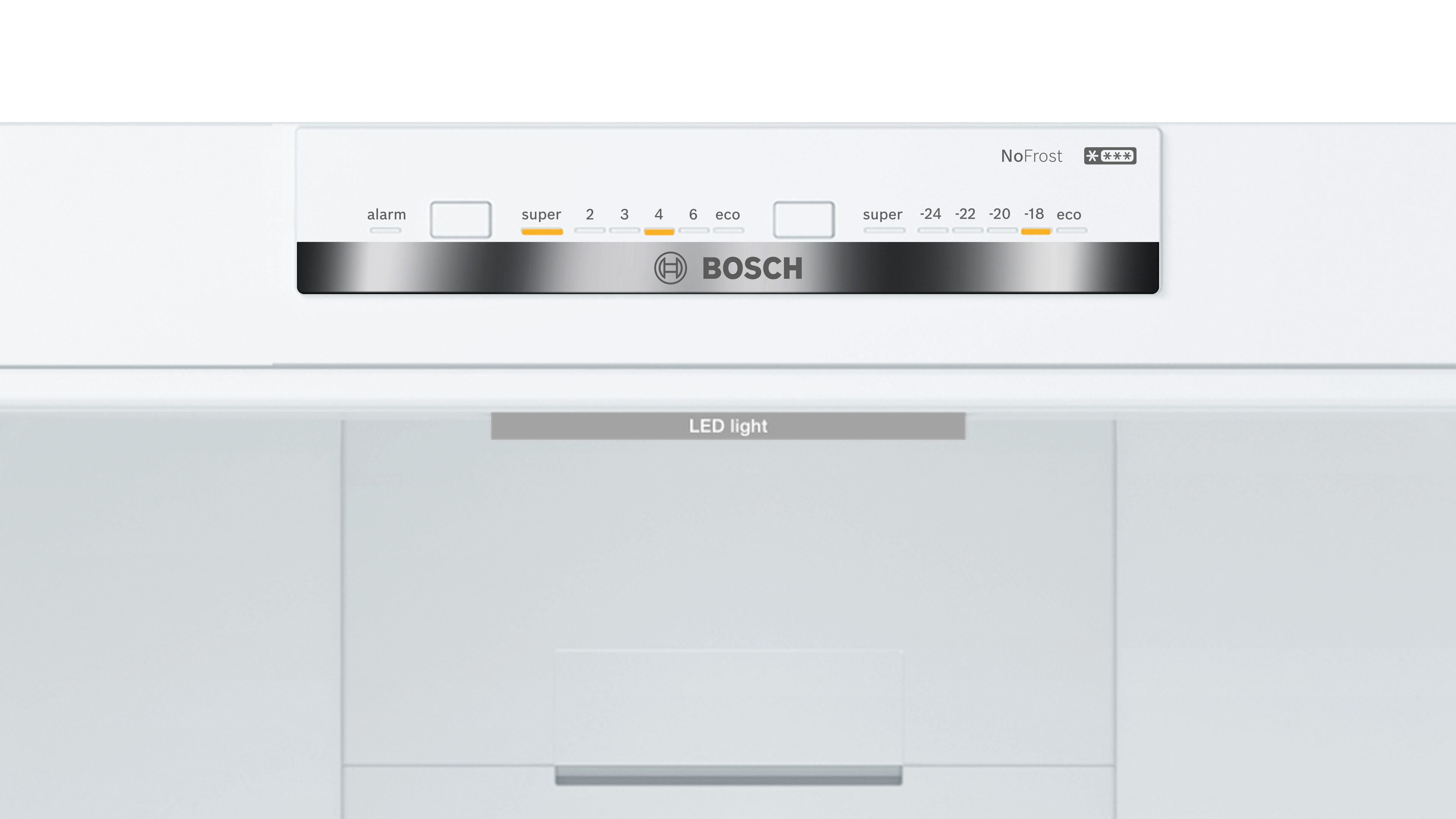

• Electronic temperature controls: precise digital cooling adjustment.
• LED interior lighting: bright, low-energy illumination throughout the refrigerator cavity.
• EasyAccess shelf: retractable glass shelf improves visibility and loading access.
• Safety glass shelving: durable tempered glass shelves throughout refrigerator compartment.
• Bottle storage support: dedicated bottle storage configuration.
• Door open alarm: audible alert if refrigerator or freezer doors remain open.
• Integrated vertical handles: concealed handle design integrated into door profile.
• Anti-fingerprint finish: reduces visible smudges and fingerprints on stainless steel surfaces.
• Reversible door hinges: flexible installation orientation.
• Automatic defrosting: automatic defrost management in refrigerator compartment.

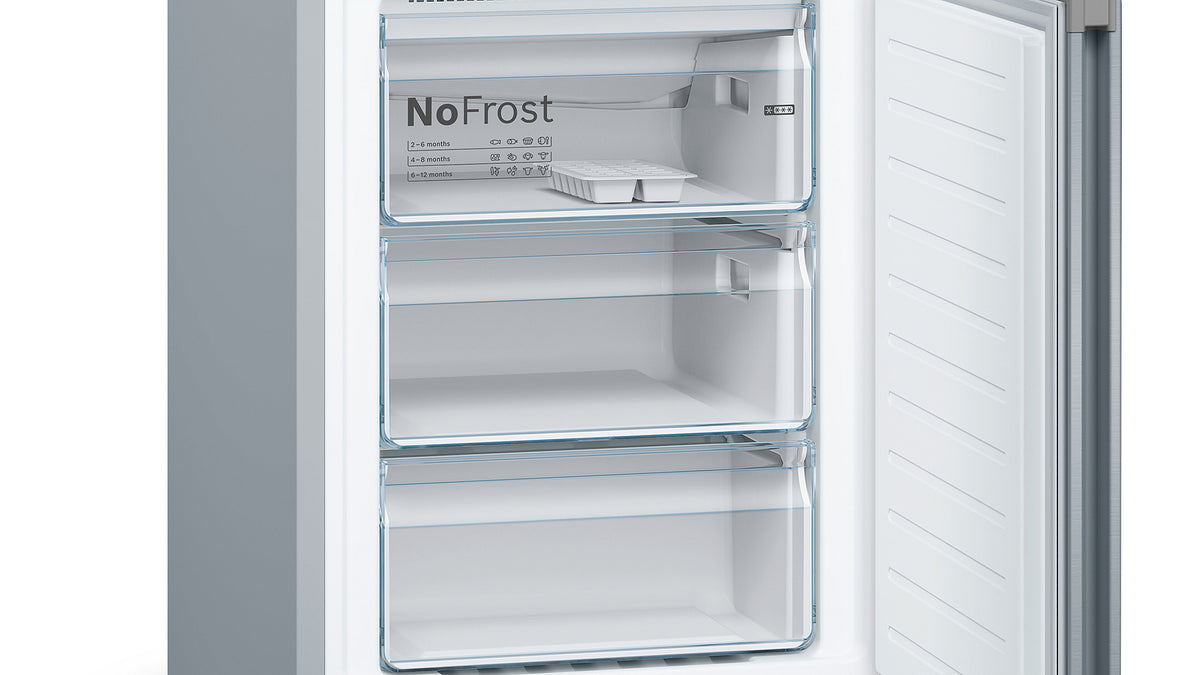

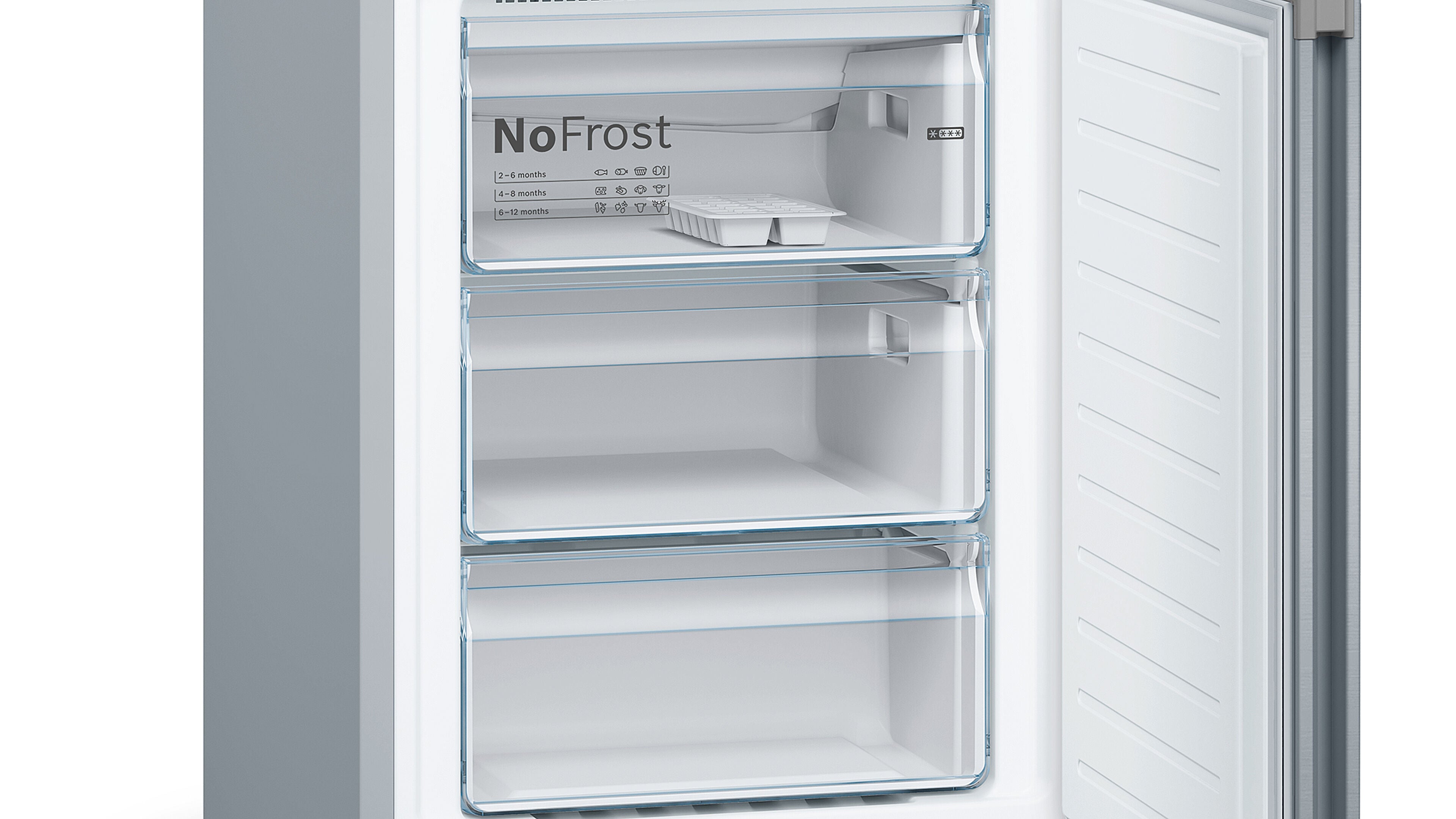

• Transparent freezer drawers: improved visibility and organisation of frozen items.
• Height-adjustable front feet: assists appliance levelling during installation.
• Rear transport rollers: easier appliance positioning during delivery and installation.
• Perfect Fit installation: allows installation close to side walls and cabinetry.

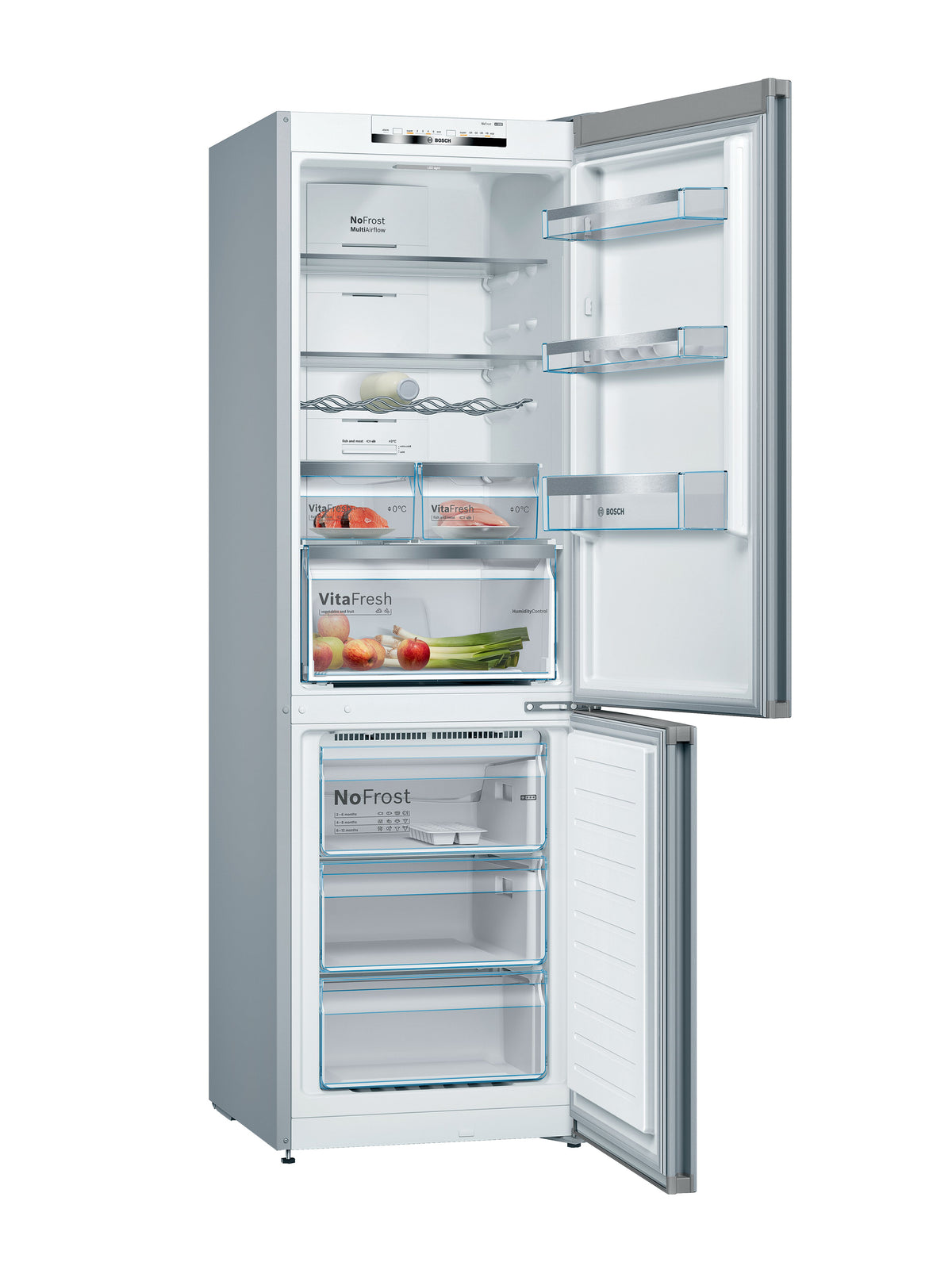

• Product type: Freestanding bottom mount fridge-freezer
• Series: Bosch Series 4
• Cooling system: MultiAirflow
• Defrost system: Total NoFrost
• Freshness system: VitaFresh
• Gross total capacity: 351 L
• Gross fridge capacity: 243 L
• Gross freezer capacity: 108 L
• Net total capacity: 326 L
• Net fridge capacity: 237 L
• Net freezer capacity: 89 L
• Energy rating: 4 stars
• Annual energy consumption: 290 kWh per year
• Climate class: SN-T
• Noise level: 42 dB(A)
• Control type: Electronic touch controls
• Internal lighting: LED
• Fridge shelf material: Safety glass
• Shelf configuration: Adjustable glass shelves
• Vegetable drawers: VitaFresh humidity-controlled drawers
• Freezer drawers: 3 transparent freezer drawers
• Door hinge position: Right-hand hinged
• Reversible doors: Yes
• Dispenser: No water or ice dispenser
• Plumbing required: No
• Connection rating: 100 W
• Fuse protection: 10 A
• Cord length: 240 cm
• Temperature rise time: 16 hours
• Freezing capacity: 11 kg / 24 hours
• Refrigerant type: R600a

• Installation type: Freestanding
• Power supply: 220–240 V / 50 Hz
• Connection type: Plug-in
• Plug type: Australian standard plug
• Electrical cord length: 240 cm
• Ventilation system: Rear integrated ventilation
• Door reversal: Supported using supplied manufacturer components
• Levelling system: Adjustable front feet
• Mobility assistance: Rear transport rollers
• Plumbing connection: Not required

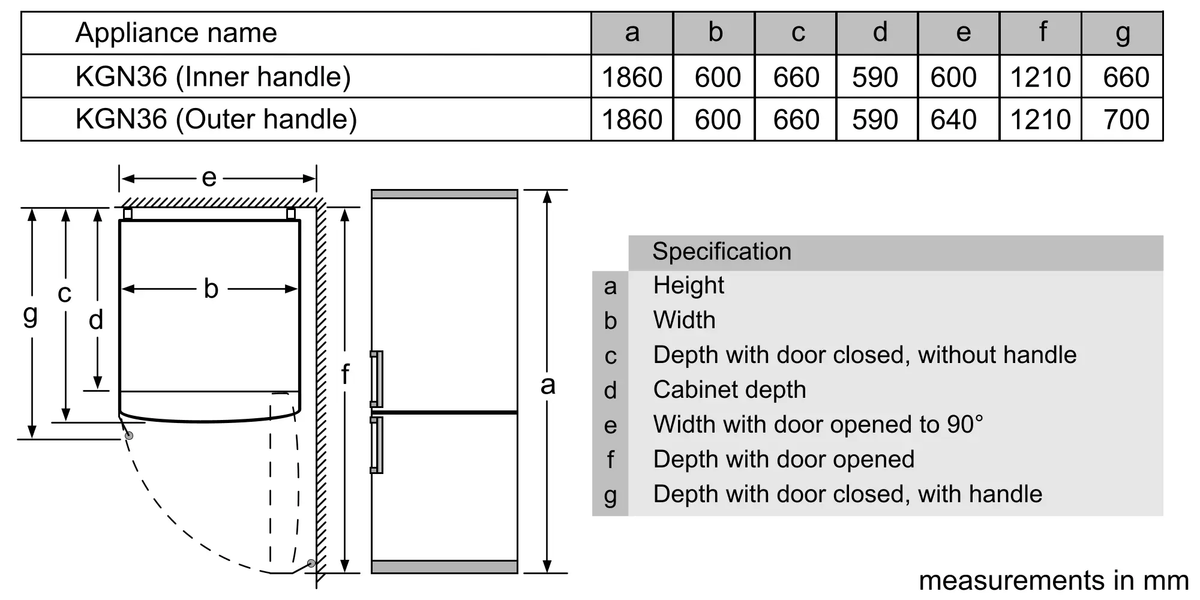

• Perfect Fit installation: designed for installation adjacent to walls and cabinetry while maintaining drawer accessibility
• Recommended ambient operating temperature: Suitable for SN-T climate classification environments

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

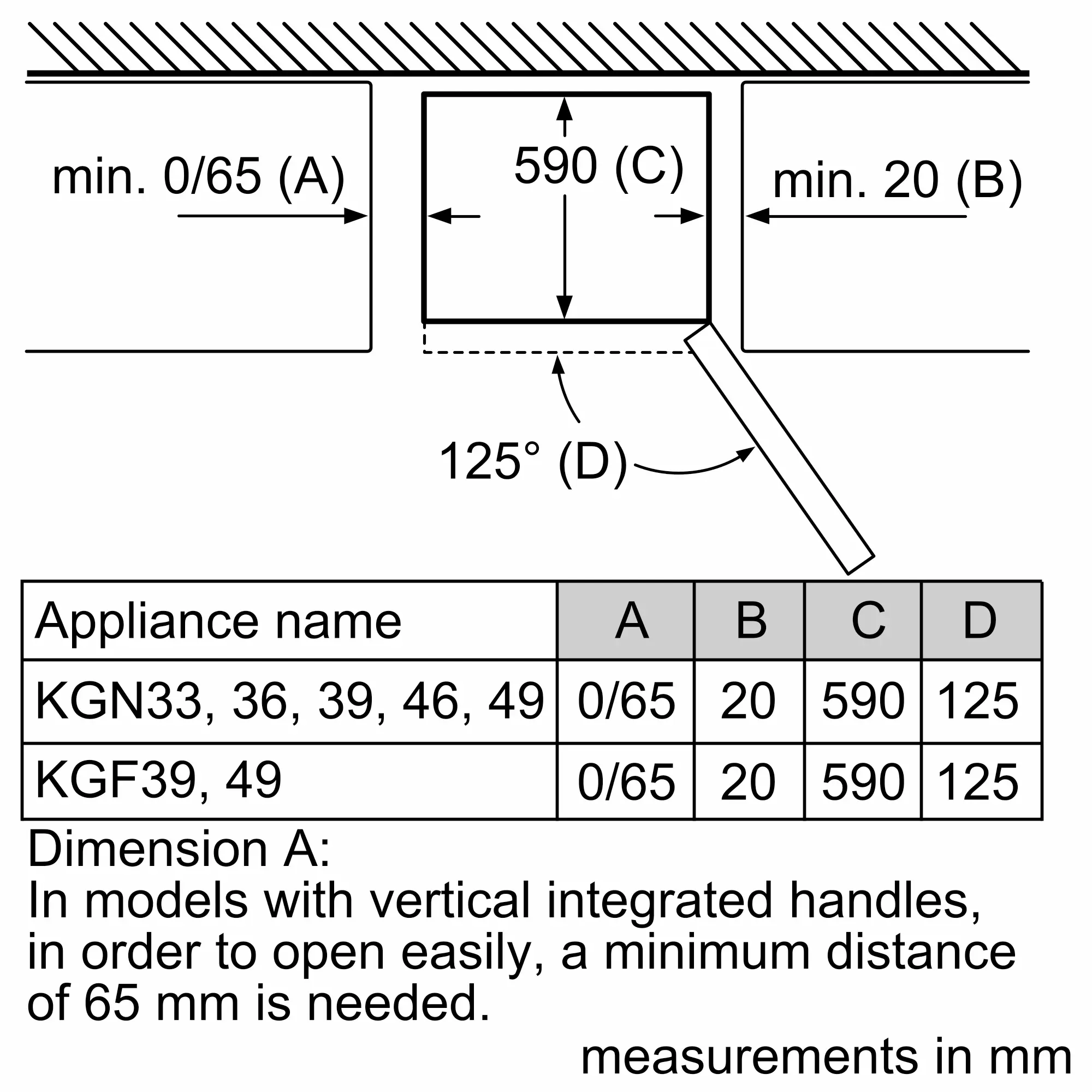

Bosch’s Perfect Fit installation design allows the KGN36VI3AA to be positioned directly beside walls or cabinetry without requiring excessive side clearance for door opening. This installation configuration assists integration into tighter kitchen layouts while still permitting access to internal shelves and freezer drawers.

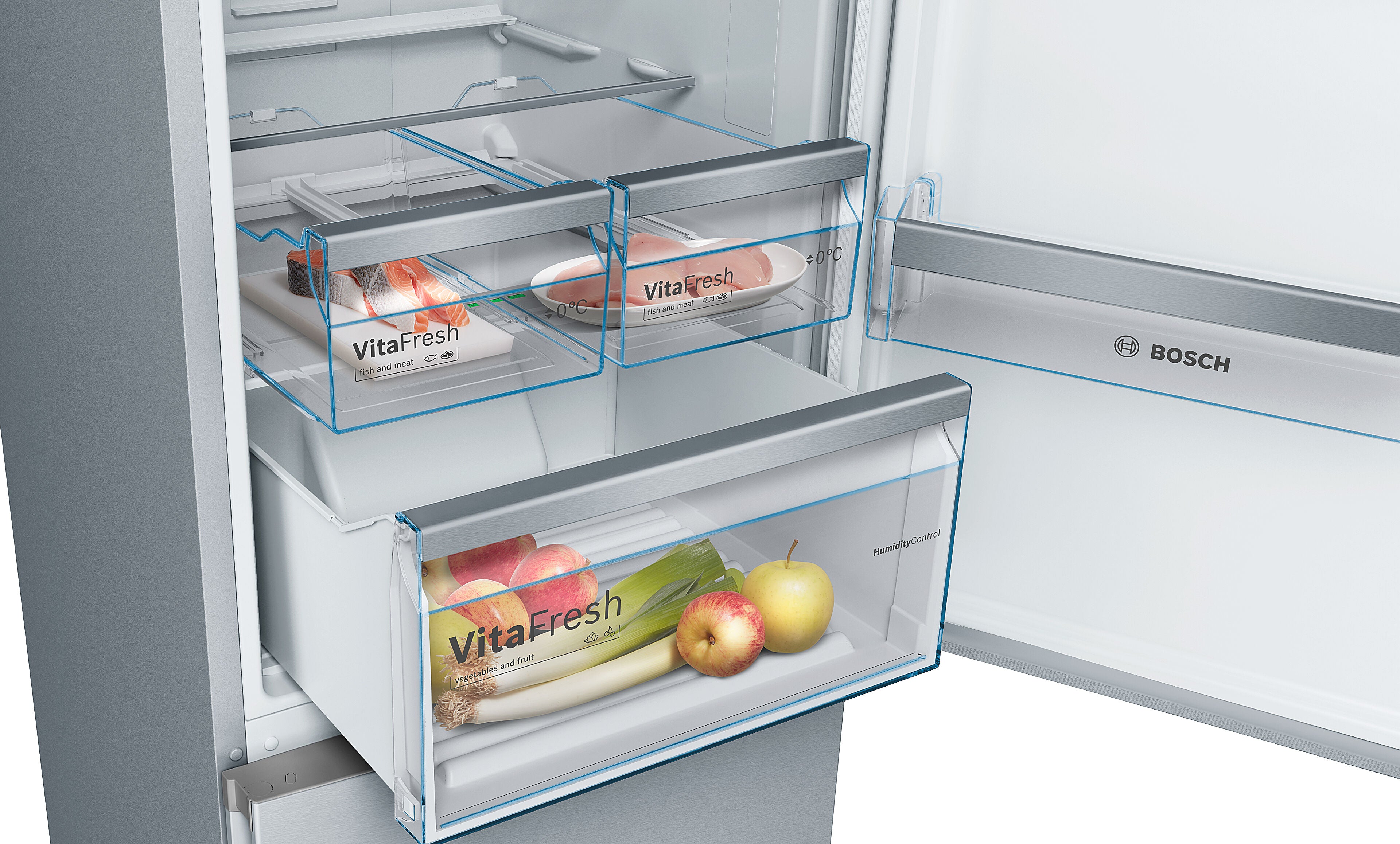

The VitaFresh food preservation system combines humidity-controlled produce storage with lower-temperature compartments intended to help extend freshness retention across a wide range of fresh foods. MultiAirflow cooling continuously circulates chilled air throughout the refrigerator cavity to reduce temperature fluctuation between shelves and storage zones.

The EasyAccess shelf system incorporates a retractable glass shelf which slides outward to improve visibility and accessibility for items positioned toward the rear of the refrigerator compartment. LED lighting delivers bright internal illumination while maintaining low energy consumption and reduced heat output compared to traditional refrigerator lighting systems.

NoFrost freezer technology circulates dry cooled air throughout the freezer cavity to minimise frost accumulation and eliminate manual defrosting requirements. The transparent freezer drawer system improves organisation and visibility while helping separate frozen food categories more efficiently.

The KGN36VI3AA uses R600a refrigerant and operates within the SN-T climate classification range, supporting stable cooling performance across a wide range of ambient temperatures commonly experienced within Australian residential environments.

• 3 x egg trays
• 1 x ice cube tray
• Integrated bottle support
• Adjustable safety glass shelving
• Transparent freezer drawers
• Installation documentation
• User manual
• Door reversal components
