• Pyrolytic self-cleaning: heats the oven cavity to high temperatures to reduce grease and food residue to ash.
• Cleaning Assistance: hydrolytic-assisted cleaning programme softens lighter soiling for wipe-clean maintenance.
• 3D Hotair: even heat circulation for cooking across up to three shelf levels simultaneously.
• AutoPilot 10: 10 automatic cooking programmes with weight-based cooking assistance.
• Rapid heating: reduces oven preheating time before cooking.
• 1-level telescopic rails: smoother and safer tray handling during cooking.

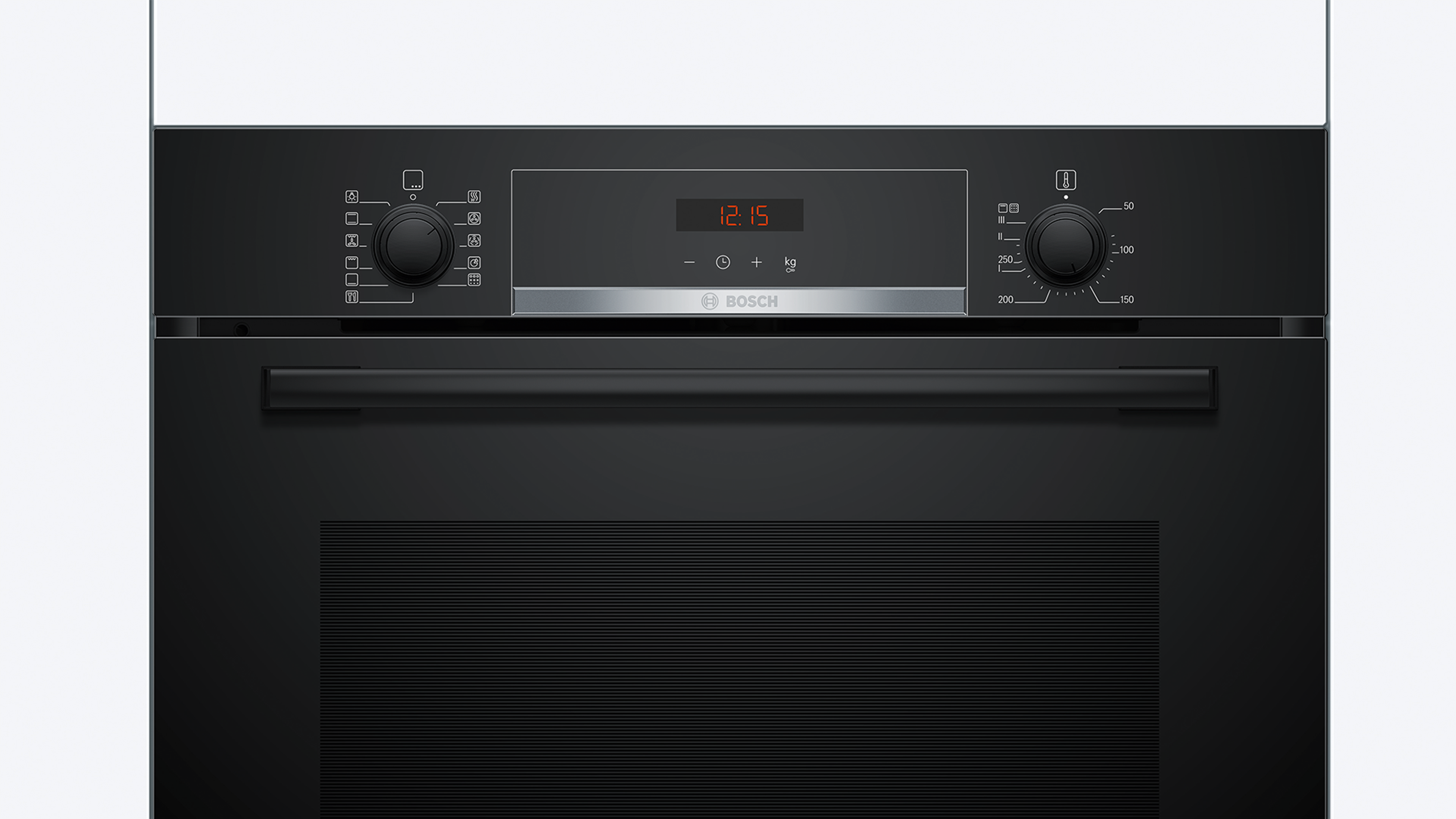

• Pop-out rotary controls: retractable control dials simplify front-panel cleaning.
• Red LED display: central display with timer and cooking function controls.
• Cool-touch door: quadruple-glazed insulated oven door designed to remain cooler during operation.
• Pizza setting: combines lower heat and hot air circulation for pizza and frozen foods.
• Full-width grill: integrated grilling function with multiple grill intensity levels.
• Child lock: control lock function to prevent unintended operation.
• Automatic safety shut-off: added operational safety during extended use.

• 3D Hotair: distributes heat evenly across multiple shelf levels for consistent cooking results.
• Hotair Gentle: energy-efficient fan-assisted cooking mode suited to gentle baking and roasting.
• Top / Bottom Heating: conventional cooking mode using upper and lower heating elements.
• Bottom Heating: concentrated lower heat ideal for crisping bases and finishing dishes.
• Hot-Air Grilling: combines grill heat with fan circulation for roasting and grilling larger cuts.
• Full Width Grill: direct high heat across the full grill area for grilling and browning.
• Pizza Setting: combines lower heat and fan circulation for pizza, pastry, and frozen foods.
• Rapid Heating: quickly brings the oven to the selected temperature before cooking begins.
• Pyrolytic Self-Cleaning: high-temperature cleaning cycle reducing residue to wipe-away ash.
• AutoPilot Automatic Cooking Programmes: preset automatic cooking functions with guided temperature and timing control.

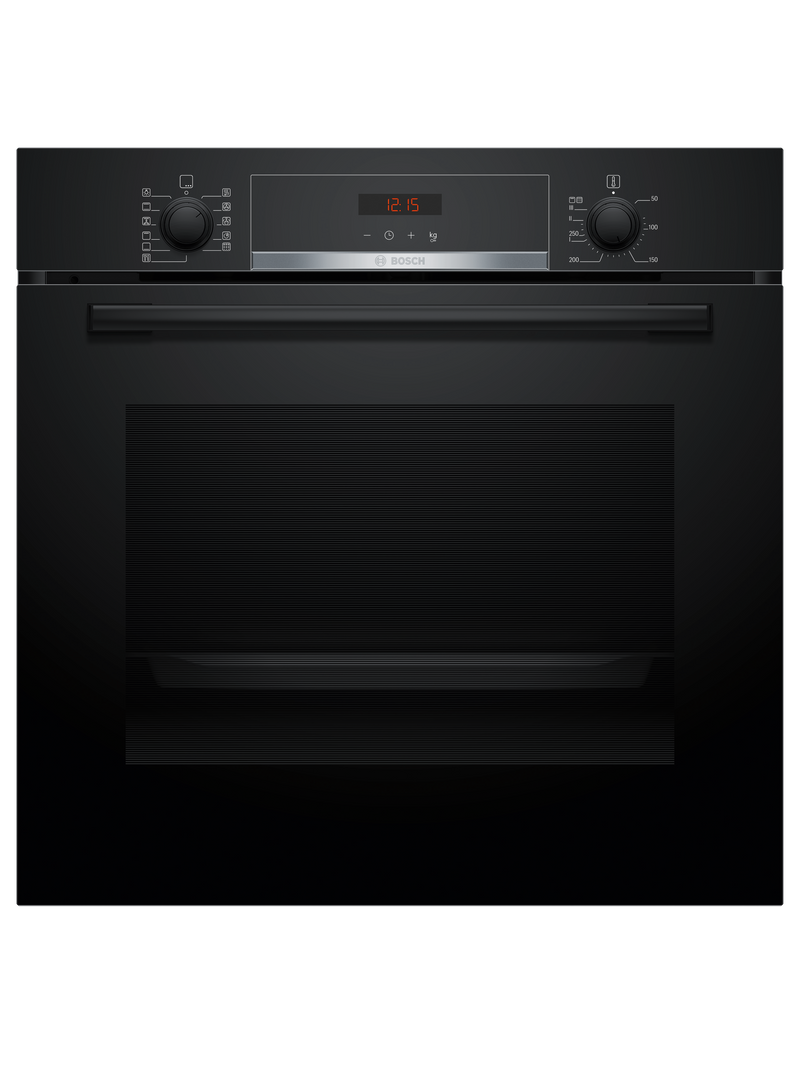

• Product category: Built-in electric oven
• Series: Bosch Series 4
• Oven capacity: 71 L
• Number of cooking functions: 7
• Shelf positions: 5
• Control type: Rotary retractable controls with touch controls
• Display type: Red LED display
• Door type: Drop-down hinged door
• Interior lighting: Halogen oven light
• Cleaning system: Pyrolytic + Cleaning Assistance
• Telescopic rail system: 1-level telescopic rail
• Temperature range: 50°C – 275°C
• Grill settings: 3 levels
• Home Connect: No
• Steam function: Not applicable
• Cooling fan: Yes
• Oven fuel type: Electric
• Energy efficiency class: A+
• Child lock: Yes
• Automatic switch-off: Yes

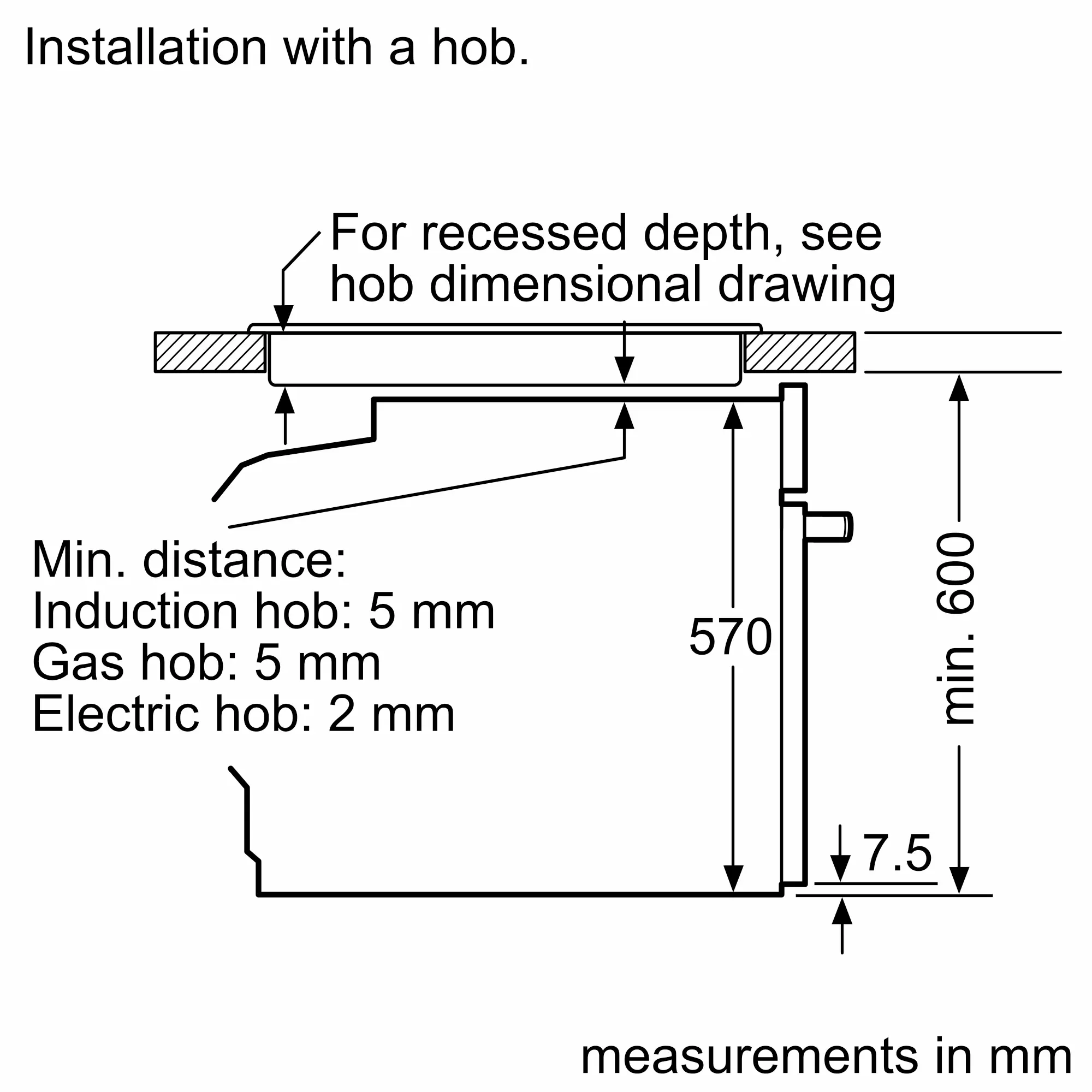

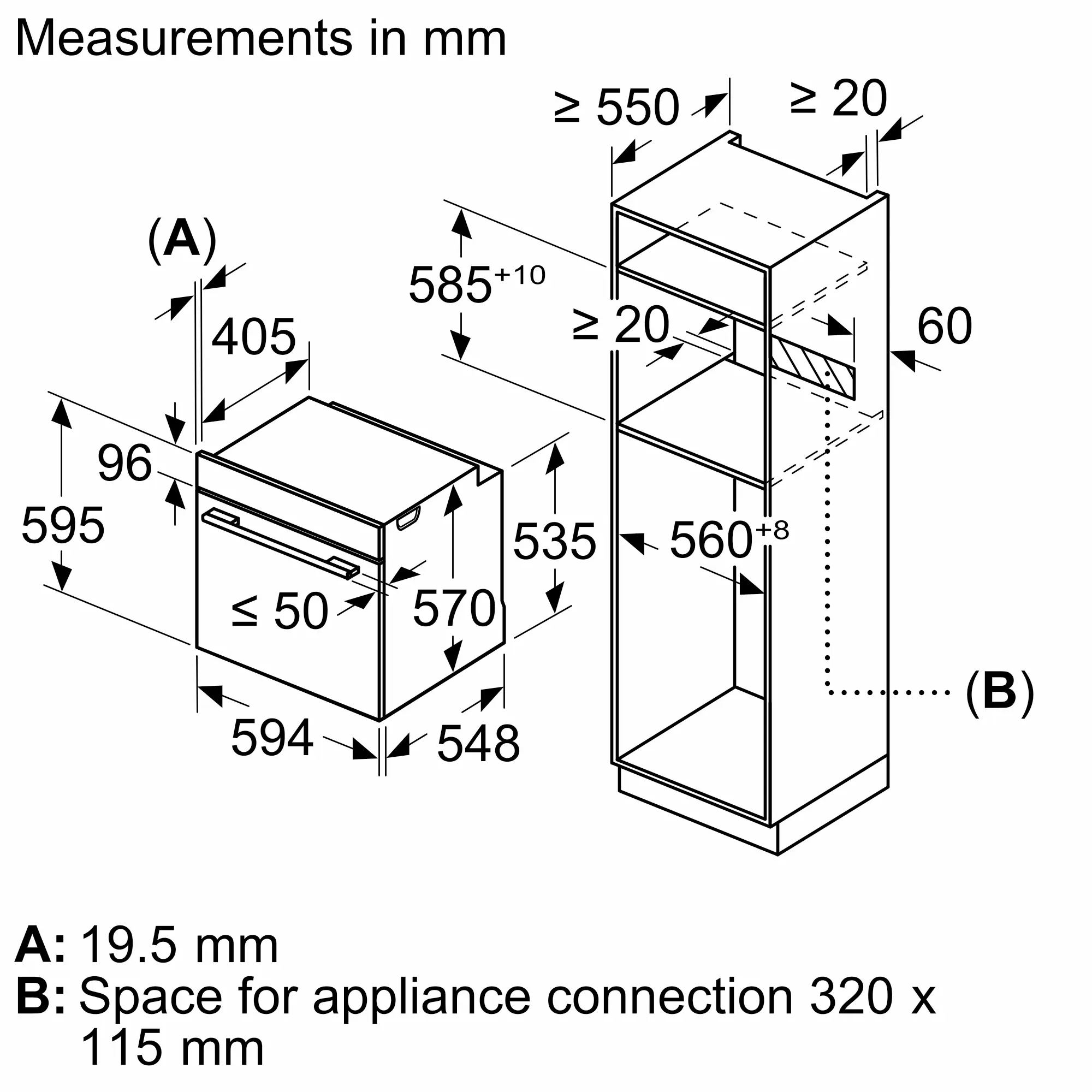

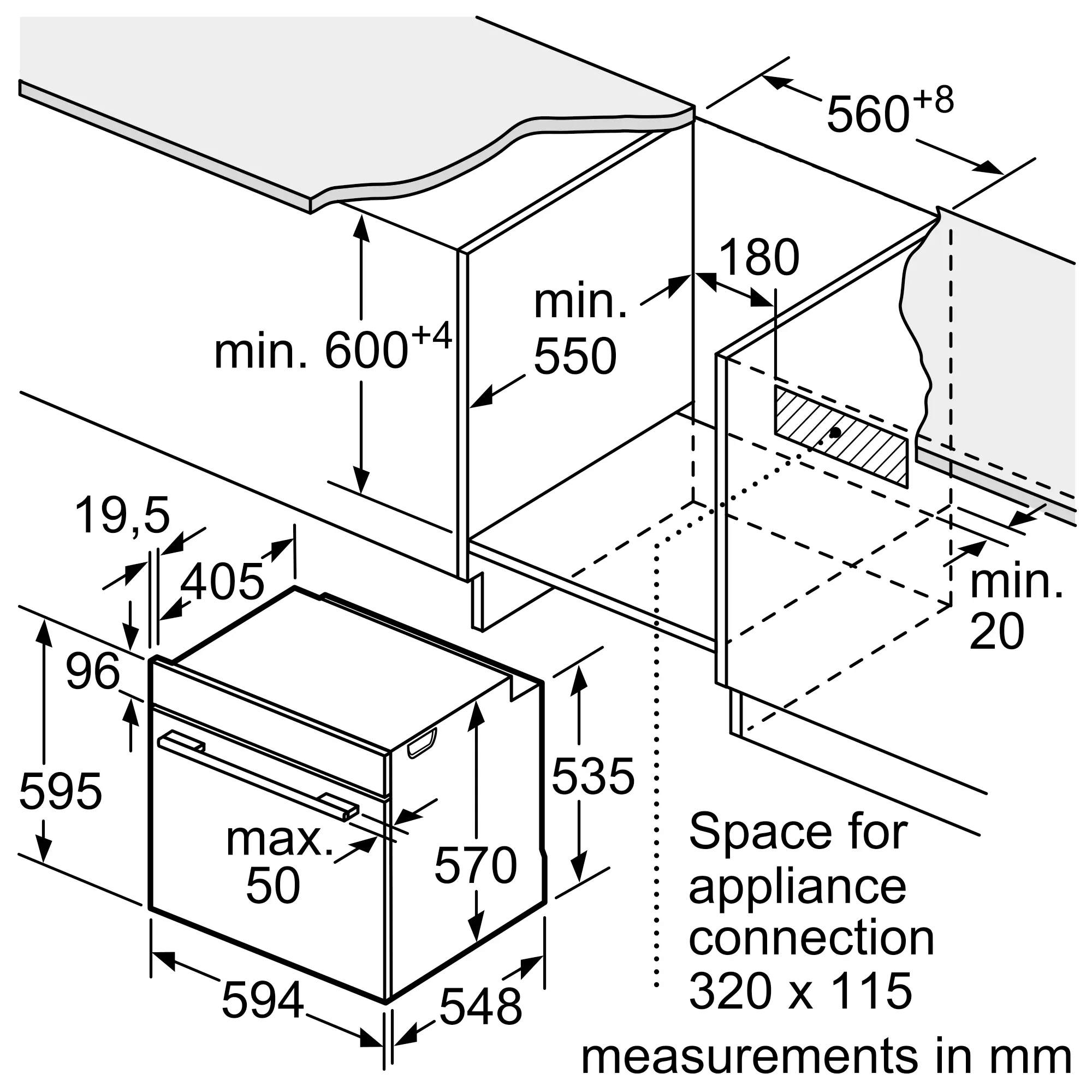

• Installation type: Built-in
• Connection type: Hardwired — electrical connection by licensed electrician required
• Power supply: 220–240 V
• Frequency: 50 / 60 Hz
• Connection rating: 3600 W
• Maximum load: 3.6 kW
• Fuse protection: 16 A
• Power cord length: 1.2 m
• Plug type: No plug supplied

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Bosch AutoPilot technology simplifies cooking by automatically controlling cooking mode, temperature, and cooking duration once the selected programme and food weight are entered. Certain AutoPilot programmes are designed for use with covered cookware to minimise cavity residue during cooking.

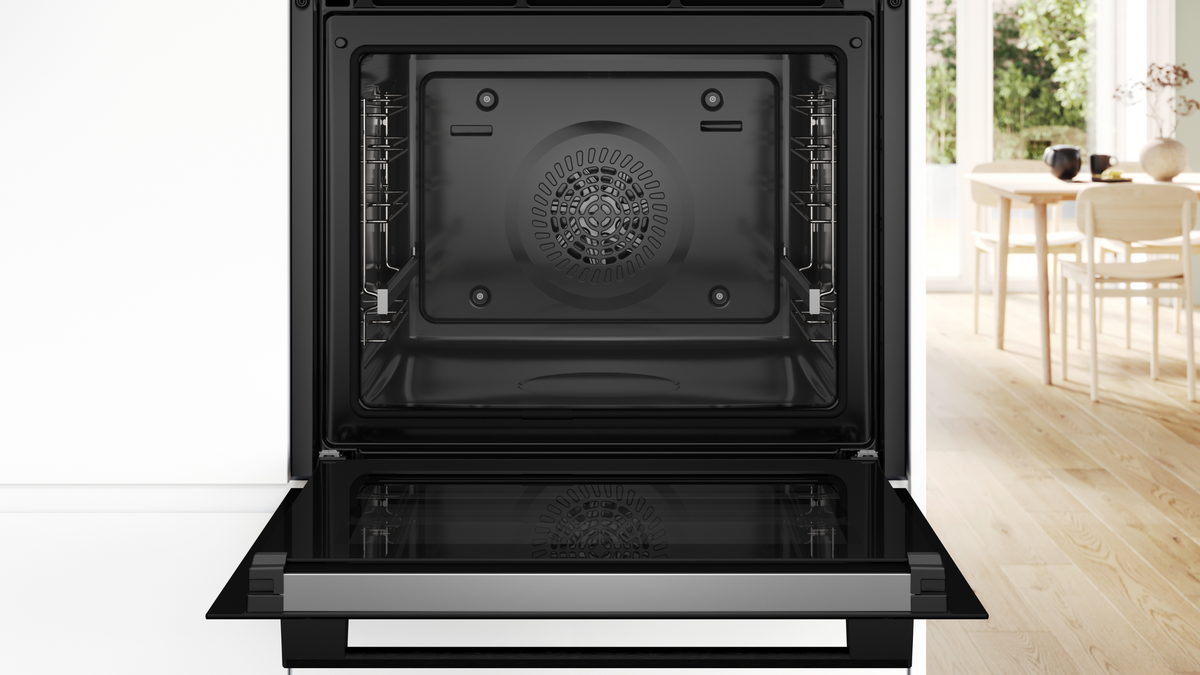

The 3D Hotair system distributes heat evenly throughout the oven cavity, allowing multiple trays to cook simultaneously with reduced flavour transfer between dishes. This supports batch baking and multi-level cooking performance.

Pyrolytic cleaning heats the cavity to approximately 480°C during cleaning cycles, reducing grease and food residue to ash without chemical cleaners. Once cooled, the remaining ash can be wiped away with a damp cloth.

• 2 x combination grids
• 1 x universal pan
• 1-level telescopic rail system
