• 3D Hotair: even heat distribution for consistent cooking results across up to three shelf levels simultaneously.
• 7 heating functions: flexible cooking modes for roasting, baking, grilling and pizza cooking.
• EcoClean Direct: special rear-wall coating automatically absorbs grime during cooking.
• Cleaning Assistance: hydrolytic cleaning support softens light residue for easier manual cleaning.
• Fast heat-up: reduces oven preheating time before cooking begins.

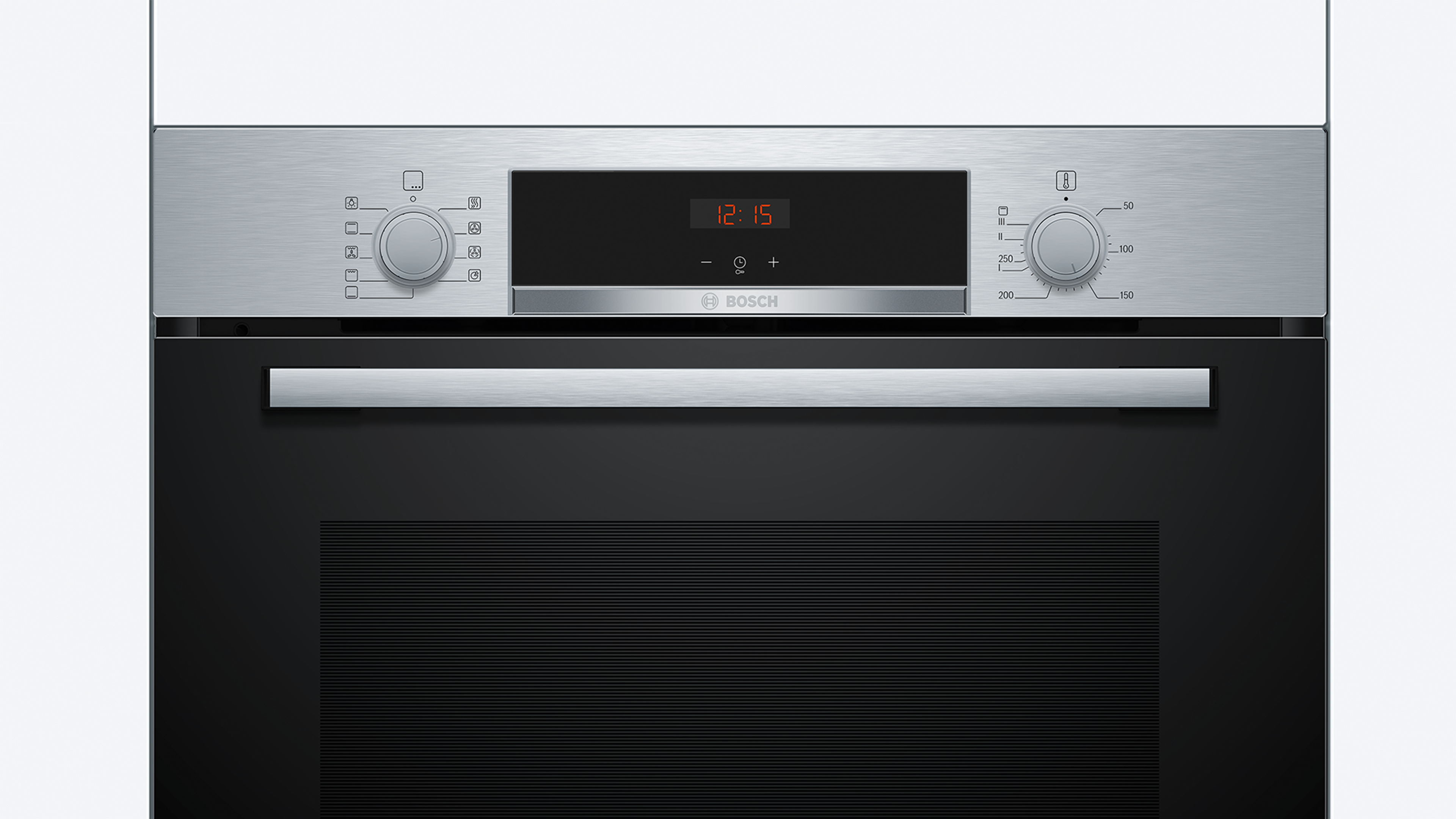

• Pop-out rotary controls: retractable knobs simplify fascia cleaning and maintain a streamlined appearance.
• Triple glazed oven door: improved insulation and reduced external door temperatures during operation.
• Red LED display: simple timer and cooking function management.
• Integrated cooling fan: assists external temperature management during cooking operation.
• Child lock: prevents unintended operation changes.

• 3D Hotair: distributes heat evenly across up to three shelf levels for simultaneous cooking and baking.
• Hotair Gentle: energy-efficient fan cooking mode suited to gentle baking and roasting.
• Conventional Top/Bottom Heat: traditional heating method ideal for cakes, pastries and single-shelf cooking.
• Fan Grill: combines fan circulation with grilling for roasting meats with even browning.
• Full Width Grill: high-temperature full-surface grilling for toast, sausages and smaller grilled dishes.
• Bottom Heating: concentrated lower heat ideal for crisping bases and final-stage baking.
• Pizza Setting: combines bottom heat and fan circulation for pizzas, quiches and frozen foods.
• Fast Heat-Up: rapidly preheats the oven cavity to reduce waiting time before cooking.
• Programmable Timer: allows cooking duration and finish time programming through the LED display.
• Interior Oven Light: illuminates the oven cavity for improved cooking visibility without opening the door.

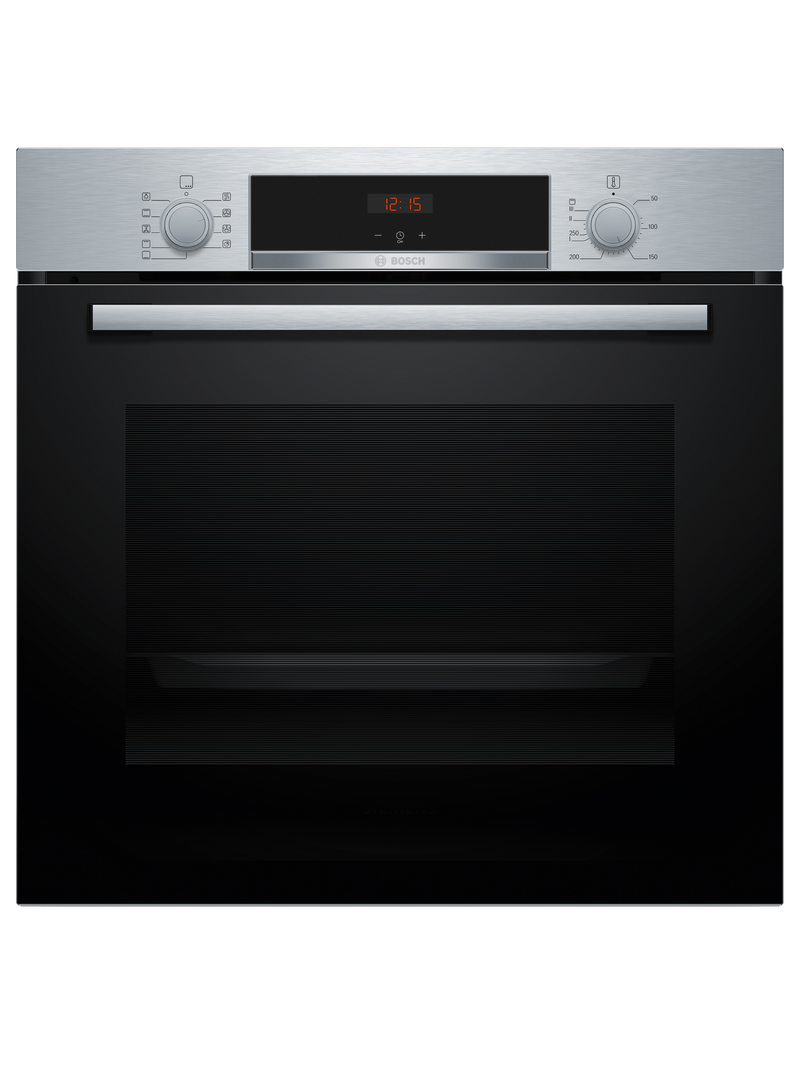

• Product category: built-in electric oven
• Series: Bosch Series 4
• Oven type: single multifunction oven
• Usable cavity capacity: 71 L
• Number of heating functions: 7
• Temperature range: 50°C – 275°C
• Shelf positions: 5
• Control type: retractable rotary knobs with touch control
• Display type: red LED display
• Interior lighting: halogen
• Door glazing: triple glazed
• Cooling fan: integrated
• Cleaning system: EcoClean Direct + Cleaning Assistance
• Fuel type: electric
• Energy efficiency class: A+
• Telescopic rails: compatible accessory option

• Installation type: built-in
• Connection type: hardwired
• Electrical connection: licensed electrician required
• Connected load: 3.4 kW
• Voltage: 220–240 V
• Frequency: 50 / 60 Hz
• Maximum current rating: 16 A
• Power cord length: 1.2 m
• Oven size classification: 60 cm standard built-in cavity

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

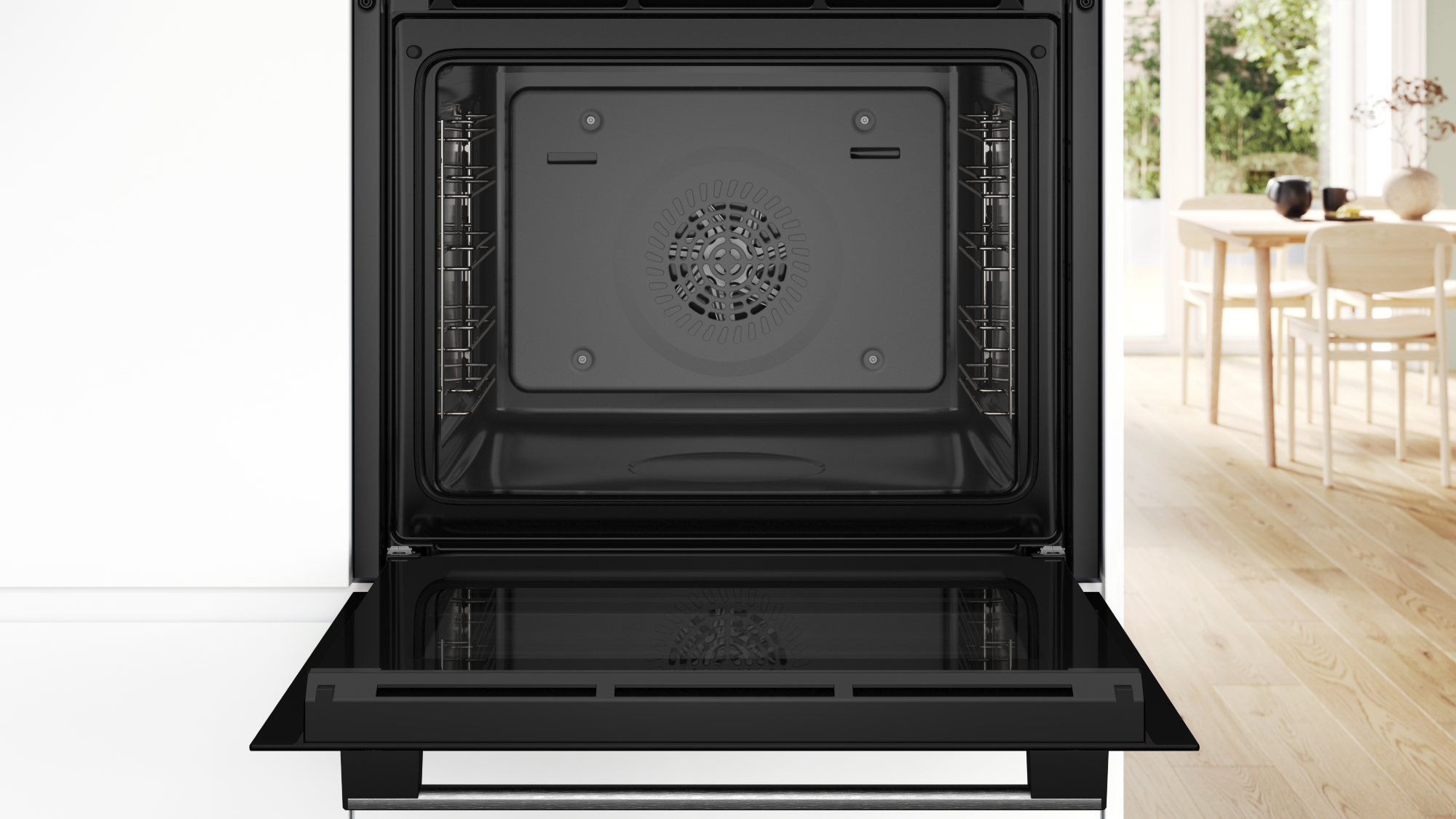

Bosch 3D Hotair technology is designed to support simultaneous multi-level cooking while maintaining even temperature circulation throughout the cavity. The Pizza Setting intensifies lower heat output for crisp bases and baked dishes requiring stronger bottom heat distribution.

EcoClean Direct uses a specialised catalytic coating on the rear cavity wall to absorb grease during cooking operation, helping reduce ongoing cleaning frequency. Cleaning Assistance can be used with water and detergent to soften light residue before manual wiping.

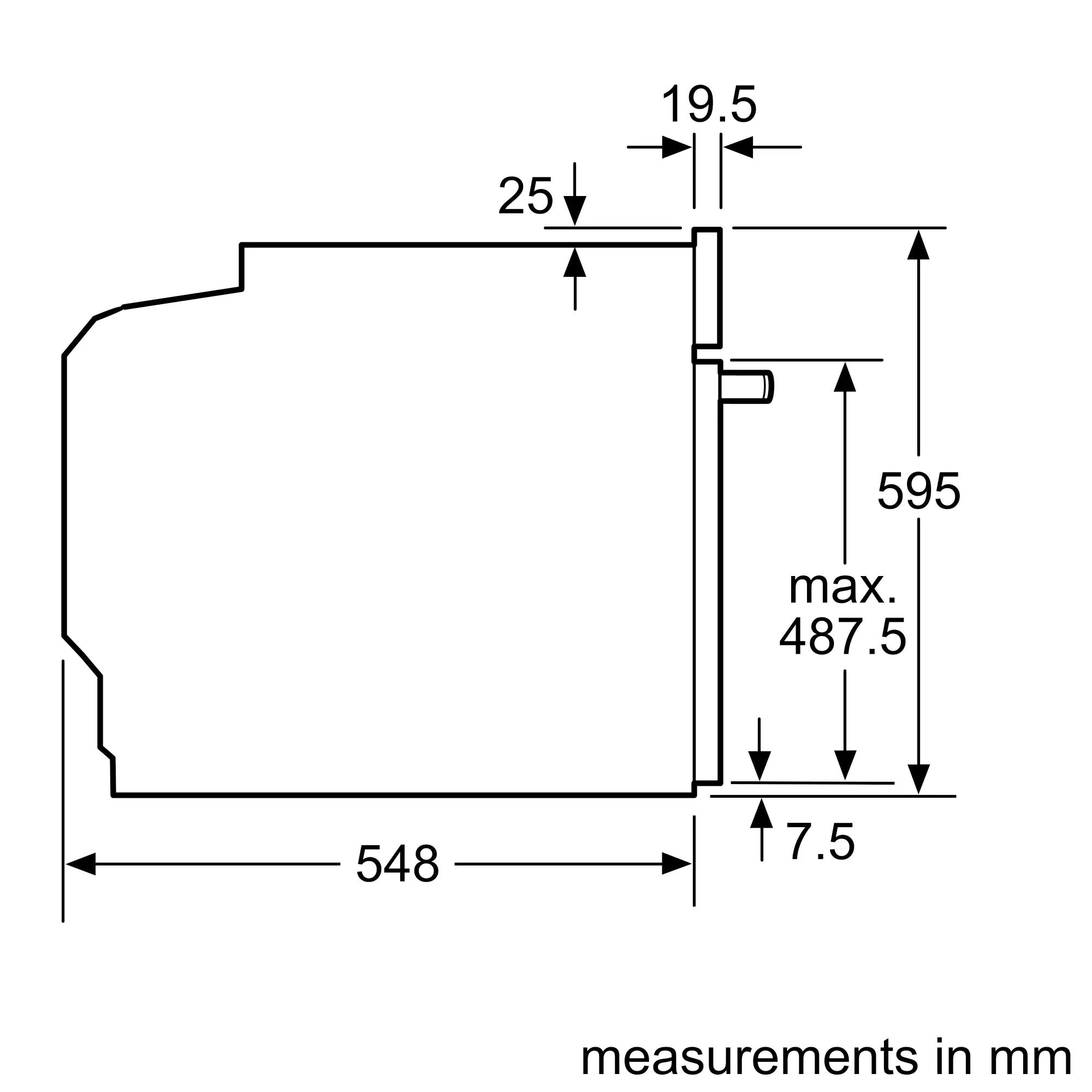

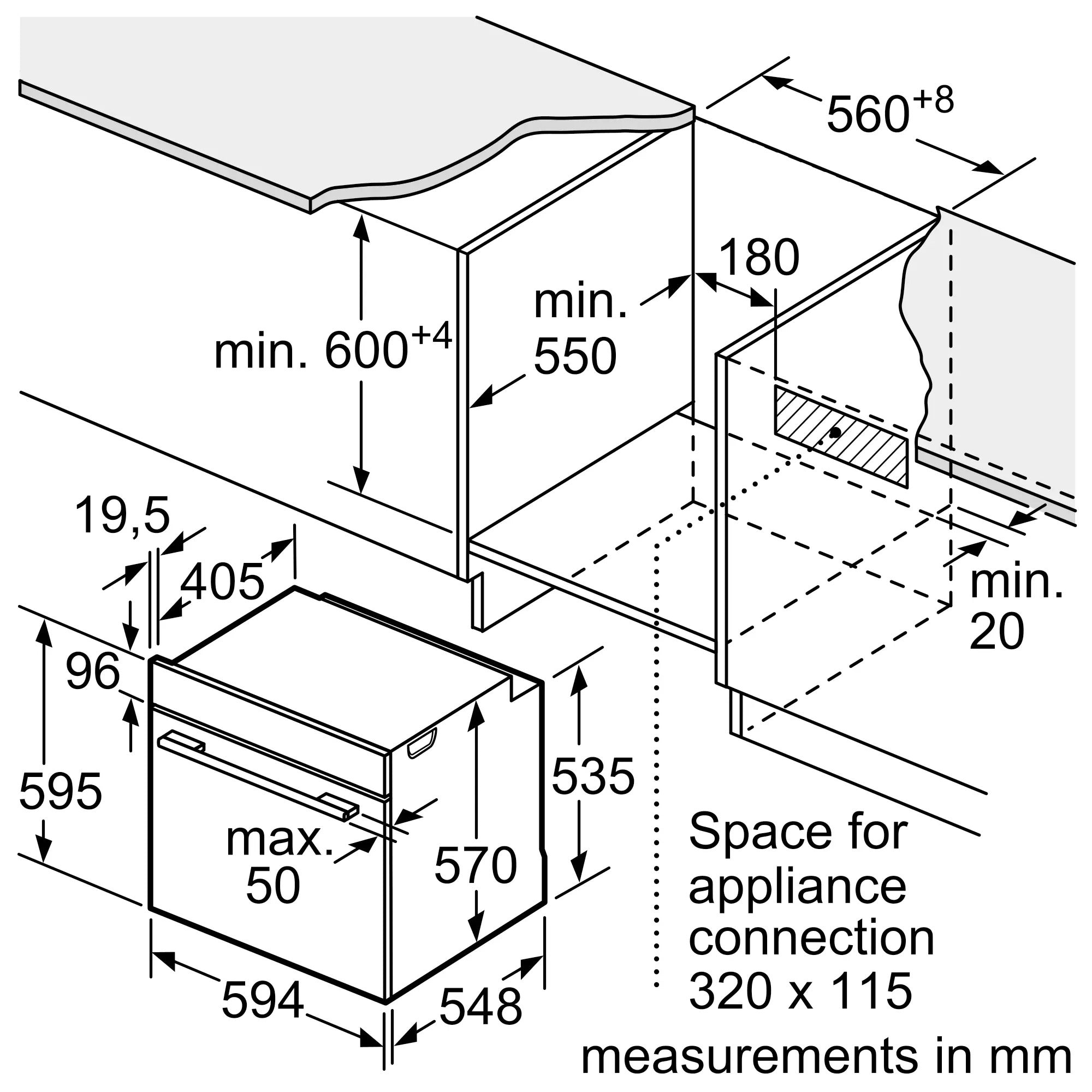

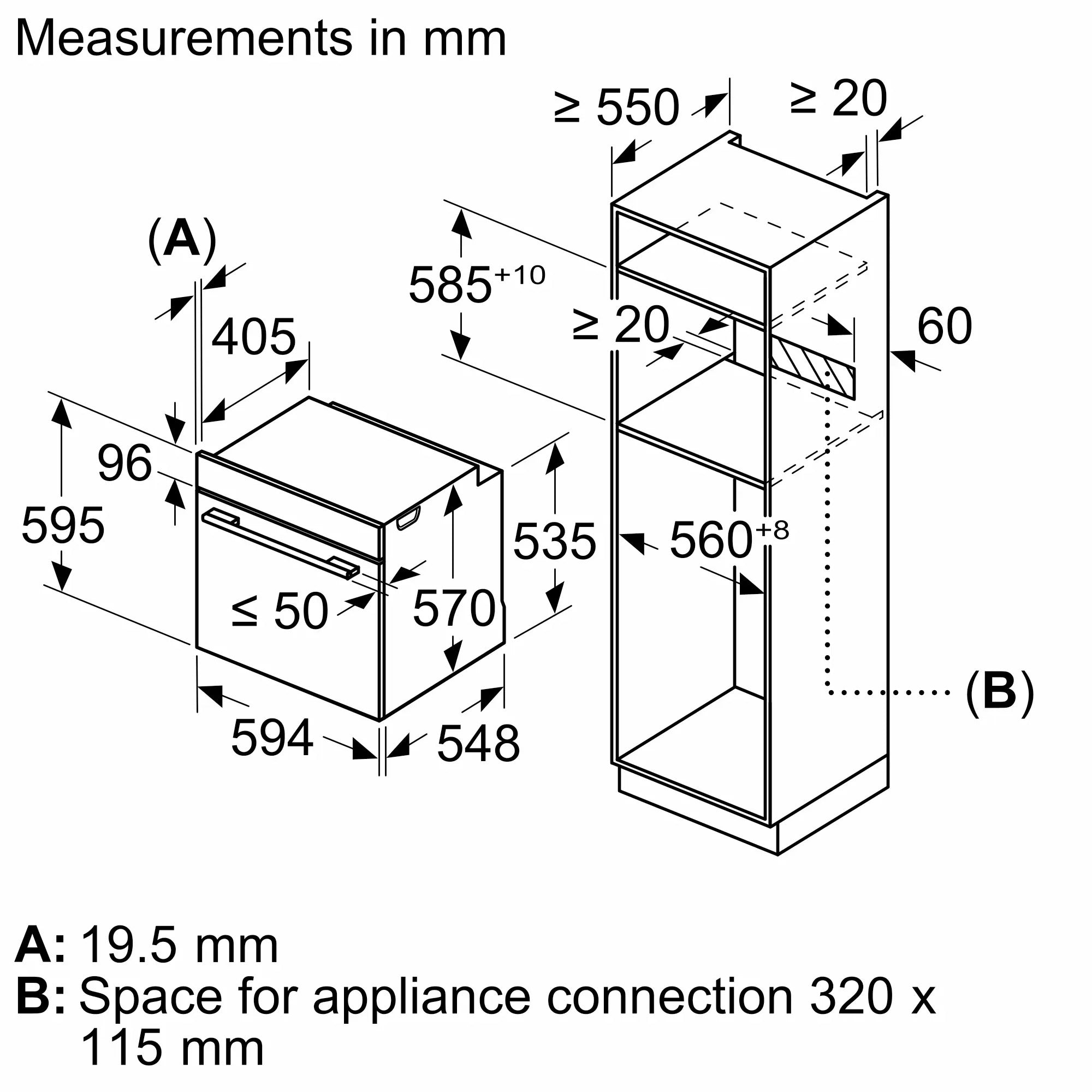

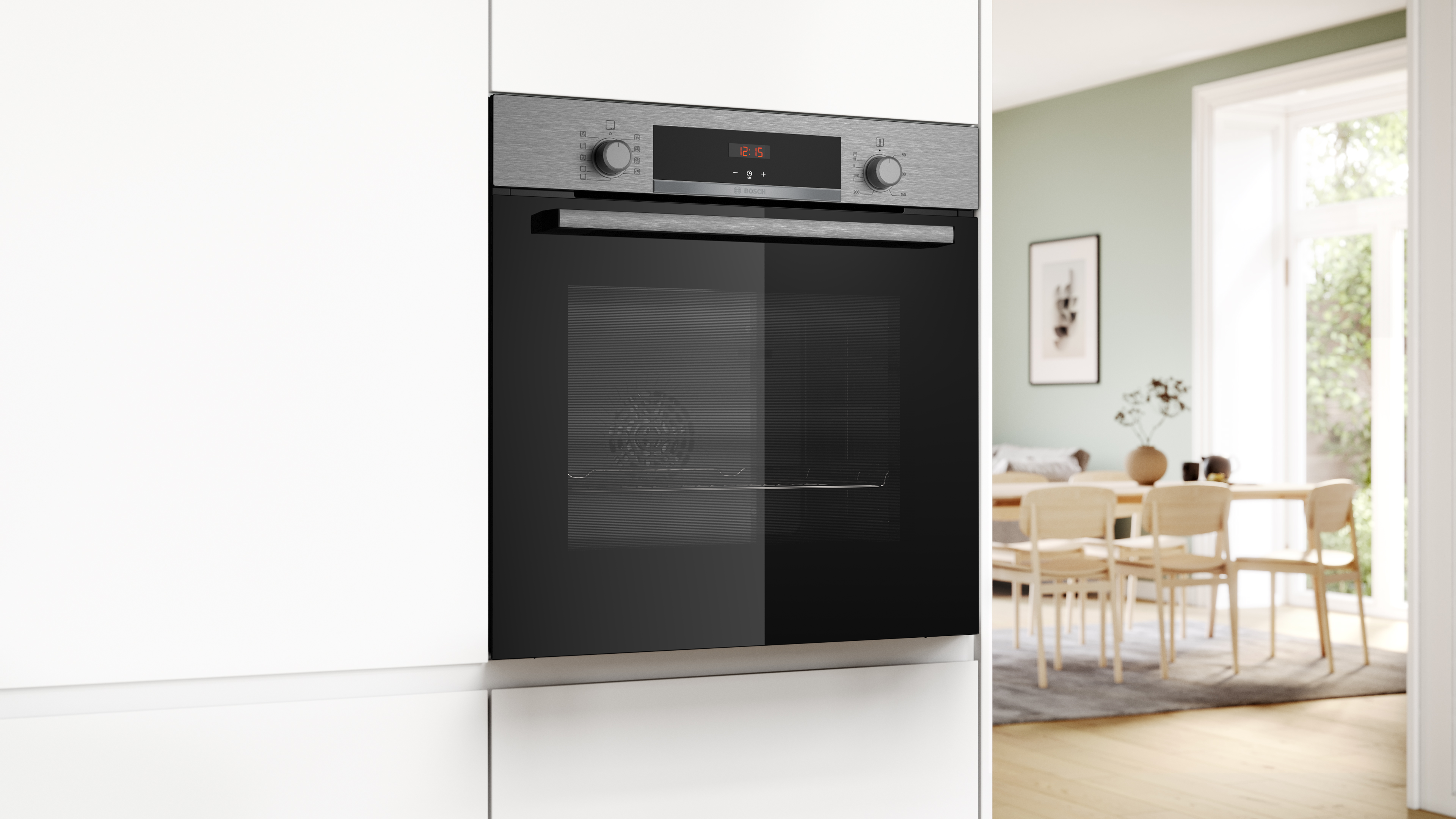

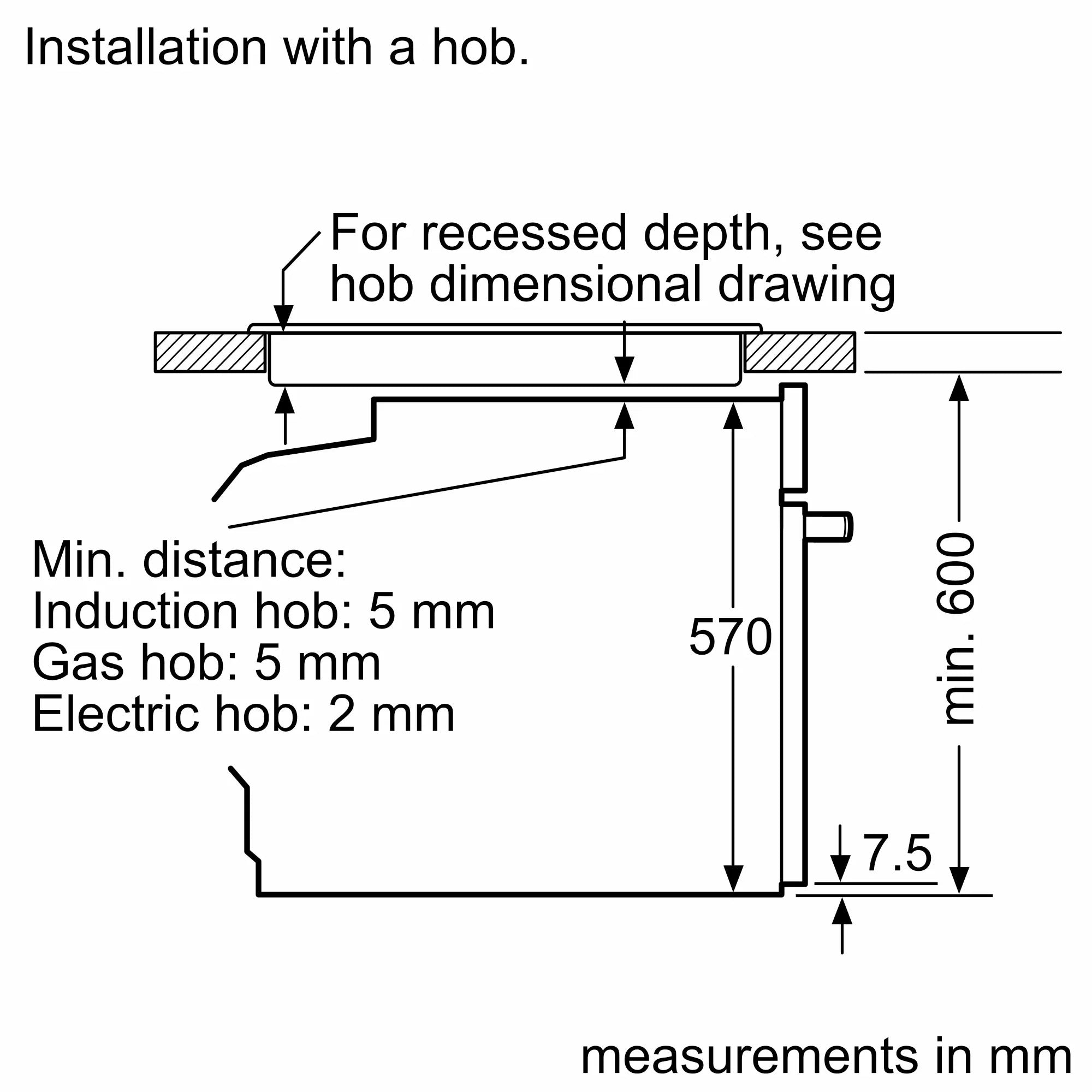

The HBA534BS3A is designed for flush integration into standard 60cm kitchen cabinetry and requires hardwired installation by a licensed electrician.

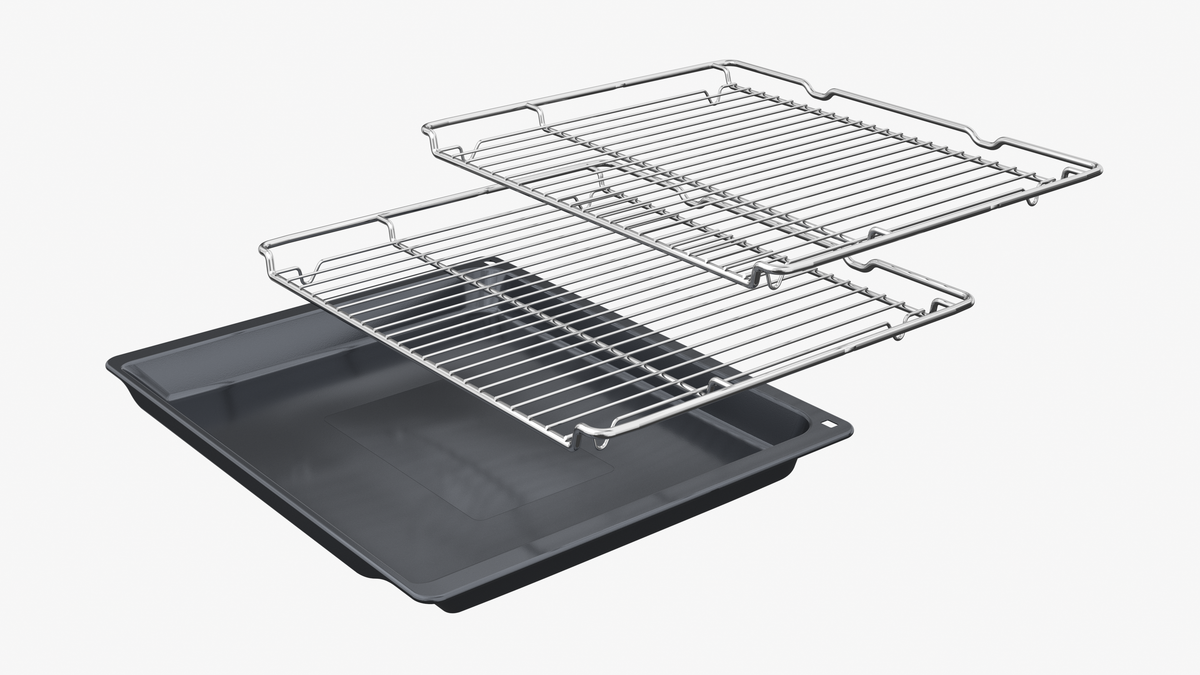

• 2 x combination grid shelves
• 1 x universal pan
• Installation documentation
• User manual

• SPECIFICATIONS SHEET (PDF)
• USER MANUAL & INSTALLATION INSTRUCTIONS (PDF)
• SUPPLEMENTRY SHEET (PDF)
