• 3D Hotair: even heat distribution across up to three cooking levels simultaneously.
• Rapid Heating: reduces preheat time before cooking begins.
• Pizza setting: intensive lower heat suited to pizza, pastries and high-heat baking.
• Hotair Gentle: energy-efficient fan-assisted cooking mode for everyday baking and roasting.
• EcoClean Direct: specialised rear-wall coating absorbs grime during cooking cycles.
• Cleaning Assistance: hydrolytic cleaning support for lightly soiled oven interiors.
• Red LED display: clear timer and time-function visibility.

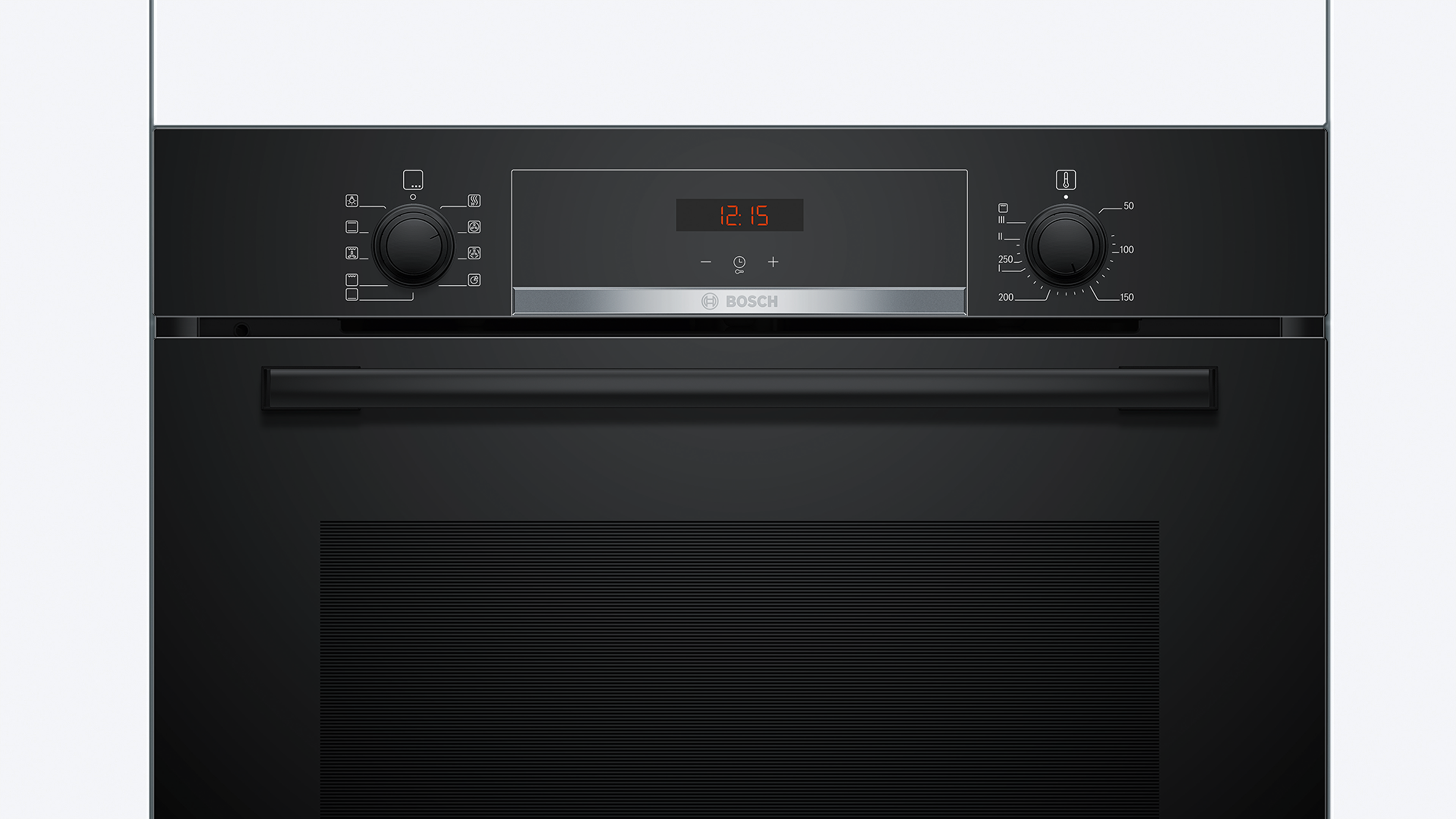

• Pop-out controls: retractable rotary controls simplify fascia cleaning.
• Cool-touch triple-glazed door: assists with external temperature reduction during operation.
• Integrated electric grill: full-width grill functionality within the oven cavity.
• Halogen interior lighting: improved cavity visibility during cooking.
• Child lock: prevents unintended operation changes.

• 3D Hotair: fan-assisted heat distribution for even cooking across multiple shelf levels simultaneously.
• Hotair Gentle: energy-efficient fan cooking mode designed for gentle baking and roasting.
• Top and Bottom Heating: conventional cooking using upper and lower heating elements for traditional baking.
• Hot Air Grilling: combines grill heat with fan circulation for roasting meats with even browning.
• Full Width Grill: high-intensity full-surface grilling suited to toast, sausages and smaller cuts of meat.
• Bottom Heating: concentrated lower heat ideal for crisping pastry bases and finishing dishes.
• Pizza Setting: intensive lower heat with fan assistance designed for pizzas and high-heat baking.

• Product type: Built-in multifunction oven
• Series: Bosch Series 4
• Oven fuel type: Electric
• Usable cavity volume: 71L
• Number of functions: 7
• Number of shelf positions: 5
• Control type: Rotary knobs with LED display
• Display type: Red LED display
• Interior finish: Enamel
• Grill type: Integrated electric grill
• Interior light: Halogen
• Door glazing: Triple glazed
• Cooling fan: Yes
• Timer: Programmable timer
• Fast heat-up: Yes
• Child lock: Yes
• Steam technology: Not applicable
• Home Connect: No
• Energy efficiency class: A+
• Maximum temperature: 275°C
• Minimum temperature: 50°C

• Installation type: Built-in
• Connection type: Hardwired
• Electrical installation: Must be installed by a licensed electrician
• Connected load: 3.4 kW
• Maximum current rating: 16 A
• Voltage: 220–240 V
• Frequency: 50 / 60 Hz
• Cord length: 1.2 m
• Plug type: No plug supplied

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Bosch’s 3D Hotair technology is designed to distribute heat evenly throughout the cavity using an optimised fan system, supporting simultaneous multi-level cooking without significant flavour transfer between dishes.

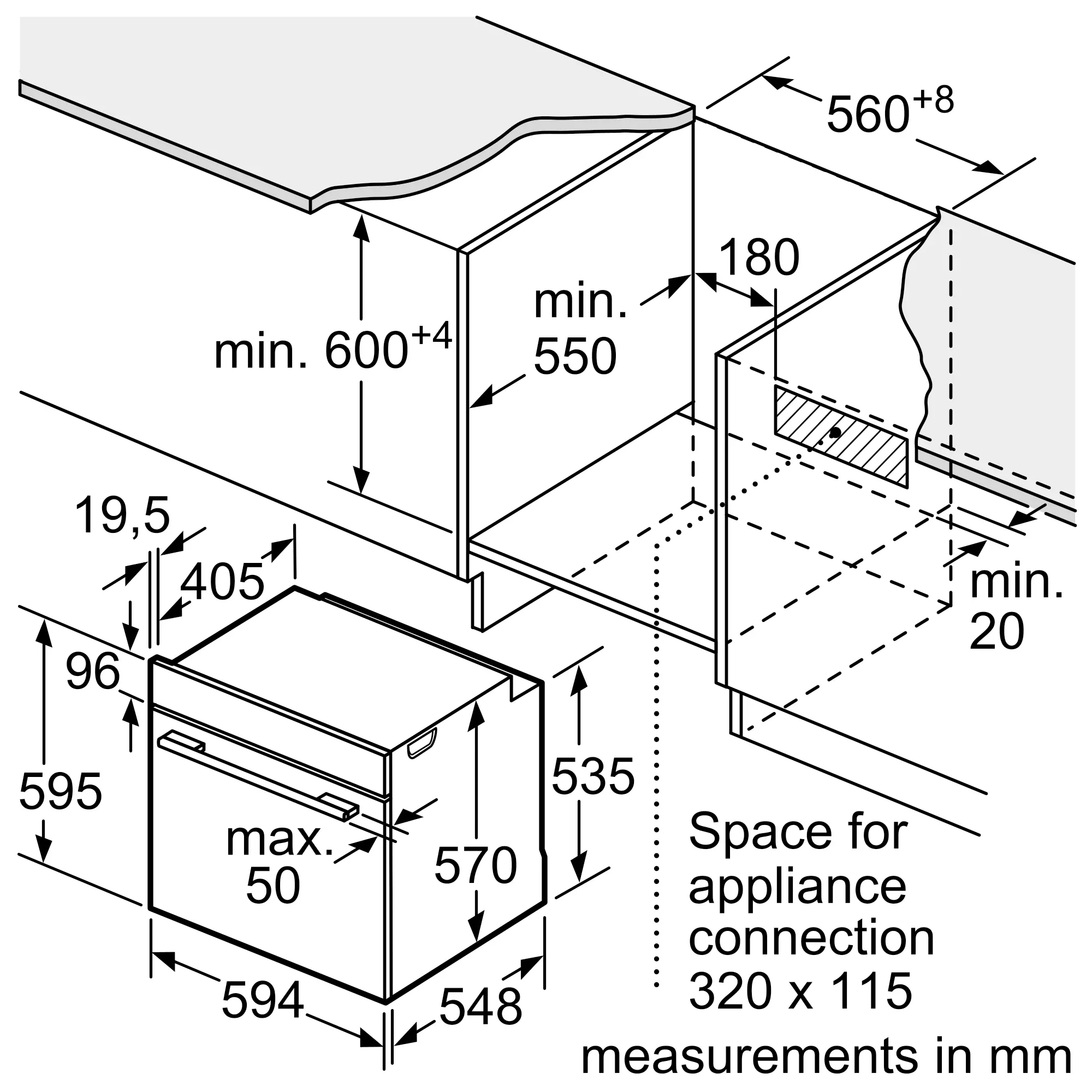

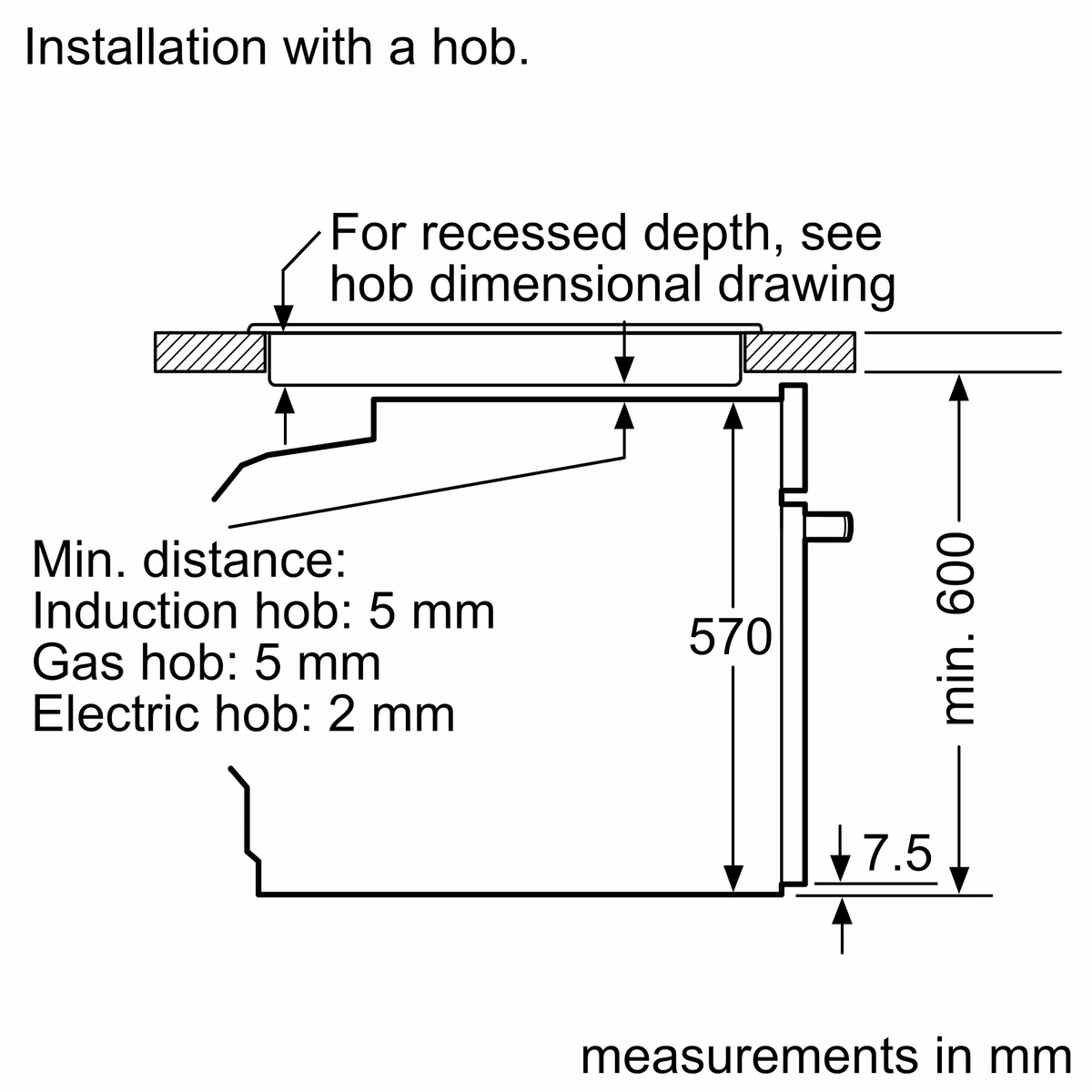

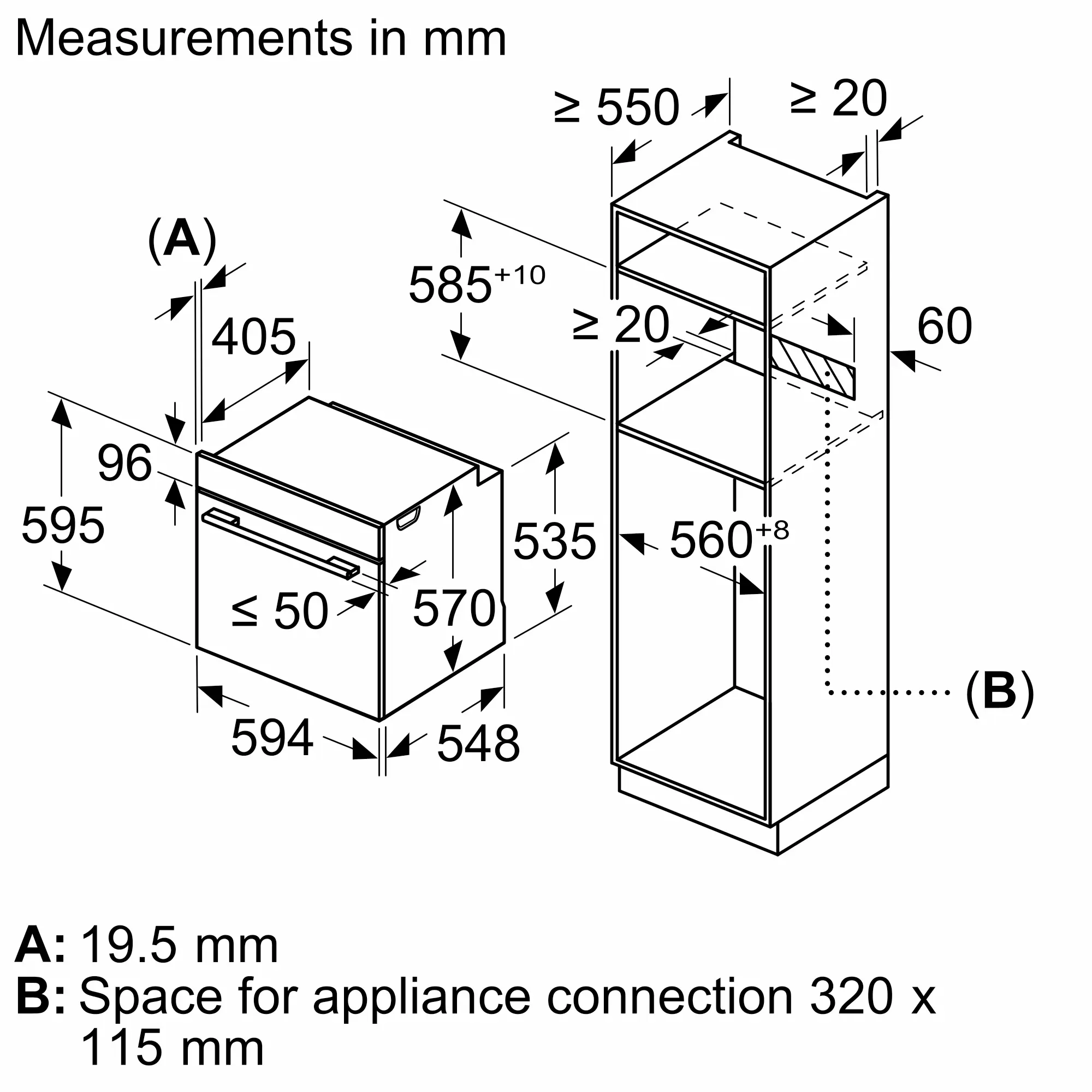

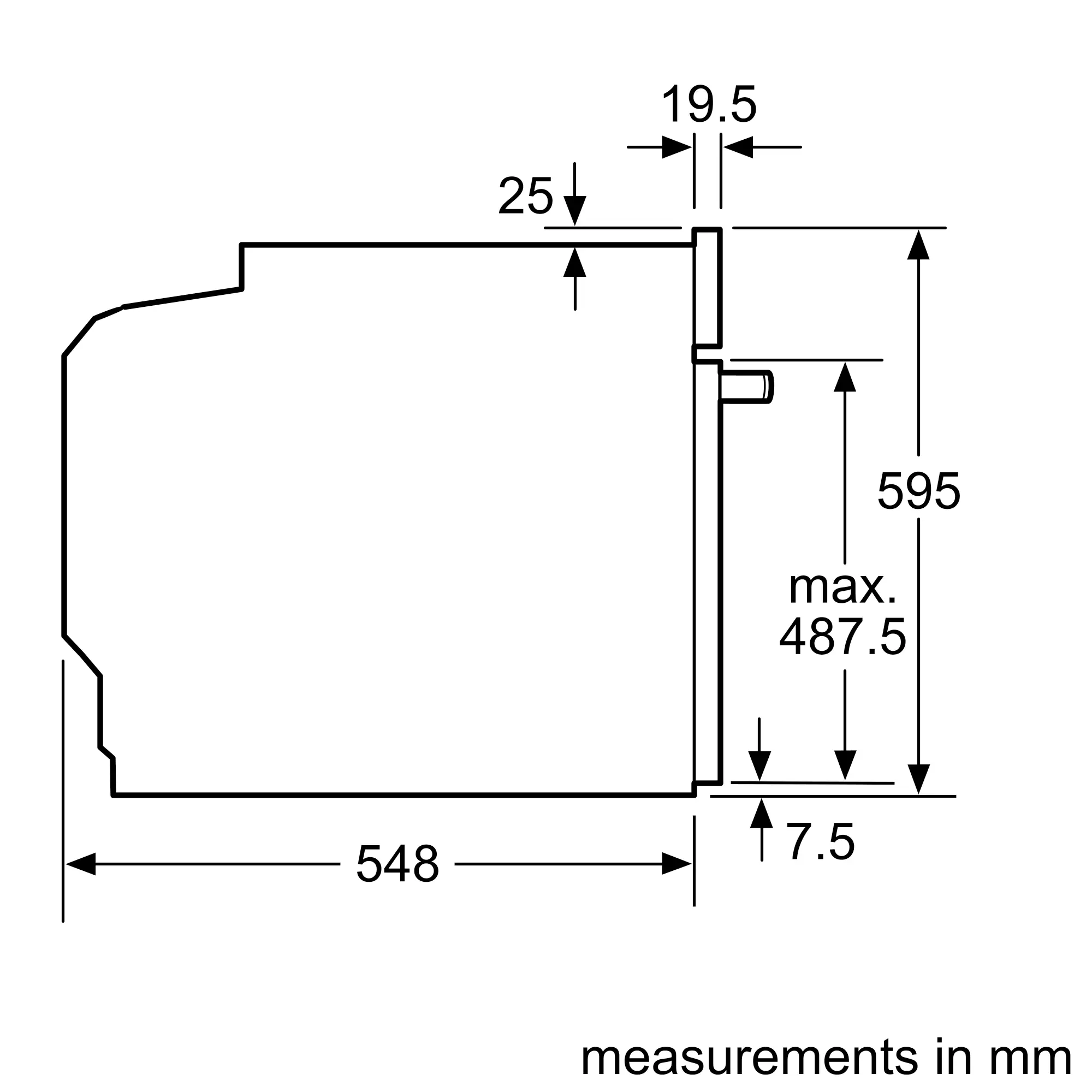

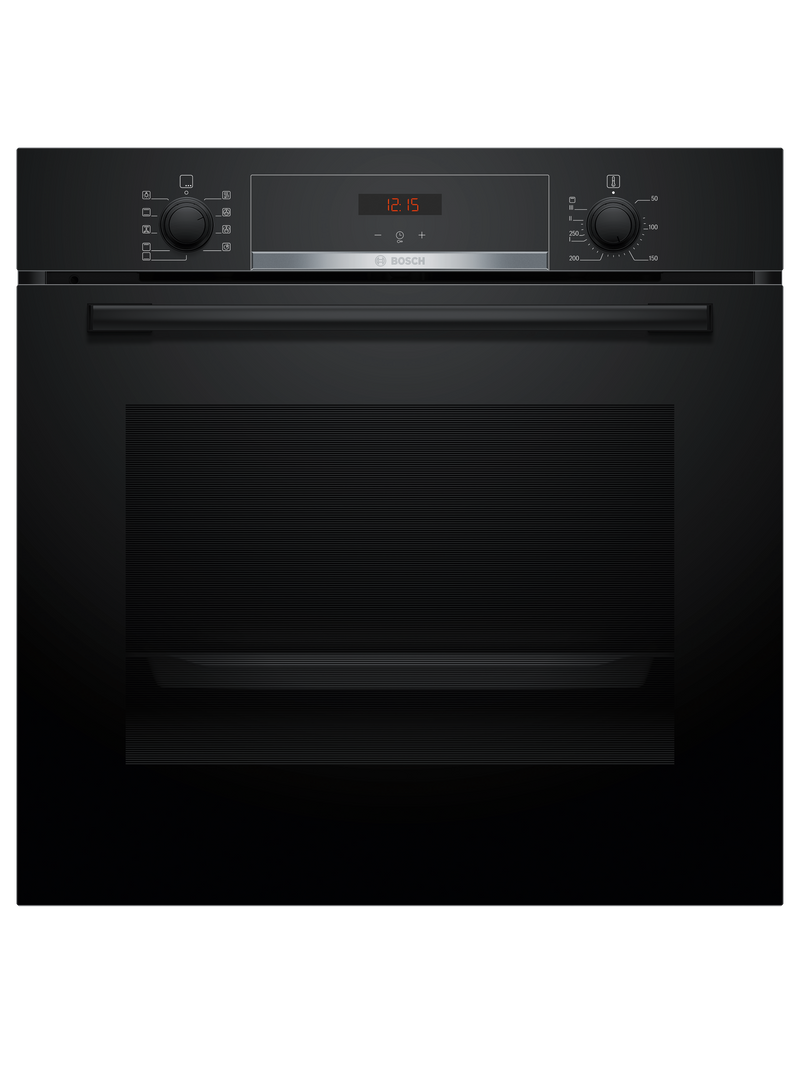

The HBA534BB3A is designed for standard 60cm built-in oven cabinetry and requires hardwired electrical installation by a licensed electrician. The oven door incorporates triple glazing and cooling fan technology to assist with safer external surface temperatures during operation.

EcoClean Direct reduces ongoing maintenance requirements by applying a specialised microfine ceramic coating to the rear cavity wall, helping absorb cooking residue over time.

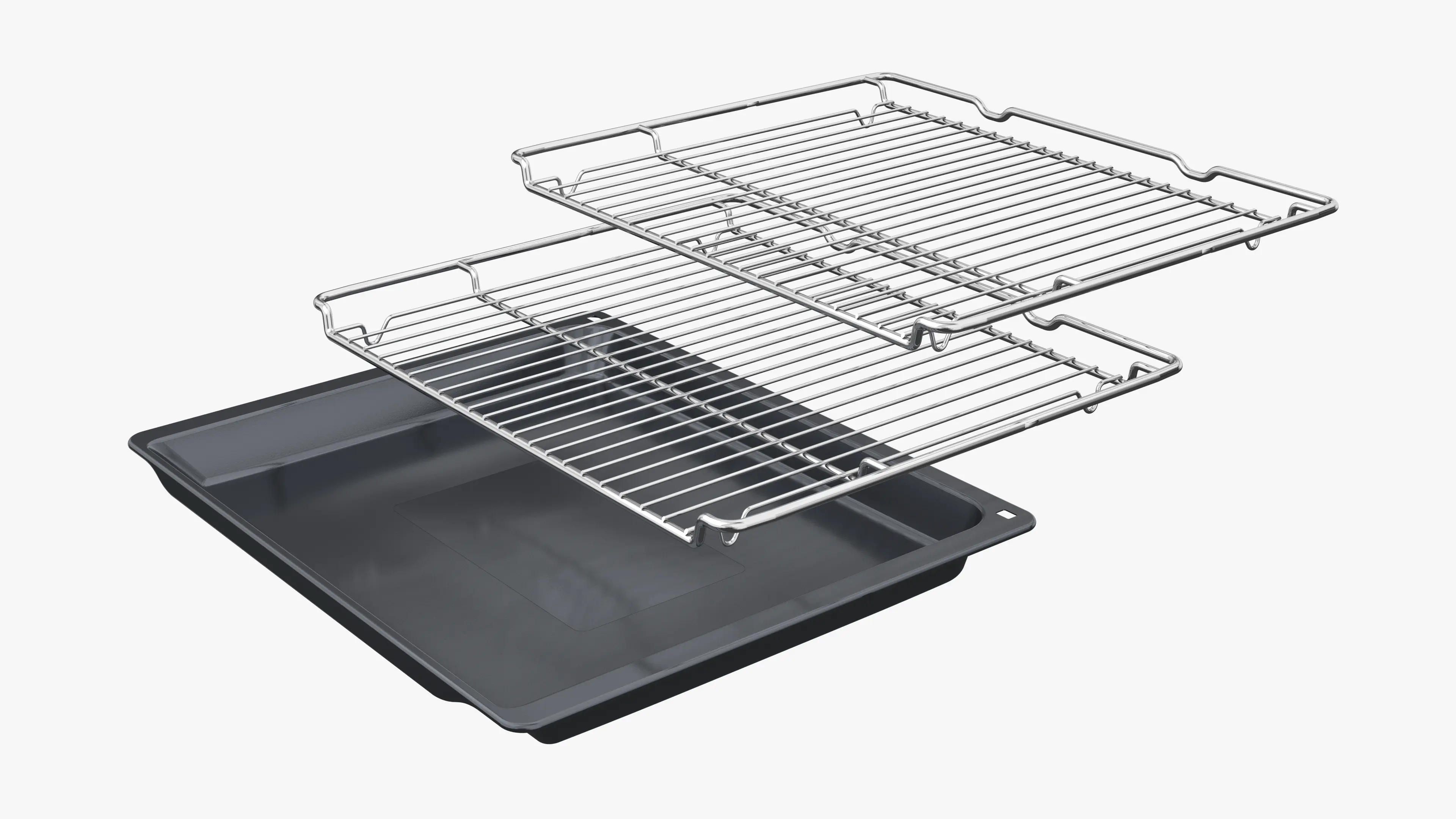

• 2 x combination grids
• 1 x universal pan

• SPECIFICATIONS SHEET (PDF)
• USER MANUAL & INSTALLATION INSTRUCTIONS (PDF)
• SUPPLEMENTRY SHEET (PDF)
