• No Frost technology: prevents ice build-up and eliminates manual defrosting.
• Vario Zone storage system: removable shelves and drawers for flexible internal freezer organisation.
• BigBox frozen food drawers: oversized freezer compartments for larger containers and stacked storage.

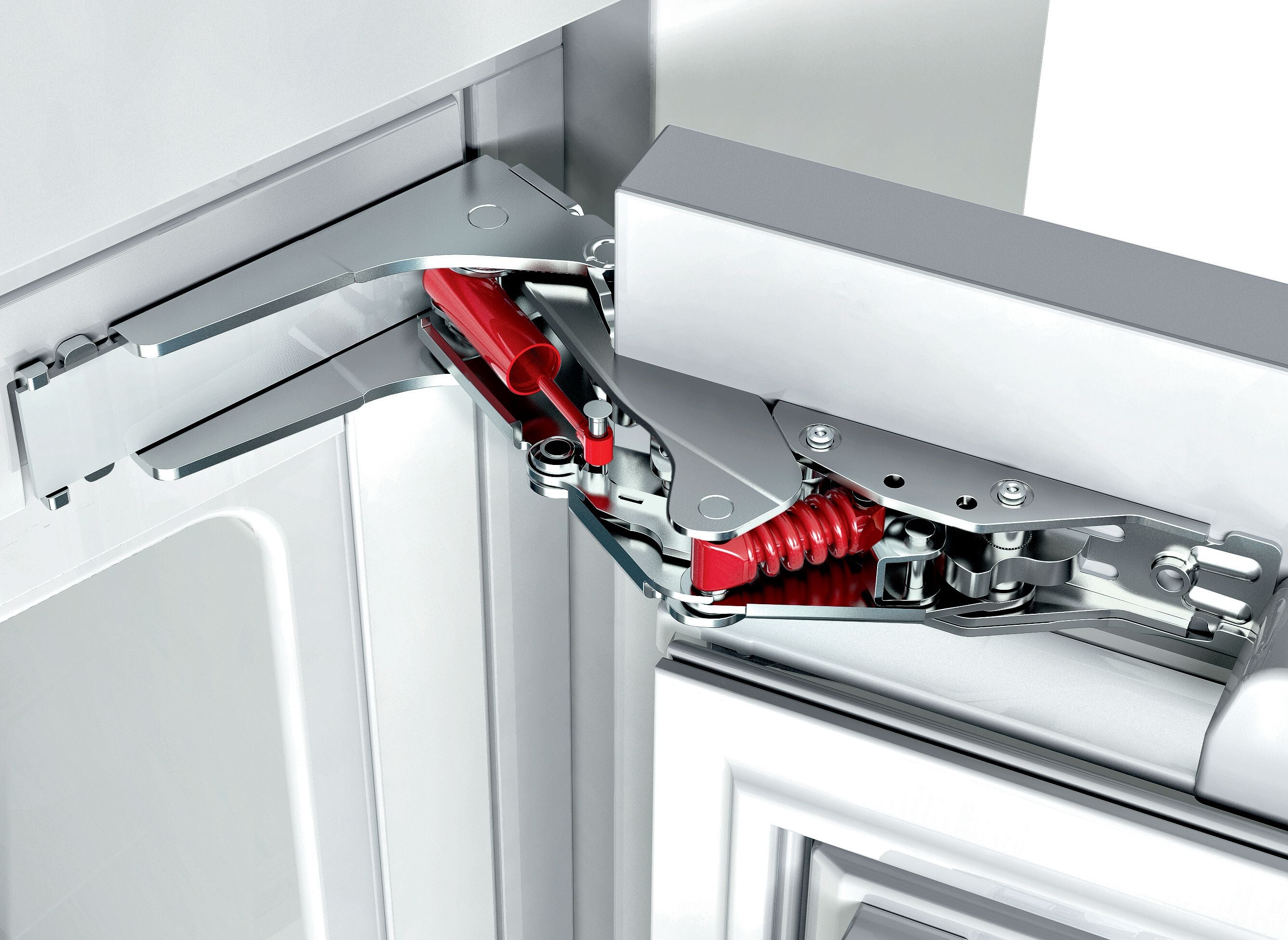

• SoftClose flat hinge: door closes softly and automatically once partially closed.
• SuperFreeze function: rapidly lowers freezer temperature when loading fresh groceries.

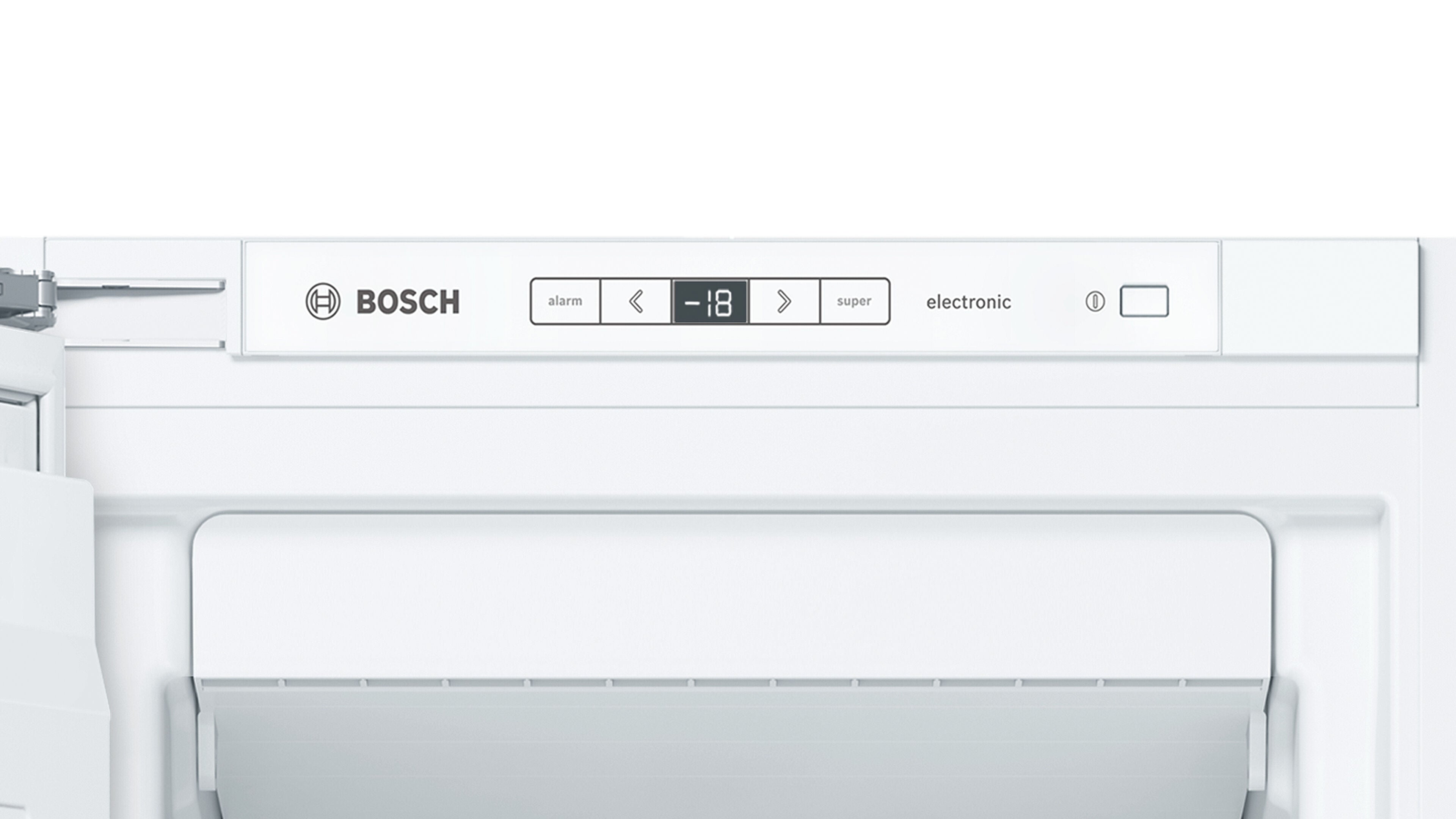

• Electronic temperature control: precise digital freezer temperature adjustment.
• Visual and audible warning system: alerts if temperature rises or the door remains open.
• Transparent freezer drawers: improves visibility and organisation of frozen food.
• Reversible door hinge: adaptable installation configuration for varying kitchen layouts.
• Integrated installation: concealed behind custom kitchen cabinetry panels.

• Product category: Upright freezer
• Product series: Bosch Series 6
• Installation type: Fully integrated built-in
• Total freezer capacity: 252 L
• Energy rating: 3 stars
• Annual energy consumption: 260 kWh
• Noise level: 36 dB(A)
• Climate class: SN-T
• Defrost system: No Frost automatic defrost
• Freezing capacity: 20 kg / 24 hours
• Storage time during power failure: 22 hours
• Temperature control type: Electronic digital control
• Door hinge: Left hinged, reversible
• Number of freezer drawers: 5
• Number of BigBox drawers: 2
• Number of freezer flaps: 2
• Interior lighting: No
• Home Connect: No
• Ice maker: No
• Plumbing required: No

• Installation type: Fully integrated built-in freezer

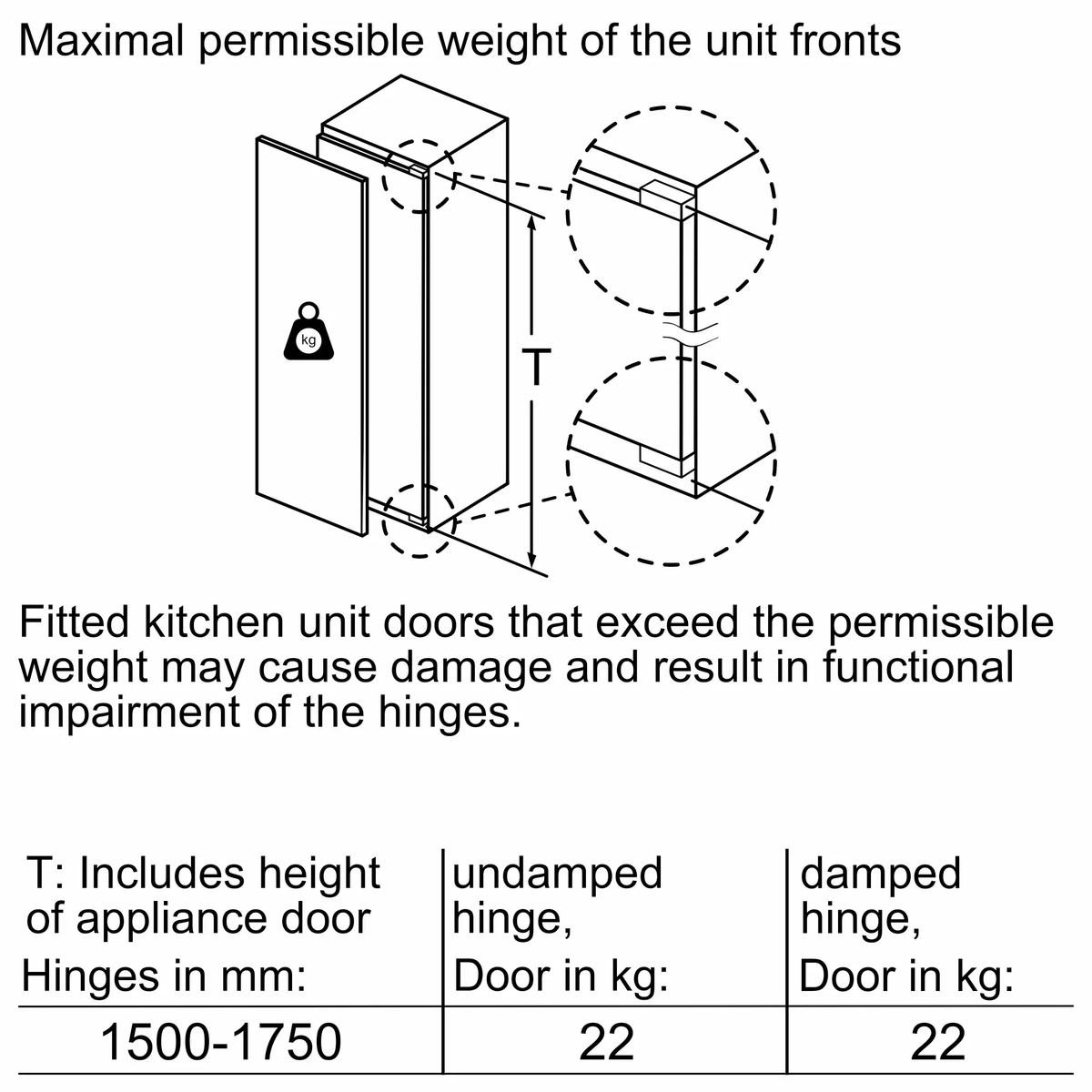

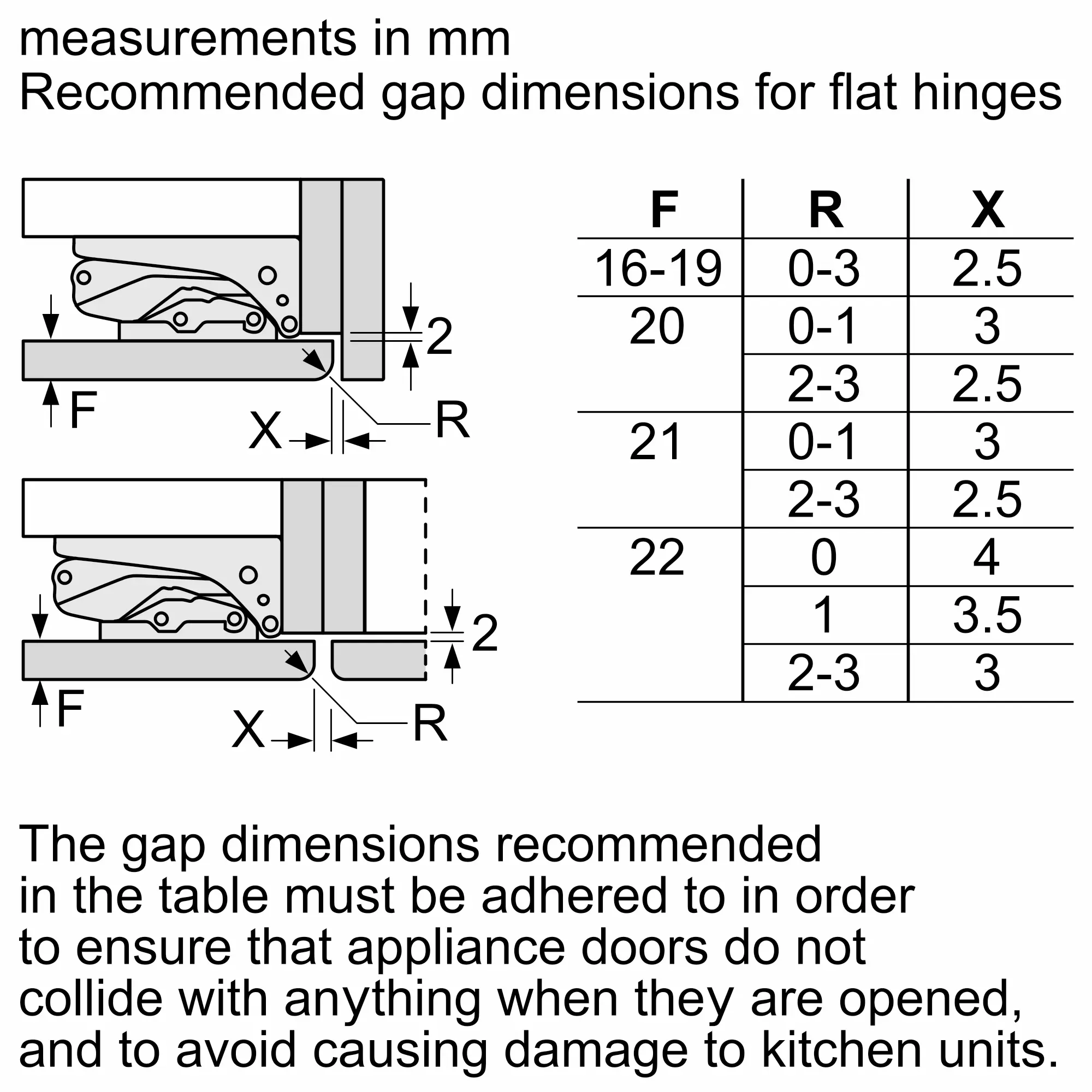

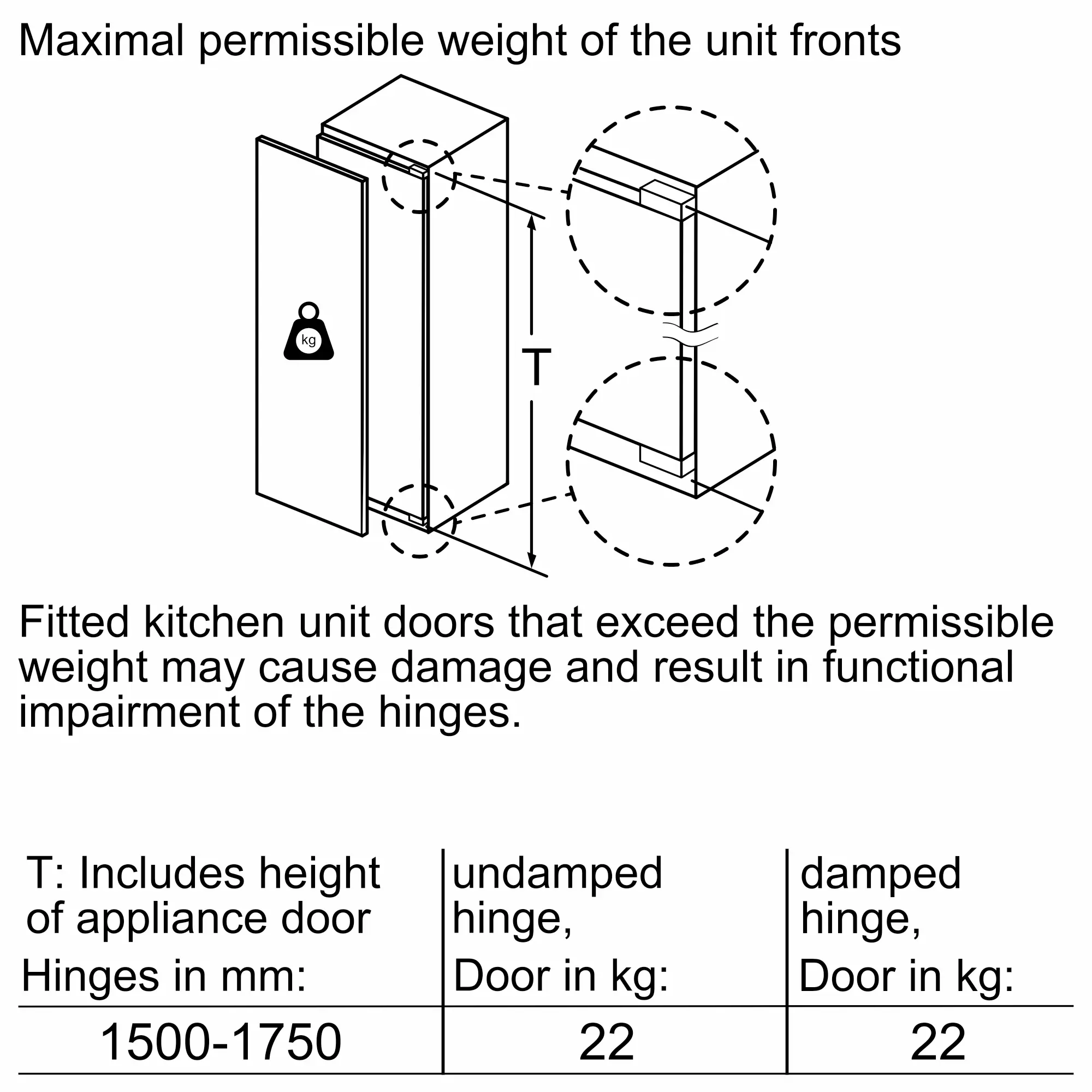

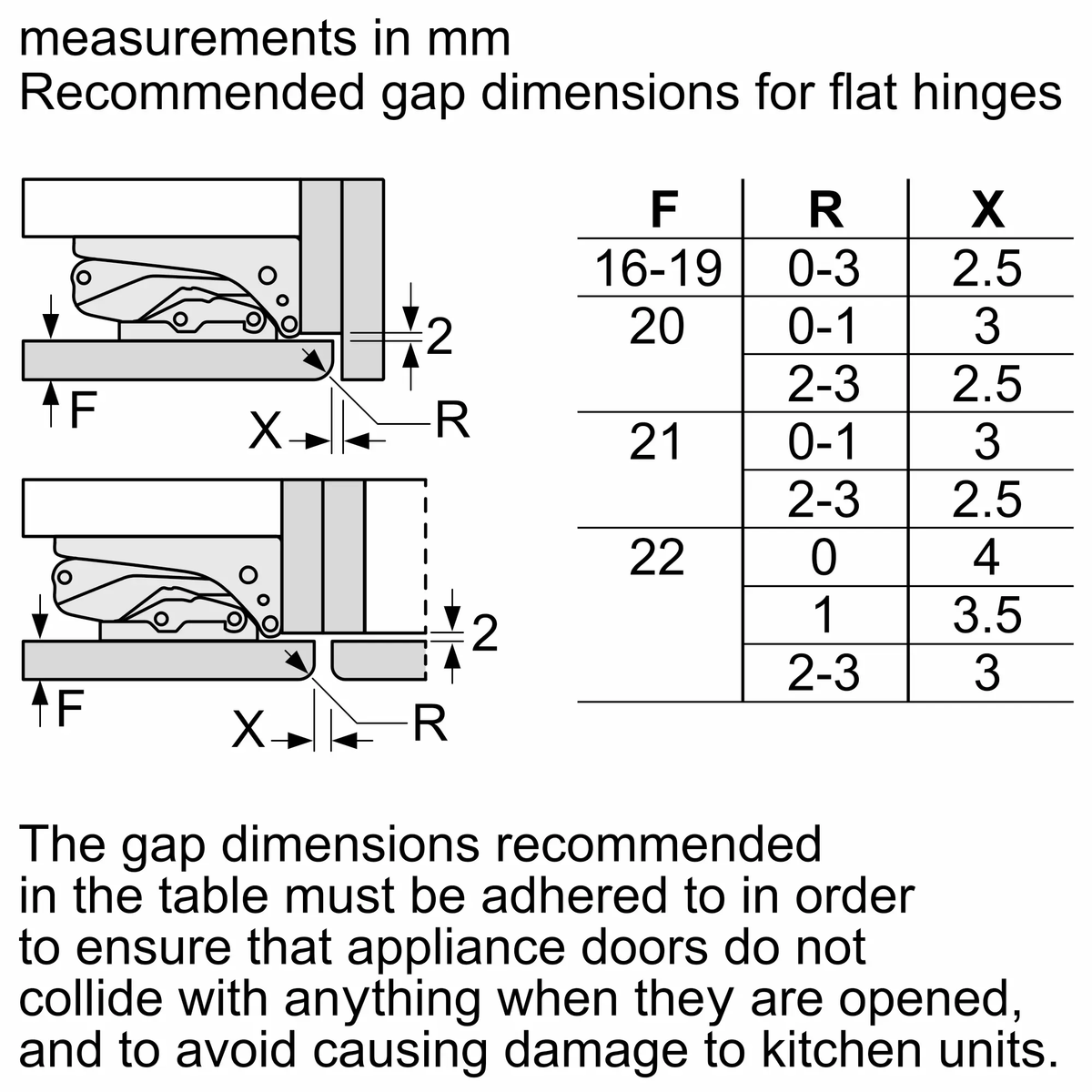

• Hinge system: SoftClose flat hinge
• Power supply: 220–240 V / 50 Hz
• Connection rating: 120 W
• Fuse protection: 10 A
• Connection type: Plug-in
• Power cord length: 230 cm

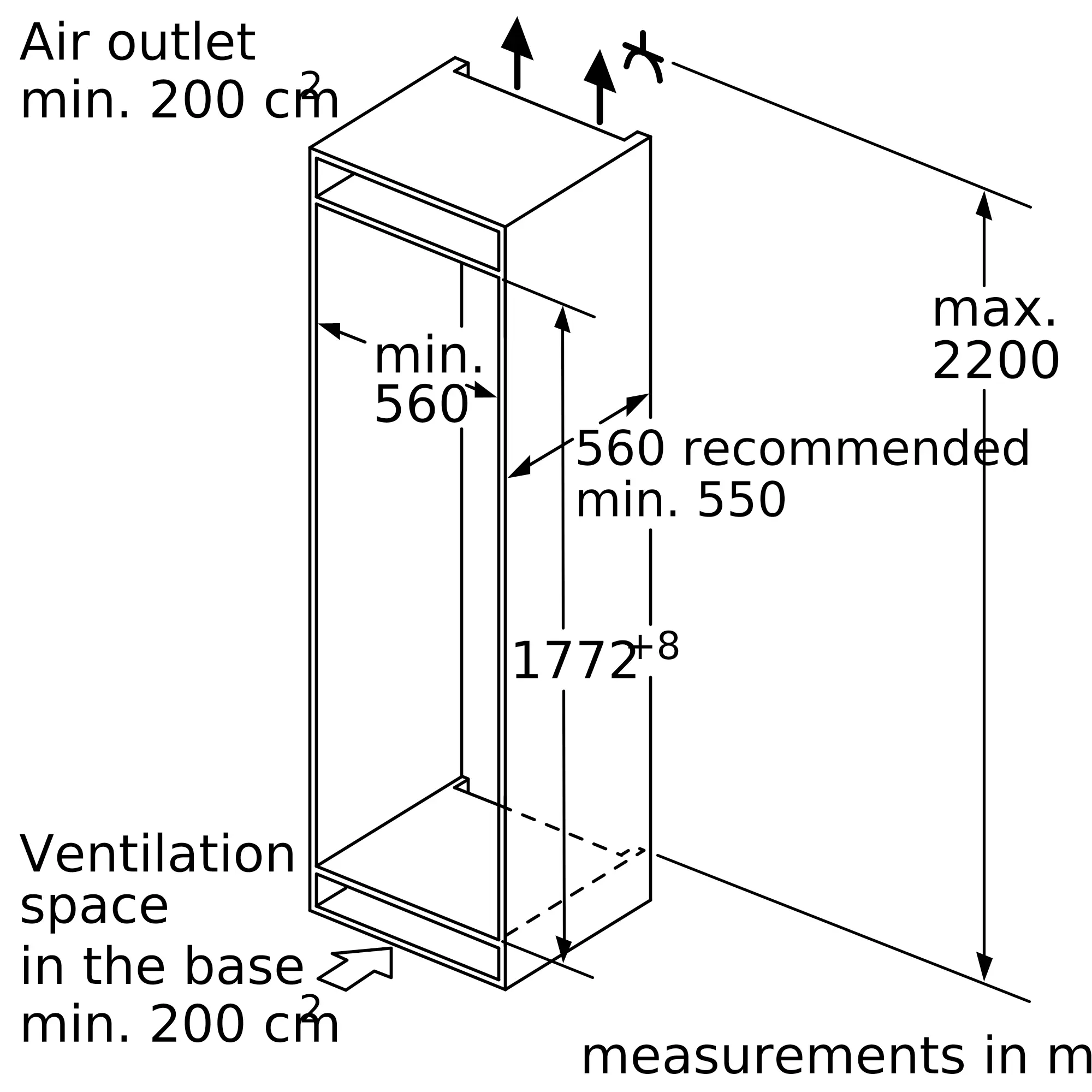

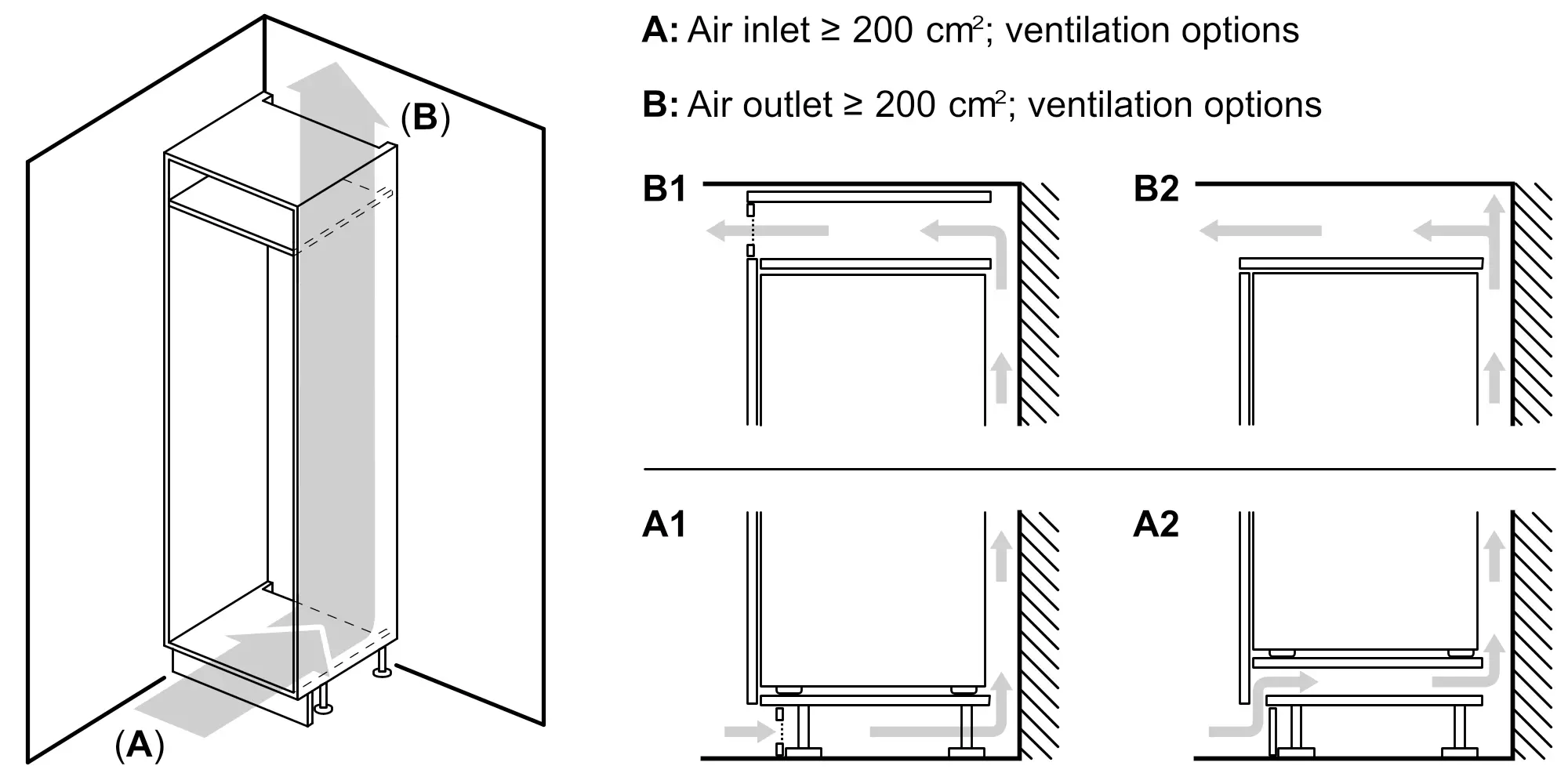

• Ventilation requirements: Refer to Bosch installation guide for integrated cabinetry ventilation clearances.
• Door configuration: Reversible hinge for left or right opening installation.

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

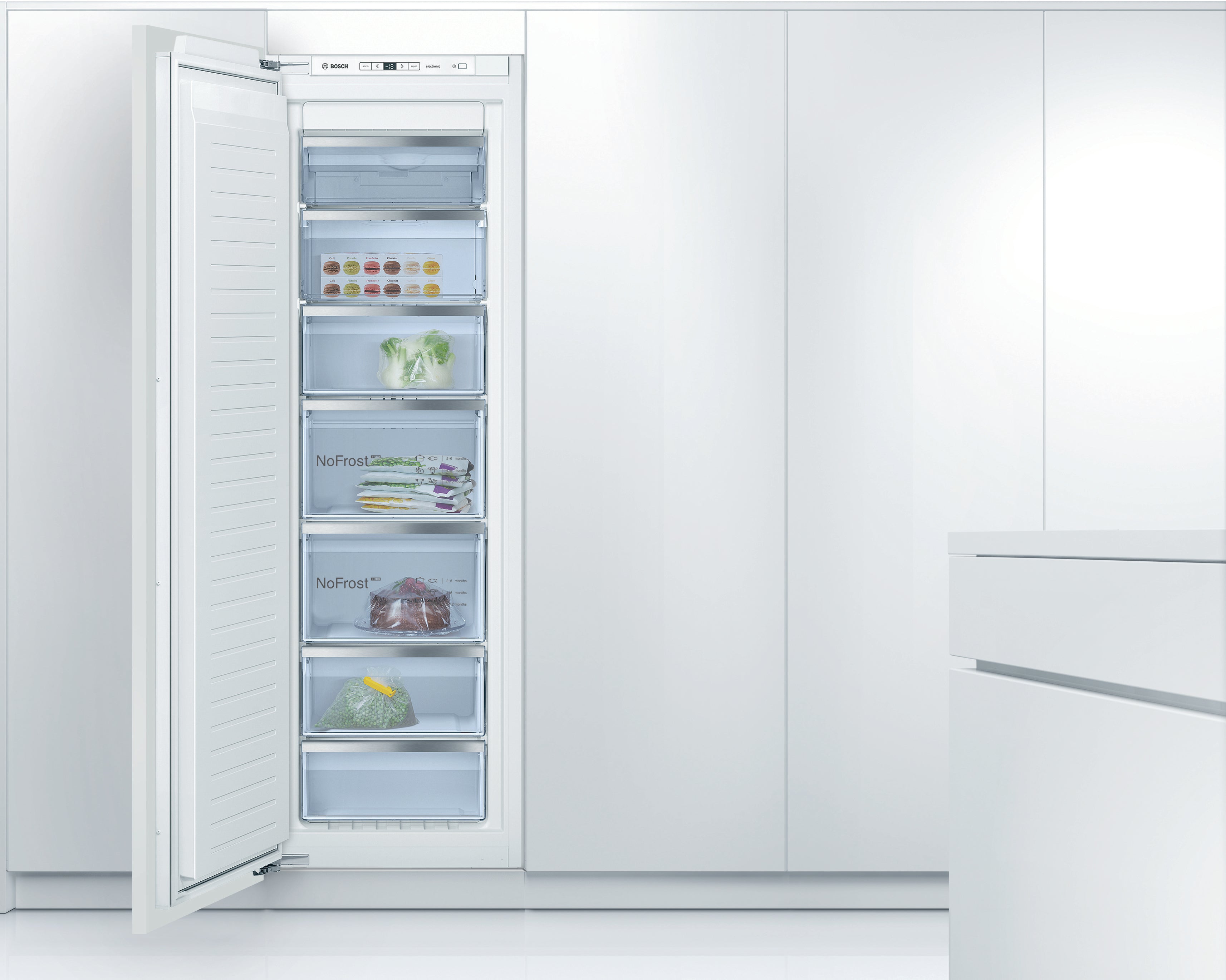

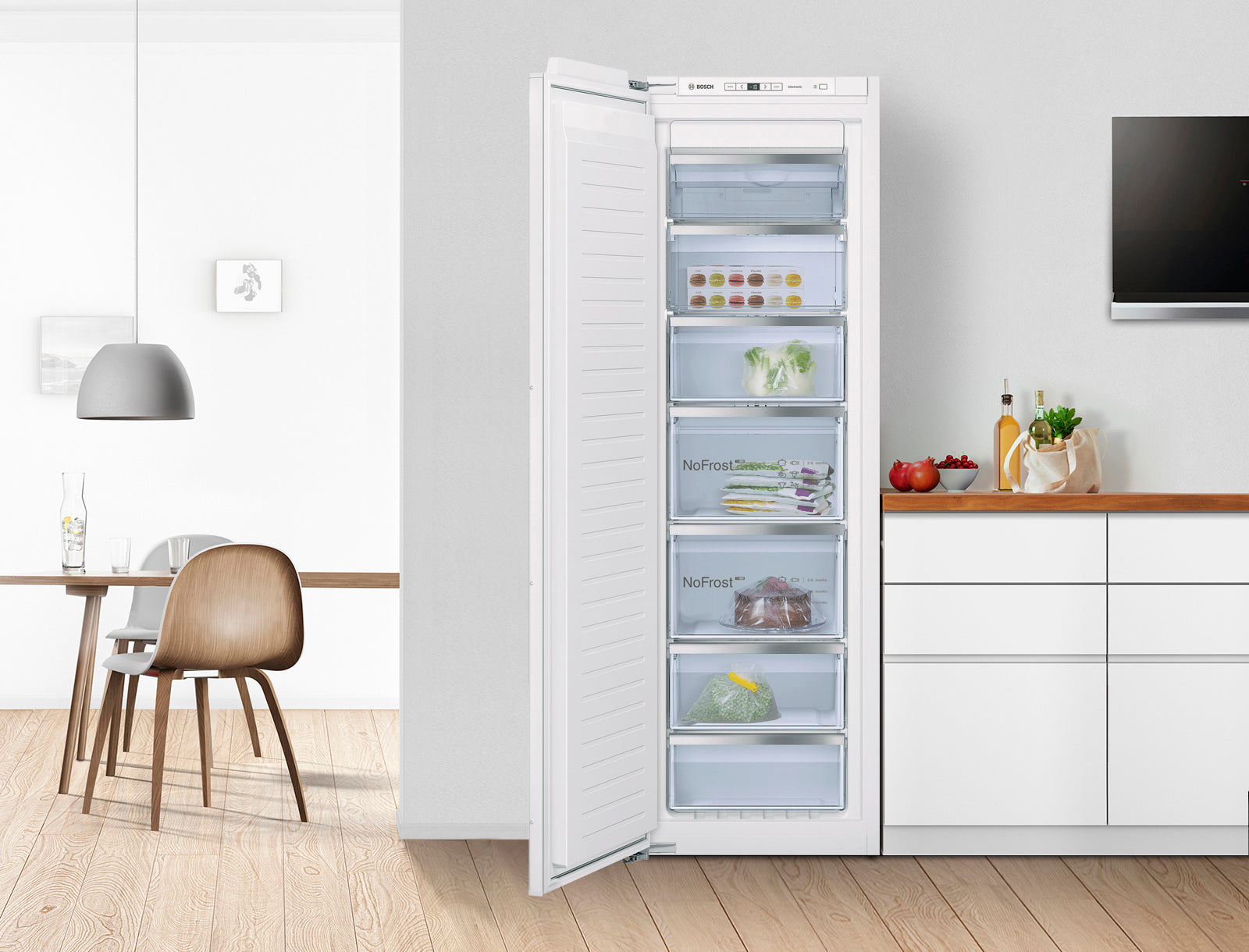

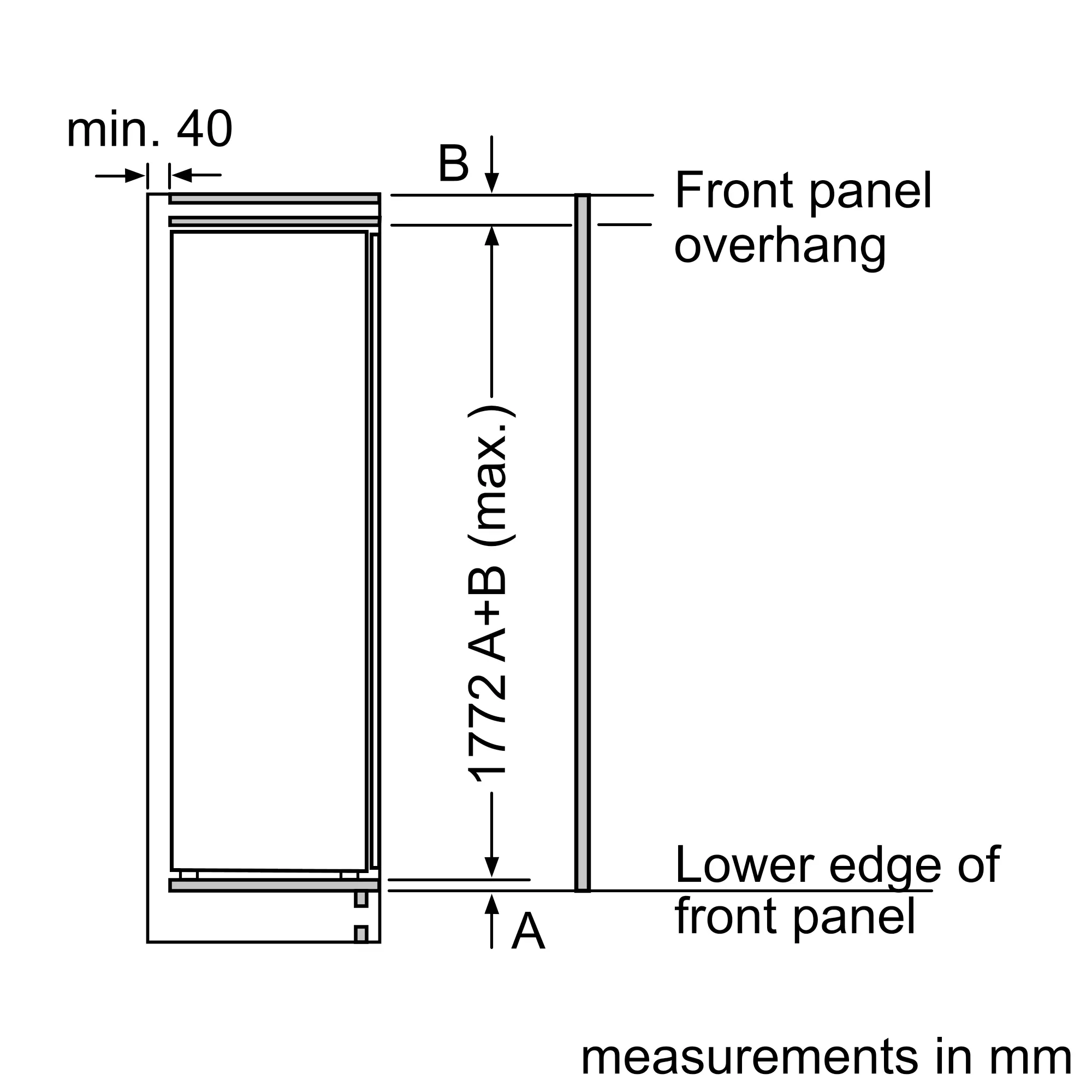

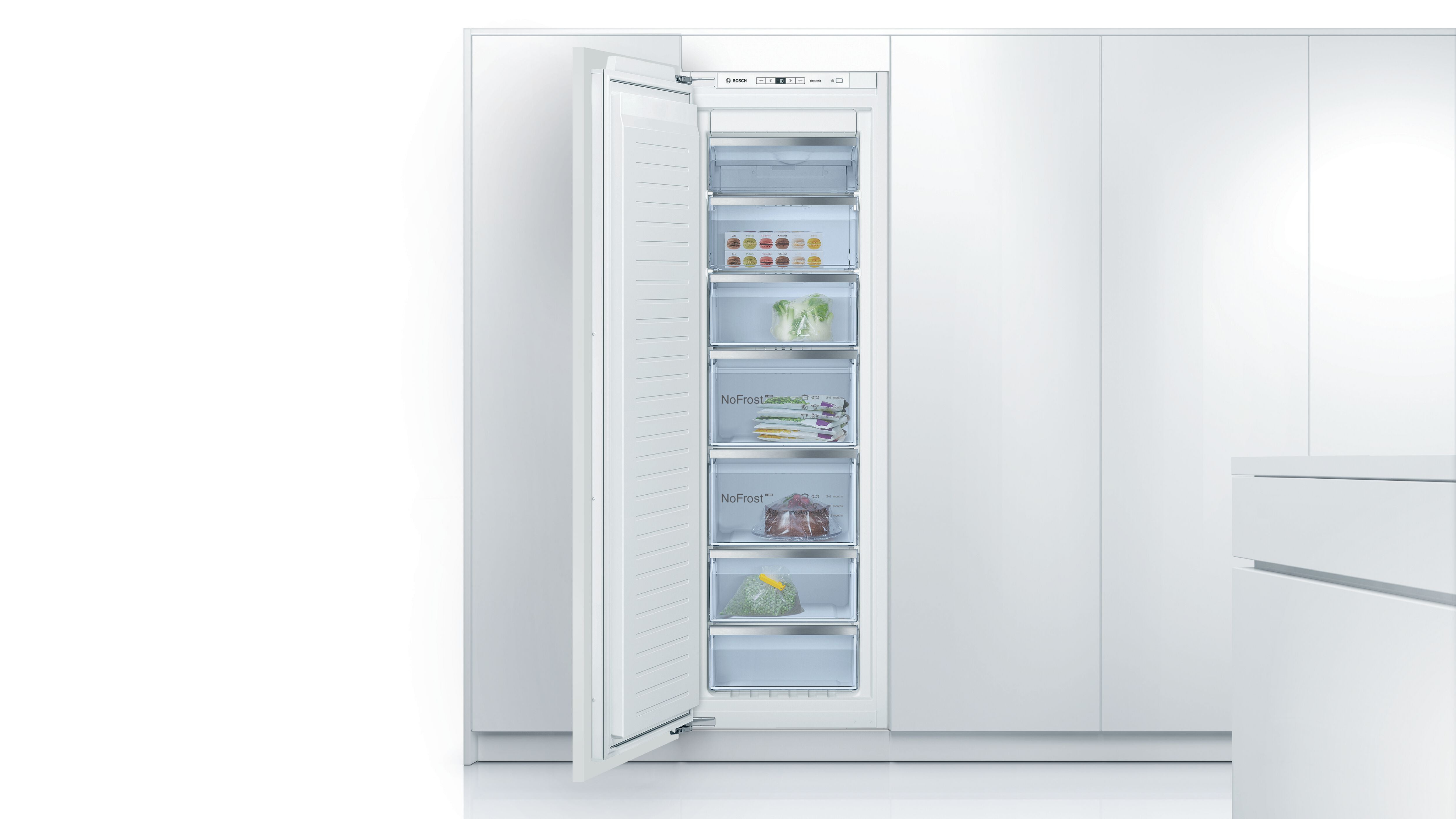

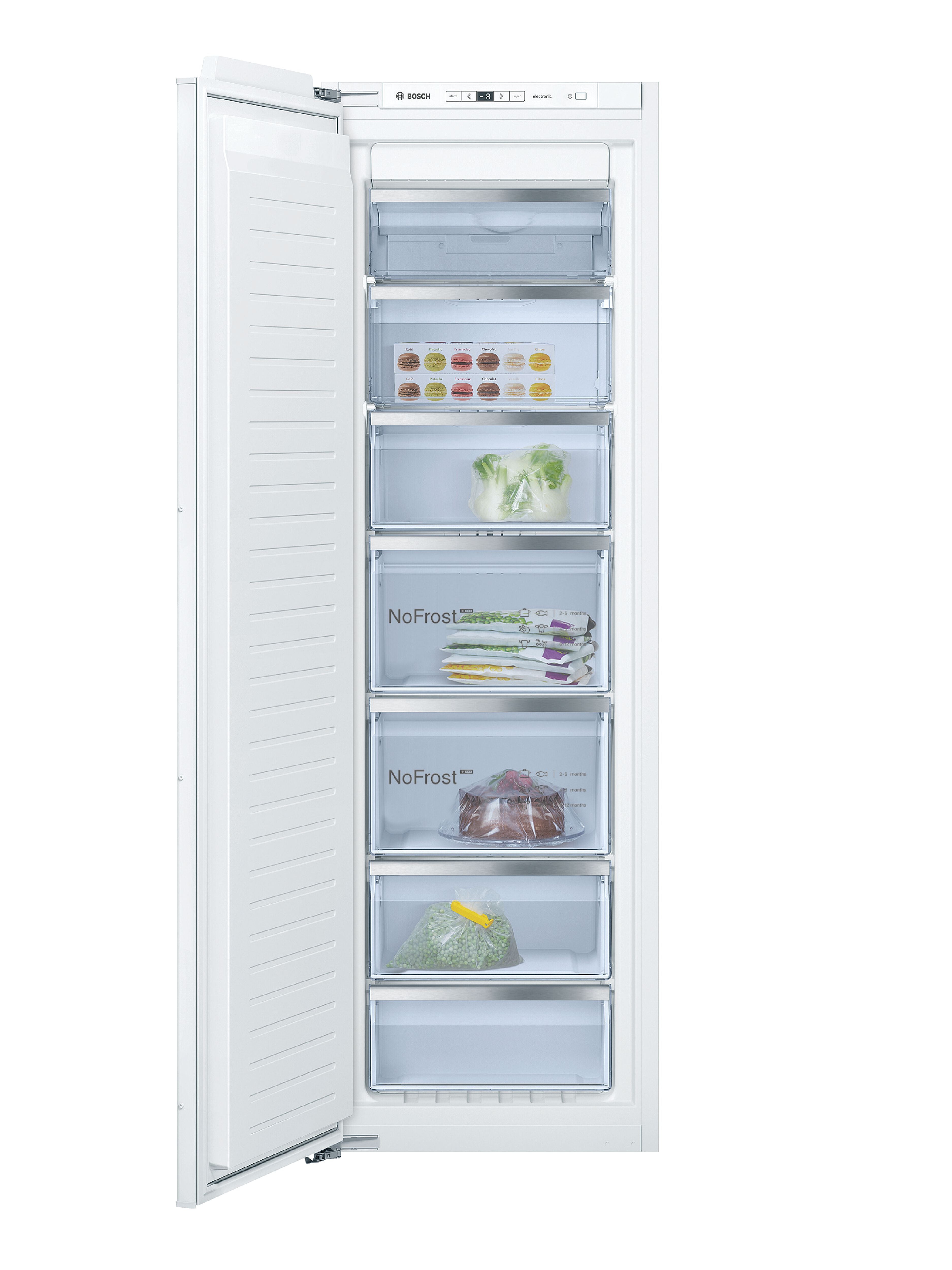

The GIN81AC30A is designed for integration behind custom cabinetry and requires installation into a dedicated refrigeration cavity. The appliance uses Bosch’s flat hinge installation system, allowing the cabinet door and appliance door to move together for a streamlined integrated appearance.

Bosch No Frost technology circulates dry air throughout the freezer cavity to minimise moisture build-up and prevent ice formation on internal surfaces and stored food. This removes the need for periodic manual defrosting and assists with maintaining efficient airflow inside the appliance.

The Vario Zone storage configuration allows selected glass shelves and drawers to be removed to create larger storage areas for oversized frozen items. BigBox drawers provide additional vertical storage capacity suited to bulk food storage and taller containers.

• 2 x cold accumulators
• 1 x ice cube tray
• Installation hardware
• Power cord

• SPECIFICATIONS SHEET (PDF)
• USER MANUAL (PDF)
• INSTALLATION INSTRUCTIONS (PDF)
• SUPPLEMENTRY SHEET (PDF)
