Product Description

Product Overview:

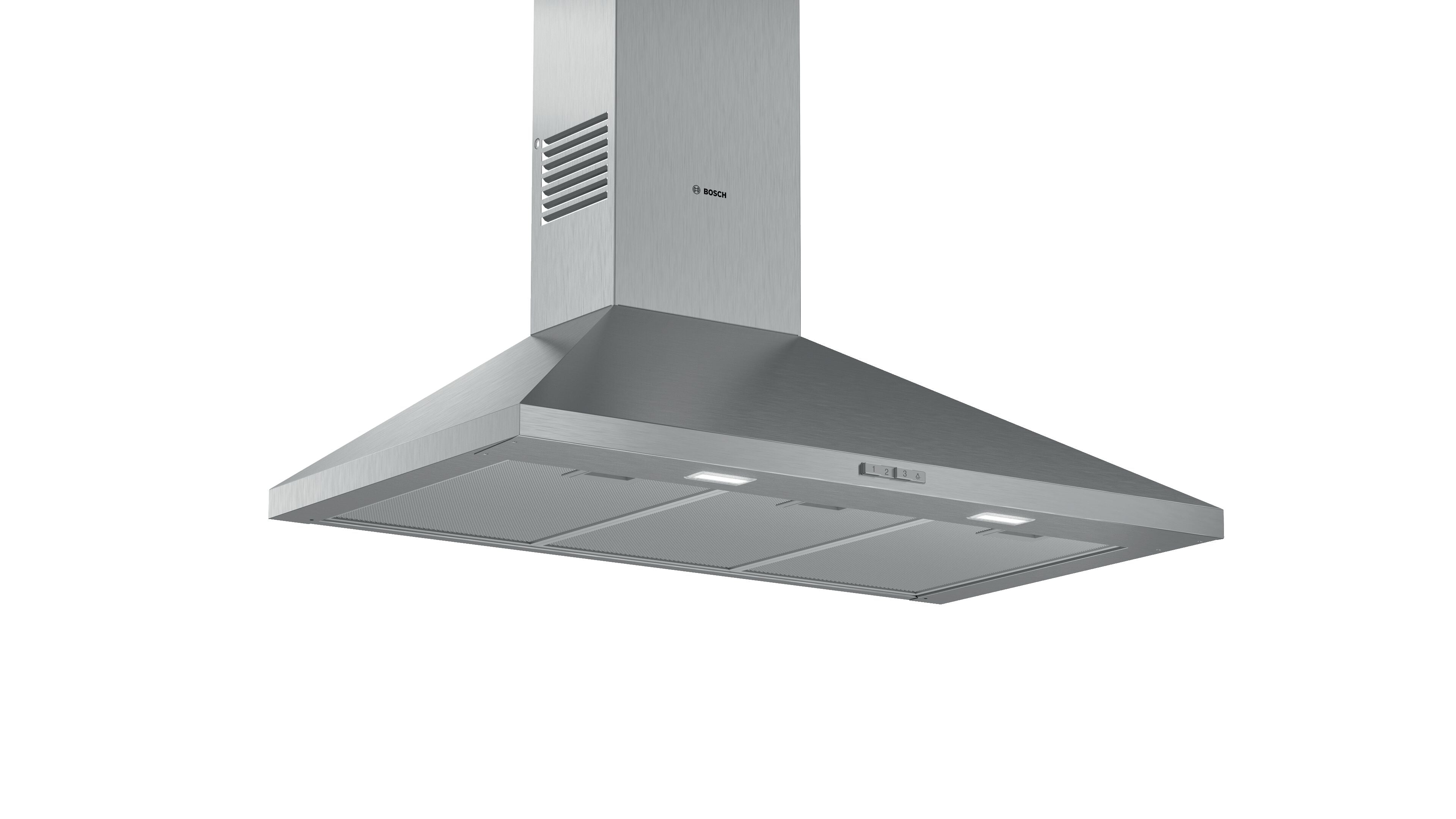

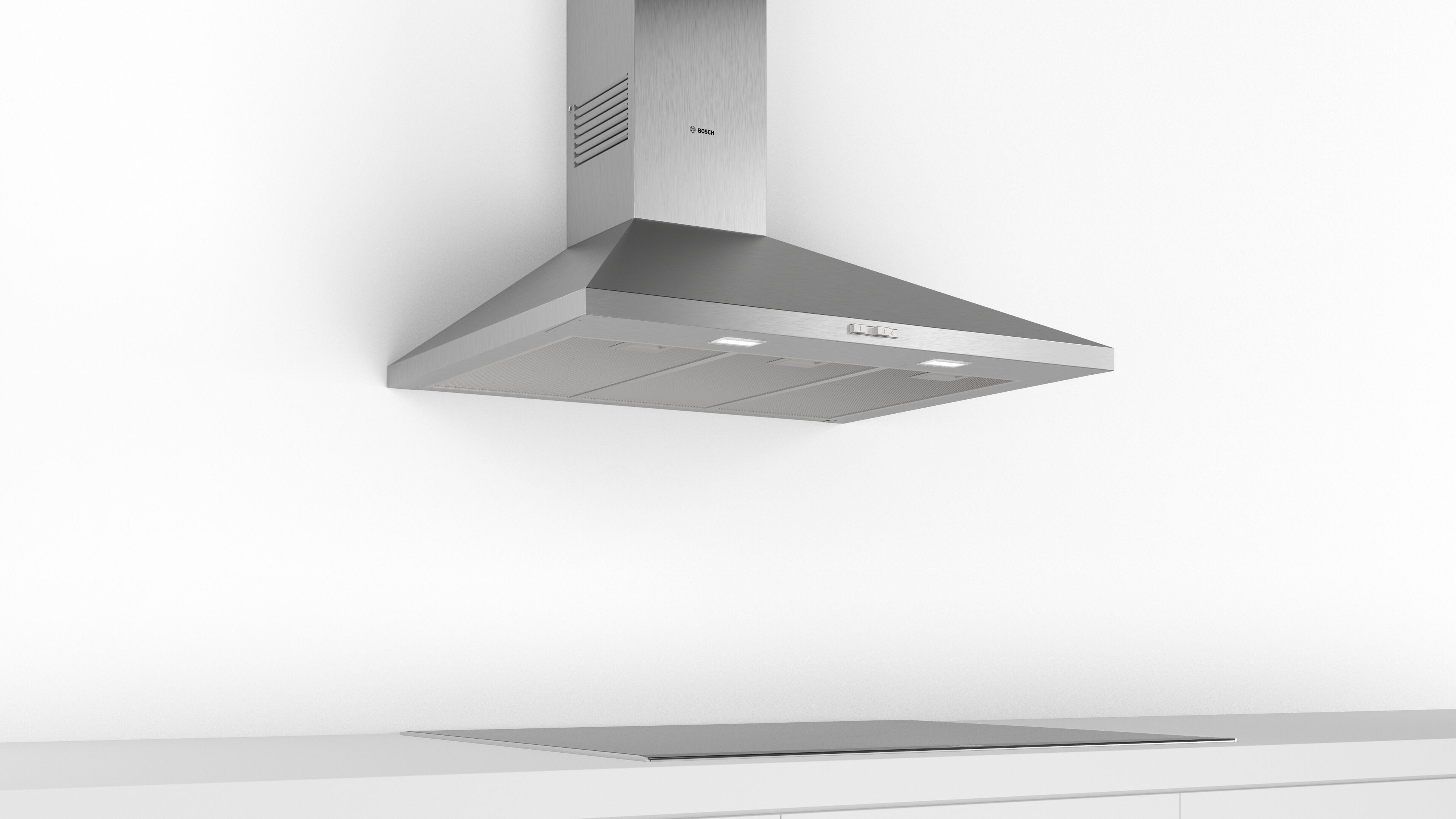

The Bosch DWP96BC50A is a 90cm wall-mounted canopy rangehood from the Bosch Series 2 collection, finished in stainless steel and designed to provide effective extraction for medium to large kitchen environments. The traditional pyramid canopy profile creates a prominent architectural feature above the cooktop while delivering strong ventilation performance for everyday cooking.

Designed for both ducted and recirculating operation, the DWP96BC50A offers installation flexibility across a wide range of kitchen layouts. A maximum extraction capacity of up to 626m³/h helps remove cooking vapours, grease particles and odours, while Bosch's aluminium grease filtration system assists in maintaining cleaner kitchen air.

The rangehood incorporates three fan speeds, mechanical push-button controls and energy-efficient LED lighting. Washable metal grease filters simplify ongoing maintenance and can be cleaned in the dishwasher for added convenience.

Product Features:

• 90cm canopy width: designed to pair with wider cooking surfaces and 90cm cooktops.
• Series 2 rangehood: Bosch ventilation solution for everyday residential kitchens.
• Wall-mounted installation: prominent canopy design mounted directly to the wall.
• Pyramid canopy profile: traditional canopy styling with stainless steel finish.
• Maximum extraction rate of 626m³/h: assists in removing cooking smoke, steam and odours.
• Three fan speeds: adjustable extraction levels to suit varying cooking intensity.
• Twin channel high-performance fan motor: supports consistent extraction performance.
• Ducted extraction operation: expels cooking vapours externally.
• Recirculation compatible: can operate in recirculating mode with optional Bosch recirculation kit.

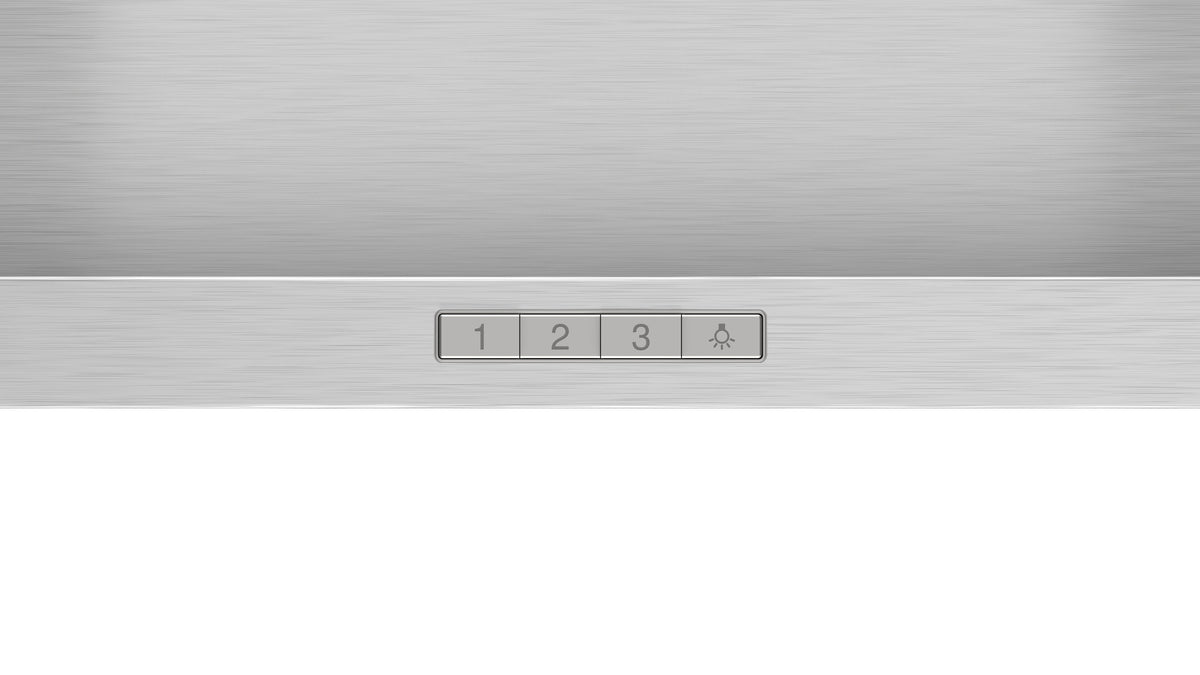

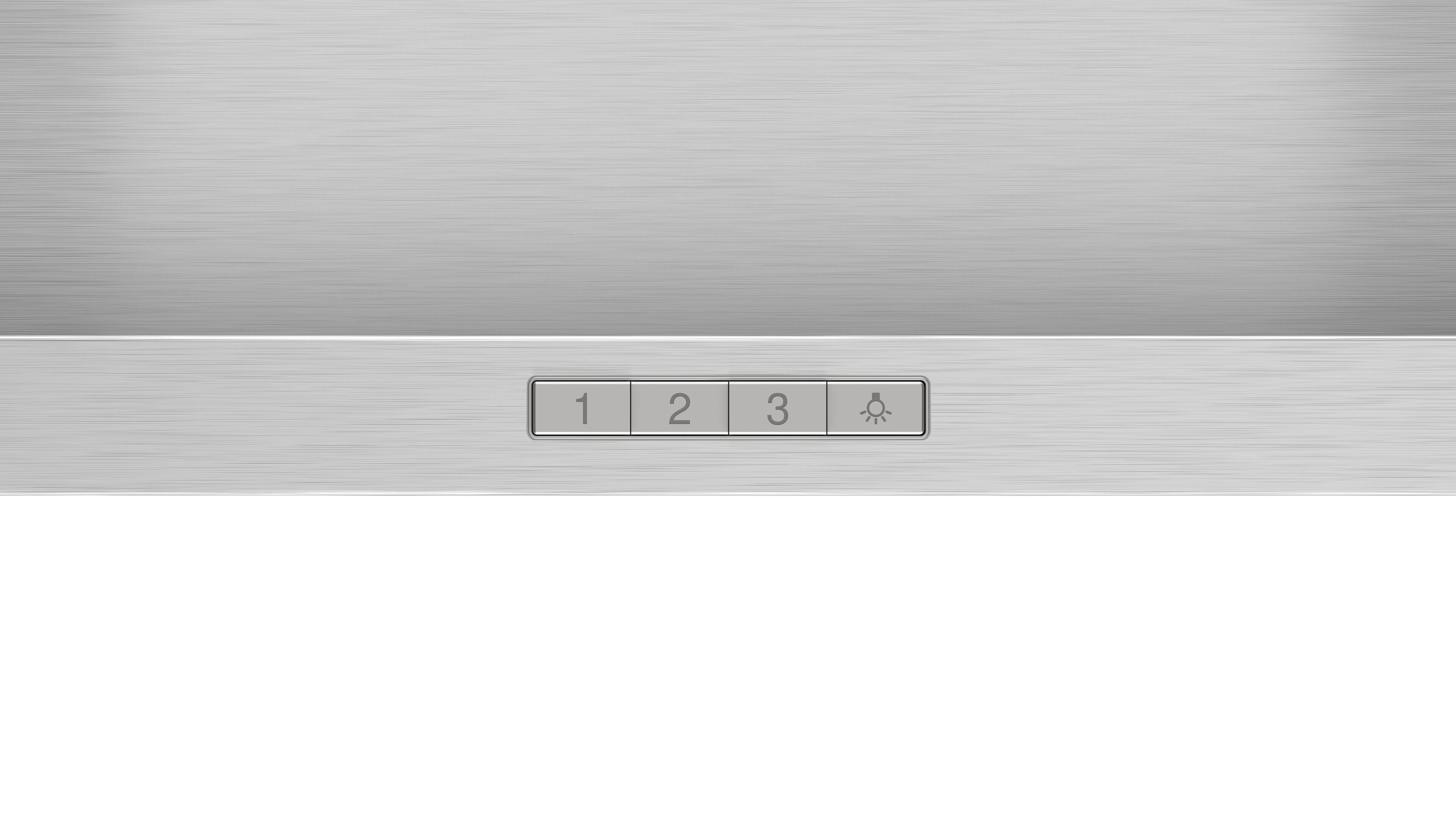

• Mechanical push-button controls: straightforward operation and speed selection.
• LED cooktop lighting: bright and energy-efficient task lighting.

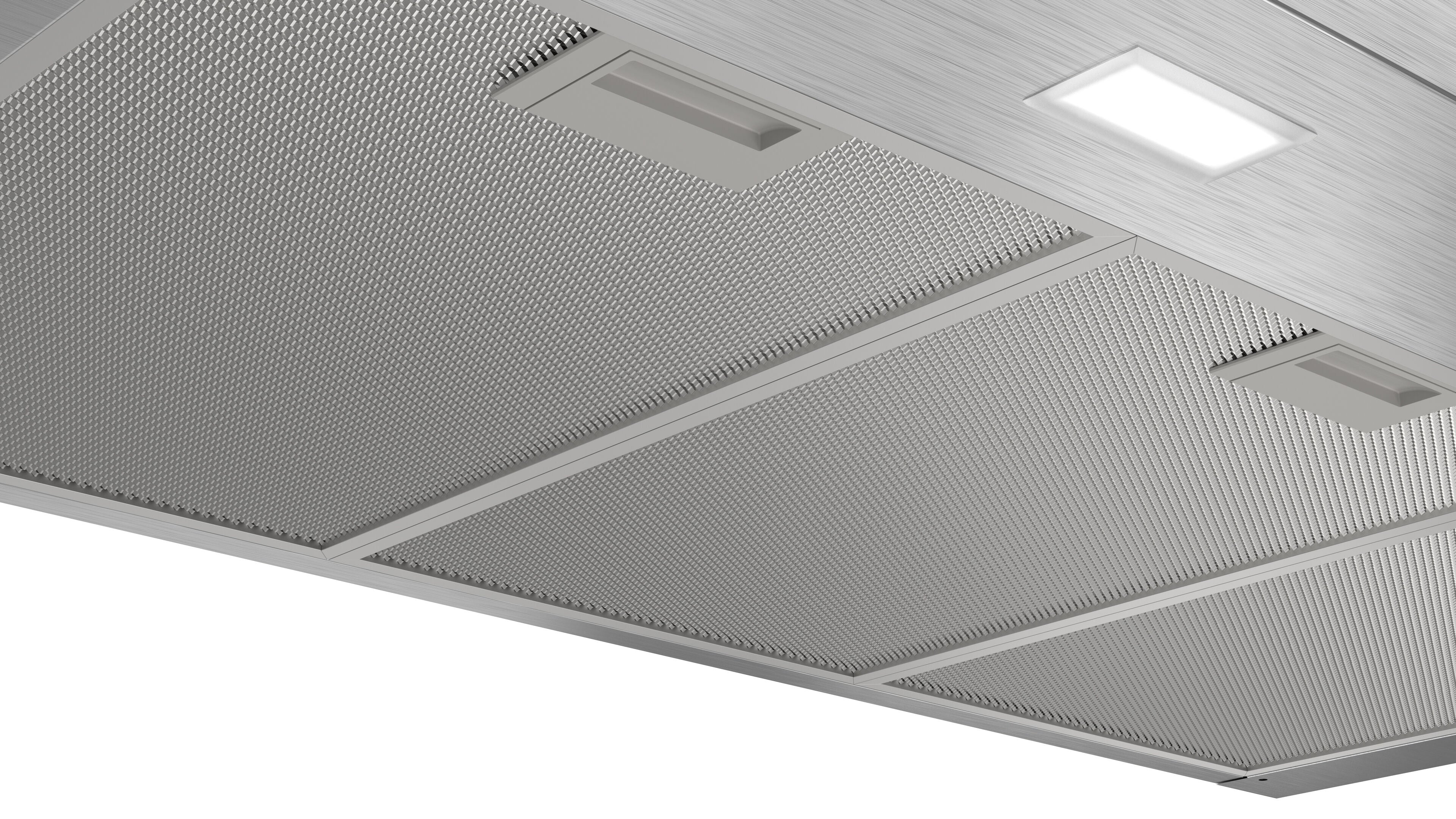

• Three aluminium mesh filters: captures grease particles during operation.
• Dishwasher-safe filters: simplifies regular cleaning and maintenance.
• One-way flap system: assists in preventing outside air entering through the ducting system.
• Top ducting outlet: suitable for common ducted installation configurations.

Colour / Finishes:

• Stainless Steel — DWP96BC50A

Programmes / Functions:

• Speed 1: Low extraction setting suitable for light cooking and simmering.
• Speed 2: Medium extraction setting for everyday cooking activities.
• Speed 3: Maximum extraction setting for higher volumes of steam, smoke and cooking odours.
• LED Lighting: Illuminates the cooking surface independently of fan operation.
• Ducted Extraction Mode: Removes cooking vapours externally through ducting.
• Recirculation Mode: Filters and returns air back into the kitchen when fitted with compatible recirculation accessories.

Cleaning & Maintenance:

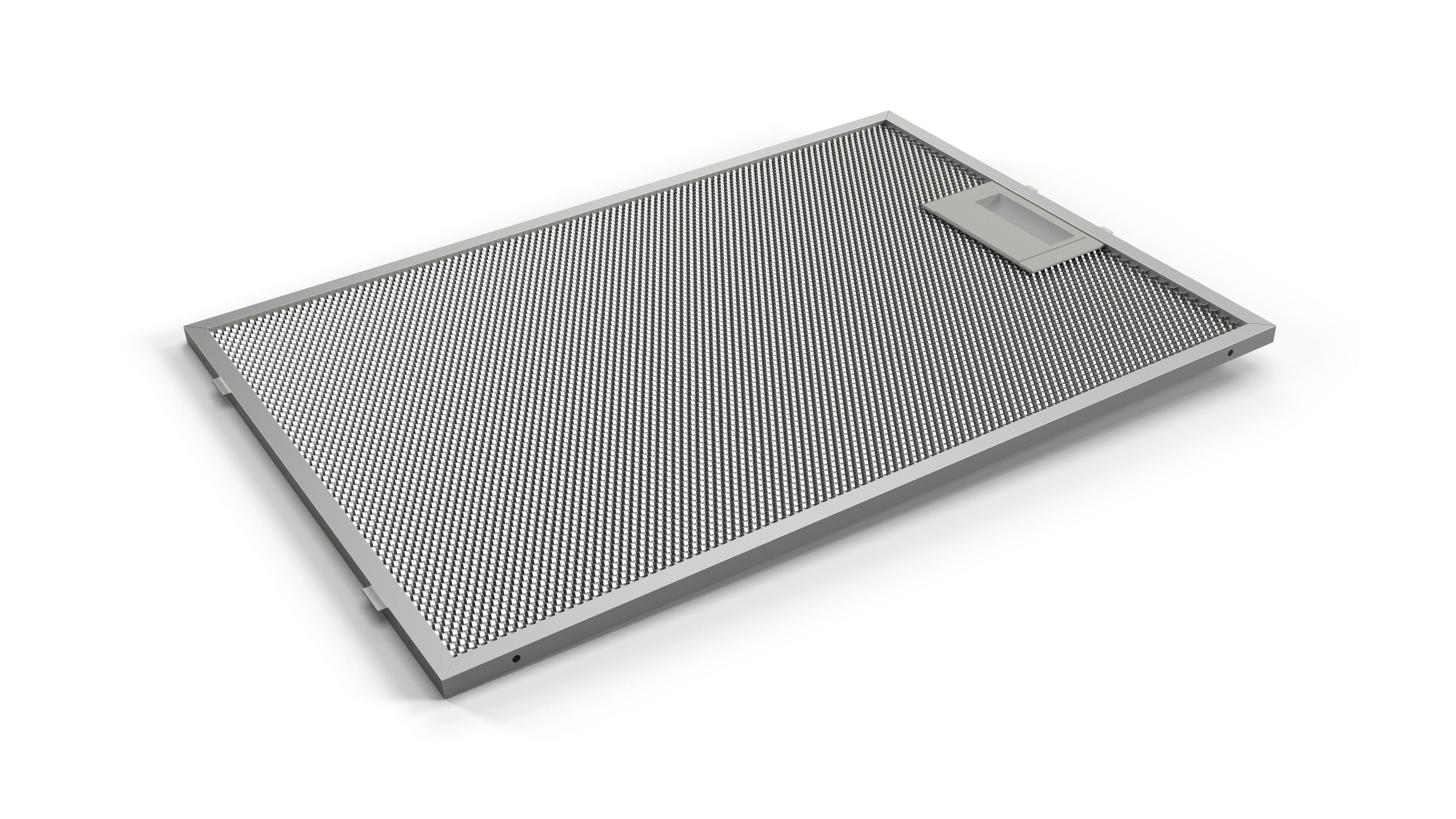

• Dishwasher-Safe Grease Filters: Aluminium mesh filters can be removed and cleaned in a dishwasher.
• Removable Filter System: Filters can be easily removed for routine maintenance and cleaning.
• Stainless Steel Surfaces: External surfaces should be cleaned regularly using appropriate stainless steel cleaning products.
• Grease Filter Maintenance Indicator: Filters should be cleaned regularly to maintain optimal extraction performance.
• Recirculation Filter Replacement: Carbon odour filters require periodic replacement when operating in recirculation mode.
• LED Lighting Maintenance: Long-life LED lighting is designed to minimise replacement requirements.

Specifications:

• Product series: Series 2
• Rangehood type: Wall-mounted canopy
• Installation type: Wall-mounted
• Operating modes: Ducted / Recirculation (optional accessory required)
• Maximum extraction rate: 626m³/h
• Typical extraction rate: 600m³/h
• Fan speeds: 3
• Control type: Mechanical push-button
• Motor type: Twin channel high-performance fan motor
• Number of filters: 3
• Filter type: Aluminium mesh grease filters
• Dishwasher-safe filters: Yes
• Number of lights: 2
• Lighting type: LED
• Illumination level: 94 lux
• Maximum noise level: 69dB(A)
• Minimum noise level: 51dB(A)
• Recirculation noise level: 75dB(A)
• Air outlet diameter: 150mm
• Included adaptor diameter: 120mm
• Connection rating: 220W
• Voltage: 220–240V
• Frequency: 50–60Hz
• Current rating: 10A
• Cord length: 1.3m
• Plug and lead supplied: Yes

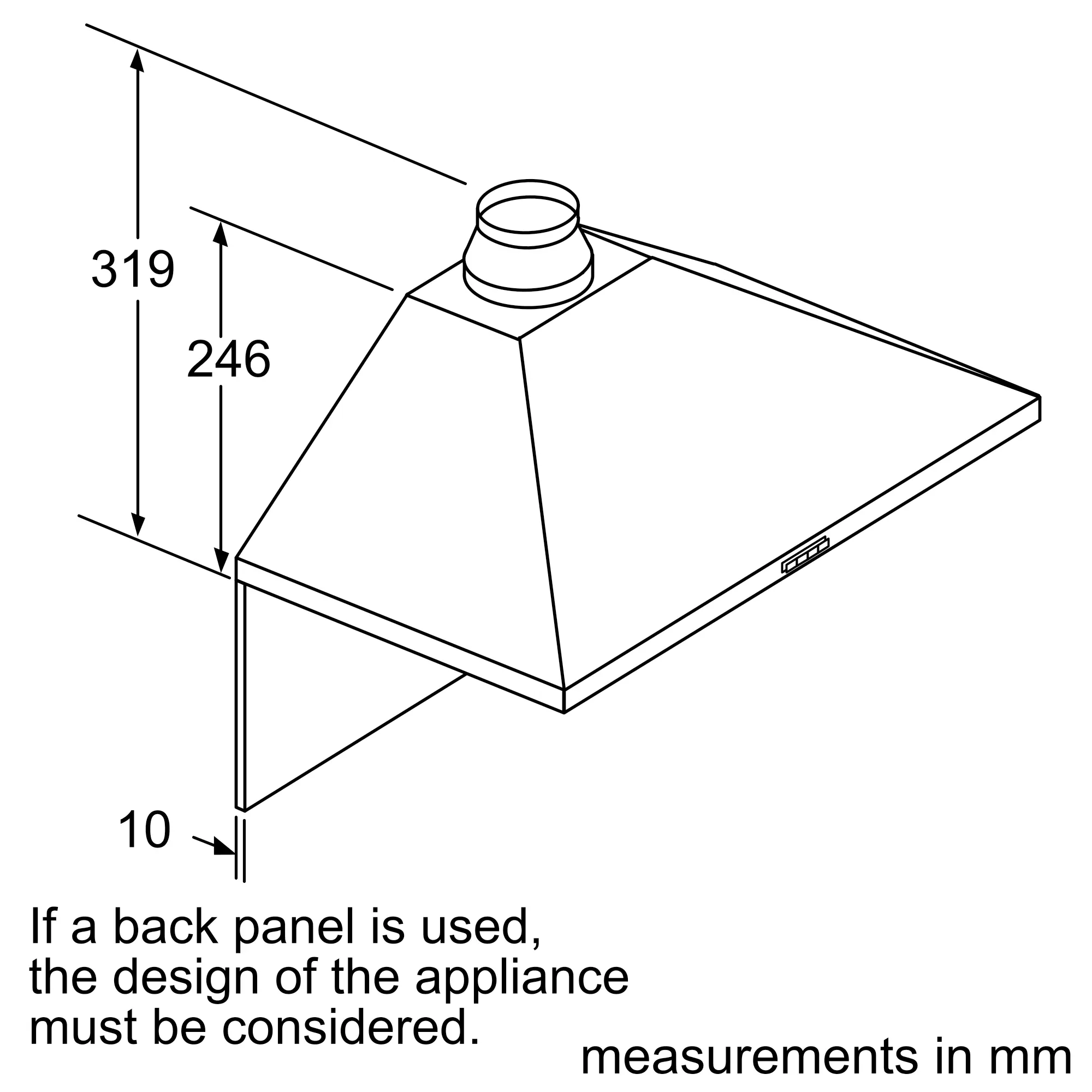

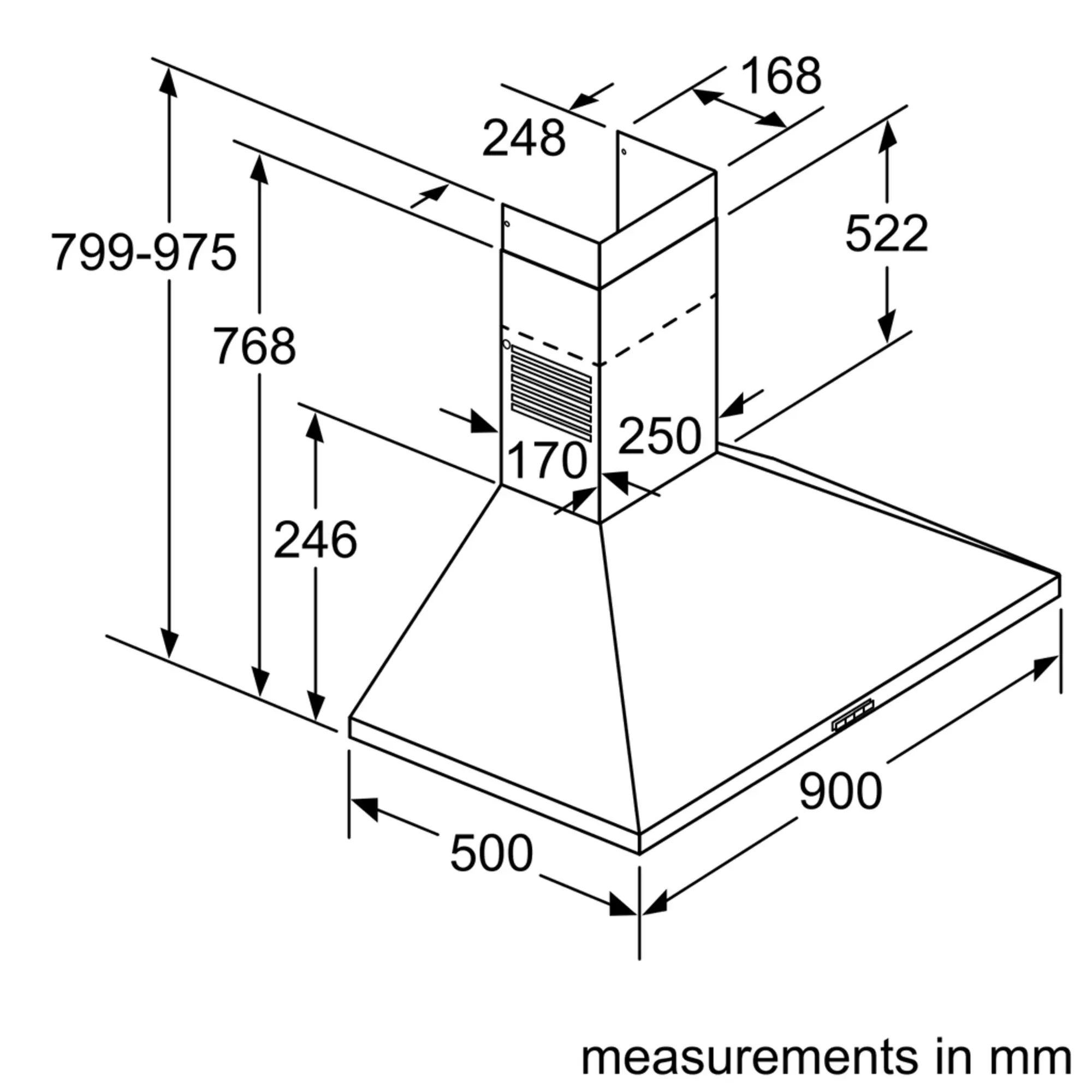

Product Measurements:

• Dimensions (W x H x D): 900 x 768–975 x 500 mm
• Height without chimney: 246 mm
• Minimum installed height: 768 mm
• Maximum installed height: 975 mm
• Duct diameter: 150 mm (120 mm adaptor supplied)

Product Weight:

• Product Weight: 10.0–10.2 kg

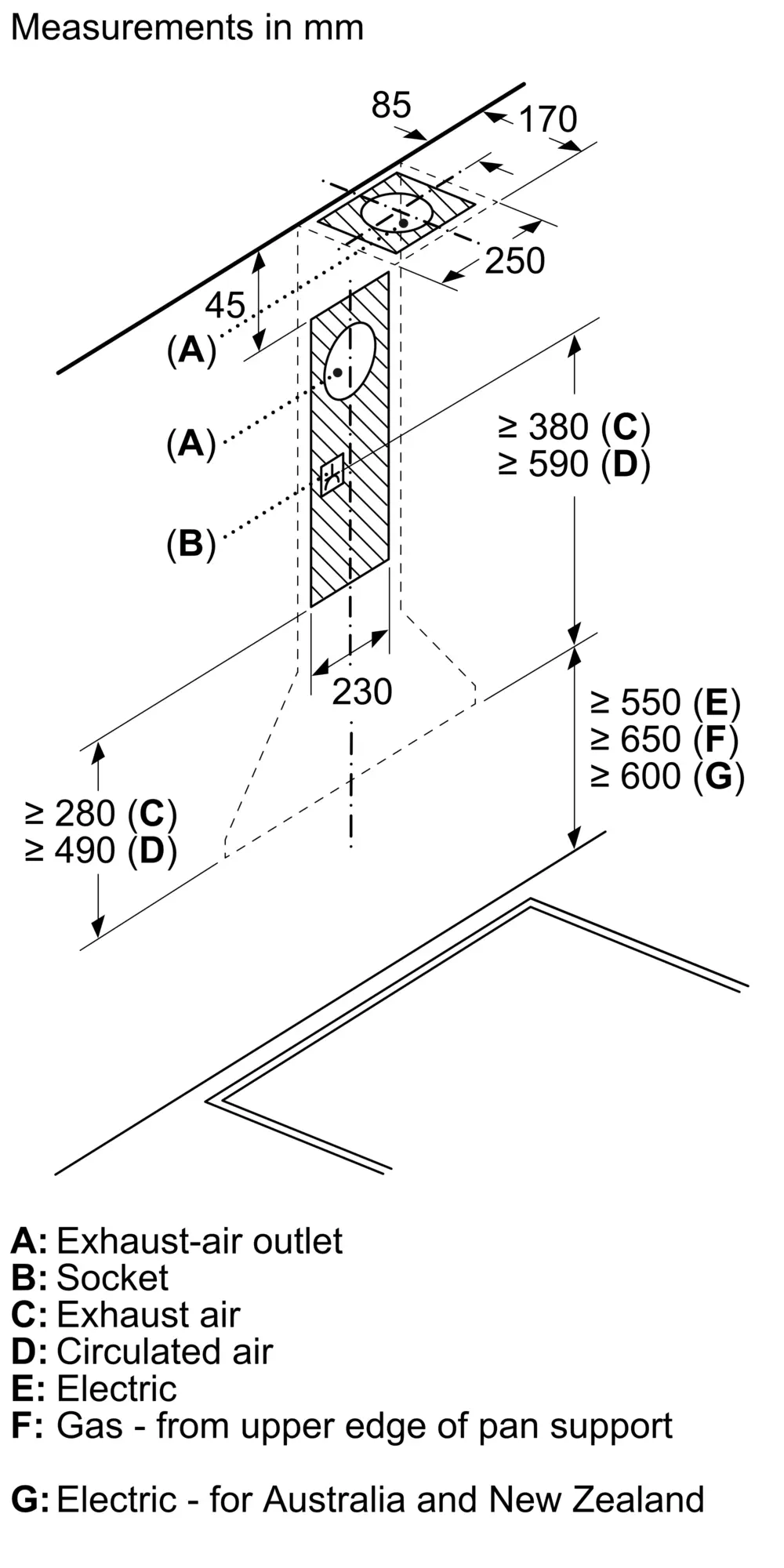

Installation & Requirements:

• Installation type: Wall-mounted canopy
• Operating configuration: Ducted or recirculating
• Duct outlet location: Top outlet
• Recommended duct diameter: 150 mm
• Adaptor supplied: 120 mm

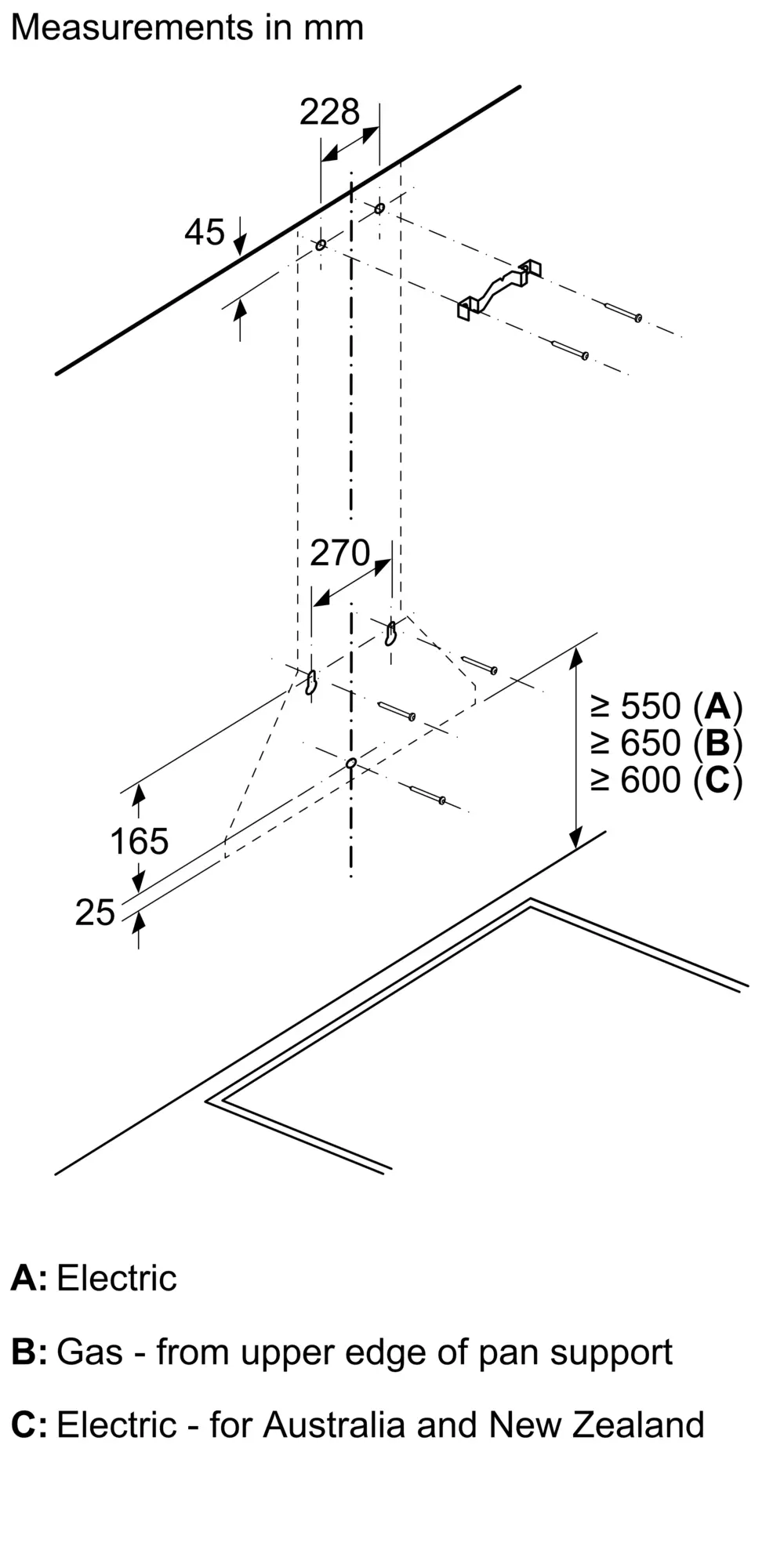

• Minimum clearance above electric cooktop: 600 mm
• Minimum clearance above gas cooktop: 650 mm
• Power connection: 10A plug and lead
• Electrical supply: 220–240V / 50–60Hz
• Professional installation recommended: Yes
• Recirculation operation: Requires optional Bosch recirculation kit and carbon filters

Country of Origin:

• Made in Germany

Extra Information:

The DWP96BC50A is designed for installation above cooktops up to 90cm wide and combines Bosch ventilation performance with a classic stainless steel canopy aesthetic. The unit is capable of either external ducting or recirculated operation, allowing flexibility for renovations where external venting may not be practical.

Bosch's aluminium mesh filtration system captures airborne grease particles before they enter the ducting system. The filters are removable and dishwasher safe, supporting simpler long-term maintenance. Integrated LED lighting provides clear illumination of the cooking surface while maintaining low energy consumption.

Included Products / Accessories:

• 3 x Aluminium mesh grease filters
• 2 x Stainless steel chimney sections
• 1 x 150mm exhaust transition outlet
• Power cord and plug
• Installation hardware

Warranty:

Backed by a 2-year Bosch manufacturer's warranty covering parts and labour for domestic residential use.
