Product Description

Product Overview:

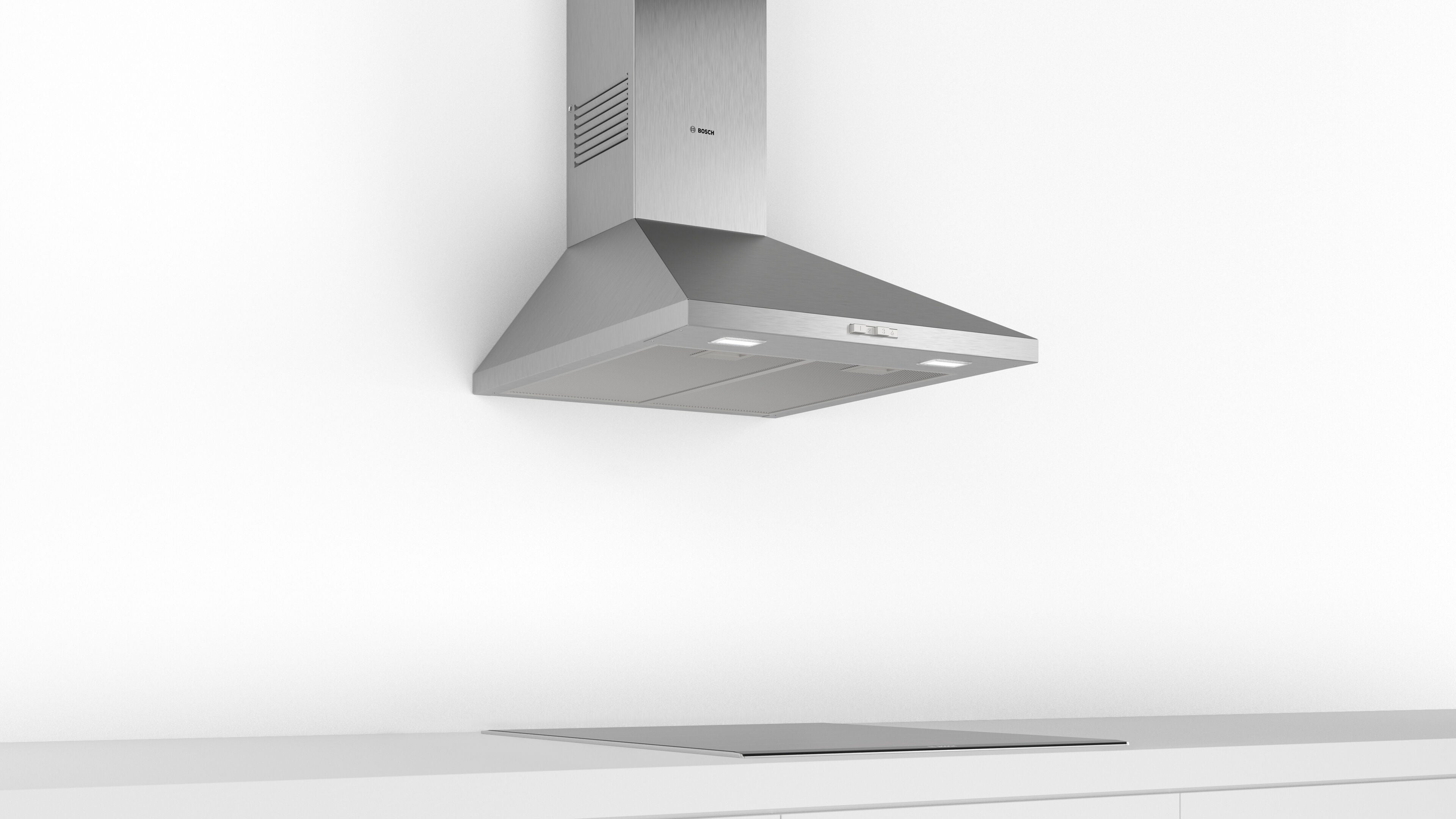

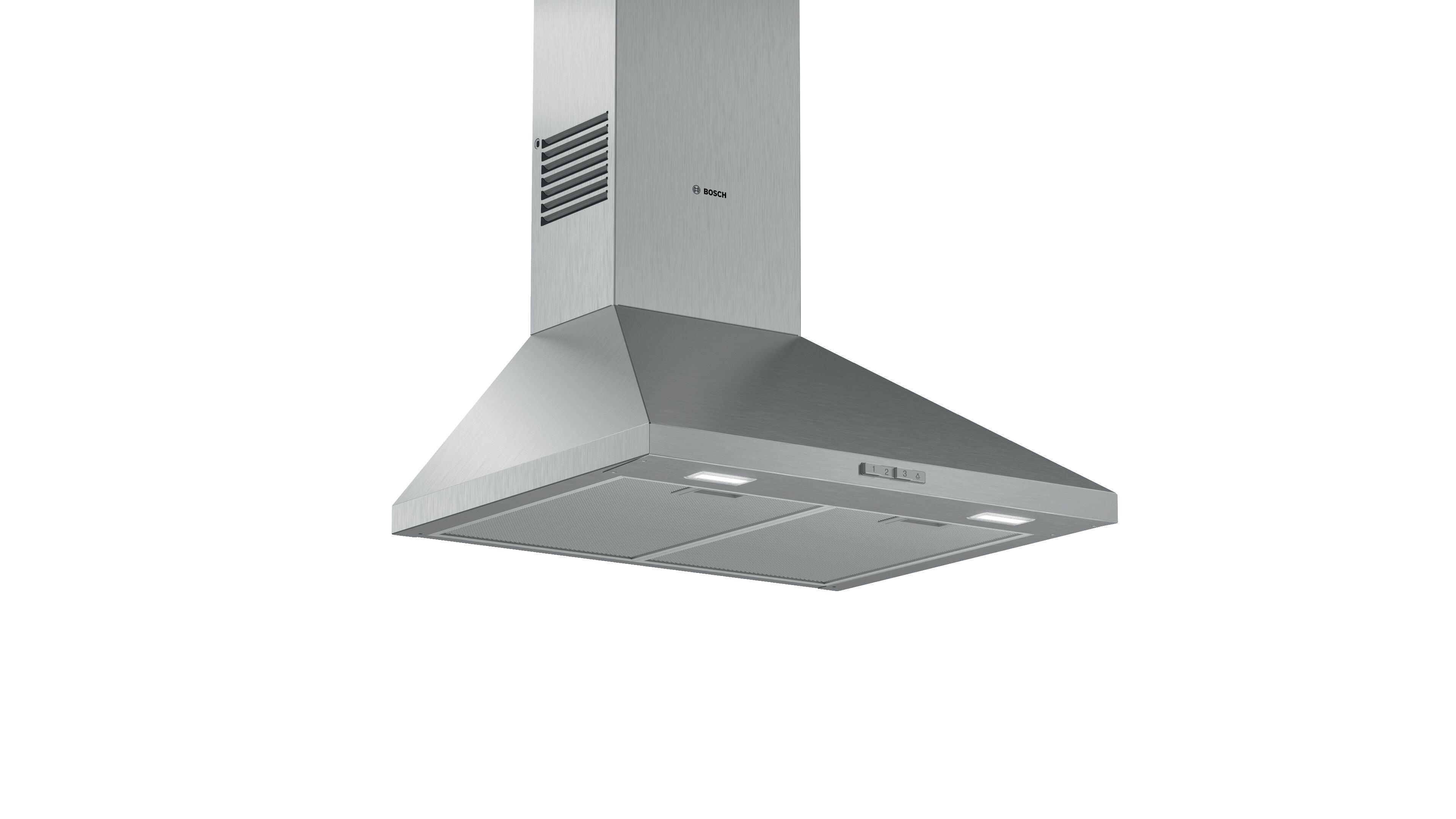

The Bosch DWP66BC50A is a 60cm wall mounted canopy rangehood from the Bosch Series 2 collection, combining practical extraction performance with a classic stainless steel canopy design. Designed to complement standard 60cm cooktops, it provides effective removal of steam, smoke, airborne grease and cooking odours generated during everyday cooking.

Featuring a maximum extraction capacity of 598m³/h, the DWP66BC50A delivers strong ventilation performance for a wide variety of kitchen environments. Three fan speeds allow airflow adjustment according to cooking intensity, while dual LED lights provide clear illumination across the cooktop surface to improve visibility during food preparation and cooking.

The rangehood supports both ducted and recirculated installation configurations, providing flexibility for new kitchen builds and renovation projects. Dishwasher-safe aluminium grease filters simplify ongoing maintenance, while Bosch's proven motor system is engineered to deliver reliable extraction performance for long-term domestic use.

Product Features:

• Series 2 ventilation system: Bosch canopy rangehood designed for everyday residential cooking environments.
• 598m³/h maximum extraction rate: effectively removes cooking vapours, smoke and odours.
• Three-speed fan operation: selectable airflow levels to suit varying cooking requirements.
• Dual operating modes: supports both ducted extraction and recirculating installation.
• Integrated LED lighting: energy-efficient cooktop illumination with long service life.

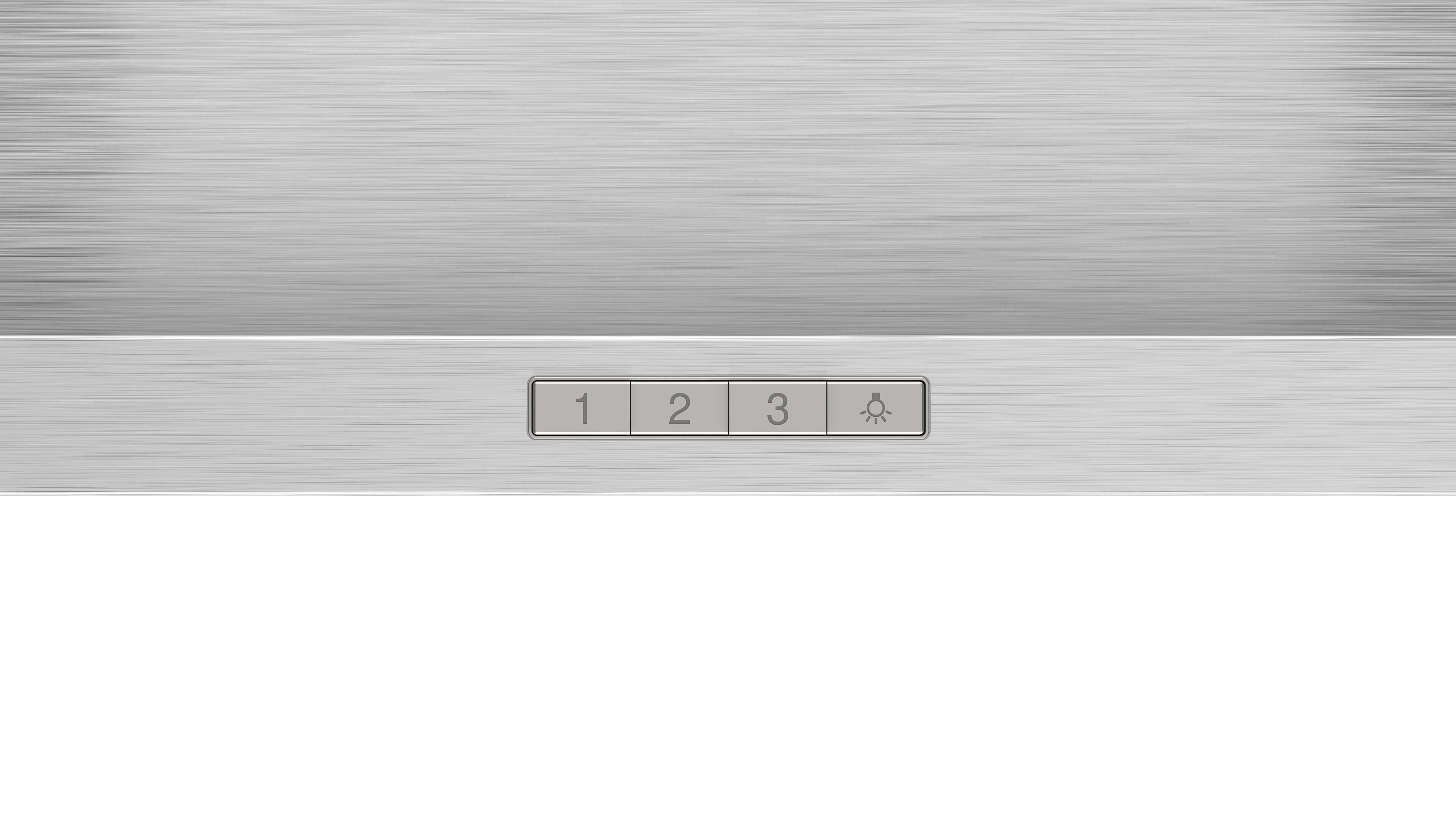

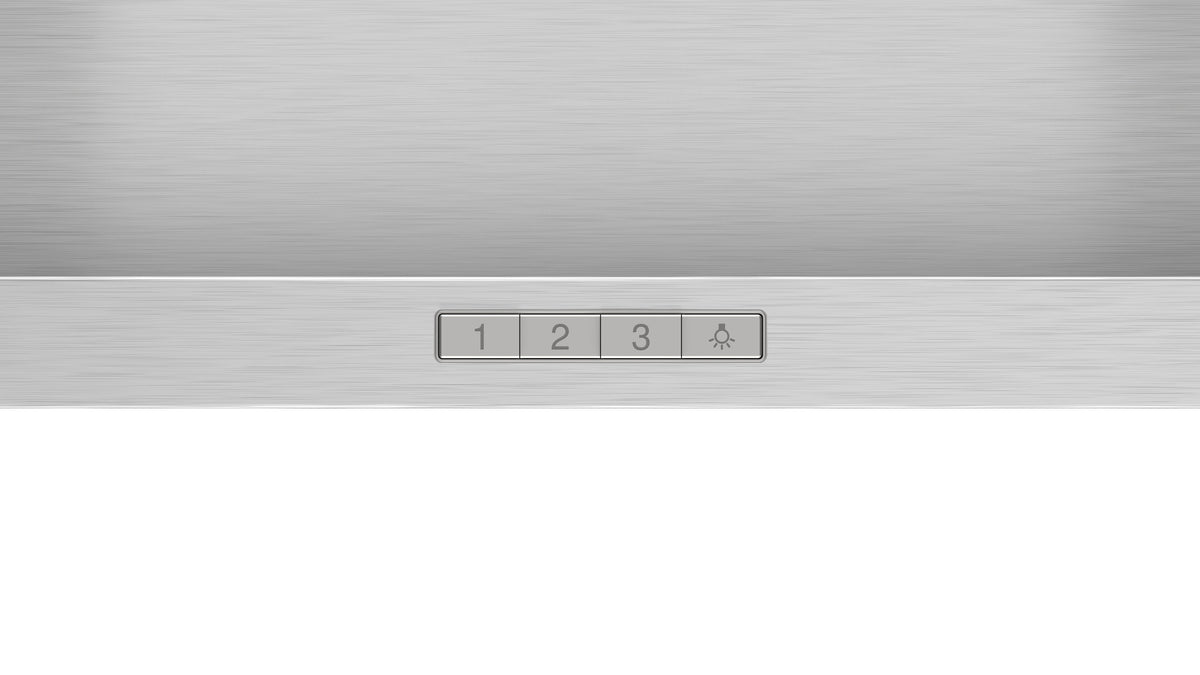

• Push-button controls: straightforward operation of fan speeds and lighting functions.
• Dishwasher-safe aluminium filters: removable grease filters designed for easy cleaning.
• Stainless steel canopy design: durable finish suited to contemporary and traditional kitchens.
• Single high-performance motor: engineered for consistent extraction performance.
• Telescopic chimney section: adjustable flue system accommodates varying installation heights.
• 150mm duct compatibility: supports efficient airflow performance in ducted installations.
• One-way flap system: assists in preventing external air re-entering the kitchen through ducting.

Colour / Finishes:

• Stainless Steel — DWP66BC50A

Programmes / Functions:

• Fan Speed 1: Low extraction setting for light cooking activities and background ventilation.
• Fan Speed 2: Medium extraction level suited to everyday cooking and moderate steam generation.
• Fan Speed 3: Maximum extraction performance for intensive cooking, frying and high steam production.
• LED Lighting Function: Illuminates the cooktop surface for improved visibility during cooking.
• Ducted Operation: Extracts cooking vapours externally for maximum airflow performance.
• Recirculation Operation: Filters and returns air back into the kitchen when fitted with compatible recirculation accessories.

Cleaning & Maintenance:

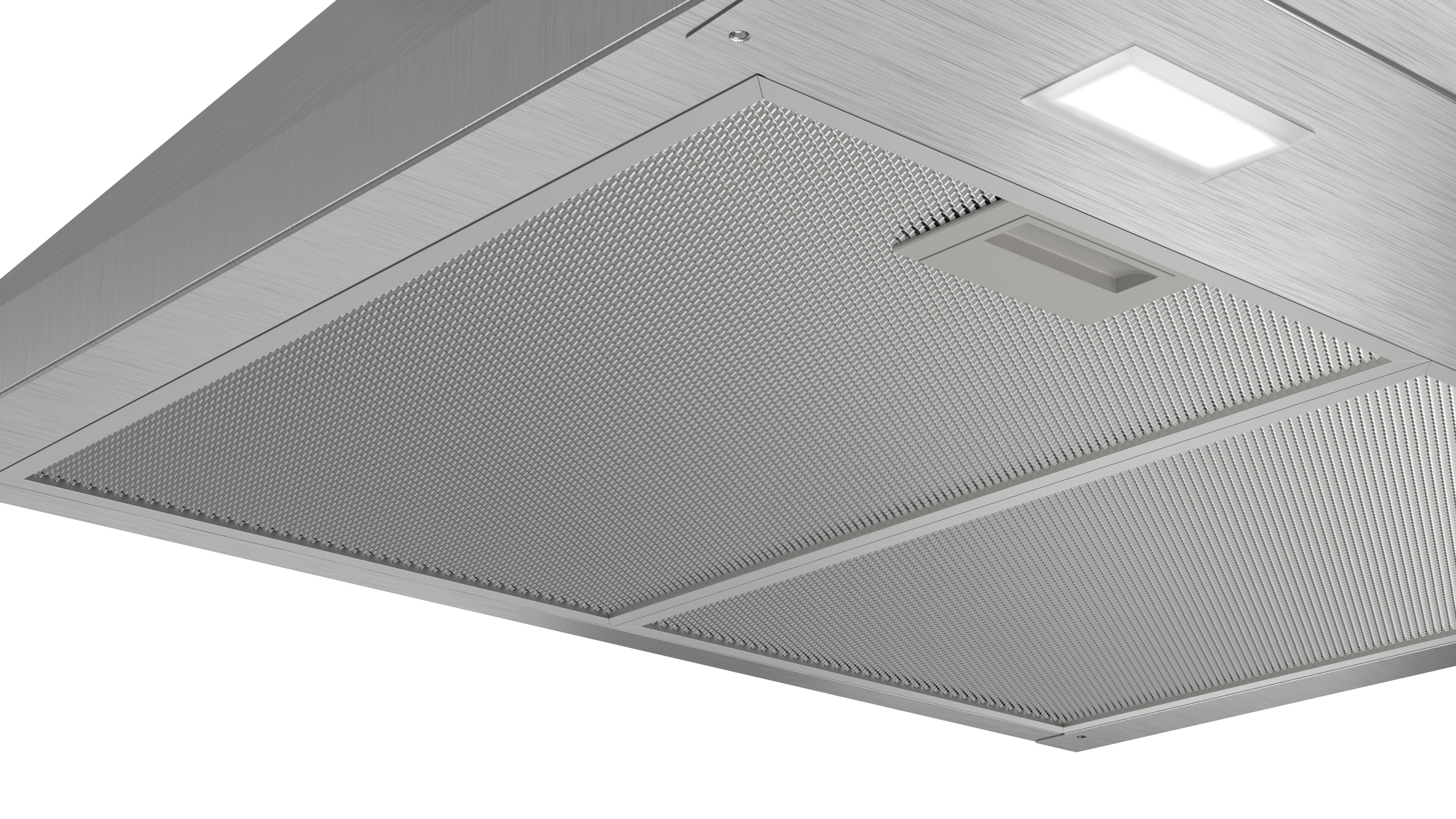

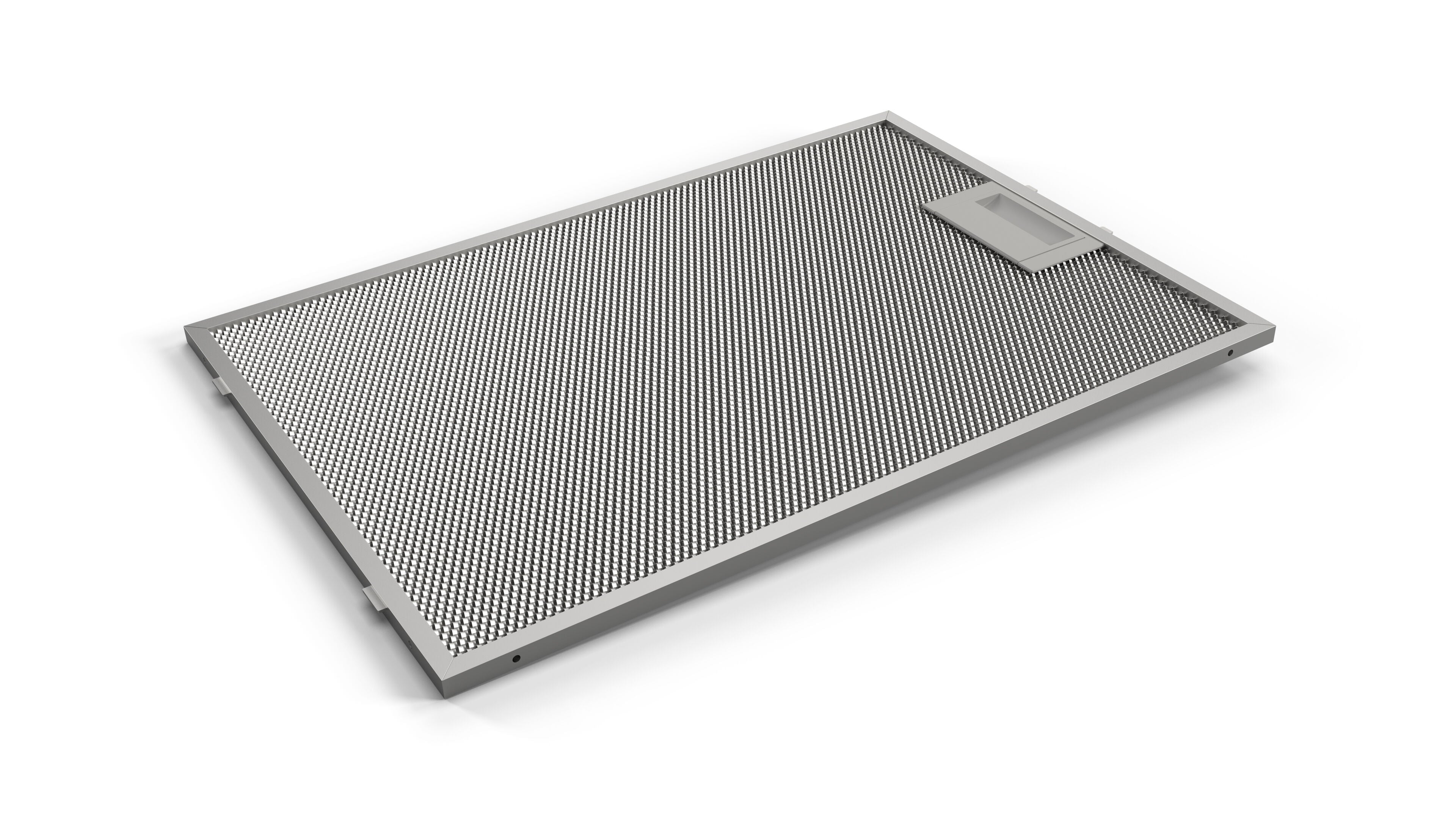

• Dishwasher-Safe Aluminium Filters: Grease filters can be removed and cleaned in a dishwasher to maintain airflow performance.
• Removable Grease Filter System: Filters are designed for easy access during routine maintenance.
• Stainless Steel Surface Care: Exterior surfaces should be cleaned regularly using suitable stainless steel cleaning products.
• LED Lighting System: Long-life LED lighting reduces the need for frequent lamp replacement.
• Regular Filter Maintenance: Routine cleaning assists in maintaining extraction efficiency and reducing grease accumulation.
• Recirculation Filter Replacement: Carbon filters used in recirculation mode require periodic replacement in accordance with Bosch recommendations.

Specifications:

• Product Series: Series 2
• Rangehood Type: Wall Mounted Canopy
• Operating Modes: Ducted / Recirculated
• Control Type: Push Button
• Number of Fan Speeds: 3
• Maximum Extraction Rate (Ducted): 598m³/h
• Maximum Airflow (Recirculated): 406m³/h
• Motor Configuration: Single motor
• Number of Motors: 1
• Grease Filter Type: Aluminium cassette filters
• Number of Grease Filters: 2
• Filter Cleaning Method: Dishwasher-safe
• Lighting Type: LED
• Number of Lights: 2
• Total Connected Load: 220W
• Current Requirement: 10A
• Voltage: 220–240V
• Frequency: 50–60Hz
• Electrical Connection Rating: 220W
• Noise Level (Minimum Speed): 49dB(A)
• Noise Level (Maximum Speed): 69dB(A)
• Grease Filtering Efficiency Class: C
• Lighting Efficiency Class: A
• Fluid Dynamic Efficiency Class: E
• Energy Efficiency Class: D
• Annual Energy Consumption: 68.4kWh/year
• Air Outlet Diameter: 150mm
• Alternative Outlet Diameter: 120mm using supplied adaptor

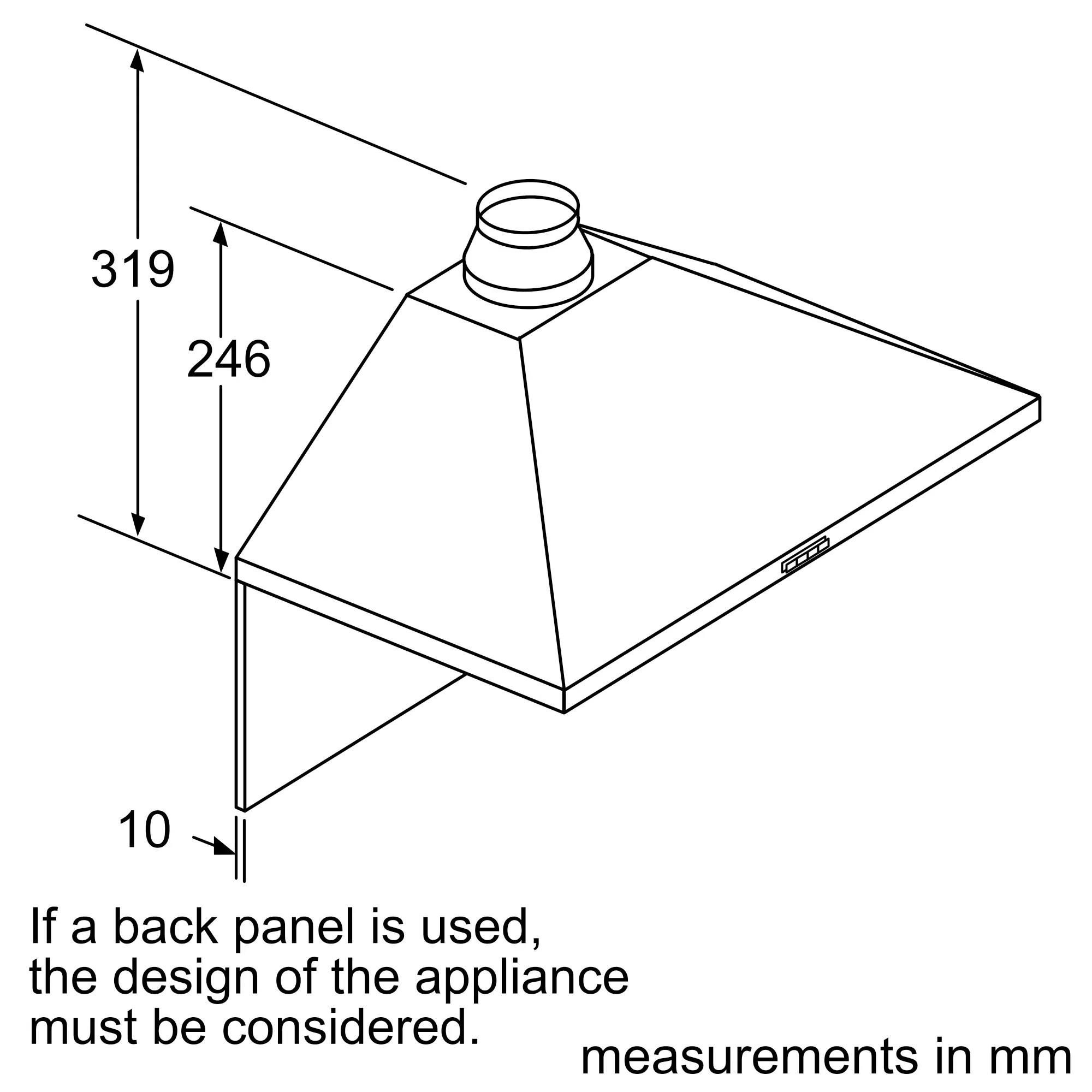

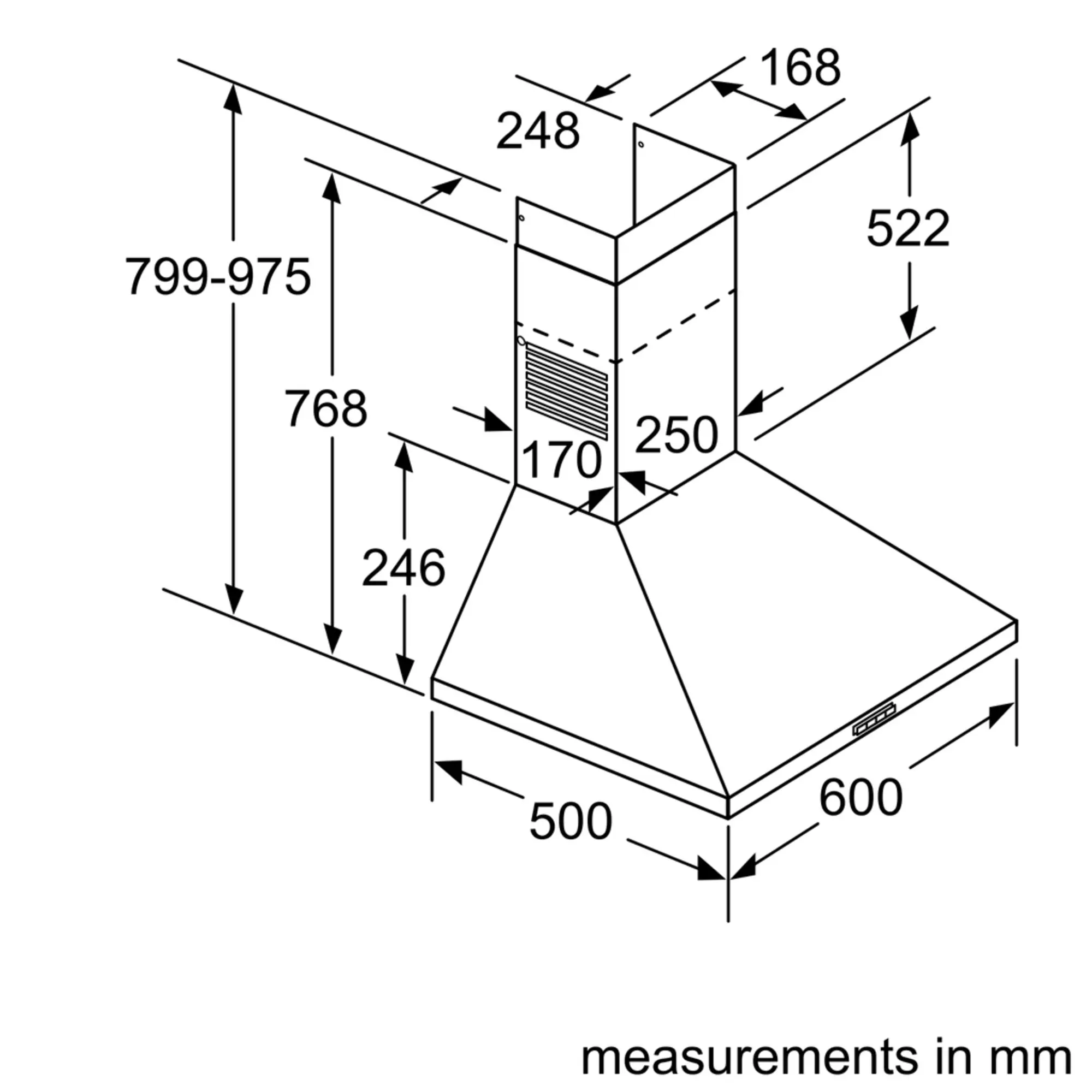

Product Measurements:

• Overall Width: 600mm
• Overall Depth: 500mm
• Height Range: 799–975mm
• Dimensions (W x H x D): 600 x 799–975 x 500mm
• Chimney Width: 260mm

Product Weight:

• Net Product Weight: 8.7kg

Installation & Requirements:

• Installation Type: Wall mounted canopy
• Suitable Installation Configuration: Ducted or recirculated
• Power Connection: Plug-in
• Plug Type: Australian standard plug
• Supply Voltage: 220–240V
• Frequency: 50–60Hz
• Connected Load: 220W
• Current Requirement: 10A
• Power Cord Length: 130cm
• Recommended Duct Diameter: 150mm
• Alternative Duct Diameter: 120mm using adaptor

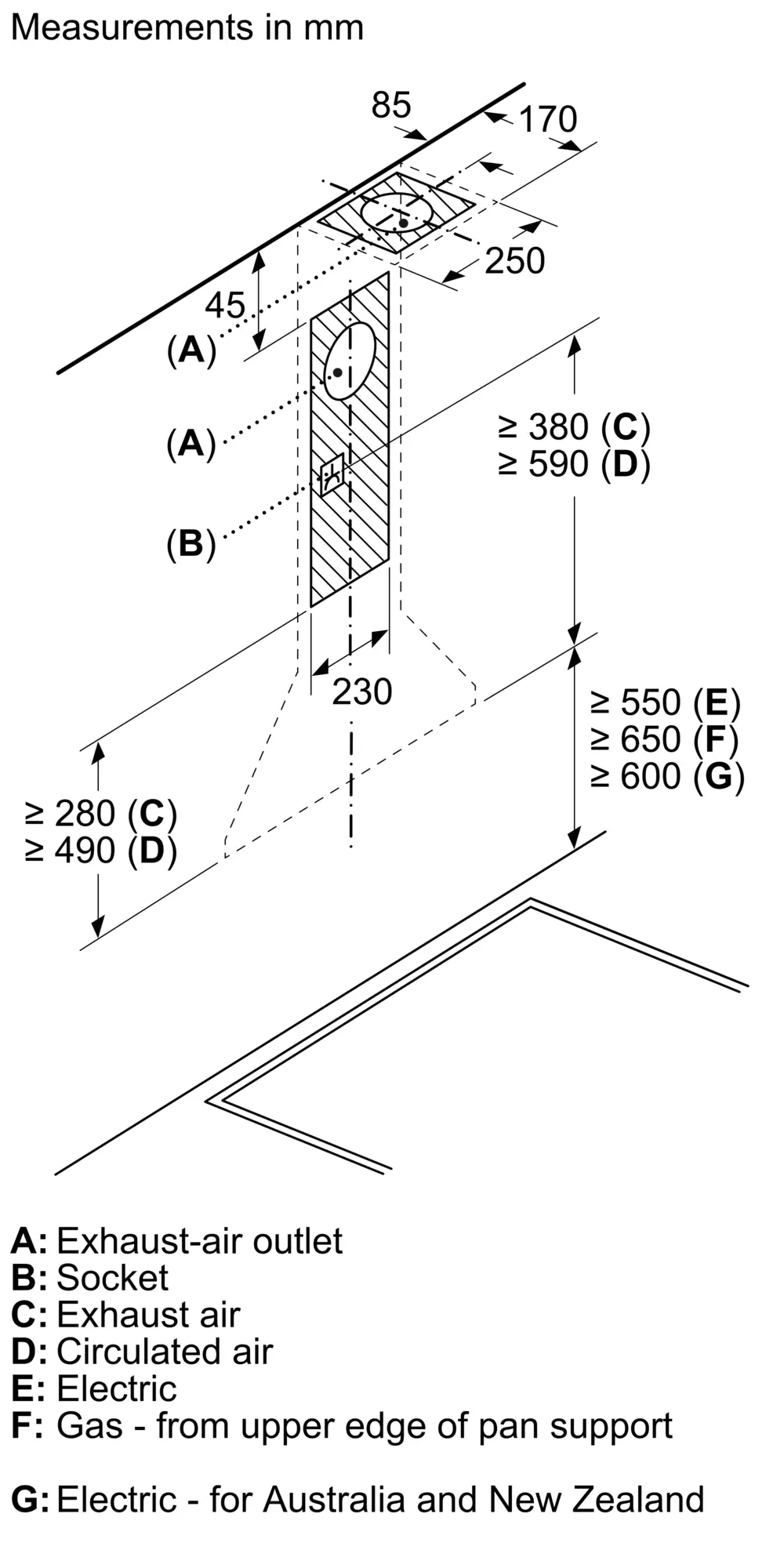

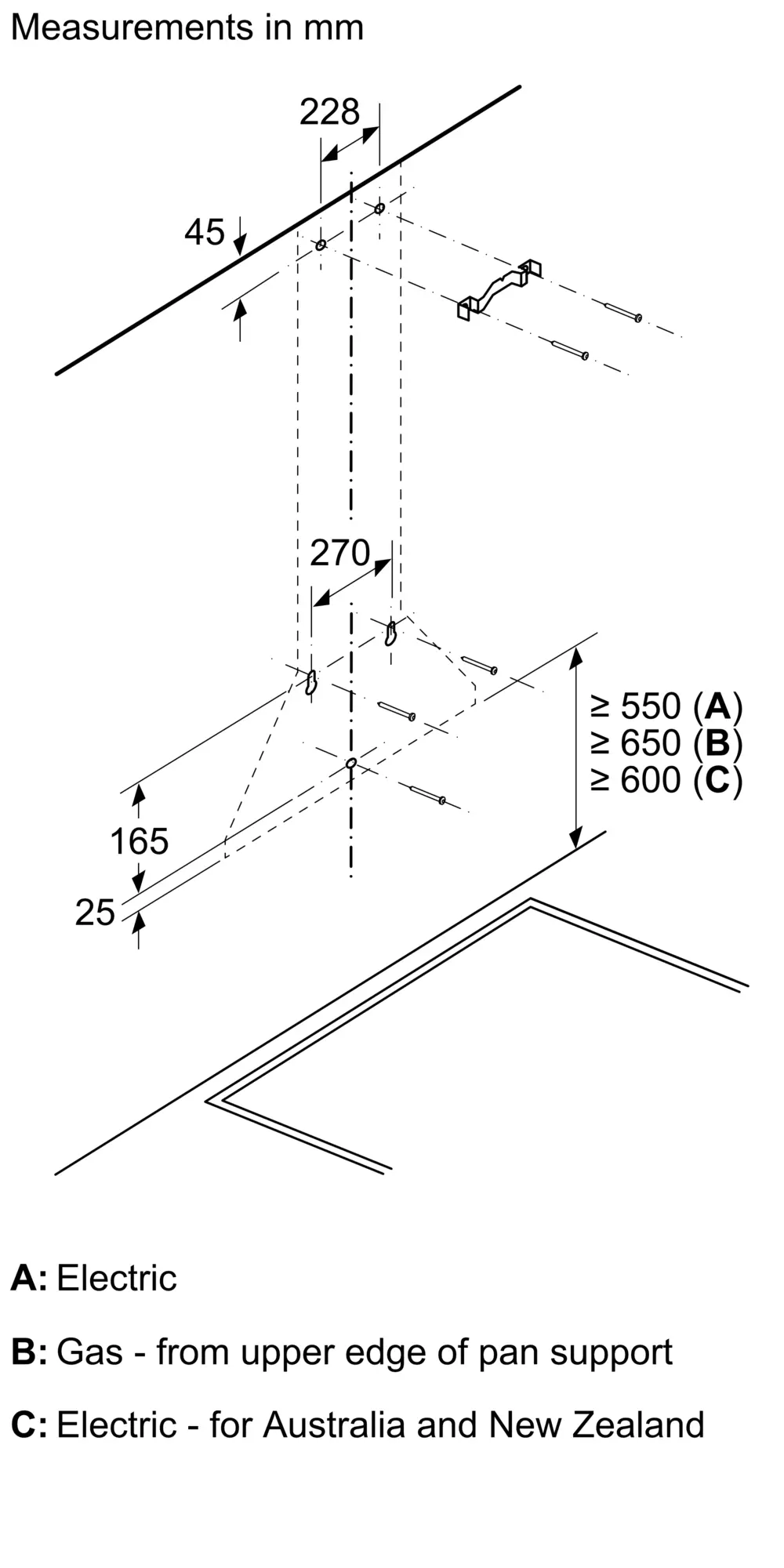

• Minimum Distance Above Electric Cooktop: 600mm
• Minimum Distance Above Gas Cooktop: 650mm
• Wall Mounting Required: Yes
• External Ducting Recommended: For maximum extraction performance
• Recirculation Configuration: Requires compatible Bosch recirculation accessories

Country of Origin:

• Made in Germany

Extra Information:

The DWP66BC50A is designed for installation above standard 60cm cooking appliances and provides a balanced combination of extraction performance, ease of operation and straightforward maintenance. The traditional stainless steel canopy profile makes it suitable for a broad range of kitchen styles while maintaining compatibility with Bosch cooking appliances.

For optimum extraction performance, Bosch recommends ducted installation using appropriately sized ductwork. Where external venting is not possible, the rangehood can be configured for recirculated operation through the addition of compatible recirculation components and carbon filtration accessories.

The aluminium grease filters capture airborne cooking grease before it enters the motor system and can be removed for dishwasher cleaning. Regular maintenance helps maintain airflow efficiency and supports long-term performance.

The integrated LED lighting system provides efficient task illumination while consuming less energy than conventional lighting technologies. LED lighting also offers extended service life and reduced maintenance requirements.

As part of the Bosch Series 2 range, the DWP66BC50A focuses on reliable everyday functionality, straightforward operation and durable construction suitable for regular household cooking.

Included Products / Accessories:

• 2 x aluminium grease filters
• Integrated LED lighting
• Telescopic chimney cover
• 150mm air outlet connection
• 120mm duct adaptor
• Non-return flap
• Wall mounting hardware
• Installation instructions
• User documentation

Warranty:

Backed by a 2-year manufacturer's warranty for domestic use when installed and operated according to Bosch requirements.
