Product Description

Product Overview:

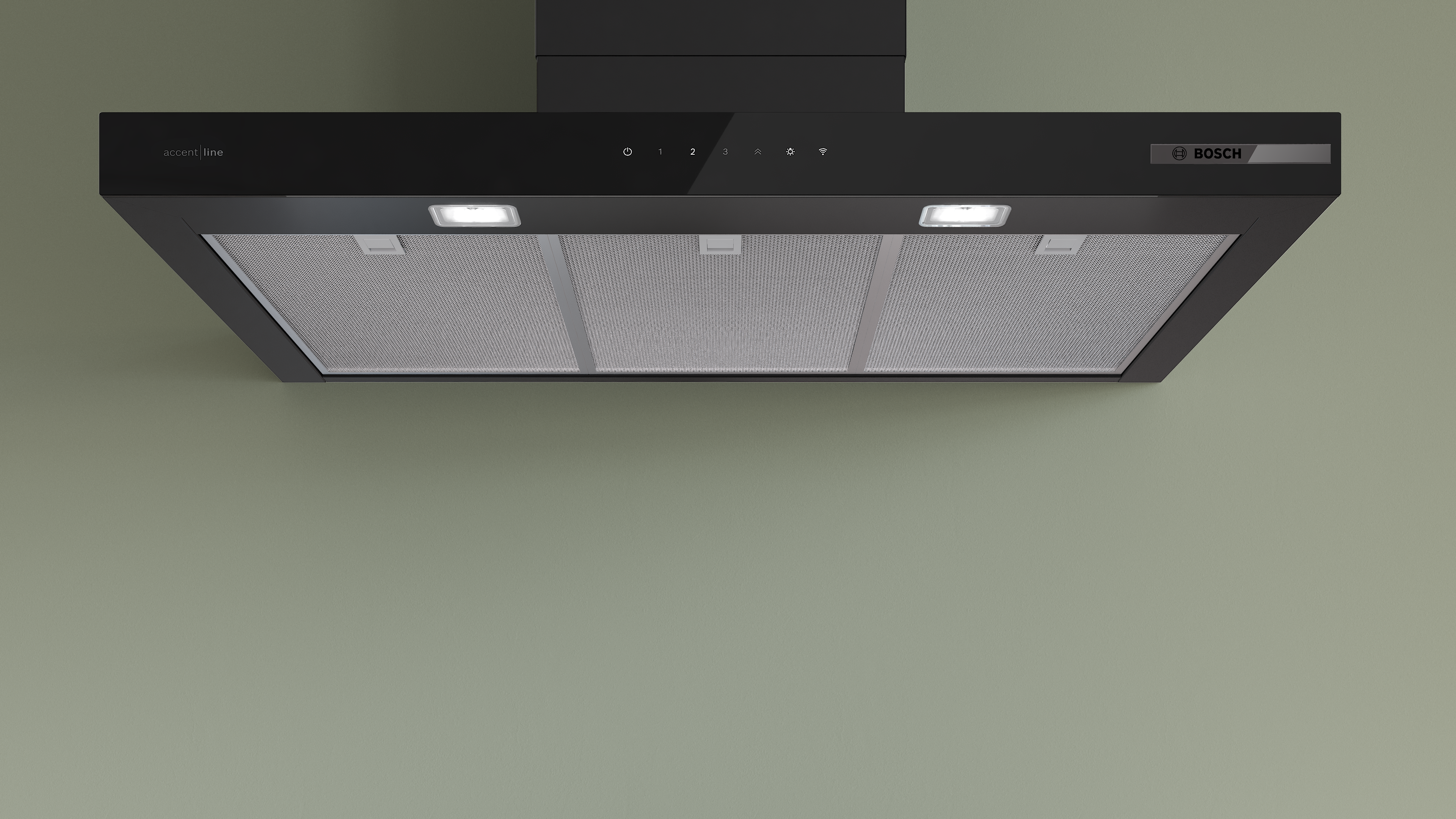

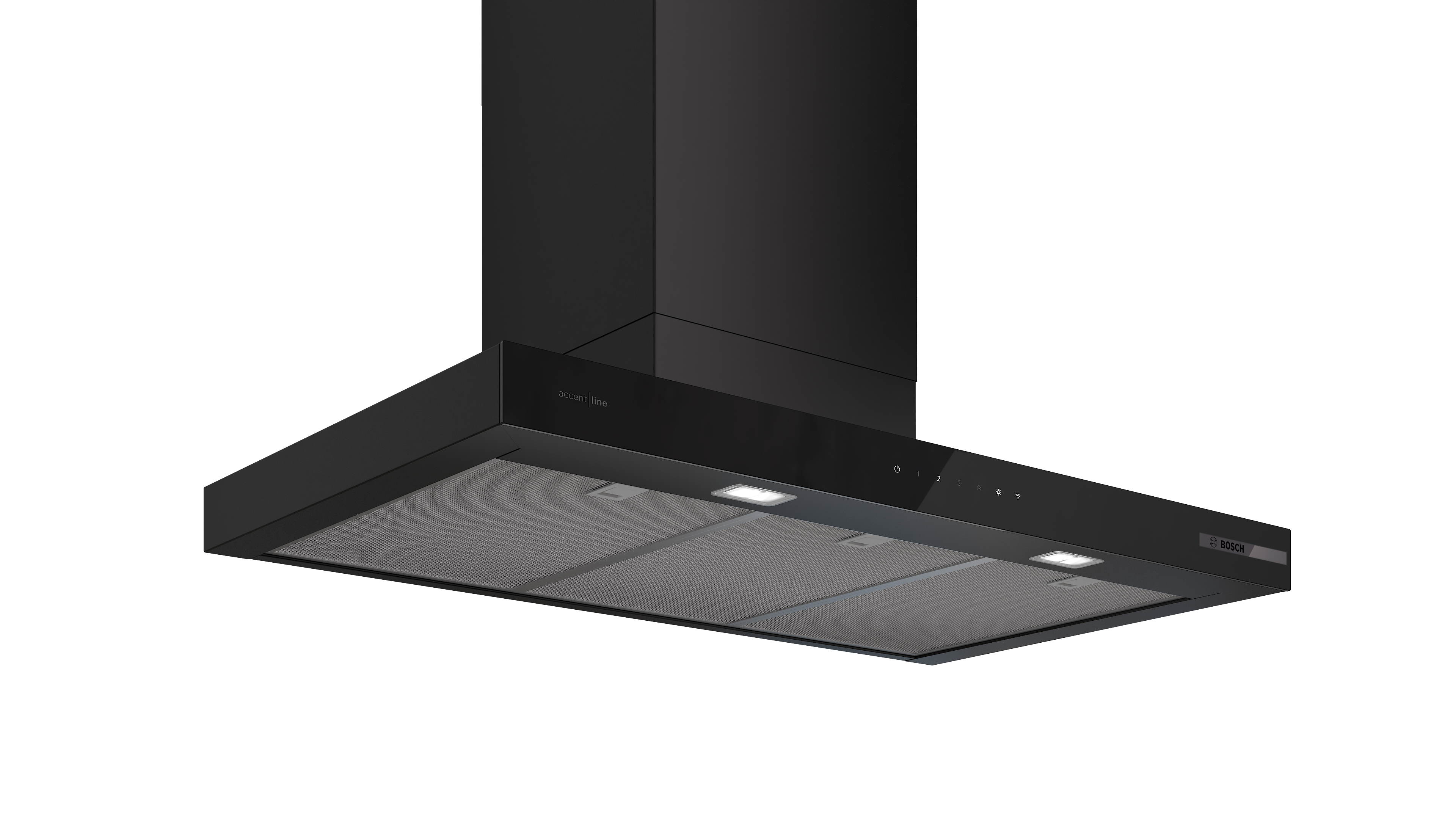

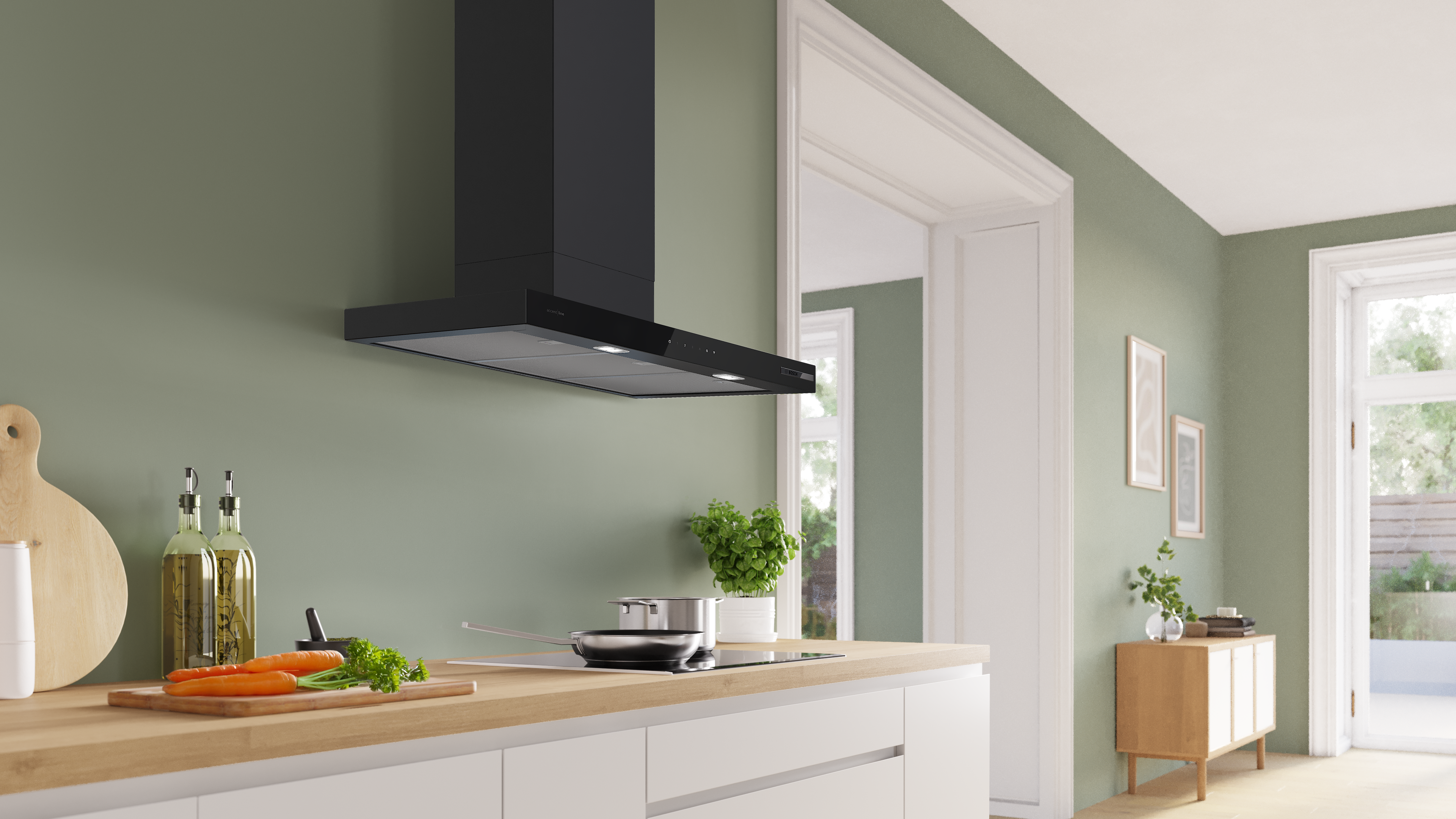

The Bosch DWB97DN65A is a 90cm wall mounted canopy rangehood from Bosch's Series 6 collection, finished in premium matt black. Designed to complement contemporary kitchens and wider cooktops, it combines powerful extraction performance with advanced connected-home functionality through the Bosch Home Connect platform. The clean architectural design integrates seamlessly into modern kitchen spaces while providing effective removal of cooking vapours, grease particles and odours.

Powered by Bosch's SilentPowerDrive motor, the DWB97DN65A delivers strong extraction performance with lower operating noise and improved energy efficiency. Three standard fan speeds plus an intensive boost setting allow ventilation performance to be matched to varying cooking requirements, while Smart Hood Automatic technology enables compatible Bosch cooktops to communicate directly with the rangehood, automatically adjusting extraction levels as cooking intensity changes.

The integrated Home Connect platform provides app-based operation, performance monitoring, maintenance reminders and voice-control compatibility. Combined with dishwasher-safe stainless steel grease filters, adjustable LED lighting and intelligent filter saturation monitoring, the DWB97DN65A is designed to deliver high-performance ventilation with straightforward day-to-day operation and maintenance.

Product Features:

• SilentPowerDrive Motor: Efficient brushless motor technology delivering strong extraction performance with reduced operating noise.
• Home Connect: Remote monitoring and operation via smartphone or tablet.
• Smart Hood Automatic: Compatible Bosch cooktops can automatically adjust extraction performance.
• Hood Control: Rangehood functions can be controlled directly from selected Bosch cooktops.
• Voice Control Compatibility: Supports voice operation through compatible smart home ecosystems.
• Favourite Function: Store frequently used settings for quick access.
• Performance Profiles: Customisable operating behaviour through Home Connect.
• Interval Function: Automatically activates ventilation at predefined intervals.
• Silence Function: Reduces operating noise when lower extraction levels are suitable.

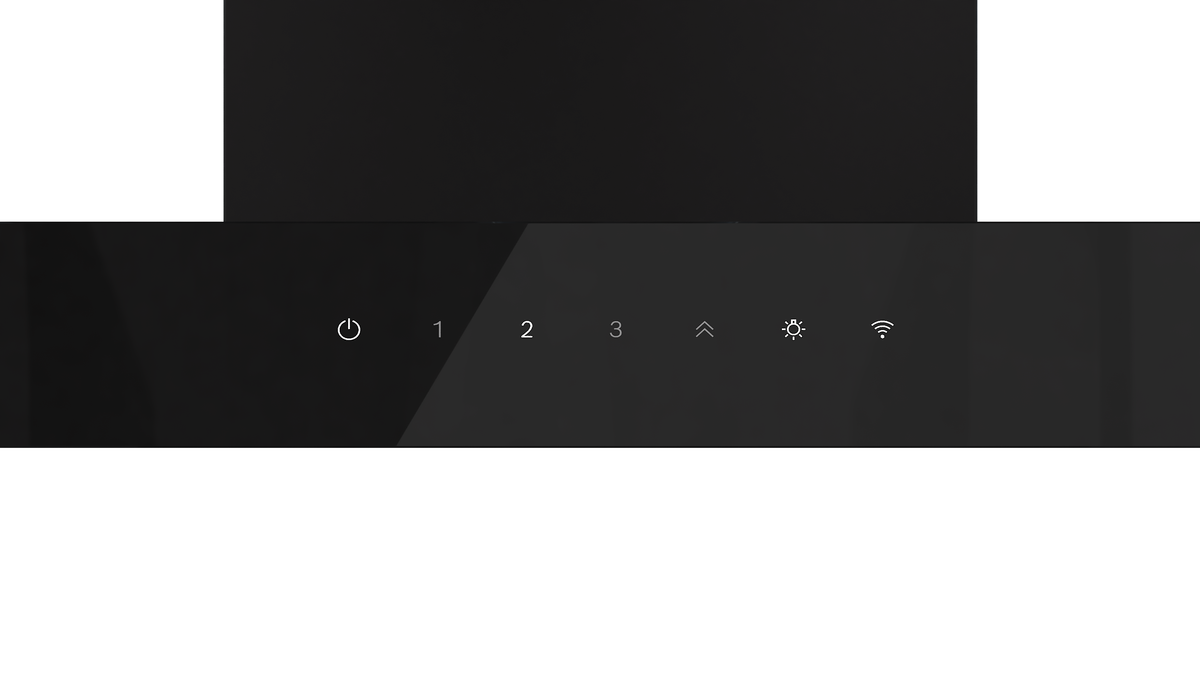

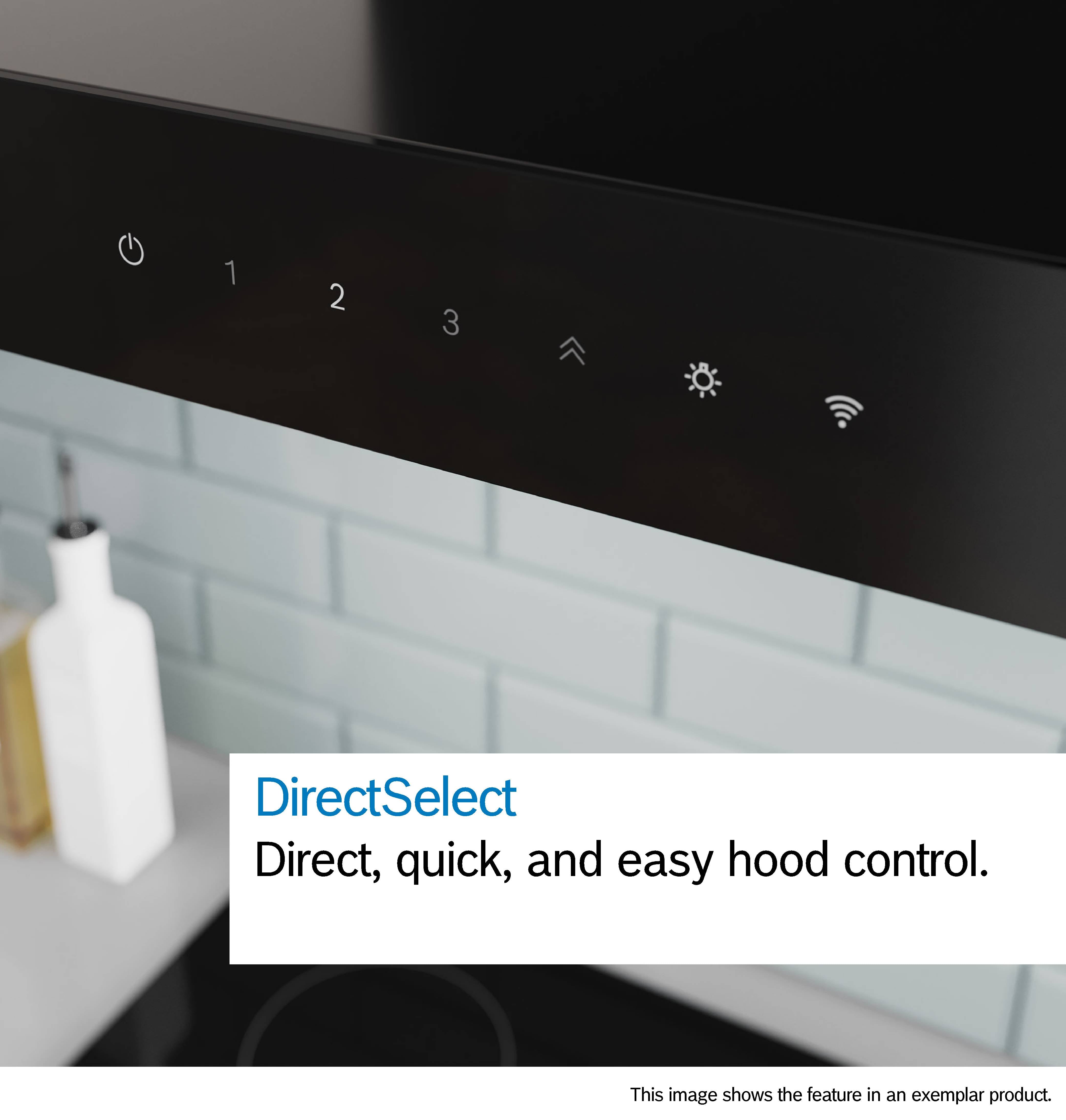

• DirectSelect Controls: Intuitive illuminated touch controls.
• Intensive Extraction Stage: Temporary maximum extraction mode for heavy cooking.
• Automatic Intensive Reset: Returns to normal operation after approximately six minutes.

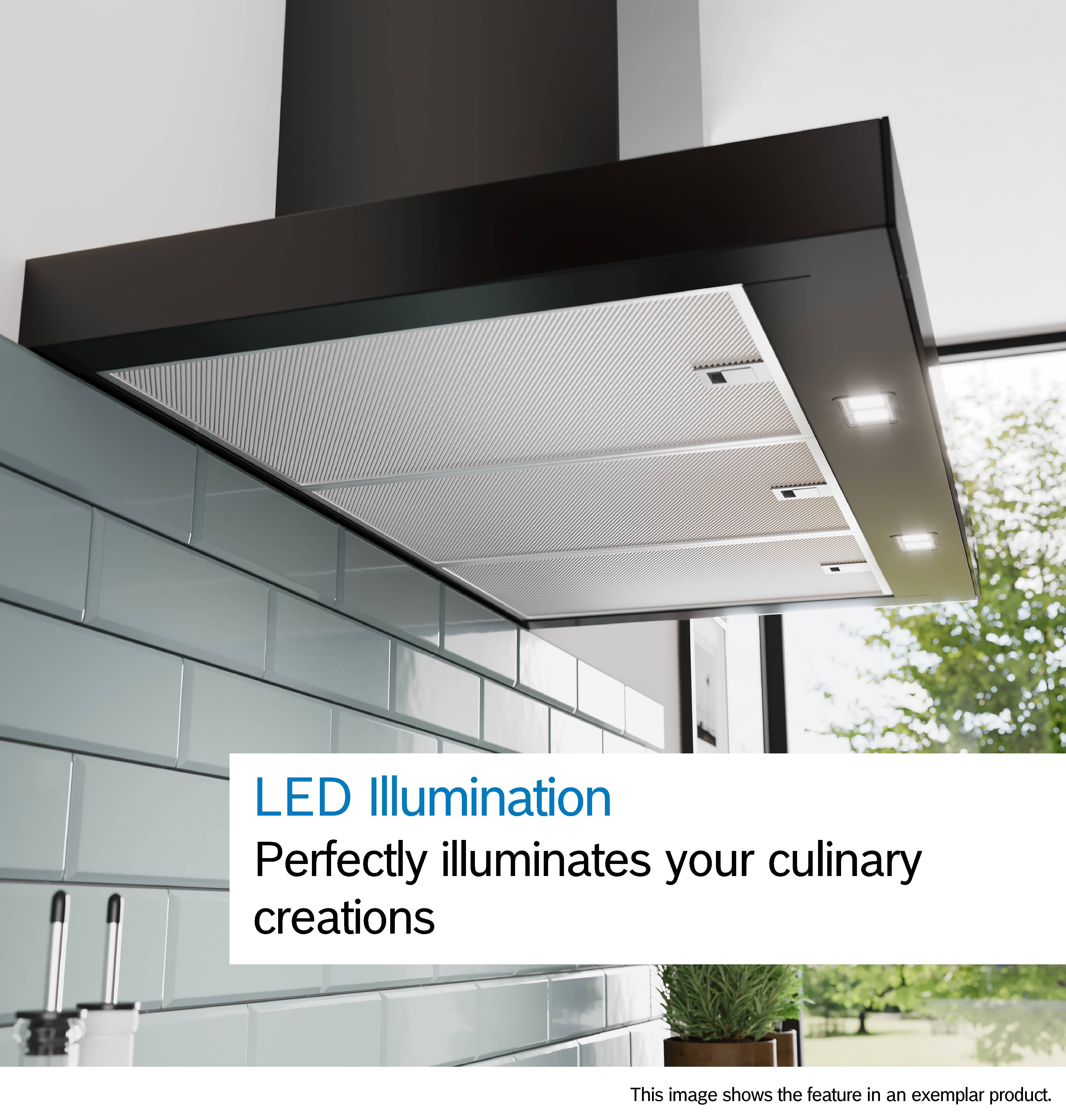

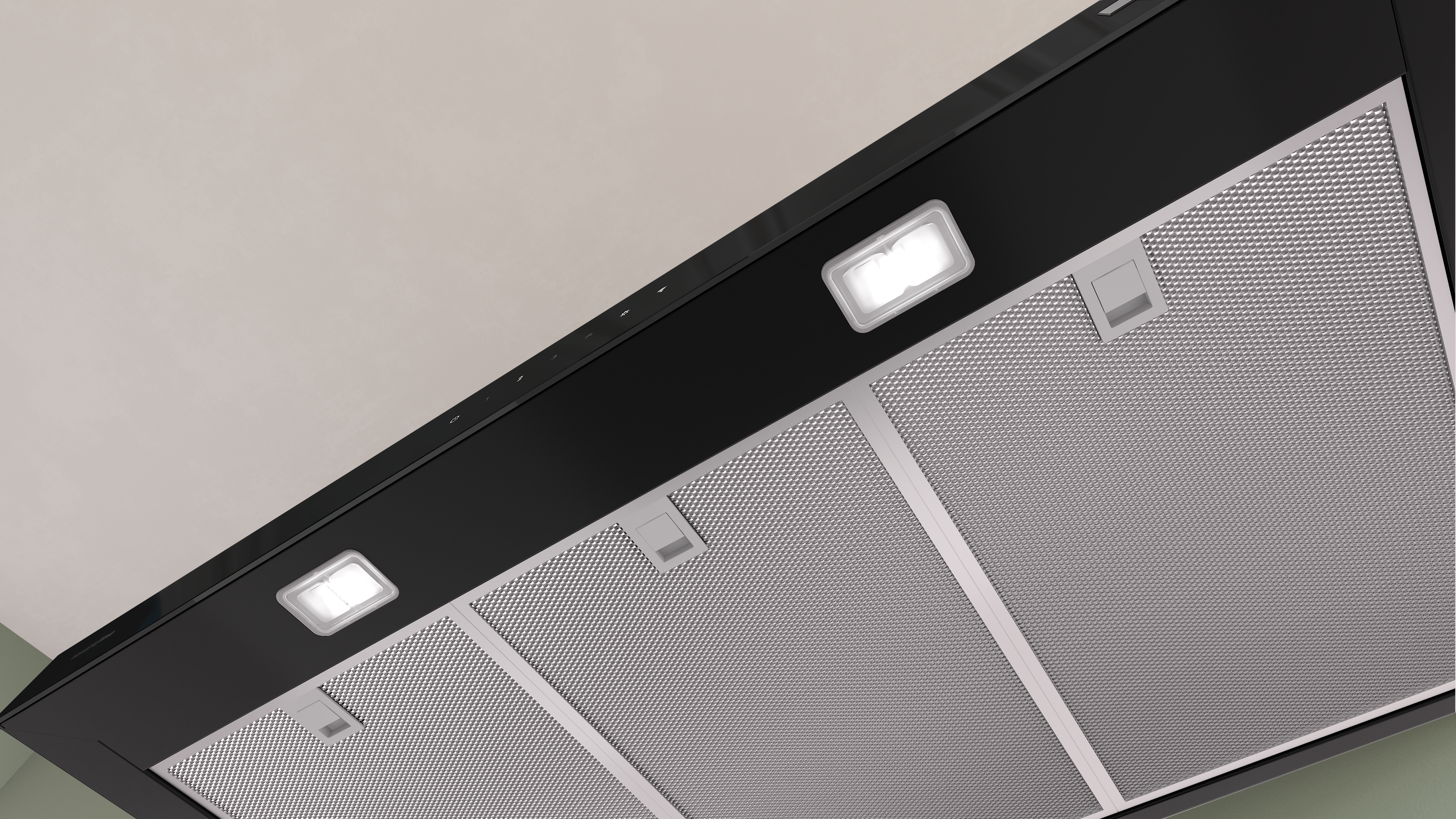

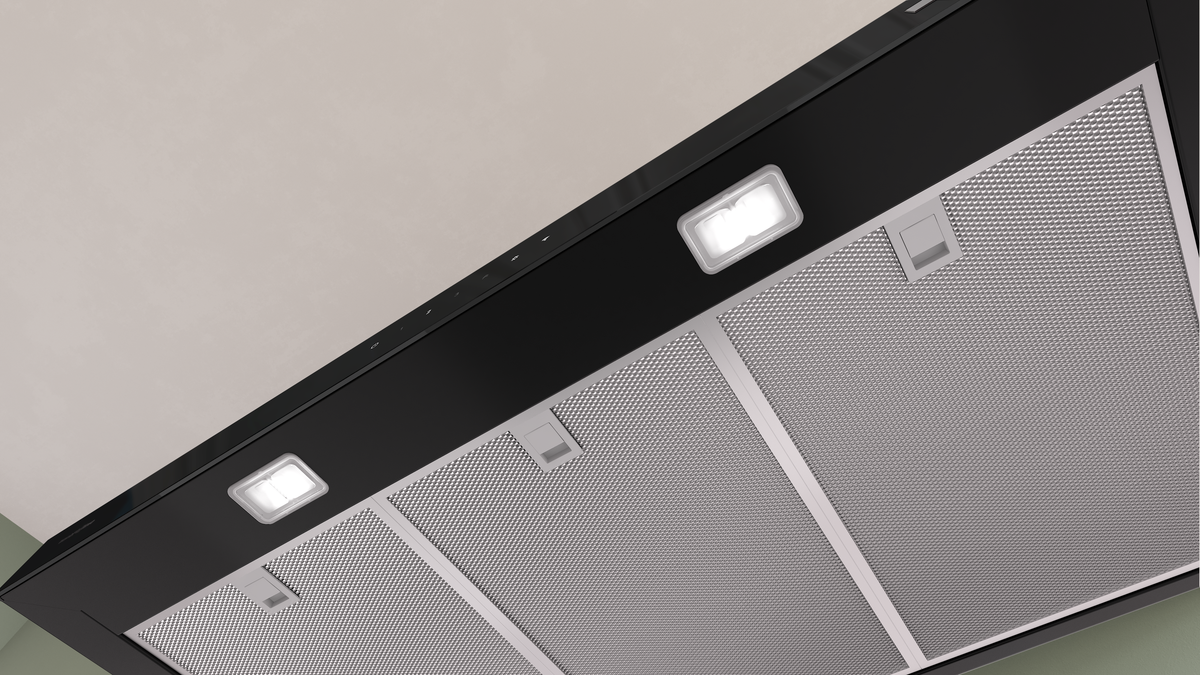

• LED Cooktop Lighting: Bright and efficient illumination of the cooking area.
• Adjustable Light Temperature: Customisable lighting ambience.
• Grease Filter Saturation Indicator: Alerts when cleaning is required.
• Odour Filter Monitoring: Supports recirculation filter replacement reminders.
• Dishwasher-Safe Filters: Simplifies maintenance and cleaning.
• Ducted or Recirculating Installation: Flexible installation options.

Colour / Finishes:

• Matte Black — DWB97DN65A

Programmes / Functions:

• Fan Speed 1: Low-level extraction for light cooking and general ventilation.
• Fan Speed 2: Medium extraction for everyday cooking activities.
• Fan Speed 3: High extraction performance for increased cooking vapours and odours.
• Intensive Speed: Maximum extraction mode for heavy cooking, frying and high steam generation.
• Automatic Intensive Reset: Returns the rangehood to a normal operating speed after approximately six minutes.
• Smart Hood Automatic: Automatically adjusts extraction levels when paired with compatible Bosch cooktops.
• Delay Shut-Off Function: Continues extracting residual cooking vapours after cooking has finished before automatically switching off.
• Favourite Function: Stores preferred operating settings for quick activation.
• Interval Ventilation: Activates extraction periodically to help maintain kitchen air quality.
• Silence Function: Optimises operating performance for quieter ventilation when maximum extraction is not required.
• Home Connect Remote Operation: Allows monitoring and control through the Home Connect app.
• Voice Control: Supports compatible voice assistant integration via Home Connect.
• LED Lighting Control: Independently operates cooktop lighting without activating extraction.
• Light Temperature Adjustment: Allows selection of preferred LED lighting ambience.

Cleaning & Maintenance:

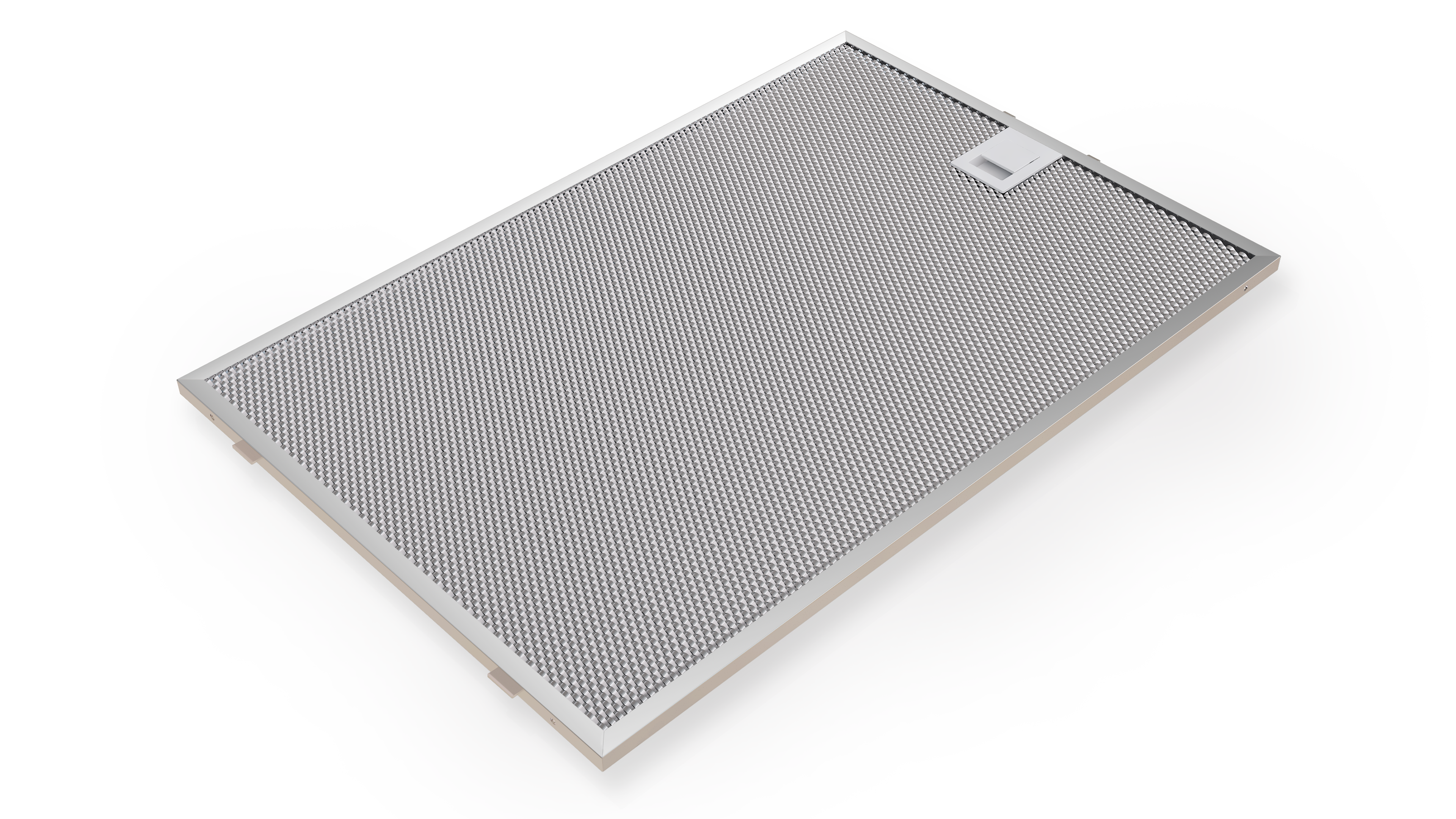

• Dishwasher-Safe Grease Filters: Stainless steel grease filters can be removed and cleaned in a dishwasher.
• Three-Layer Metal Grease Filtration: Captures airborne grease particles generated during cooking.
• Grease Filter Saturation Indicator: Provides maintenance reminders when filter cleaning is required.
• Odour Filter Monitoring: Alerts users when recirculation filters require replacement where applicable.
• Smooth Matt Black Surfaces: Designed for straightforward cleaning and routine maintenance.
• Removable Filter System: Filters can be easily removed for cleaning and reinstallation.
• Home Connect Maintenance Notifications: Provides filter and maintenance reminders through the Home Connect app.
• Non-Return Air Flap: Helps reduce backflow of external air into the kitchen ventilation system.

Specifications:

• Product Series: Series 6
• Product Type: Wall Mounted Canopy Rangehood
• Installation Type: Wall mounted
• Operating Modes: Ducted extraction or recirculation
• Motor Type: SilentPowerDrive
• Control Type: Electronic TouchControl
• Control Interface: DirectSelect
• Fan Speeds: 3
• Intensive Speed Setting: Yes
• Maximum Air Extraction: 396 m³/h
• Boost Air Extraction: 755 m³/h
• Maximum Recirculation Output: 410 m³/h
• Boost Recirculation Output: 733 m³/h
• Noise Level: 56 dB(A) re 1 pW
• Grease Filter Quantity: 3
• Grease Filter Material: Stainless steel
• Grease Filter Cleaning: Dishwasher safe
• Lighting Type: LED
• Number of Lights: 2
• Light Output: 461 lux
• Colour Temperature: 3500 K
• Home Connect: Yes
• Smart Hood Automatic: Yes
• Remote Diagnostics: Yes
• Favourite Function: Yes
• Voice Control: Supported via compatible systems
• Delay Shut-Off: Yes

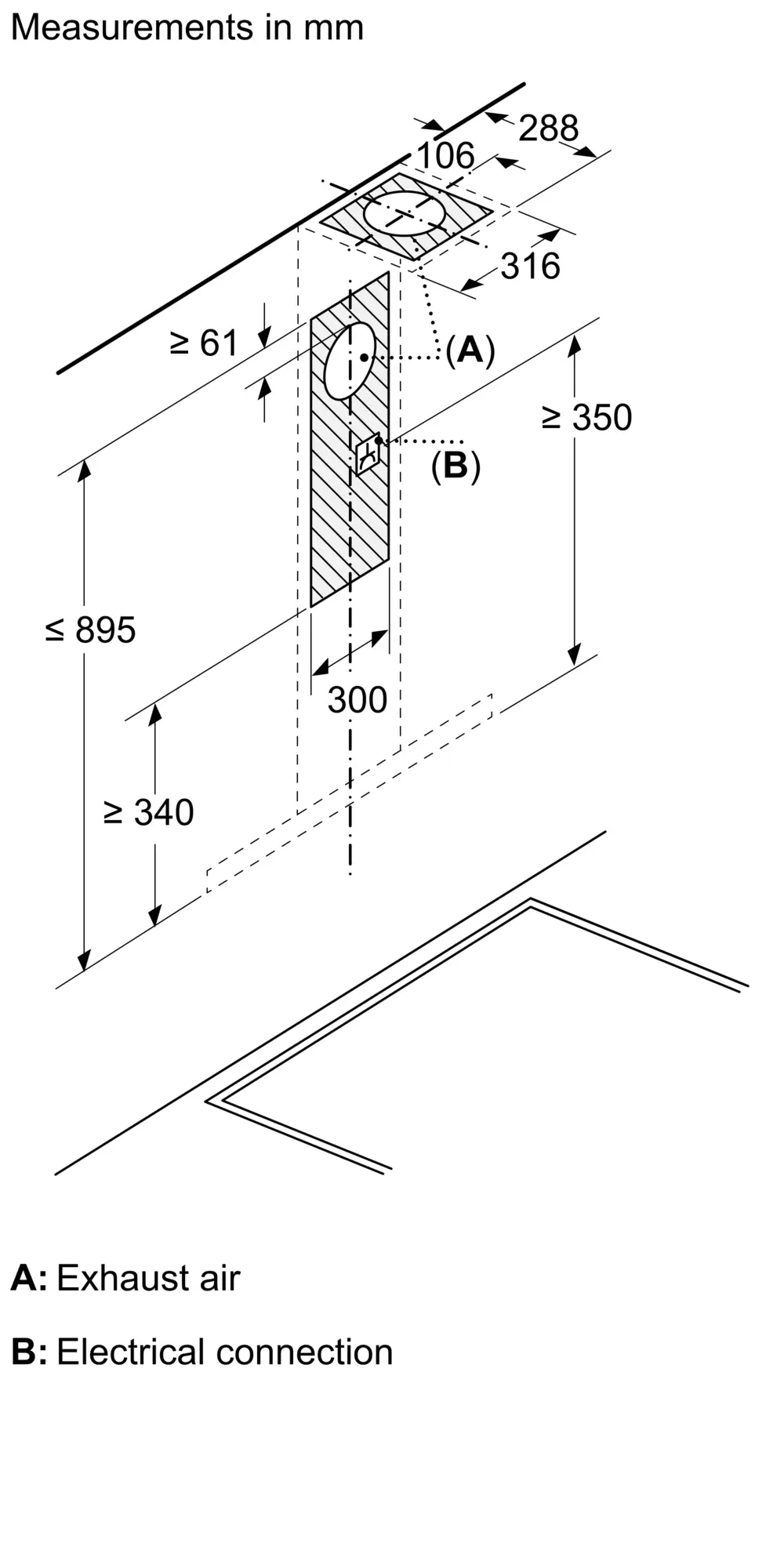

• Air Outlet Diameter: 150 mm
• Annual Energy Consumption: 32.0 kWh/year
• Energy Efficiency Class: A+
• Fluid Dynamic Efficiency Class: A
• Lighting Efficiency Class: A
• Grease Filtering Efficiency Class: B

Product Measurements:

• Width: 898 mm
• Depth: 500 mm

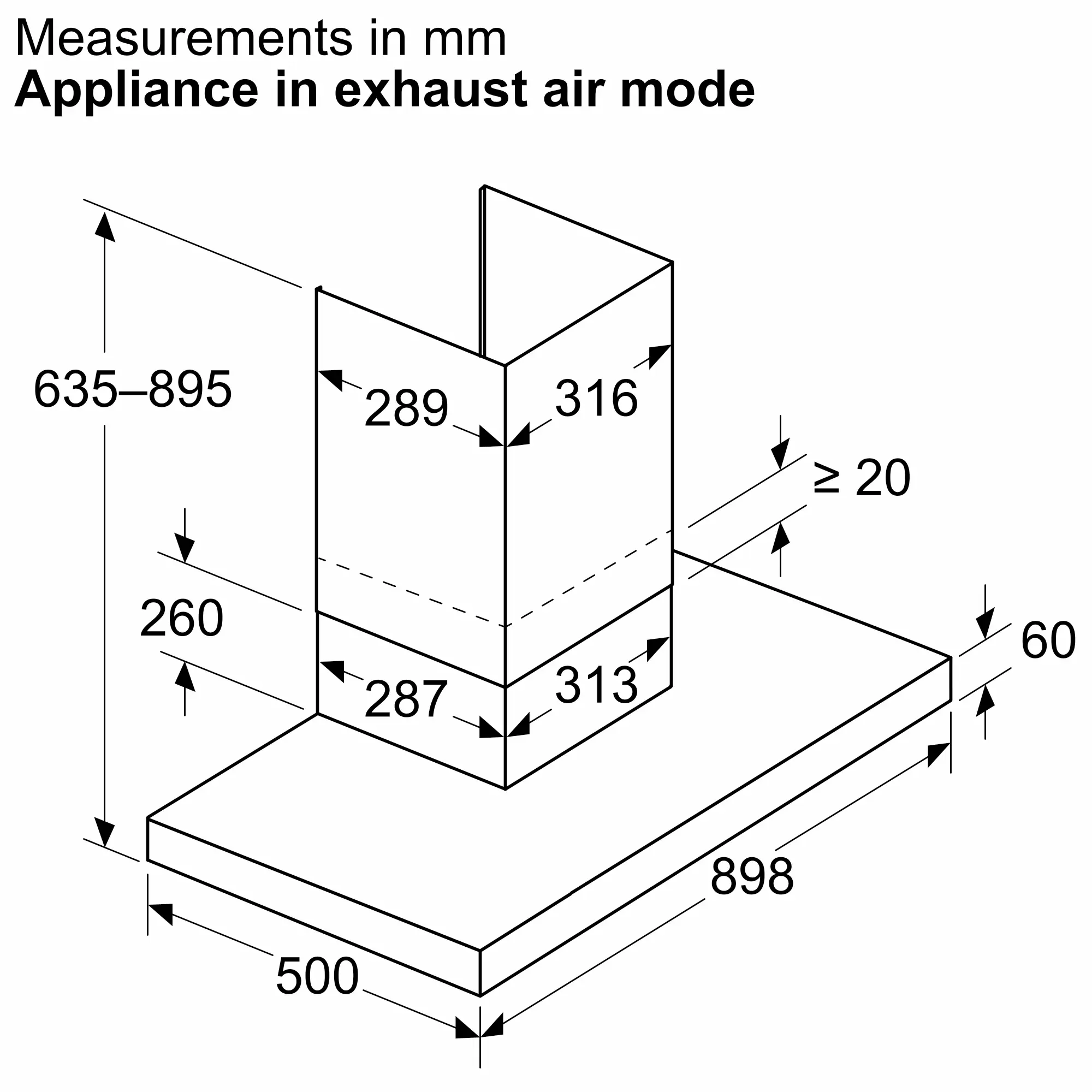

• Height (Ducted Installation): 635–895 mm

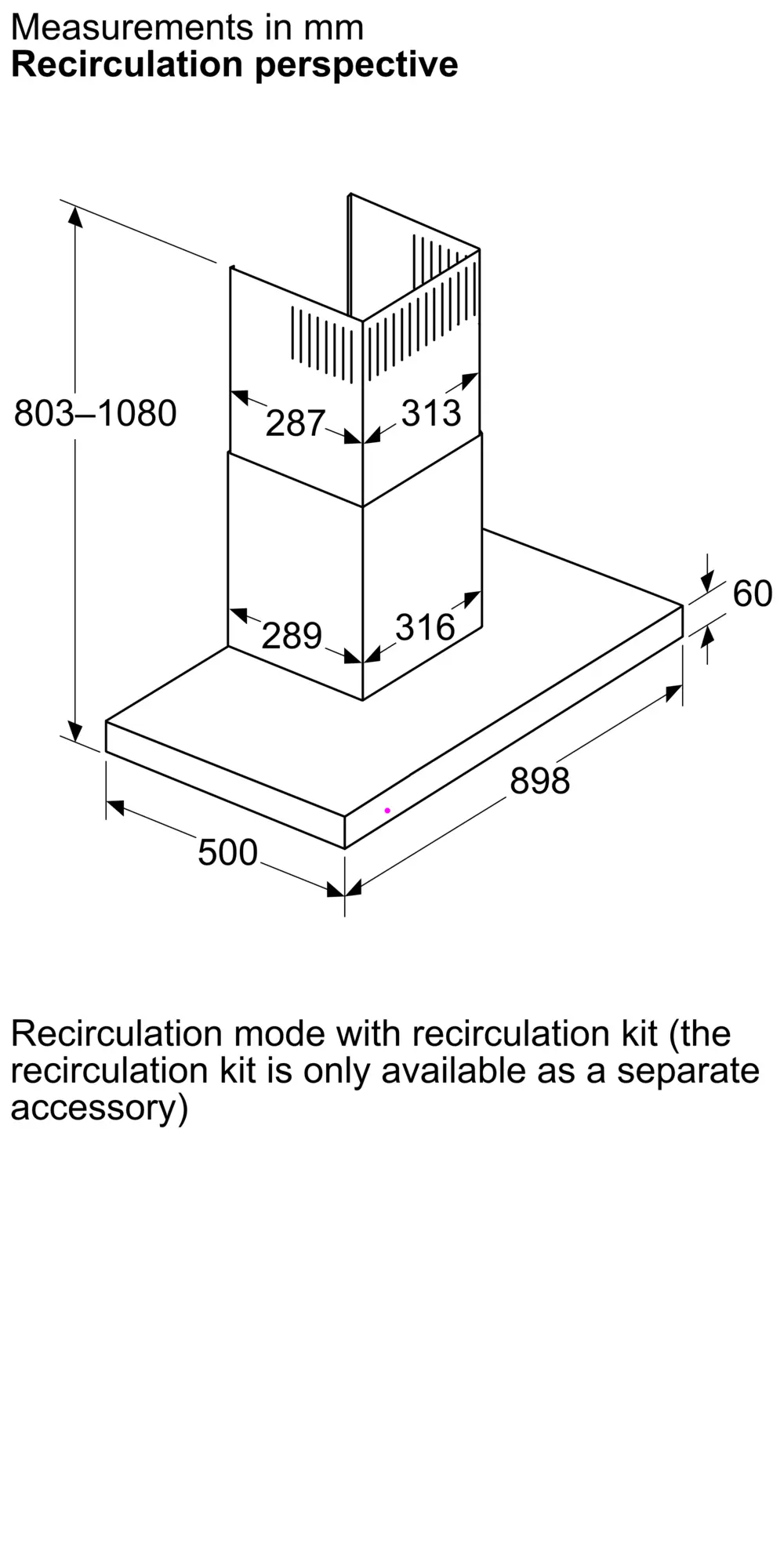

• Height (Recirculating Installation): 803–1080 mm

Product Weight:

• Net Weight: 13.7 kg

Installation & Requirements:

• Installation Configuration: Wall mounted canopy
• Ventilation Type: Ducted or recirculating

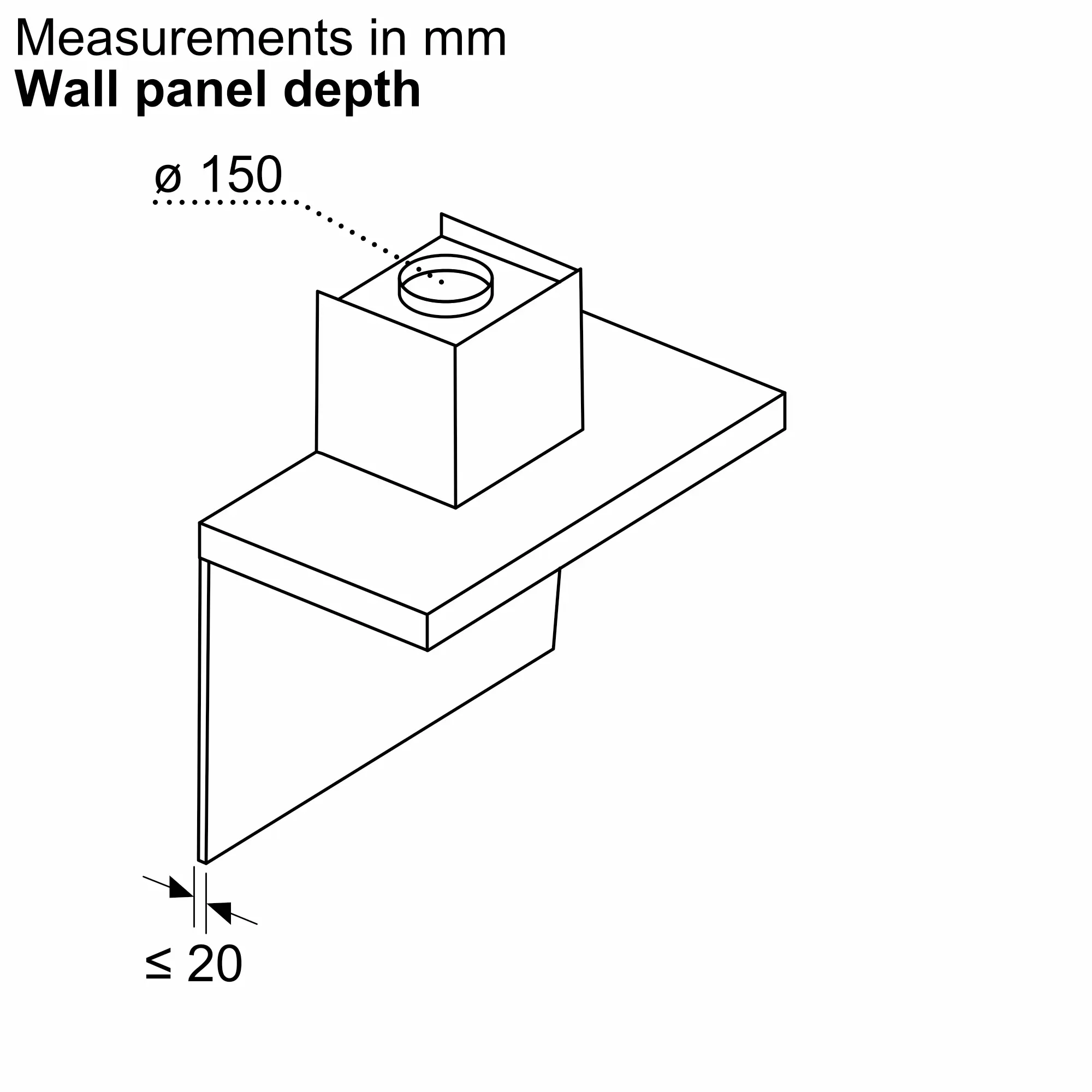

• Duct Outlet Diameter: 150 mm

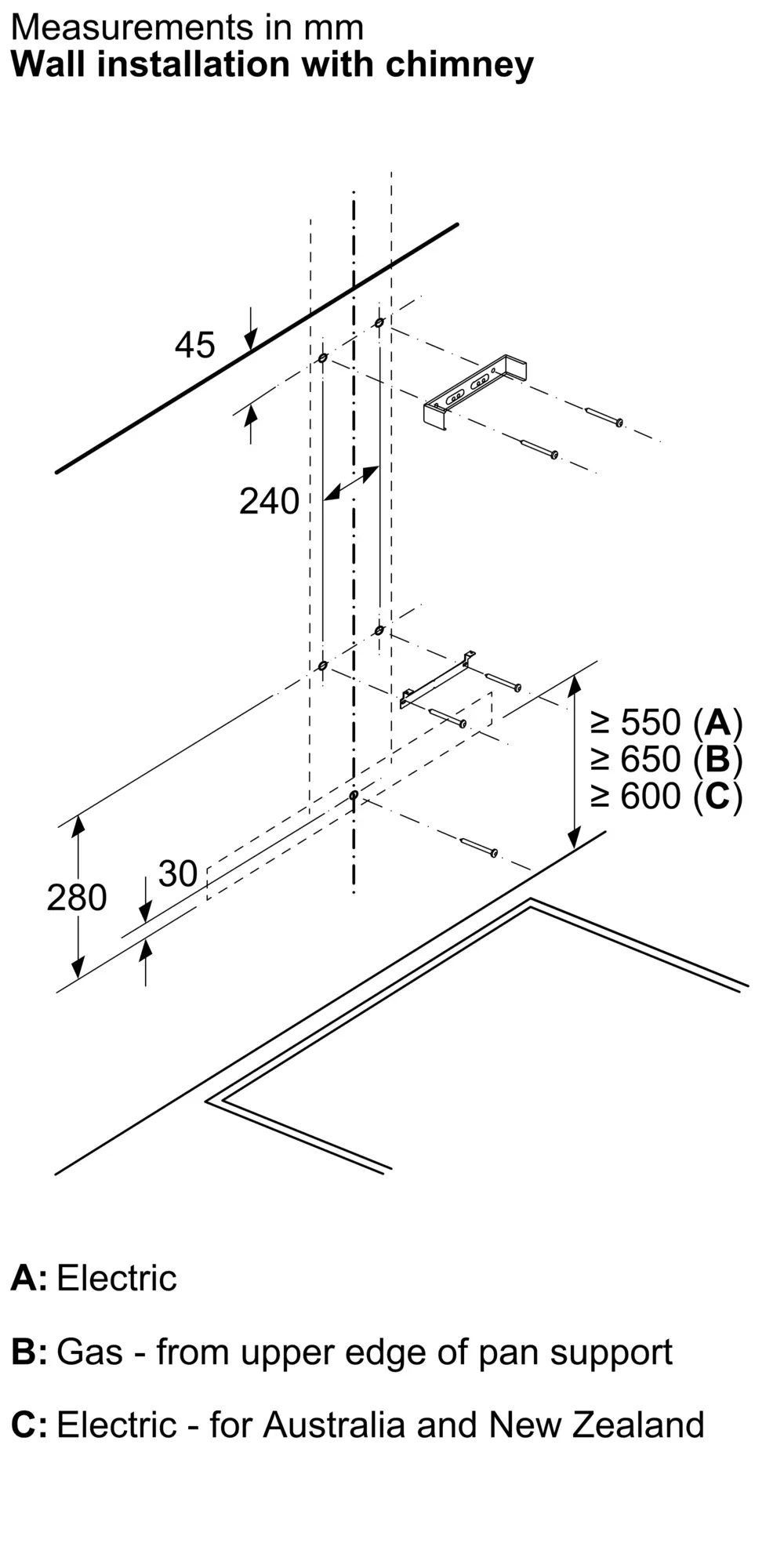

• Minimum Distance Above Electric Cooktop: 600 mm
• Minimum Distance Above Gas Cooktop: 650 mm
• Connection Rating: 140 W
• Voltage: 220–240 V
• Frequency: 50–60 Hz
• Connection Type: Plug-in
• Plug Type: Australian plug
• Power Cord Length: 130 cm
• Professional Installation Recommended: Yes

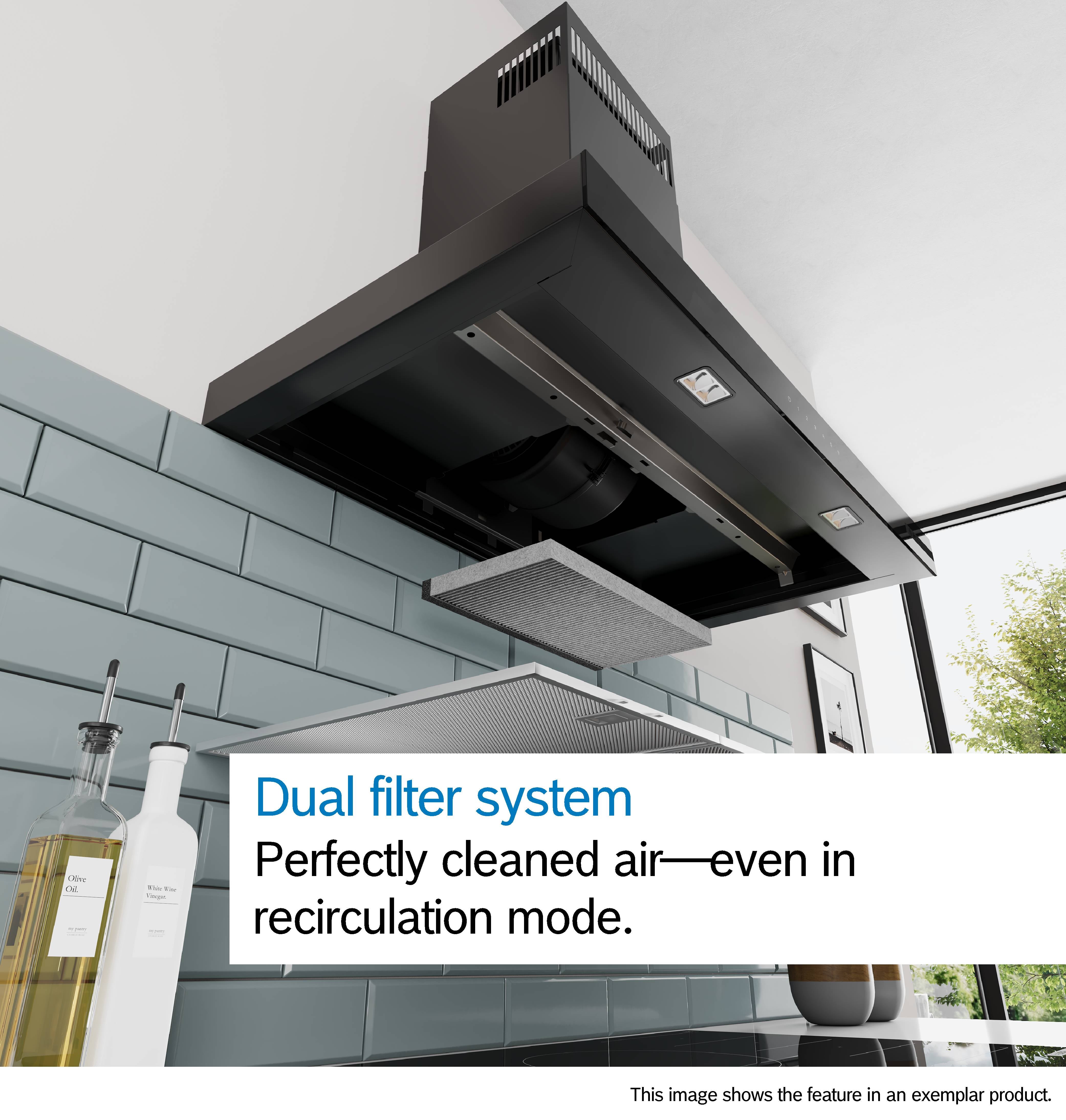

• Recirculation Installation: Requires compatible Bosch recirculation kit sold separately

Country of Origin:

• Made in Germany

Extra Information:

The DWB97DN65A forms part of Bosch's connected appliance ecosystem and supports advanced Home Connect integration. Through the Home Connect app, users can monitor appliance status, adjust settings remotely, receive maintenance notifications and access additional functionality not available through the standard control panel.

Smart Hood Automatic technology enables compatible Bosch cooktops and rangehoods to communicate directly with one another. Extraction performance automatically adjusts to match cooking activity, helping maintain effective kitchen ventilation without requiring manual fan-speed adjustments.

Bosch manufactures the DWB97DN65A in Germany and identifies production as occurring at a CO₂-neutral manufacturing facility. The rangehood is designed for both ducted and recirculating installations, allowing flexibility across a wide range of kitchen configurations.

Included Products / Accessories:

• 3 x Stainless Steel Grease Filters
• Non-return Air Flap
• Power Cord and Plug
• Installation Components
• Chimney Flue Covers

Warranty:

Backed by a 2-year manufacturer's warranty for domestic use when installed and operated in accordance with Bosch guidelines.

Downloads / Product Files:

• SPECIFICATIONS SHEET (PDF)

• USER MANUAL & INSTALLATION INSTRUCTIONS (PDF)
