Product Description

Product Overview:

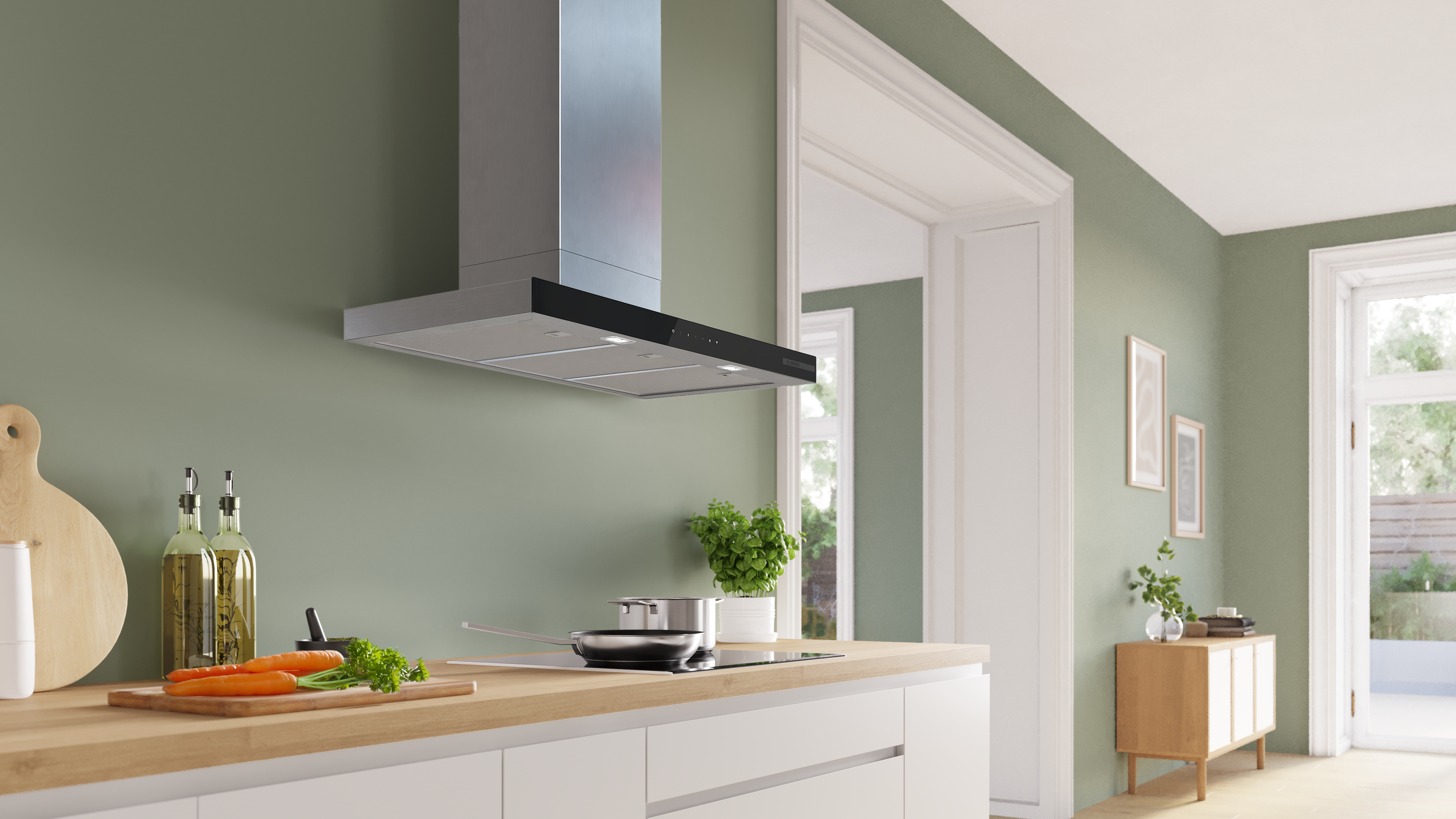

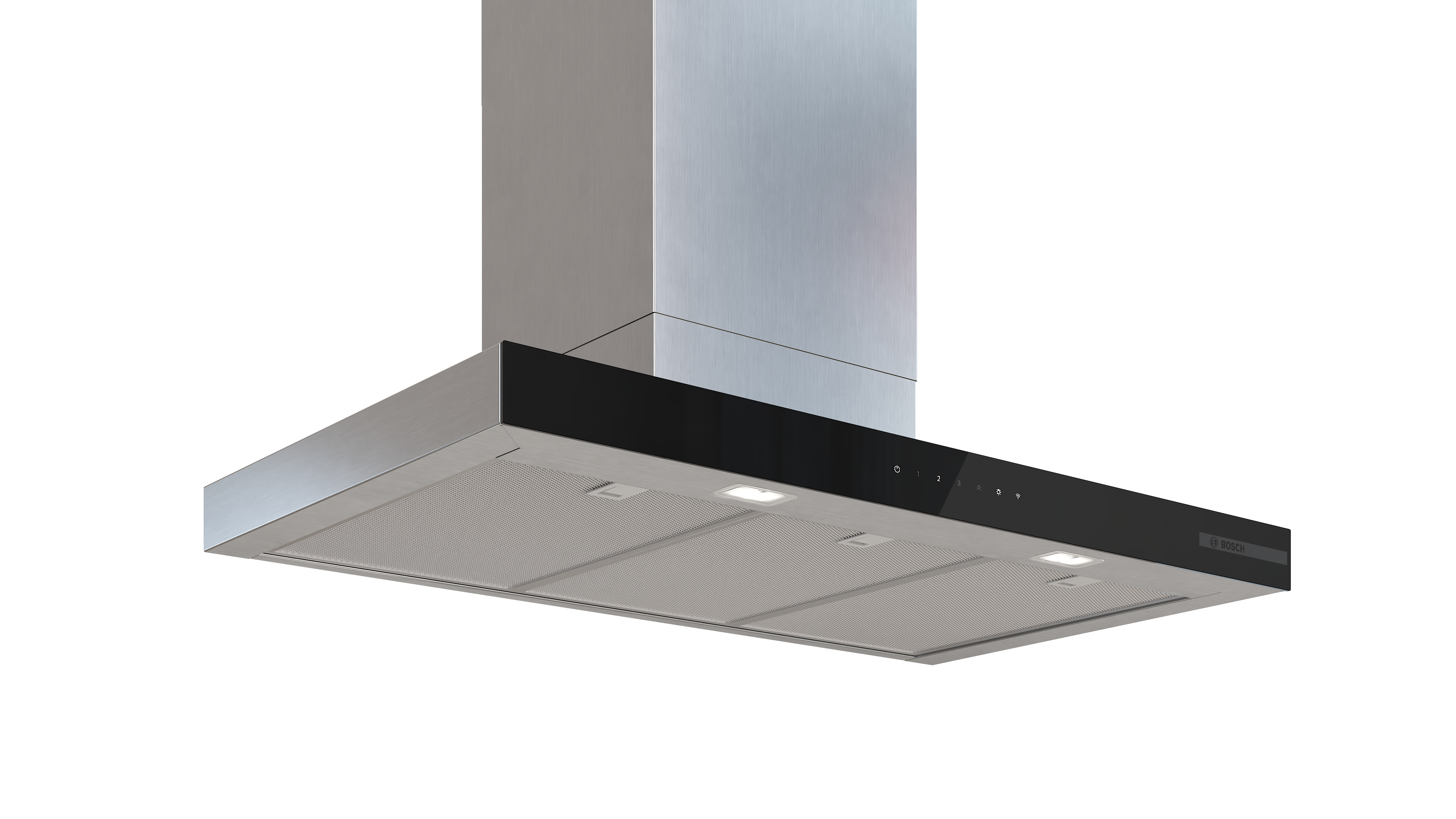

The Bosch DWB97DN30A is a 90cm wall-mounted canopy rangehood from the Bosch Series 6 collection, finished in Stainless Steel Look with a black glass fascia panel. Designed for larger cooktops and demanding cooking environments, it combines strong extraction performance with intelligent automation and modern connectivity.

Powered by Bosch's SilentPowerDrive motor technology, the DWB97DN30A delivers up to 399m³/h extraction during normal operation and up to 699m³/h using the intensive boost setting. The wall-mounted canopy design provides effective capture of steam, smoke and cooking odours while maintaining a refined architectural appearance above the cooktop.

Home Connect integration enables app-based monitoring and control, while Smart Hood Automatic allows compatible Bosch induction cooktops to communicate directly with the rangehood, automatically adjusting extraction levels as cooking intensity changes. DirectSelect touch controls, LED illumination and dishwasher-safe filters complete a ventilation solution designed for contemporary kitchens.

Product Features:

• SilentPowerDrive Motor: Bosch high-efficiency motor technology engineered for strong extraction performance with reduced operating noise.
• Home Connect: Monitor and control the rangehood remotely through the Home Connect app.
• Smart Hood Automatic: Automatically adjusts extraction levels when paired with compatible Bosch induction cooktops.

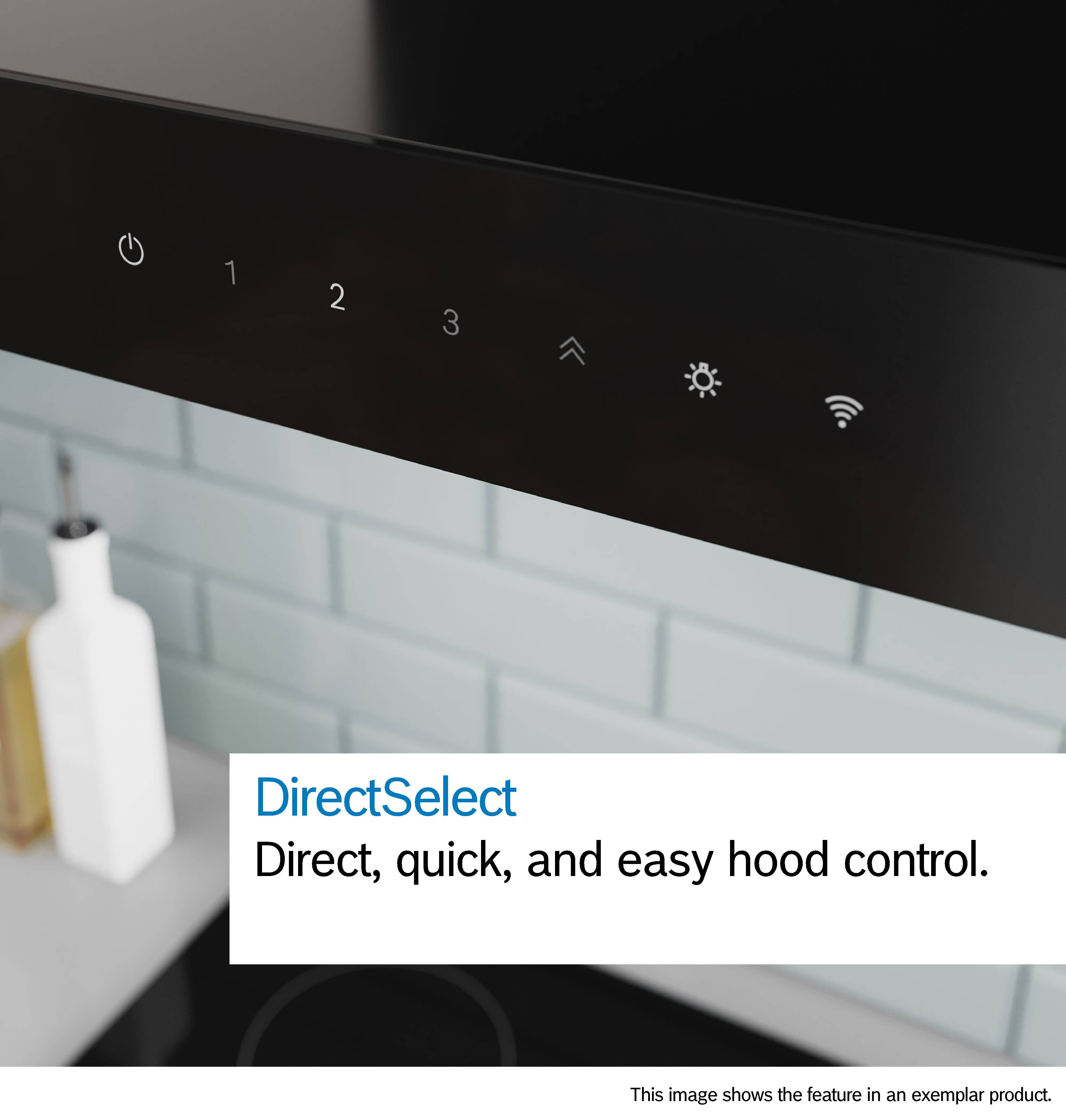

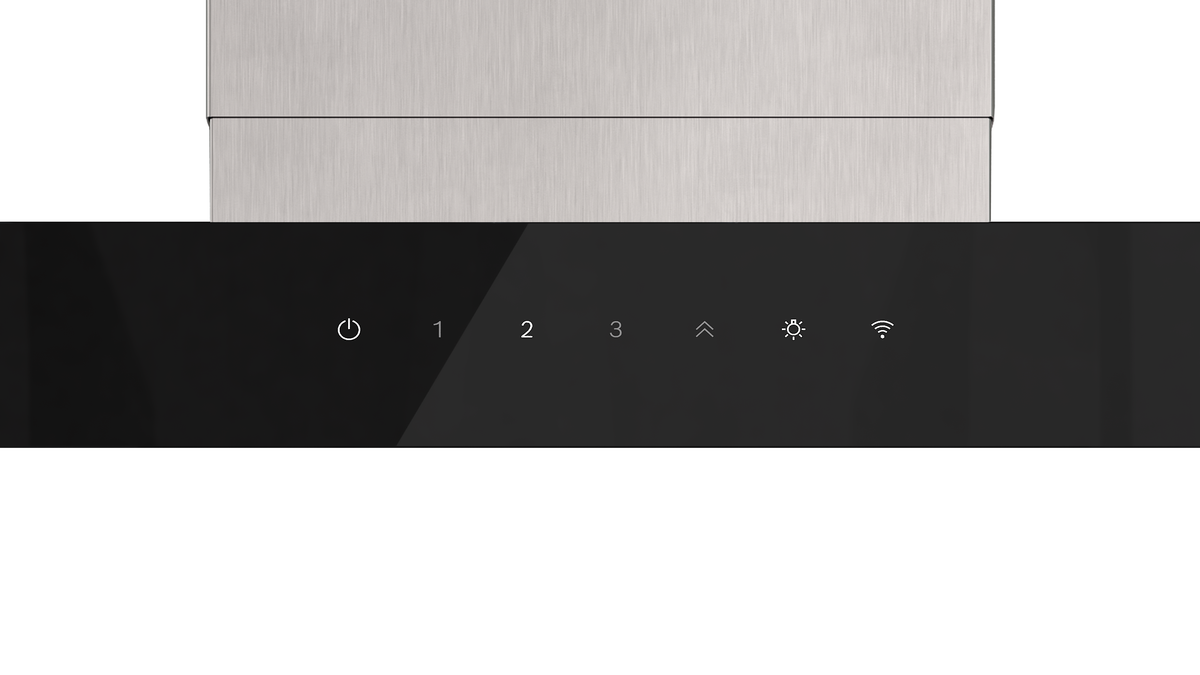

• DirectSelect Controls: Touch controls provide direct access to fan speeds and lighting functions.
• Glass Control Panel: Fold-down glass panel enhances extraction capture while positioning controls at eye level.
• Intensive Boost Function: Temporarily increases extraction capacity to rapidly remove heavy cooking vapours.
• Intensive Speed Reset: Automatically returns from boost mode to normal operation after intensive extraction.

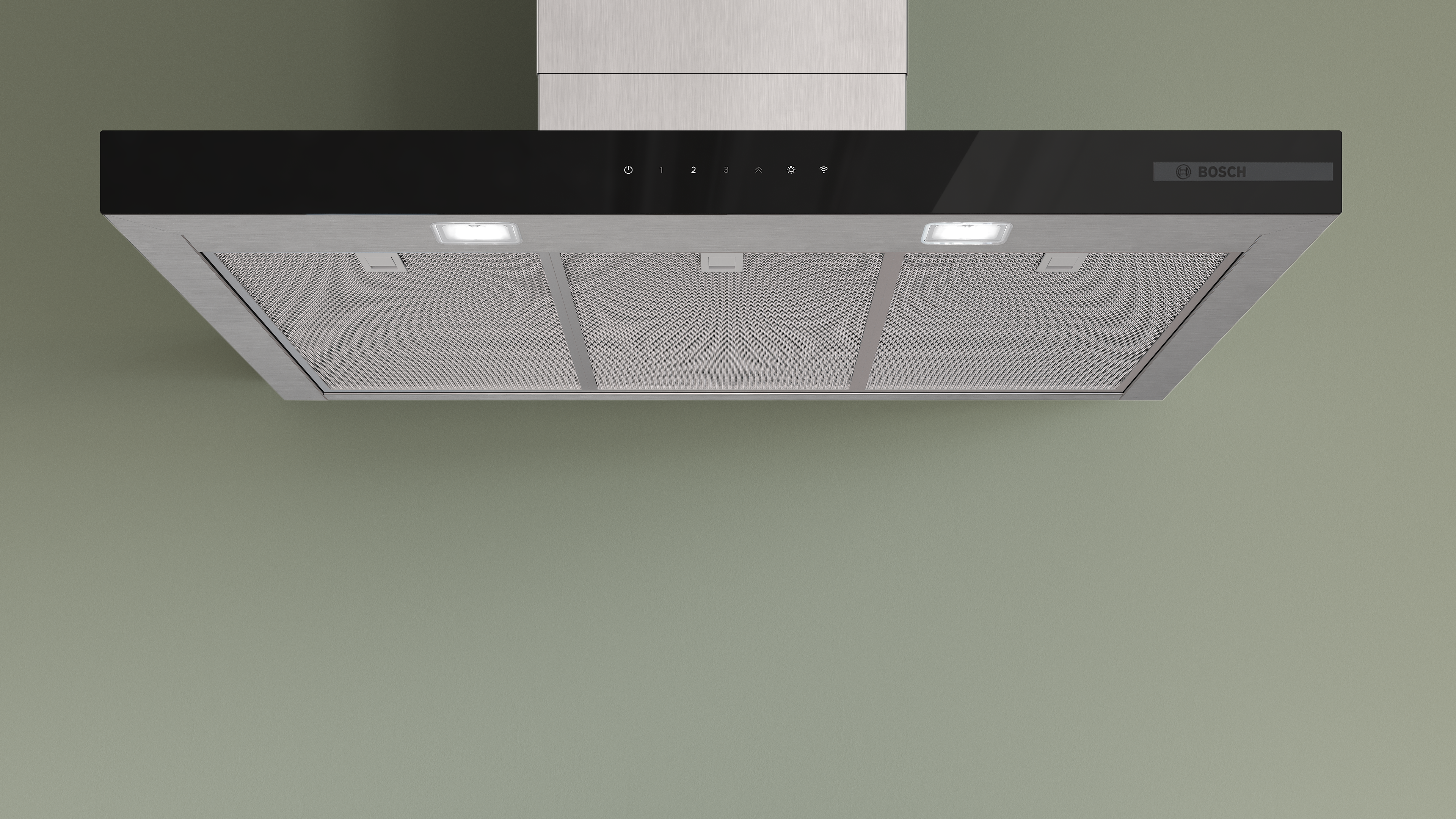

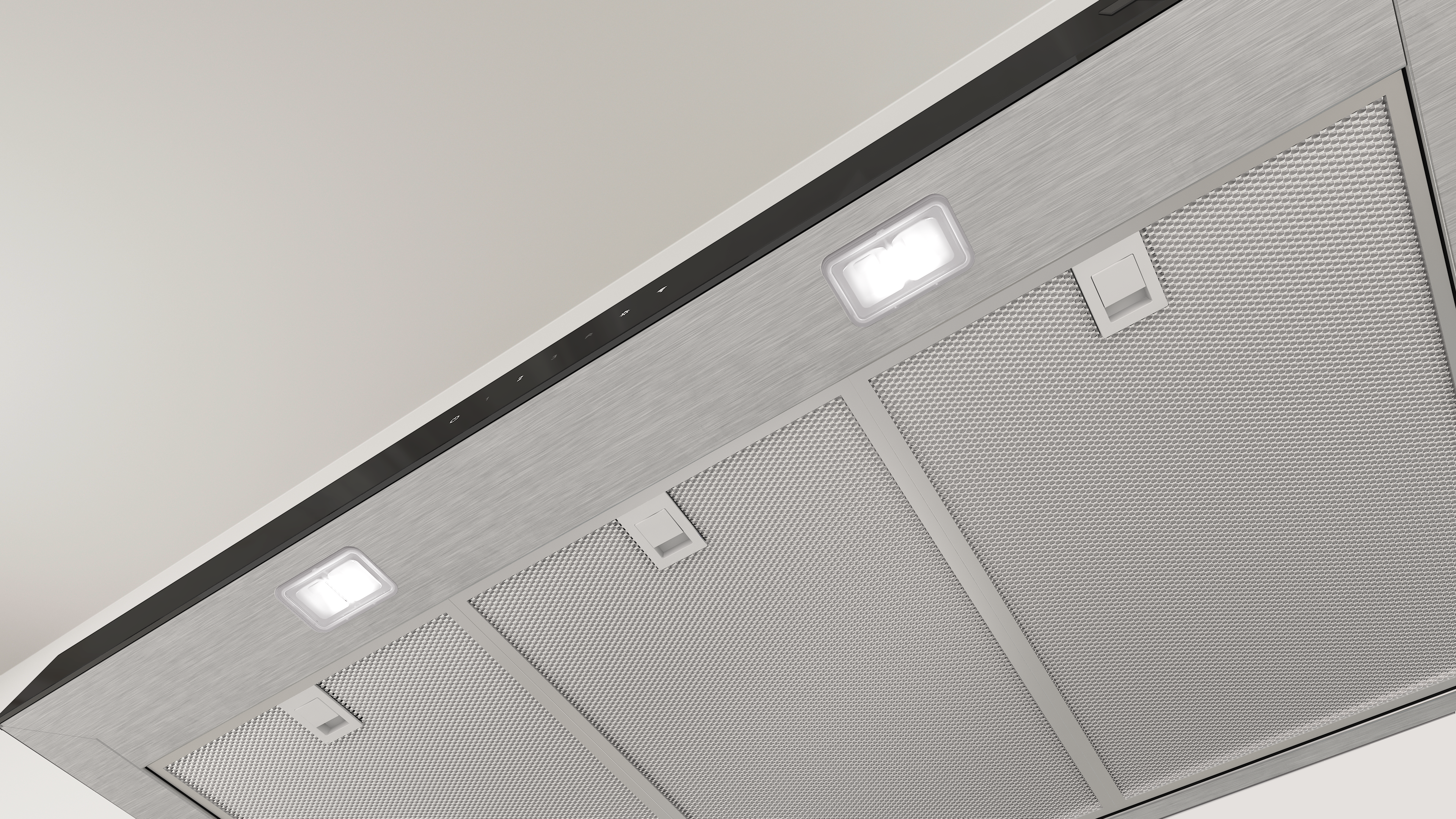

• LED Illumination: Efficient LED lighting provides clear visibility across the cooking surface.
• Adjustable Brightness: Lighting levels can be adjusted to suit kitchen requirements.
• Filter Saturation Monitoring: Alerts when grease filters require cleaning.

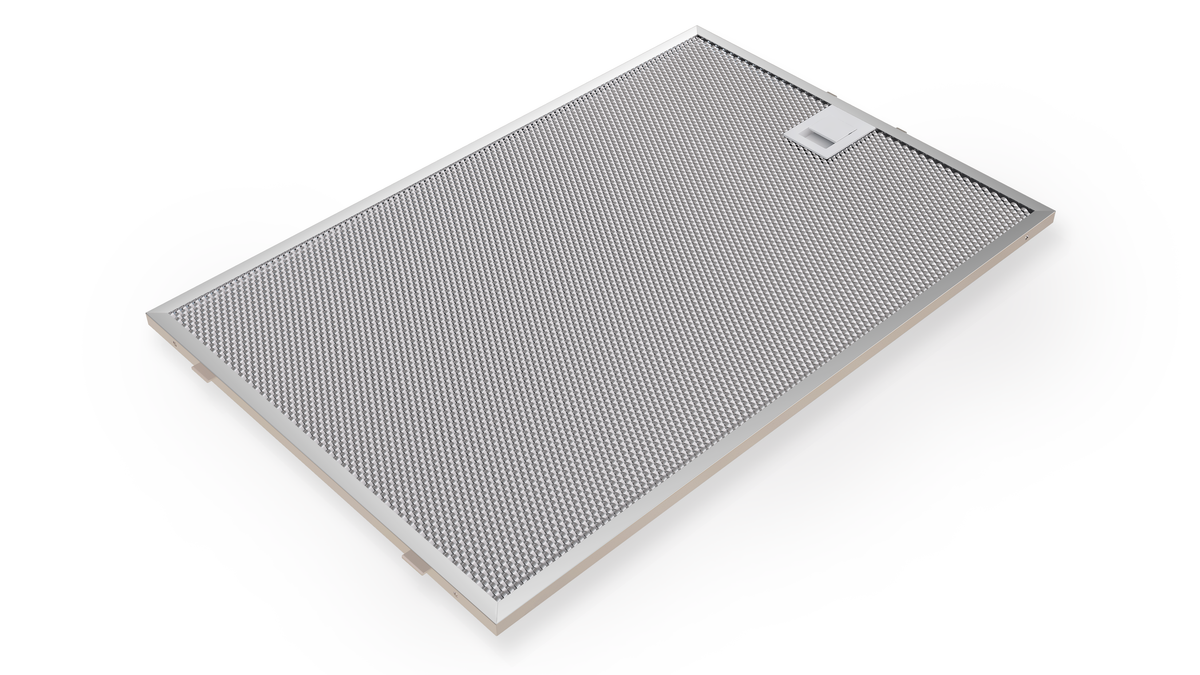

• Dishwasher-Safe Filters: Aluminium mesh filters can be removed and cleaned in the dishwasher.
• Exhaust or Recirculation Operation: Suitable for ducted extraction or recirculating installations with optional accessories.

Colour / Finishes:

• Stainless Steel Look with Black Glass Fascia Panel — DWB97DN30A

Programmes / Functions:

• Fan Speed 1: Low extraction setting for light cooking and everyday ventilation.
• Fan Speed 2: Medium extraction setting for moderate cooking activity.
• Fan Speed 3: High extraction setting for increased steam and odour removal.
• Intensive Boost Mode: Temporarily increases extraction performance up to 699 m³/h for heavy cooking conditions.
• Automatic Intensive Reset: Returns the rangehood to normal operation after a preset boost period.
• Smart Hood Automatic: Automatically adjusts extraction levels when paired with a compatible Bosch cooktop.
• Cooktop-Based Hood Control: Allows compatible Bosch cooktops to directly control rangehood operation.
• Home Connect Remote Operation: Enables monitoring and control through the Home Connect app.
• LED Lighting Control: Provides illumination of the cooking surface with adjustable brightness settings.
• Filter Saturation Monitoring: Alerts when grease filters require cleaning or maintenance.

Cleaning & Maintenance:

• Dishwasher-Safe Grease Filters: Aluminium mesh filters can be removed and cleaned in a dishwasher.
• Filter Saturation Indicator: Provides automatic reminders when filter cleaning is required.
• Metal Grease Filtration System: Captures airborne grease particles generated during cooking.
• Removable Filter Design: Filters can be easily removed for routine cleaning and maintenance.
• Washable Filter Construction: Designed for repeated cleaning to maintain extraction performance.
• LED Lighting System: Long-life LED lighting reduces ongoing maintenance requirements.
• Accessible Interior Surfaces: Smooth internal surfaces assist with routine cleaning of the extraction area.

Specifications:

• Product Series: Bosch Series 6
• Rangehood Type: Wall-Mounted Canopy
• Operating Modes: Ducted Extraction / Recirculation
• Maximum Extraction Rate: 399 m³/h
• Boost Extraction Rate: 699 m³/h
• Fan Speeds: 3 + Intensive Boost
• Control Type: DirectSelect Touch Controls
• Motor Technology: SilentPowerDrive / EcoSilence Drive
• Cooktop-Based Hood Control: Yes
• Home Connect: Yes
• Smart Hood Automatic: Yes
• Lighting Type: LED
• Number of Lights: 2
• Filter Type: Aluminium Mesh Grease Filters
• Filter Cleaning: Dishwasher Safe
• Filter Saturation Indicator: Yes

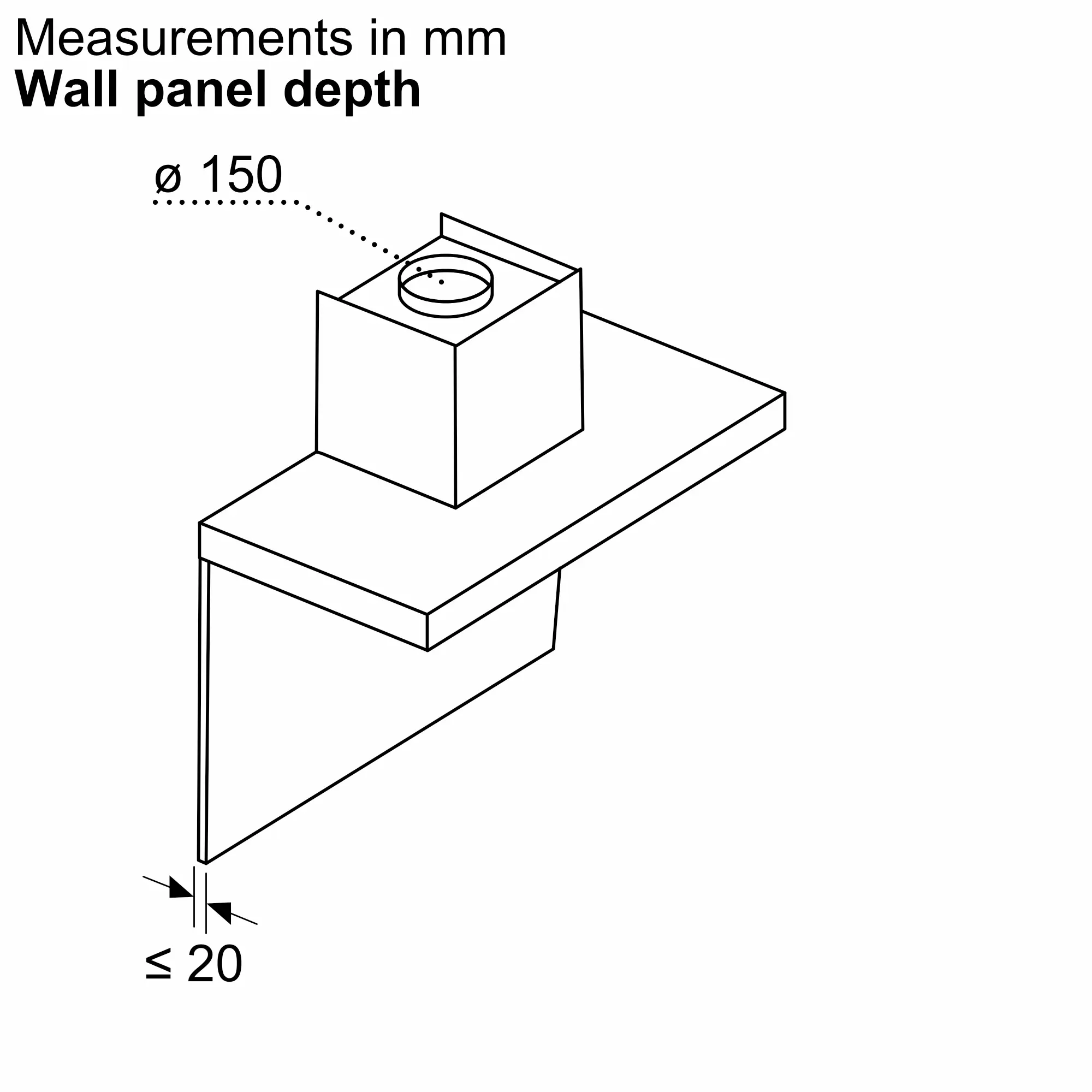

• Ducting Diameter: 150 mm
• Ducting Position: Top
• Noise Level Range: 43–73 dB
• Voltage: 220–240 V
• Maximum Current Rating: 10 A
• Power Consumption: 115 W
• Cord Length: 1.3 m
• EAN: 4242005530519

Product Measurements:

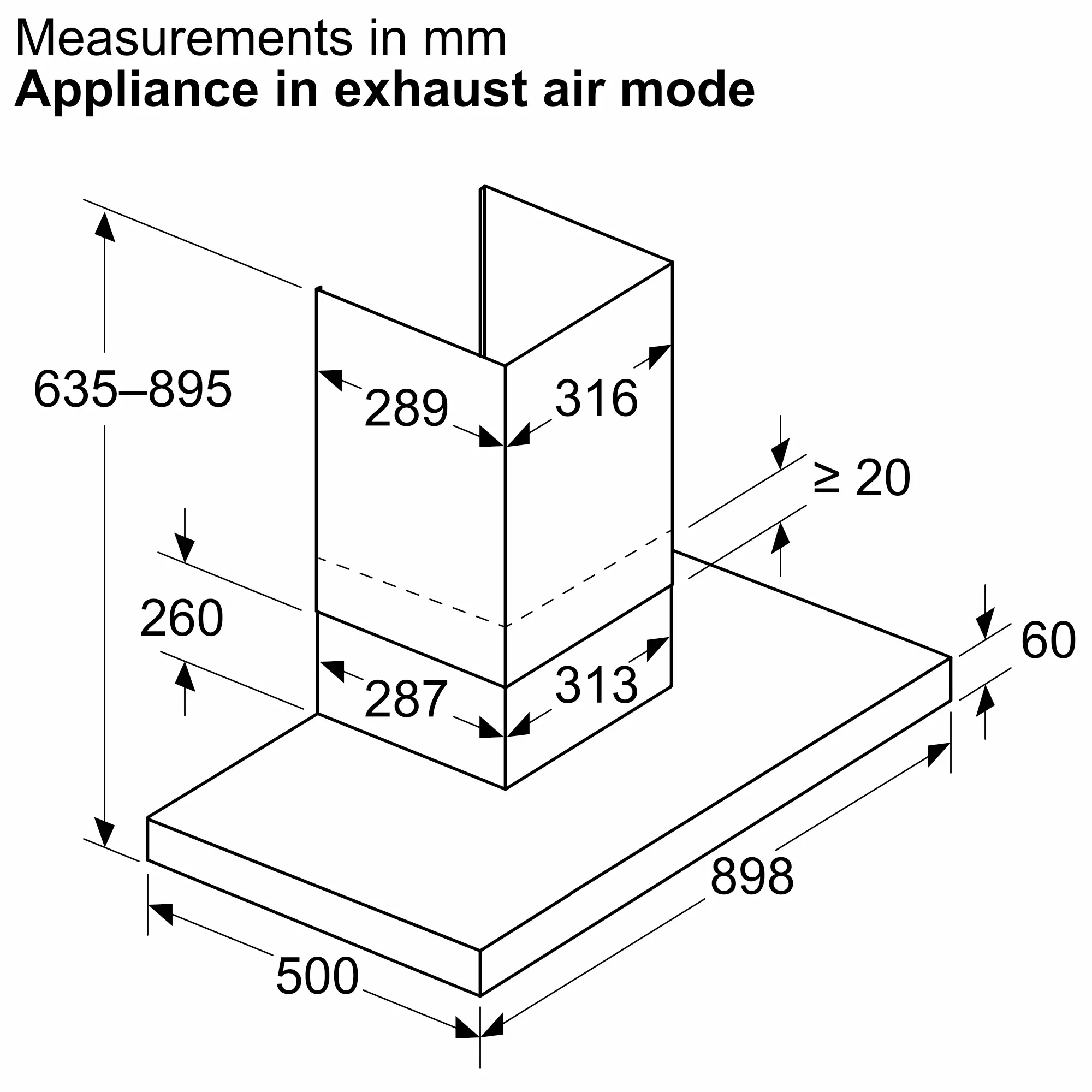

• Dimensions (W x H x D): 898 x 635 x 500 mm

Product Weight:

• Product Weight: 13.2 kg

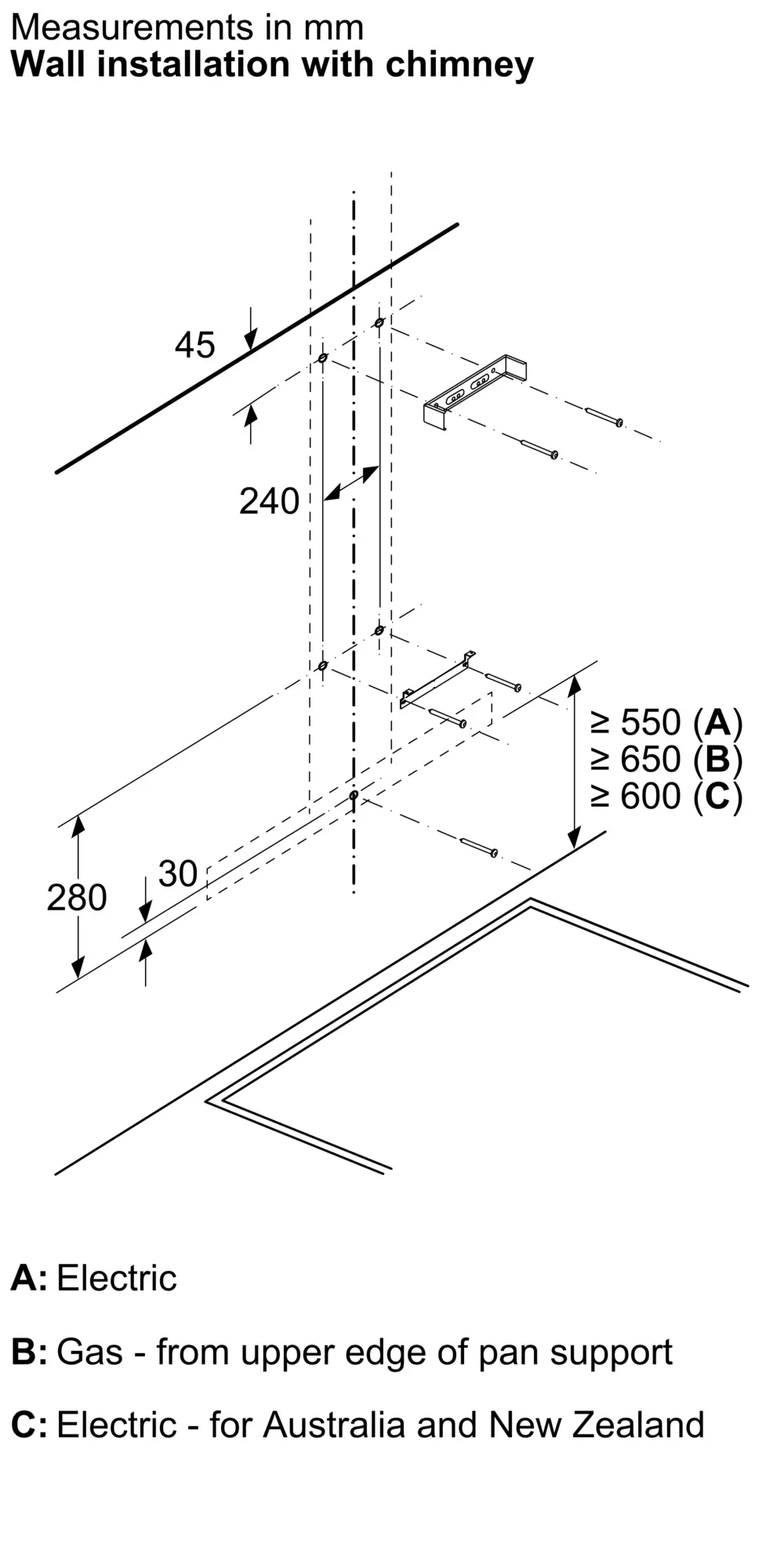

Installation & Requirements:

• Installation Type: Wall-Mounted Canopy
• Operating Configuration: Exhaust or Recirculation

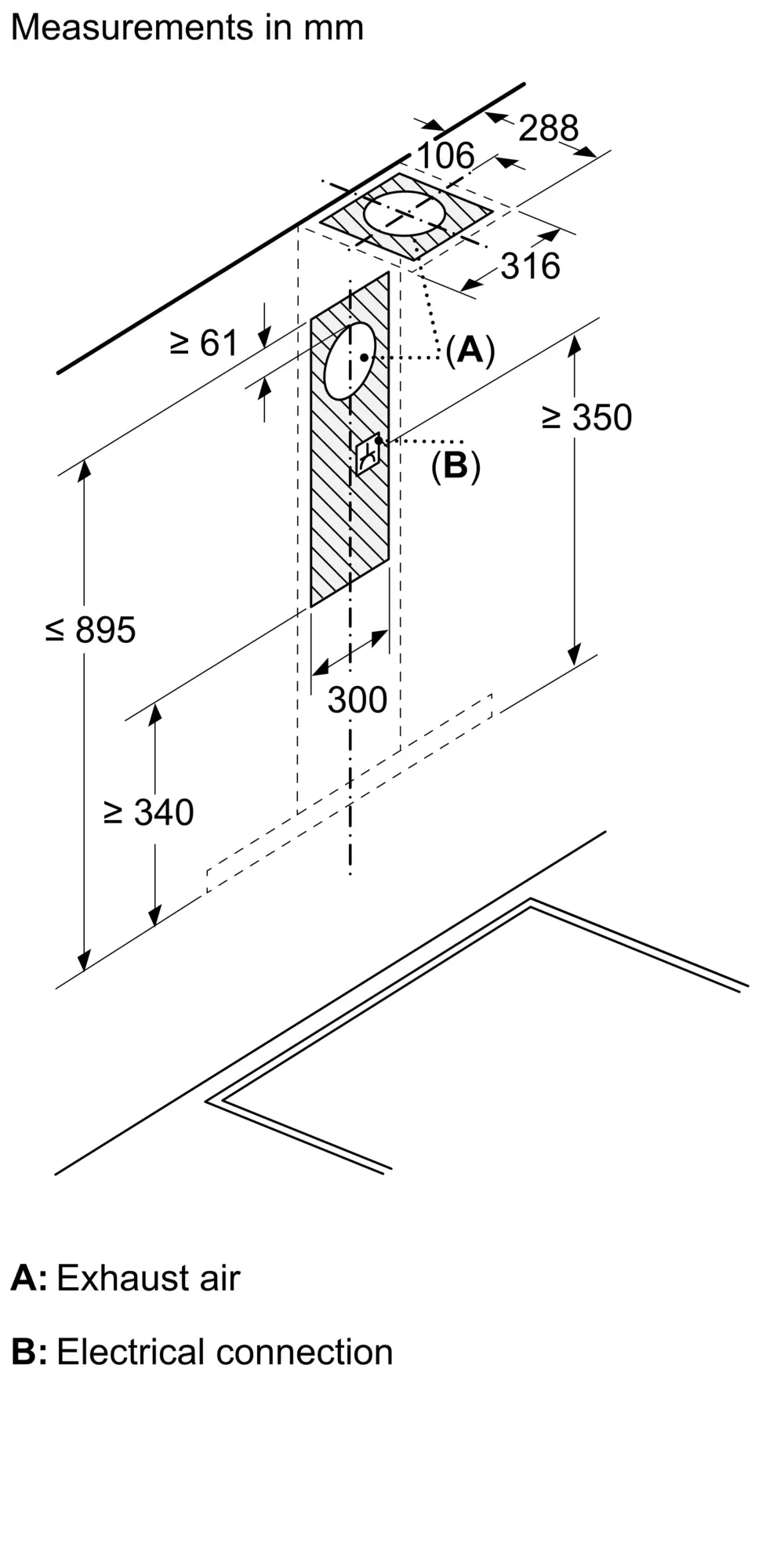

• Duct Diameter: 150 mm
• Ducting Exit Position: Top
• Electrical Connection: 10A Plug and Lead
• Maximum Current Rating: 10 A
• Power Supply: 220–240 V
• Cord Length: 1.3 m
• Recirculation Installation: Optional recirculation kit required
• External Ducting: Optional ducting kits available depending on installation requirements

Country of Origin:

• Made in Germany

Extra Information:

Smart Hood Automatic technology allows compatible Bosch induction cooktops to communicate directly with the rangehood, automatically adjusting extraction performance according to cooking activity. Compatible cooktops can also provide cooktop-based hood control through the Home Connect platform.

The fold-down glass control panel assists with vapour capture while providing easy access to the DirectSelect touch controls. LED lighting brightness can be customised through Home Connect for greater flexibility within the kitchen environment.

Included Products / Accessories:

• 2 x Stainless Steel Flue Covers
• 3 x Aluminium Mesh Filters
• Installation Components
• Power Cord and Plug Assembly

Warranty:

Backed by a 2-year manufacturer's warranty for peace of mind when installed and used according to manufacturer guidelines.
