Product Description

Product Overview:

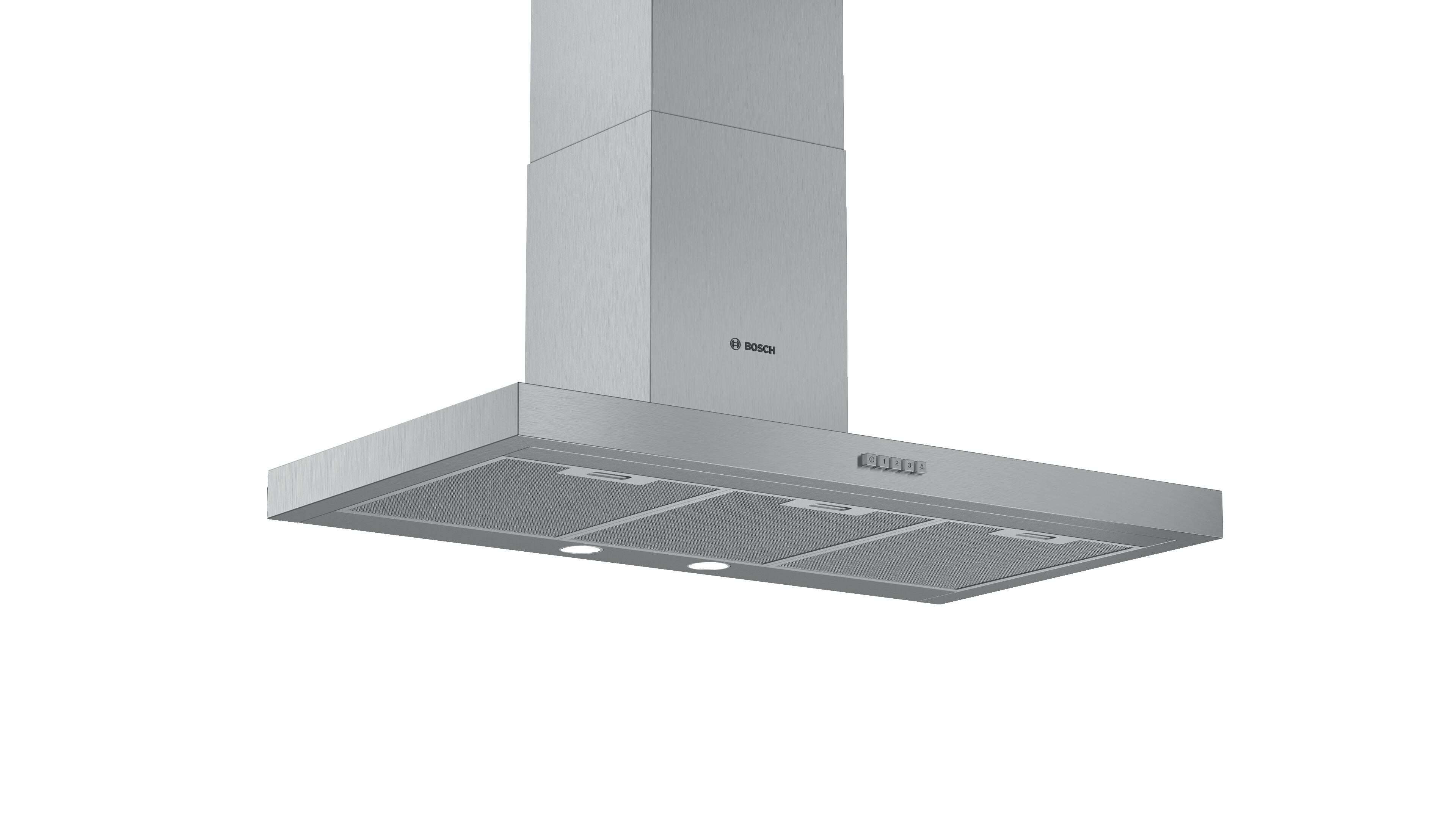

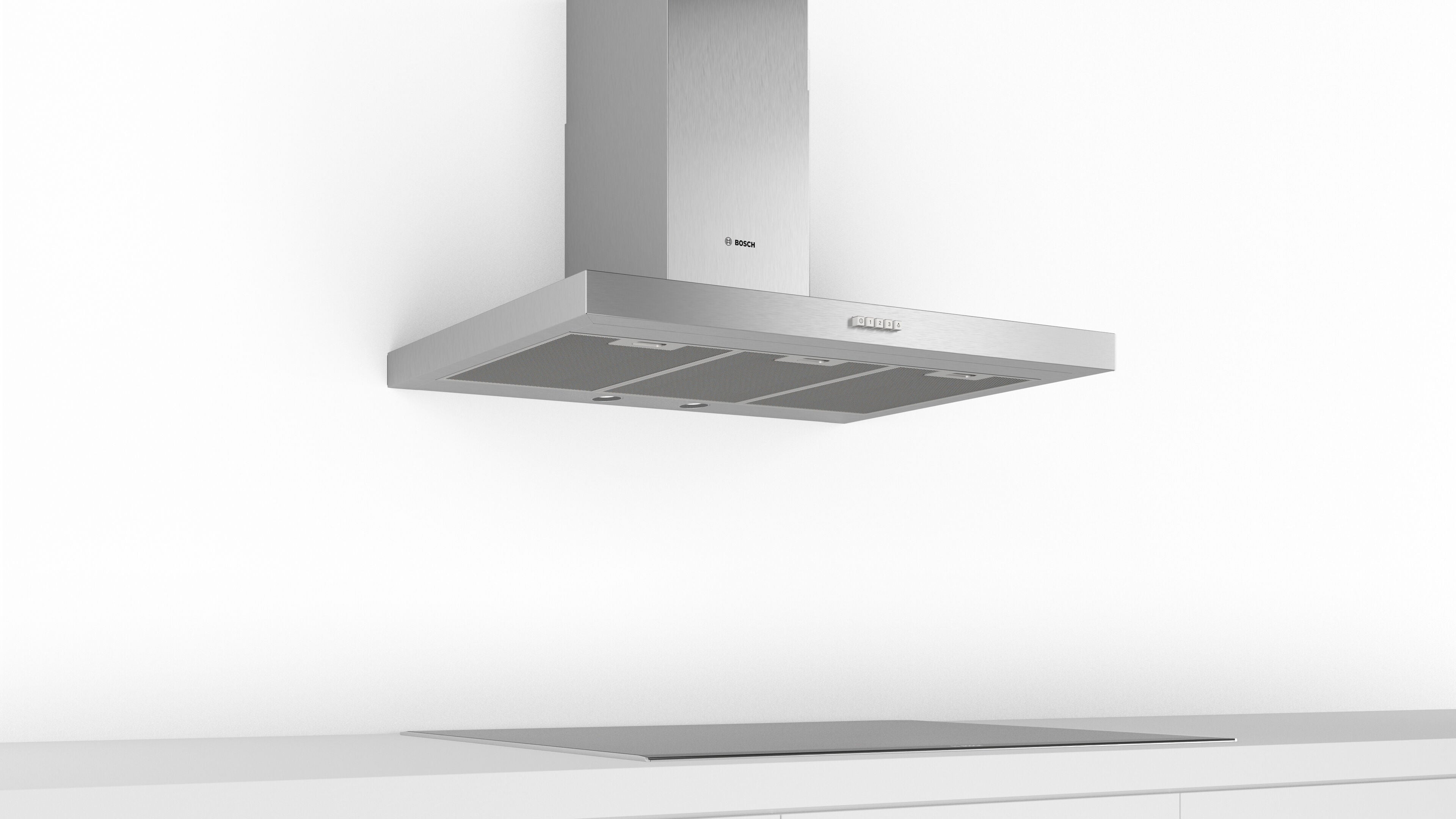

The Bosch DWB95BC50A is a 90cm wall mounted canopy rangehood from Bosch's Series 2 cooking ventilation range. Finished in stainless steel, it is designed to complement contemporary kitchen environments while providing effective extraction performance for everyday cooking applications.

Offering a maximum extraction capacity of up to 616m³/h in ducted operation, the DWB95BC50A assists with the removal of steam, grease and cooking odours generated during food preparation. Three fan speeds allow extraction performance to be adjusted according to cooking intensity, while integrated LED lighting provides direct illumination over the cooking surface below.

Designed for both ducted and recirculating installation, the rangehood incorporates washable aluminium grease filters and simple push-button controls for straightforward daily operation and maintenance.

Product Features:

• 90cm canopy design: suitable for installation above wider cooktops and cooking zones.
• Maximum extraction rate of 616m³/h: assists with effective removal of cooking vapours and odours.
• Three fan speed settings: allows ventilation performance to be matched to cooking requirements.

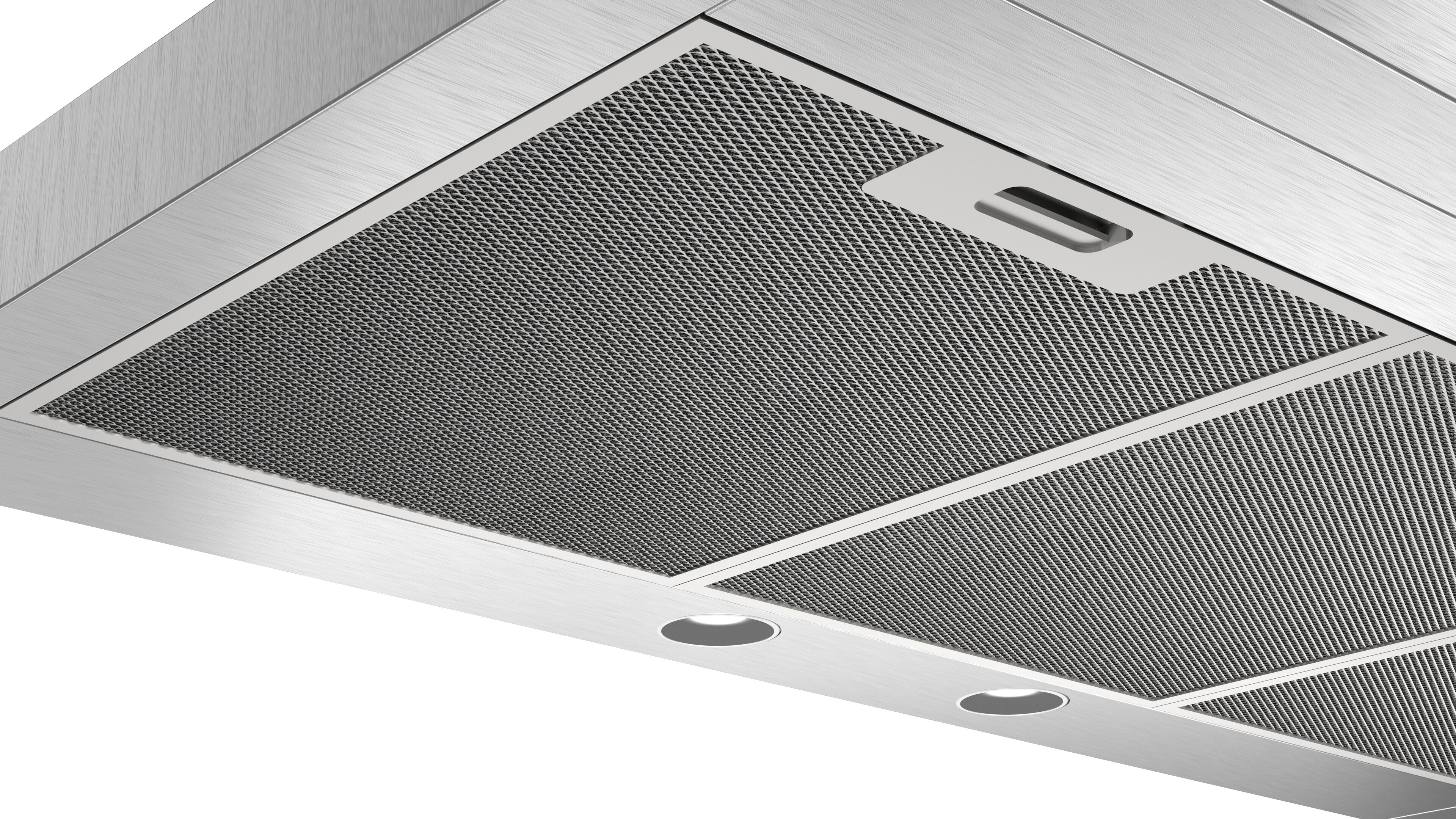

• LED cooktop lighting: integrated lighting improves visibility during food preparation.

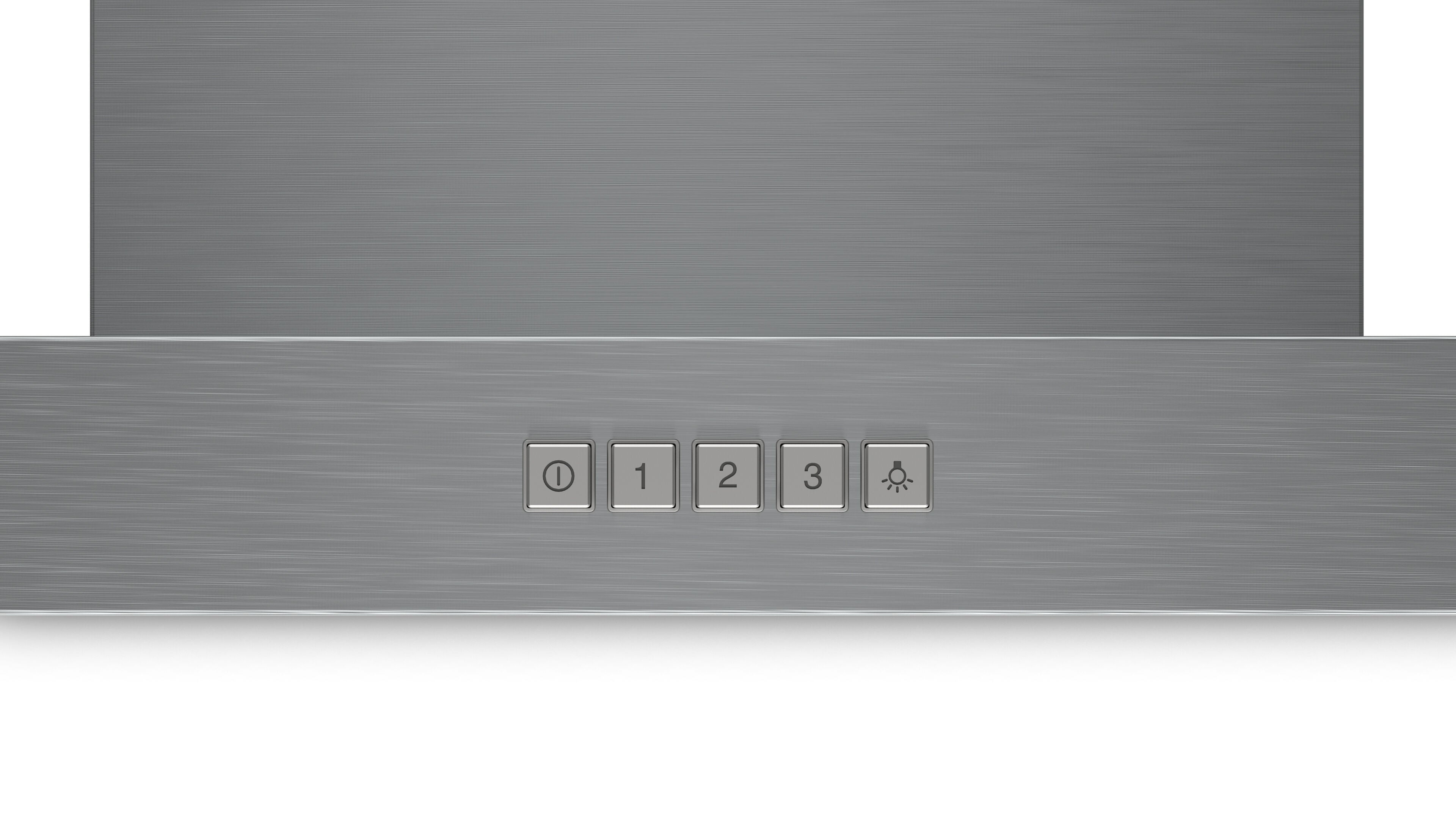

• Push-button controls: simple tactile controls for fan and lighting operation.
• Dishwasher-safe aluminium grease filters: supports straightforward cleaning and maintenance.
• Ducted or recirculated operation: installation flexibility depending on kitchen requirements.
• Stainless steel finish: designed to coordinate with contemporary Bosch cooking appliances.

Colour / Finishes:

• Stainless Steel — DWB95BC50A

Programmes / Functions:

• Fan Speed 1: Low extraction setting suitable for light cooking and simmering.
• Fan Speed 2: Medium extraction setting for everyday cooking activities.
• Fan Speed 3: Maximum extraction setting for intensive cooking and higher vapour production.
• LED Cooktop Lighting: Illuminates the cooking surface independently of the extraction fan.
• Ducted Extraction Mode: Removes cooking vapours and odours by exhausting air externally.
• Recirculation Mode: Filters and returns air back into the kitchen when fitted with the appropriate recirculation kit.

Cleaning & Maintenance:

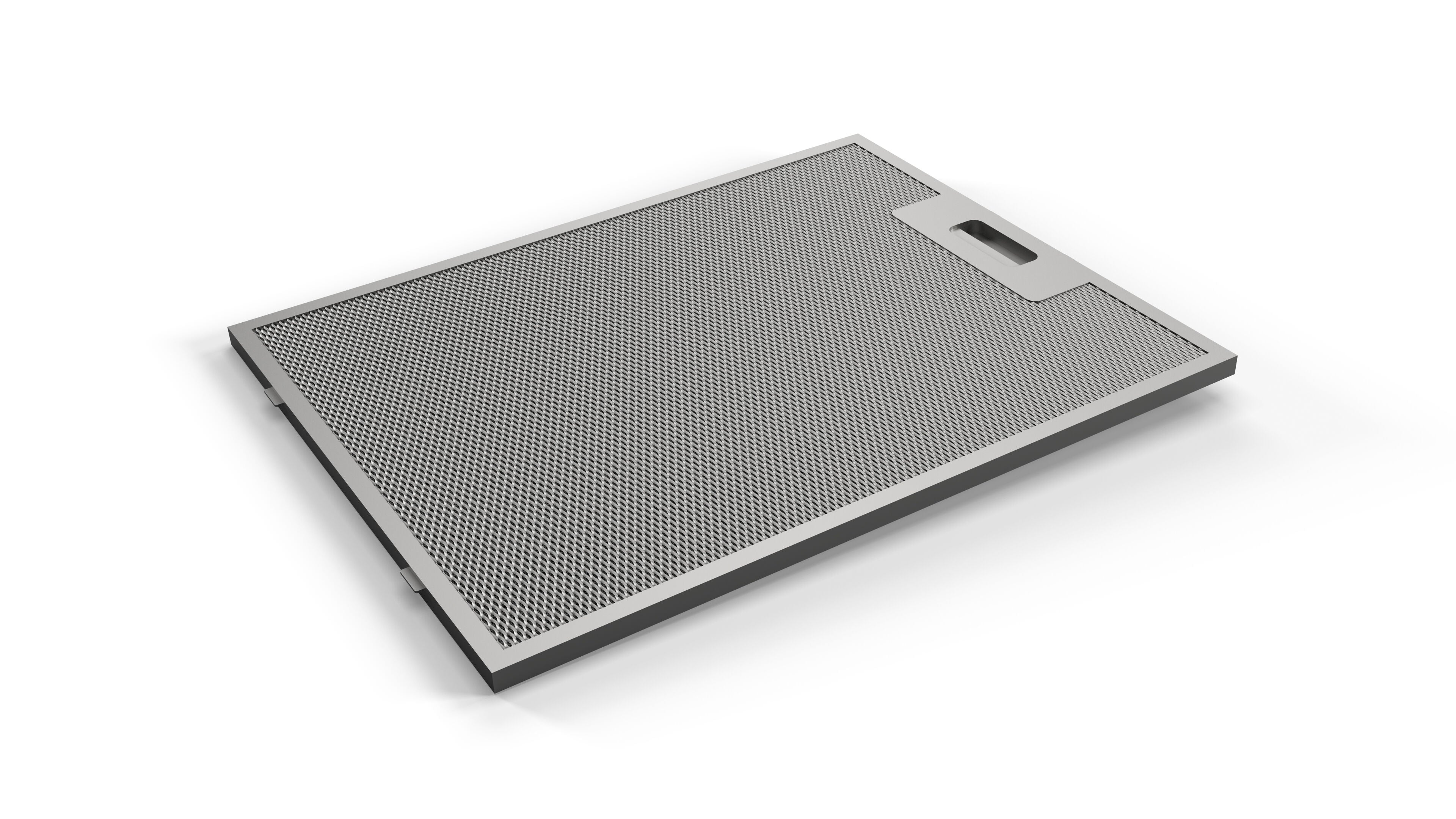

• Dishwasher-Safe Aluminium Grease Filters: Removable filters can be cleaned in a dishwasher for convenient maintenance.
• Multi-Layer Grease Filtration: Captures airborne grease particles generated during cooking.
• Filter Removal System: Filters can be removed without specialised tools for routine cleaning.
• Stainless Steel Exterior: Smooth stainless steel surfaces can be cleaned using a soft cloth and suitable stainless steel cleaner.
• LED Lighting: Long-life LED lamps minimise maintenance requirements compared to conventional lighting.
• Regular Filter Maintenance: Bosch recommends routine cleaning of grease filters to maintain extraction performance.

Specifications:

• Product series: Series 2
• Rangehood type: Wall mounted canopy
• Installation type: Wall mounted
• Operating modes: Ducted or recirculating
• Maximum extraction rate (ducted): 616m³/h
• Maximum recirculation rate: 280m³/h
• Fan speeds: 3
• Control type: Push-button controls
• Filter type: Aluminium cassette grease filters
• Filter cleaning: Dishwasher safe
• Number of filters: 3
• Lighting type: LED
• Number of lights: 2
• Light intensity: 276 lux
• Colour temperature: 3000K
• Noise level at maximum speed: 70 dB(A)
• Motor power: Integrated motor
• Air outlet diameter: 120mm
• Total connected load: 216W
• Frequency: 50Hz

Product Measurements:

• Dimensions (W x D): 898 x 500 mm
• Height (ducted installation): 450–830 mm
• Height (recirculating installation): 550–830 mm

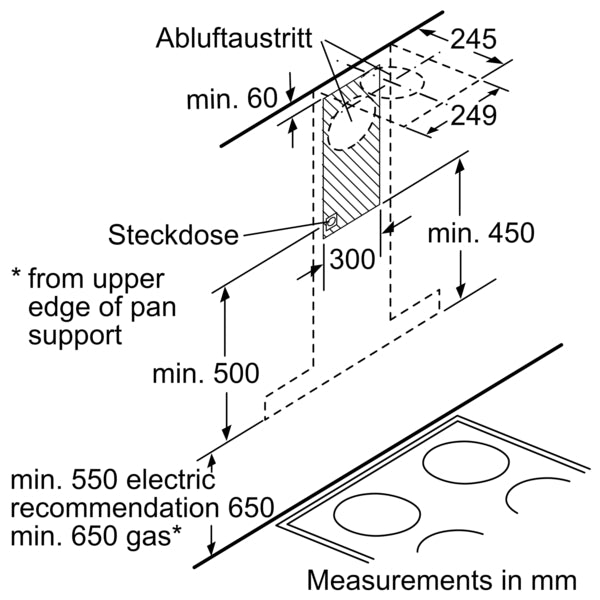

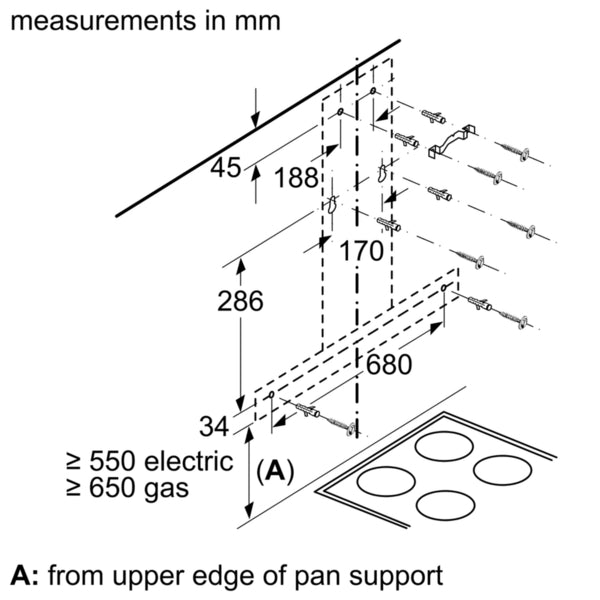

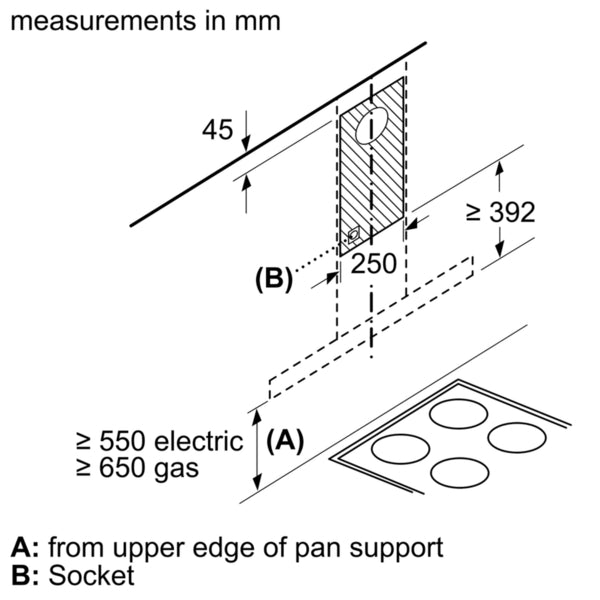

Installation & Requirements:

• Installation type: Wall mounted
• Ventilation mode: Ducted or recirculated
• Power supply: 220–240V
• Frequency: 50Hz
• Connection type: Plug-in
• Connected load: 216W
• Electrical cable length: 150cm
• Air outlet size: 120mm diameter
• Minimum distance above electric cooktop: 600mm
• Minimum distance above gas cooktop: 750mm
• Recirculation operation: Requires compatible Bosch recirculation kit

Extra Information:

The DWB95BC50A can be configured for either external ducting or recirculated air operation depending on kitchen design requirements. For optimal extraction performance, Bosch recommends minimising duct length and reducing the number of bends within the duct run where possible.

The aluminium grease filters are removable and dishwasher safe, helping maintain extraction efficiency while simplifying routine maintenance. Integrated LED lighting provides long-life illumination with lower energy consumption compared to traditional lighting technologies.

As part of Bosch's Series 2 range, the DWB95BC50A is designed to pair with Bosch cooking appliances while delivering straightforward operation and reliable day-to-day ventilation performance.

Included Products / Accessories:

• 3 x aluminium grease filters
• Chimney flue sections
• Installation hardware
• Power cord

Warranty:

Backed by a 2-year Bosch manufacturer's warranty for domestic use when installed and operated in accordance with Bosch instructions.

Downloads / Product Files:

• SPECIFICATIONS SHEET (PDF)

• USER MANUAL & INSTALLATION INSTRUCTIONS (PDF)
