Product Description

Product Overview:

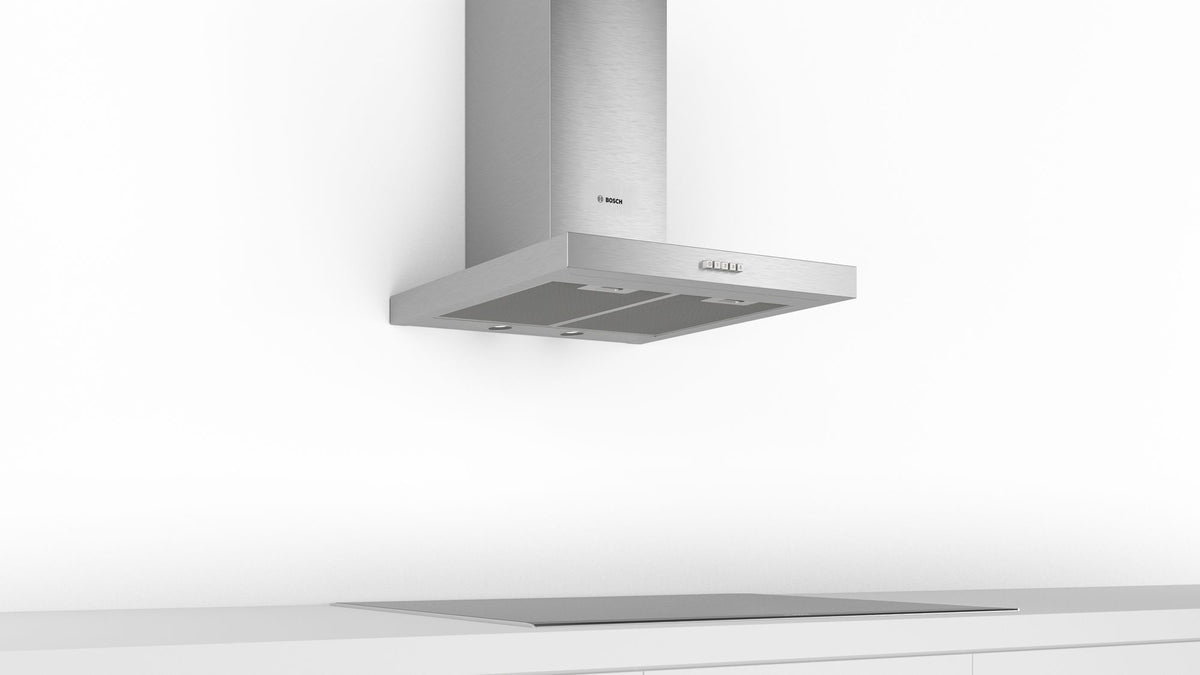

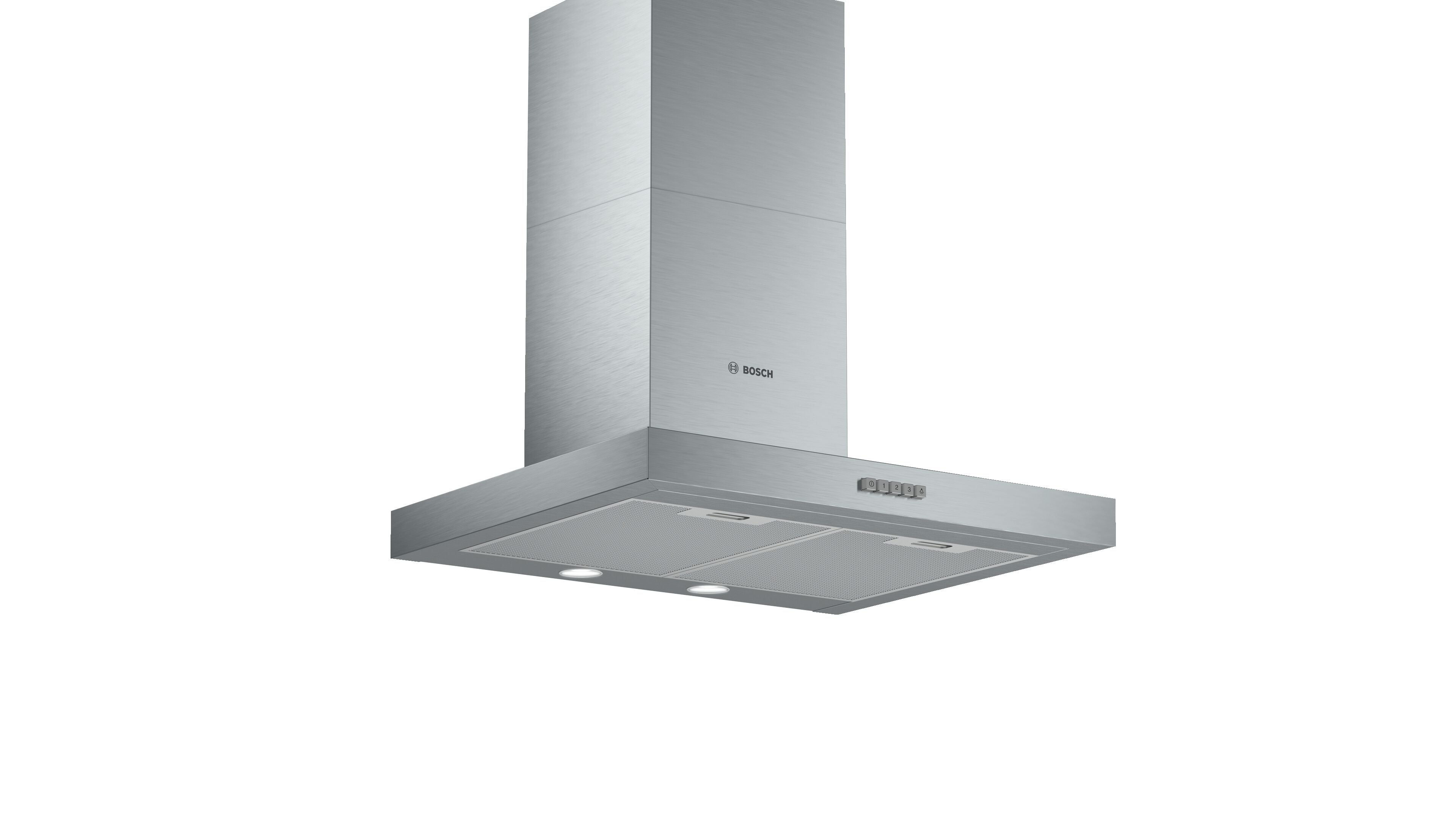

The Bosch DWB65BC50A is a 60cm wall mounted canopy rangehood from Bosch's Series 2 collection, finished in stainless steel with a minimalist box-style design suited to contemporary kitchen environments. Designed for either ducted extraction or recirculating operation with the appropriate accessory kit, it offers installation flexibility across a wide range of kitchen layouts.

With a maximum extraction capacity of 612 m³/h, three fan speed settings and dual LED cooktop lights, the DWB65BC50A is designed to efficiently remove steam, smoke, grease and cooking odours generated during everyday cooking. Washable aluminium grease filters support ongoing performance while simplifying routine maintenance.

The combination of Bosch engineering, straightforward push-button controls and durable stainless steel construction makes this rangehood a practical ventilation solution for standard 60cm cooking installations.

Product Features:

• 612 m³/h extraction capacity: Effective removal of cooking vapours, smoke and odours.
• Three fan speed levels: Adjustable airflow to suit varying cooking intensity.
• Dual operating modes: Suitable for ducted extraction or recirculating installation.

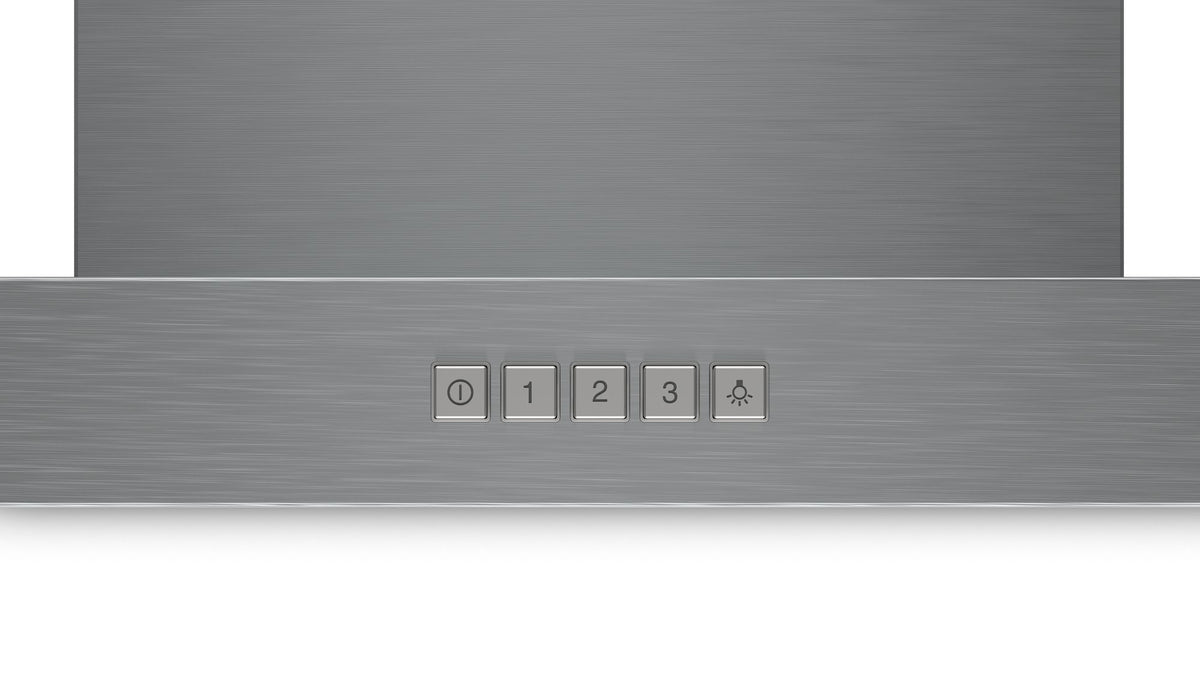

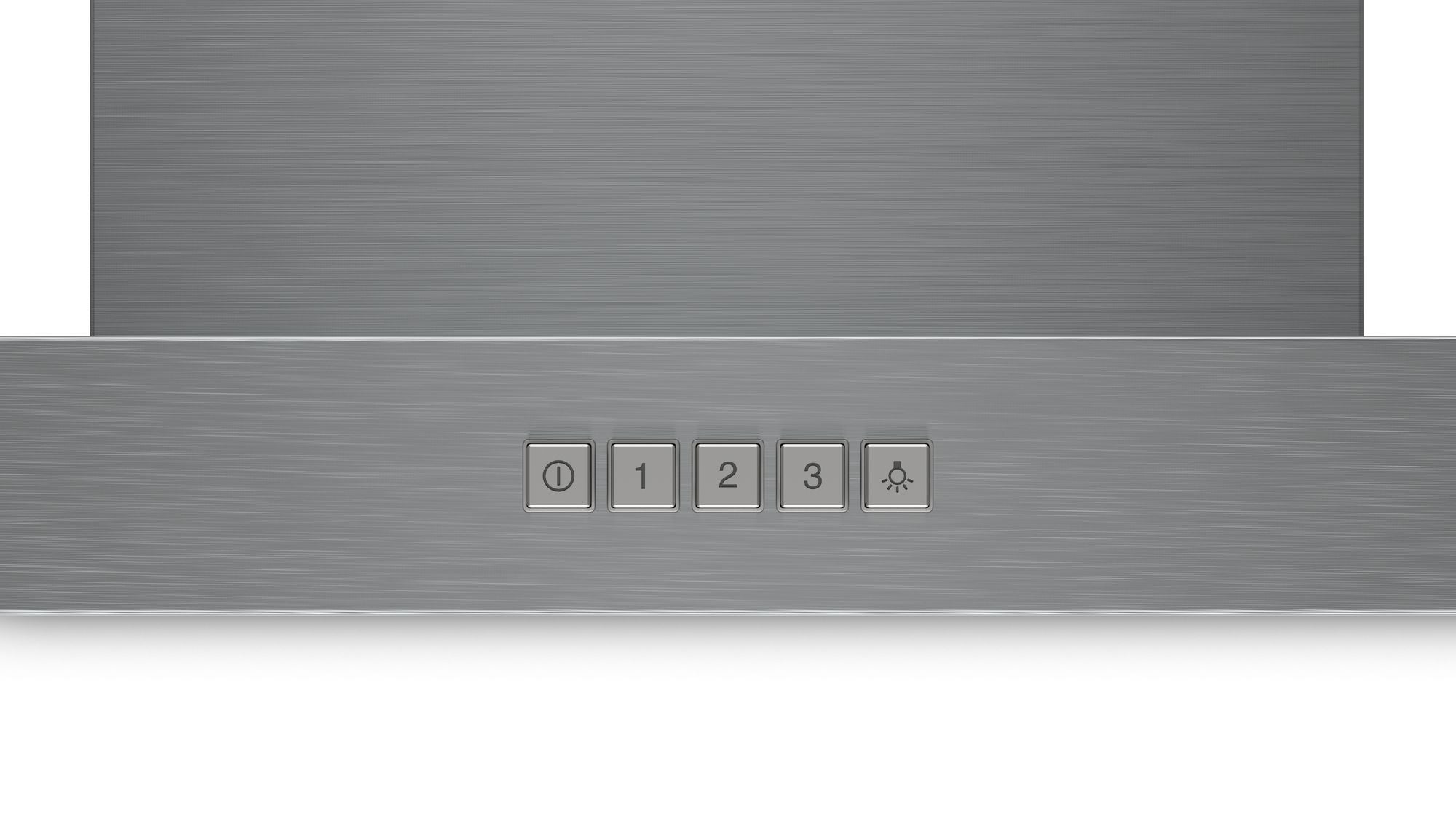

• Mechanical push-button controls: Simple operation of fan speeds and lighting.
• LED cooktop lighting: Bright, energy-efficient illumination across the cooking surface.

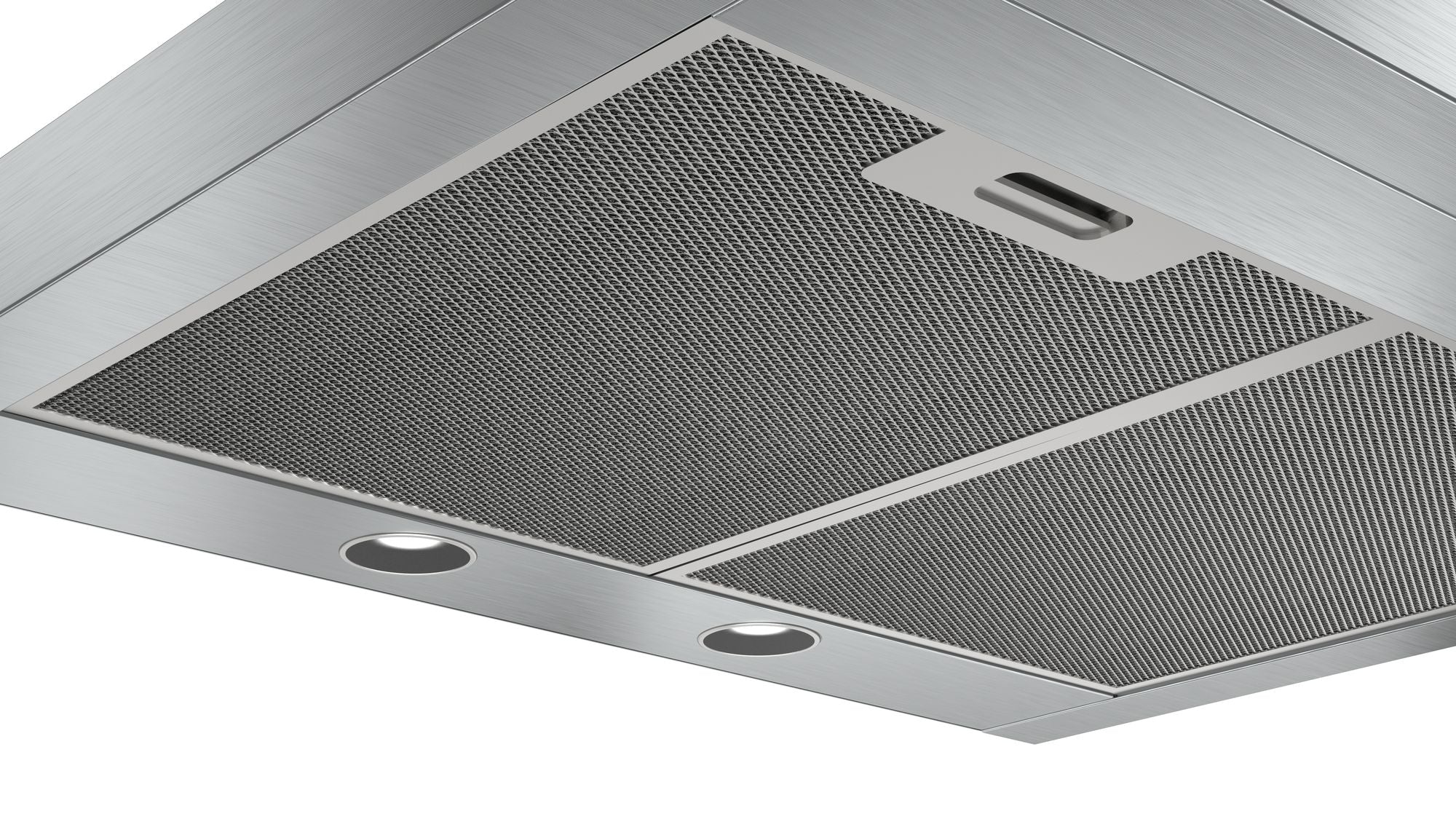

• Washable aluminium grease filters: Designed for dishwasher cleaning and ongoing performance.
• Minimalist canopy design: Clean-lined stainless steel appearance suitable for modern kitchens.
• Low maintenance filtration: Removable grease filters simplify regular cleaning.
• Wall-mounted installation: Purpose-built for installation above standard cooktops.
• Bosch Series 2 platform: Practical everyday ventilation performance.

Colour / Finishes:

• Stainless Steel — DWB65BC50A

Programmes / Functions:

• Fan Speed 1: Low-speed extraction for light cooking and everyday ventilation.
• Fan Speed 2: Medium extraction level for regular stovetop cooking.
• Fan Speed 3: Maximum extraction performance for heavier cooking, steam and odour removal.
• LED Lighting: Illuminates the cooktop surface during food preparation and cooking.
• Ducted Extraction Mode: Removes cooking vapours externally through ducting.
• Recirculation Mode: Filters and returns cleaned air back into the kitchen when fitted with the appropriate recirculation kit.

Cleaning & Maintenance:

• Dishwasher-safe aluminium grease filters: Filters can be removed and cleaned in a dishwasher for convenient maintenance.
• Removable filter system: Designed for straightforward access during routine cleaning.
• Stainless steel exterior: Smooth stainless steel surfaces can be cleaned using a soft cloth and suitable stainless steel cleaner.
• Regular filter maintenance: Bosch recommends cleaning grease filters periodically to maintain extraction performance and airflow efficiency.
• LED lighting system: Long-life LED lamps reduce replacement frequency compared to conventional lighting.

Specifications:

• Rangehood type: Wall mounted canopy
• Series: Bosch Series 2
• Operating modes: Ducted extraction or recirculation
• Maximum extraction rate: 612 m³/h
• Maximum recirculation rate: 273 m³/h
• Fan speeds: 3
• Control type: Mechanical push-button controls
• Lighting: 2 x LED lights
• Number of filters: 2
• Filter material: Washable aluminium grease filters
• Noise level (minimum): 49 dB
• Noise level (maximum): 69 dB
• Noise level recirculation mode: 66 dB(A)
• Air outlet diameter: 120 mm
• Electrical connection load: 216 W
• Electrical cable length: 1.5 m

Product Measurements:

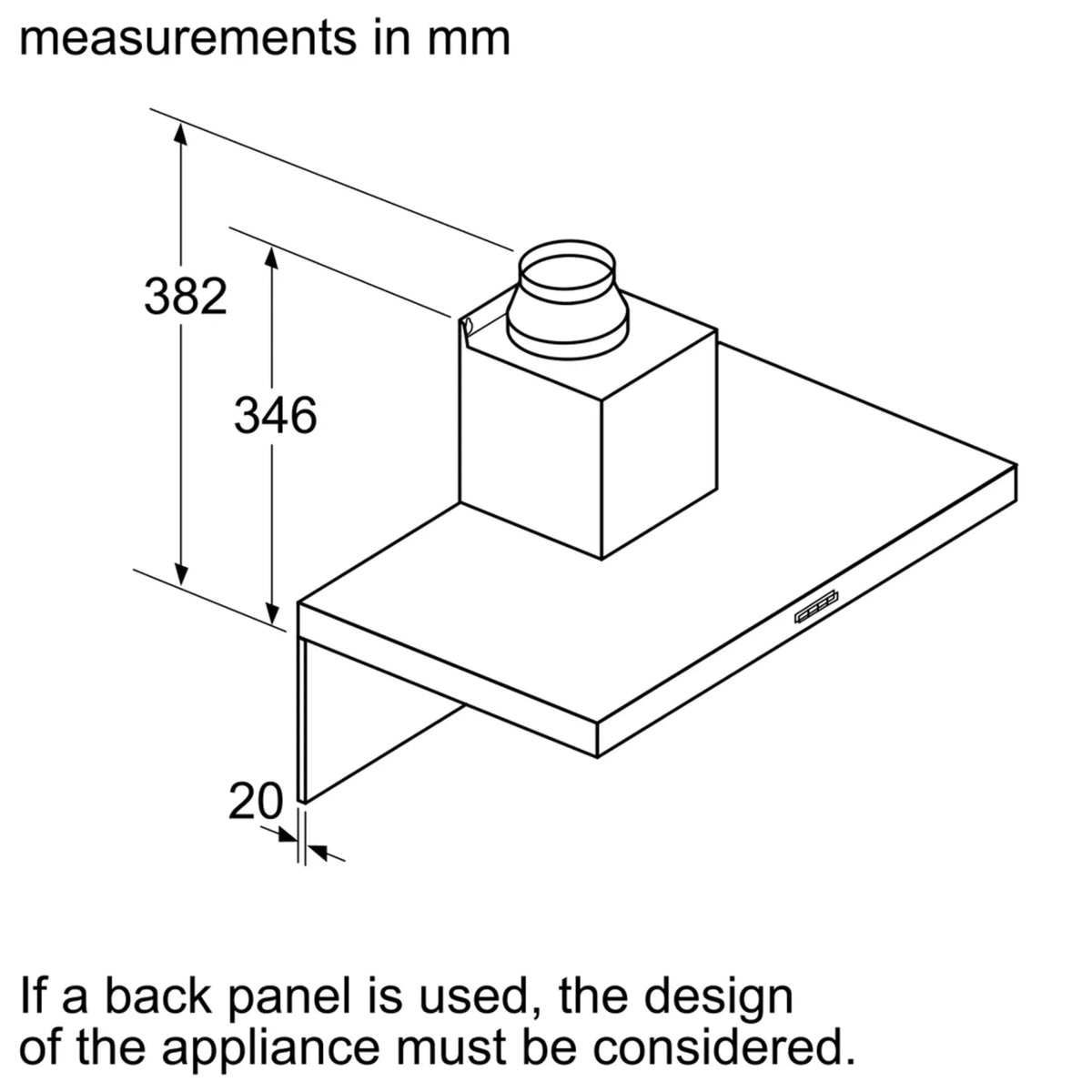

• Dimensions (W x H x D): 600 x 550–830 x 500 mm
• Chimney height range: 415–680 mm / 495–770 mm
• Appliance width: 600 mm

Product Weight:

• Net Product Weight: 11.2 kg

Installation & Requirements:

• Installation type: Wall mounted
• Extraction configuration: Ducted or recirculating
• Power supply: 220–240 V
• Frequency: 50 Hz
• Connection type: Standard 10 Amp plug
• Air outlet size: 120 mm diameter
• Minimum clearance above electric cooktop: 600 mm
• Minimum clearance above gas cooktop: 750 mm
• Professional installation recommended: Refer to Bosch installation instructions

Country of Origin:

• Made in Turkey

Extra Information:

The DWB65BC50A can be configured for either external ducted extraction or recirculating operation. Recirculating installation requires an optional Bosch recirculation kit, sold separately.

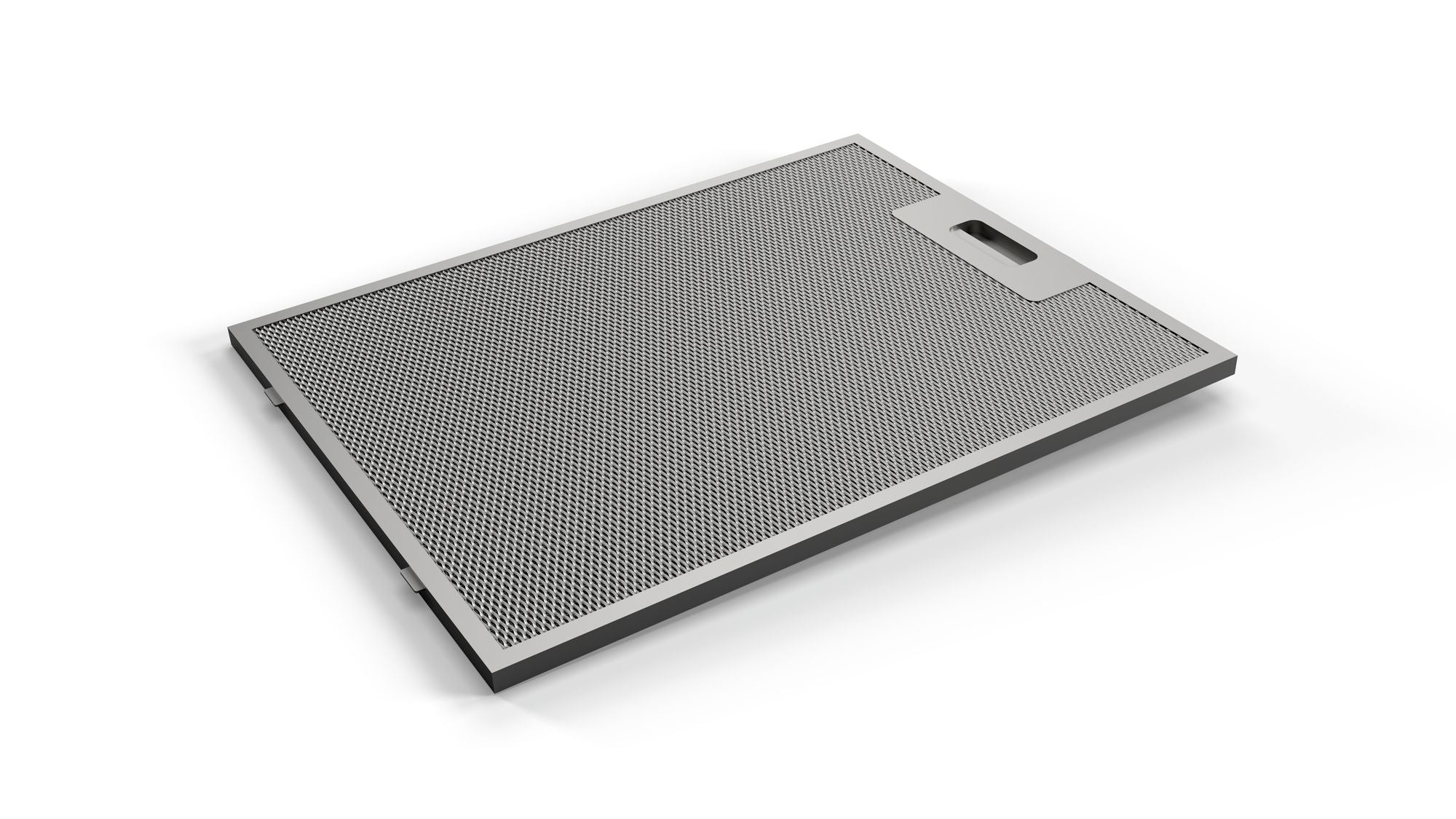

Bosch's metal grease filtration system captures grease particles before they enter the extraction system. The filters are removable and dishwasher safe, helping maintain extraction performance while reducing maintenance effort.

The integrated LED lighting system is designed to provide even illumination across the cooktop surface while consuming less energy than conventional lighting technologies.

Included Products / Accessories:

• 2 x Stainless steel chimney flues
• 2 x aluminium mesh grease filters
• 1 x 120 mm exhaust spigot
• Installation hardware

Warranty:

Backed by a 2-year Bosch manufacturer's warranty for domestic use when installed and operated in accordance with Bosch guidelines.

Downloads / Product Files:

• SPECIFICATIONS SHEET (PDF)

• USER MANUAL & INSTALLATION INSTRUCTIONS (PDF)
