Product Description

Product Overview:

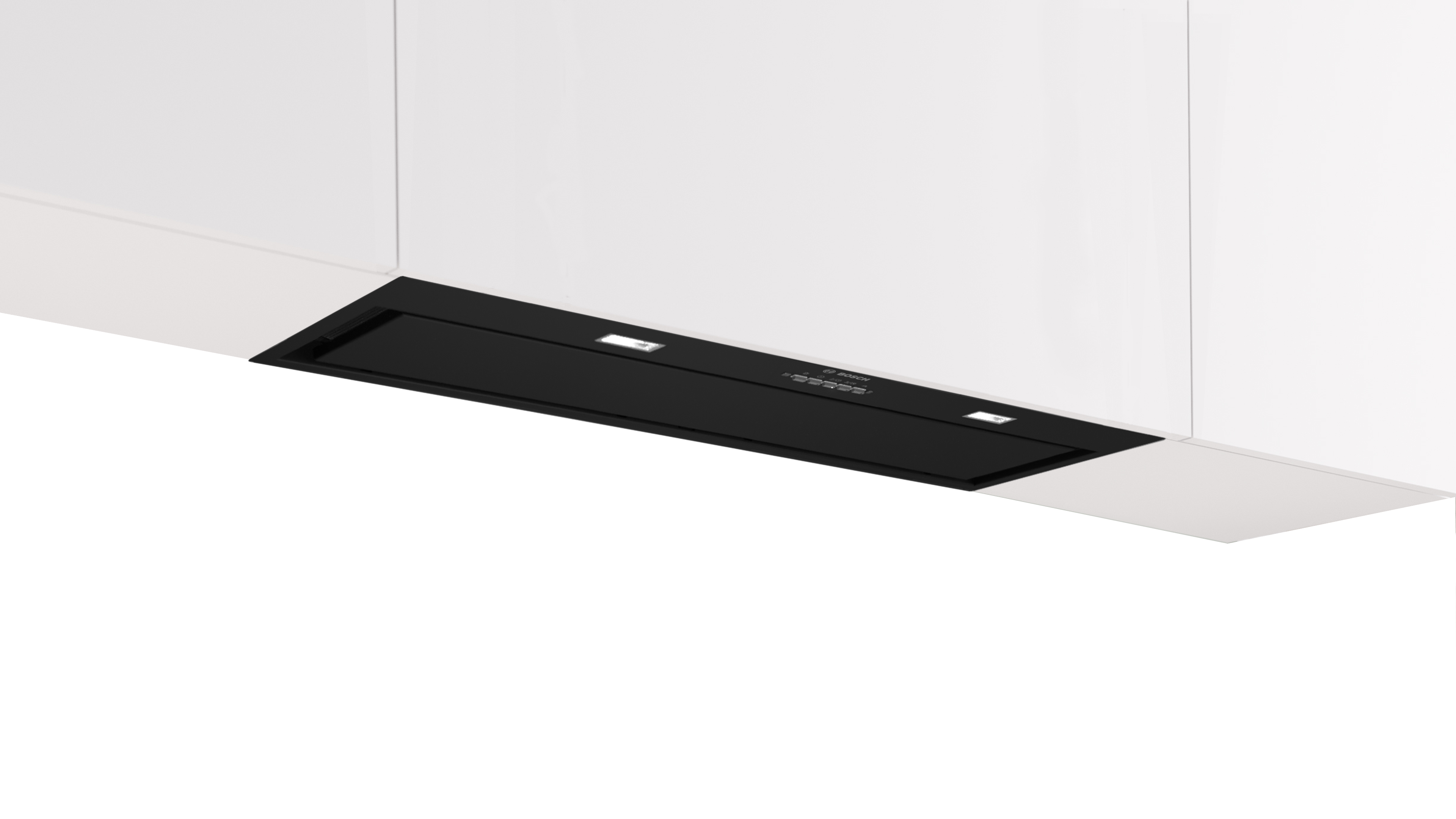

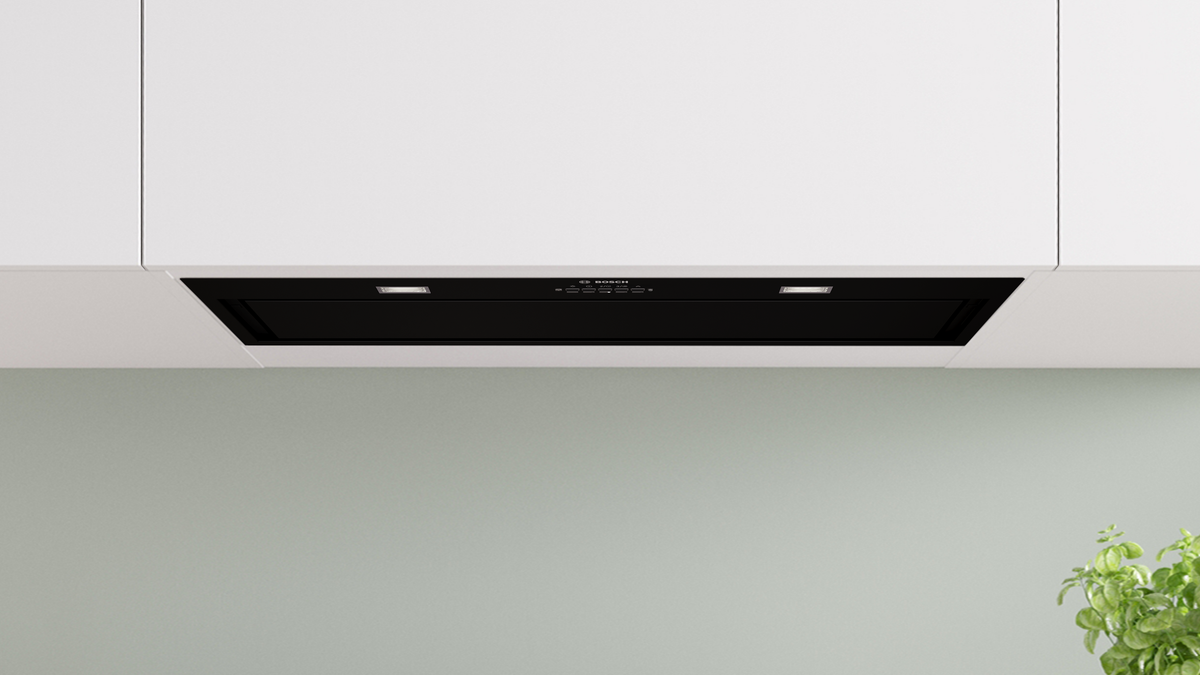

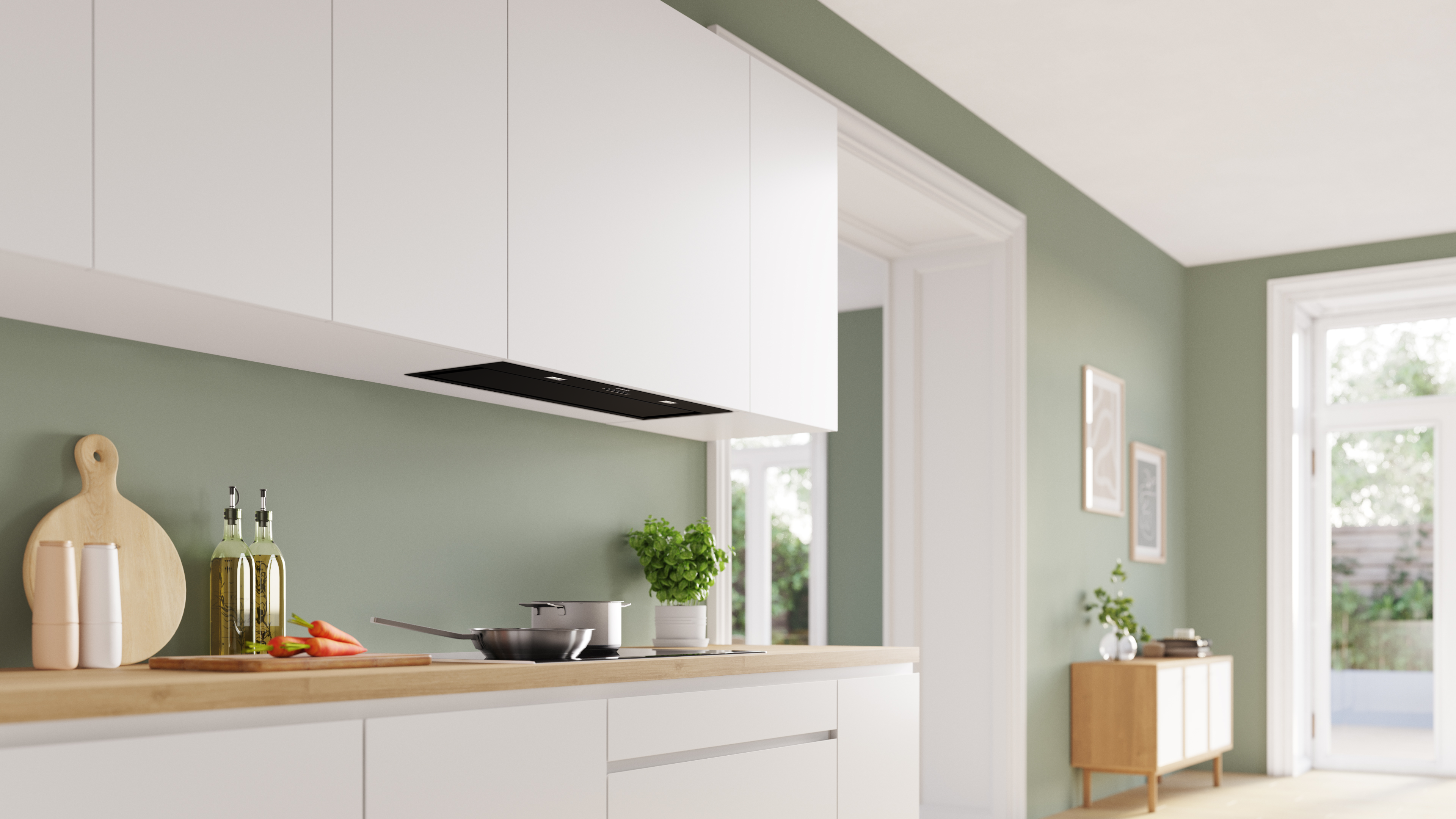

The Bosch DLN88PC60A is an 86cm fully integrated rangehood from Bosch's premium Series 8 collection, designed to disappear seamlessly into overhead cabinetry while delivering powerful extraction performance. Its flush-style installation and black finish allow the rangehood to remain virtually hidden from view, making it well suited to contemporary kitchens where clean lines and uninterrupted cabinetry are priorities.

Powered by Bosch's EcoSilence Drive motor technology, the DLN88PC60A combines strong airflow performance with efficient operation and lower noise levels. Three extraction speeds and an intensive boost setting provide flexibility for everything from everyday cooking to high-heat frying and entertaining.

Advanced convenience features including SoftLight LED illumination, dimmable lighting, interval ventilation, automatic run-on functionality and filter saturation indicators help maintain a comfortable kitchen environment while simplifying day-to-day operation. Suitable for both ducted and recirculated installation, the DLN88PC60A offers flexibility across a wide range of kitchen designs.

Product Features:

• EcoSilence Drive: Brushless motor technology designed to deliver efficient extraction performance with reduced operating noise and lower energy consumption.

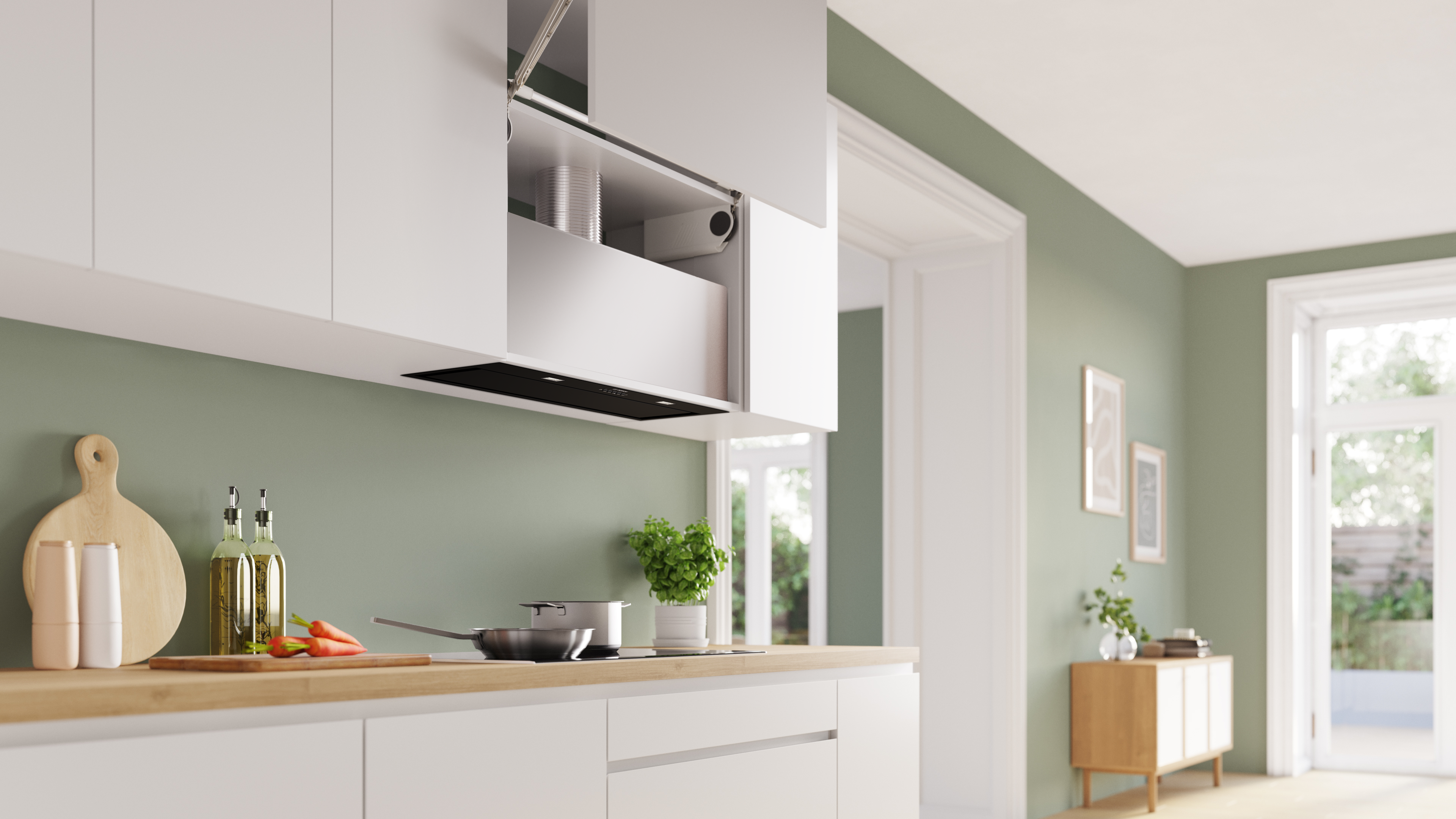

• Integrated installation: Designed to fit discreetly within overhead cabinetry for a seamless kitchen appearance.
• 3 extraction speeds plus intensive mode: Flexible airflow adjustment to suit varying cooking requirements.
• Intensive boost function: Provides maximum extraction when cooking generates large volumes of steam, smoke or odours.
• Automatic intensive reset: Intensive mode automatically returns to normal operation after approximately 6 minutes.
• SoftLight illumination: Smooth fade-in and fade-out LED lighting creates a premium user experience.
• Dimmable LED lighting: Adjustable brightness allows lighting levels to be customised.
• Interval ventilation: Automatically refreshes kitchen air at preset intervals.
• Automatic after-run function: Continues extraction for 10 minutes after cooking to help remove residual odours and moisture.

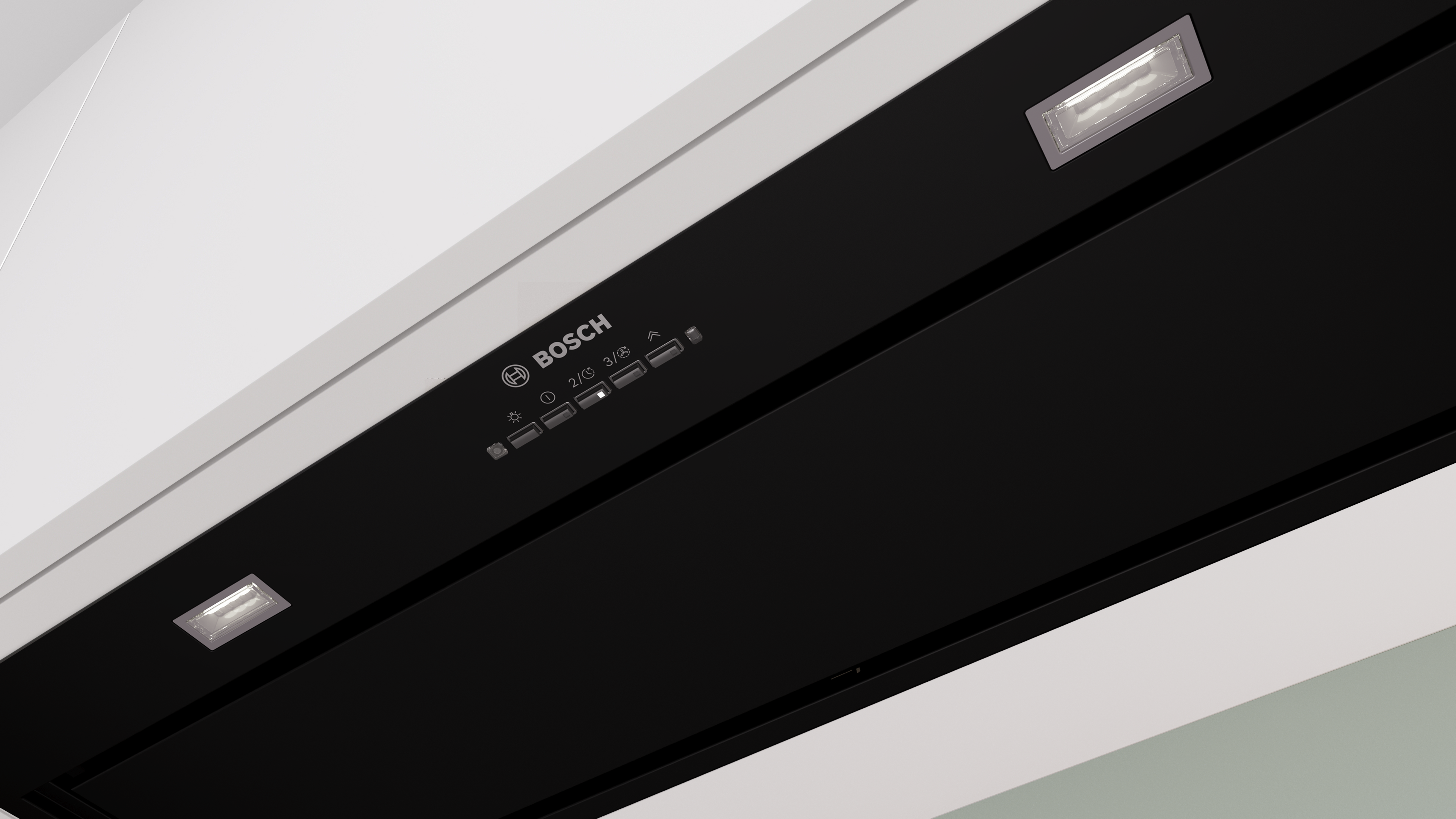

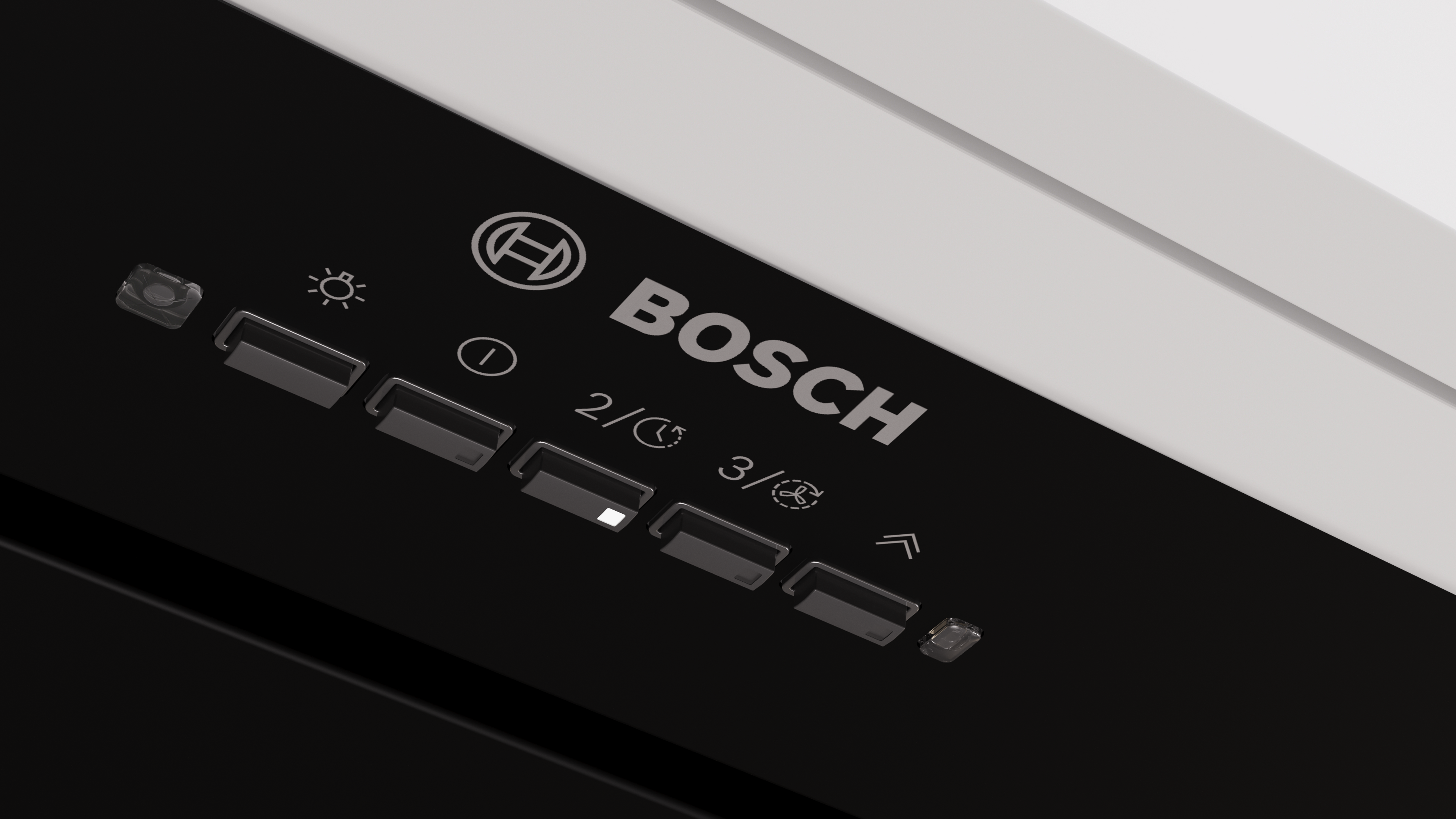

• Electronic controls: Push-button operation with LED display.
• Filter saturation indicator: Alerts when grease filters require cleaning.
• Dishwasher-safe metal grease filters: Simplifies ongoing maintenance.
• Dual installation capability: Suitable for both ducted extraction and recirculated operation.
• One-way flap included: Helps prevent external air from re-entering the home through ductwork.

Colour / Finishes:

• Black - DLN88PC60A

Programmes / Functions:

• Speed 1: Low extraction setting suitable for light cooking vapours and everyday ventilation.
• Speed 2: Medium extraction level designed for moderate cooking activity.
• Speed 3: High extraction setting for increased steam, smoke and odour removal.
• Intensive Mode: Temporary maximum extraction performance for heavy cooking, frying and strong cooking odours.
• Automatic Intensive Reset: Returns the rangehood to normal operation approximately 6 minutes after intensive mode is activated.
• Interval Ventilation: Automatically refreshes kitchen air at regular intervals throughout the day.
• Automatic Run-On Function: Continues extraction for approximately 10 minutes after cooking to help remove residual moisture and odours.
• SoftLight Function: LED lighting gradually illuminates and dims for a premium user experience.
• Dimmable Lighting: Allows light intensity to be adjusted to suit cooking and ambient conditions.
• Filter Saturation Monitoring: Monitors filter usage and alerts when cleaning is required.

Cleaning & Maintenance:

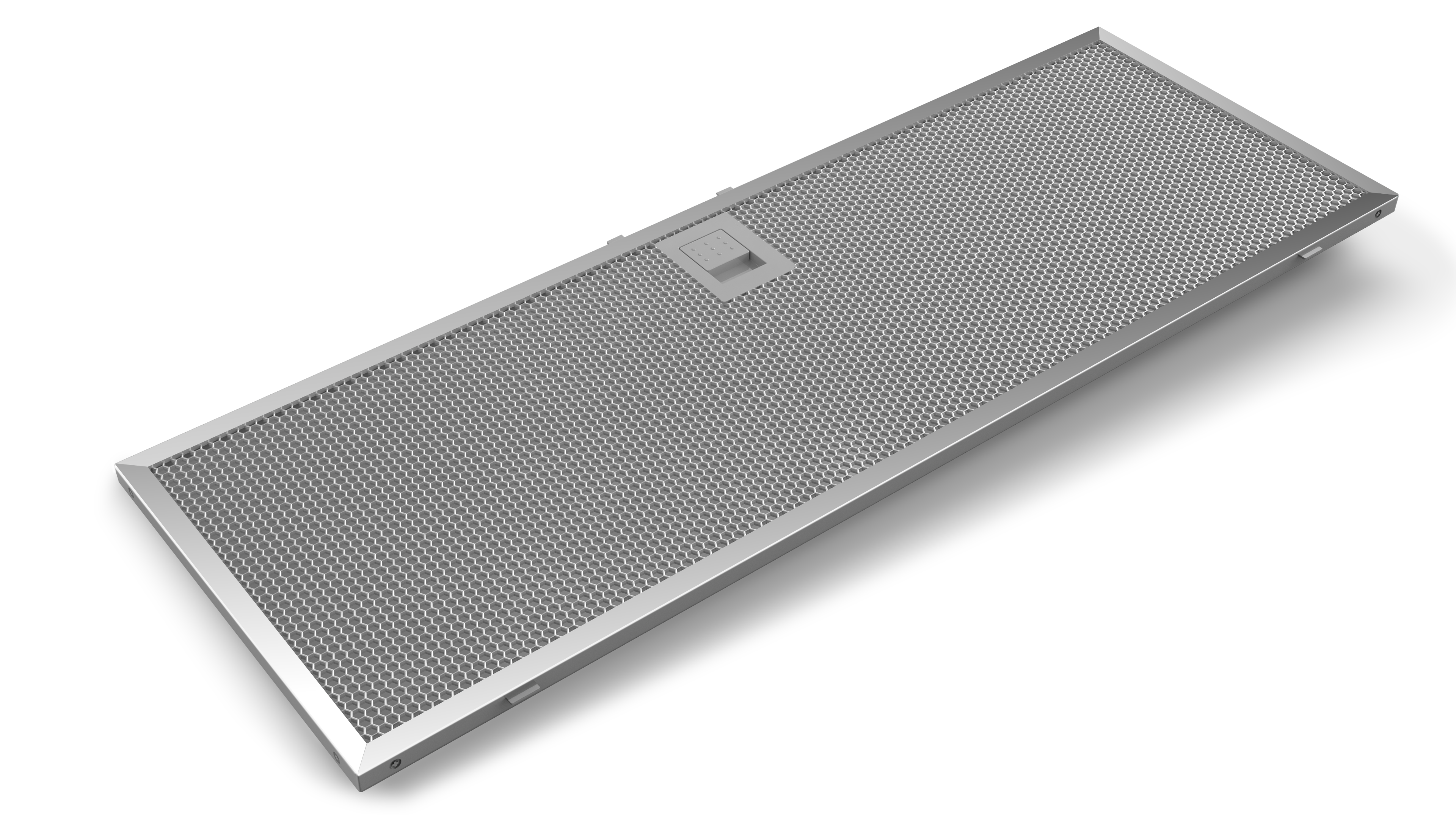

• Dishwasher-Safe Metal Grease Filters: Aluminium grease filters can be removed and cleaned in a dishwasher for convenient maintenance.
• Filter Saturation Indicator: Provides a reminder when grease filters require cleaning to maintain extraction performance.
• Washable Grease Filtration System: Designed for repeated cleaning and long-term use.
• Accessible Filter Design: Filters can be removed from the underside of the appliance for straightforward servicing.
• EcoSilence Drive Motor: Brushless motor design reduces mechanical wear compared to conventional motor systems.
• Recirculation Filter Replacement: Optional odour filters used in recirculated installations require periodic replacement in accordance with Bosch recommendations.

Specifications:

• Series: Series 8
• Rangehood type: Integrated / Built-in
• Installation type: Concealed within overhead cabinetry
• Motor technology: EcoSilence Drive
• Operating modes: Ducted or recirculated
• Control type: Electronic push-button controls
• Display type: LED display
• Number of speed settings: 3
• Intensive setting: Yes
• Maximum airflow (Speed 1): 270 m³/h
• Maximum airflow (Speed 2): 395 m³/h
• Maximum airflow (Speed 3): 595 m³/h
• Maximum airflow (Intensive): 820 m³/h
• Recirculation airflow (Speed 1): 250 m³/h
• Recirculation airflow (Speed 2): 350 m³/h
• Recirculation airflow (Speed 3): 570 m³/h
• Recirculation airflow (Intensive): 780 m³/h
• Noise level (Speed 1): 42 dB(A)
• Noise level (Speed 2): 51 dB(A)
• Noise level (Speed 3): 61 dB(A)
• Noise level (Intensive): 68 dB(A)
• Number of lights: 2
• Lighting technology: LED
• Light output: 250 lux
• Colour temperature: 4000 K
• Grease filter type: Metal grease filters
• Grease filter quantity: 2
• Grease filters dishwasher safe: Yes
• Filter saturation indicator: Yes

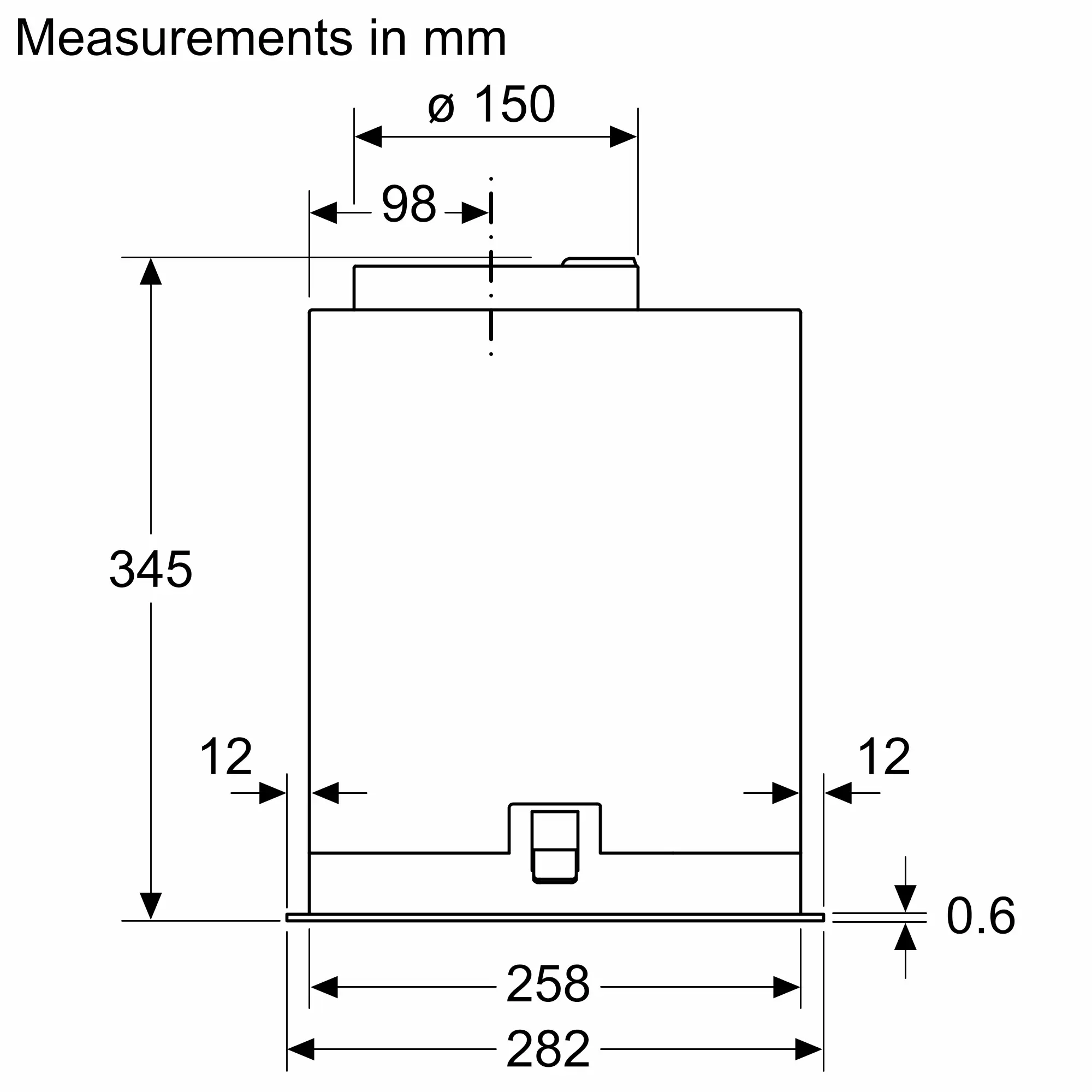

Product Measurements:

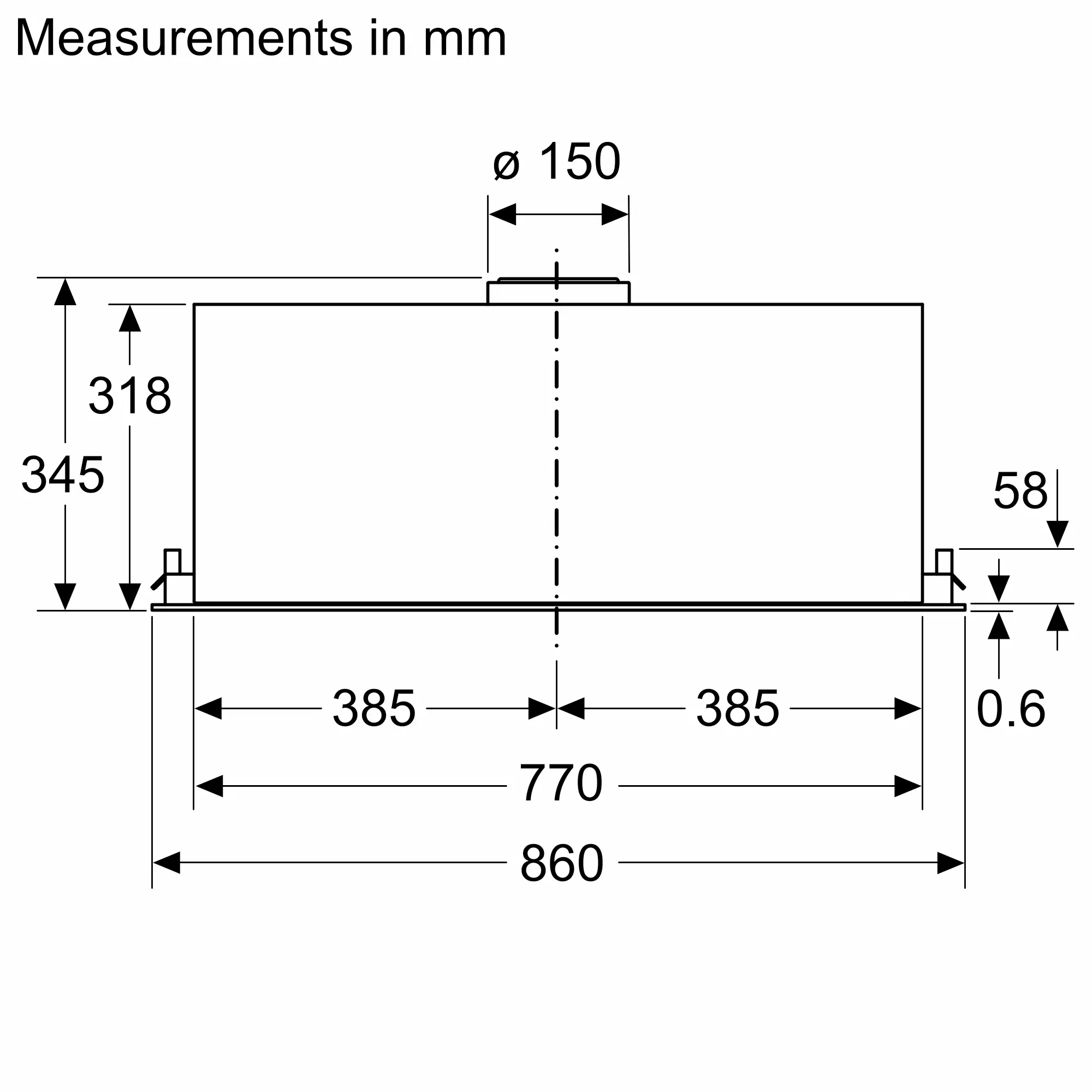

• Dimensions (W x H x D): 860 x 345 x 282 mm

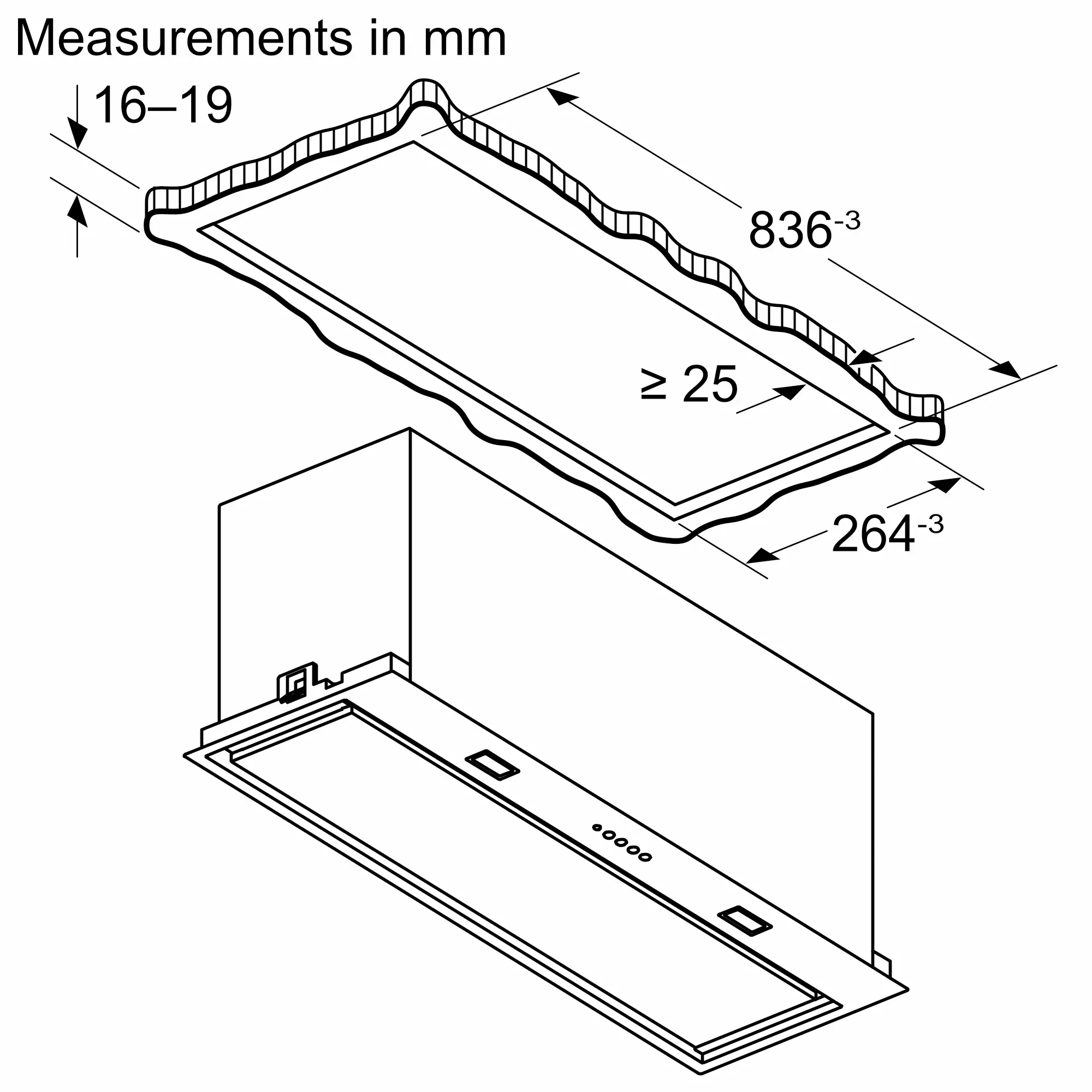

• Built-In Dimensions (W x H x D): 836 x 345 x 264 mm

Product Weight:

• Net Weight: 9.2 kg

Installation & Requirements:

• Installation type: Fully integrated into overhead cabinetry
• Operating configuration: Ducted or recirculated
• Duct diameter: 150 mm
• Duct adaptor included: 120 mm adaptor supplied

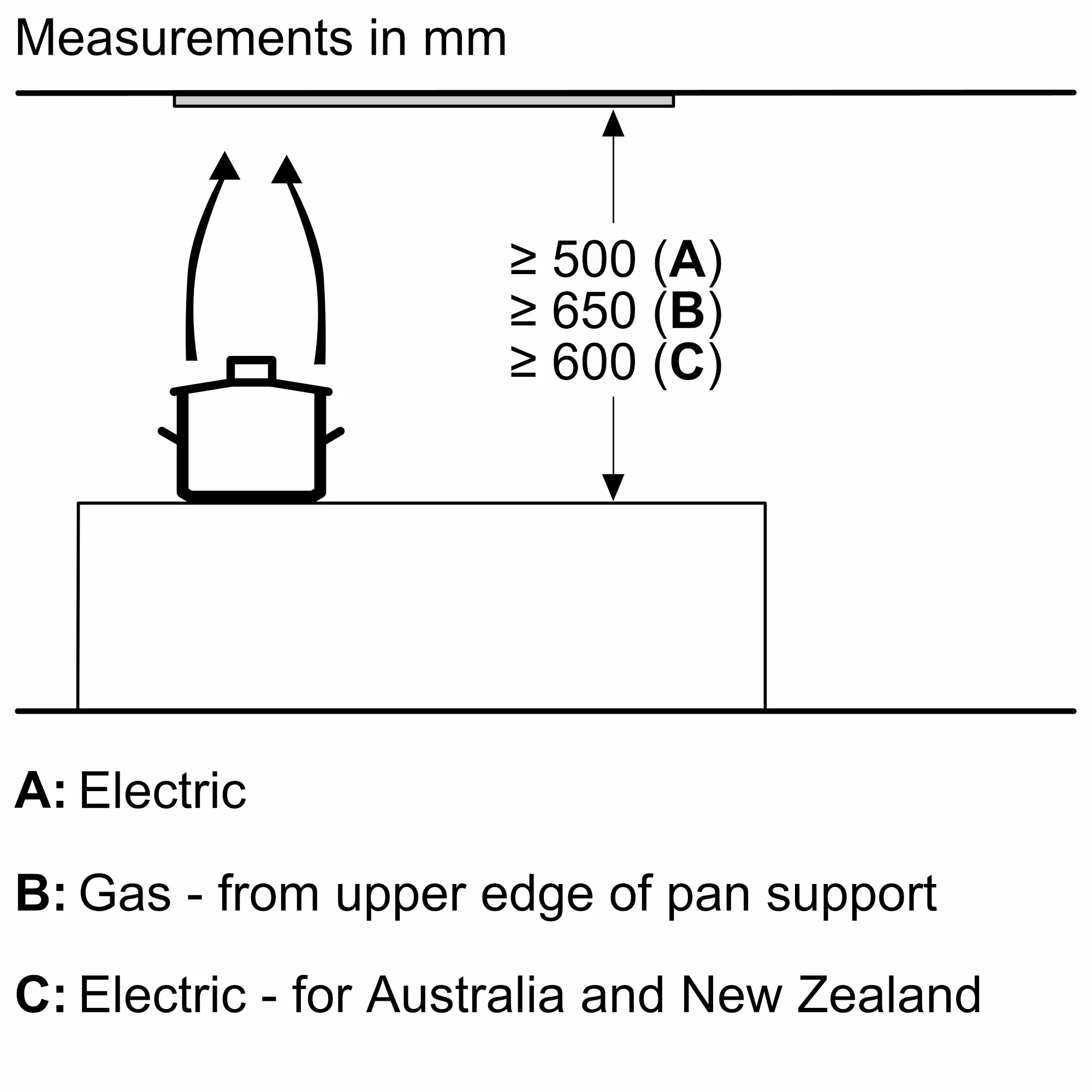

• Minimum height above electric cooktop: 600 mm
• Minimum height above gas cooktop: 650 mm
• Connection type: Plug-in
• Plug type: Australian standard plug
• Power rating: 172 W
• Voltage: 220–240 V
• Frequency: 50 / 60 Hz
• Fuse protection: 3 A
• Power cord length: 1.5 m

Country of Origin:

• Made in Germany

Extra Information:

The DLN88PC60A is compatible with Bosch's optional Long Life and Clean Air Plus recirculation systems, providing additional flexibility where external ducting is not possible. Clean Air Plus filtration is designed to improve odour reduction performance and assist with airborne pollen filtration when used in recirculated mode.

Bosch's EcoSilence Drive motor eliminates traditional carbon brushes, helping reduce mechanical wear while maintaining strong extraction performance. Combined with the integrated installation design, this creates a premium ventilation solution suited to modern open-plan kitchens.

The rangehood is supplied in Bosch's environmentally conscious packaging, which incorporates a high proportion of recyclable and plastic-free materials.

Included Products / Accessories:

• 2 x Metal grease filters
• 150 mm duct connection
• 120 mm duct adaptor
• One-way flap
• Installation hardware
• Power cord with plug

Warranty:

Backed by a 2-year manufacturer's warranty for domestic use when installed and operated in accordance with Bosch guidelines.
