Product Description

Product Overview:

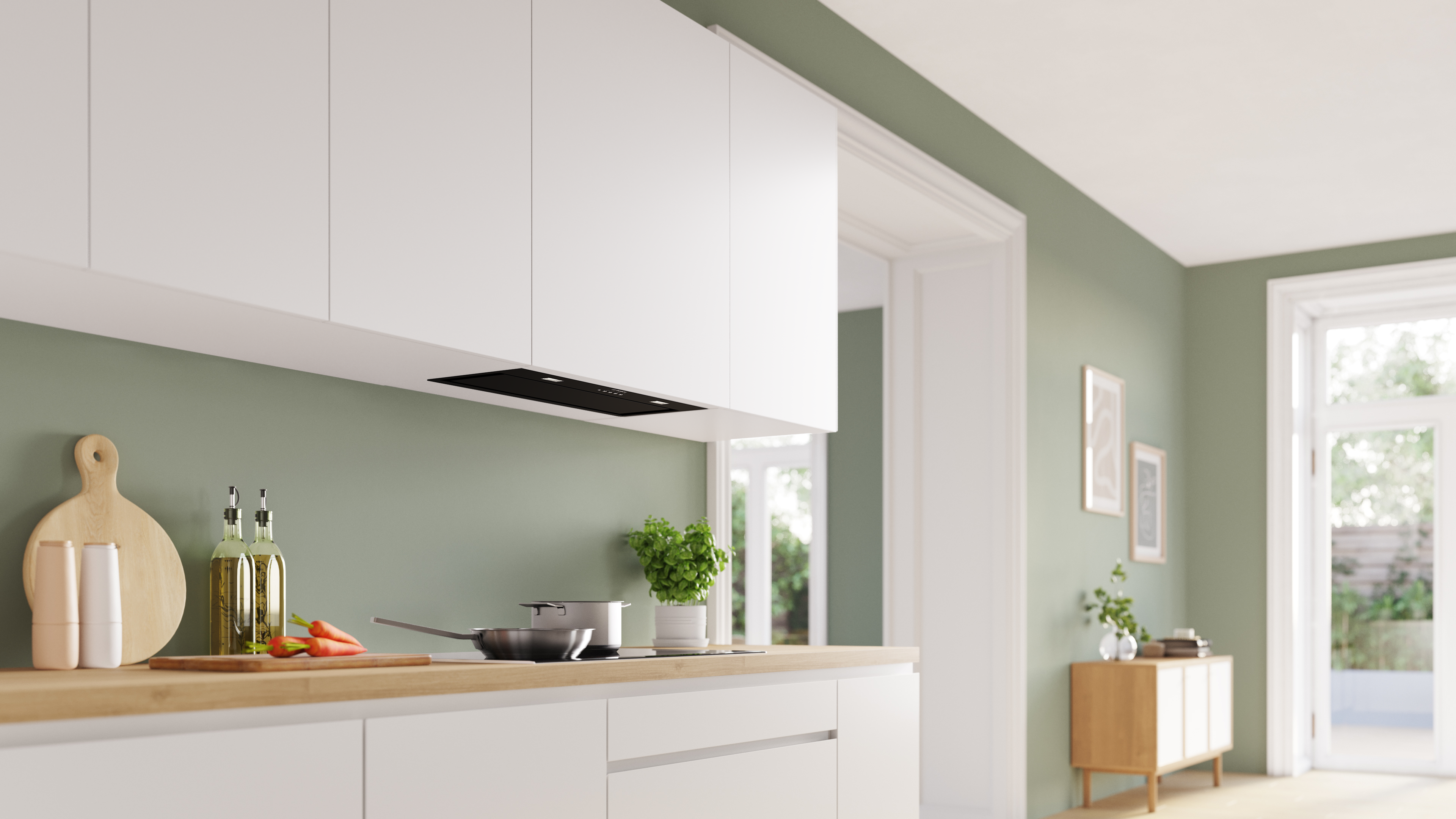

The Bosch DLN77AC60A is a 70cm integrated rangehood from the Bosch Series 6 collection, designed to install discreetly within overhead cabinetry for a clean and uninterrupted kitchen aesthetic. Finished in black, it pairs seamlessly with contemporary black glass cooking appliances while remaining largely concealed from view.

Delivering up to 595m³/h extraction during normal operation and 730m³/h on intensive mode, the DLN77AC60A is engineered to effectively remove cooking vapours, grease and odours from the kitchen environment. Electronic push-button controls, energy-efficient LED lighting and dishwasher-safe metal grease filters combine practical everyday usability with straightforward maintenance.

The rangehood supports both ducted extraction and recirculating installation configurations when paired with compatible Bosch recirculation accessories, providing flexibility across new kitchen builds and renovation projects.

Product Features:

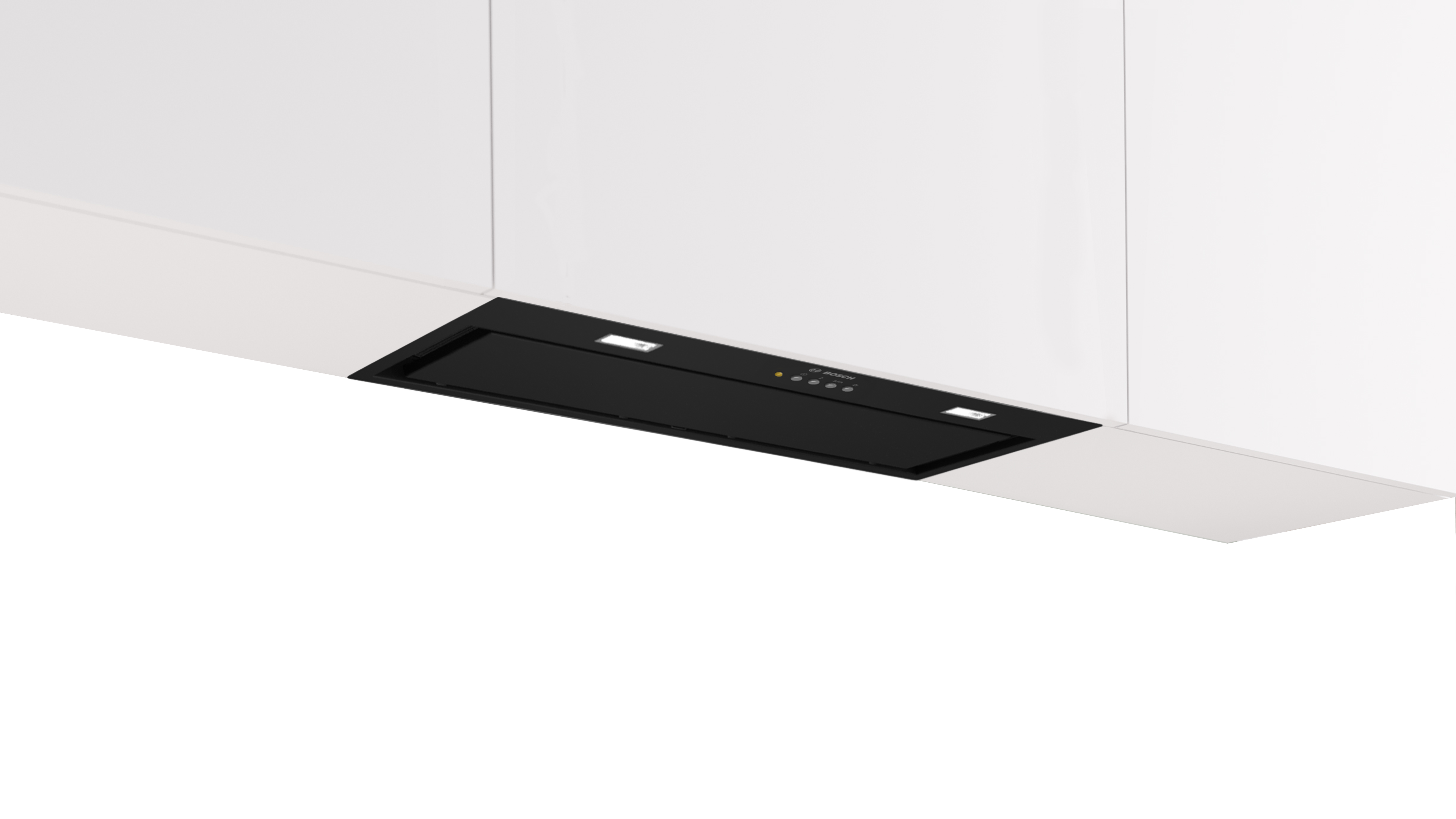

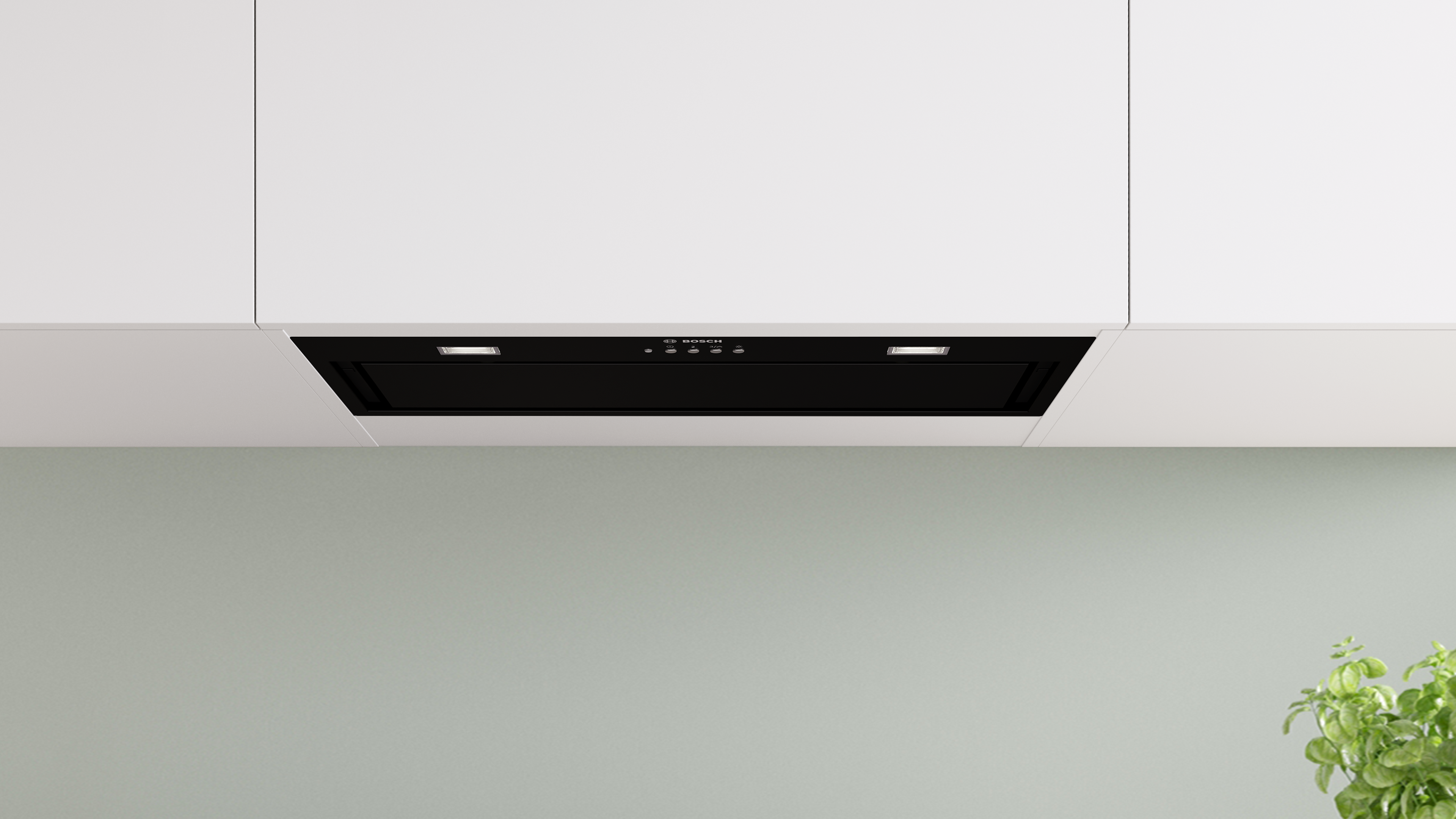

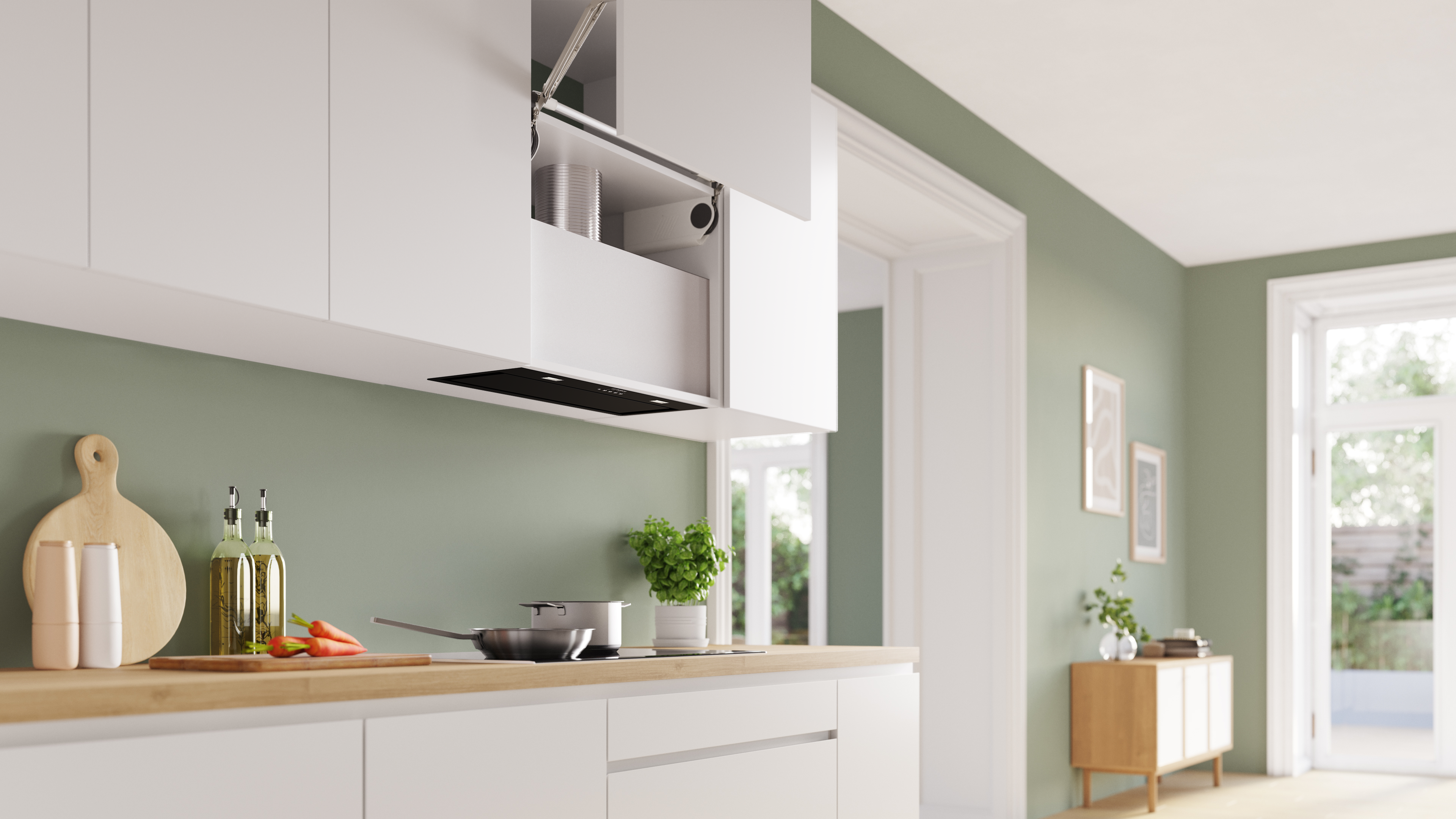

• Integrated installation: designed to sit neatly within overhead cabinetry for a concealed appearance.
• Series 6 performance: premium Bosch ventilation technology for modern kitchens.
• 3 fan speeds: selectable extraction levels for everyday cooking requirements.
• Intensive extraction mode: temporary high-performance extraction for heavy cooking loads.
• Automatic intensive reset: intensive mode automatically returns to normal operation after approximately 6 minutes.
• High extraction capacity: up to 595m³/h extraction during normal operation.
• Boost extraction: up to 730m³/h extraction when intensive mode is activated.

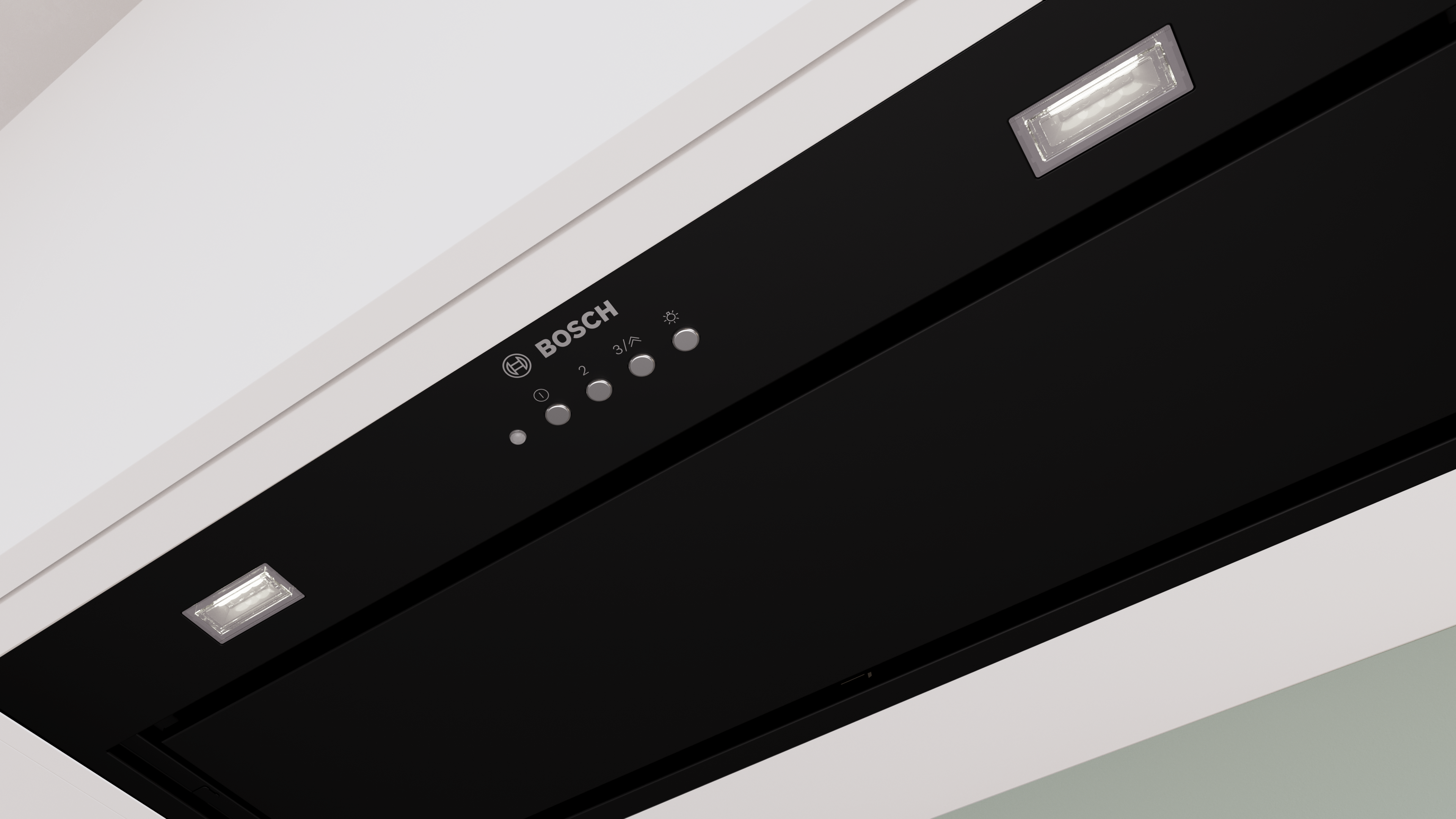

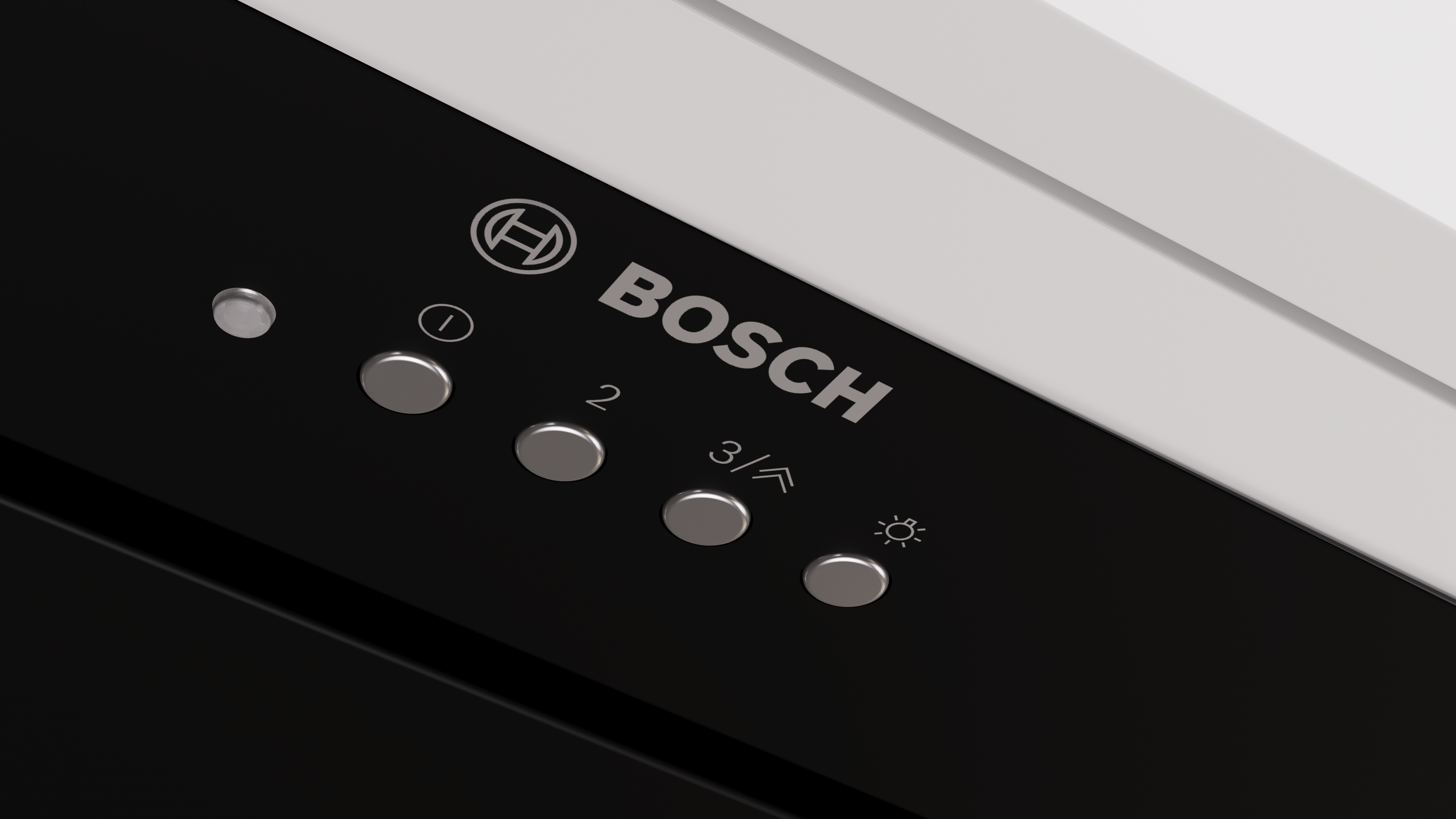

• Electronic push-button controls: simple and intuitive operation.
• LED cooktop lighting: bright and energy-efficient illumination across the cooking surface.

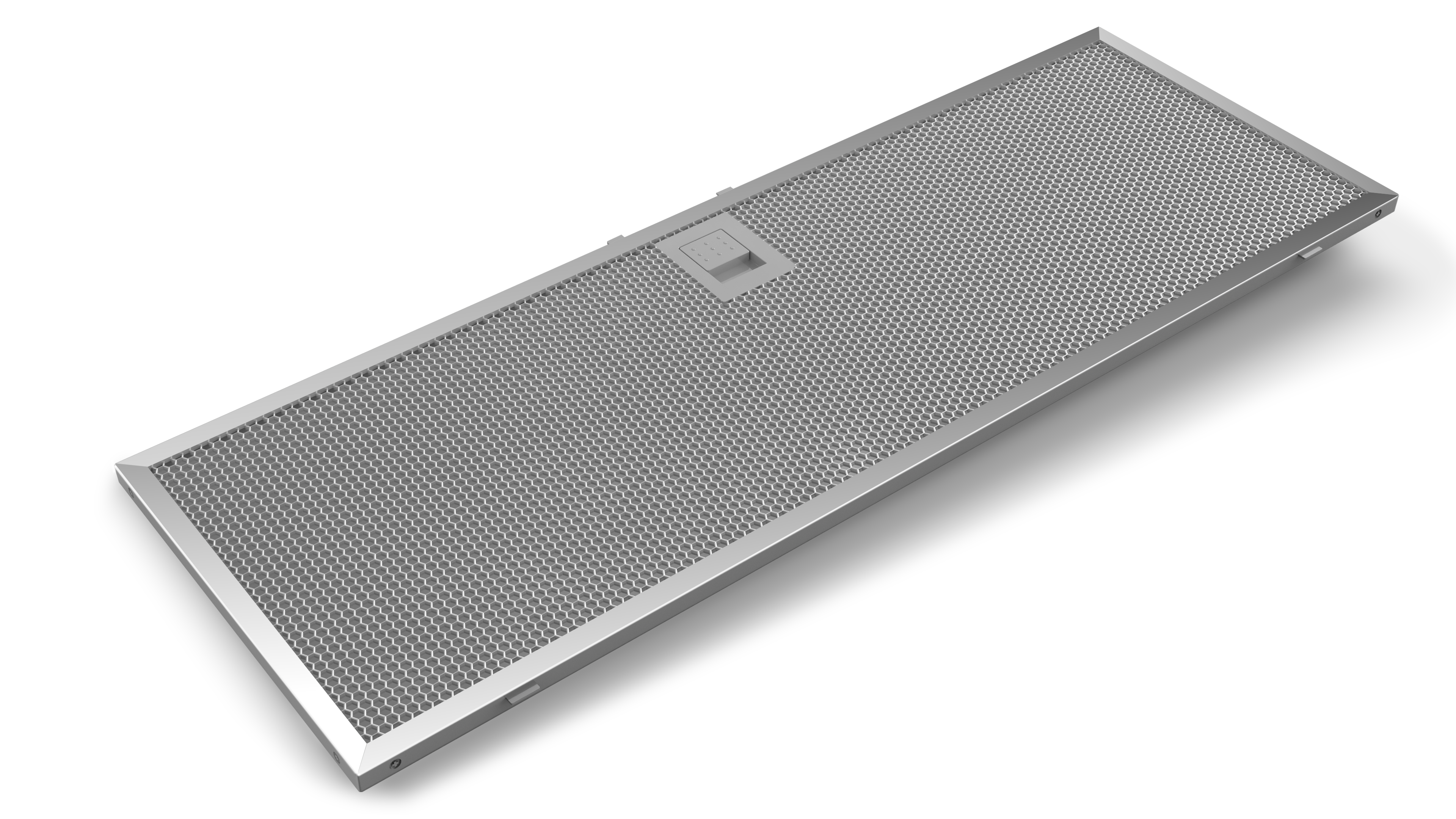

• Dishwasher-safe grease filters: removable aluminium filters simplify cleaning and maintenance.
• Dual installation flexibility: suitable for both ducted and recirculating applications.
• Low-maintenance design: washable filters and durable internal components.

Colour / Finishes:

• Black - DLN77AC60A

Programmes / Functions:

• Speed 1: Low extraction setting suitable for light cooking and everyday ventilation.
• Speed 2: Medium extraction setting for moderate cooking activity and odour removal.
• Speed 3: High extraction setting for intensive daily cooking requirements.
• Intensive Mode: Maximum extraction performance of up to 730m³/h for heavy steam, smoke and cooking odours.
• Automatic Intensive Reset: Automatically returns from Intensive Mode to normal operation after approximately 6 minutes.
• LED Lighting Function: Independent cooktop illumination for improved visibility while cooking.
• Ducted Operation: Extracts cooking vapours externally through connected ductwork.
• Recirculation Operation: Filters and recirculates air back into the kitchen when fitted with compatible Bosch recirculation accessories.

Cleaning & Maintenance:

• Dishwasher-Safe Grease Filters: Aluminium grease filters can be removed and cleaned in a dishwasher.
• Metal Grease Filtration System: Captures airborne grease particles generated during cooking.
• Removable Filters: Filters can be easily removed for routine maintenance.
• Washable Filter Construction: Designed for repeated cleaning and long-term use.
• Smooth Internal Surfaces: Internal components are designed to simplify routine cleaning.
• LED Lighting System: Long-life LED lighting reduces replacement frequency compared to conventional bulbs.
• Regular Filter Maintenance: Bosch recommends regular filter cleaning to maintain extraction performance and efficiency.

Specifications:

• Appliance series: Series 6
• Product type: Integrated rangehood
• Extraction type: Ducted or recirculating (with optional accessories)
• Control type: Electronic push-button controls
• Fan speeds: 3
• Intensive setting: Yes
• Maximum extraction rate: 595m³/h
• Intensive extraction rate: 730m³/h
• Maximum recirculation rate: 580m³/h
• Intensive recirculation rate: 705m³/h
• Noise level (Speed 1): 45 dB(A)
• Noise level (Speed 2): 53 dB(A)
• Noise level (Speed 3): 63 dB(A)
• Noise level (Intensive): 68 dB(A)
• Lighting type: LED
• Number of lights: 2
• Total lighting power: 2 W
• Illumination intensity: 400 lux
• Colour temperature: 4000 K
• Grease filter material: Aluminium
• Grease filter quantity: 2
• Grease filter cleaning: Dishwasher-safe
• Backdraft flap: Included
• Motor type: Capacitor motor

Product Measurements:

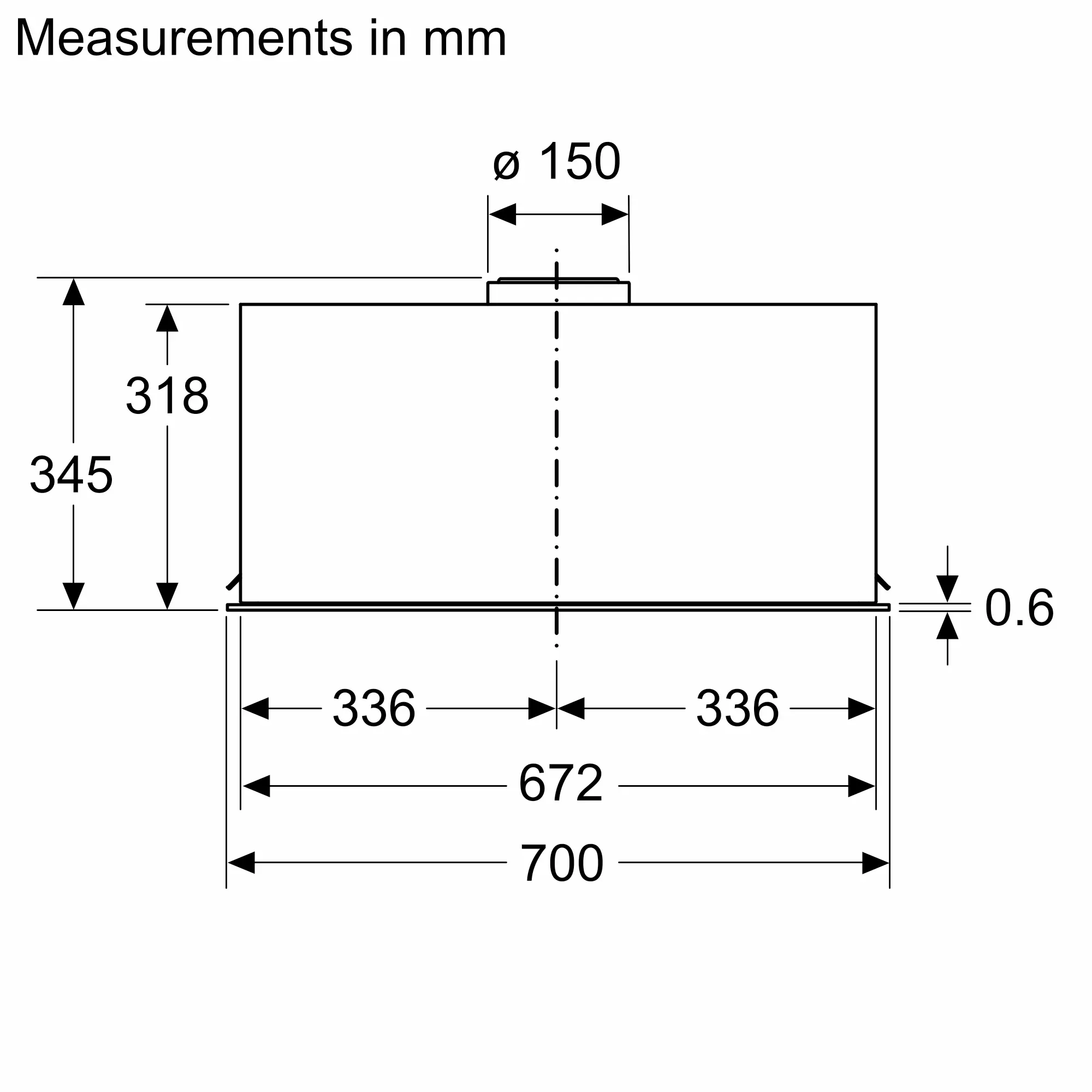

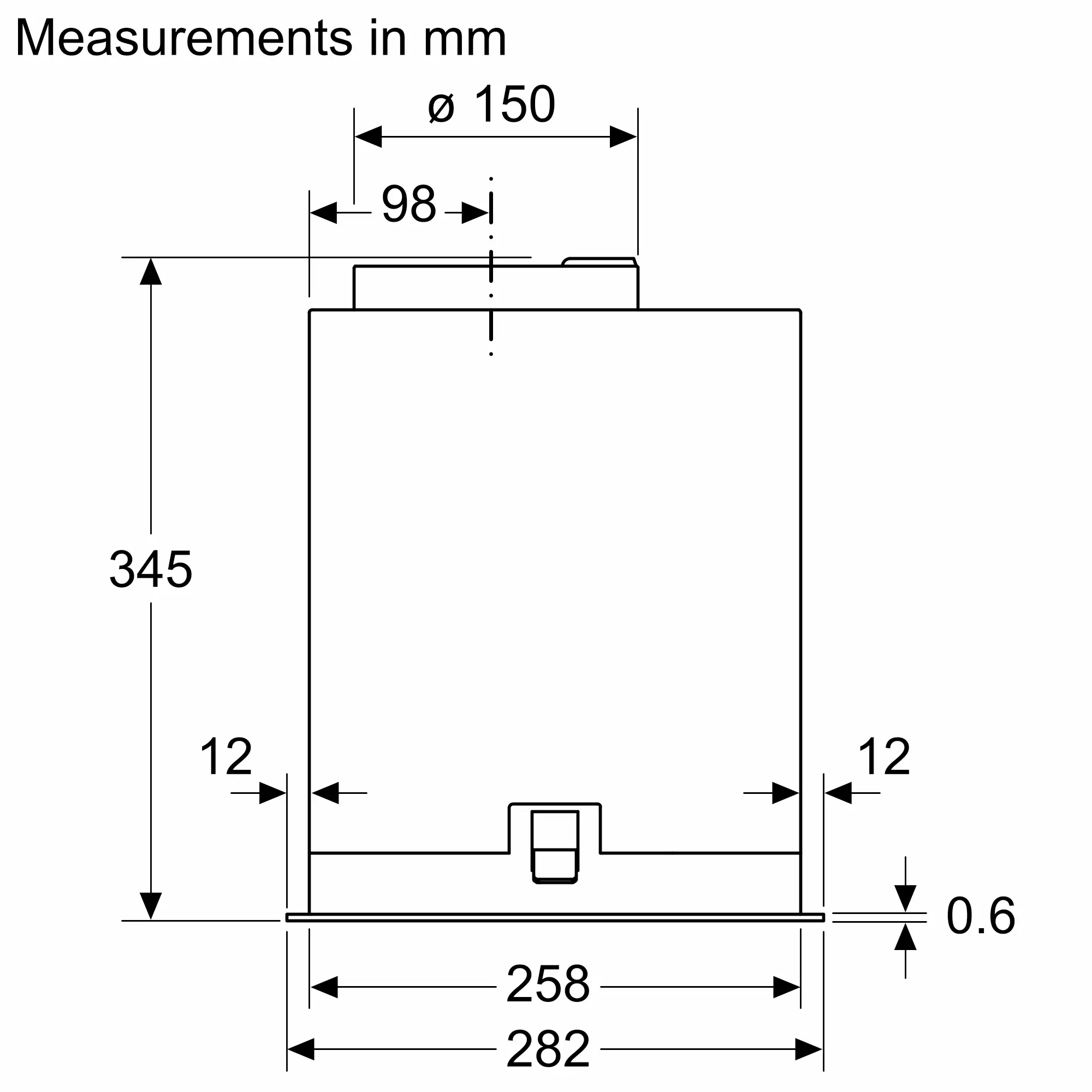

• Dimensions (W x H x D): 700 x 345 x 282 mm

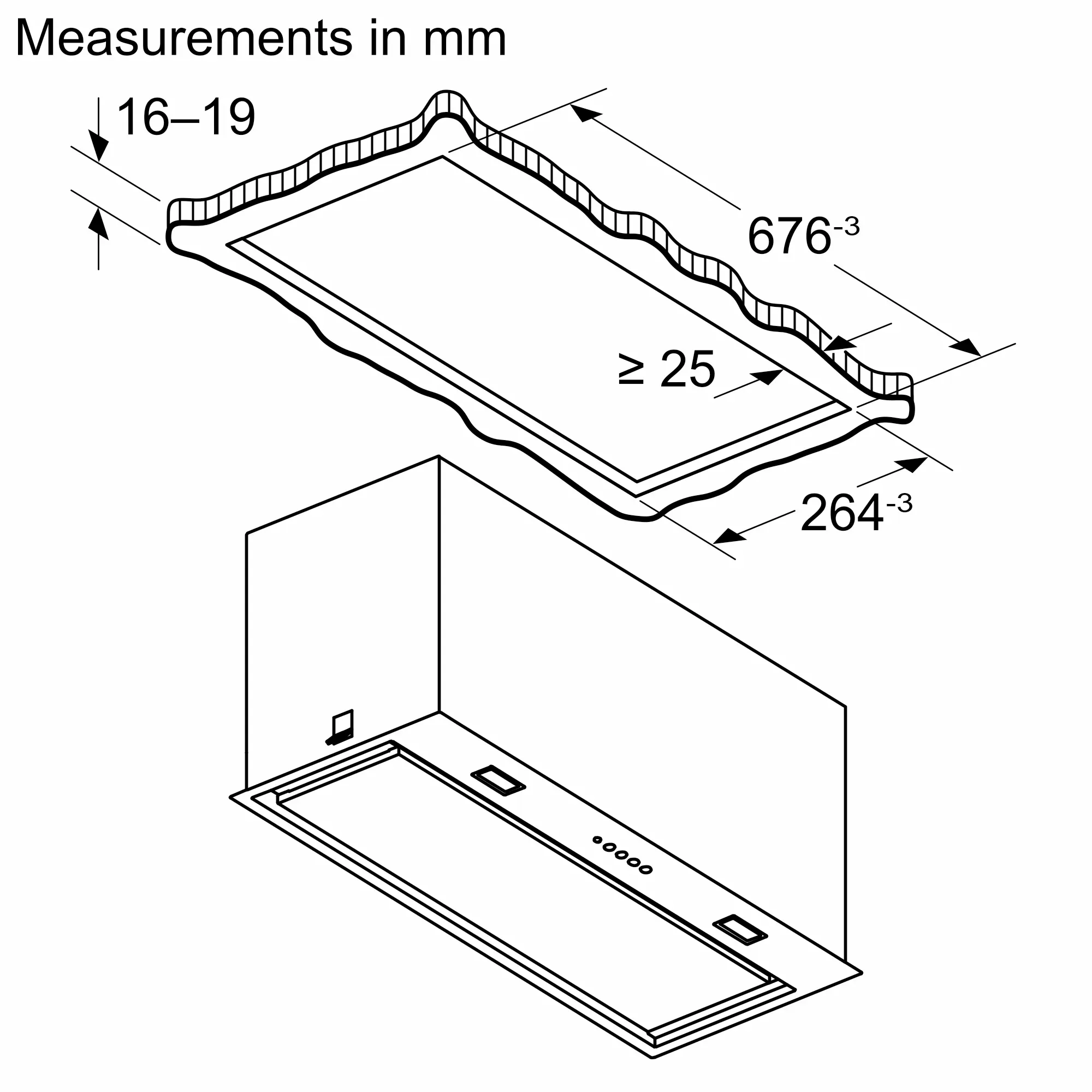

• Built-In Niche Dimensions (W x H x D): 676 x 345 x 264 mm

Product Weight:

• Net Weight: 11.3 kg

Installation & Requirements:

• Installation type: Integrated built-in rangehood
• Mounting position: Overhead cabinetry
• Operating modes: Ducted extraction or recirculation
• Duct outlet diameter: 150 mm
• Reducer supplied: 150 mm to 120 mm adaptor included

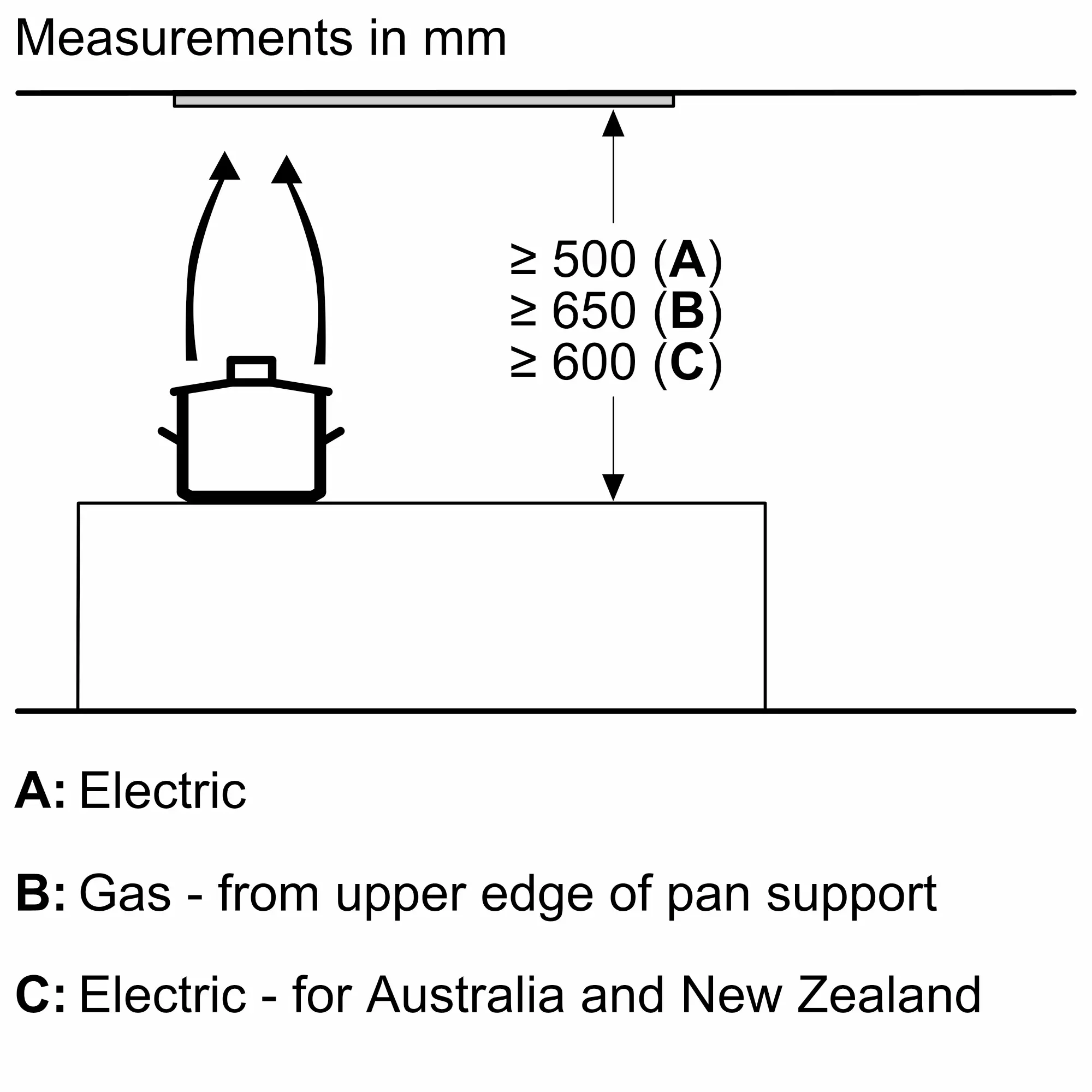

• Minimum distance above electric cooktop: 600 mm
• Minimum distance above gas cooktop: 650 mm
• Connection rating: 252 W
• Voltage: 220–240 V
• Frequency: 50–60 Hz
• Fuse protection: 3 A
• Connection type: Plug-in
• Power cord length: 1.5 m

Extra Information:

The DLN77AC60A combines strong extraction performance with a discreet integrated design, making it suitable for kitchen projects where visual simplicity is a priority. Its concealed installation allows cabinetry and surrounding appliances to remain the focus while maintaining effective ventilation performance.

Bosch's intensive extraction mode provides additional airflow during high-output cooking sessions before automatically returning to normal operation. The integrated LED lighting delivers clear visibility across the cooking surface while maintaining low energy consumption.

The rangehood may be configured for recirculating operation using compatible Bosch recirculation kits and odour filters where external ducting is not practical.

Included Products / Accessories:

• 2 x aluminium grease filters
• 2 x LED lights
• Backdraft flap
• 150 mm to 120 mm duct adaptor
• Installation hardware
• Power cord and plug

Warranty:

Backed by a 2-year Bosch manufacturer's warranty for domestic use when installed and operated in accordance with Bosch guidelines.
