Product Description

Product Overview:

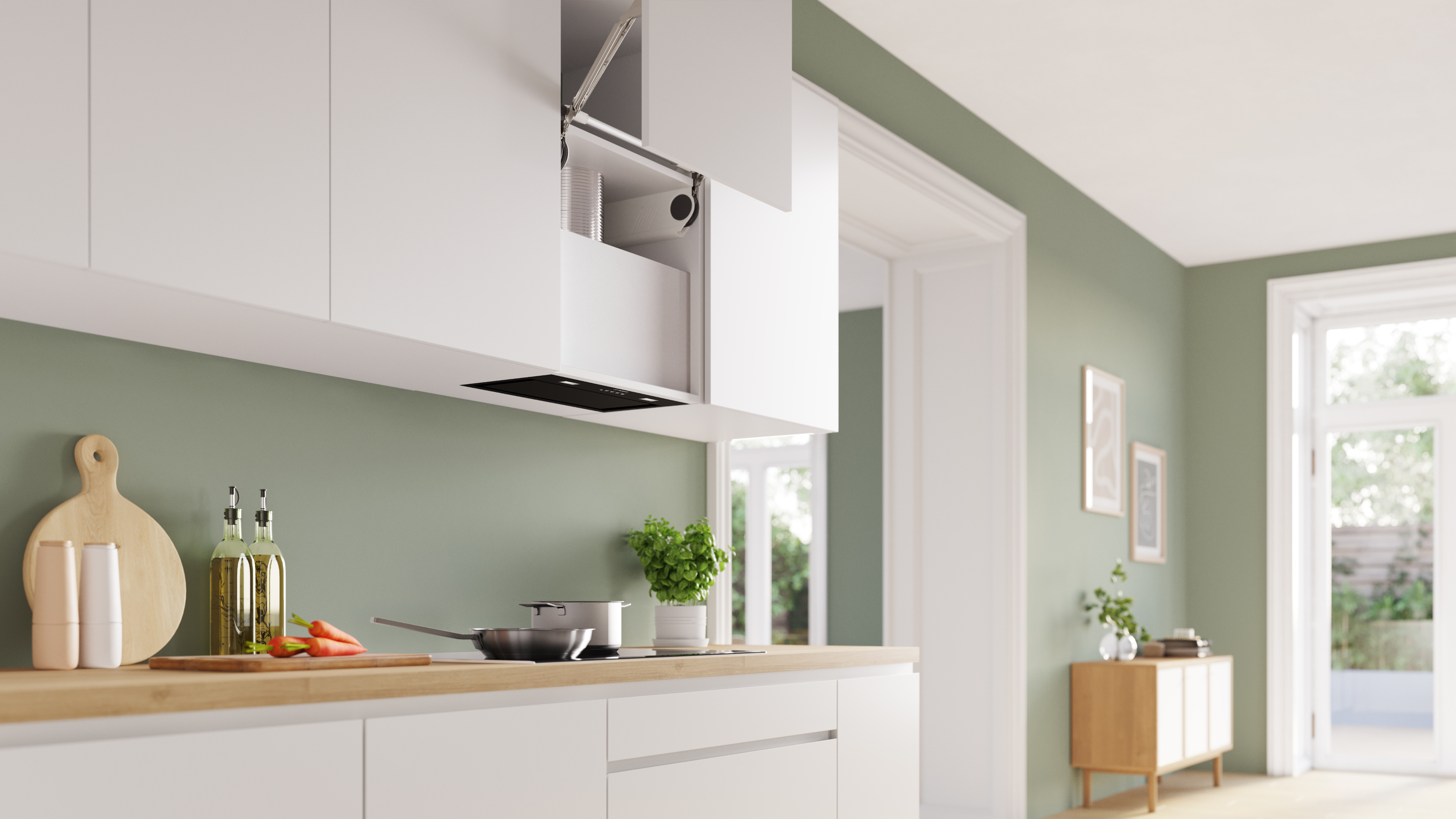

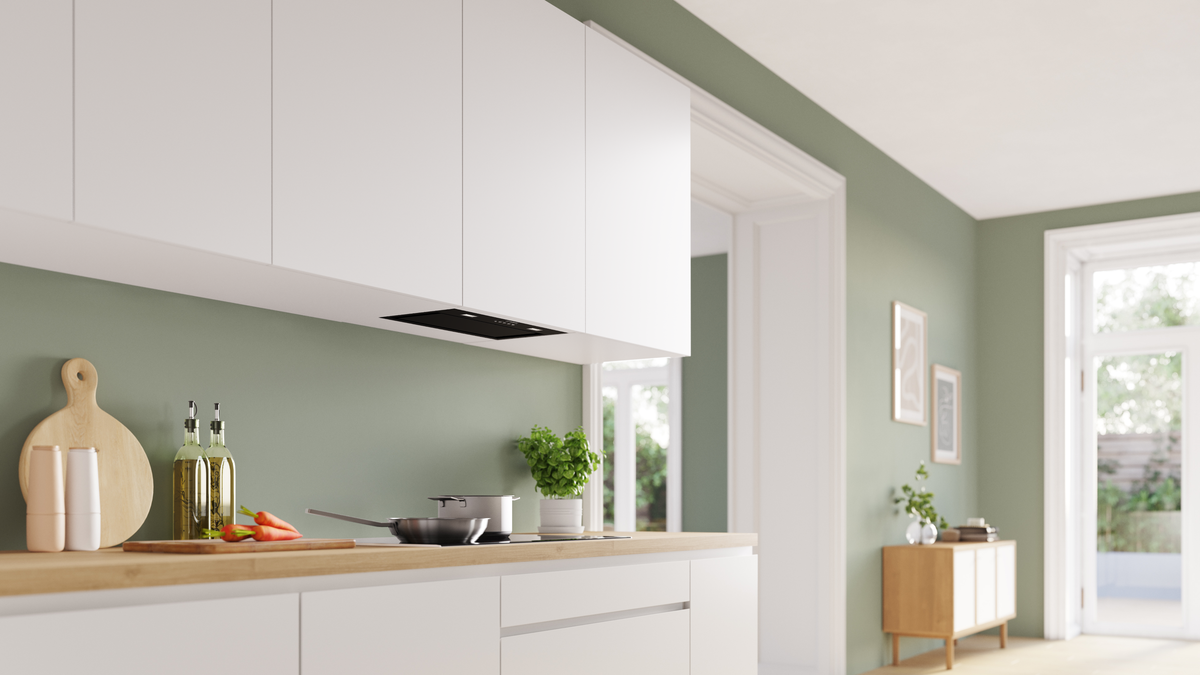

The Bosch DLN56AC60A is a 52cm integrated rangehood from Bosch's Series 6 collection, designed to sit almost invisibly within overhead cabinetry for a streamlined kitchen aesthetic. The flush-fitted installation allows the appliance to blend seamlessly into modern joinery while maintaining effective extraction performance for everyday cooking.

Offering extraction rates of up to 570 m³/h in normal operation and up to 645 m³/h when the intensive setting is activated, the DLN56AC60A is engineered to rapidly remove steam, grease, smoke and cooking odours. The intensive mode automatically reverts to standard operation after six minutes, helping balance performance and energy efficiency.

Bosch complements the extraction system with dishwasher-safe aluminium grease filters, electronic push-button controls and energy-efficient LED lighting. The rangehood supports both ducted extraction and recirculating installation configurations, providing flexibility for a wide variety of kitchen designs.

Product Features:

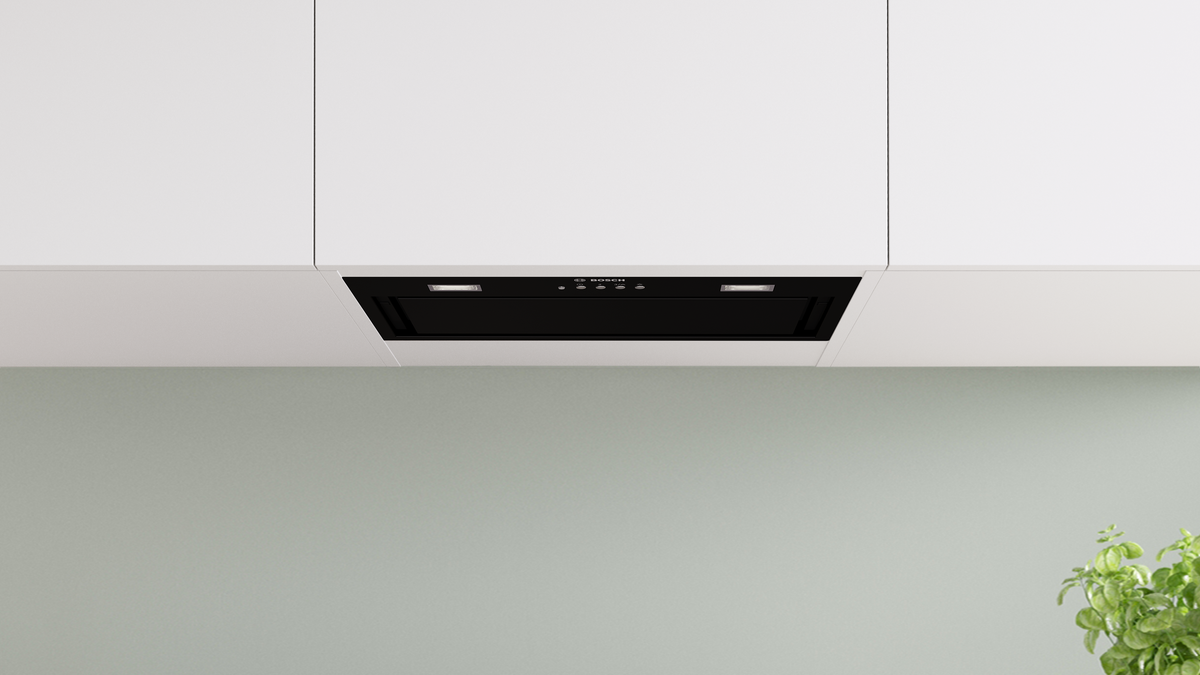

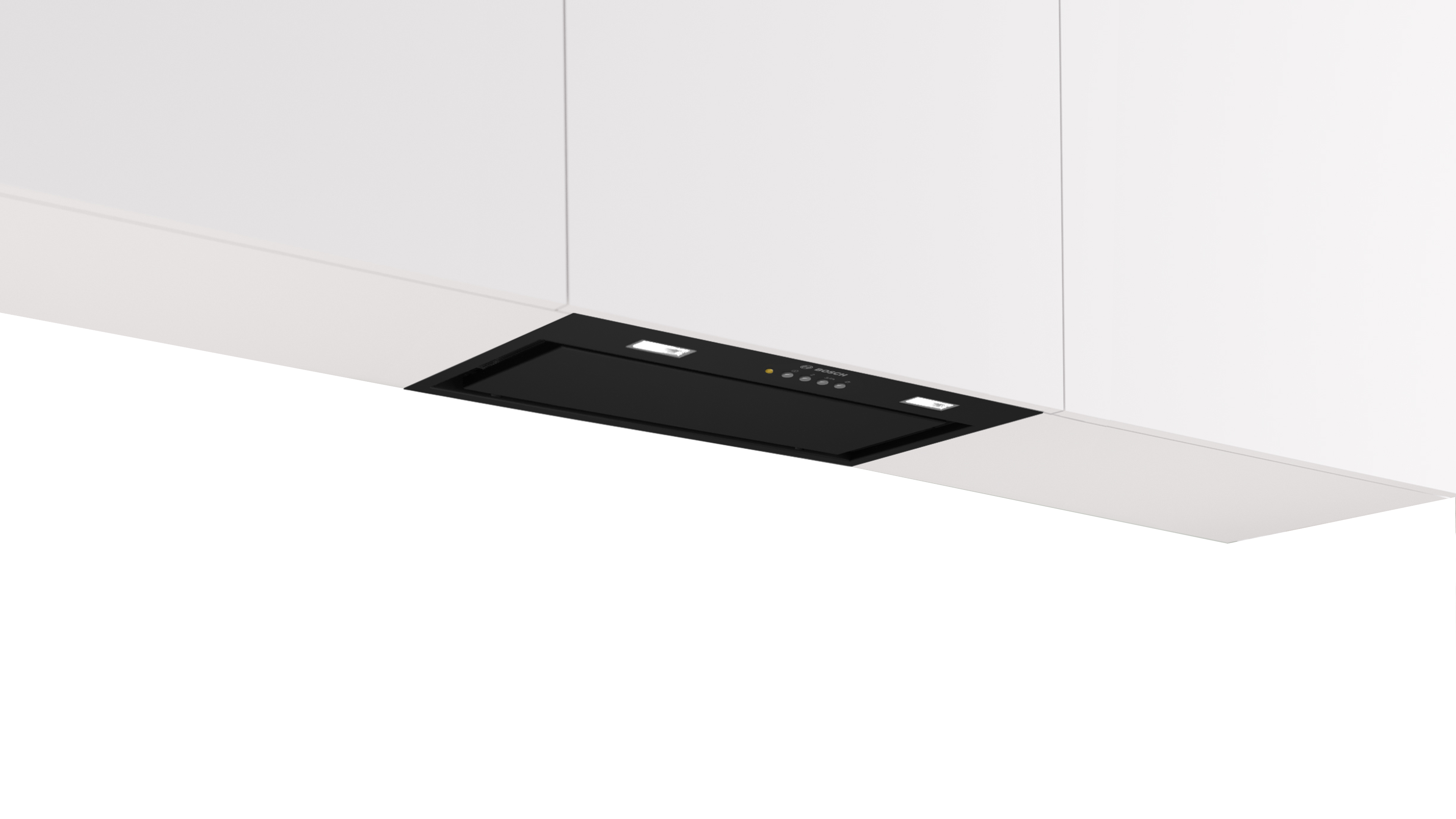

• Seamless integration: near-flush installation enables the rangehood to remain almost invisible within overhead cabinetry.
• Intensive speed function: provides maximum extraction performance when cooking generates heavier smoke or odours.
• Automatic intensive reset: automatically returns from intensive mode to normal operation after 6 minutes.
• Ducted or recirculating installation: adaptable to varying kitchen ventilation requirements.

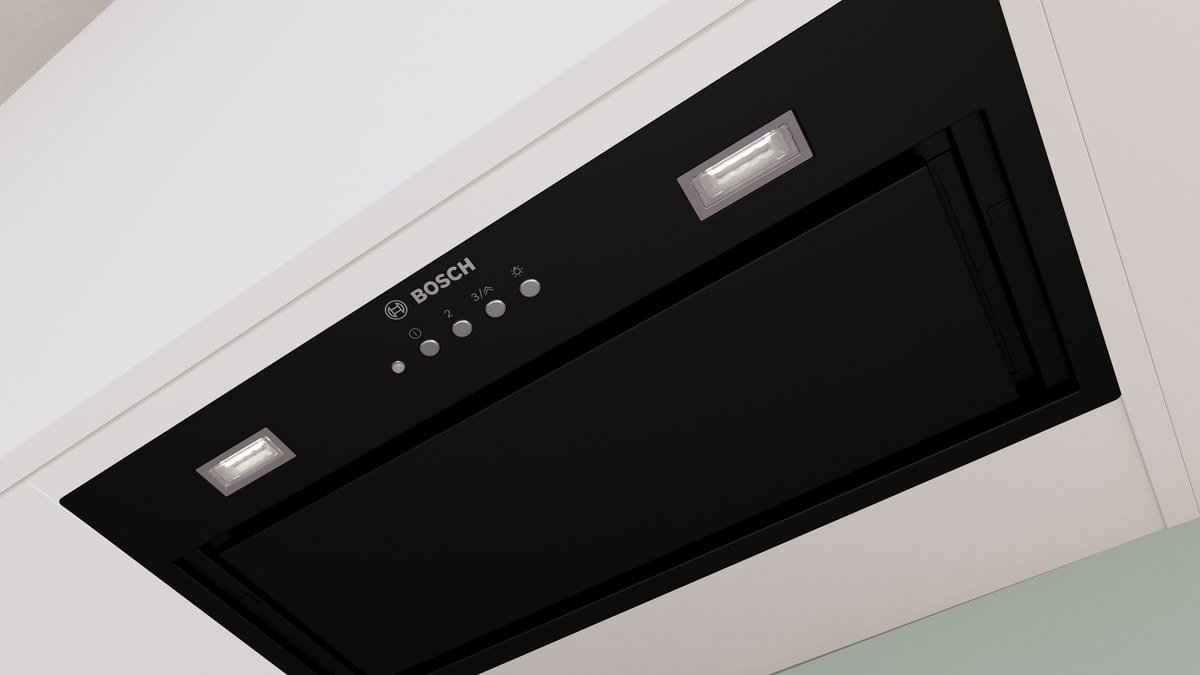

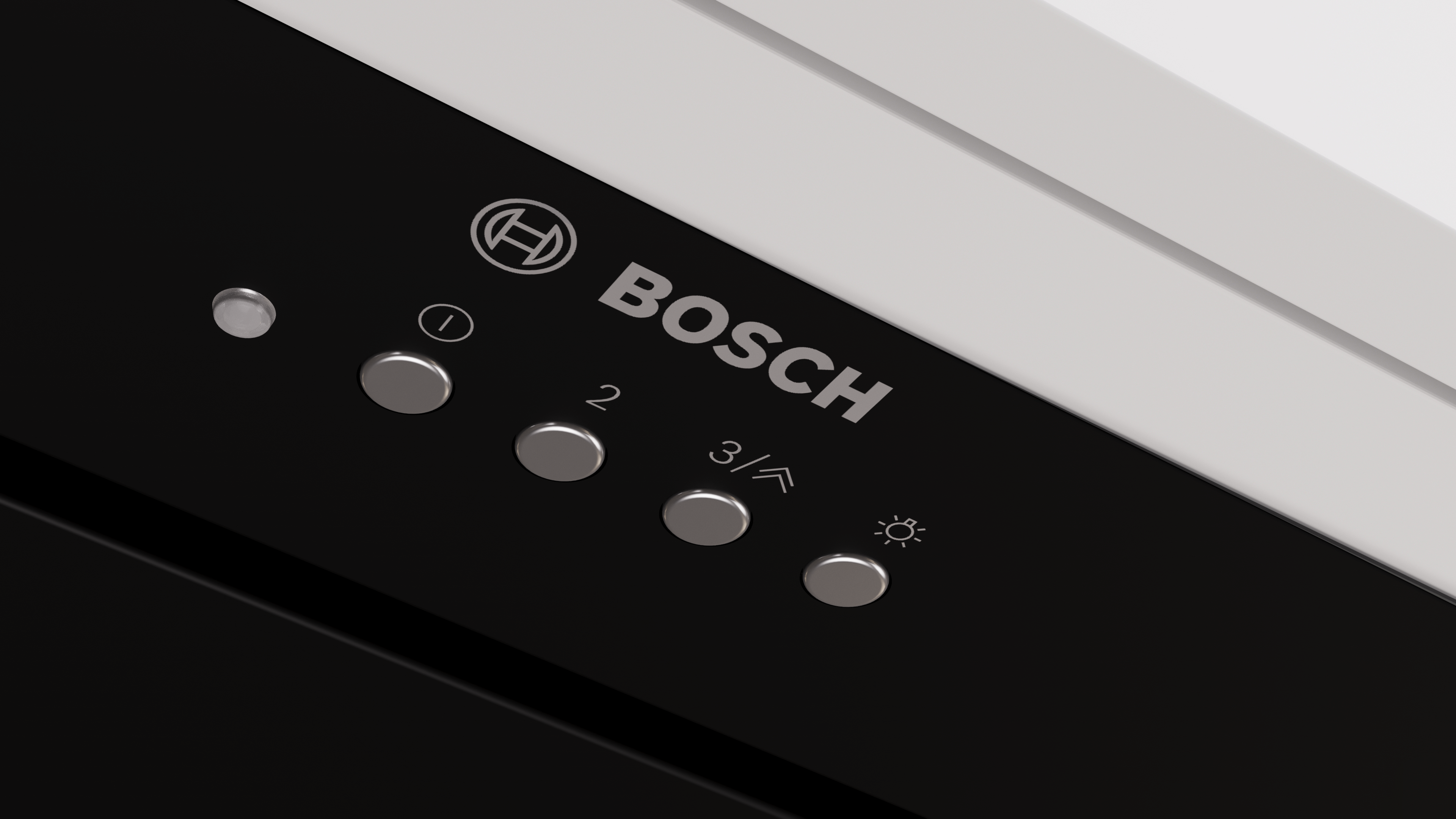

• Electronic push-button controls: simple and tactile operation with low-lift control buttons.
• LED cooktop illumination: bright and energy-efficient task lighting.

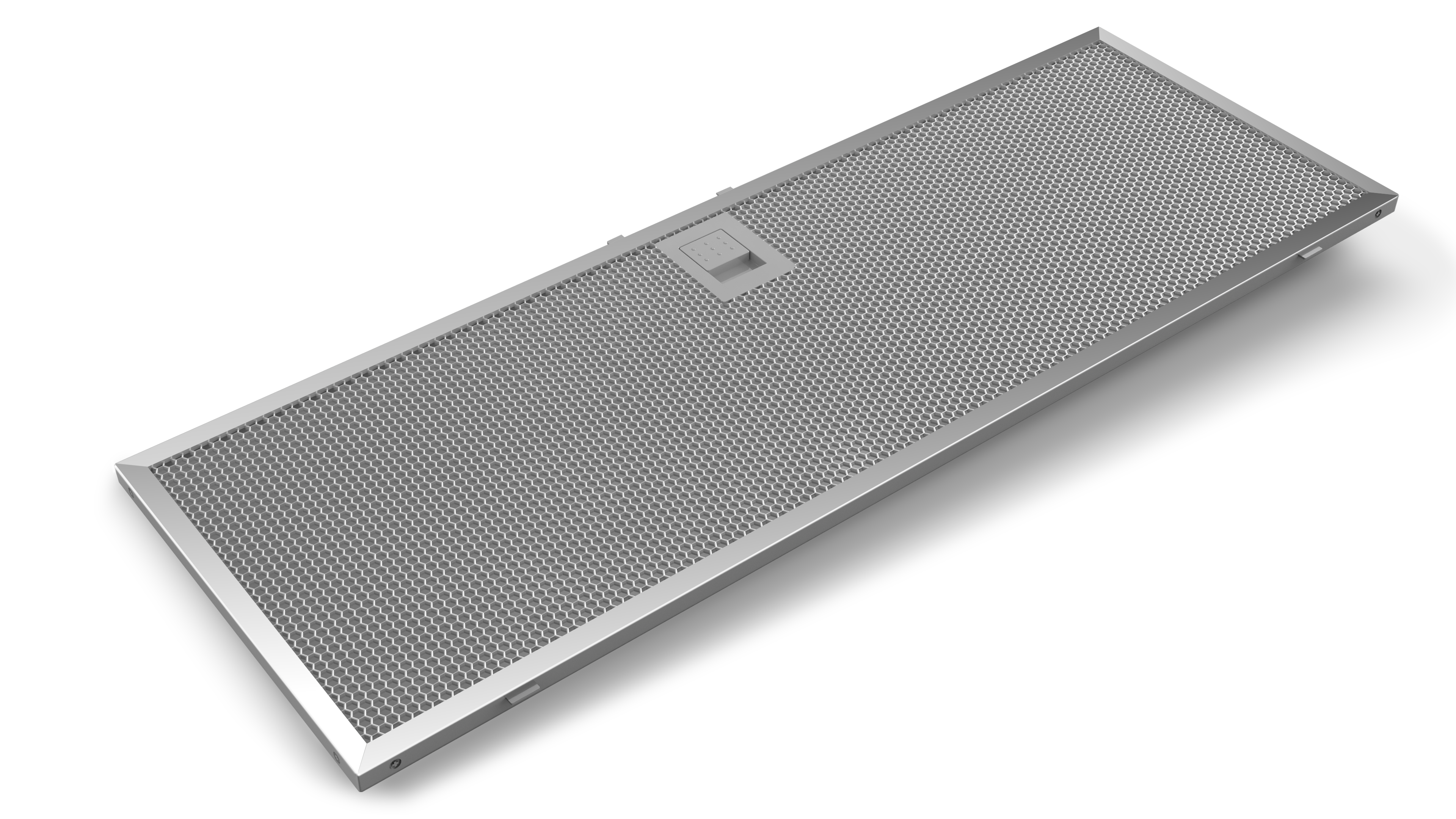

• Washable aluminium grease filter: captures airborne grease and cooking particles.
• Dishwasher-safe filters: simplifies ongoing maintenance.
• Capacitor motor: designed for reliable extraction performance.
• Easy-clean surfaces: smooth materials support straightforward cleaning and maintenance.

Colour / Finishes:

• Black — DLN56AC60A

Programmes / Functions:

• 3 extraction speeds
• 1 intensive extraction setting
• Automatic intensive reset after 6 minutes
• Exhaust operation
• Recirculation operation (with optional recirculation accessories)

Cleaning & Maintenance:

• Dishwasher-safe aluminium grease filter
• Smooth internal and external surfaces for simplified cleaning
• Metal grease filtration system designed to capture airborne grease and cooking residue
• Monthly filter cleaning recommended depending on cooking frequency

Specifications:

• Series: Series 6
• Rangehood Type: Integrated / Built-In
• Installation Type: Built-in / Built-under
• Operating Modes: Ducted or Recirculating
• Maximum Air Extraction: 570 m³/h
• Boost Position Air Extraction: 645 m³/h
• Maximum Air Recirculation: 560 m³/h
• Boost Position Recirculation: 628 m³/h
• Fan Speeds: 3
• Intensive Setting: Yes
• Control Type: Electronic push-button
• Motor Type: Capacitor motor
• Number of Filters: 1
• Filter Material: Washable aluminium
• Lighting Type: LED
• Number of Lights: 2
• Light Output: 400 lux
• Colour Temperature: 4000 K
• Noise Levels:
  • Speed 1: 50 dB(A)
  • Speed 2: 59 dB(A)
  • Speed 3: 66 dB(A)
  • Intensive: 68 dB(A)
• Cooktop-Based Hood Control: No
• PerfectAir Sensor: No

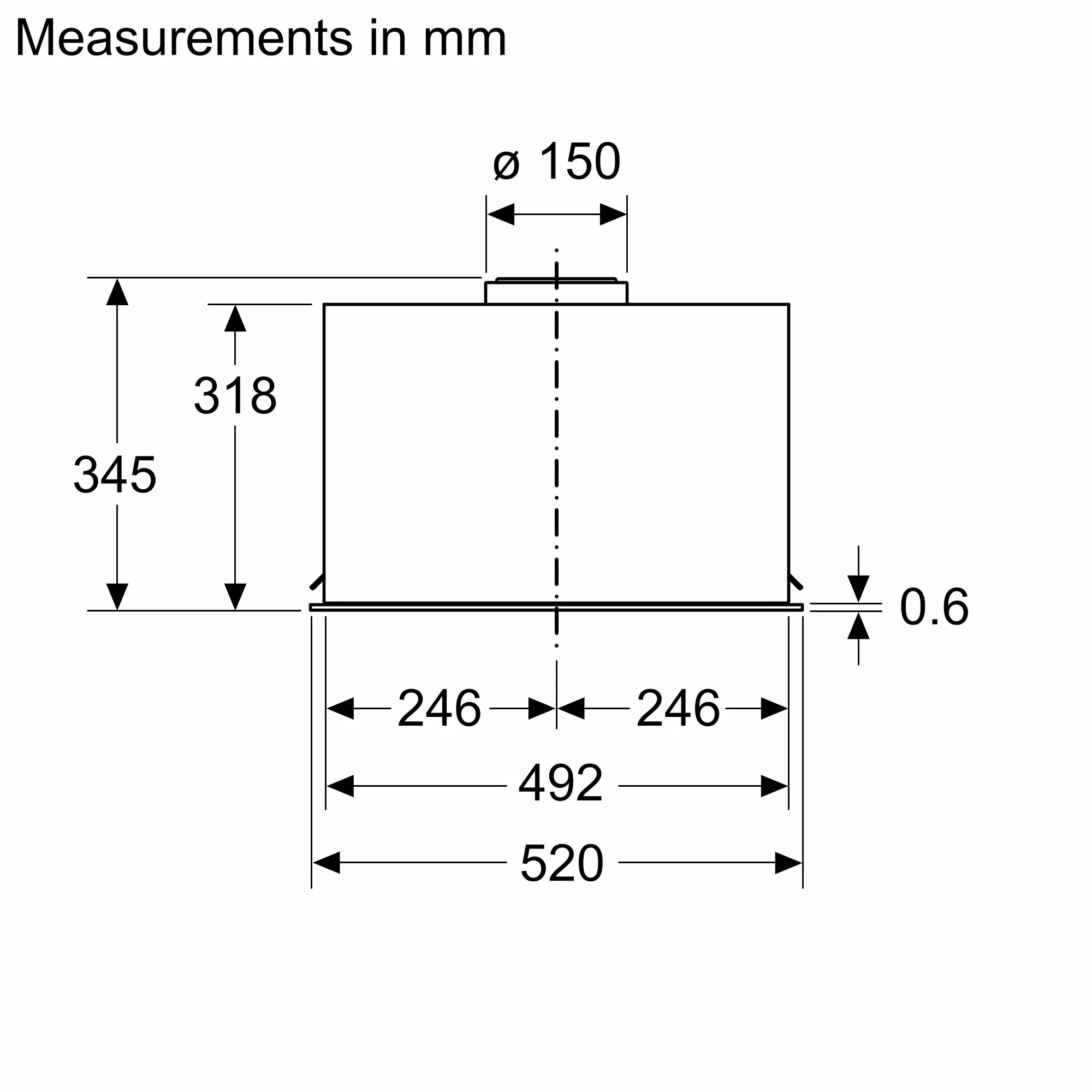

Product Measurements:

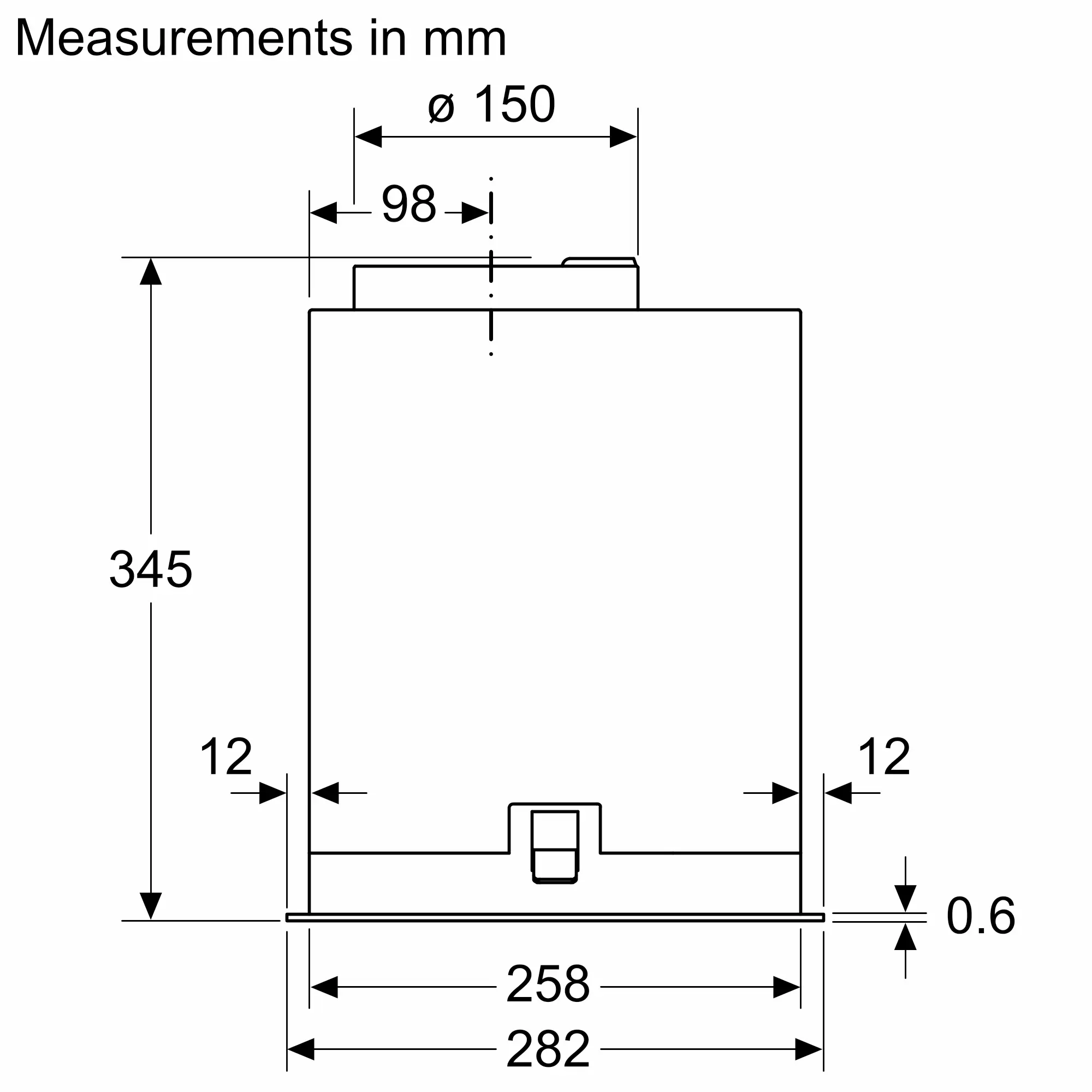

• Overall Dimensions (W x H x D): 520 x 345 x 282 mm

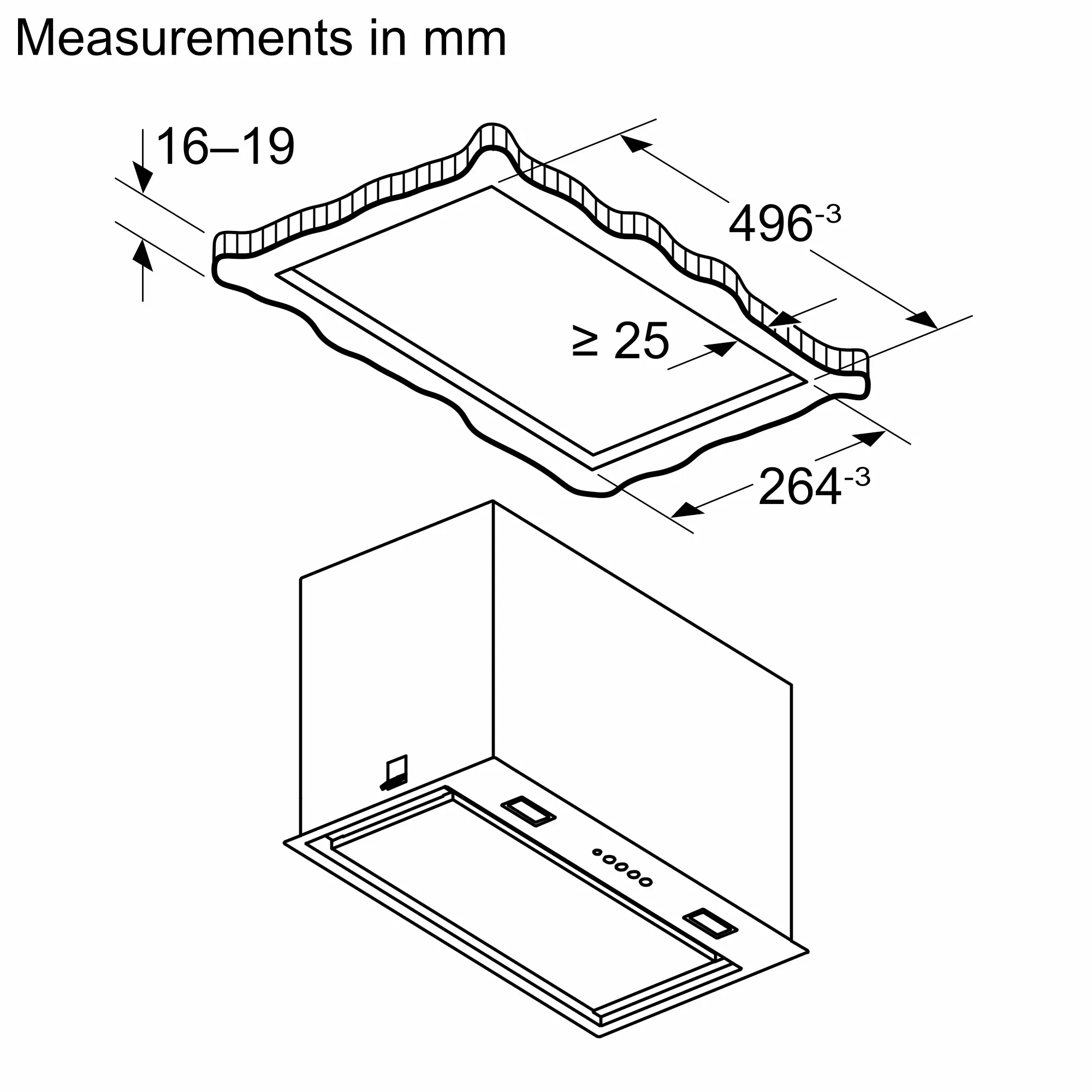

• Cabinet Cut-Out Dimensions (W x H x D): 496 x 345 x 264 mm

Product Weight:

• Net Weight: 7.6 kg

Installation & Requirements:

• Installation Type: Integrated within overhead cabinetry

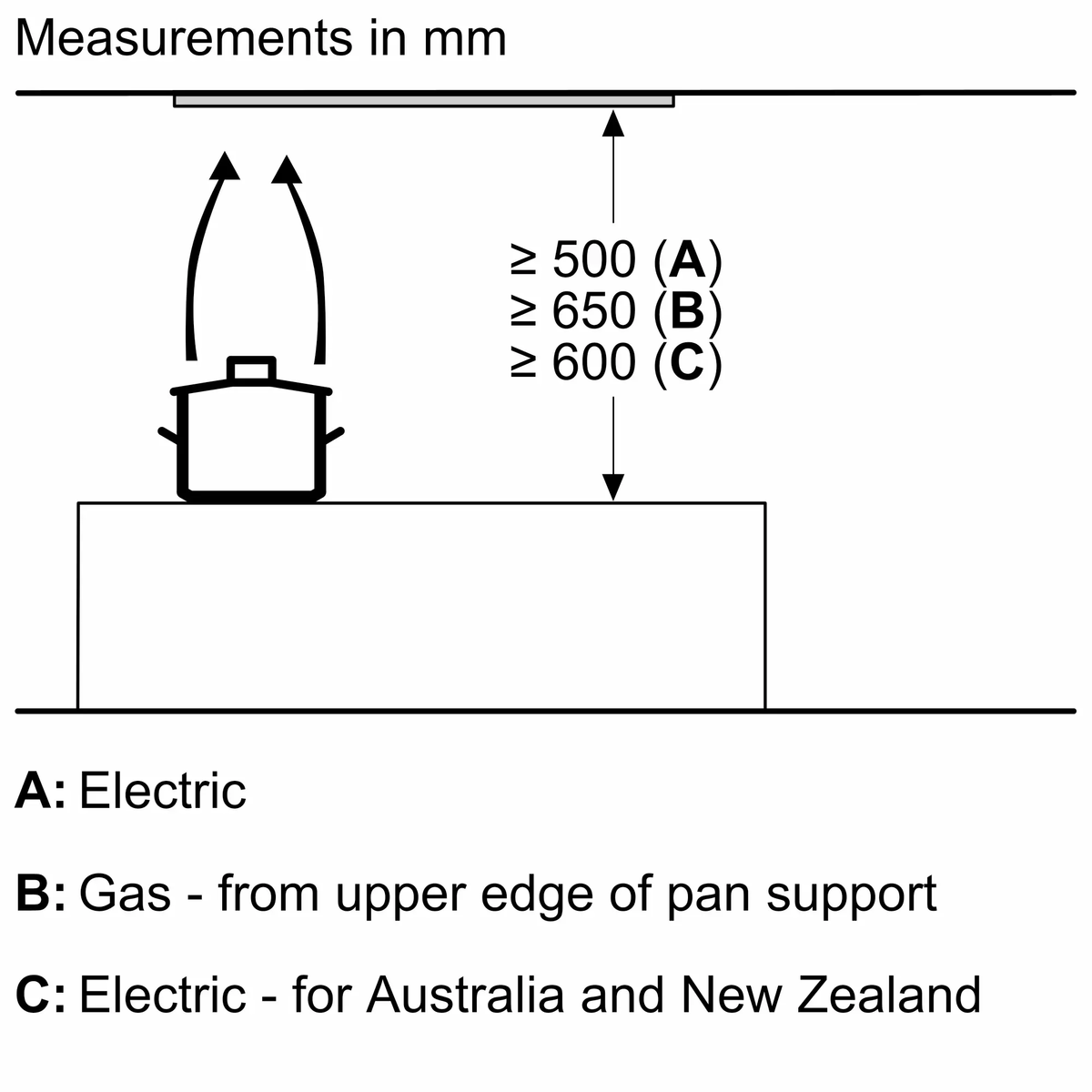

• Minimum Distance Above Electric Cooktop: 600 mm
• Minimum Distance Above Gas Cooktop: 650 mm
• Duct Outlet Diameter: 120 mm or 150 mm
• Electrical Connection: AU Plug
• Connection Rating: 252 W
• Voltage: 220–240 V
• Frequency: 50 / 60 Hz
• Fuse Protection: 3 A
• Power Cord Length: 150 cm
• Suitable For: Ducted extraction or recirculation installation

Country of Origin:

• Made in Poland

Extra Information:

The DLN56AC60A has been developed to suit contemporary black appliance packages and coordinates particularly well with Bosch black induction cooktops, ceramic cooktops and black-glass gas appliances. The integrated design allows kitchen cabinetry to remain the visual focus while maintaining effective extraction performance.

Optional recirculation kits are available for installations where external ducting is not possible. Bosch also offers Long Life and Clean Air Plus filtration systems for recirculating applications.

Included Products / Accessories:

• 1 x Aluminium grease filter
• 1 x Non-return flap
• 120 mm duct adaptor
• Power cord with Australian plug

Warranty:

Backed by a 2-year Bosch manufacturer's warranty covering domestic use when installed and operated in accordance with Bosch product guidelines.
