Product Description

Product Overview:

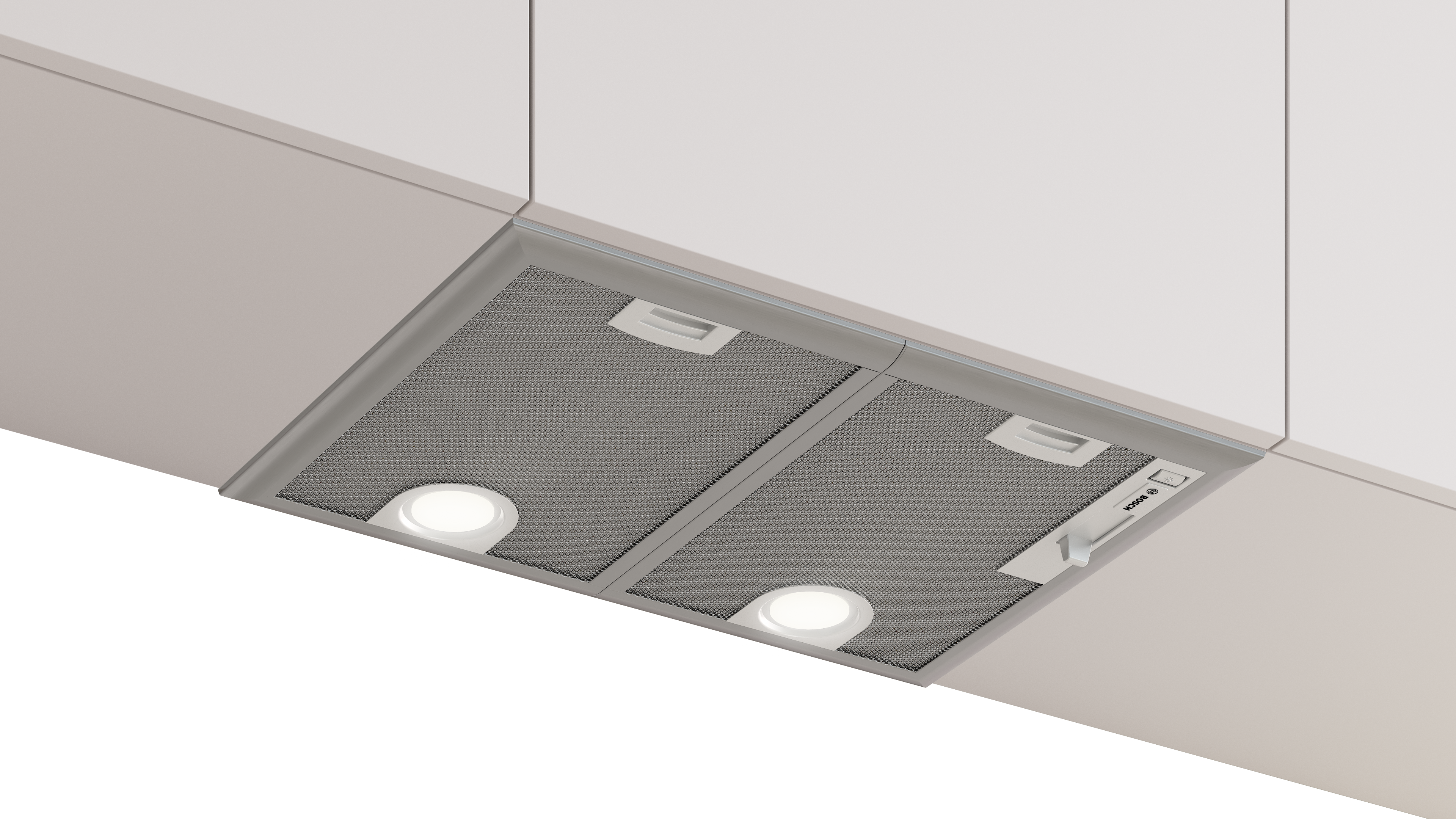

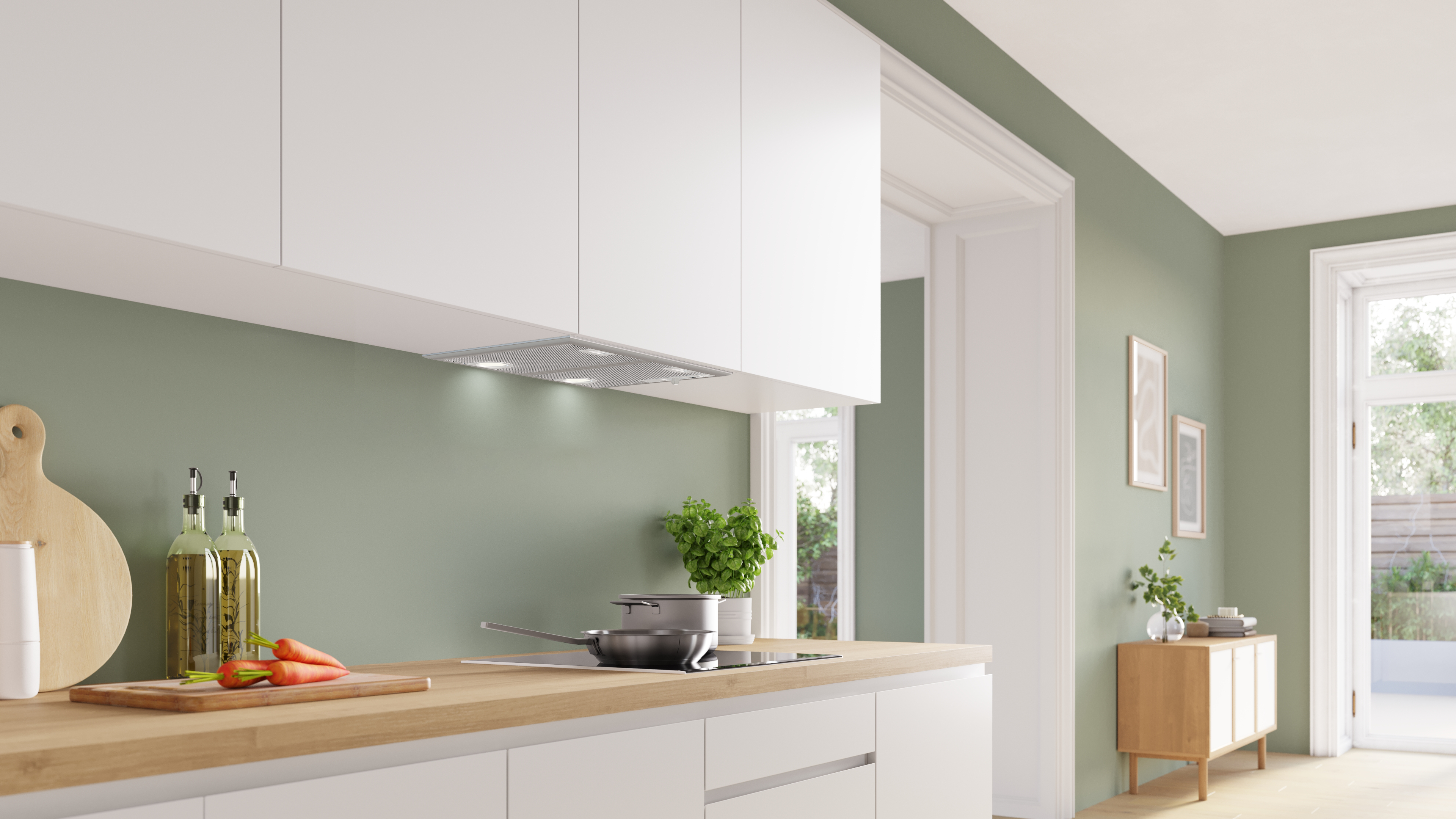

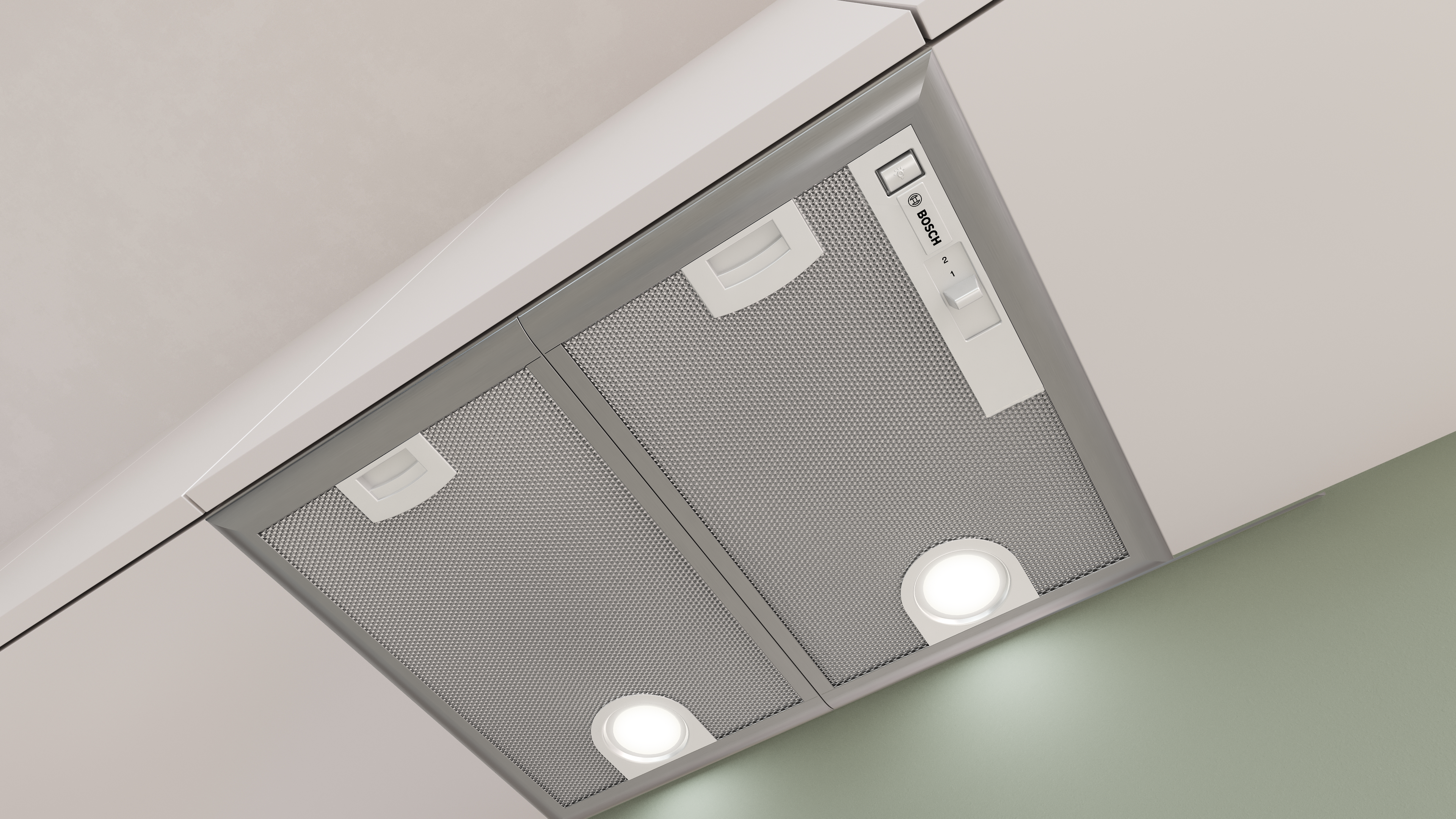

The Bosch DHL555BMAU is a 53cm integrated rangehood designed for concealed installation within overhead cabinetry, allowing ventilation performance without disrupting the visual lines of the kitchen. The slim built-in design is suited to modern kitchens where a discreet extraction solution is preferred over exposed canopy-style rangehoods.

Featuring a dual-motor extraction system with three standard fan speeds and an intensive boost setting, the rangehood provides strong airflow performance for removing cooking vapours, grease and odours. The intensive setting automatically reverts to a lower operating level after a period of use, helping balance extraction performance with energy efficiency.

Suitable for both ducted and recirculating configurations, the DHL555BMAU offers installation flexibility across new kitchen projects and renovations. Integrated LED lighting improves visibility across the cooking surface, while dishwasher-safe aluminium grease filters simplify ongoing maintenance.

Product Features:

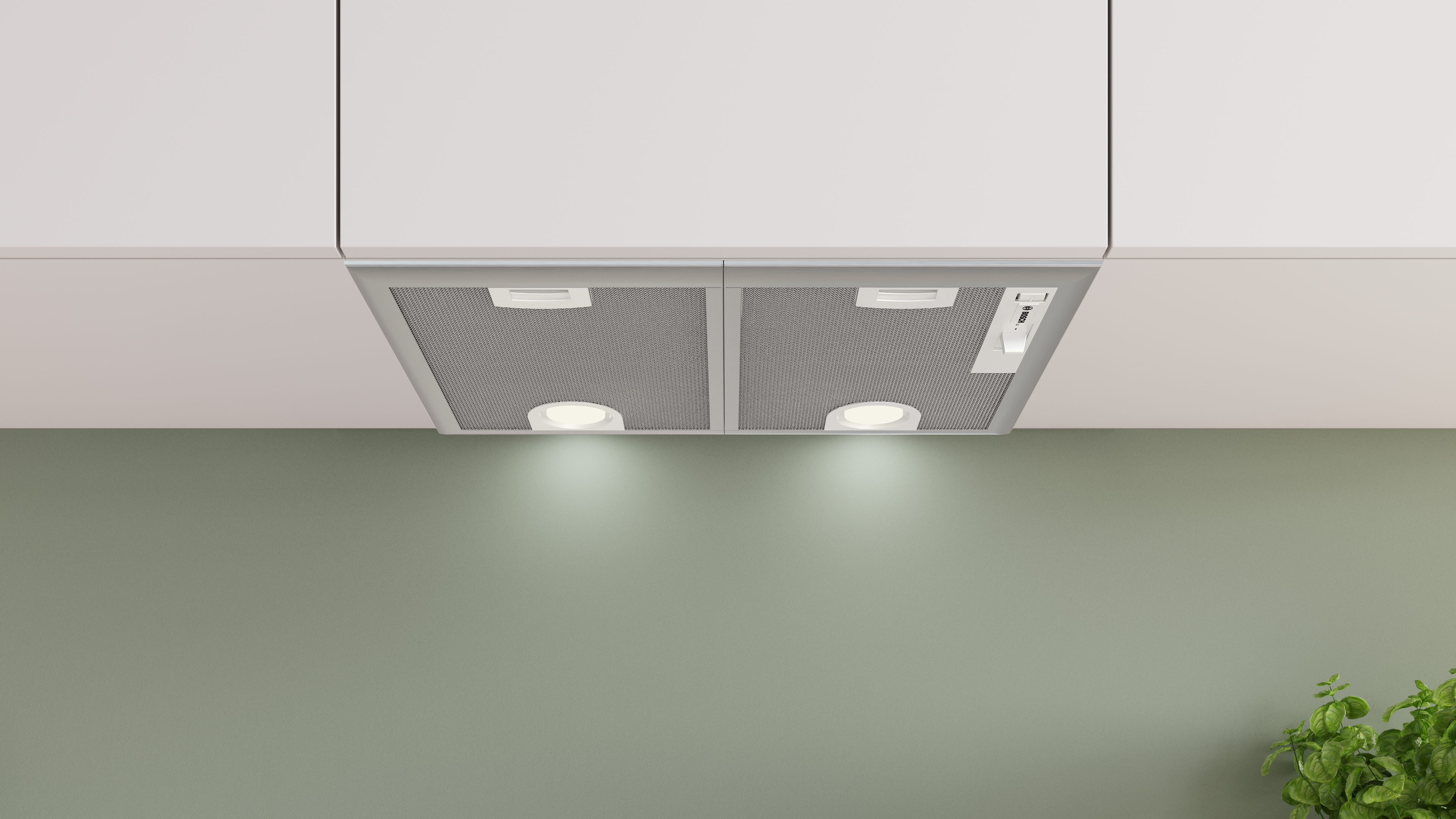

• Integrated installation: concealed within overhead cabinetry for a streamlined kitchen appearance.
• Dual-motor extraction system: engineered to deliver strong airflow performance across all speed levels.
• Three fan speeds: adjustable ventilation for everyday cooking requirements.
• Intensive boost setting: additional extraction power for heavy cooking, frying and high steam generation.
• Automatic intensive reset: returns to a normal operating level after boost operation.

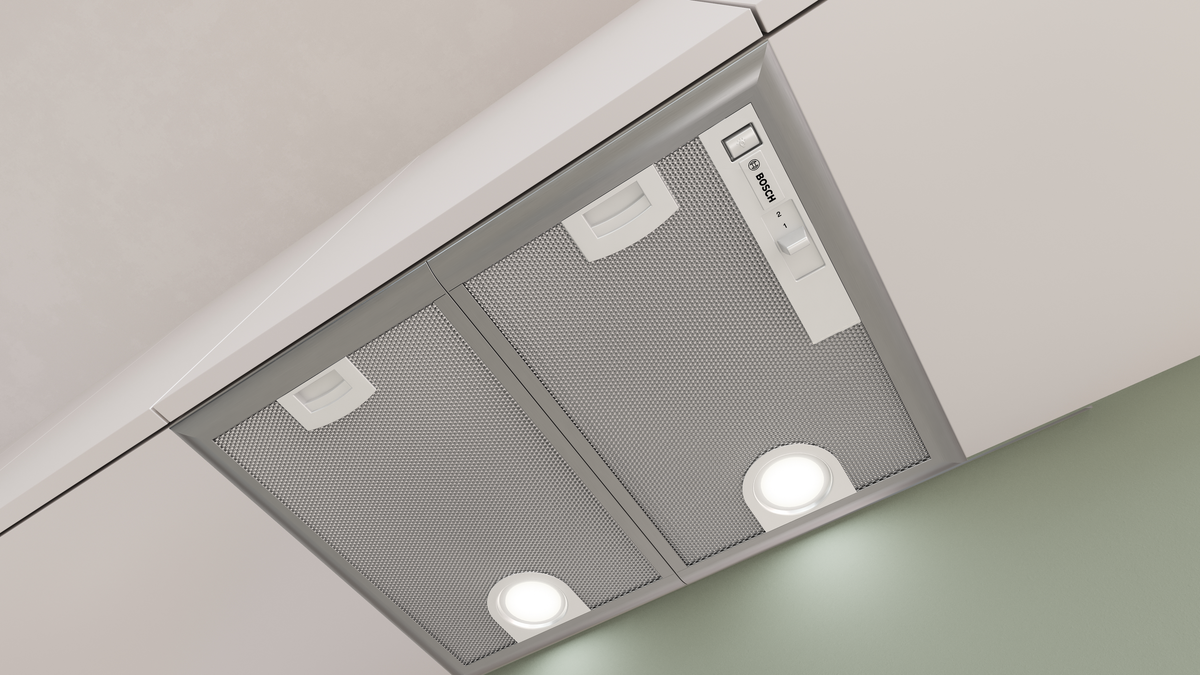

• LED cooktop lighting: efficient illumination of the cooking surface below.
• Mechanical slide controls: simple and reliable operation.
• Dishwasher-safe grease filters: aluminium filters can be removed and cleaned in a dishwasher.
• Ducted or recirculating operation: installation flexibility depending on kitchen design requirements.
• Metal grease filtration system: captures airborne grease particles before they enter ductwork.

Colour / Finishes:

• Silver Metallic — DHL555BMAU

Programmes / Functions:

• Fan Speed 1: Low extraction setting for light cooking and background ventilation.
• Fan Speed 2: Medium extraction setting for everyday cooking tasks.
• Fan Speed 3: High extraction setting for increased steam, smoke and odour removal.
• Intensive Speed: Temporary maximum extraction mode for heavy cooking and high vapour loads.
• Automatic Intensive Reset: Returns from intensive mode to a lower operating speed after a preset period.
• LED Cooktop Lighting: Illuminates the cooking surface for improved visibility while preparing meals.
• Ducted Operation: Extracts cooking vapours externally through ductwork.
• Recirculating Operation: Filters and recirculates air back into the kitchen when external ducting is unavailable.

Cleaning & Maintenance:

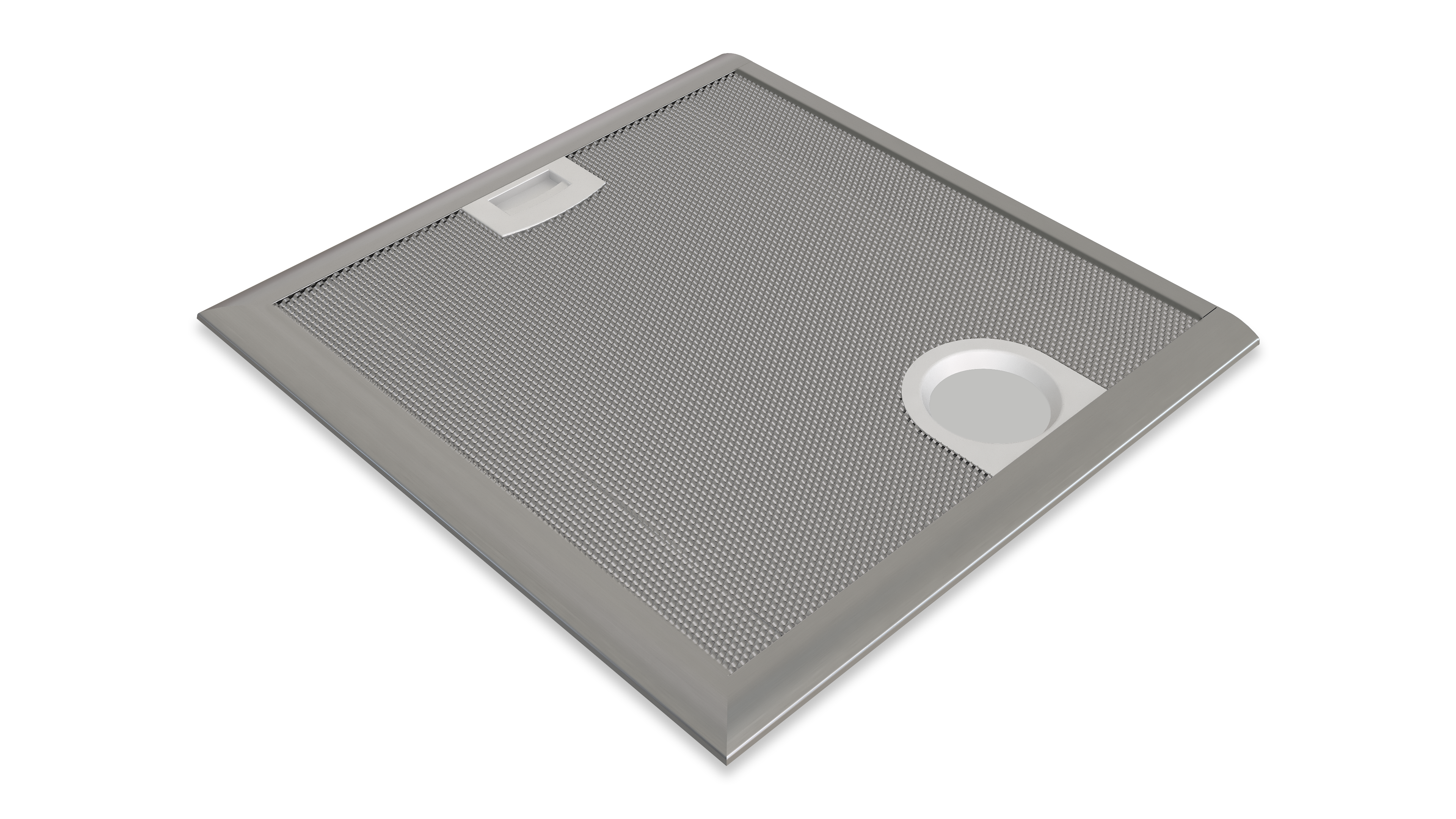

• Dishwasher-Safe Aluminium Grease Filters: Filters can be removed and cleaned in a dishwasher for simplified maintenance.
• Multi-Layer Metal Grease Filtration: Captures airborne grease particles to help protect internal components and ducting.
• Removable Filter System: Filters can be quickly removed for routine cleaning access.
• Filter Saturation Indicator: Alerts when grease filter maintenance is required.
• Smooth Integrated Surfaces: Accessible surfaces can be wiped clean using a soft cloth and mild detergent.

Specifications:

• Product type: Integrated / Built-in Rangehood
• Extraction type: Ducted or Recirculated
• Motor system: Dual motor
• Fan speeds: 3
• Intensive setting: Yes
• Maximum extraction rate (EN 61591): 363 m³/h
• Intensive extraction rate (EN 61591): 618 m³/h
• Grease filter type: Metal grease filters
• Grease filter quantity: 2
• Filter construction: Multi-layer aluminium

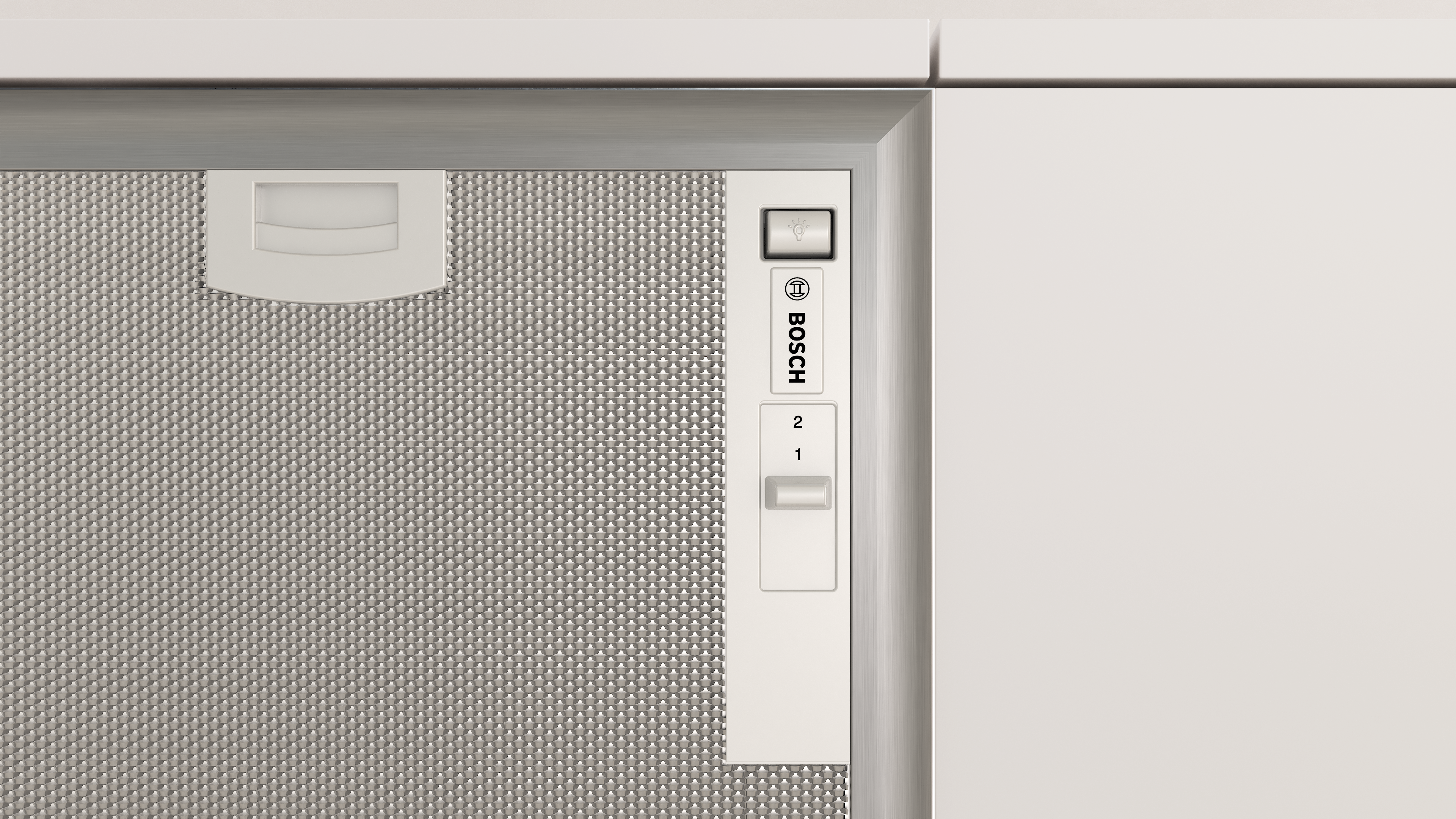

• Control type: Mechanical slide controls
• Lighting type: LED
• Number of lights: 2
• Total lighting power: 4.3 W
• Colour temperature: 3500 K
• Illumination intensity: 438 lux
• Noise level at maximum normal speed: 56 dB(A)
• Electrical connection rating: 206 W
• Voltage: 220–240 V
• Frequency: 50 Hz
• Power cord included: Yes
• Plug type: Australian standard plug

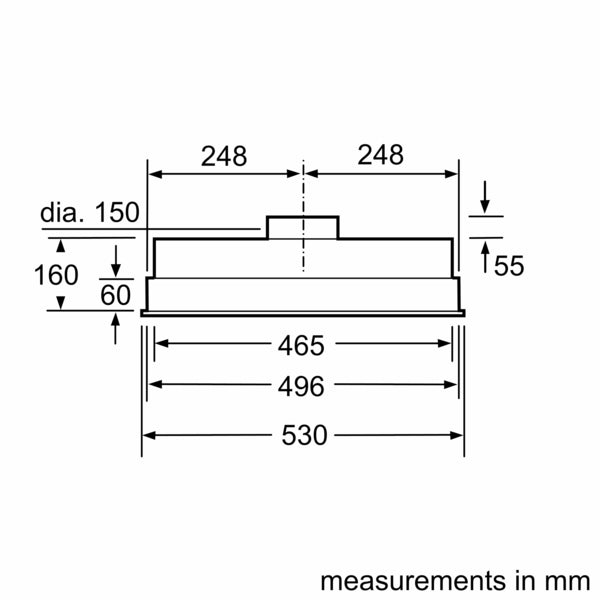

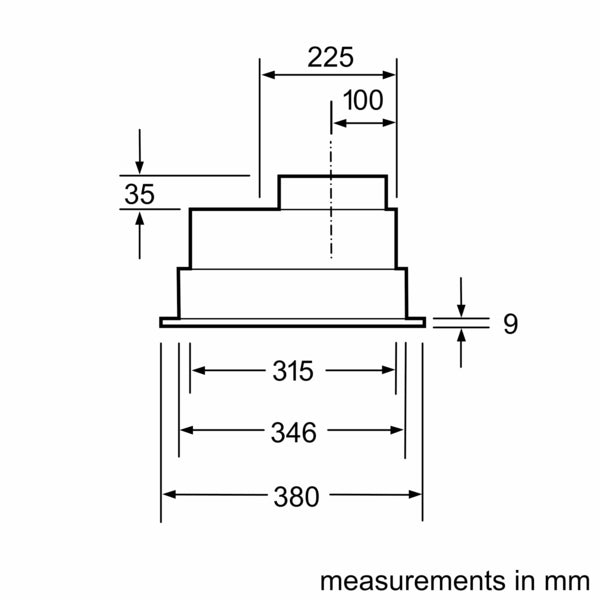

Product Measurements:

• Dimensions (W x H x D): 530 x 255 x 380 mm

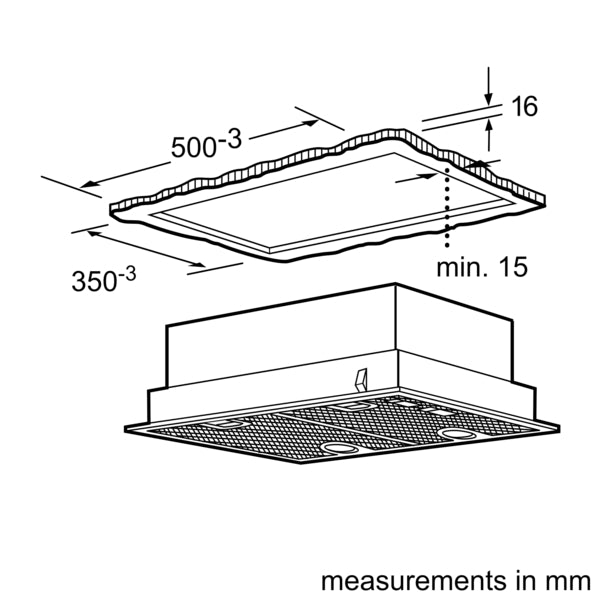

• Cabinet cut-out width: 500 mm
• Cabinet cut-out depth: 350 mm

Product Weight:

• Net Weight: 7.4 kg

Installation & Requirements:

• Installation type: Integrated / Built-in
• Suitable operation: Ducted or Recirculating
• Recommended duct diameter: 150 mm
• Alternative duct diameter: 120 mm
• Minimum installation height above electric cooktop: 600 mm
• Minimum installation height above gas cooktop: 650 mm
• Power connection: Standard plug connection
• Power cord length: 130 cm

Country of Origin:

• Made in Germany

Extra Information:

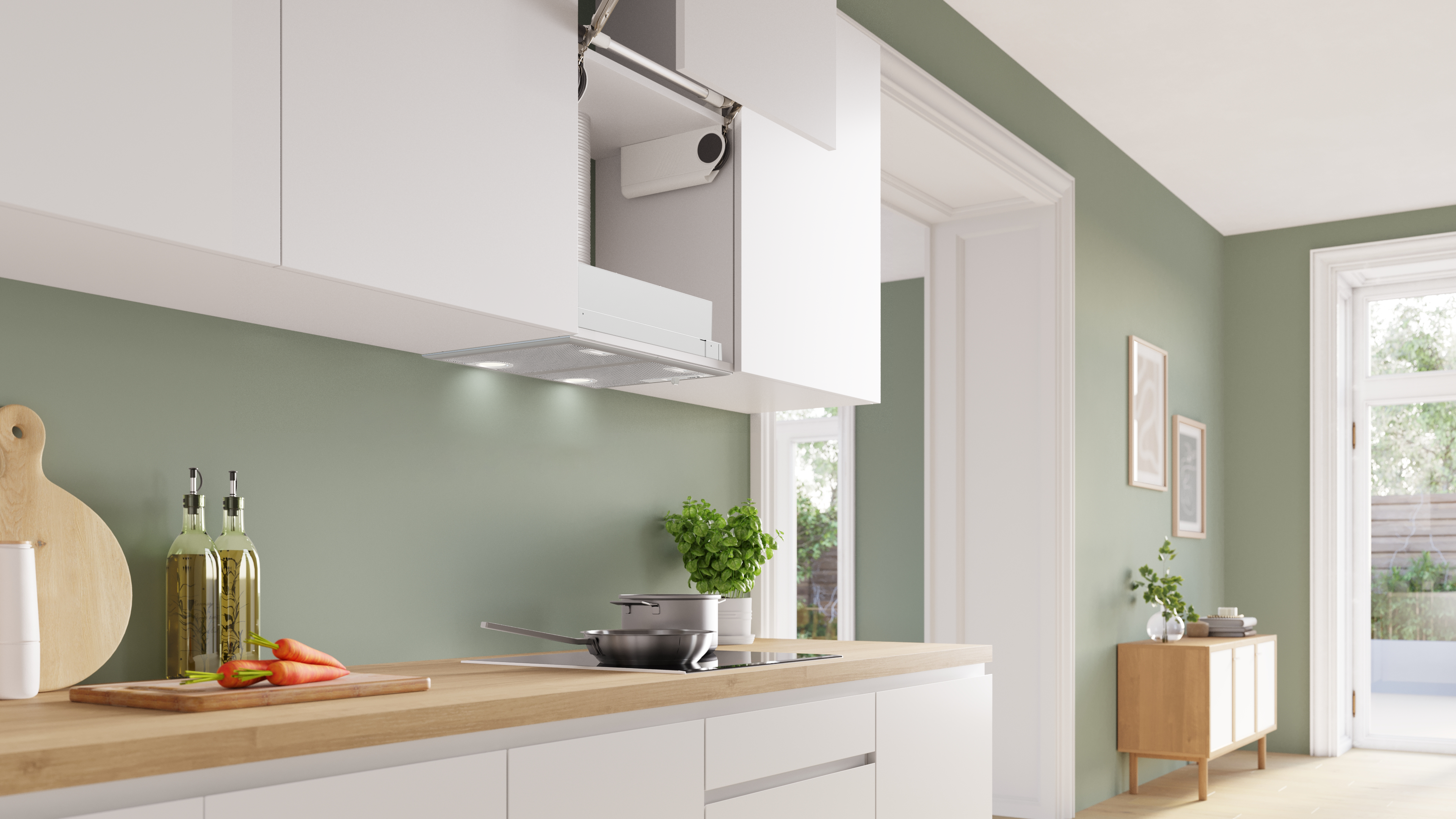

The DHL555BMAU is designed for installation into overhead cabinetry and is intended to remain largely concealed from view once installed. The unit supports both external ducting and recirculating operation, making it suitable for kitchen layouts where direct ducting may not be practical.

The intensive extraction setting is designed to handle short periods of high cooking activity such as searing, stir-frying and boiling. After operation, the rangehood automatically returns to a lower speed level to optimise efficiency and noise performance.

Bosch metal grease filters are designed for repeated cleaning and long-term durability. Regular filter maintenance helps maintain extraction performance and prolongs the life of the ventilation system.

Included Products / Accessories:

• 2 x Aluminium grease filters
• Power cord and plug
• Installation hardware
• Installation instructions
• User manual

Warranty:

Backed by a 2-year Bosch manufacturer's warranty for domestic use when installed and operated in accordance with Bosch guidelines.

Downloads / Product Files:

• SPECIFICATIONS SHEET (PDF)

• USER MANUAL & INSTALLATION INSTRUCTIONS (PDF)
