• EcoSilence Drive motor: Brushless motor technology engineered for efficient extraction, reduced energy consumption and quieter operation.
• Slideout extraction system: Extends during operation and retracts neatly into cabinetry when not in use.
• 3 extraction speeds plus Intensive mode: Adjustable ventilation performance to suit varying cooking requirements.
• Intensive extraction function: Provides maximum extraction performance of up to 729m³/h for demanding cooking situations.
• Automatic intensive reset: Intensive mode automatically returns to normal operation after approximately 6 minutes.
• Automatic run-on function: Continues operation for 10 minutes after cooking to help remove lingering steam and odours.

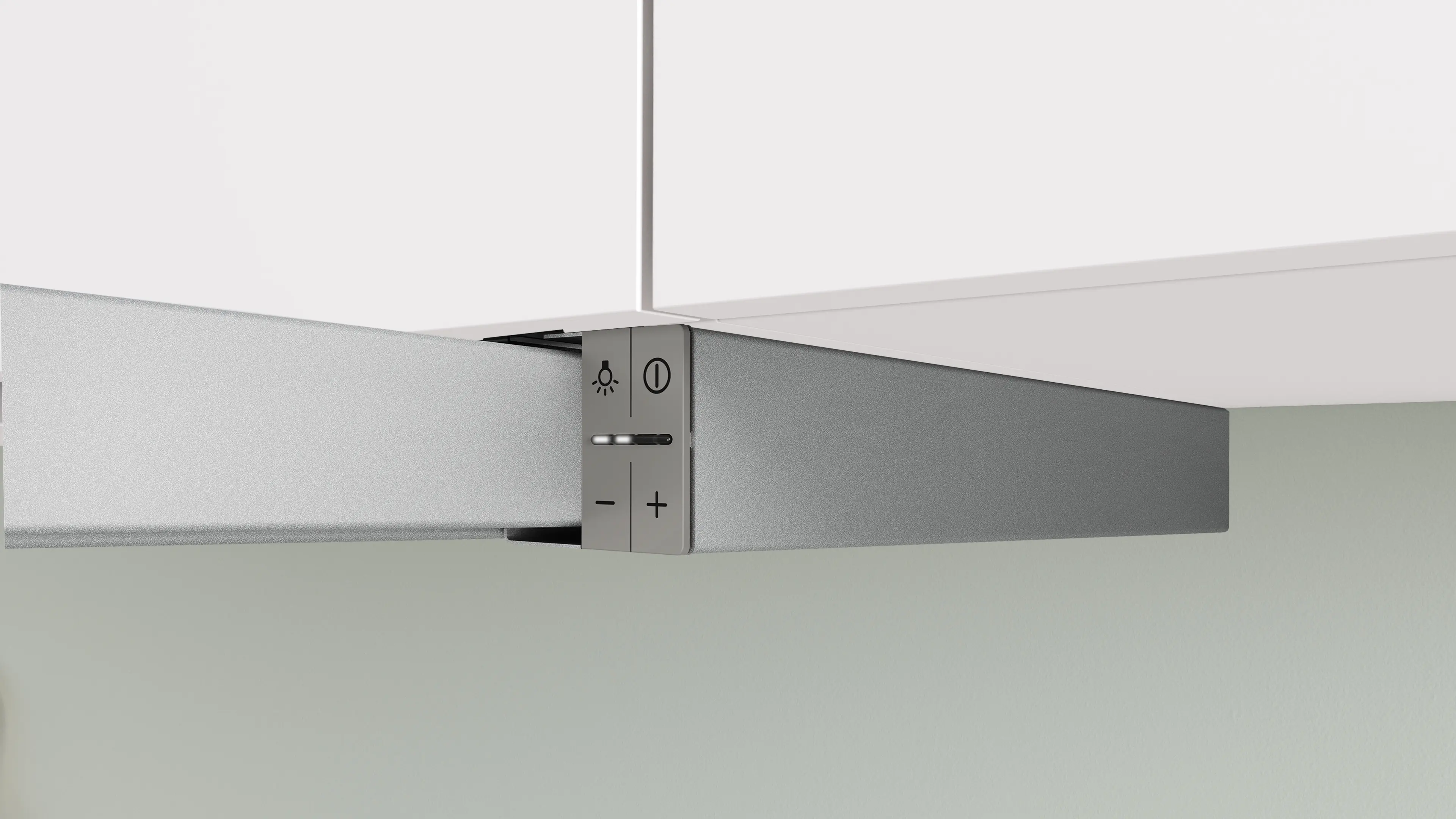

• Electronic push-button controls: Simple operation with integrated LED indicators.

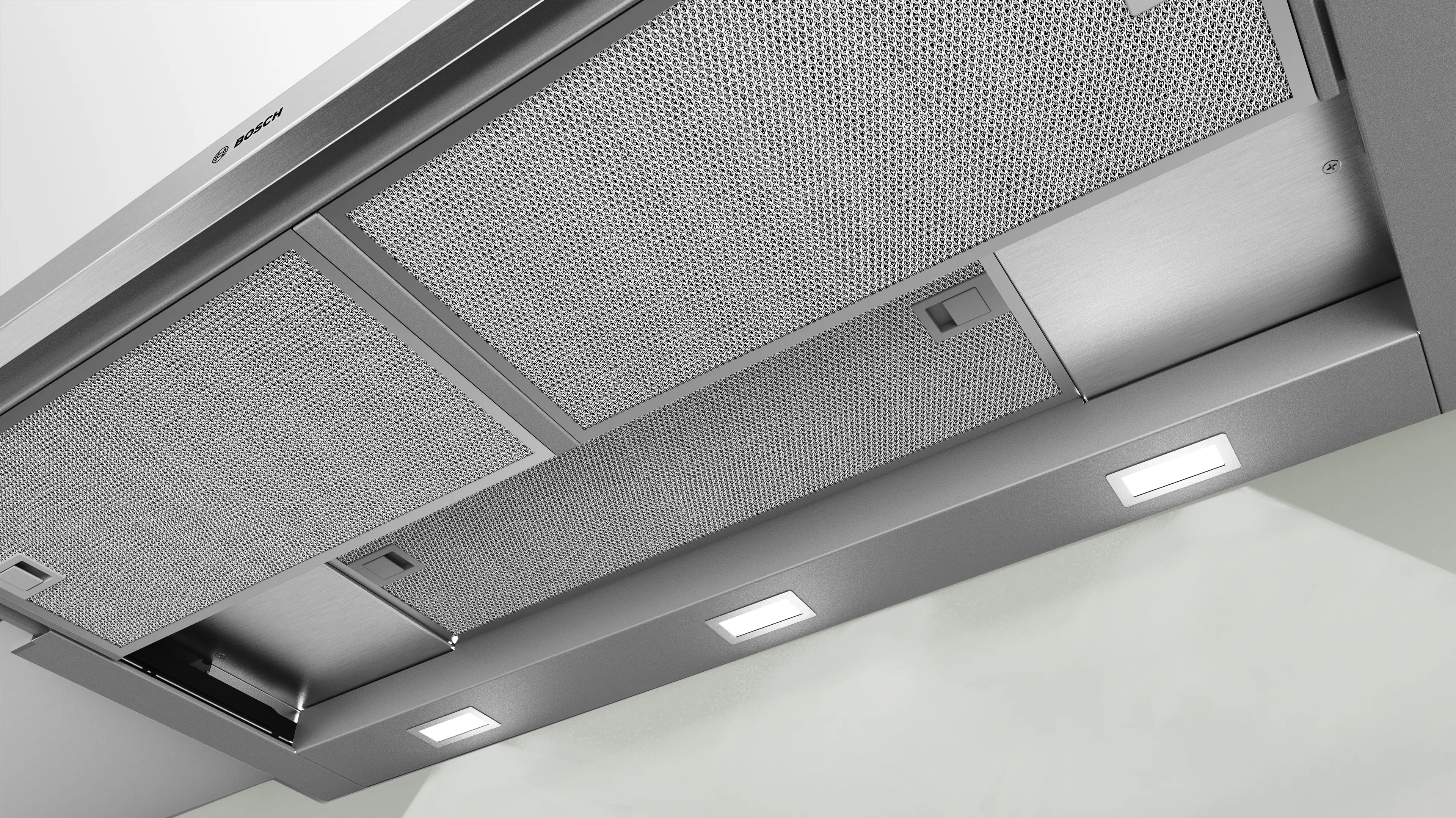

• Triple LED lighting: Bright, energy-efficient illumination across the cooktop surface.

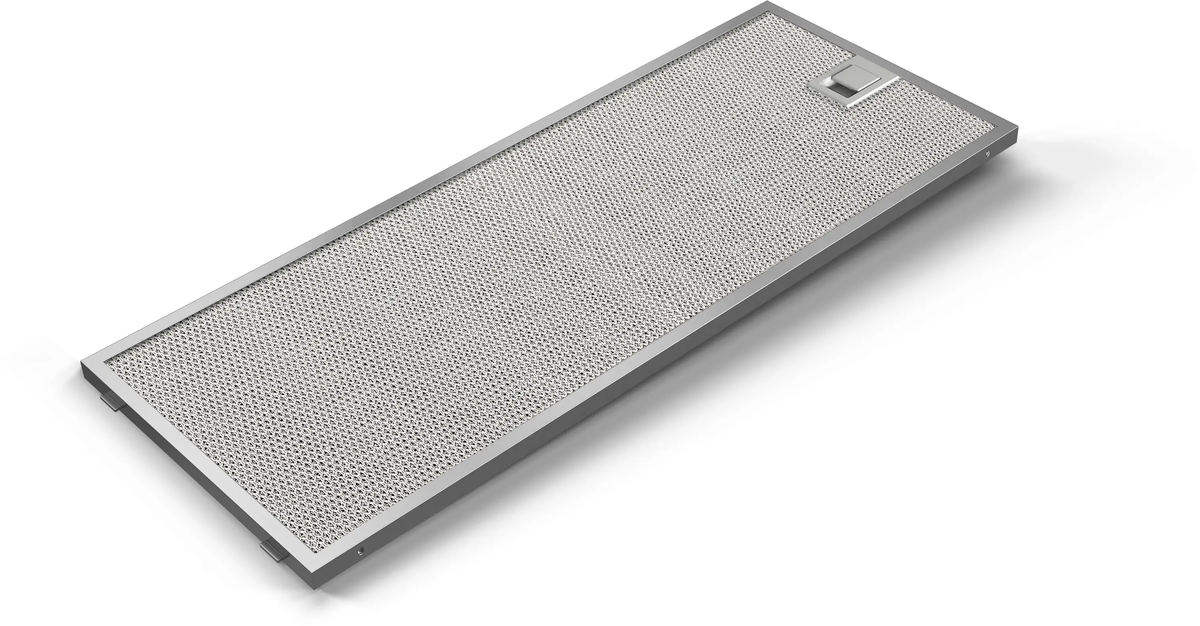

• Dishwasher-safe metal grease filters: Designed for straightforward cleaning and long-term performance.
• Dual installation capability: Suitable for both ducted extraction and recirculation configurations.

• Fan Speed 1: Low extraction setting for light cooking, simmering and minimal odour removal.
• Fan Speed 2: Medium extraction setting for everyday cooking and moderate steam removal.
• Fan Speed 3: High extraction setting for increased cooking vapours and stronger odours.
• Intensive Mode: Maximum extraction performance of up to 729m³/h for high-heat cooking and heavy vapour generation.
• Automatic Intensive Reset: Returns from Intensive Mode to normal operation after approximately 6 minutes.
• Automatic Run-On Function: Continues ventilation for 10 minutes after cooking to help clear residual moisture and odours.
• LED Lighting Function: Independently operates the integrated cooktop lighting when required.

• Product series: Series 4
• Product type: Slideout rangehood
• Extraction type: Ducted or recirculating
• Motor technology: EcoSilence Drive
• Number of motors: 2
• Fan speeds: 3 + Intensive
• Maximum extraction rate (EN61591): 397m³/h
• Maximum intensive extraction rate: 729m³/h
• Minimum noise level: 41dB(A)
• Maximum noise level: 53dB(A)
• Intensive noise level: 69dB(A)
• Control type: Electronic push-button controls
• Display type: LED indicators
• Number of lights: 3
• Lighting type: LED
• Illumination intensity: 355 lux
• Colour temperature: 3500K
• Grease filter material: Stainless steel
• Grease filter efficiency: >85%

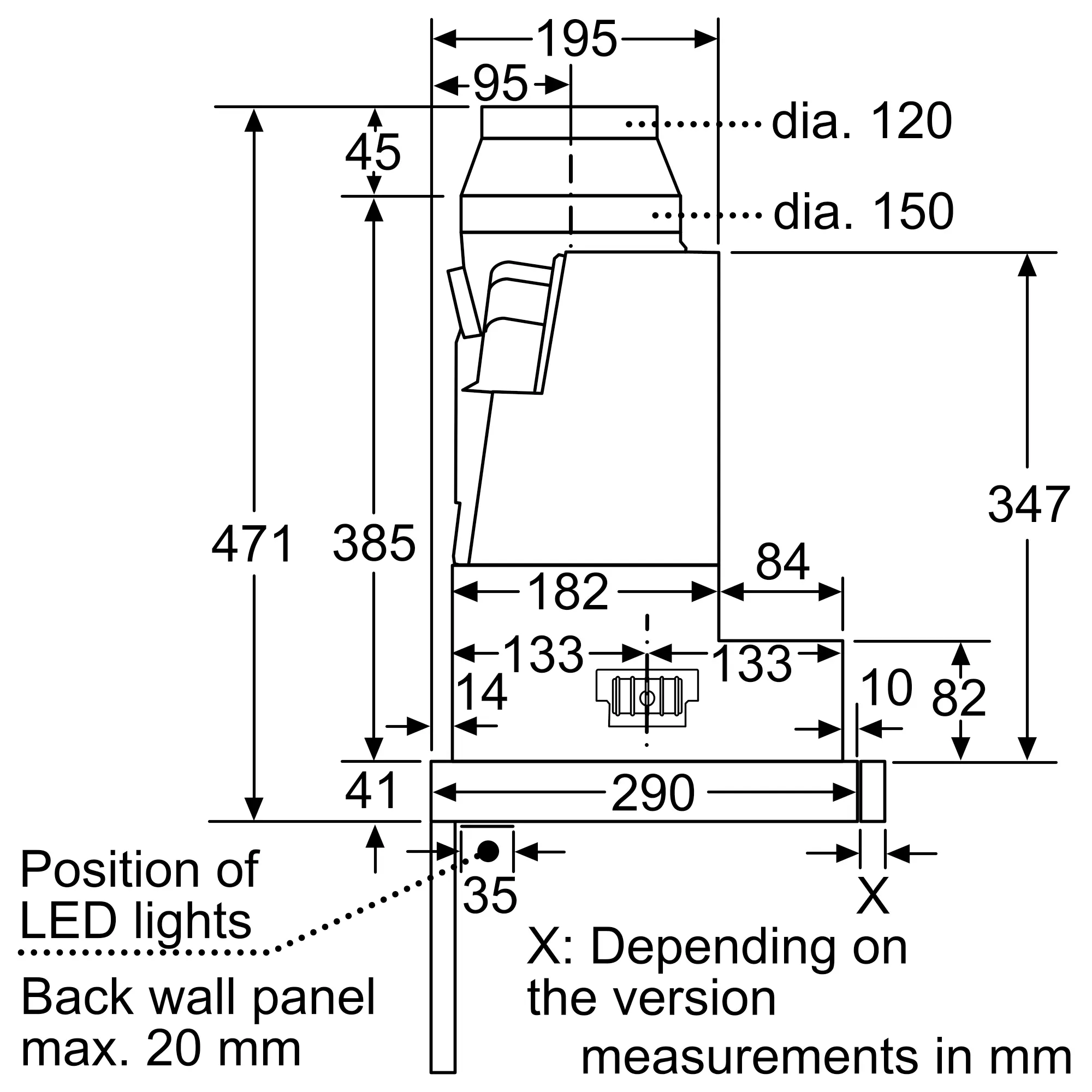

• Air outlet diameter: 120mm / 150mm
• Connection rating: 146W
• Voltage: 220–240V
• Frequency: 50Hz
• Power cord length: 175cm
• Plug type: Australian standard plug

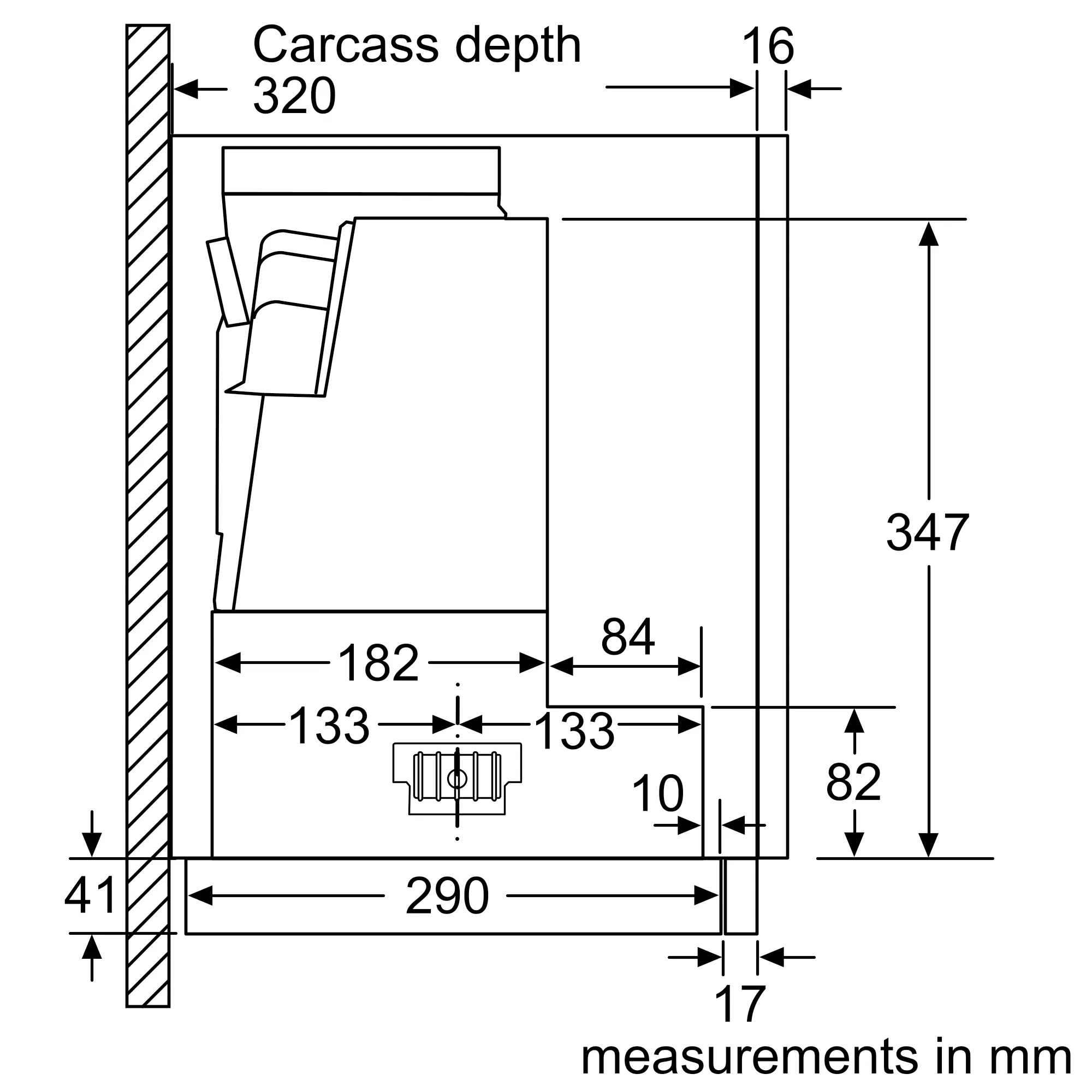

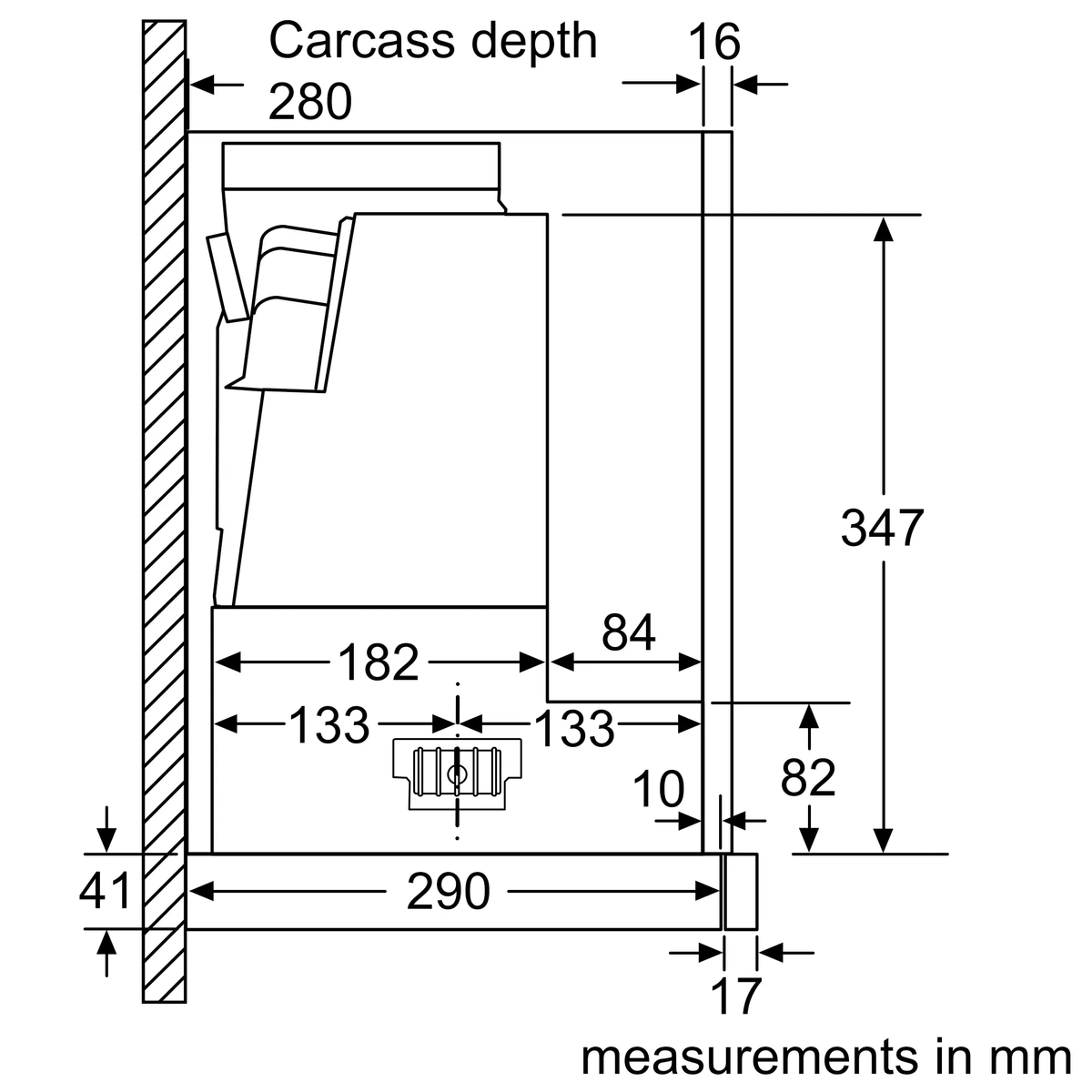

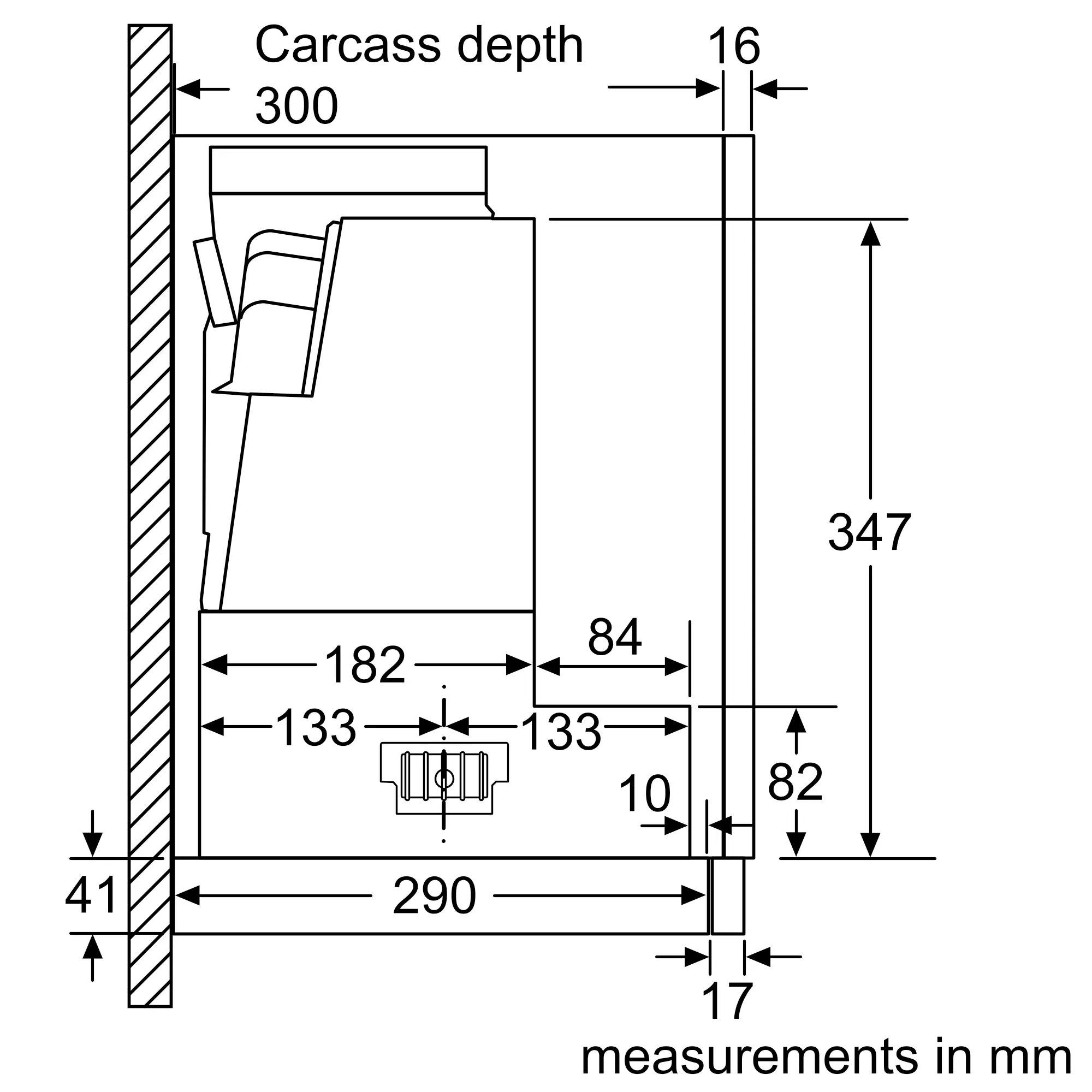

• Installation type: Built-in slideout installation
• Operating modes: Ducted extraction or recirculation
• Duct outlet size: 120mm or 150mm diameter
• Electrical connection: Standard Australian plug connection
• Minimum distance above electric cooktop: 600 mm
• Minimum distance above gas cooktop: 650 mm

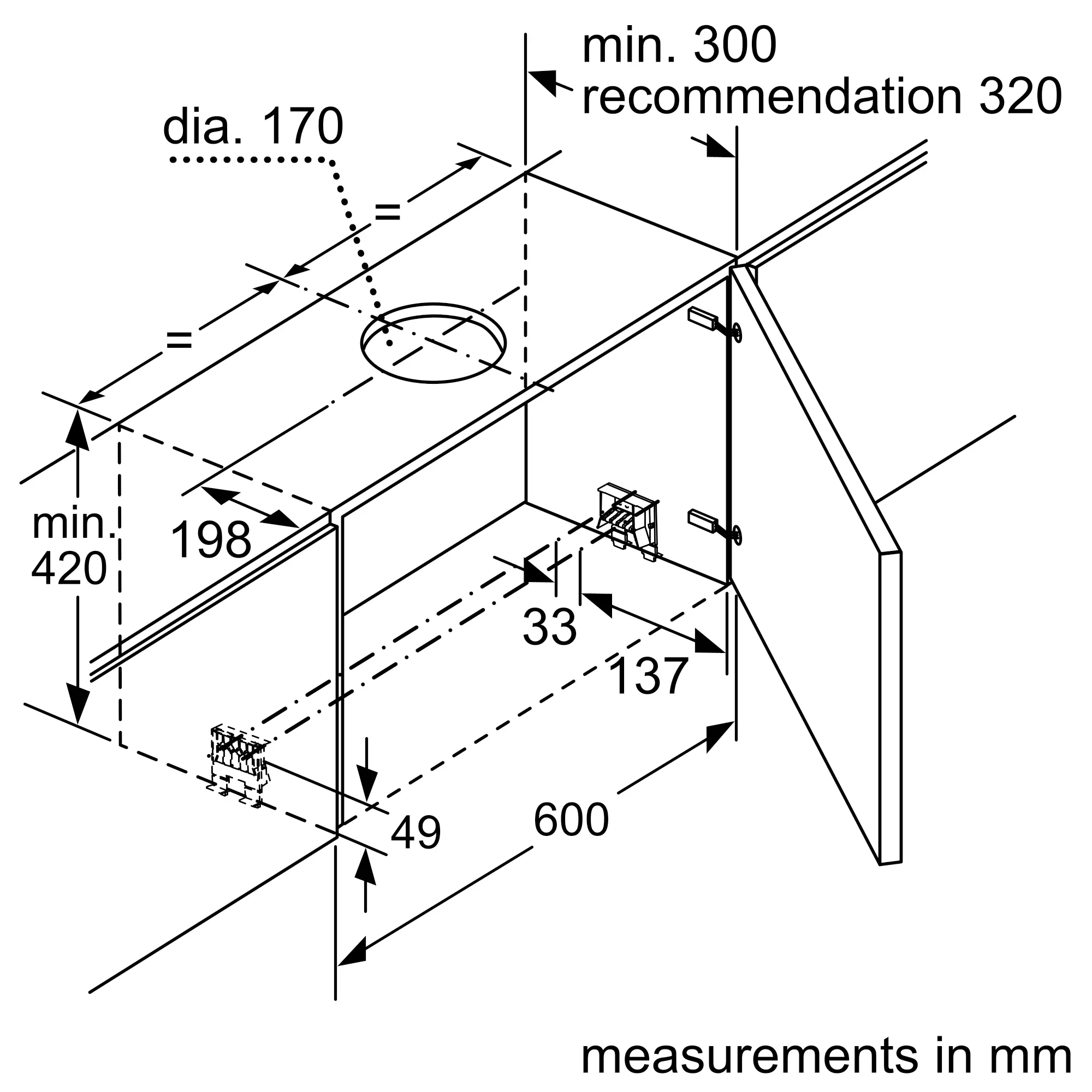

• Suitable cabinet width: 60cm cabinet installation standard

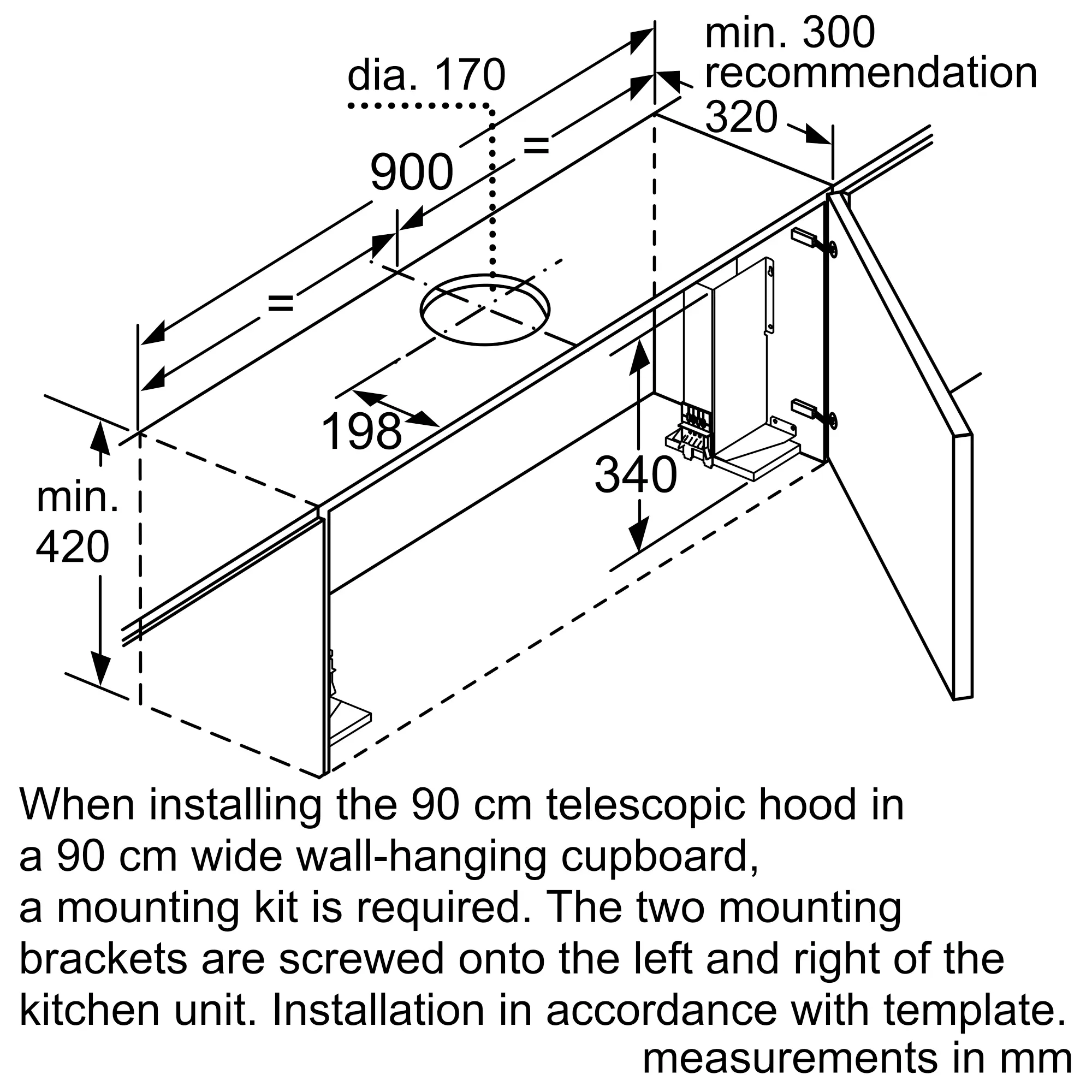

• 90cm cabinet installation: Requires optional installation kit DSZ4920
• Professional installation: Recommended in accordance with manufacturer instructions

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The DFS097A51A incorporates Bosch's EcoSilence Drive motor system, developed to deliver strong extraction performance while reducing operating noise and energy consumption compared with conventional motor designs.

For kitchens where external ducting is not practical, the rangehood can be configured for recirculating operation using Bosch's compatible Clean Air Plus recirculation accessories. The optional Clean Air Plus filtration system assists with odour reduction and air purification during recirculating use.

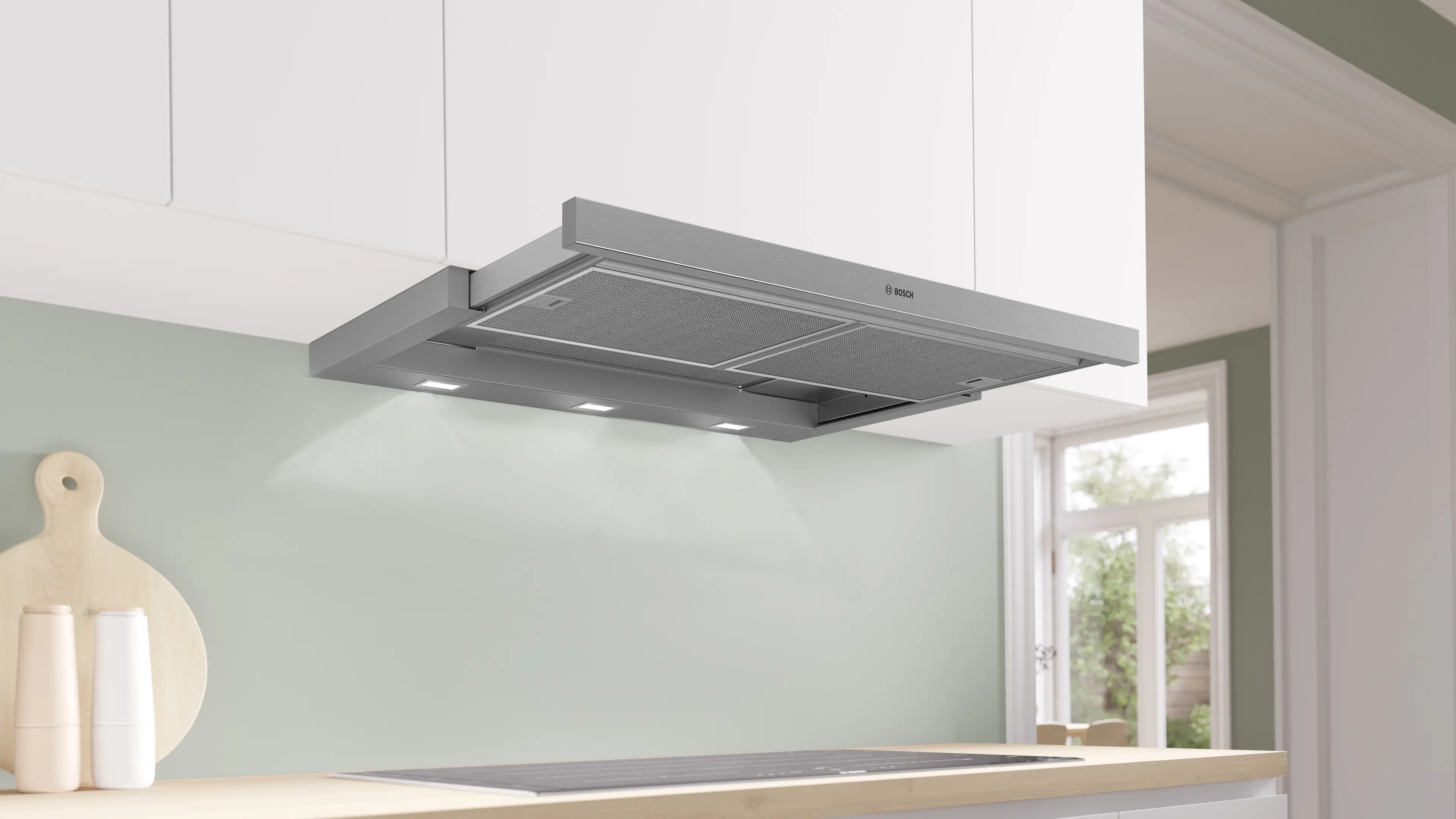

The integrated LED lighting system provides 355 lux illumination with a warm 3500K colour temperature, helping improve visibility across the cooking surface while maintaining low energy consumption.

• Metal grease filters
• Stainless steel filter covers
• 150mm duct connection components
• Power cord with Australian plug
• Installation documentation
