Product Description

Product Overview:

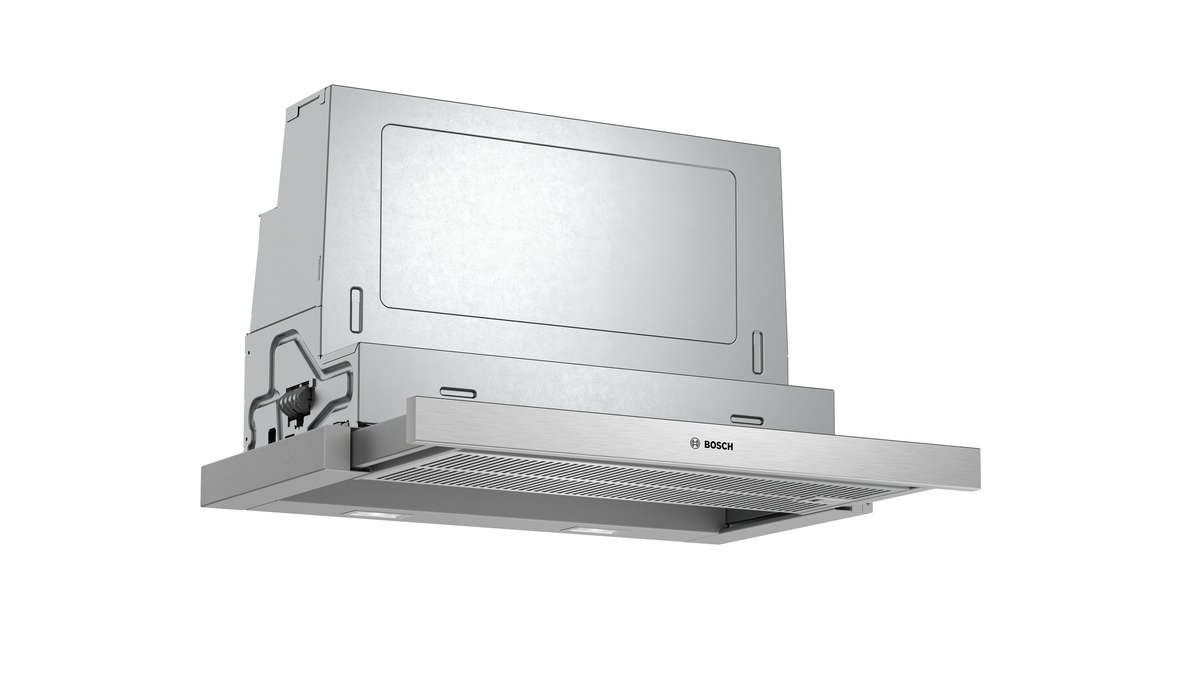

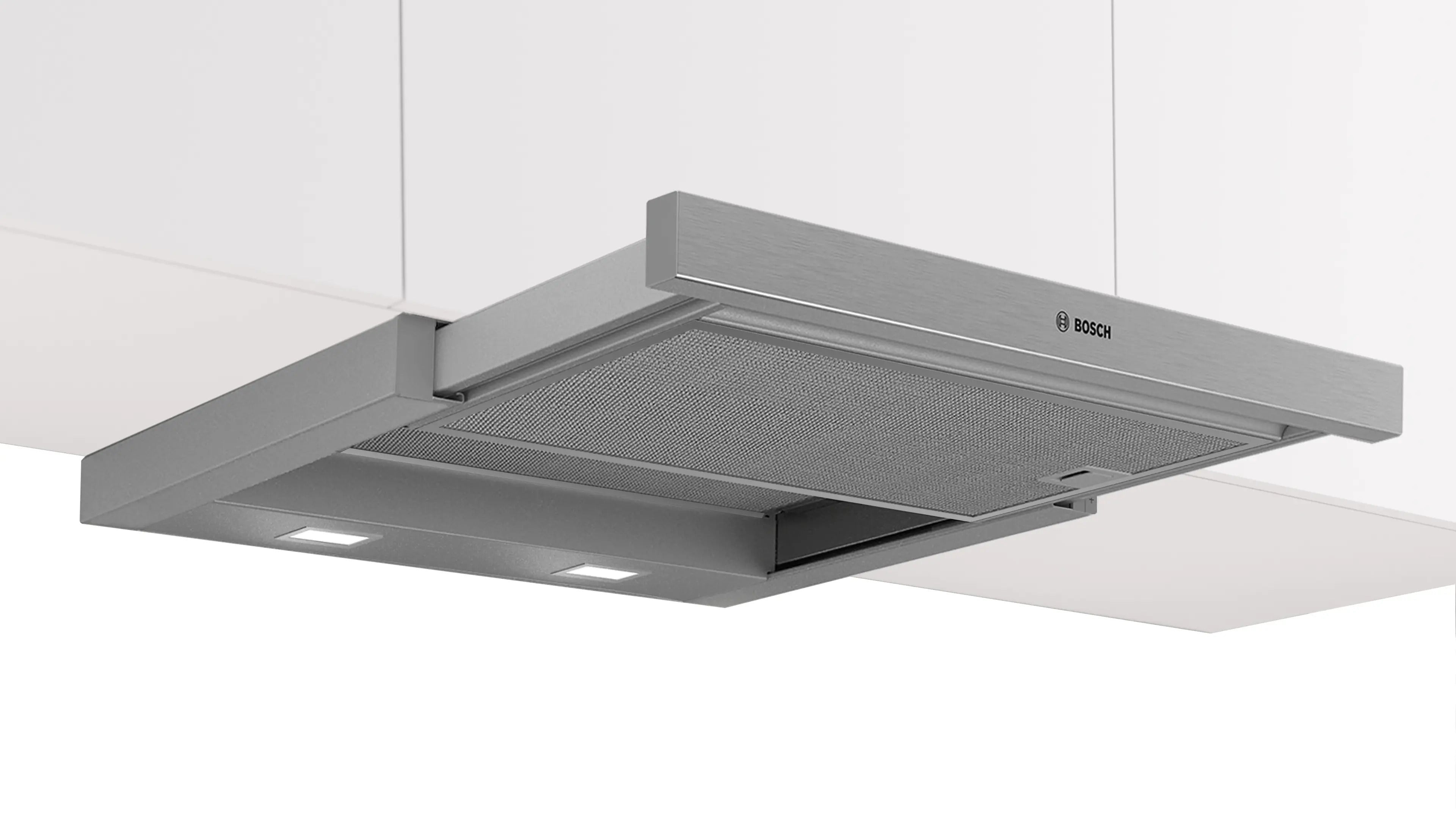

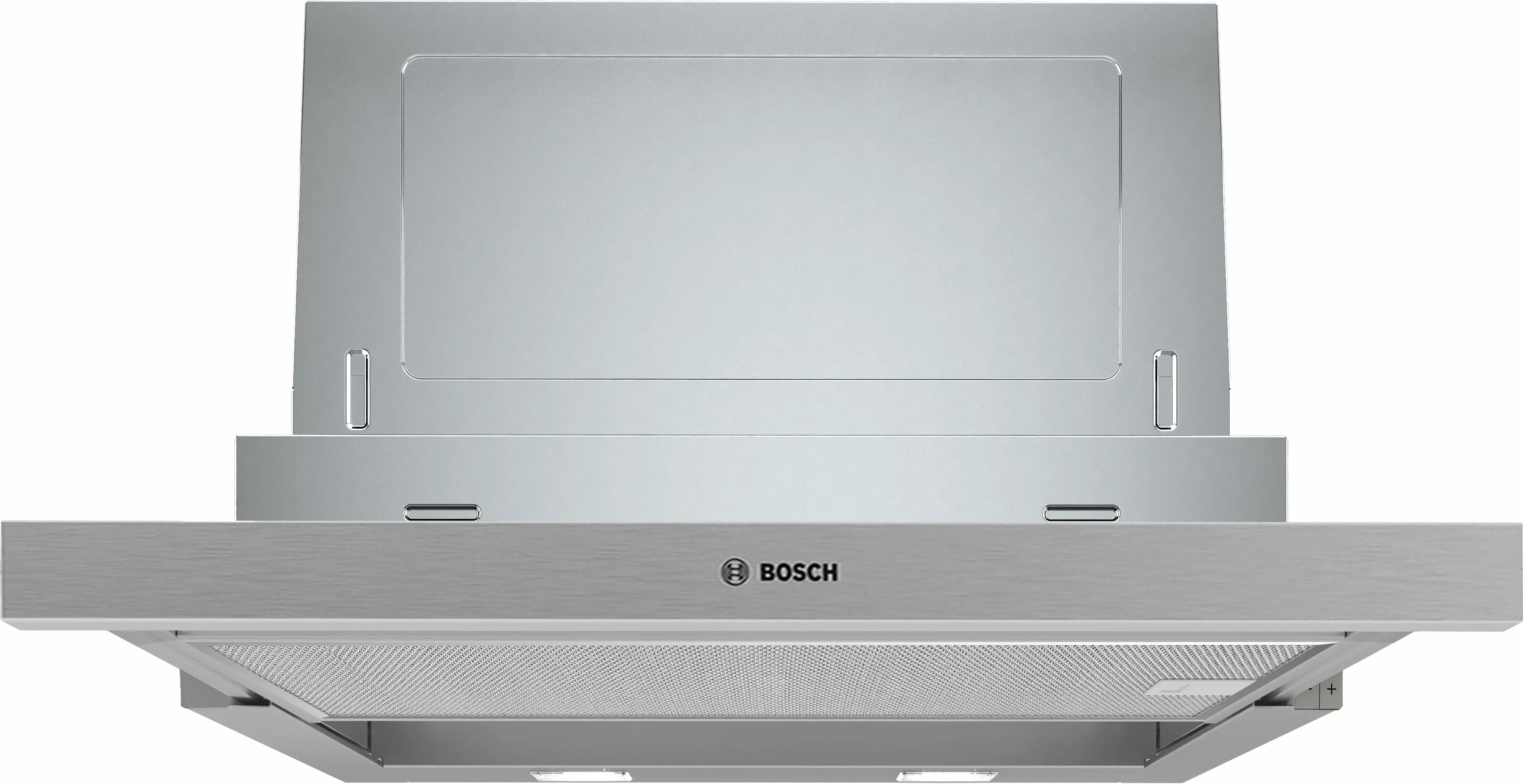

The Bosch DFS067A51A is a 60cm integrated slideout rangehood from the Bosch Series 4 collection, finished in metallic silver and designed for installation within overhead cabinetry. The concealed slideout design allows the rangehood to remain discreet when not in use while providing effective extraction performance when extended during cooking.

Powered by Bosch EcoSilence Drive™ motor technology, the DFS067A51A combines strong airflow performance with low energy consumption and reduced operating noise. Featuring three extraction speeds plus an intensive setting, LED cooktop lighting, and dishwasher-safe metal grease filters, it is suited to everyday cooking environments requiring efficient ventilation without compromising kitchen aesthetics.

Product Features:

• EcoSilence Drive™ motor: Brushless motor technology engineered for efficient extraction performance, lower energy consumption, and quieter operation.

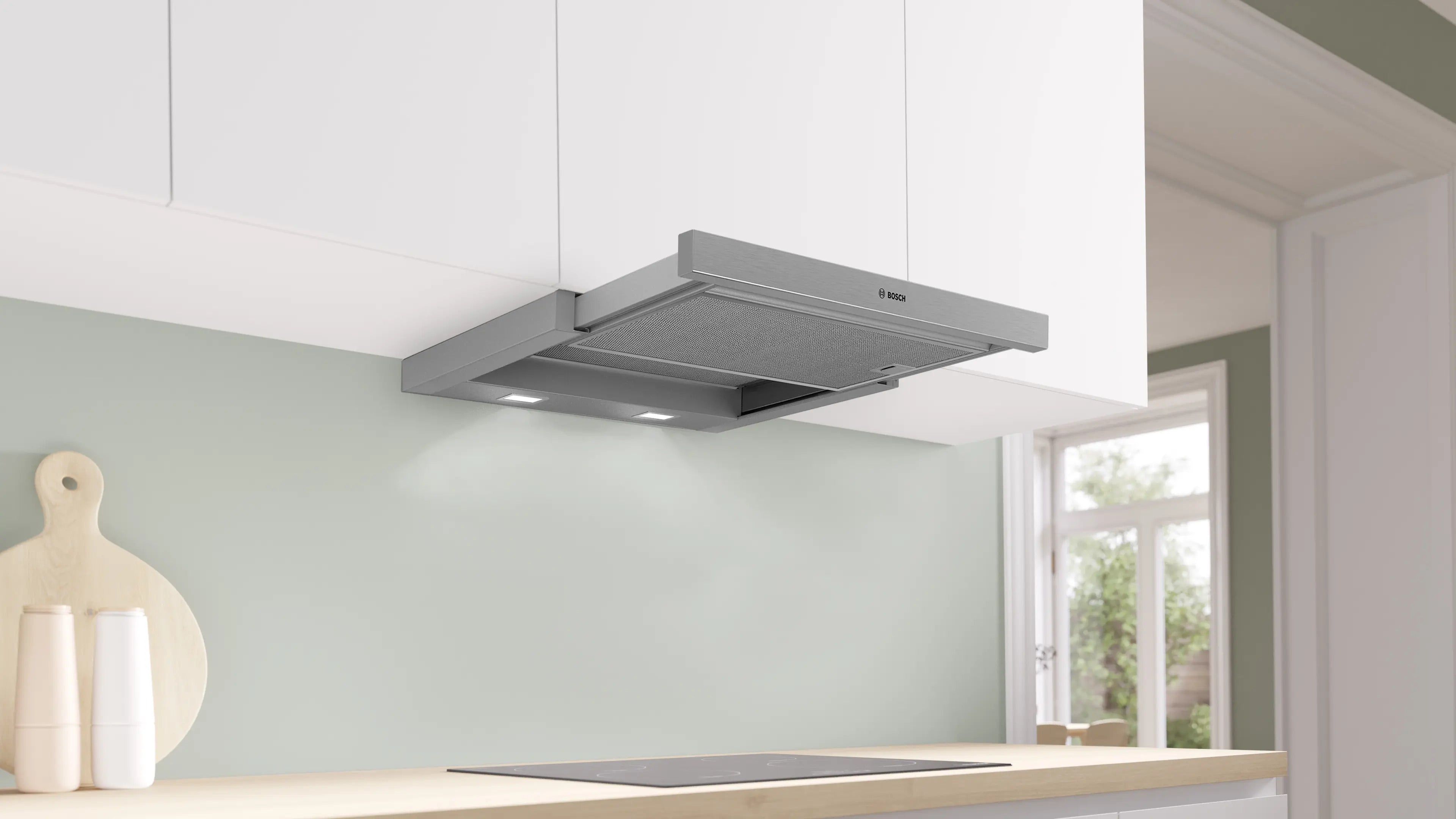

• Integrated slideout design: Installs within overhead cabinetry for a clean, concealed appearance.
• 3 extraction speeds: Adjustable ventilation levels to suit varying cooking requirements.
• Intensive extraction mode: Provides maximum airflow for high-volume steam, smoke, and cooking odours.
• Automatic intensive reset: Intensive mode automatically returns to normal operation after 6 minutes.
• Automatic run-on function: Continues extraction for 10 minutes after cooking to assist with odour removal.
• Dual fan system: High-performance blower design delivers consistent airflow.
• LED cooktop lighting: Integrated lighting improves visibility across the cooking surface.

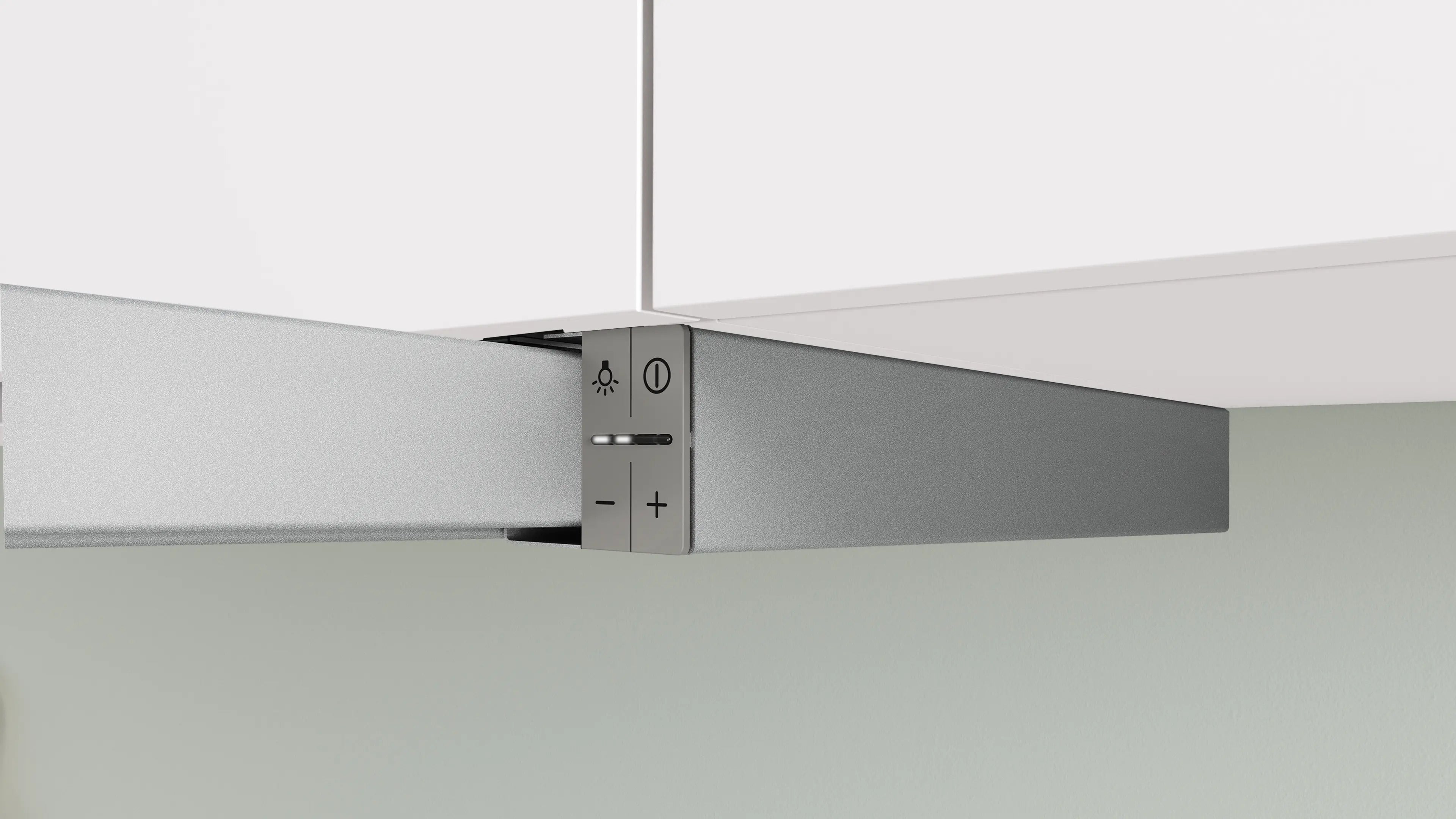

• Electronic push-button controls: Simple operation with illuminated control display.
• Dishwasher-safe grease filters: Metal filters can be removed and cleaned in a dishwasher.
• Ducted or recirculated operation: Flexible installation options depending on kitchen requirements.
• Low operating noise: Designed to maintain a comfortable kitchen environment during operation.

Colour / Finishes:

• Metallic Silver — DFS067A51A

Programmes / Functions:

• Speed 1: Low extraction setting for light cooking and minimal steam.
• Speed 2: Medium extraction setting for everyday cooking requirements.
• Speed 3: High extraction setting for increased smoke, steam, and odour removal.
• Intensive Mode: Maximum extraction performance for heavy cooking, automatically reverting after 6 minutes.
• Automatic Run-On Function: Continues extraction for 10 minutes after cooking to assist with residual odour removal.
• LED Lighting: Illuminates the cooktop surface during food preparation and cooking.

Cleaning & Maintenance:

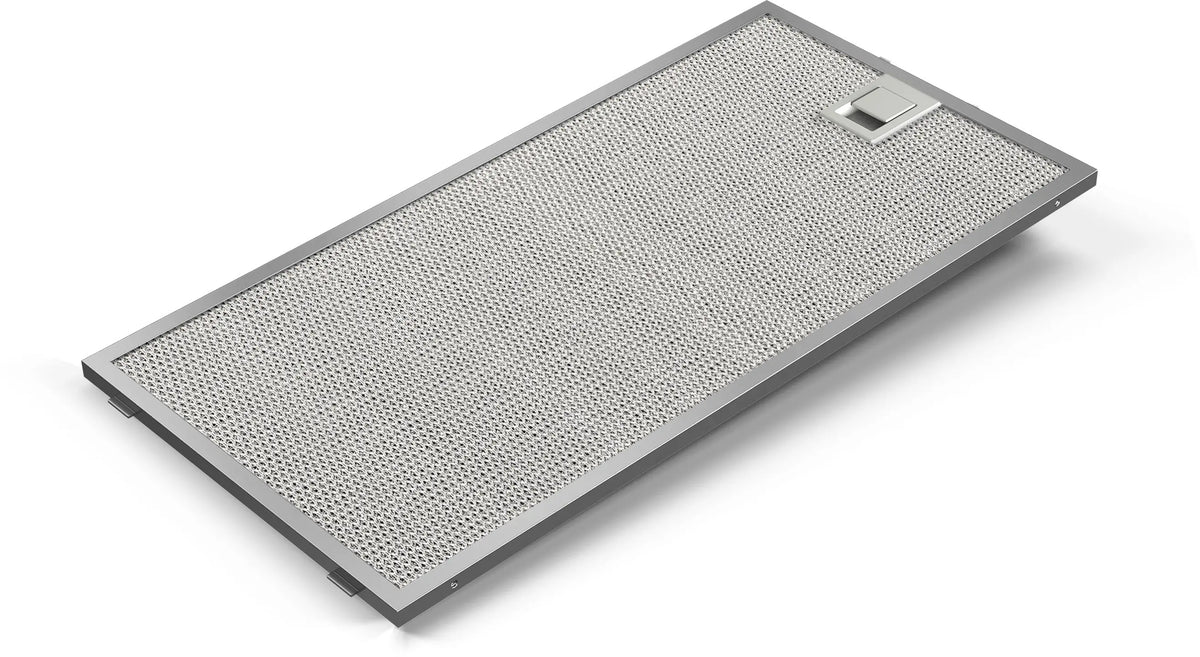

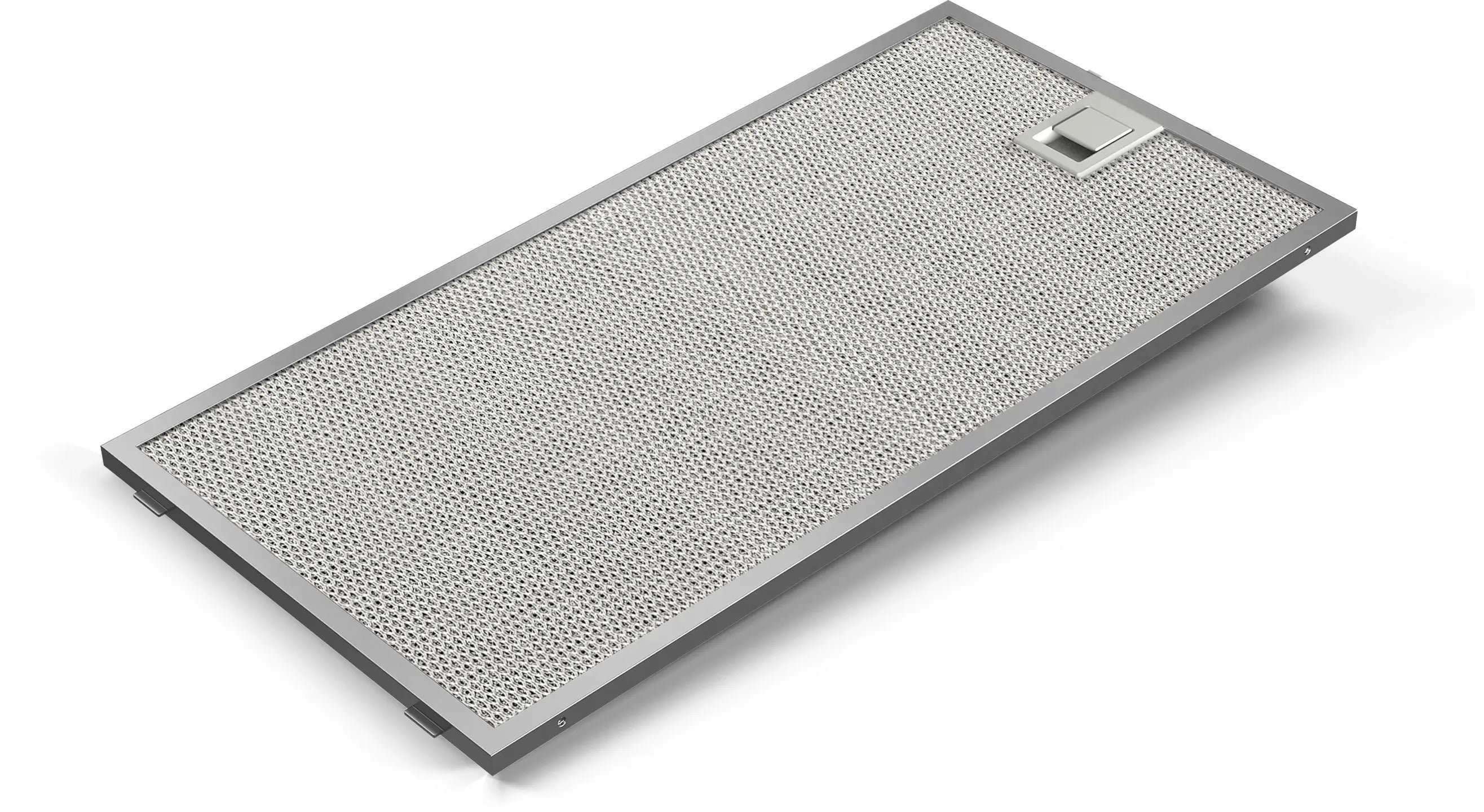

• Dishwasher-Safe Metal Grease Filters: Removable filters designed for regular dishwasher cleaning.
• Grease Filtration System: Captures airborne grease particles to help protect internal components.
• Stainless Steel Filter Covers: Durable filter covers designed for straightforward maintenance access.
• Filter Maintenance Indicator: Electronic reminder for filter cleaning requirements.

Specifications:

• Product series: Bosch Series 4
• Rangehood type: Integrated slideout rangehood
• Extraction type: Ducted or recirculated
• Motor type: EcoSilence Drive™ BLDC motor
• Fan speeds: 3 + Intensive
• Maximum extraction rate (EN61591): 399 m³/h
• Maximum intensive extraction rate: 728 m³/h
• Maximum recirculation rate: 358 m³/h
• Maximum intensive recirculation rate: 628 m³/h
• Noise level: 41–53 dB(A)
• Control type: Electronic push-button controls
• Display type: Electronic display
• Lighting type: LED
• Number of lights: 2
• LED power: 2 x 1.5 W
• Colour temperature: 3500 K
• Grease filter type: Metal grease filters
• Filter construction: Stainless steel
• Air outlet diameter: 150 mm
• Adaptor supplied: 120 mm adaptor included
• Annual energy consumption: 37.9 kWh/year
• Connected load: 144 W
• Energy efficiency class: A

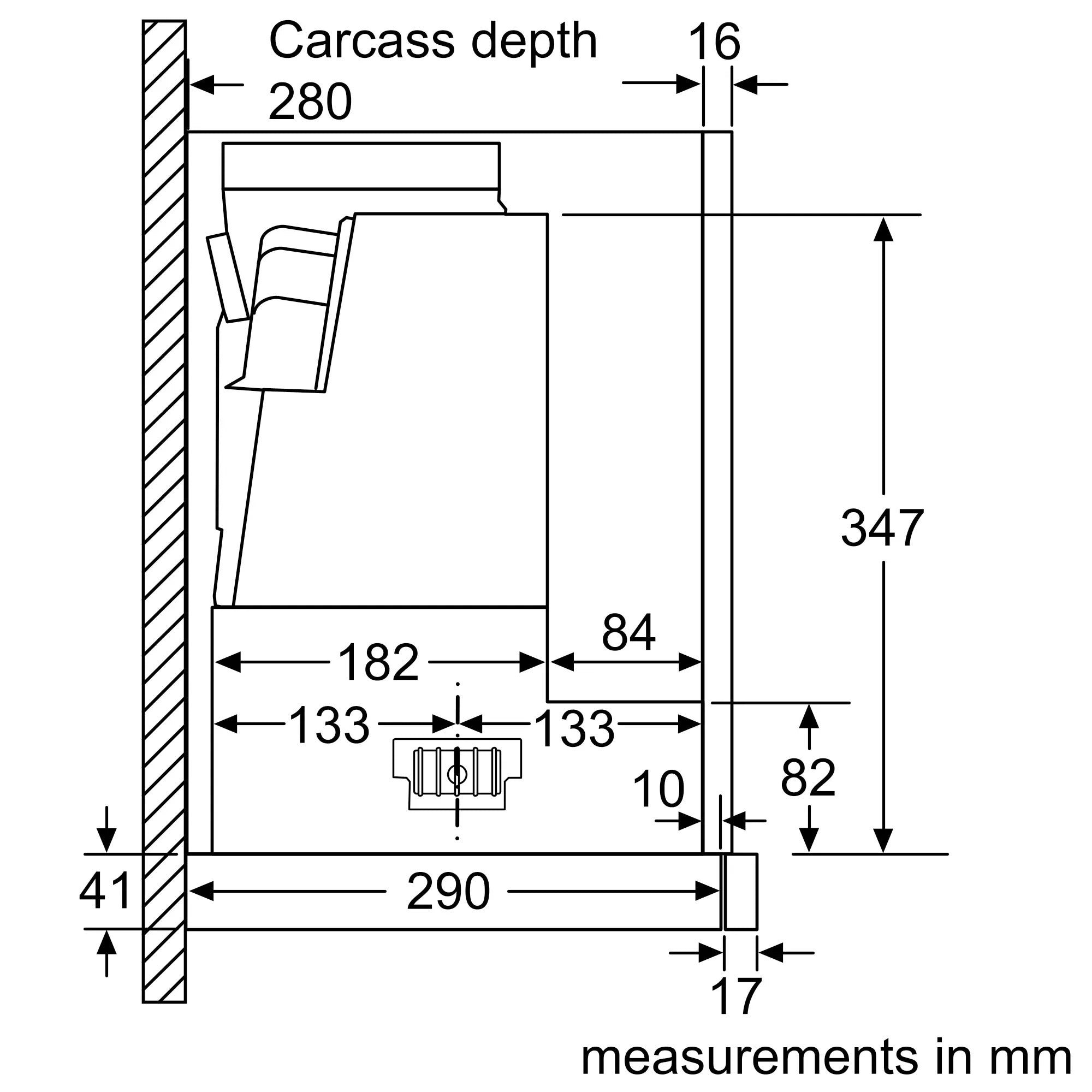

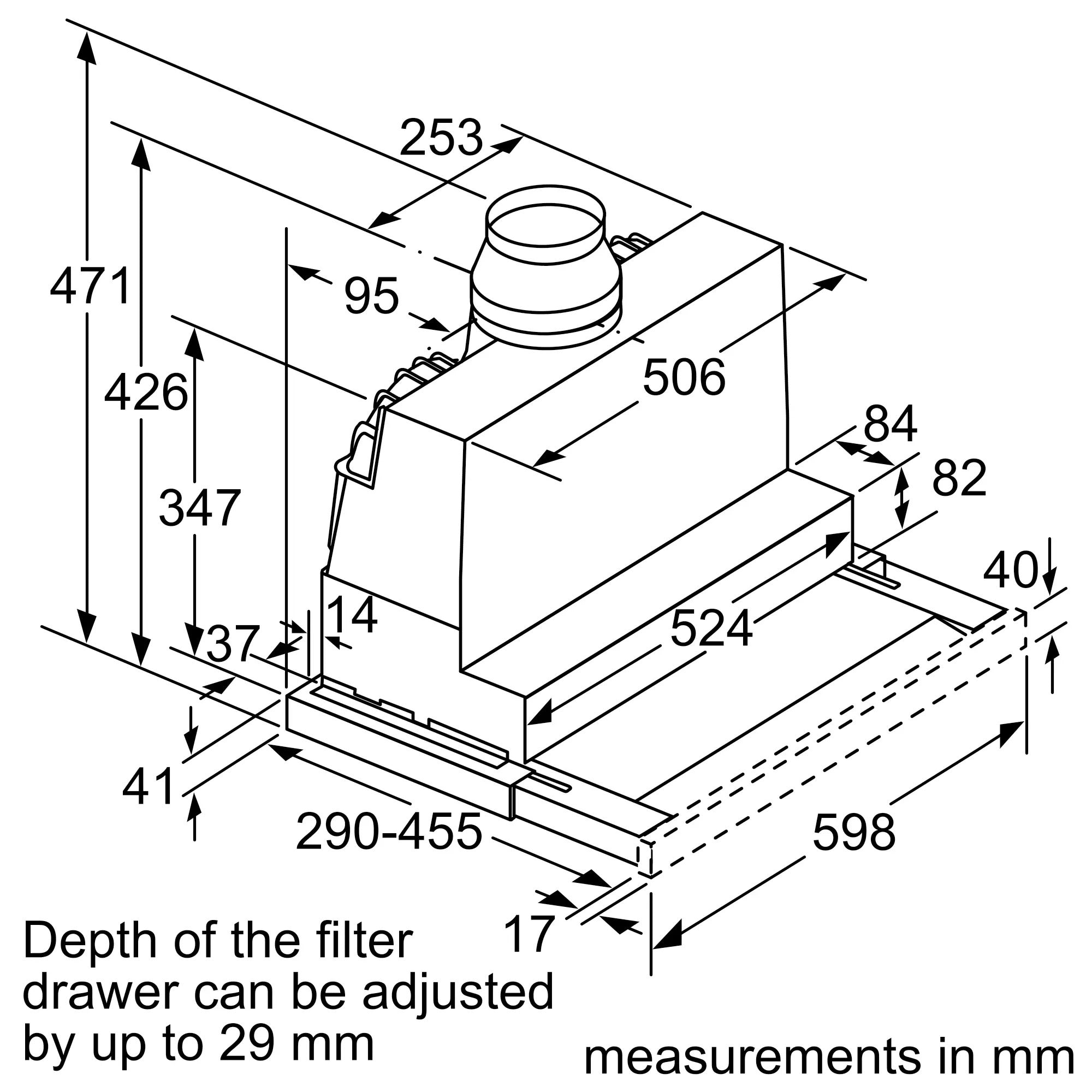

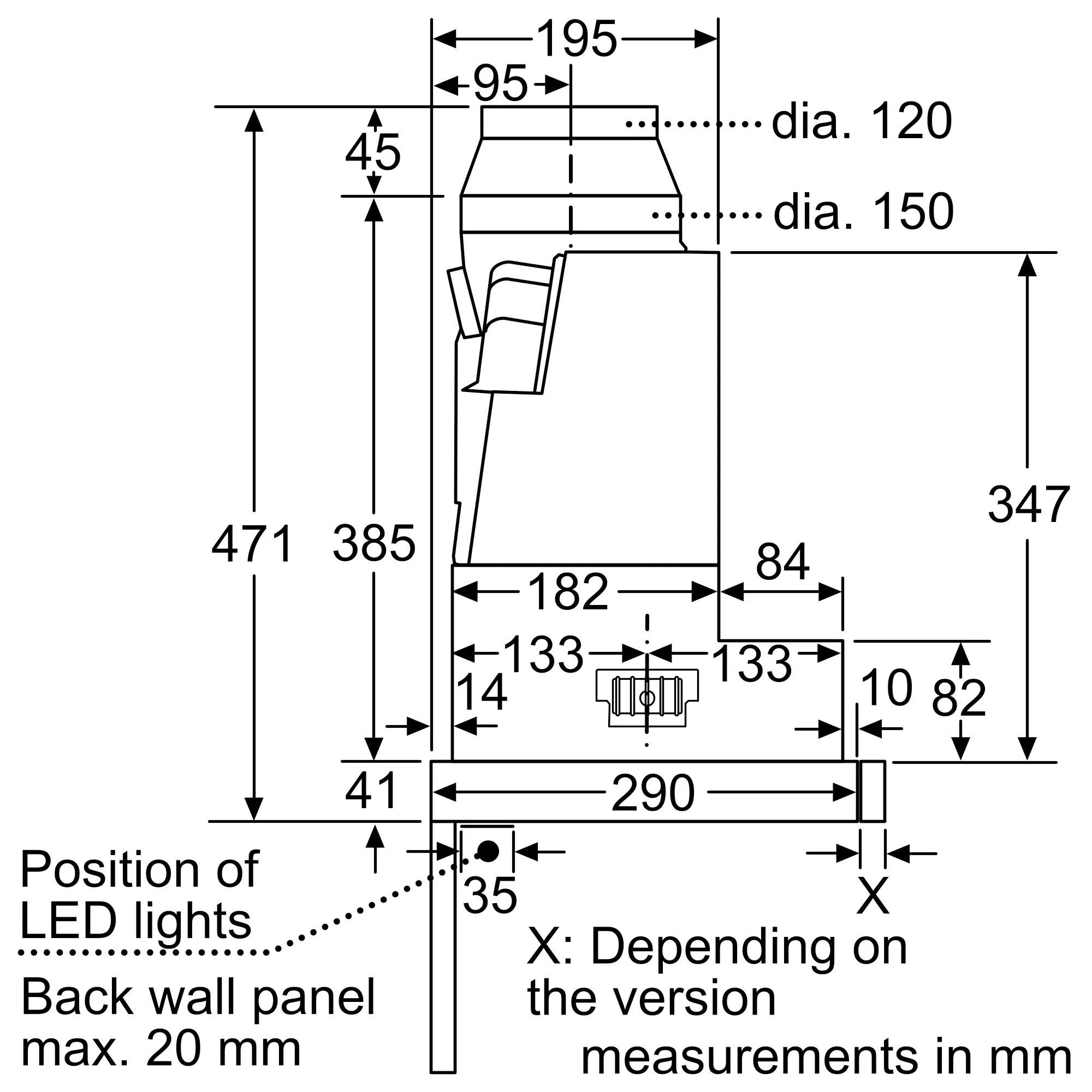

Product Measurements:

• Dimensions (W x H x D): 598 x 426 x 290 mm

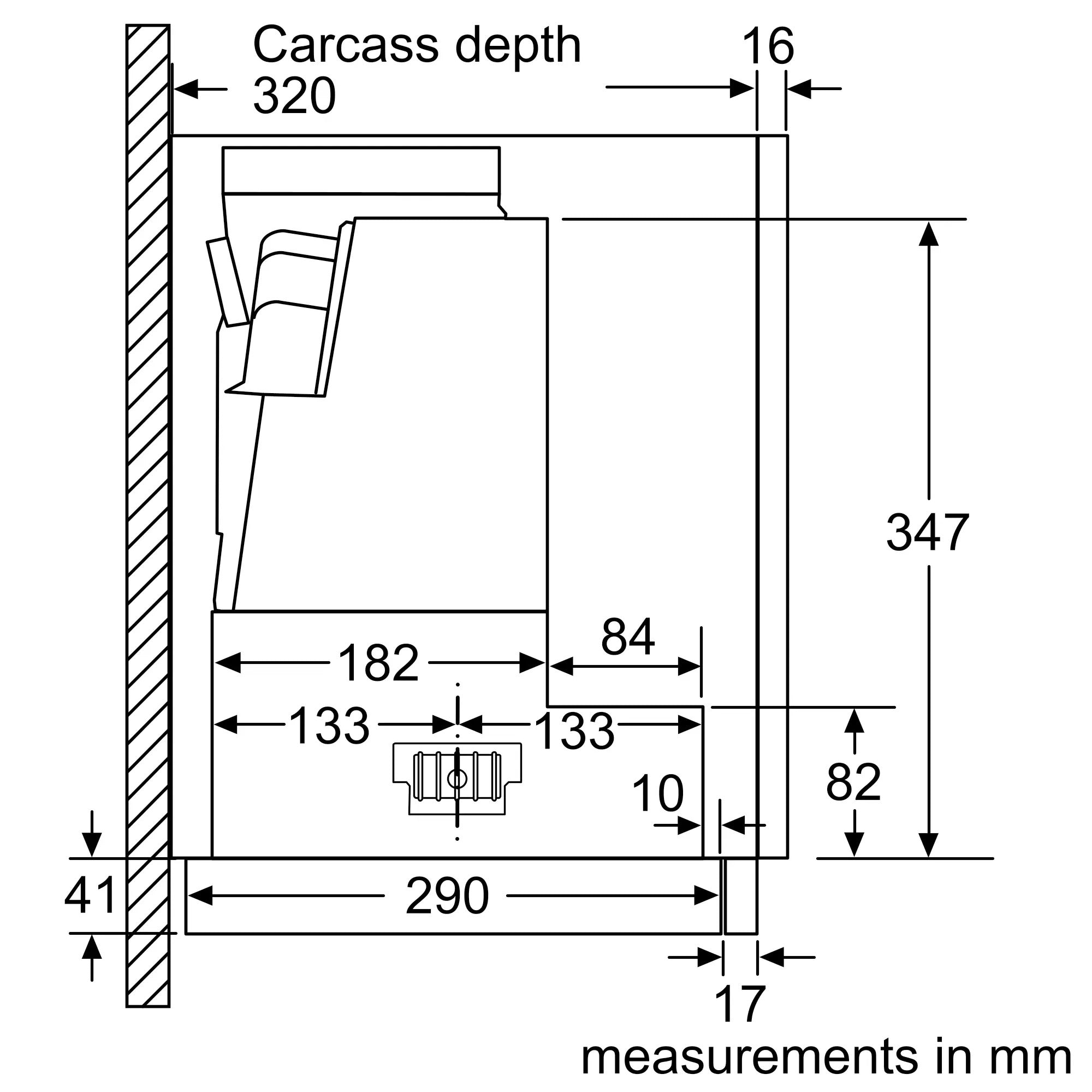

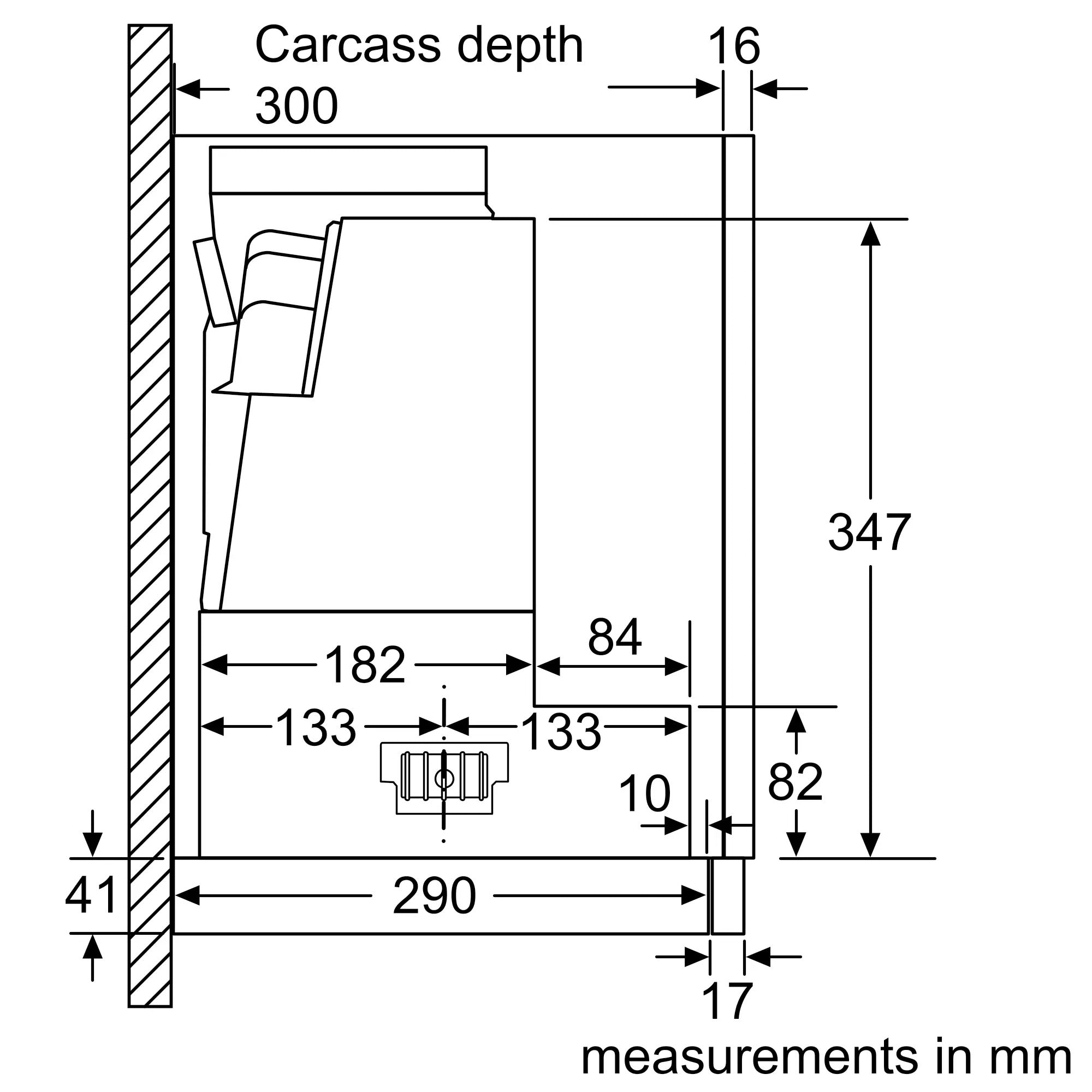

• Built-In Dimensions (W x H x D): 524 x 385 x 290 mm

Product Weight:

• Net Weight: 11.3 kg

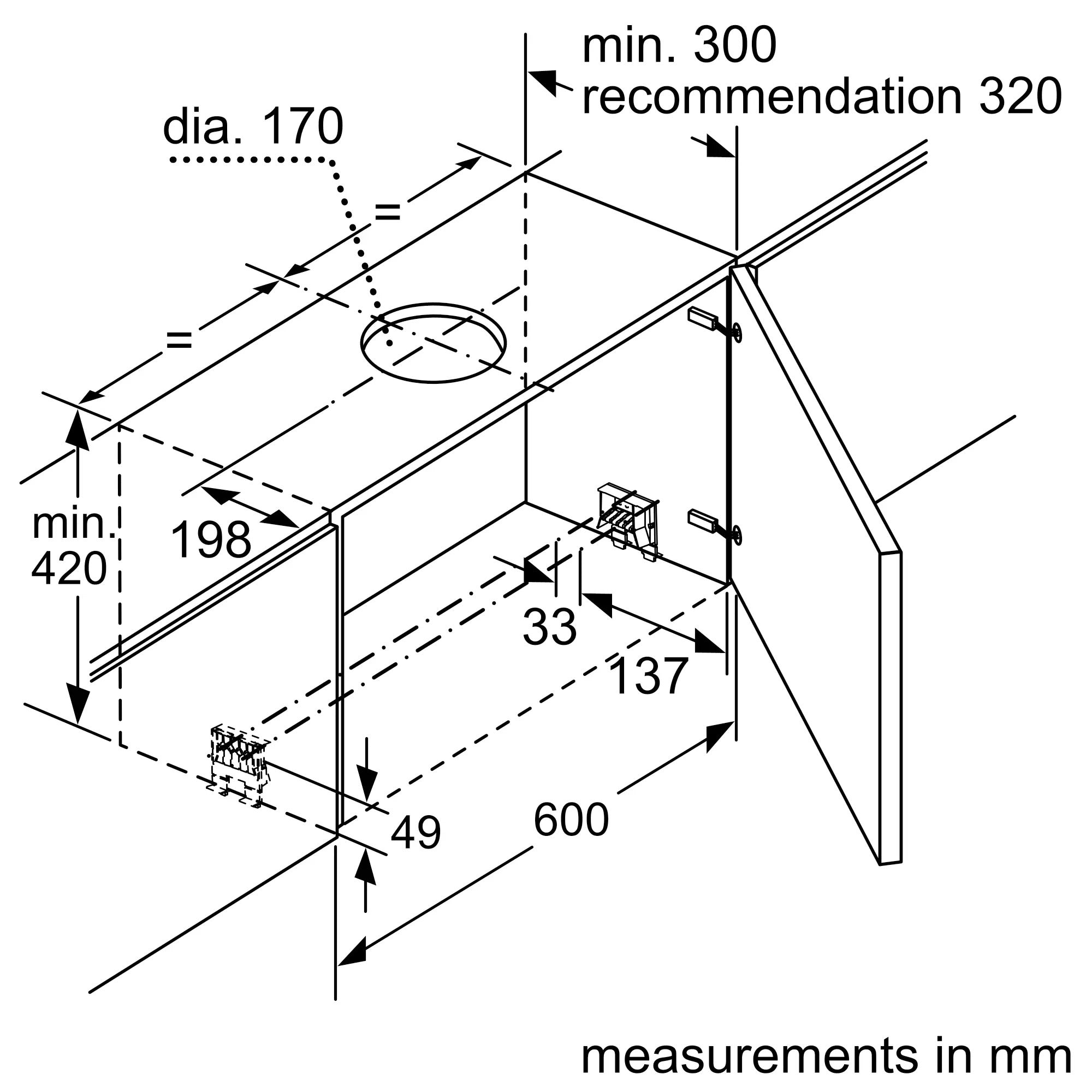

Installation & Requirements:

• Installation type: Integrated within overhead cabinetry
• Cabinet width compatibility: 60 cm
• Operating modes: Ducted or recirculated
• Air outlet size: 150 mm
• Adaptor included: 120 mm
• Power supply: 220–240 V
• Frequency: 50–60 Hz
• Connection type: Plug-in
• Fuse protection: 10 A
• Electrical cable length: 1.75 m
• Minimum clearance above electric cooktop: 600 mm
• Minimum clearance above gas cooktop: 650 mm

Country of Origin:

• Made in Germany

Extra Information:

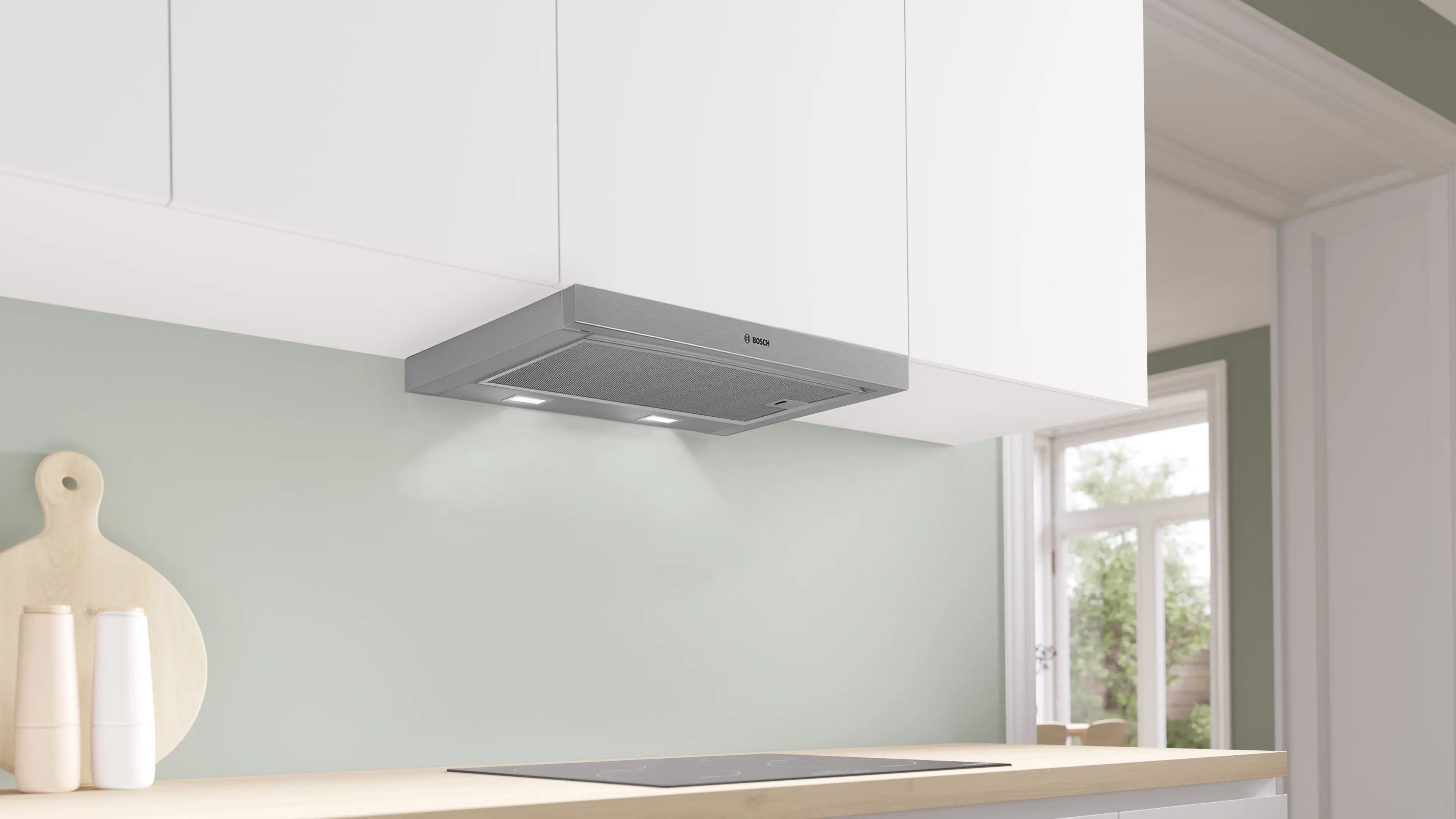

The DFS067A51A is designed to remain concealed within overhead cabinetry, helping maintain uninterrupted kitchen lines while still providing effective extraction performance when required.

Bosch EcoSilence Drive™ technology uses a brushless motor design that reduces friction and mechanical wear compared with conventional motor systems, contributing to quieter operation and improved energy efficiency.

For recirculated installation, compatible Bosch CleanAir recirculation accessories are required. Ducted installation provides the highest extraction performance and should be planned during kitchen design where possible.

Included Products / Accessories:

• 120 mm duct adaptor
• Metal grease filters
• Integrated LED lighting
• Installation hardware
• User documentation

Warranty:

Backed by a 2-year Bosch manufacturer's warranty for domestic use when installed and operated in accordance with Bosch instructions.

Downloads / Product Files:

• SPECIFICATIONS SHEET (PDF)

• USER MANUAL & INSTALLATION INSTRUCTIONS (PDF)
