Product Description

Product Overview:

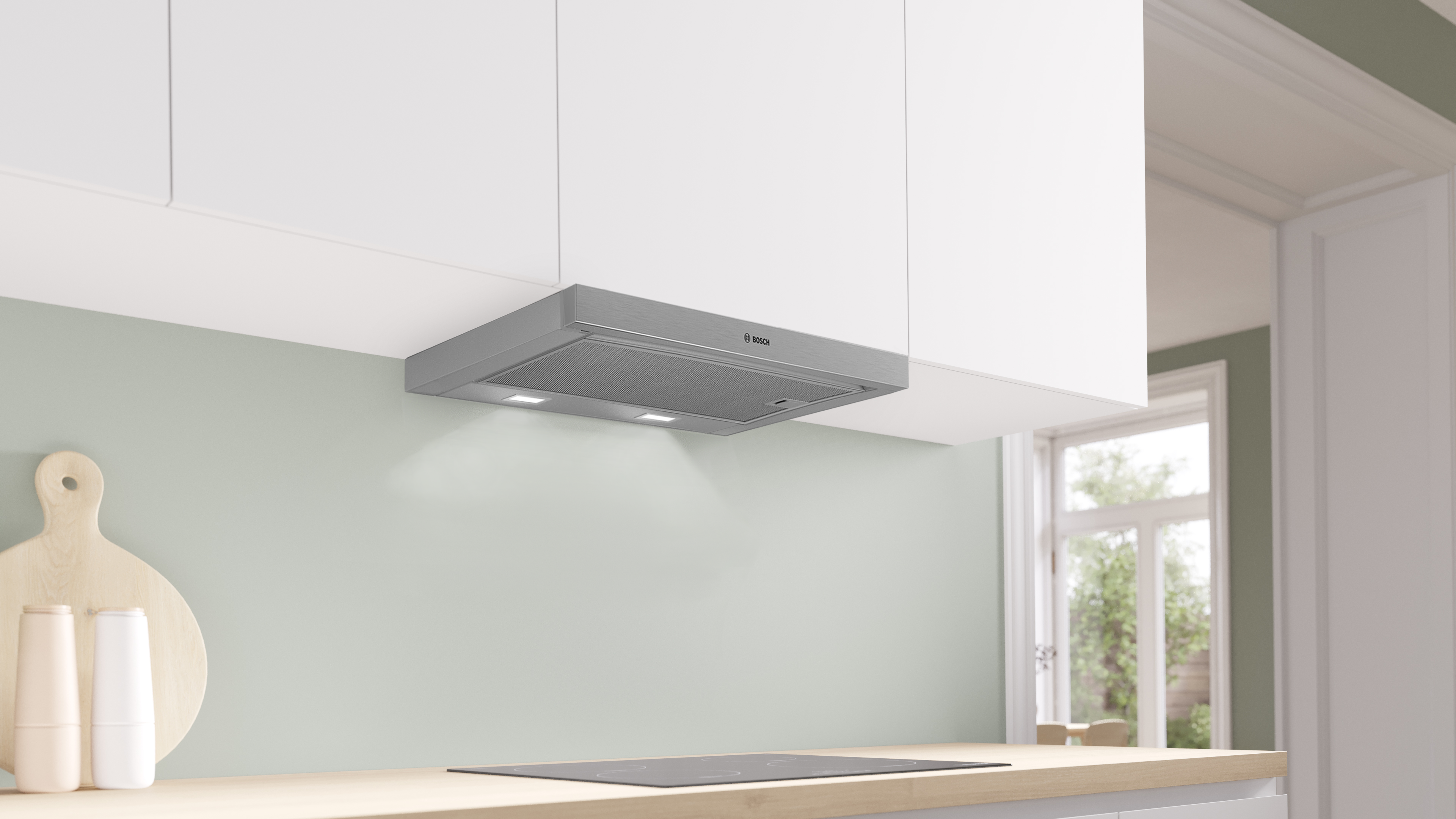

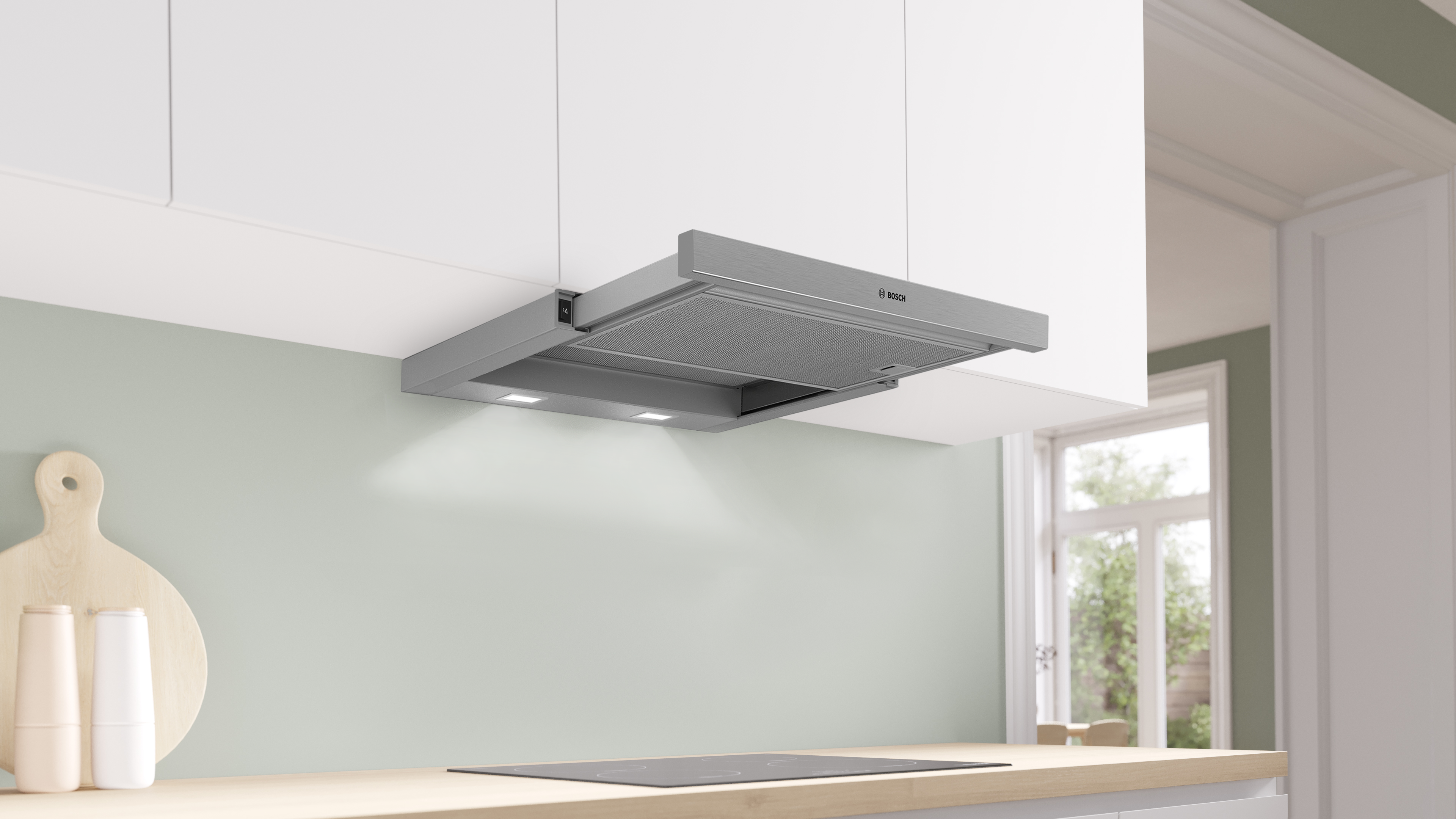

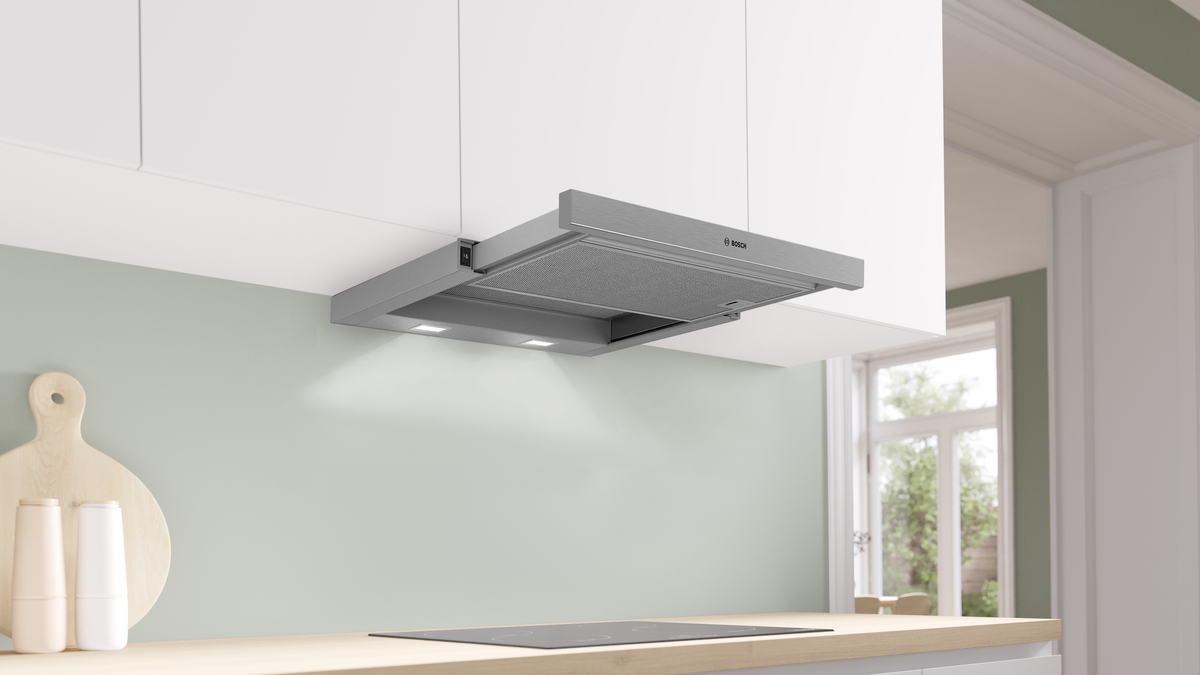

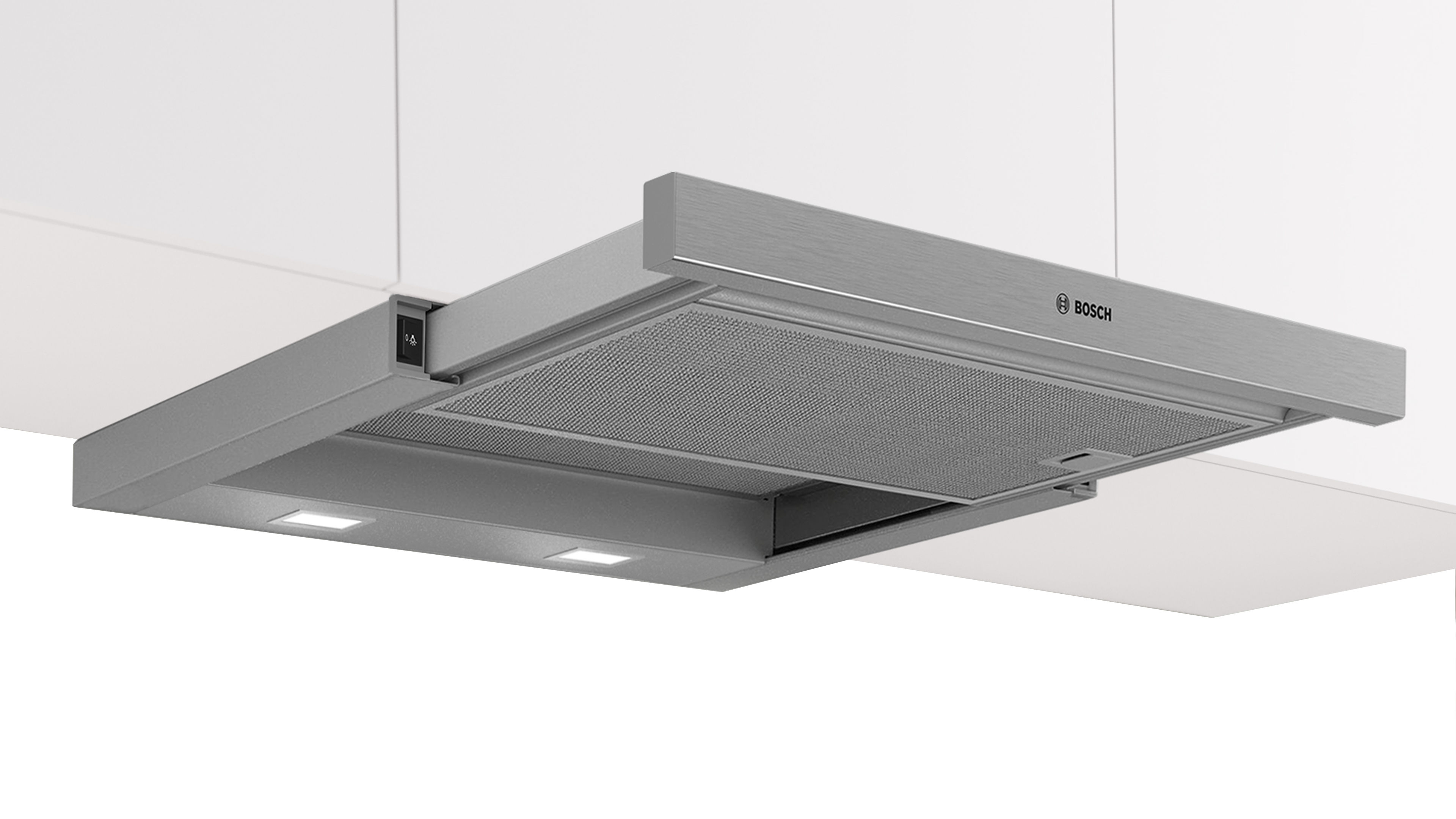

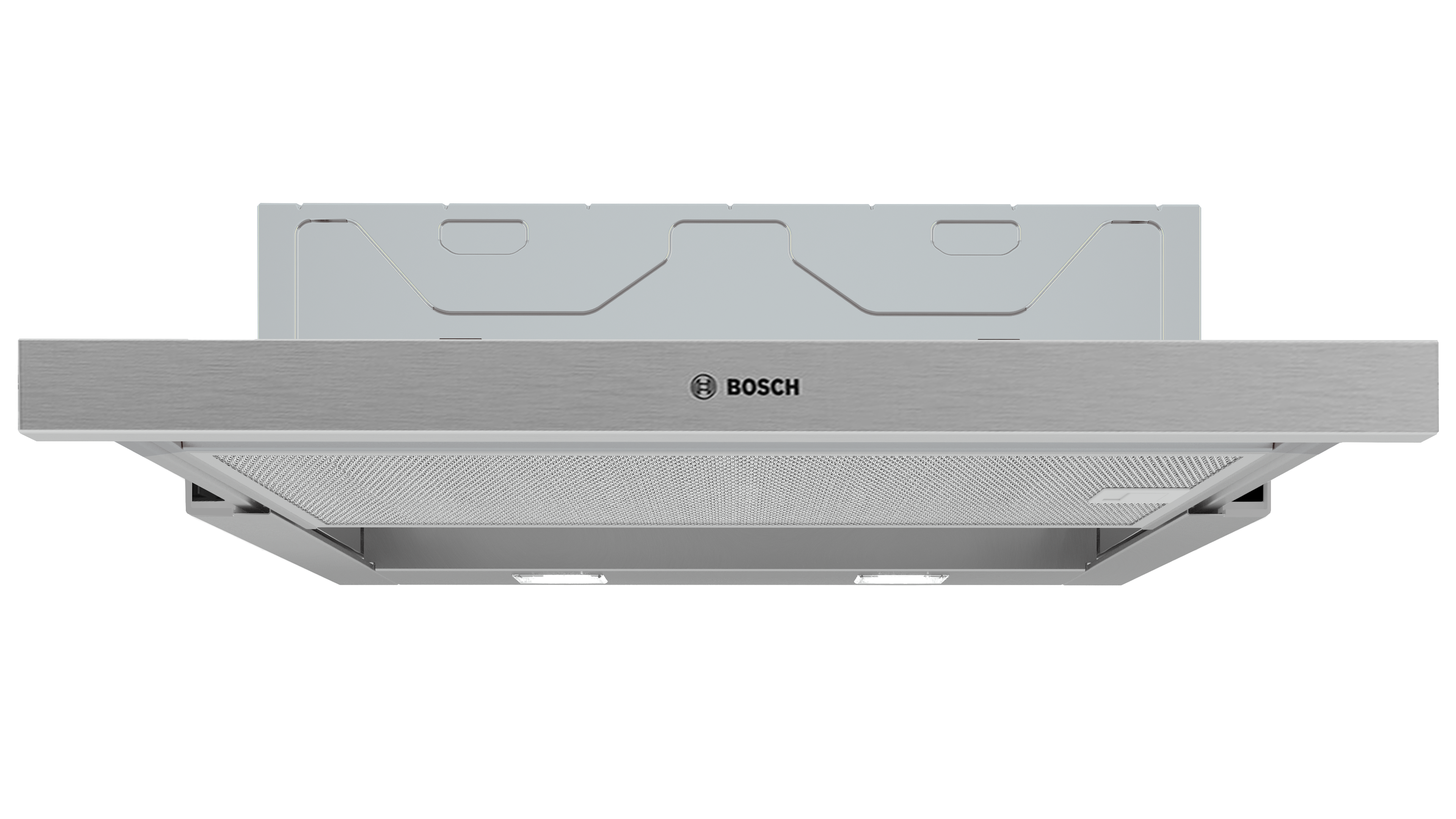

The Bosch DFM064W55A is a 60cm Series 2 slideout rangehood finished in Silver metallic and designed for integration within overhead cabinetry. The retractable pull-out canopy allows the rangehood to remain visually unobtrusive when not in use while providing effective extraction performance during everyday cooking.

Delivering up to 394m³/h extraction capacity across three fan speeds, the DFM064W55A assists in removing steam, cooking odours and airborne grease from the kitchen environment. Twin LED lights provide clear illumination across the cooktop surface, while dishwasher-safe metal grease filters simplify routine maintenance and cleaning. The rangehood can be configured for either ducted extraction or recirculating operation when used with the appropriate recirculation accessories.

Product Features:

• Slideout canopy design: concealed installation within overhead cabinetry with pull-out operation.
• Maximum extraction rate: up to 394m³/h airflow performance.
• Three fan speeds: adjustable extraction levels to suit varying cooking demands.
• Dual operating modes: suitable for both ducted extraction and recirculation installations.
• LED cooktop lighting: bright, energy-efficient illumination during cooking.
• Twin LED light configuration: two integrated LED lamps.
• Dishwasher-safe metal grease filters: simple maintenance and cleaning.

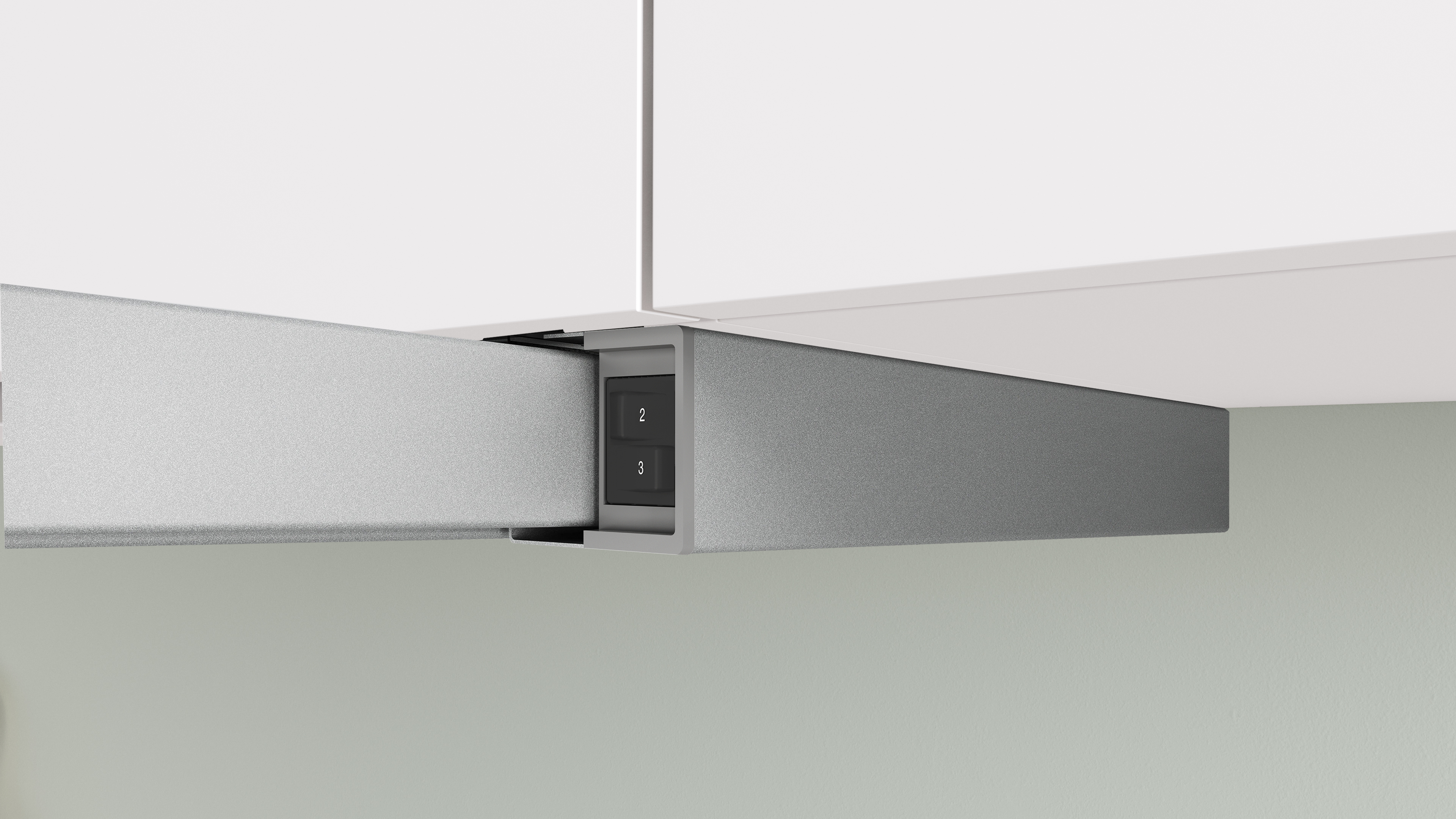

• Rocker switch controls: straightforward operation for lighting and fan functions.
• Built-in installation: designed for seamless cabinetry integration.
• Bosch Series 2 design: practical ventilation solution for modern kitchens.

Colour / Finishes:

• Silver Metallic — DFM064W55A

Programmes / Functions:

• Speed 1: Low extraction setting for light cooking and simmering.
• Speed 2: Medium extraction setting for everyday cooking activities.
• Speed 3: Maximum extraction setting for higher levels of steam, smoke and cooking odours.
• LED Lighting: Independently operated cooktop illumination for improved visibility during cooking.
• Ducted Operation: Extracts cooking vapours externally through connected ducting.
• Recirculation Operation: Filters and returns air back into the kitchen when fitted with compatible recirculation accessories.

Cleaning & Maintenance:

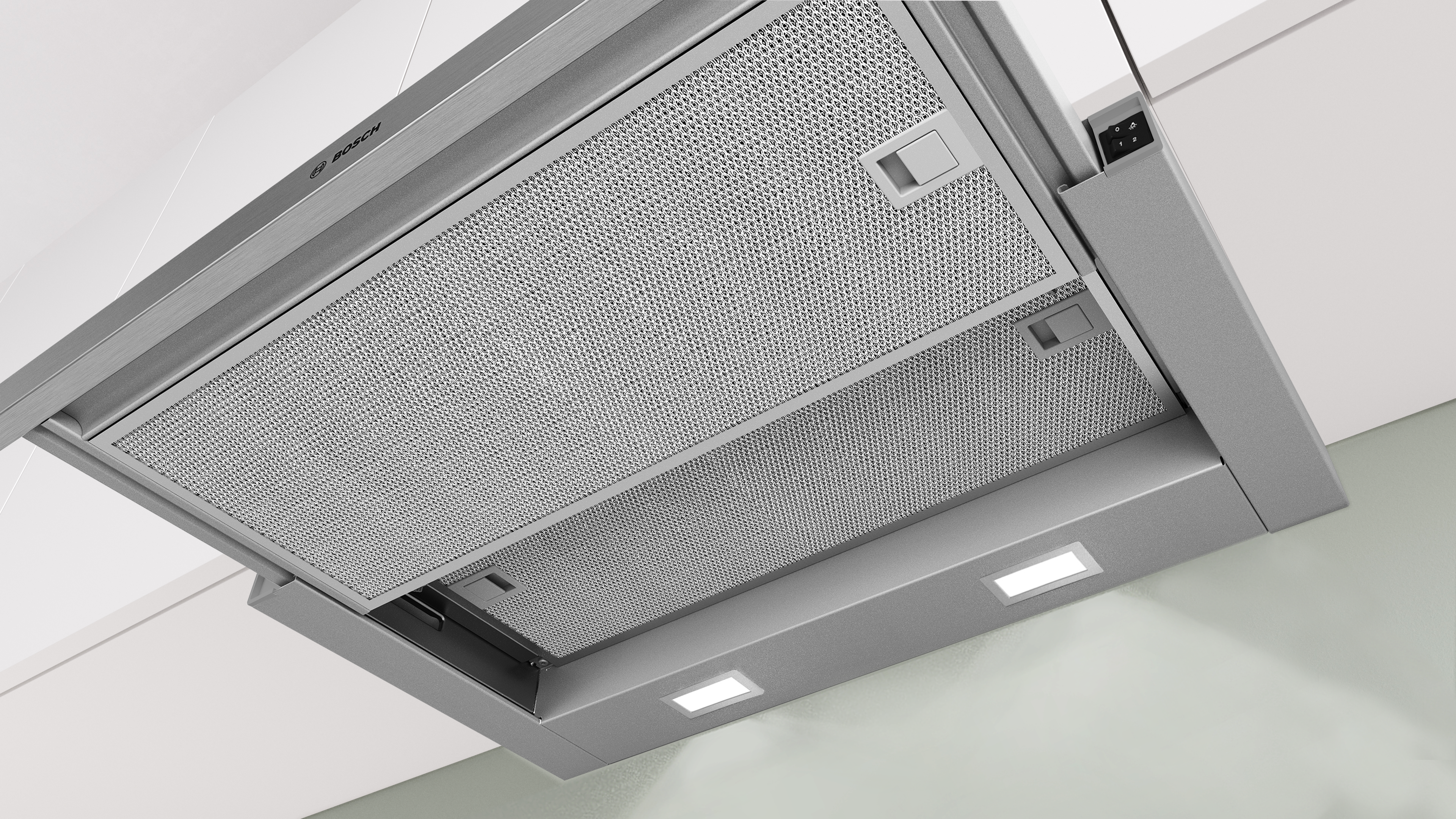

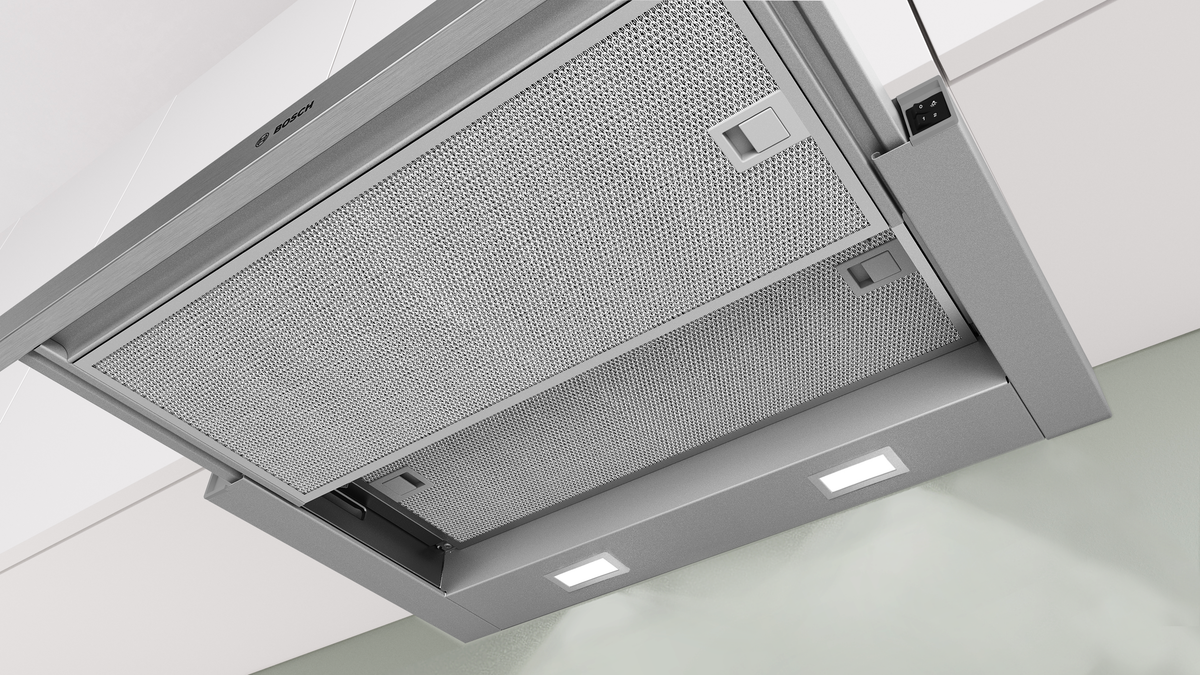

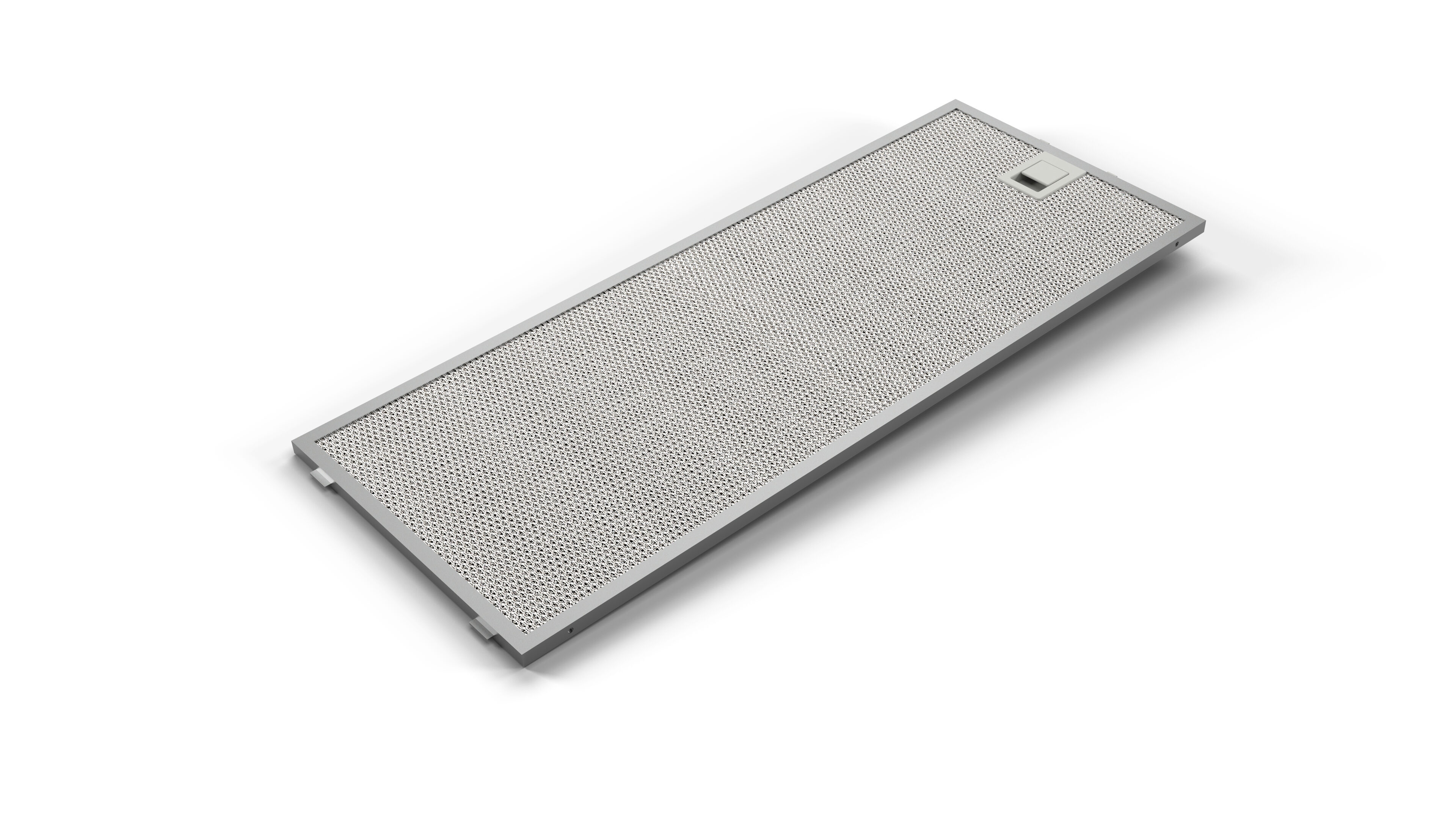

• Dishwasher-safe metal grease filters: Filters can be removed and cleaned in a dishwasher for convenient maintenance.
• Removable grease filter system: Filters can be easily removed for routine cleaning.
• Aluminium grease filtration: Designed to capture airborne grease generated during cooking.
• LED lighting system: Long-life LED lamps reduce maintenance requirements compared to conventional lighting.
• Filter maintenance: Regular cleaning of grease filters helps maintain extraction performance and airflow efficiency.

Specifications:

• Product Series: Bosch Series 2
• Rangehood Type: Slideout
• Installation Type: Built-in
• Operating Modes: Ducted / Recirculating
• Maximum Air Extraction: 394m³/h
• Fan Speeds: 3
• Control Type: Rocker switch
• Lighting Type: LED
• Number of Lights: 2
• Number of Filters: 2
• Filter Material: Aluminium metal grease filters
• Dishwasher Safe Filters: Yes
• Duct Diameter: 150mm
• Power Consumption: 108W
• Voltage: 220–240V
• Frequency: 50Hz
• Noise Level: Up to 68dB(A)
• Cooktop-Based Control: No
• PerfectAir Sensor: No
• Boost Function: No
• Timer Function: No

Product Measurements:

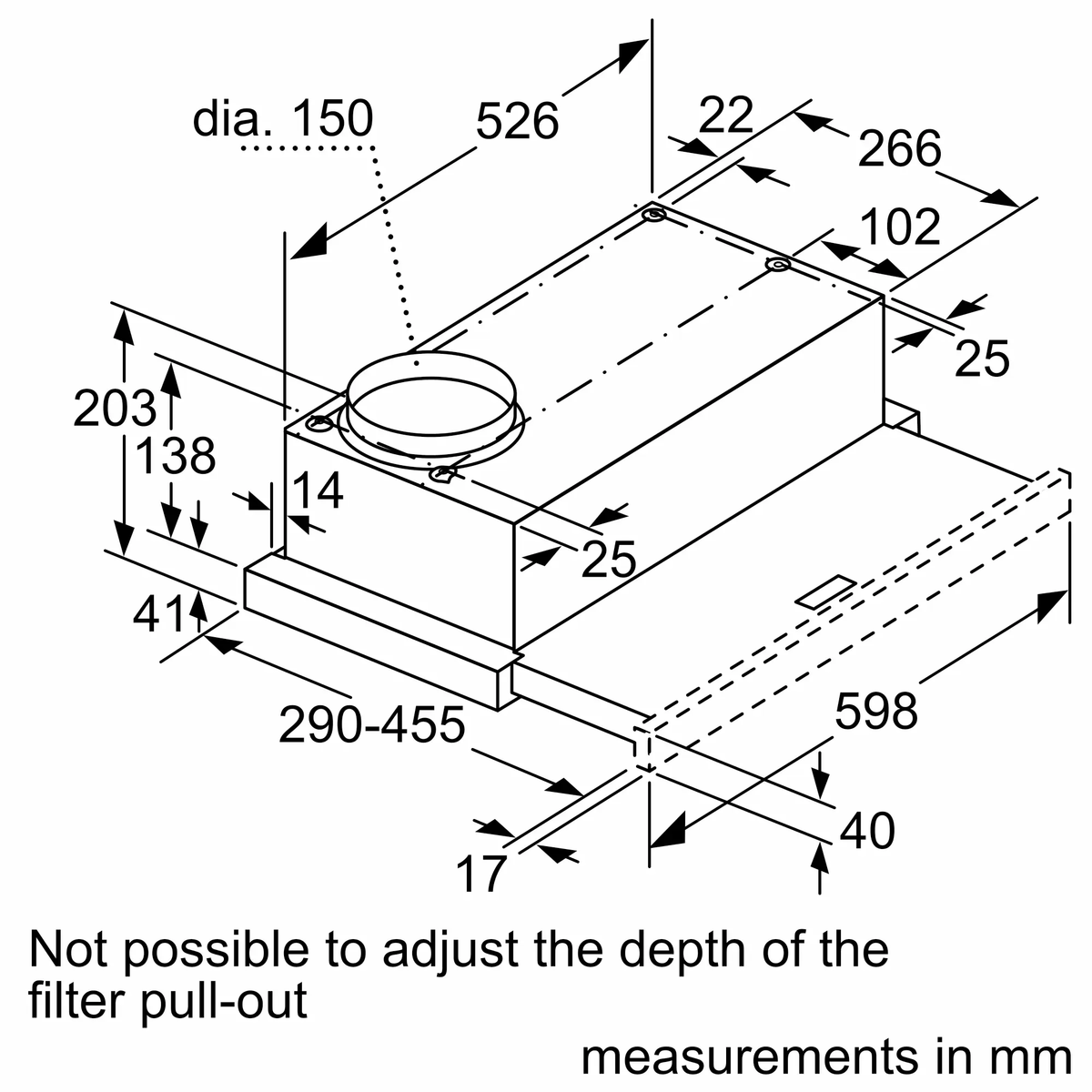

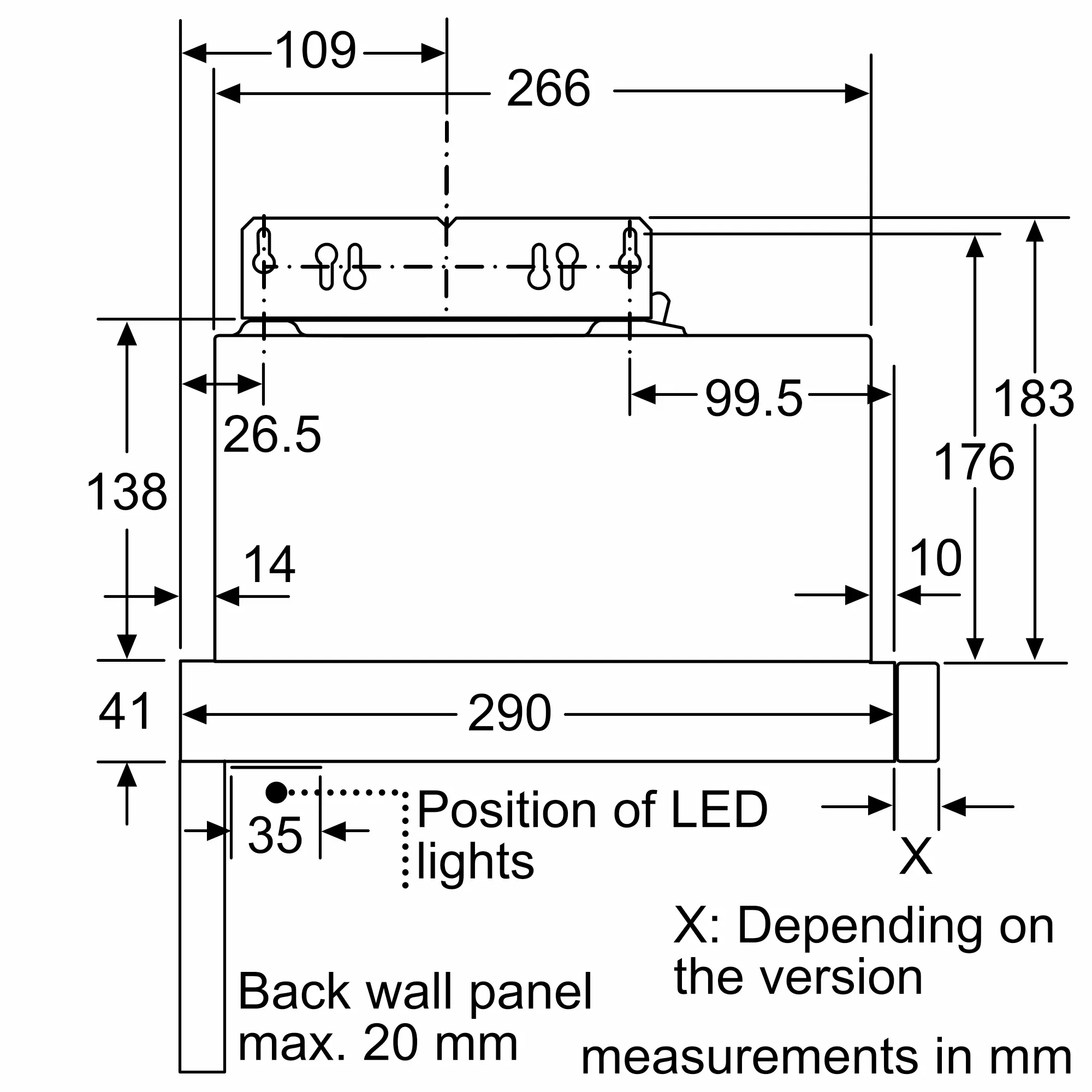

• Dimensions (W x H x D): 598 x 203 x 290 mm

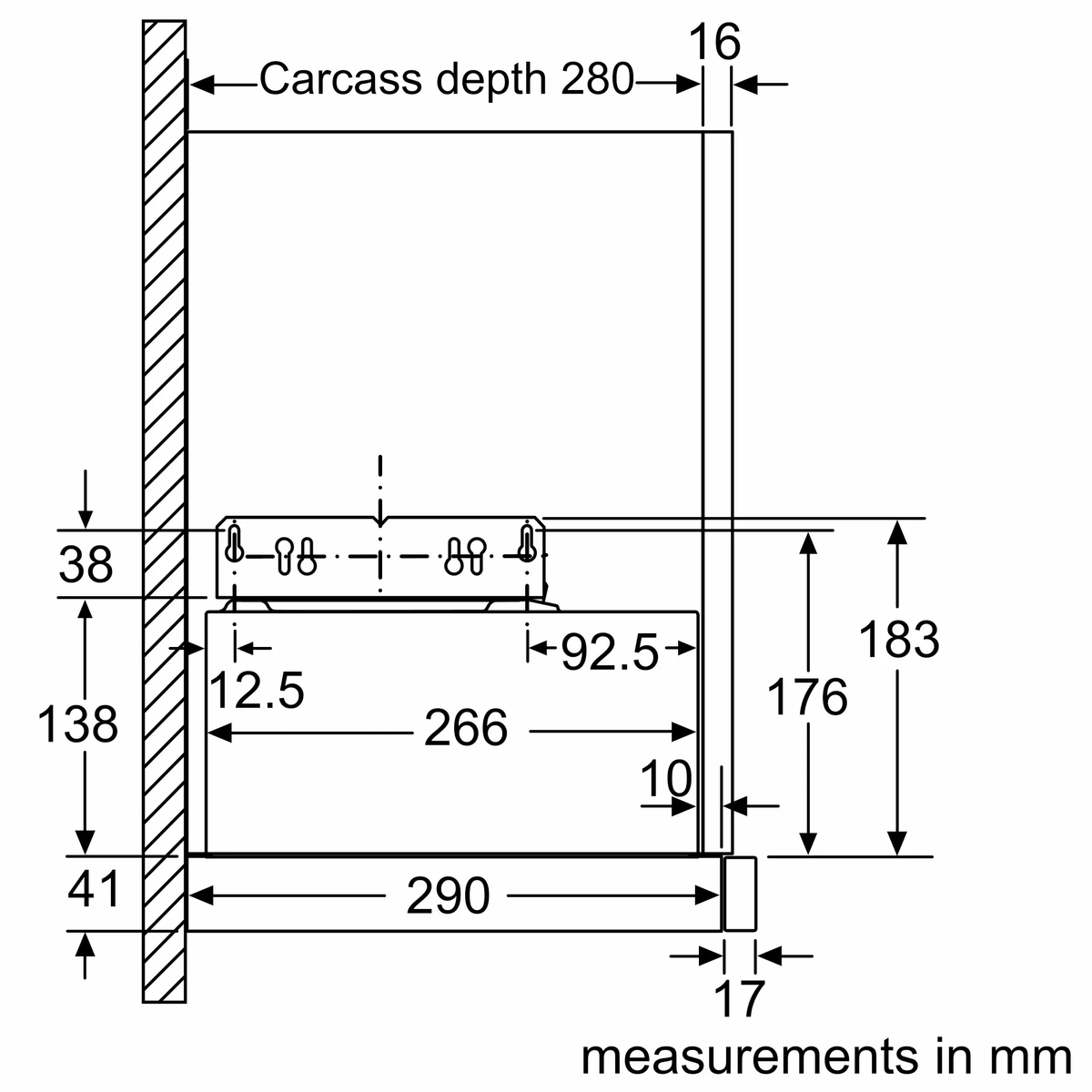

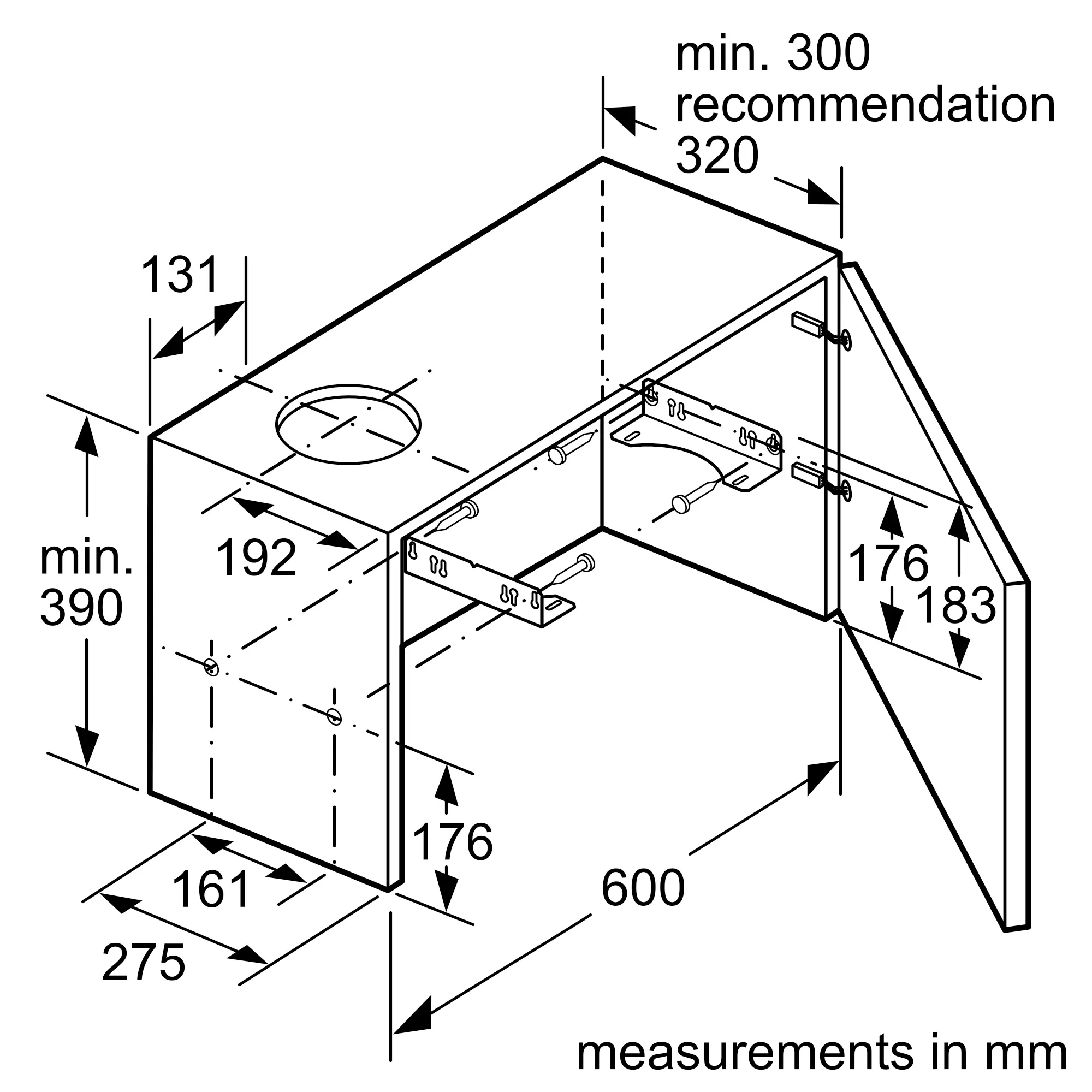

• Cabinet Cut-Out (W x H x D): 526 x 162 x 290 mm

Product Weight:

• Product Weight: 8.8 kg

Installation & Requirements:

• Installation Type: Built-in overhead cabinetry
• Ventilation Type: Ducted or recirculating
• Duct Outlet Diameter: 150 mm
• Duct Outlet Position: Top
• Electrical Connection: 10A plug and lead
• Power Supply: 220–240V / 50Hz
• Connected Load: 108W
• Cord Length: 1.75 metres
• Minimum Cabinet Compatibility: Suitable for standard 60cm cooking zones beneath overhead cabinetry
• Professional Installation: Recommended in accordance with Bosch installation instructions.

Country of Origin:

• Made in Germany

Extra Information:

The DFM064W55A uses Bosch metal grease filtration technology designed to capture grease particles generated during cooking. Bosch recommends regular cleaning of the grease filters to maintain extraction efficiency and airflow performance. The aluminium filters can be removed and cleaned in a dishwasher.

The slideout design allows the extraction section to remain concealed when not in operation, making it well suited to kitchens seeking a clean cabinetry appearance without a visible canopy rangehood. The unit can operate as a conventional ducted rangehood or be configured for recirculation where external ducting is not practical.

Included Products / Accessories:

• 2 x Aluminium grease filters
• Integrated LED lighting system
• Power cord and plug
• Installation documentation

Warranty:

Backed by a 2-year manufacturer's warranty for peace of mind when installed and operated in accordance with Bosch guidelines.
