Product Description

Product Overview:

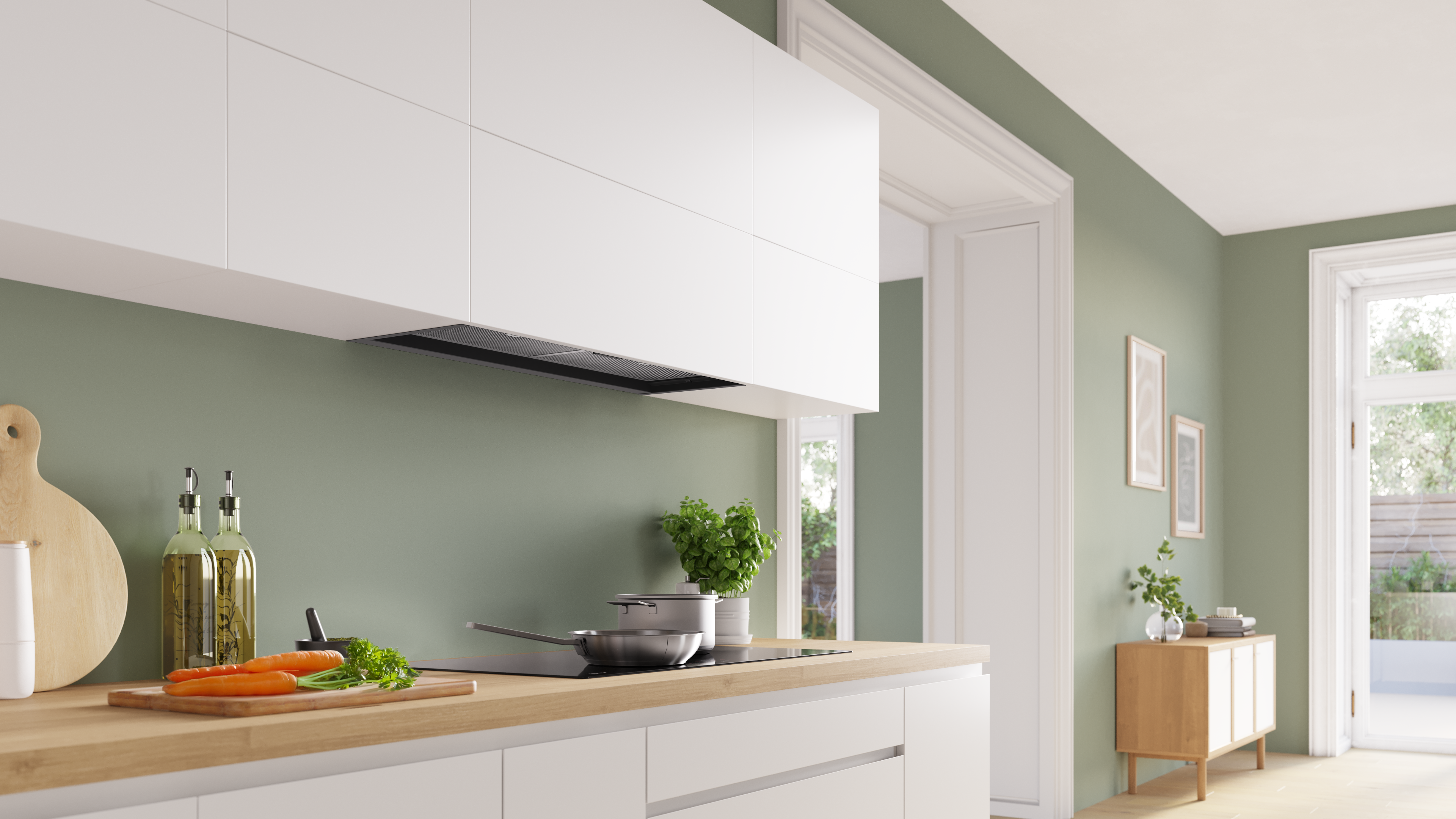

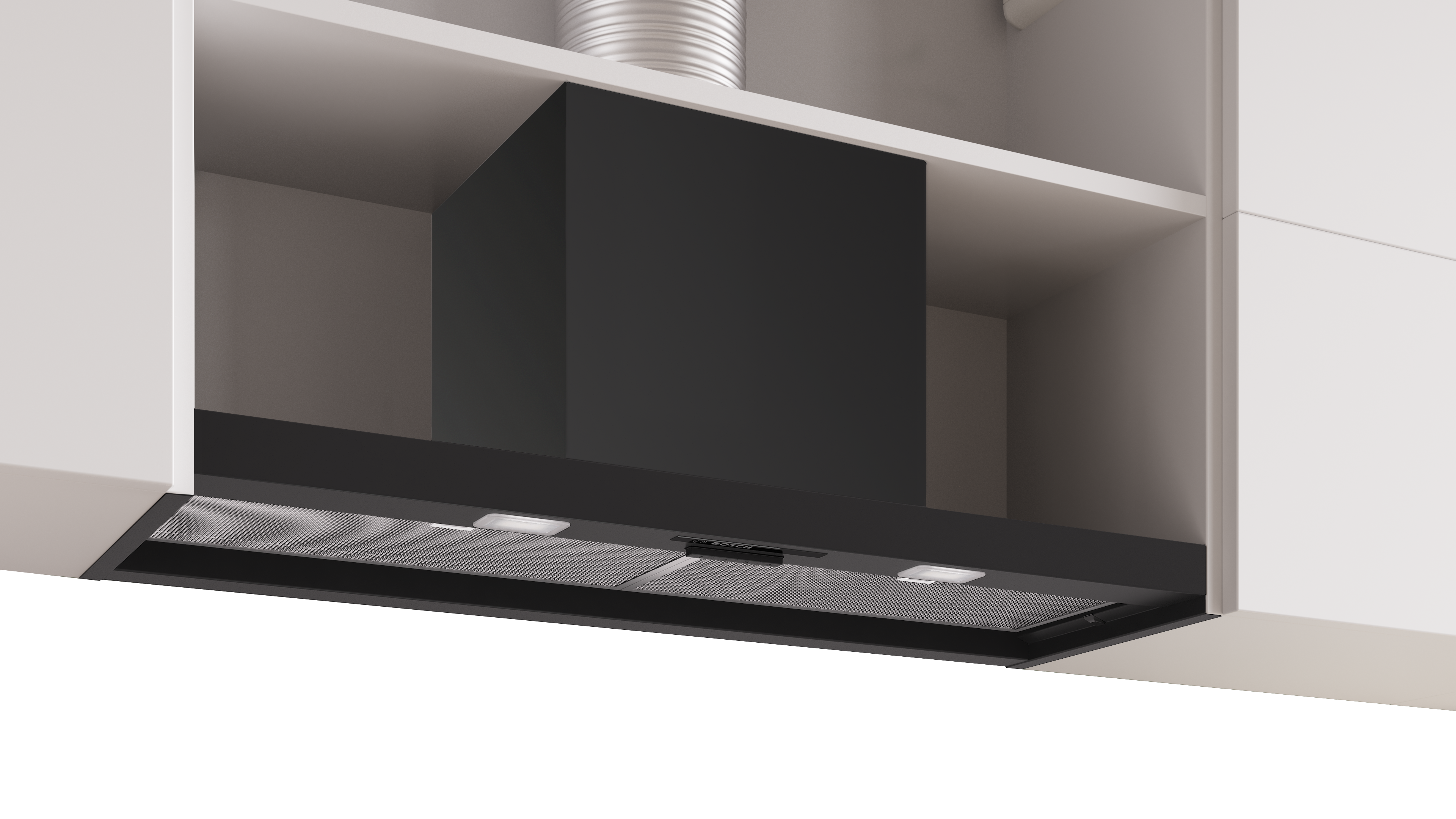

The Bosch DBB93BC60A is a 90cm integrated design rangehood from the Bosch Series 2 collection, finished in fingerprint-resistant matte black. Designed for concealed installation within overhead cabinetry, it delivers a streamlined built-in appearance while maintaining valuable cabinet storage through Bosch's T-shaped internal construction.

With a maximum extraction capacity of 384m³/h, three fan speeds, dual LED lighting and dishwasher-safe metal grease filters, the DBB93BC60A is engineered for everyday kitchen ventilation. The integrated design allows the rangehood to sit flush within cabinetry, helping maintain a clean architectural kitchen aesthetic without a visible canopy.

The matte carbon black finish complements contemporary kitchen schemes while reducing visible fingerprints and day-to-day surface marking. Bosch's easy-installation system allows flexible installation configurations and supports both ducted extraction and recirculating operation when fitted with the appropriate accessories.

Product Features:

• Integrated design installation: concealed within overhead cabinetry for a flush, minimalist appearance.
• 384m³/h maximum extraction rate: removes cooking vapours, steam and odours during everyday cooking.

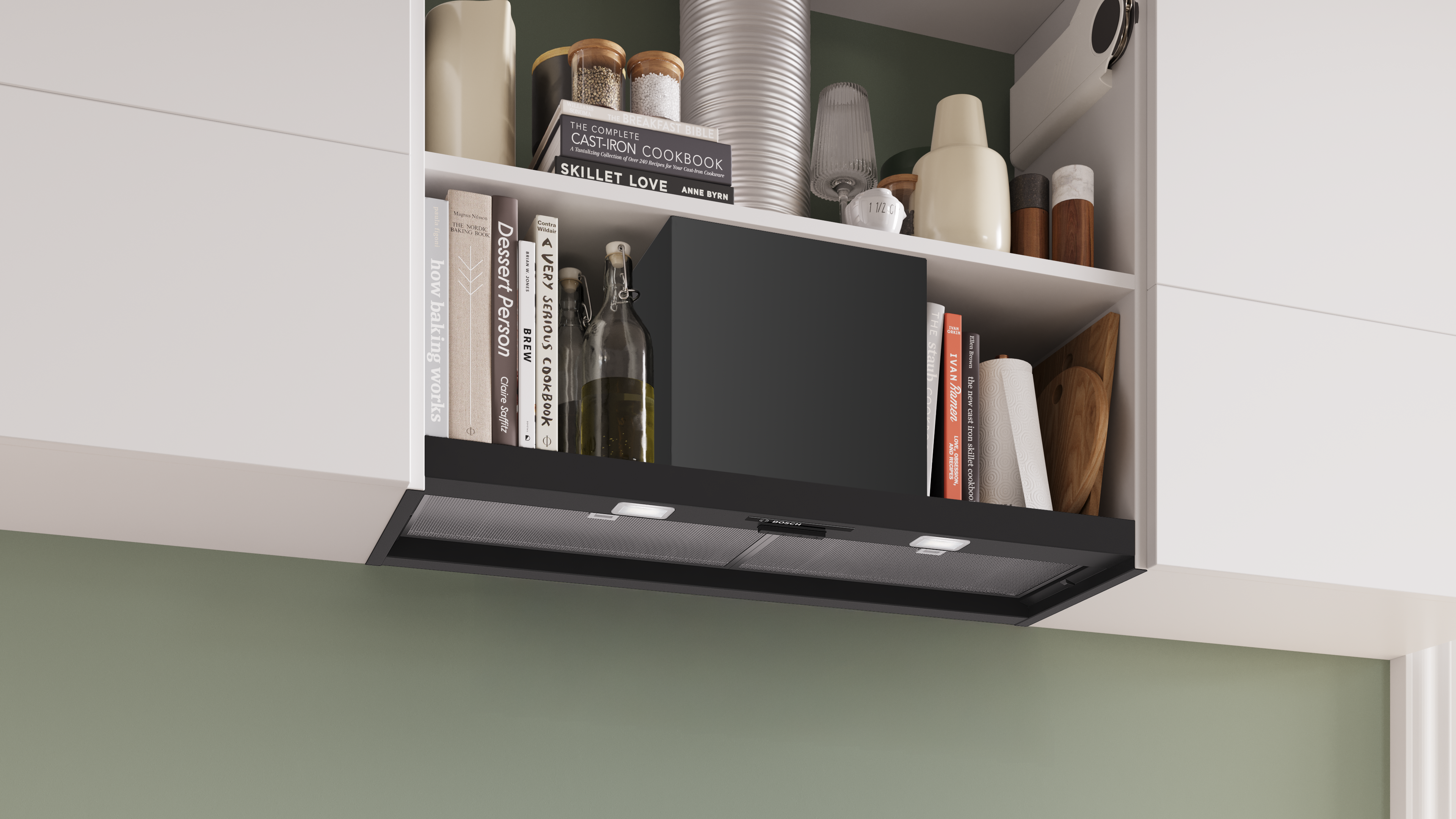

• T-shaped storage design: provides additional cabinet storage space with up to 20kg load capacity.
• Fingerprint-resistant matte black finish: carbon black surface designed to reduce visible fingerprints.
• Three fan speed settings: adjustable extraction levels to suit different cooking requirements.

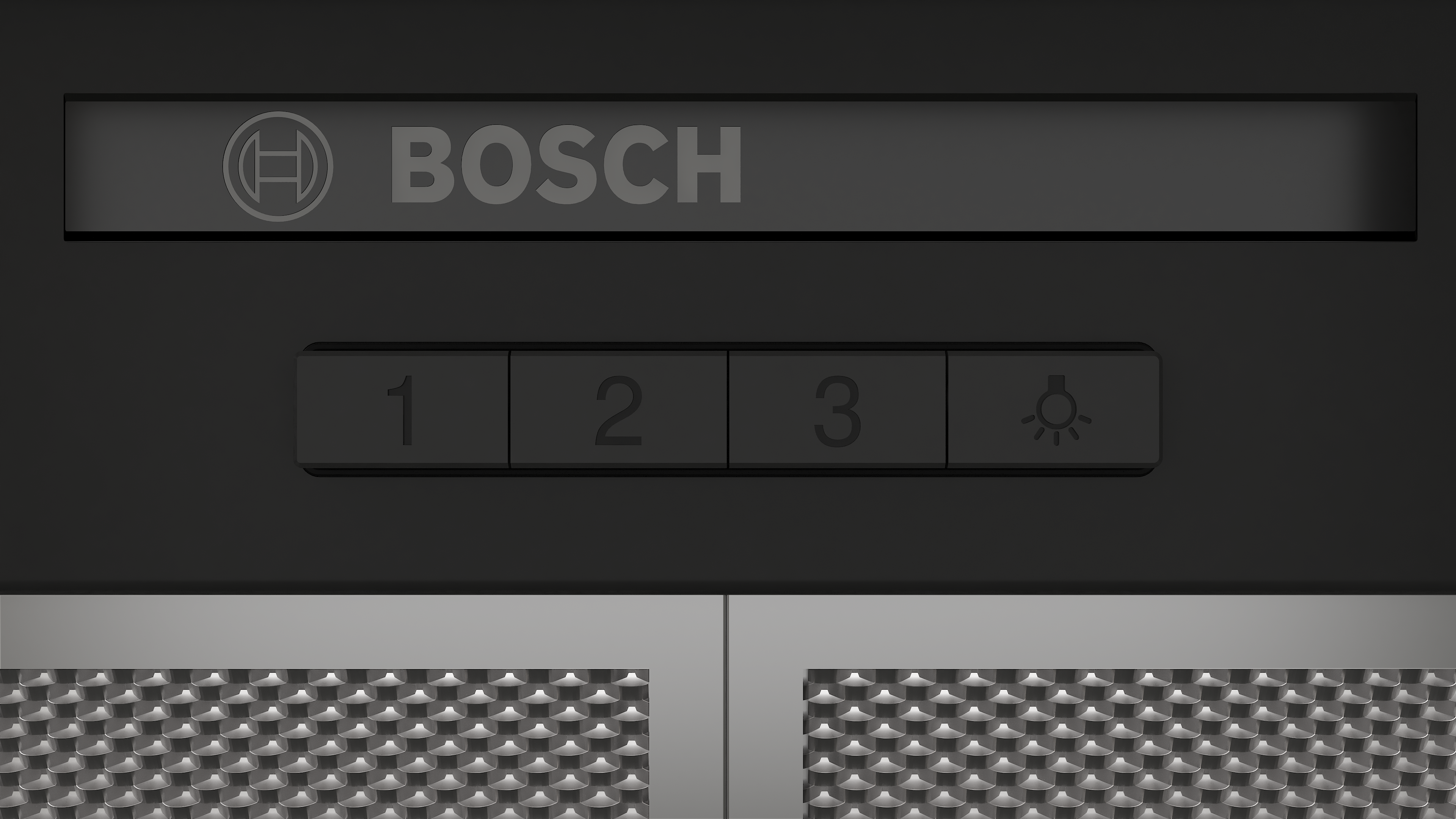

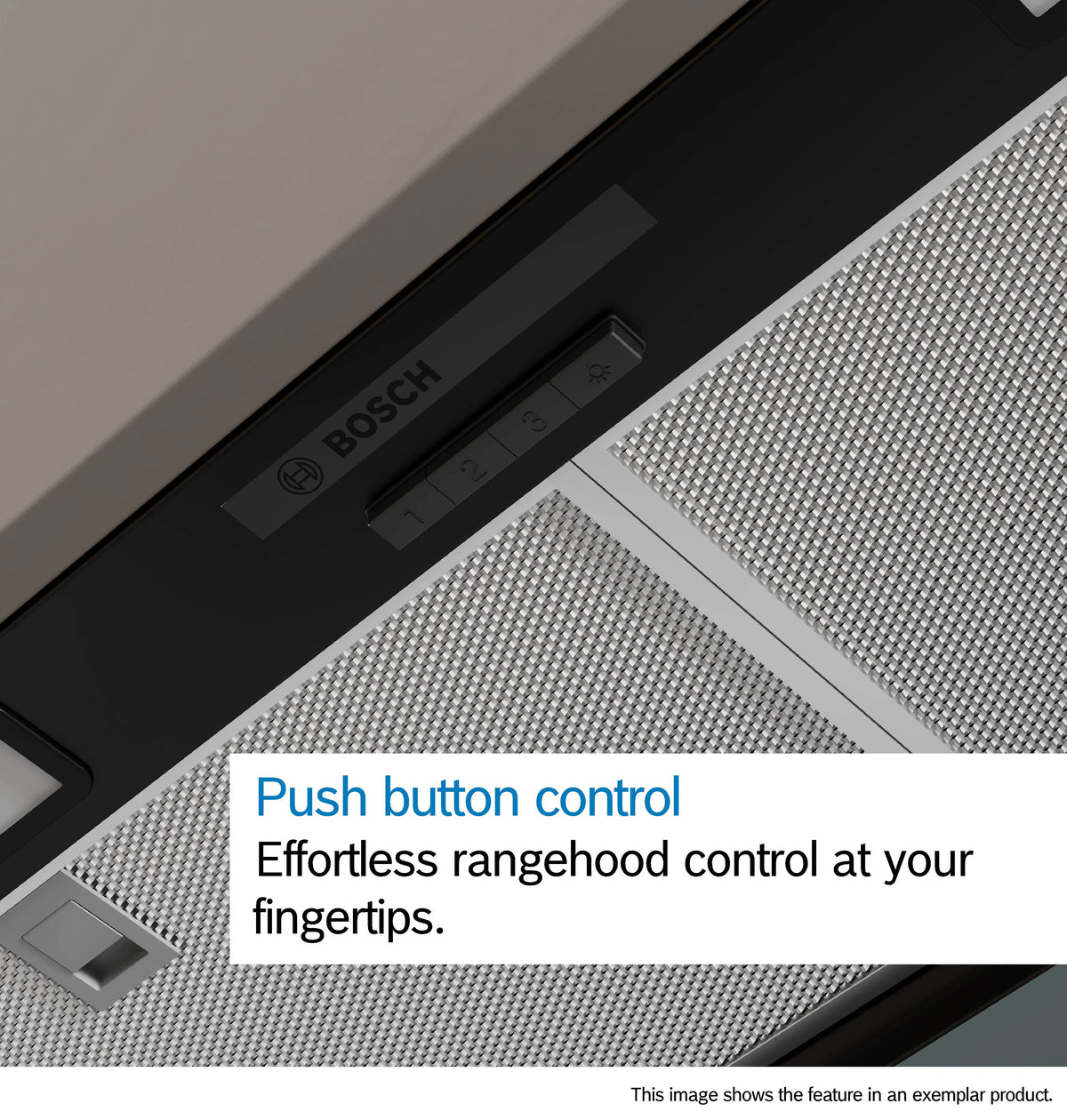

• Push-button controls: simple and direct operation of fan speeds and lighting.

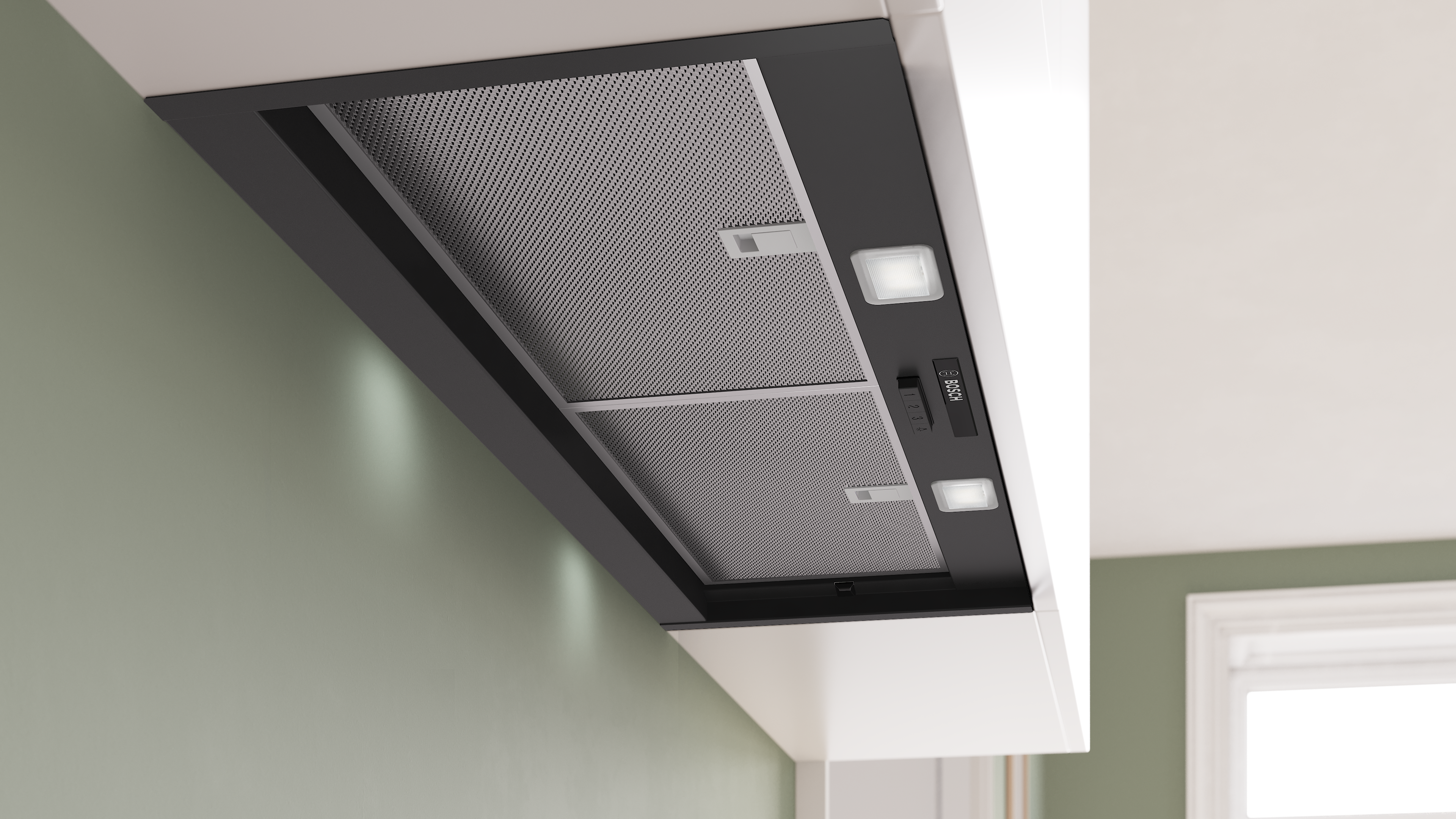

• Dual LED lighting: bright and energy-efficient illumination across the cooktop surface.
• Dishwasher-safe metal grease filters: removable filters designed for straightforward maintenance.
• Easy-clean surfaces: smooth coated internal and external surfaces simplify cleaning.
• Flexible installation system: designed for one-person installation with multiple layout options.
• Cabinet protection design: side and rear shielding helps protect surrounding cabinetry from steam and vapour.
• Ducted or recirculating operation: installation flexibility depending on kitchen configuration.

Colour / Finishes:

• Matte Black (Carbon Black) - DBB93BC60A

Programmes / Functions:

• Speed 1: Low extraction setting for light cooking tasks and everyday ventilation.
• Speed 2: Medium extraction setting for regular stovetop cooking and moderate vapour removal.
• Speed 3: Maximum extraction setting delivering up to 384m³/h airflow for heavier cooking activity.
• LED Lighting: Illuminates the cooktop area to improve visibility while cooking.
• Ducted Operation: Extracts cooking vapours and odours externally through connected ductwork.
• Recirculation Operation: Filters and returns cleaned air back into the kitchen when fitted with compatible recirculation accessories.

Cleaning & Maintenance:

• Dishwasher-safe metal grease filters: Filters can be removed and cleaned in a dishwasher for ongoing performance.
• Removable filter system: Quick-access filter design simplifies routine maintenance.
• Grease filtration: Captures airborne grease particles before they reach the motor system.
• Easy-clean surfaces: Smooth internal and external surfaces assist with regular wipe-down cleaning.
• Filter maintenance: Regular cleaning of grease filters is recommended to maintain extraction efficiency.
• Recirculation filter replacement: Carbon filters used in recirculation mode require periodic replacement according to usage and manufacturer recommendations.

Specifications:

• Series: Bosch Series 2
• Rangehood type: Integrated / Undermount
• Installation type: Built-in
• Operating modes: Ducted extraction or recirculating
• Maximum air extraction: 384m³/h
• Fan speeds: 3
• Control type: Push-button controls
• Lighting type: LED
• Number of lights: 2
• Filter type: Metal grease filters
• Number of filters: 2
• Filter material: Stainless steel
• Dishwasher-safe filters: Yes
• Cooktop-based hood control: No
• PerfectAir sensor: No
• Boost function: No
• Timer function: No
• Maximum noise level: 66dB(A)
• Minimum operating noise: 49dB(A)
• Power consumption: 100W
• Voltage: 220–240V

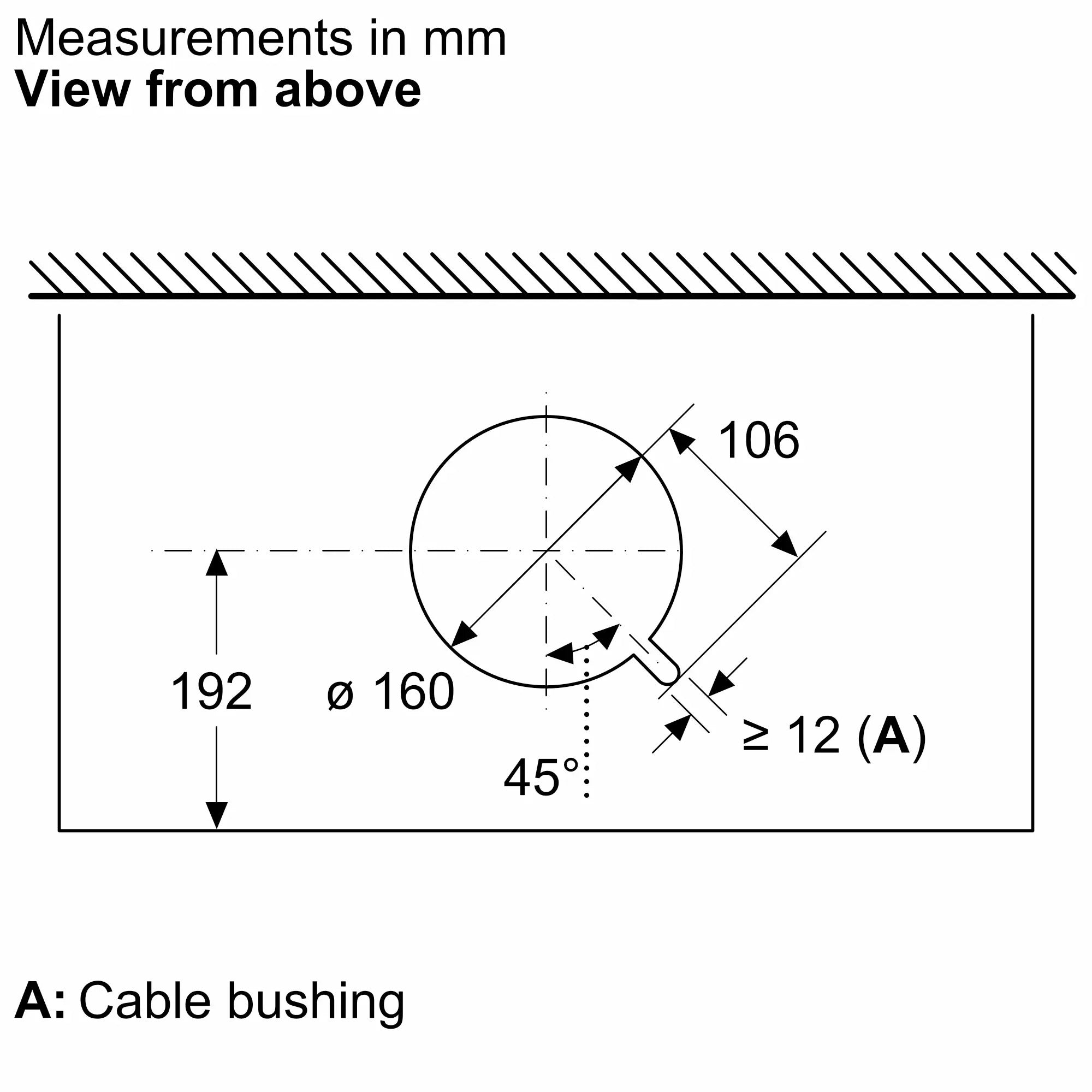

• Duct diameter: 150mm
• Duct outlet position: Top

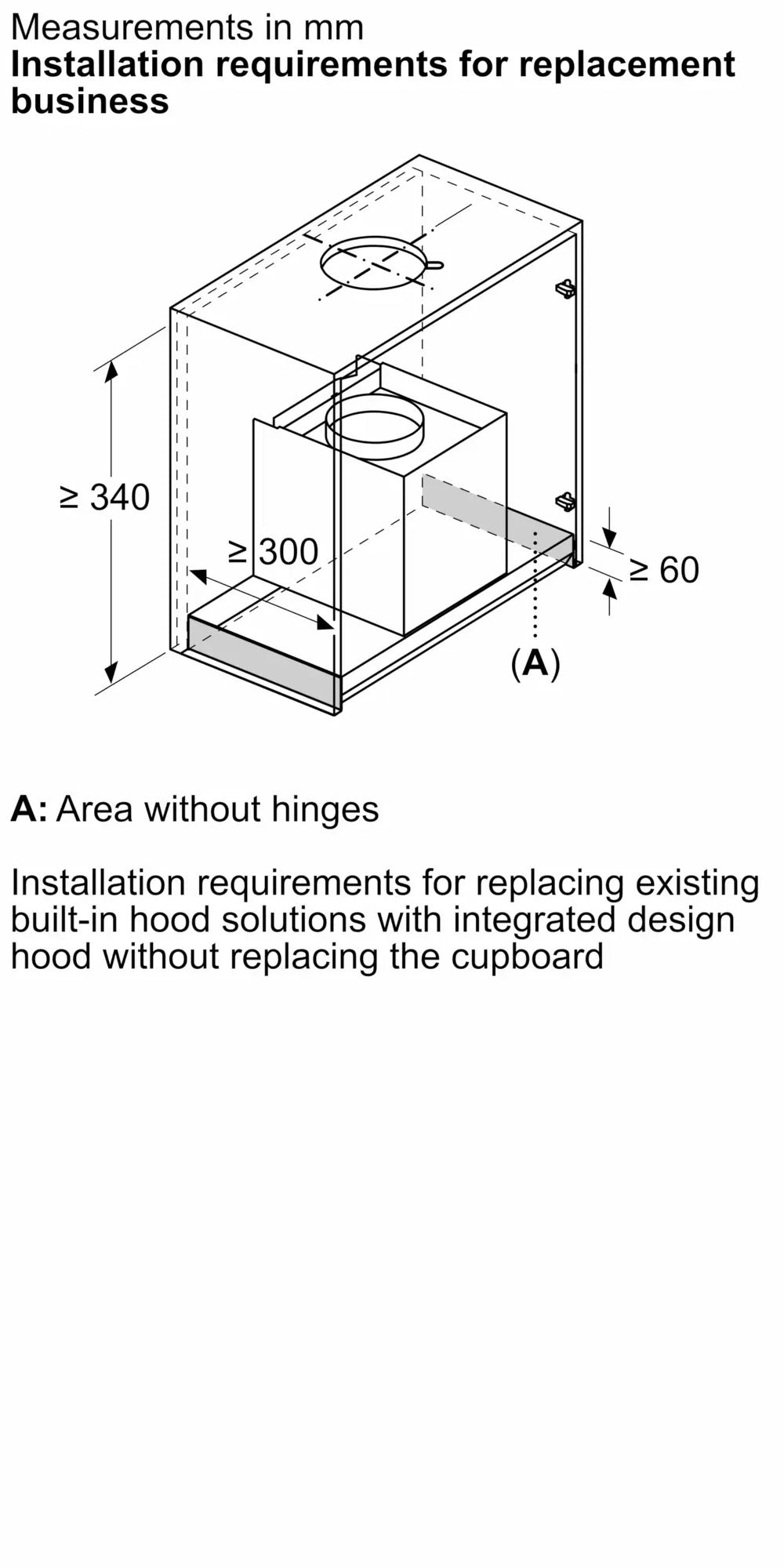

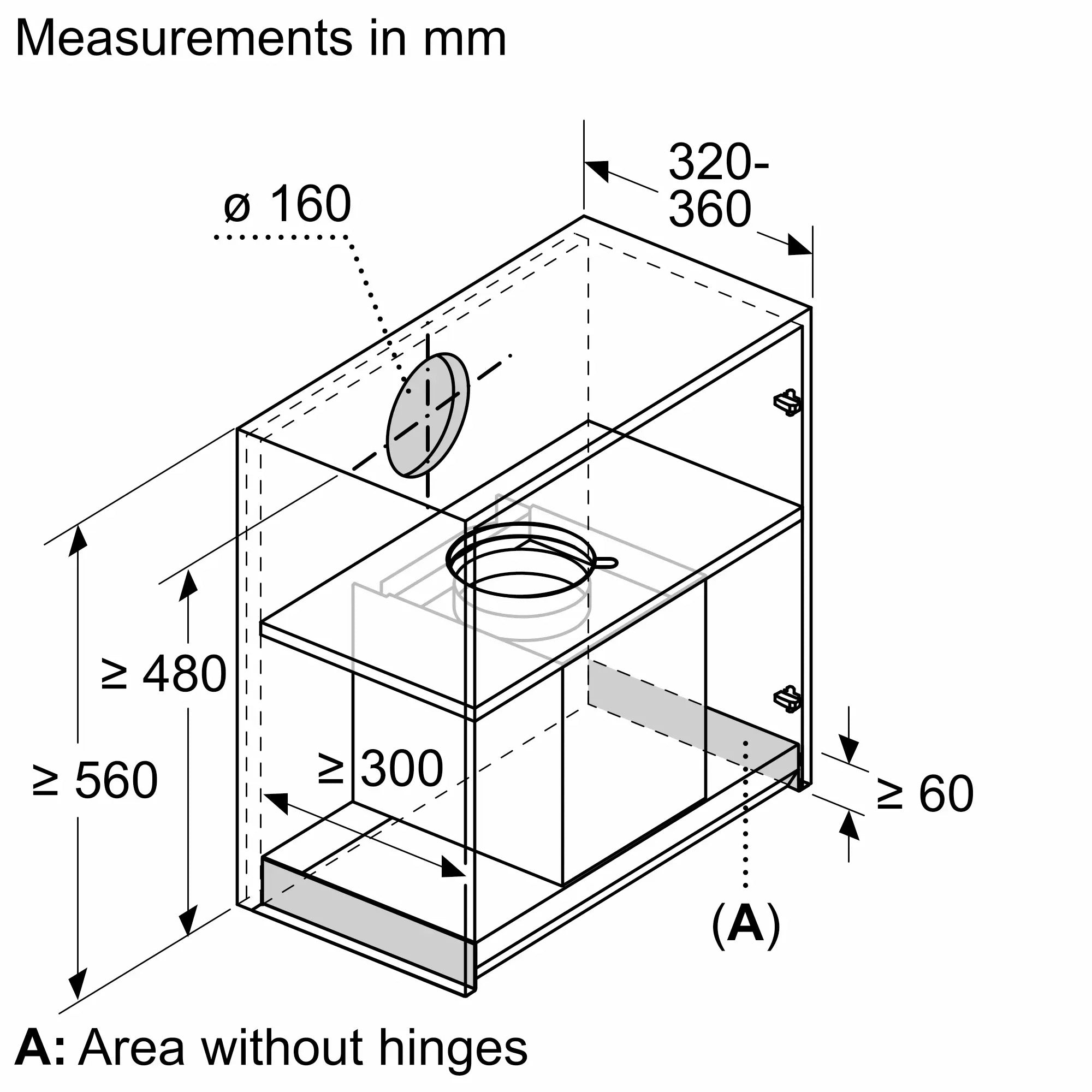

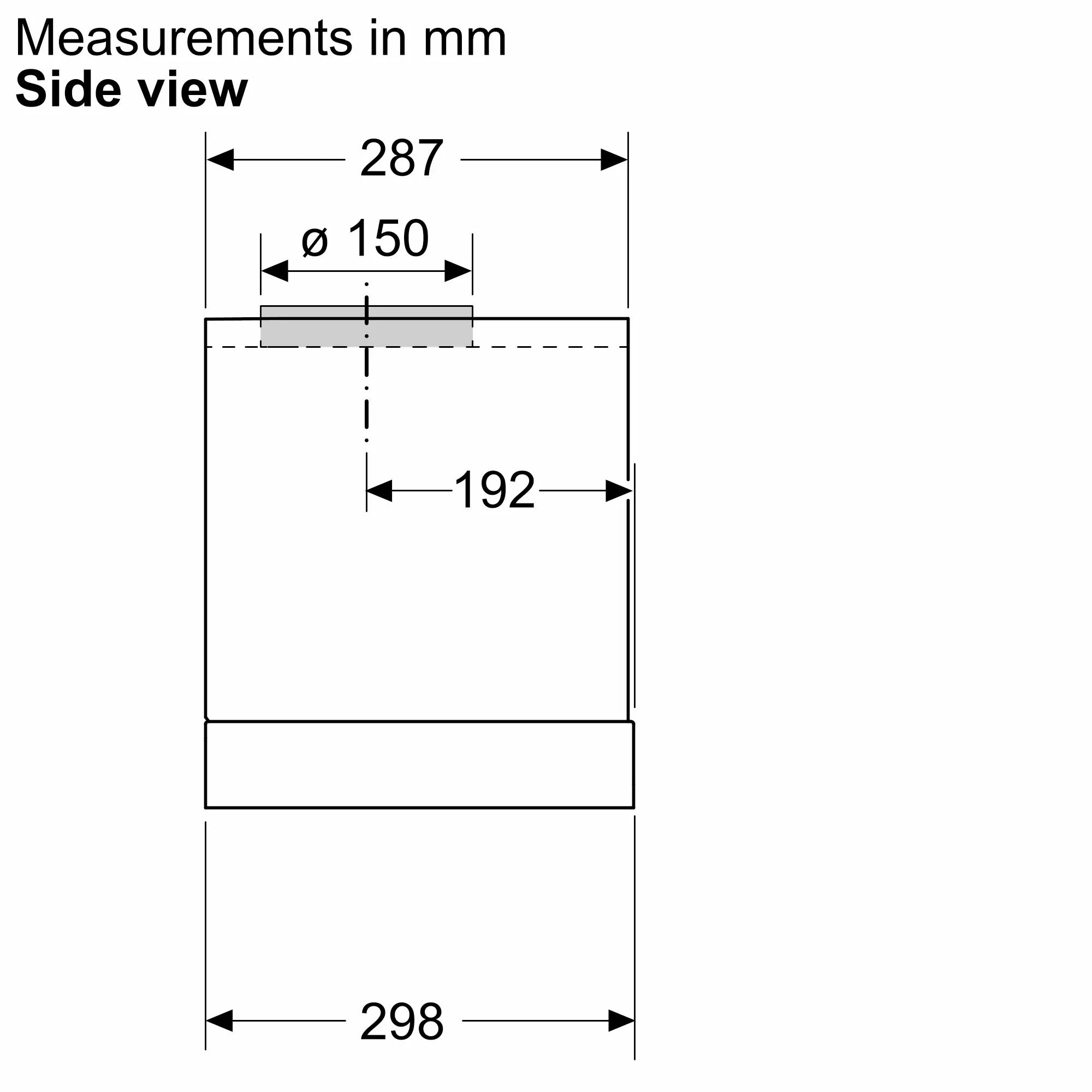

Product Measurements:

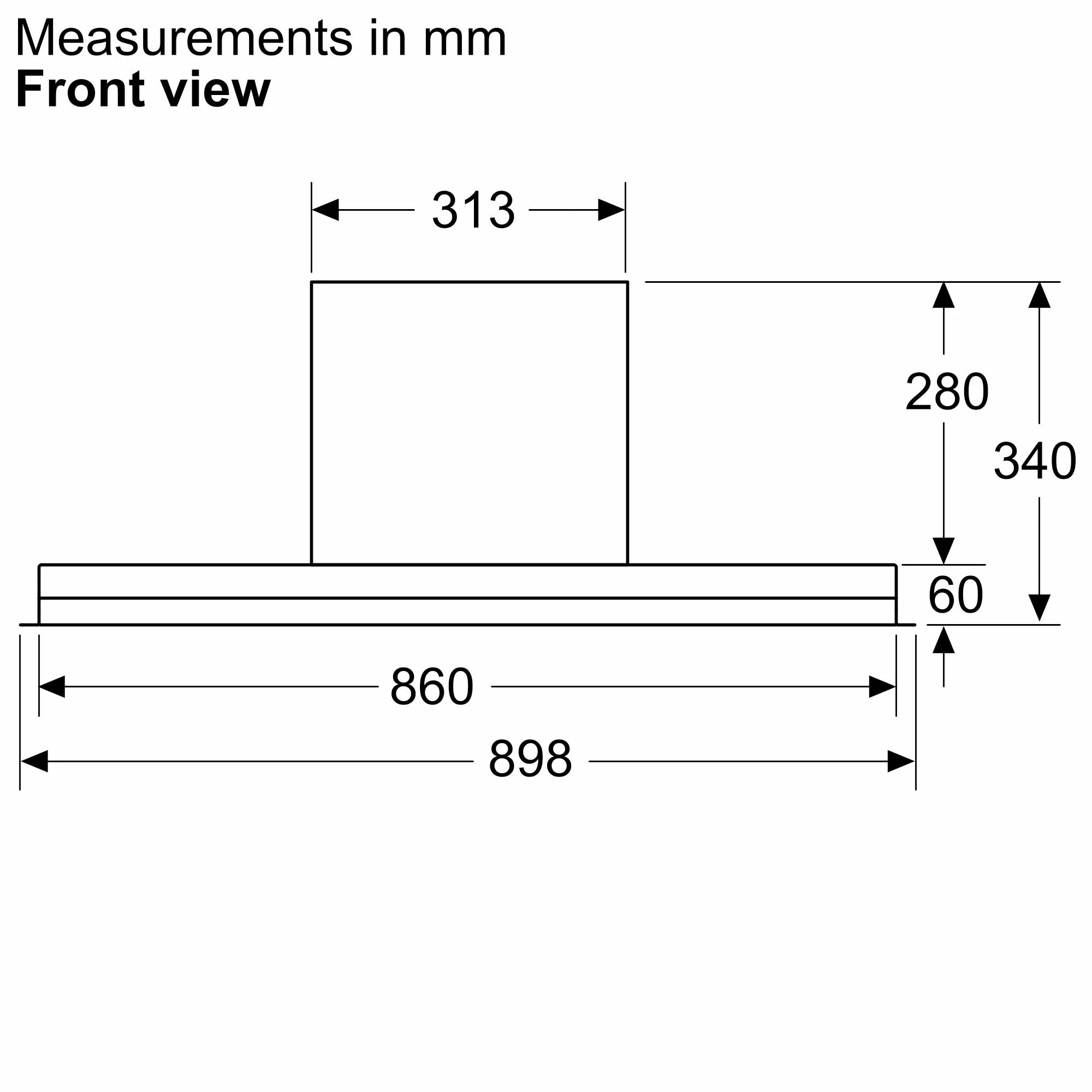

• Dimensions (W x H x D): 898 x 340 x 298 mm

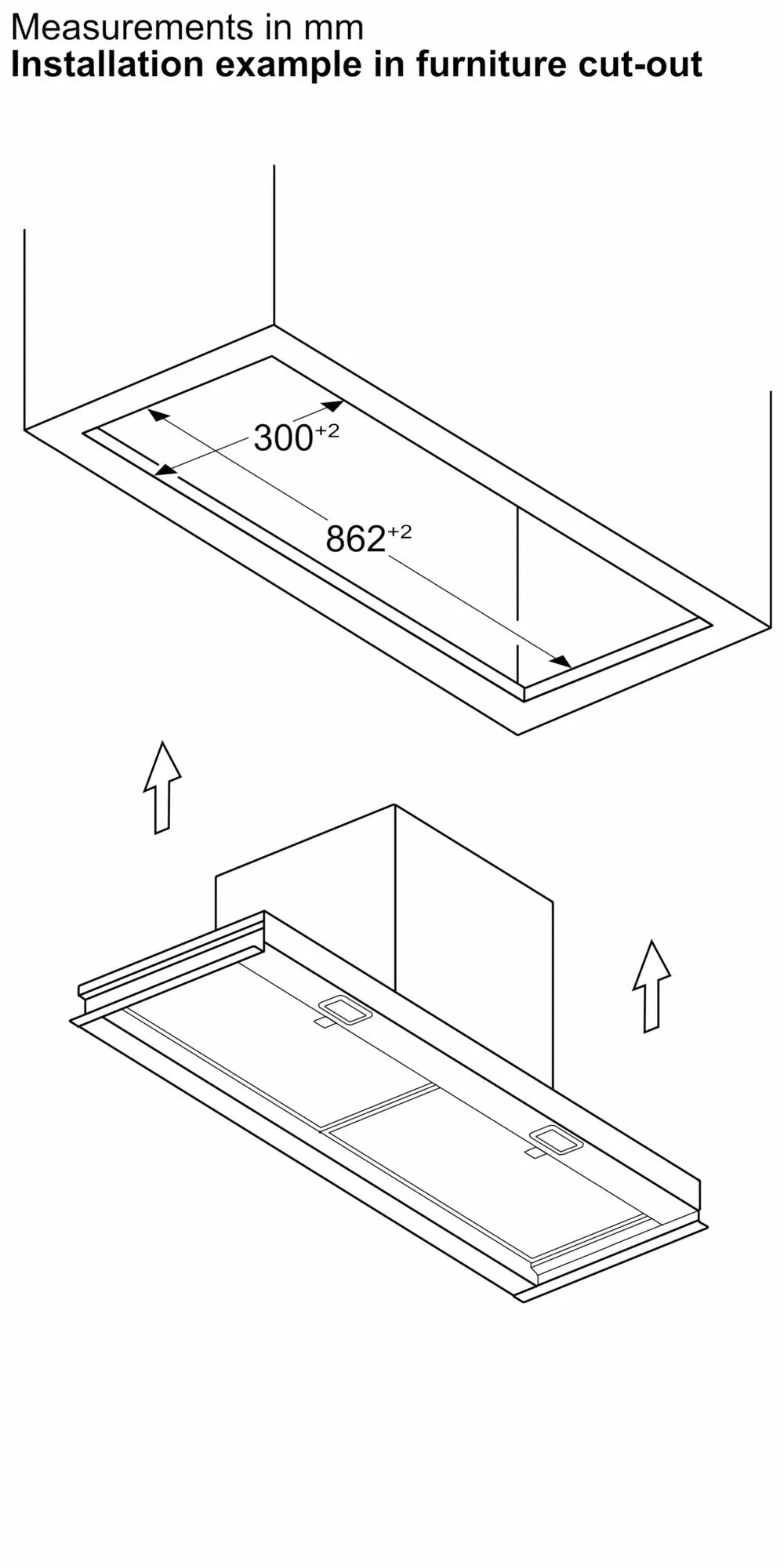

• Cut-Out Width: 860 mm
• Cut-Out Depth: 300 mm

Product Weight:

• Product Weight: 8.4 kg

Installation & Requirements:

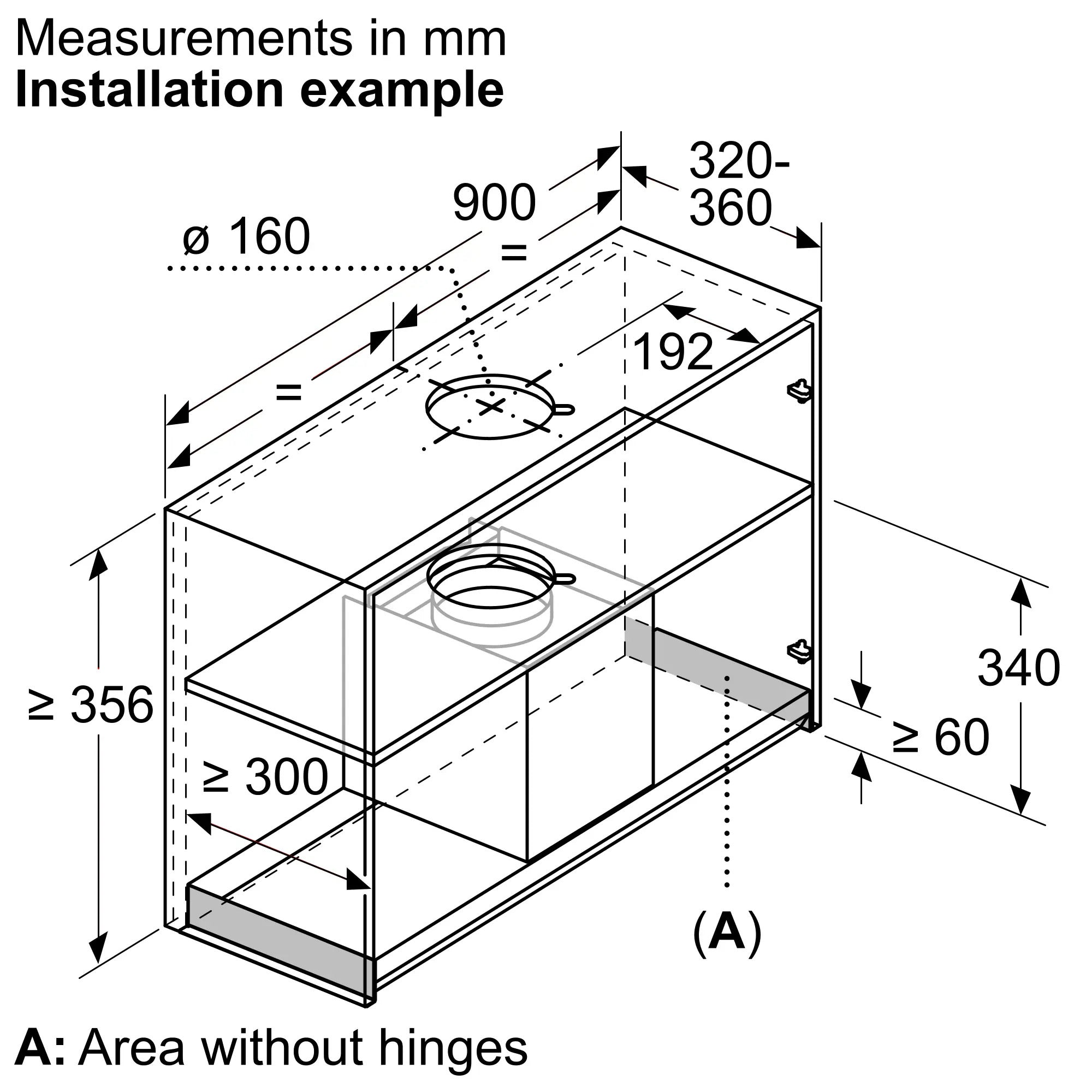

• Installation type: Integrated built-in installation within overhead cabinetry
• Operating configuration: Ducted extraction or recirculating
• Duct size: 150 mm
• Duct outlet position: Top
• Electrical connection: 10A plug and lead
• Cord length: 1.3 metres
• Power supply: 220–240V
• Cabinet integration: Flush-mounted concealed installation
• Load capacity: Internal T-shaped storage design supports up to 20kg

Country of Origin:

• Made in Germany

Extra Information:

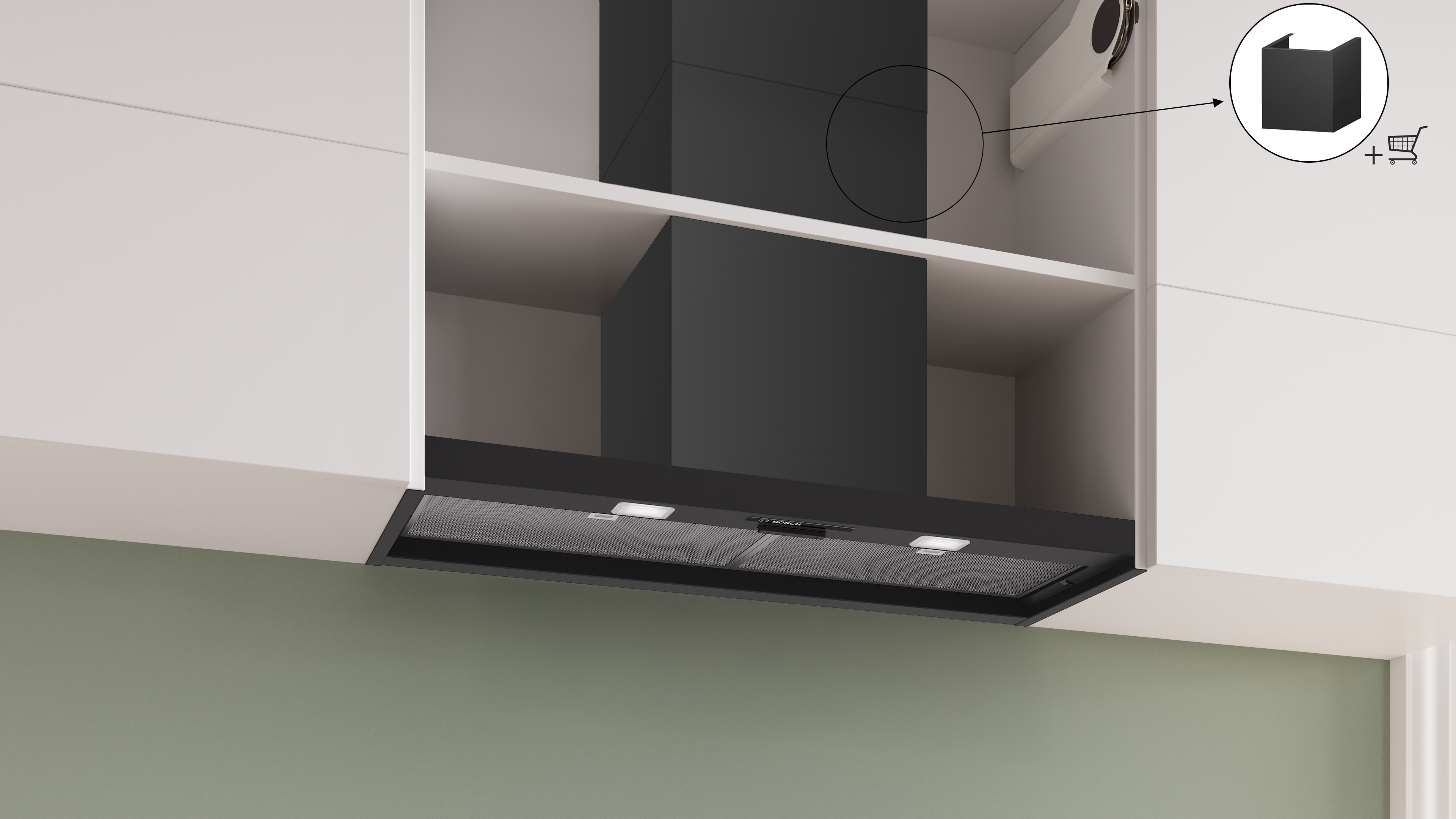

The DBB93BC60A uses Bosch's Integrated Design platform, allowing the rangehood to remain largely concealed within cabinetry while maintaining ventilation performance. The internal T-shaped structure is designed to maximise available cupboard storage compared with conventional integrated rangehood layouts.

For recirculating operation, Bosch requires compatible recirculation accessories to be installed separately. Extraction performance and operating noise can vary depending on duct run length, duct diameter and installation configuration.

Bosch's metal grease filters are designed to capture airborne grease before it enters the motor system and can be cleaned in a dishwasher for ongoing maintenance. The fingerprint-resistant matte black finish is intended to reduce visible surface marking in high-use kitchen environments.

Included Products / Accessories:

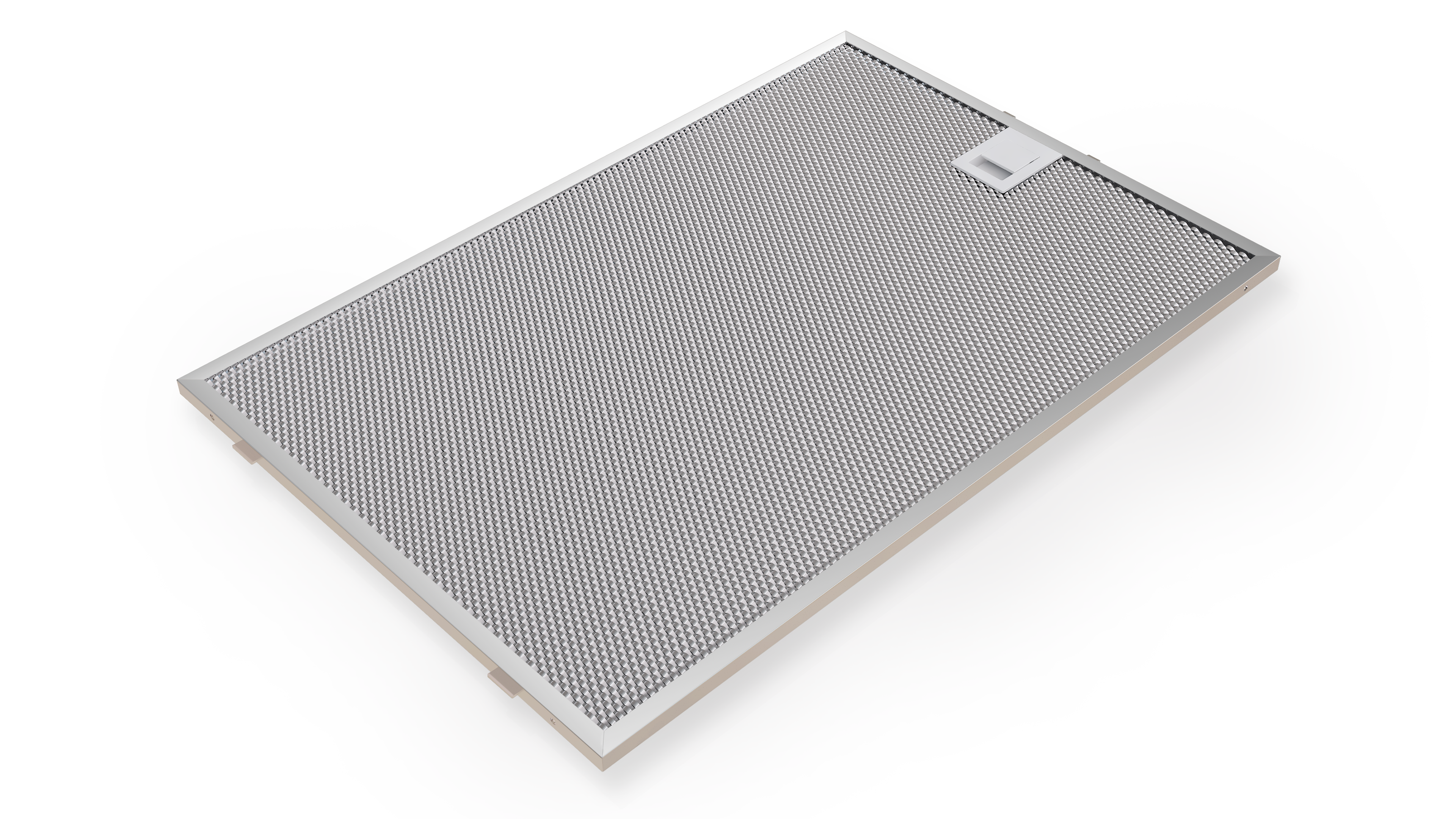

• 2 x stainless steel metal grease filters
• Integrated design rangehood unit
• Installation components
• Power cord and plug

Warranty:

Backed by a 2-year Bosch manufacturer's warranty for domestic use when installed and operated according to Bosch installation and operating instructions.
