• SilentPowerDrive motor: Bosch high-efficiency motor system engineered for strong extraction with reduced operating noise.
• EcoSilence Drive technology: brushless motor design supporting efficient airflow and long-term reliability.
• Smart Hood Automatic: compatible Bosch cooktops can automatically adjust extraction levels based on cooking activity.
• Integrated design installation: concealed flush-mounted installation within overhead cabinetry.

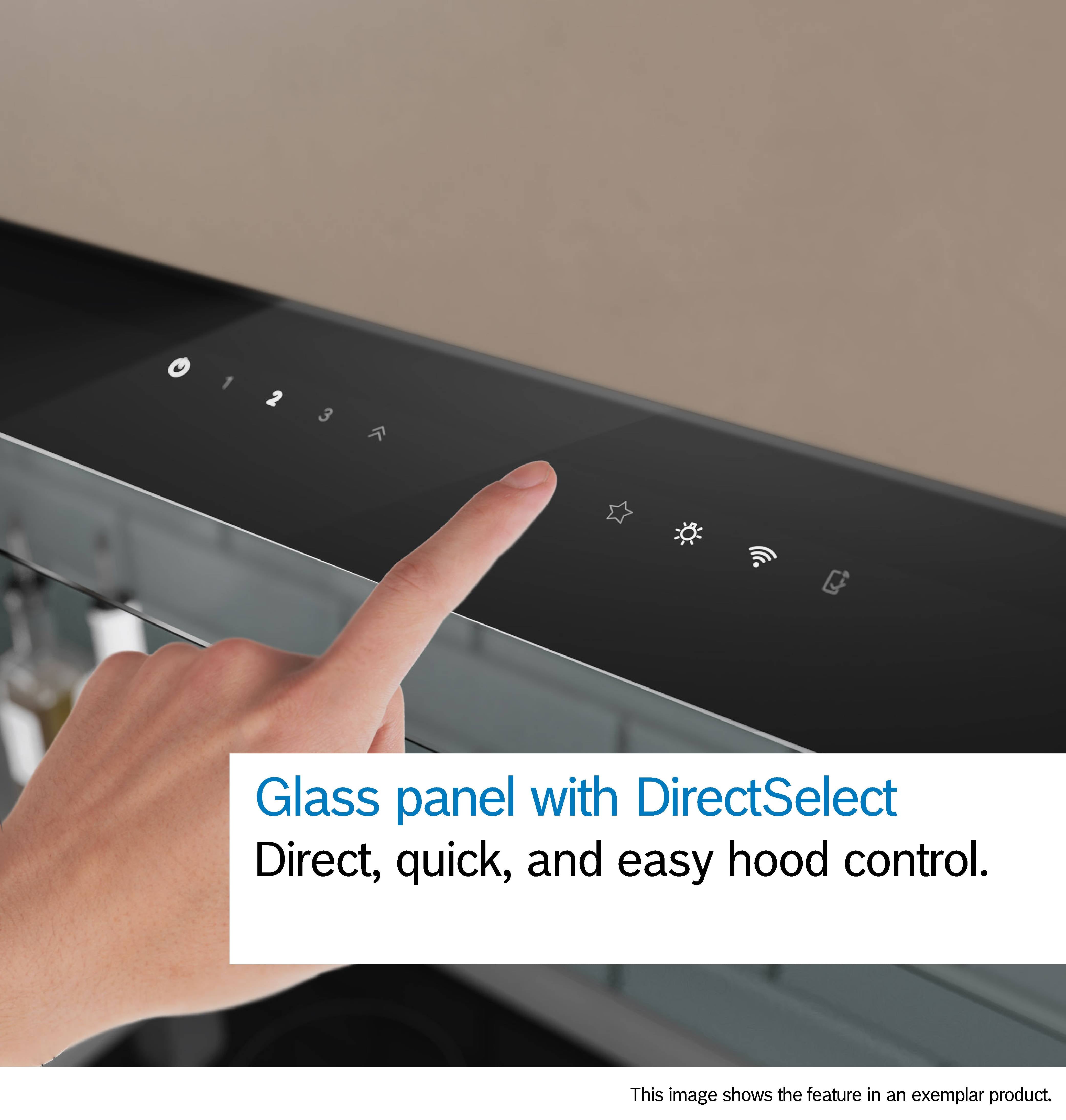

• DirectSelect touch controls: glass touch-control interface positioned within the fold-away glass panel.
• Automatic glass panel recognition: opening the glass panel activates operational functions automatically.
• 3 fan speeds plus intensive mode: adaptable ventilation performance across varying cooking conditions.
• Intensive extraction setting: temporary high-capacity extraction mode for heavy cooking vapours.

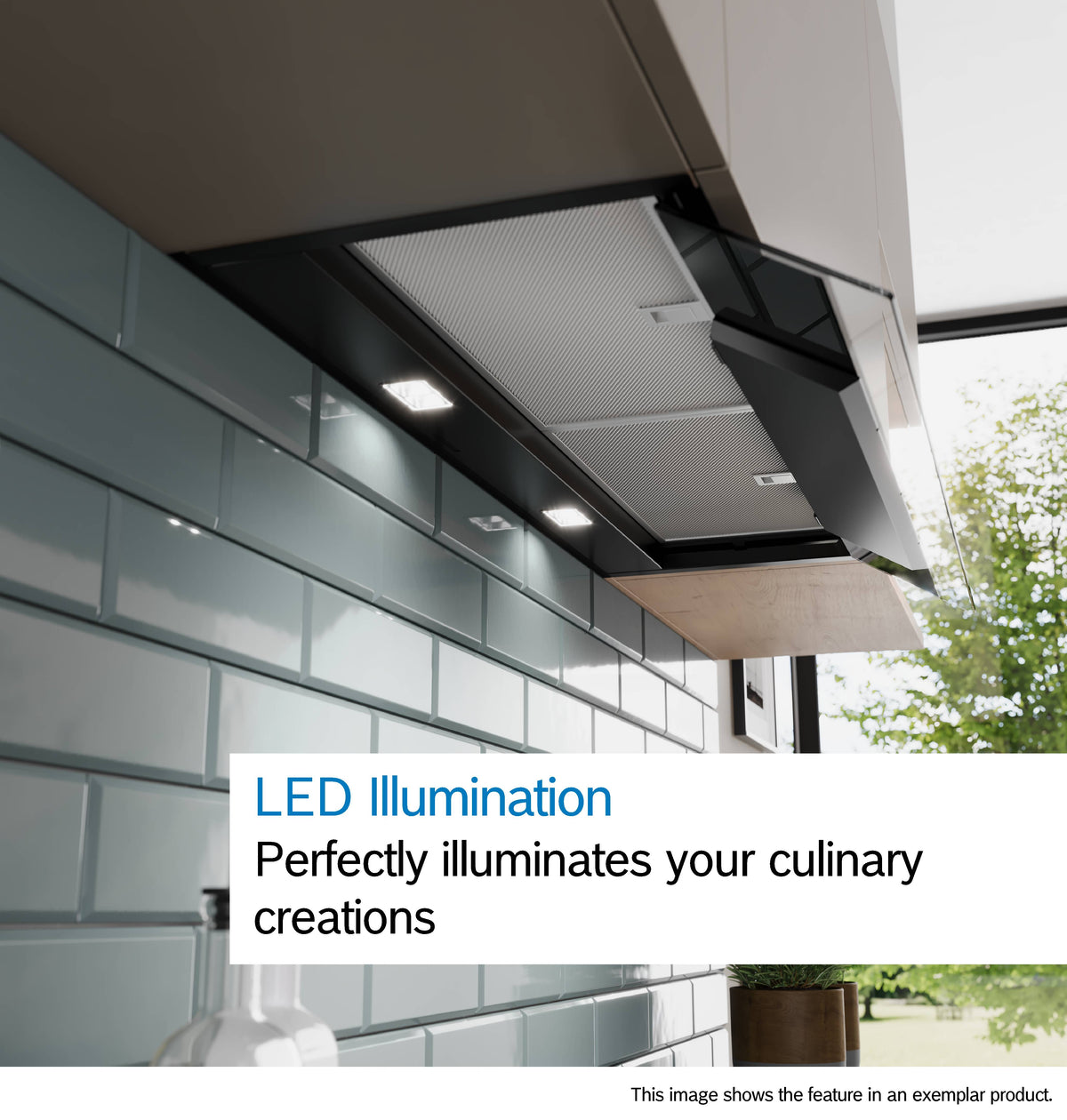

• LED cooktop lighting: bright, energy-efficient illumination across the cooking surface.
• Storage-capable cabinet design: up to 20kg combined storage capacity across both sides of the internal chimney structure.

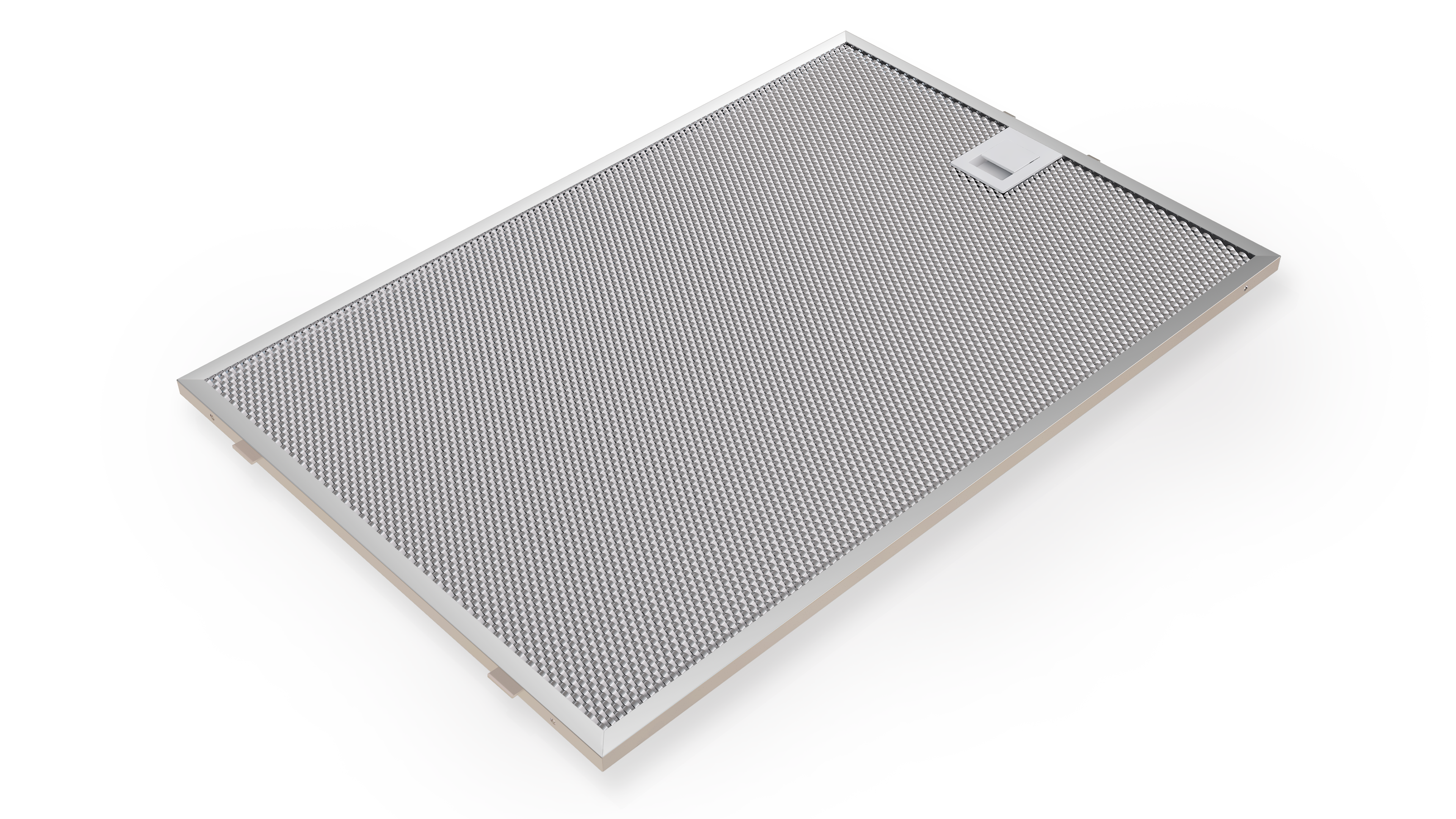

• Dishwasher-safe metal grease filters: removable filters designed for simplified cleaning and maintenance.
• Flexible cabinet planning: compatible with varying cabinet depths and installation configurations.

• Fan Speed 1: Low extraction setting for light cooking and general kitchen ventilation.
• Fan Speed 2: Medium extraction setting for everyday cooking requirements.
• Fan Speed 3: High extraction setting for increased smoke, steam and odour removal.
• Intensive Mode: Temporary maximum extraction boost for heavy cooking vapours and strong odours.
• Smart Hood Automatic: Automatically adjusts extraction performance when paired with compatible Bosch cooktops.
• LED Cooktop Lighting: Illuminates the cooking surface for improved visibility during food preparation.
• Automatic Panel Activation: Opening the glass control panel enables operational controls and extraction functions.
• Touch Control Operation: DirectSelect touch controls provide quick access to extraction and lighting functions.

• Product series: Bosch Series 6
• Rangehood type: Integrated Design Hood
• Installation type: Built-in integrated
• Operating mode: Ducted or recirculating (accessories available separately)
• Maximum air extraction: 433 m³/h
• Boost extraction capacity: 699 m³/h
• Fan speeds: 3 speeds plus intensive mode
• Motor technology: SilentPowerDrive with EcoSilence Drive
• Control type: DirectSelect touch controls
• Cooktop connectivity: Smart Hood Automatic compatible
• Filter type: Metal grease filters
• Filter cleaning: Dishwasher safe
• Lighting type: LED
• Number of lights: 2
• Lighting power: 2 x 2W LED
• Ducting location: Top outlet

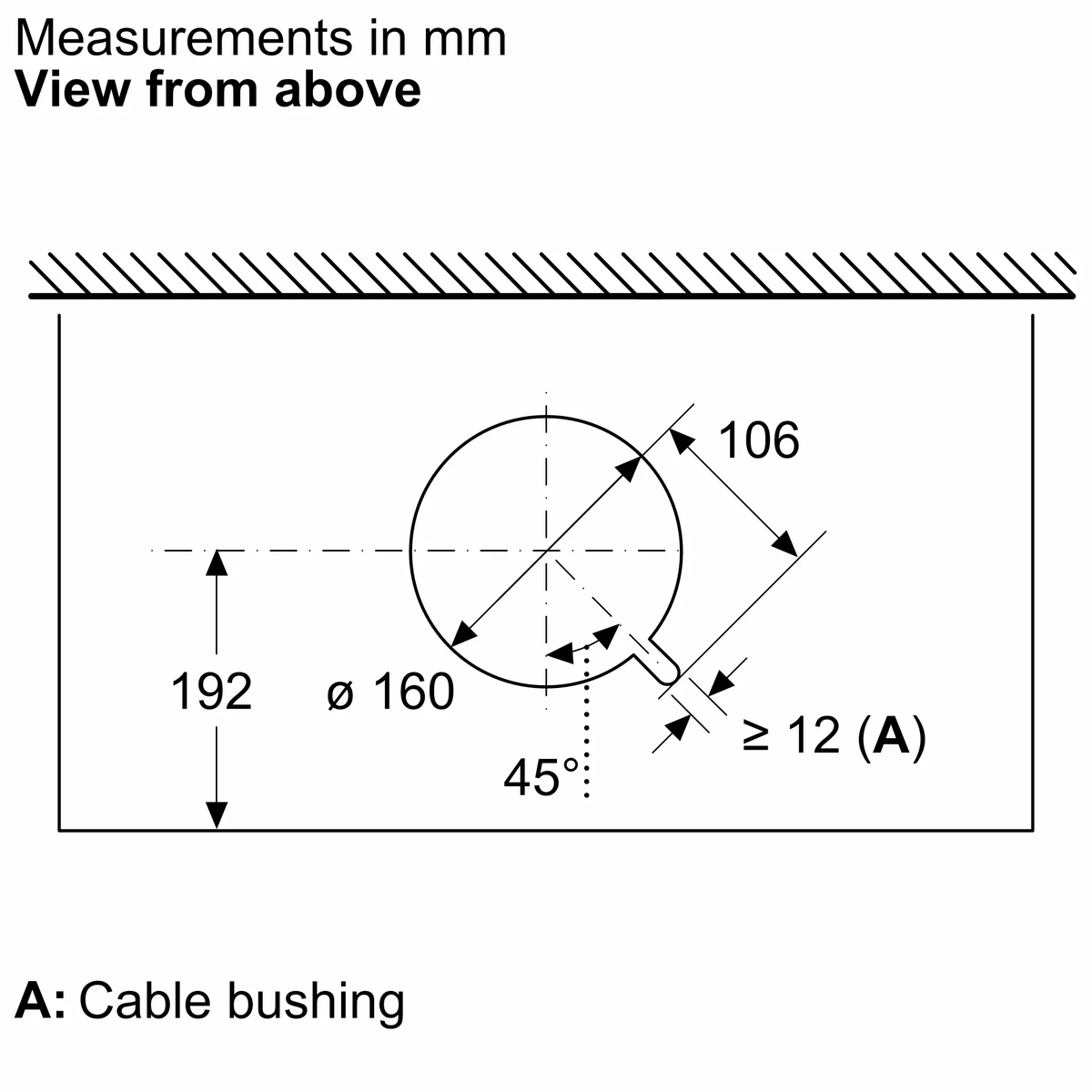

• Duct diameter: 150 mm
• Power consumption: 256 W
• Energy rating: Not specified by manufacturer

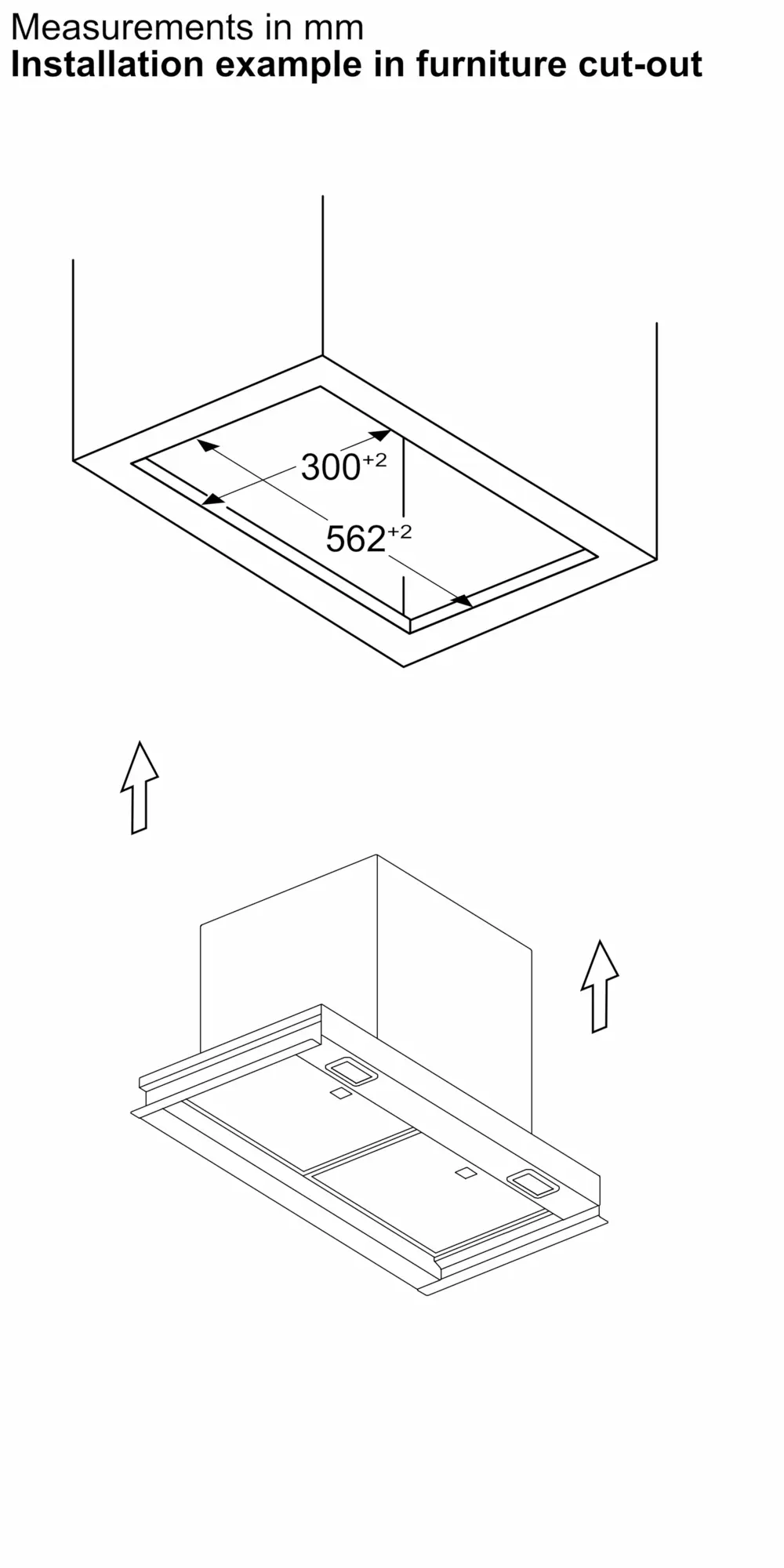

• Installation type: Integrated flush cabinet installation
• Operating configuration: Ducted or recirculating
• Electrical connection: Plug-in connection
• Power supply: 220–240 V / 50–60 Hz
• Connected load: 256 W
• Duct outlet size: 150 mm
• Duct outlet position: Top

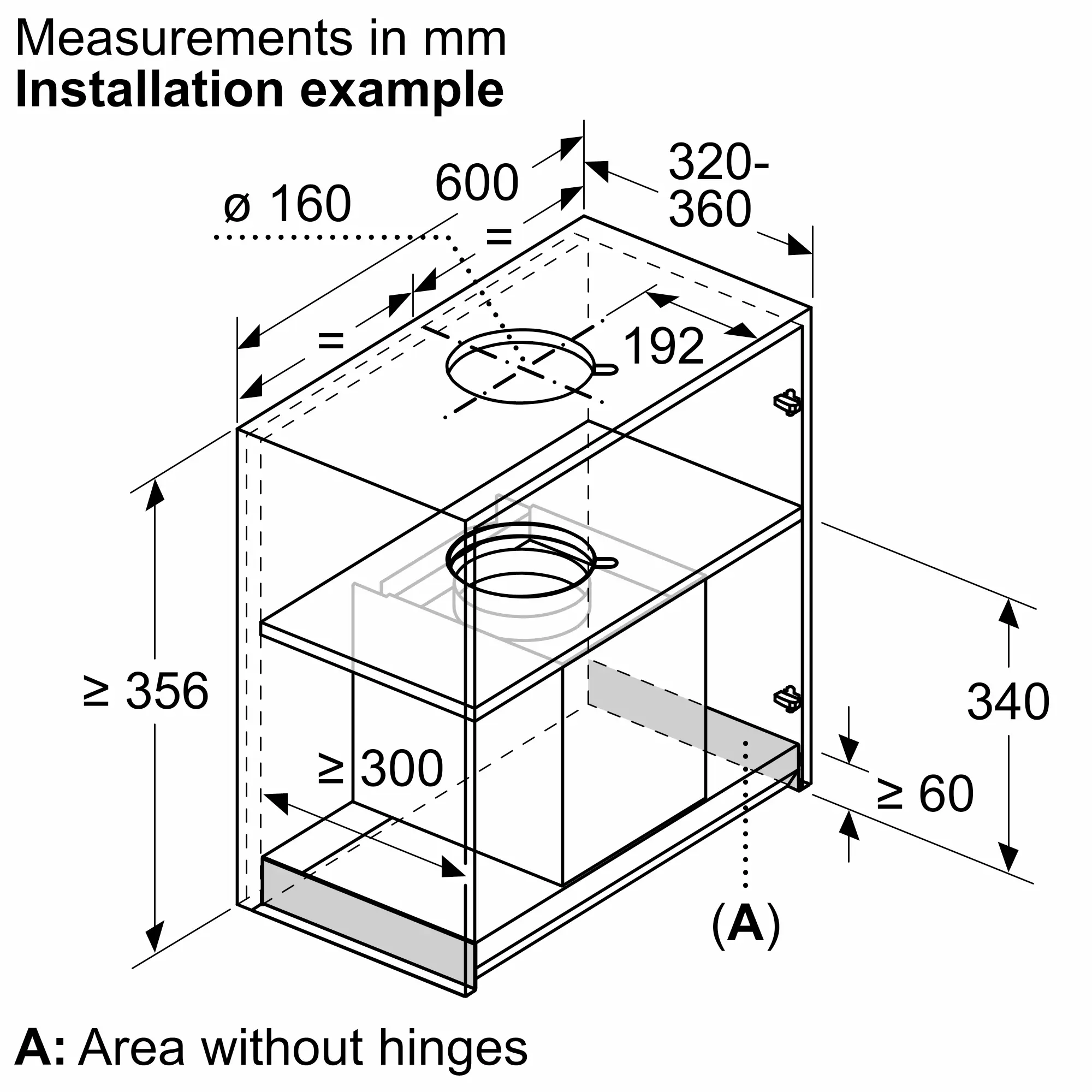

• Cabinet integration: Designed for installation within overhead cabinetry without visible underside structure

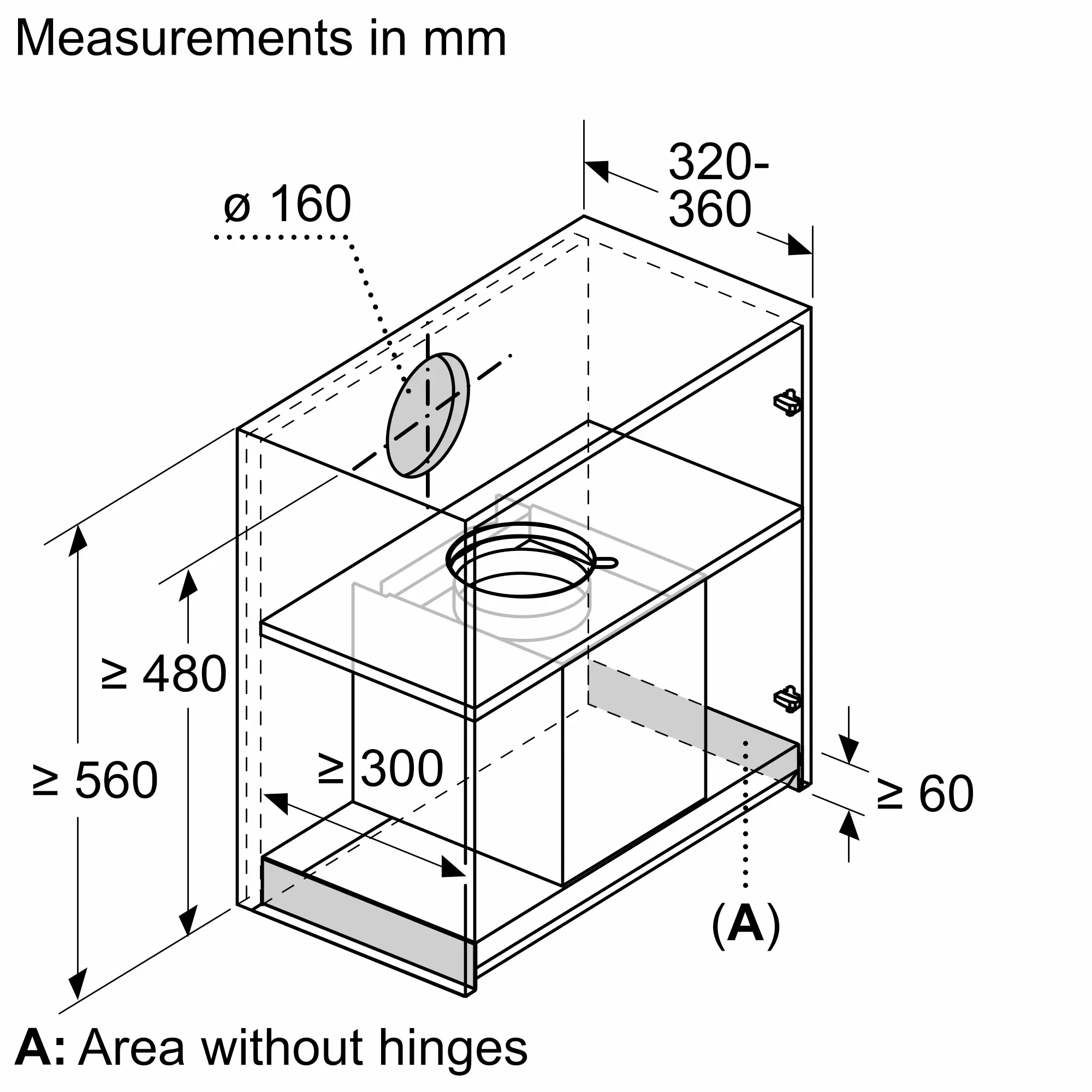

• Flexible cabinet planning: compatible with varying cabinet heights, depths and chimney extension configurations
• Professional installation: recommended in accordance with Bosch installation instructions

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

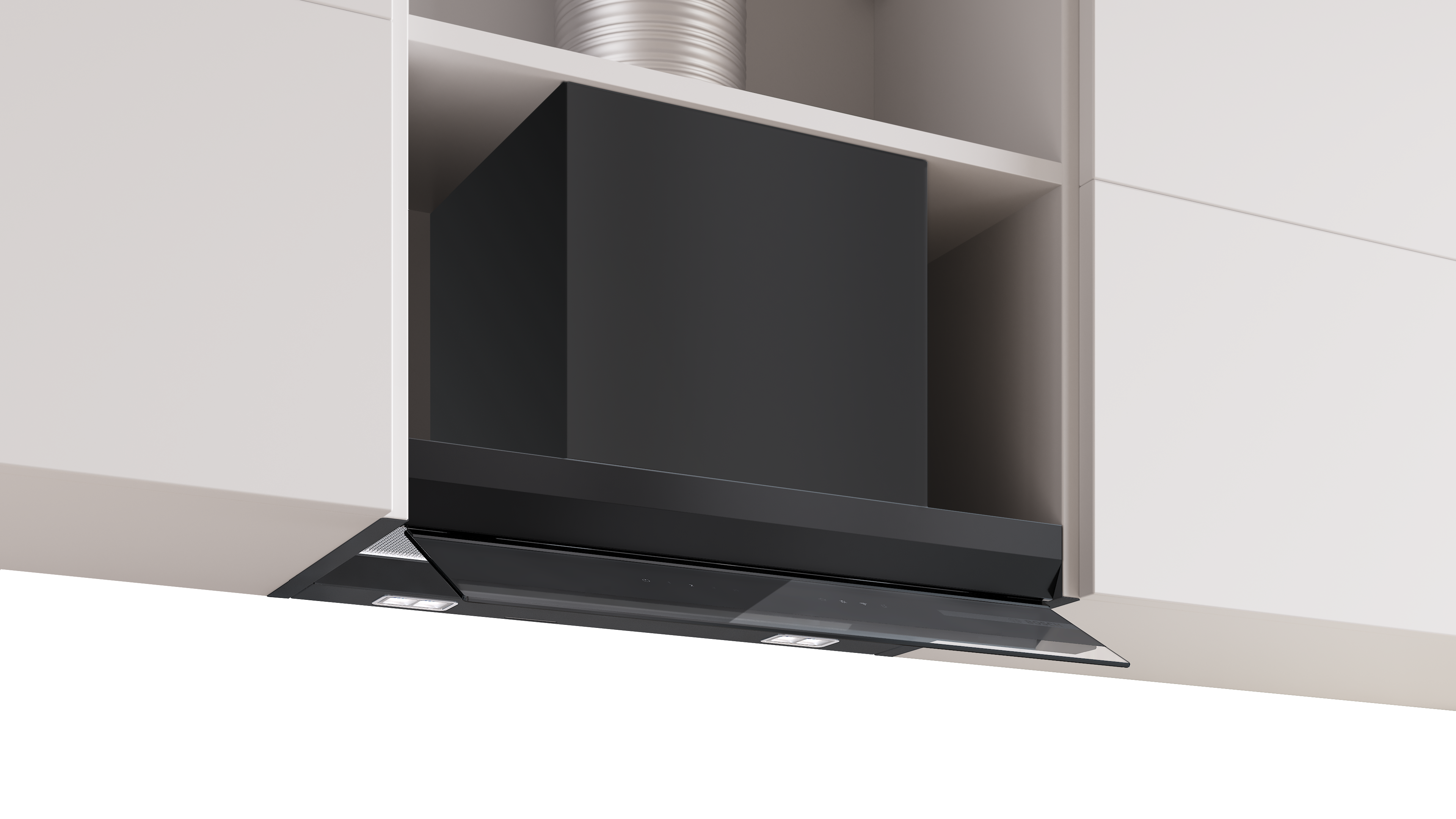

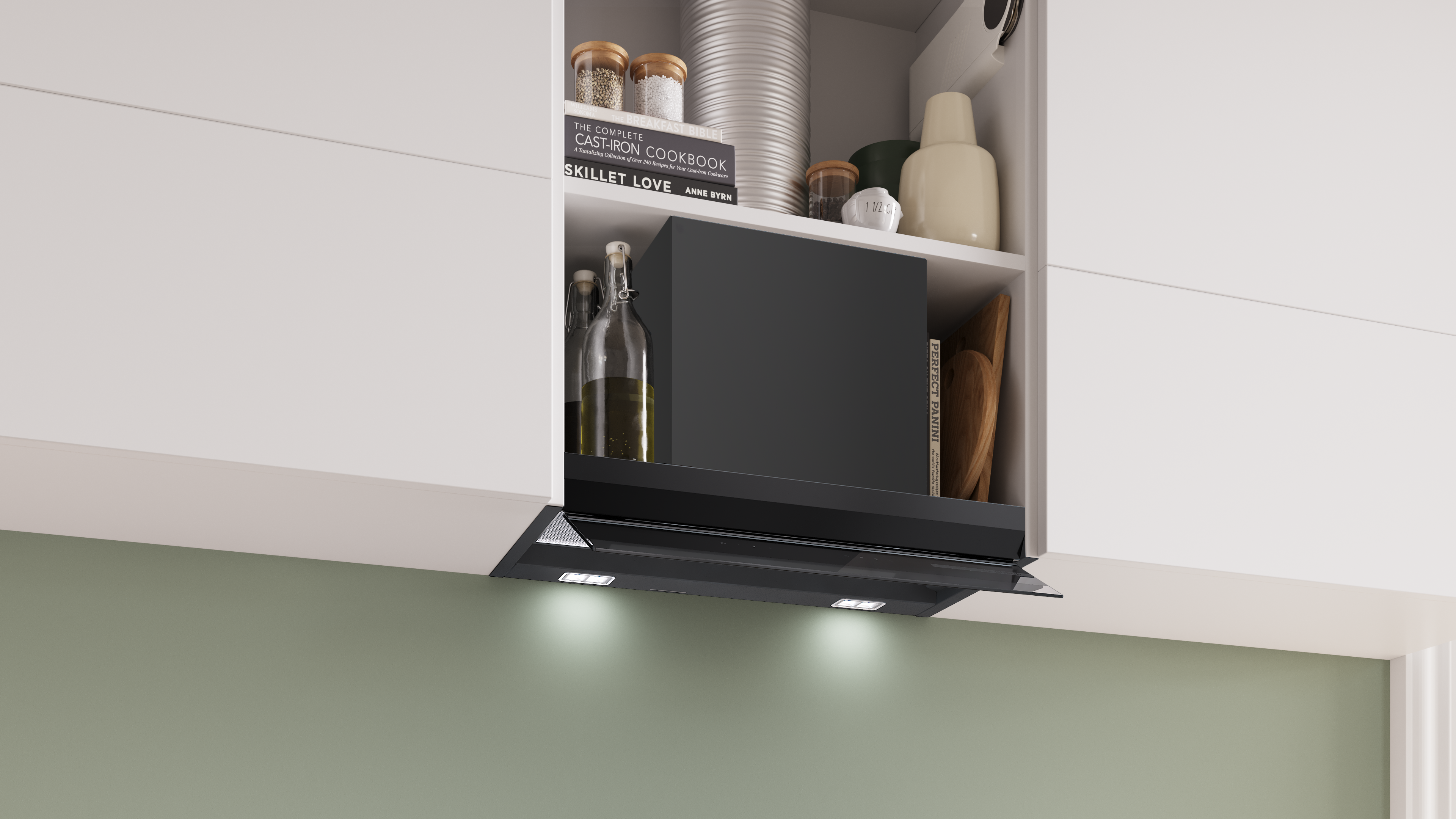

The DBB67DP60A forms part of Bosch's latest Integrated Design Hood platform, developed to provide concealed extraction while retaining functional cabinet storage. The internal T-shaped structure enables additional shelving and storage zones to remain usable within the overhead cabinet, supporting up to 10kg load capacity per side when installed according to Bosch specifications.

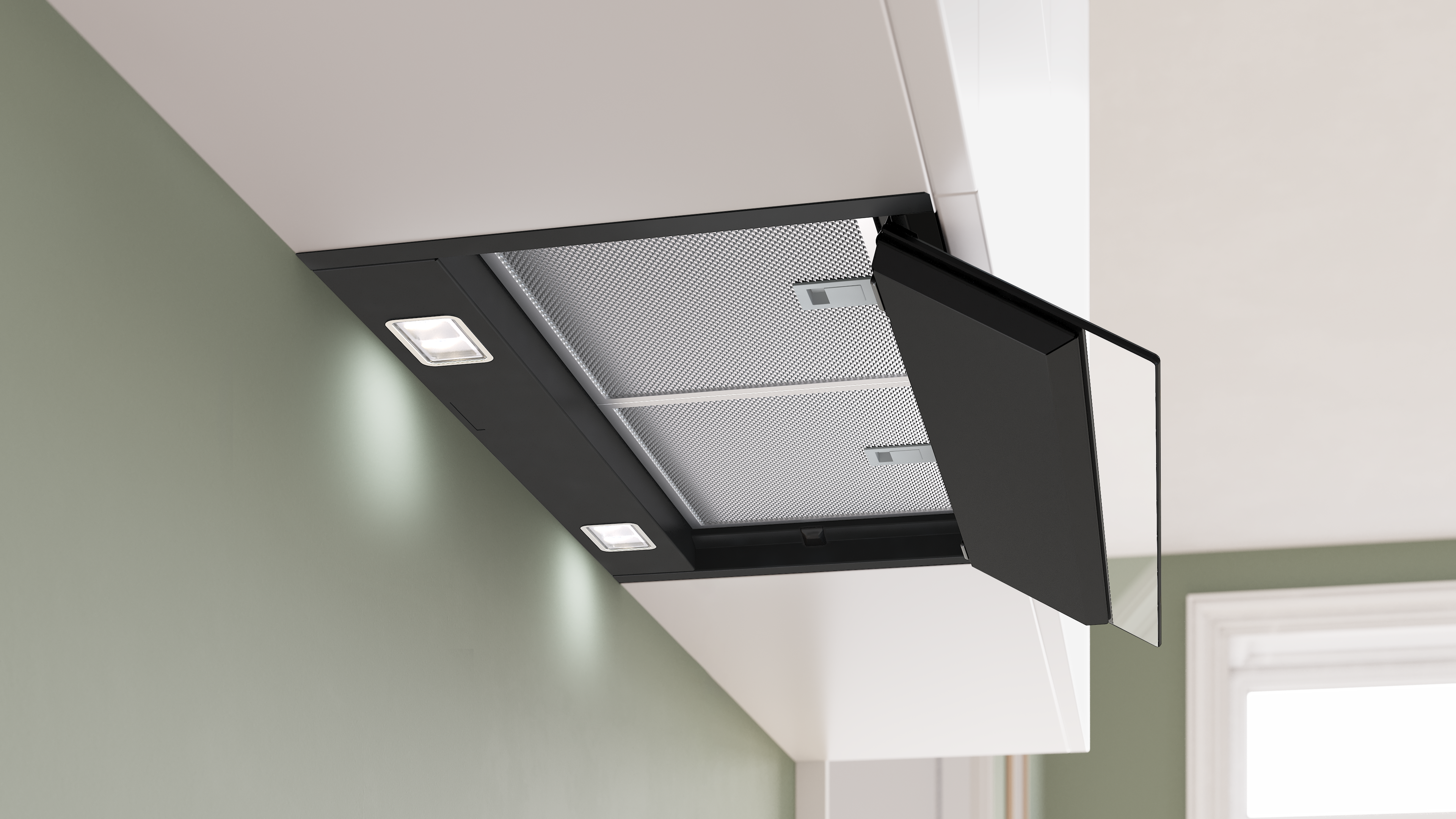

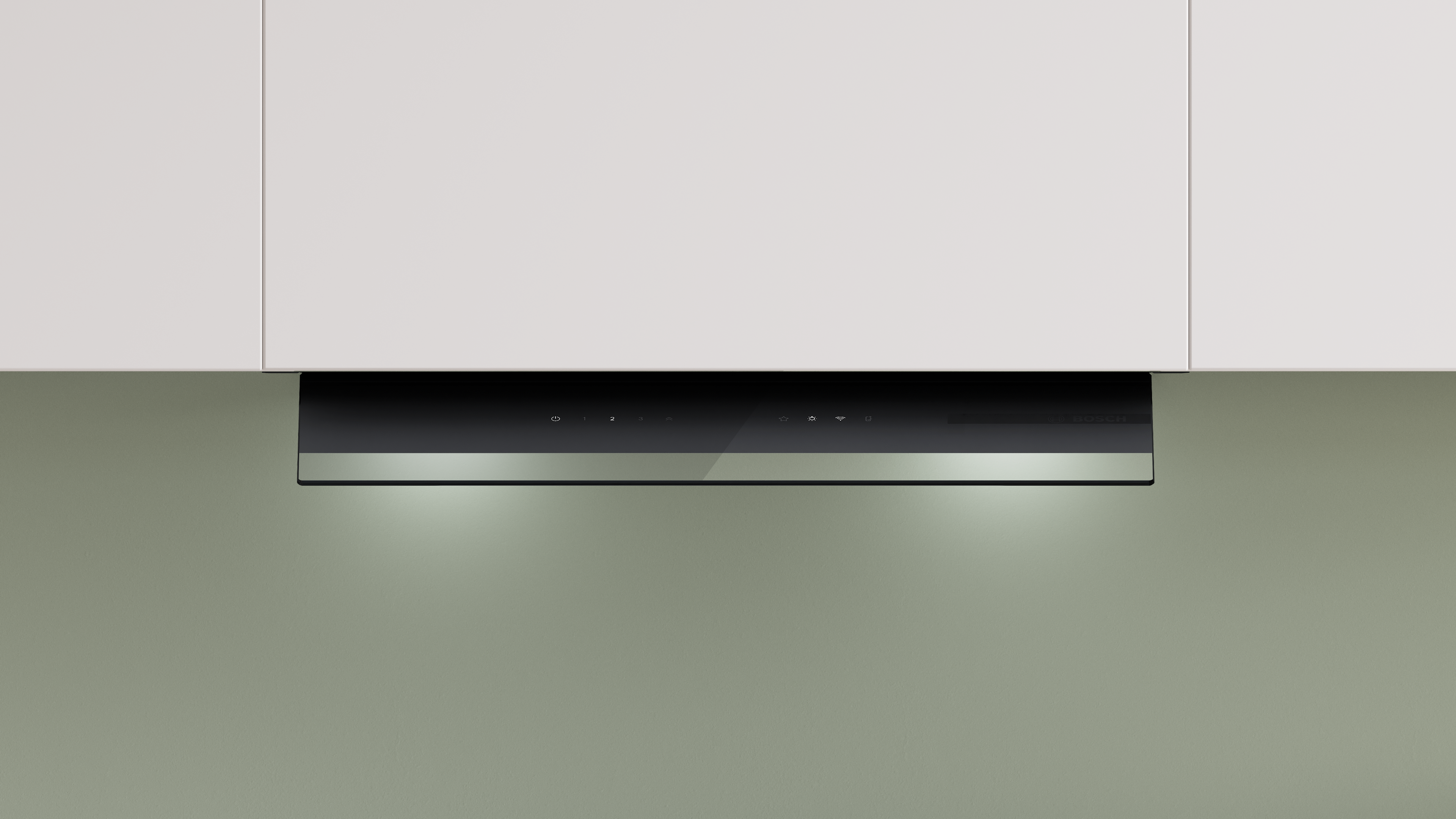

The fold-away glass control panel is designed to remain hidden when not required, preserving a minimalist kitchen appearance. Automatic glass panel recognition enables operational controls and lighting functions to activate seamlessly when the panel is opened.

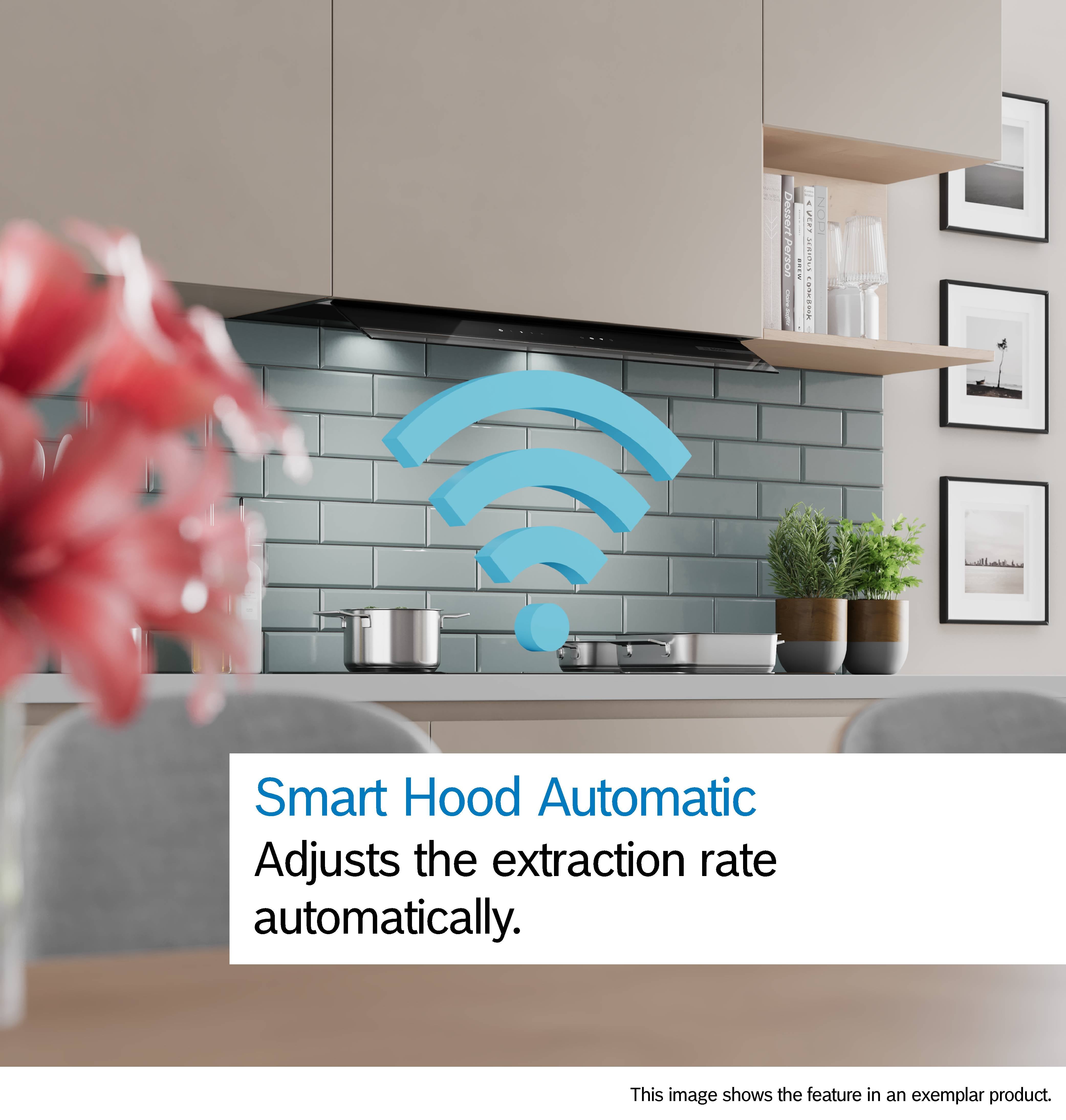

Smart Hood Automatic functionality allows compatible Bosch cooktops to communicate directly with the rangehood. Extraction levels can adjust automatically during cooking, reducing the need for manual fan-speed adjustments while maintaining effective kitchen ventilation.

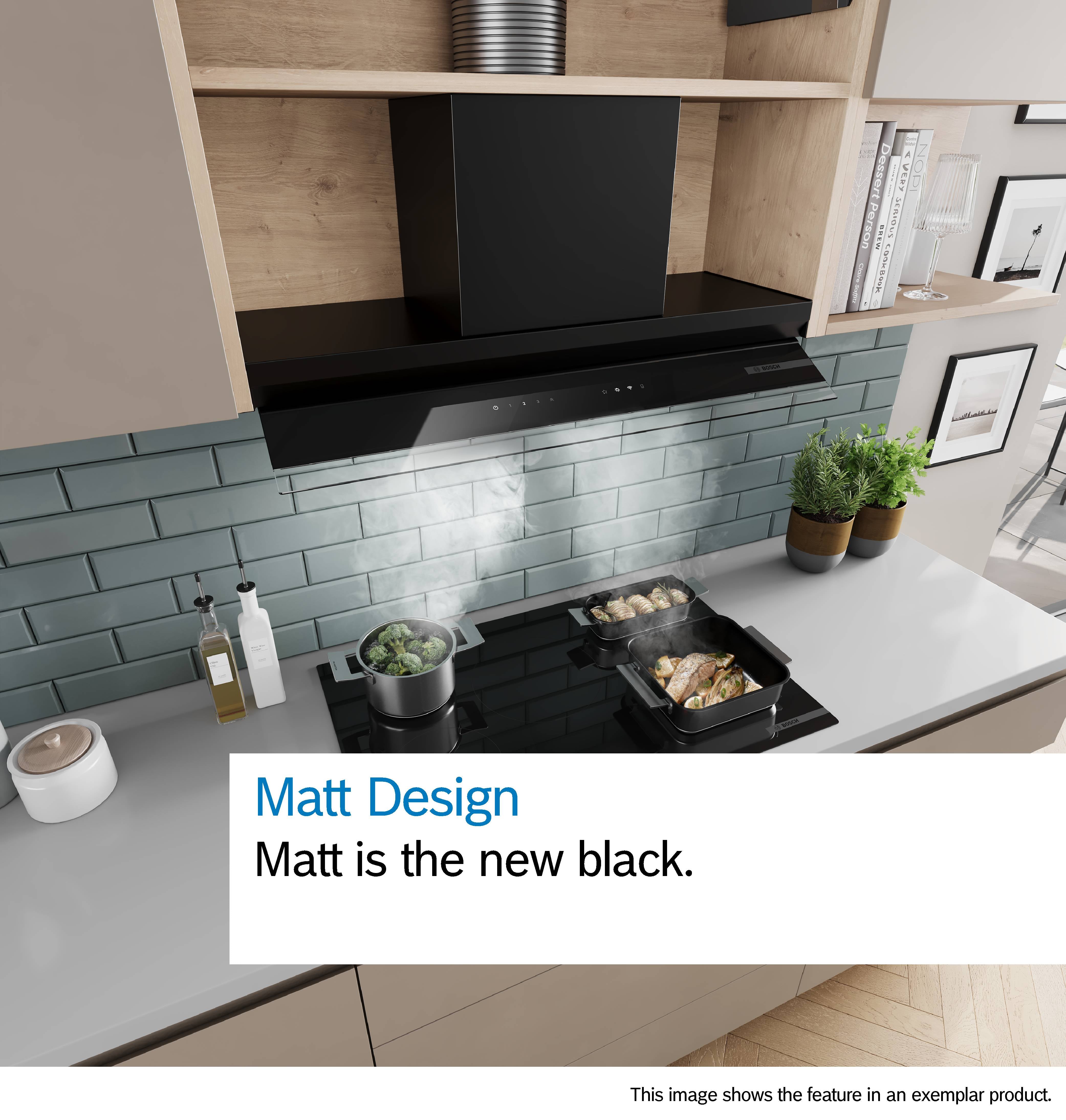

The smooth matte black surfaces, concealed design architecture and dishwasher-safe metal filters are engineered to simplify ongoing maintenance. The integrated design also helps minimise visual interruption across modern kitchen cabinetry.

• 2 x metal grease filters
• Integrated glass control panel
• Installation hardware
• Installation documentation
