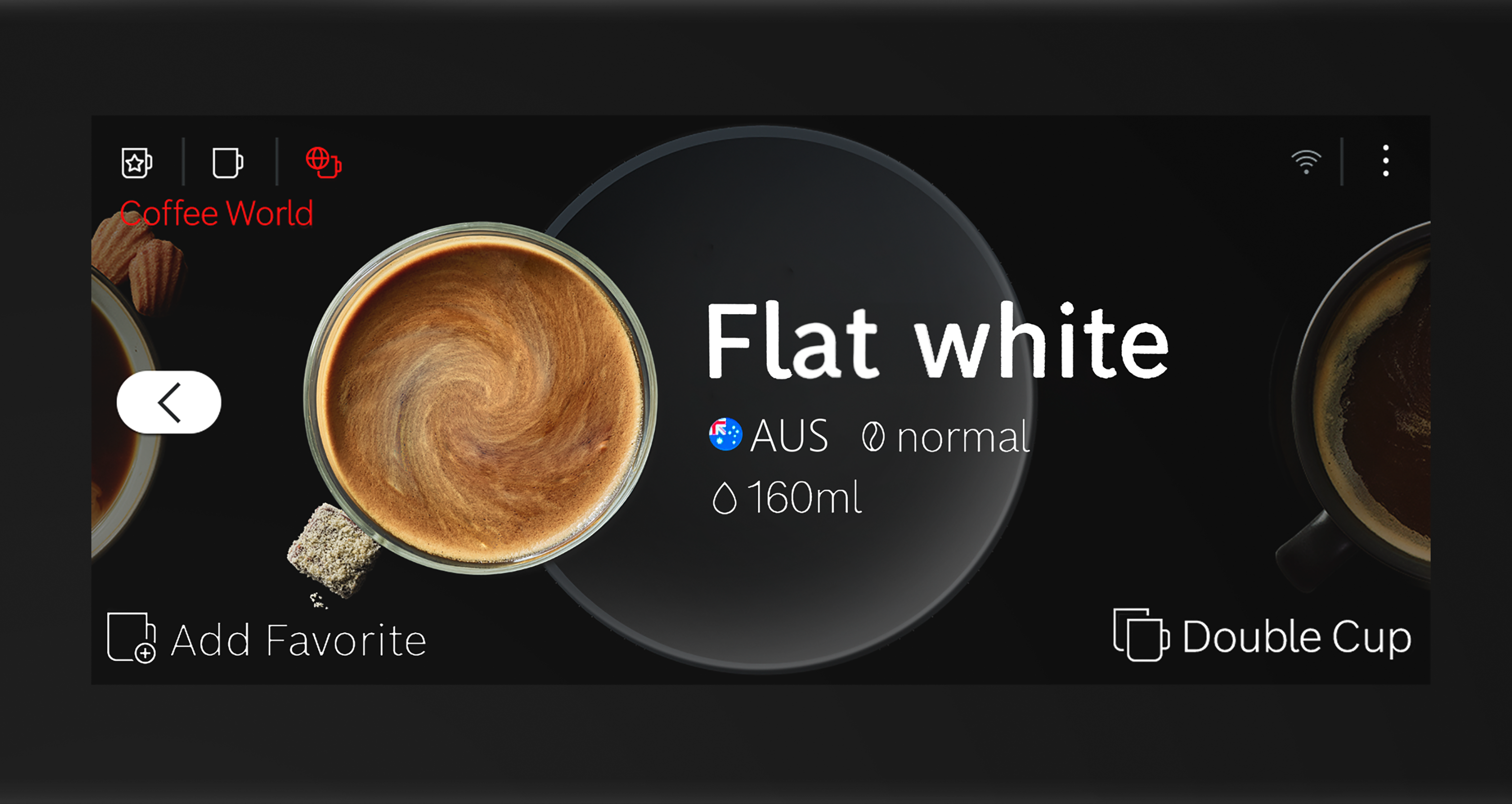

• TFT-touchdisplay Pro: 6.8" full-colour TFT display with touch and slide navigation.
• Home Connect: app-enabled operation, CoffeePlaylist functionality and remote diagnostics.
• Coffee World: unlocks additional international coffee beverages through the Home Connect app.
• AromaSelect: choose between mild, balanced and distinctive aroma profiles.
• AromaDouble Shot: dual grinding and brewing process for stronger coffee with reduced bitterness.
• OneTouch DoubleCup: prepares two coffee beverages simultaneously.
• SilentCeram Drive: durable ceramic grinder designed for quieter operation.
• Personalised favourites: save up to 30 customised beverages.
• Integrated milk system: automatic milk preparation using external milk hose.
• Height-adjustable outlet: accommodates cups and glasses up to 15 cm tall.
• LED illuminated beverage outlet: improves visibility during beverage preparation.
• Child lock: prevents unintended operation.
• Automatic rinse programmes: rinse cycle activates at startup and shutdown.
• Front-access maintenance: water tank and bean container accessible from the front of the appliance.

• Espresso: concentrated short coffee extraction with rich crema and full-bodied flavour.
• Espresso Macchiato: espresso topped with a small amount of textured milk foam.
• Coffee: standard black coffee preparation with adjustable strength and volume.
• Cappuccino: espresso with steamed milk and thick milk foam.
• Latte Macchiato: layered milk beverage combining espresso, steamed milk and foam.
• Flat White: espresso with finely textured milk and a thinner foam layer.
• Caffè Latte: espresso blended with a larger proportion of steamed milk.
• Warm Milk: heats milk without brewing coffee.
• Milk Froth: produces textured milk foam for milk-based beverages.
• Hot Water: dispenses heated water for tea and other hot drinks.
• Coffee Pot Function: prepares larger coffee quantities for multiple servings.
• Coffee World: accesses additional international coffee specialties through Home Connect.
• Adjustable Beverage Temperature: allows coffee temperature customisation to user preference.
• Adjustable Coffee Strength: modifies coffee intensity across multiple strength levels.
• Adjustable Milk Ratio: adjusts milk-to-coffee proportions for personalised beverages.
• Adjustable Grinding Level: customises grind fineness for different flavour profiles.
• Simultaneous Two-Cup Preparation: prepares two beverages at the same time from a single operation.

• Product type: Built-in fully automatic coffee machine
• Series: Series 8
• Pump pressure: 19 bar
• Display type: TFT-touchdisplay Pro
• Display size: 6.8"
• Coffee bean container capacity: 500 g
• Water tank capacity: 2.4 L
• Milk system: Integrated milk system with milk hose
• Number of aroma profiles: 3
• Personal beverage memory: Up to 30 favourites
• Coffee spout illumination: Yes
• Home Connect: Yes
• Grinder type: Ceramic grinder
• Number of bean containers: 1
• Cup heater: No
• Hot water function: Yes
• Double cup preparation: Yes
• Water filter compatible: Yes
• Power rating: 1600 W
• Voltage: 220–240 V
• Frequency: 50 / 60 Hz
• Fuse protection: 10 A
• Connection cable length: 170 cm

• Installation type: Built-in
• Connection type: Plug-in
• Electrical connection: 10 A standard outlet
• Power supply: 220–240 V / 50–60 Hz

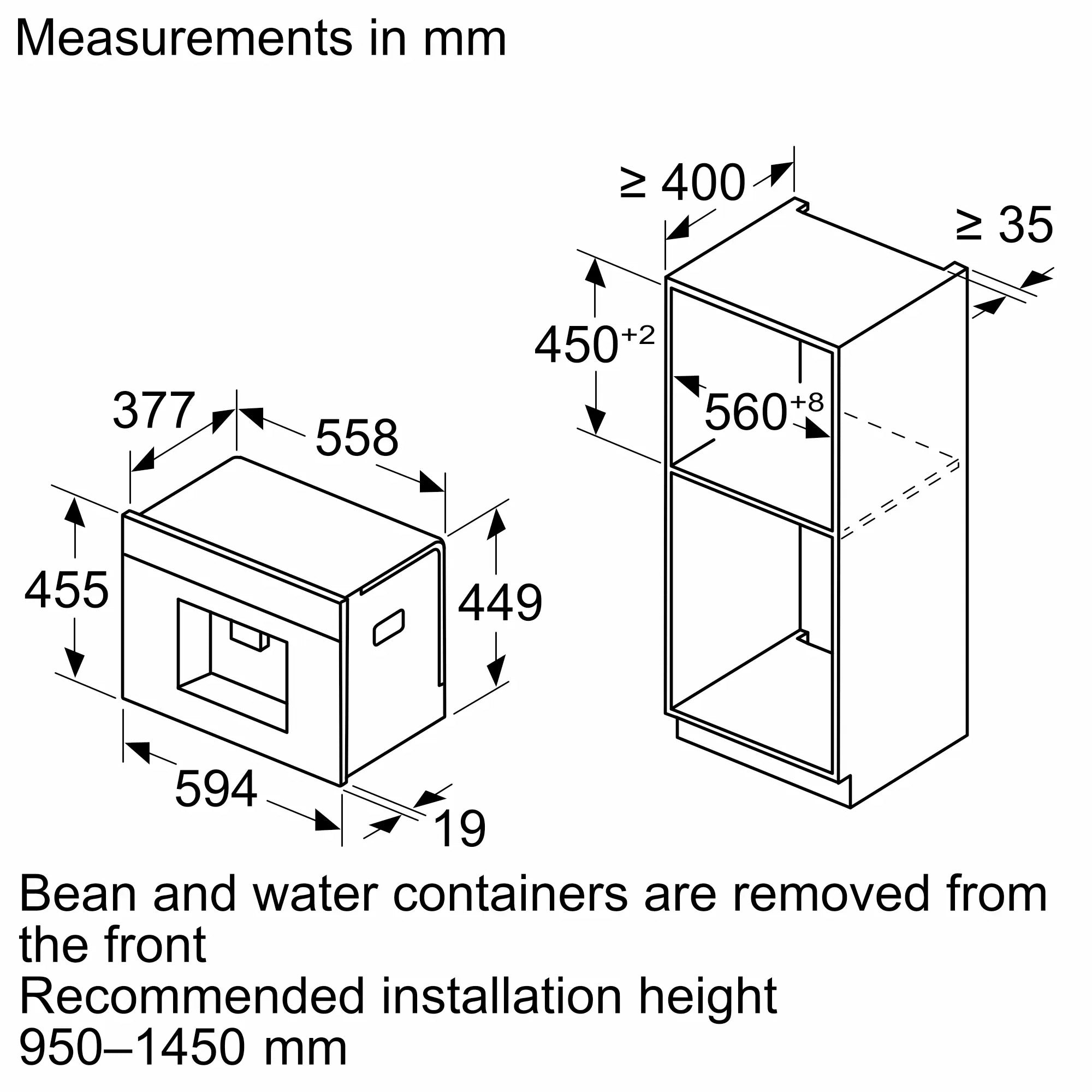

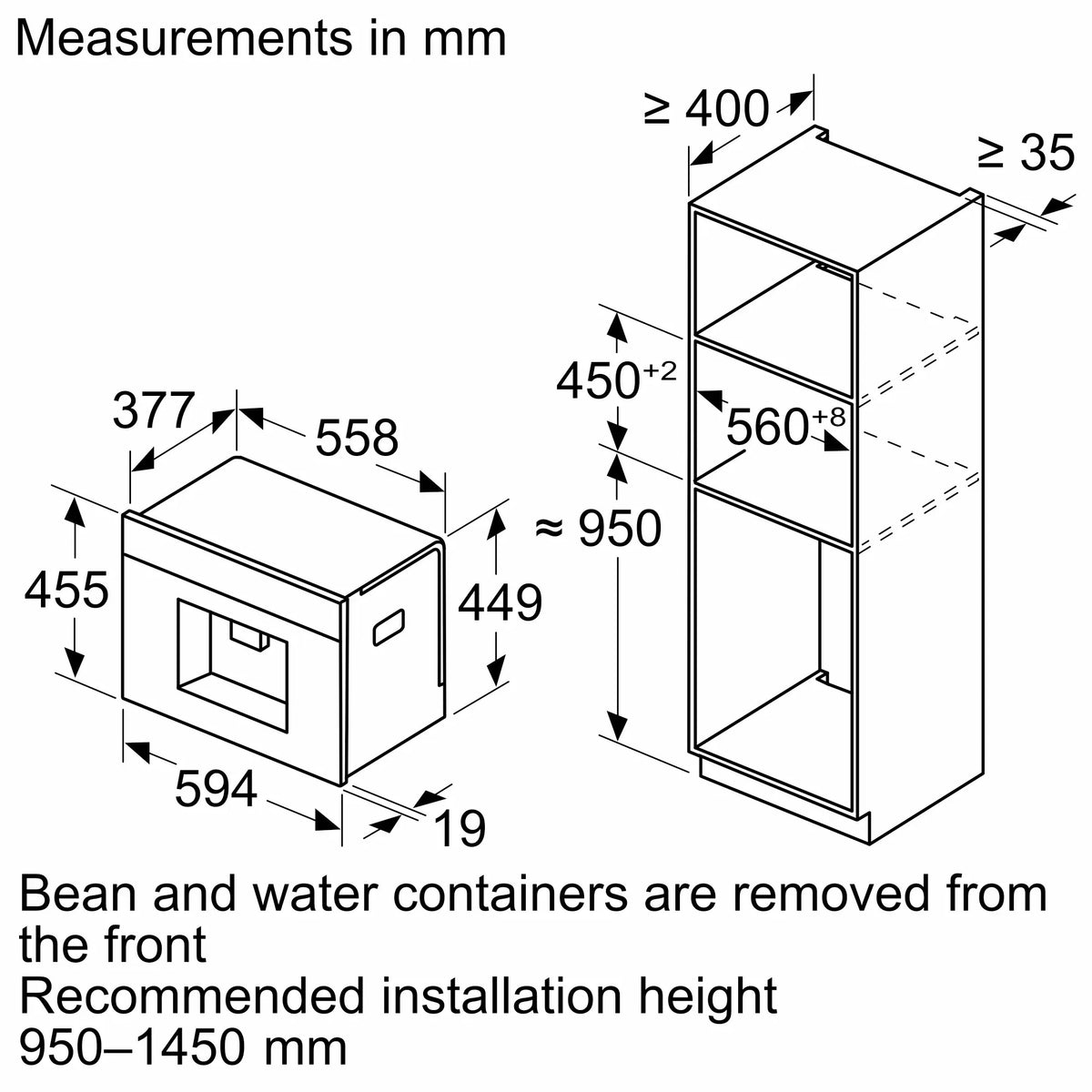

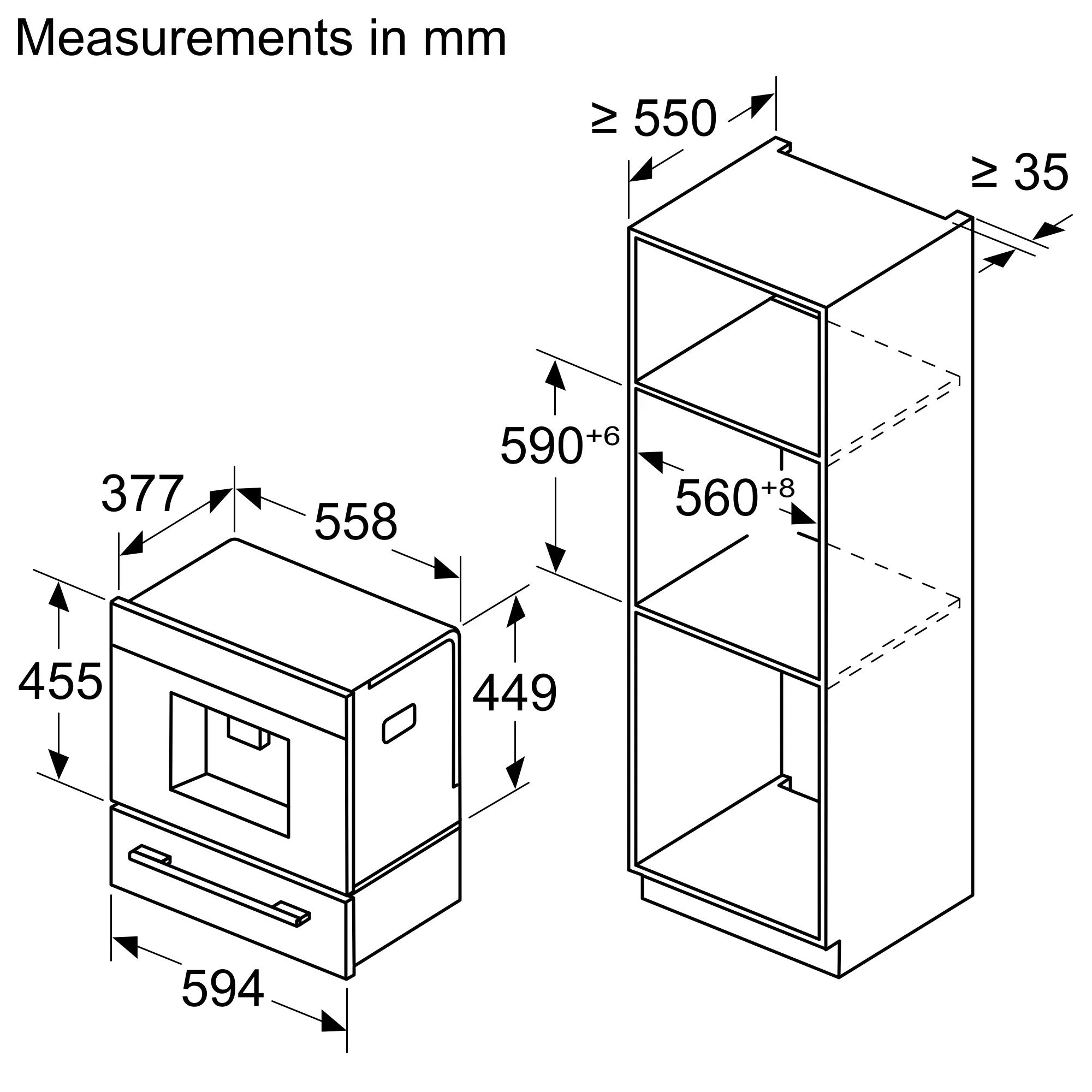

• Cabinet compatibility: Standard 60cm built-in appliance cavity
• Ventilation requirements: Refer to Bosch installation instructions

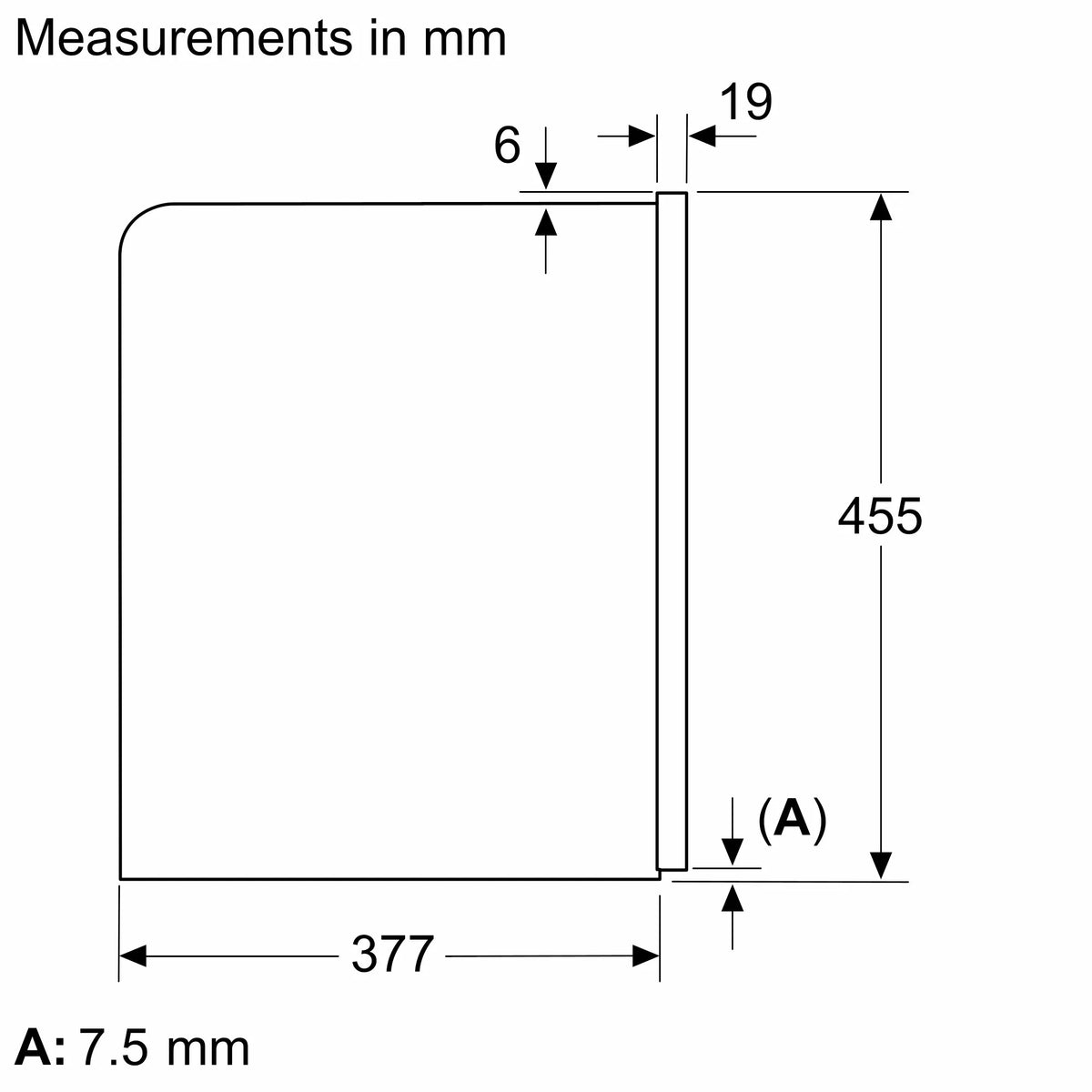

• Minimum niche depth: 376 mm
• Minimum niche width: 558 mm
• Minimum niche height: 449 mm

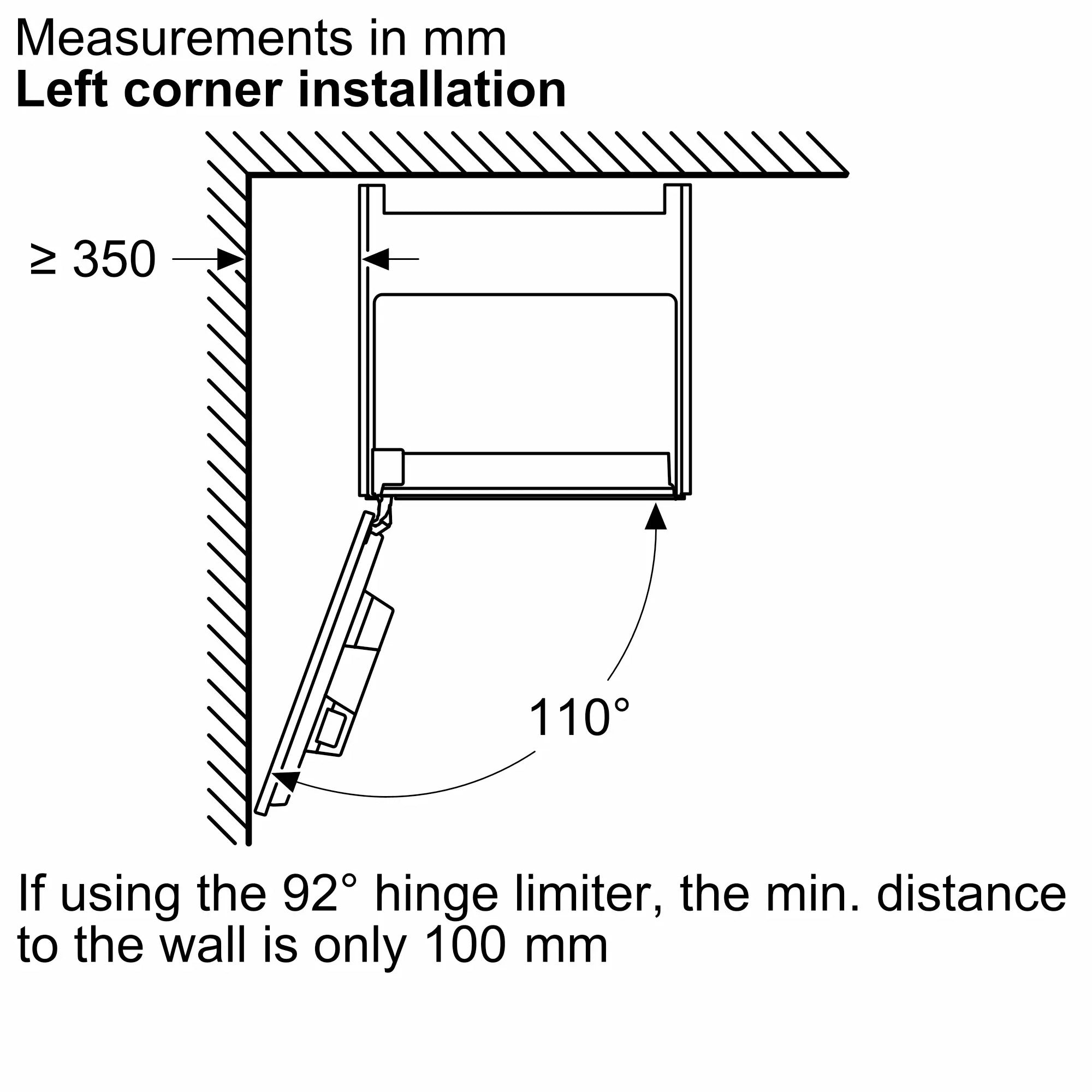

• Door opening angle: 110°
• Minimum wall clearance with hinge limiter: 100 mm

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

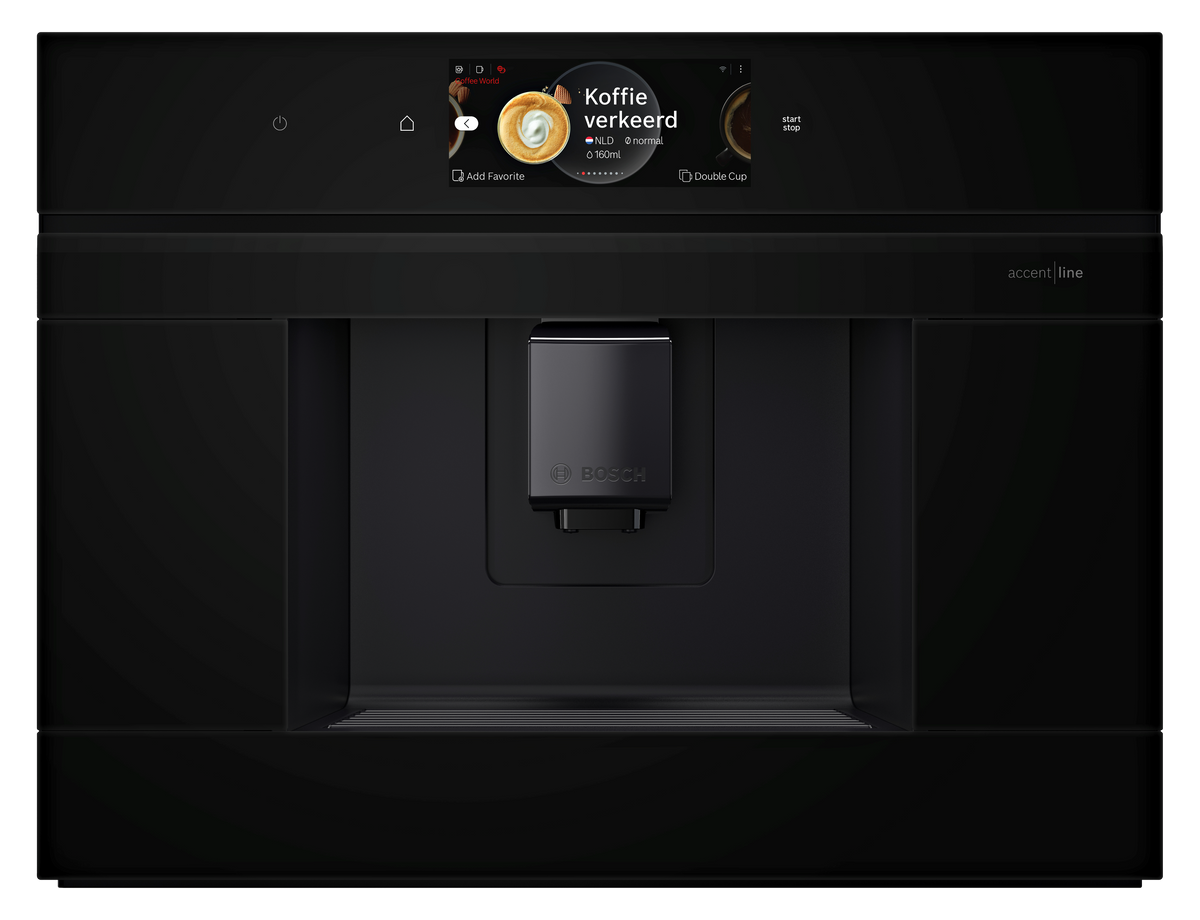

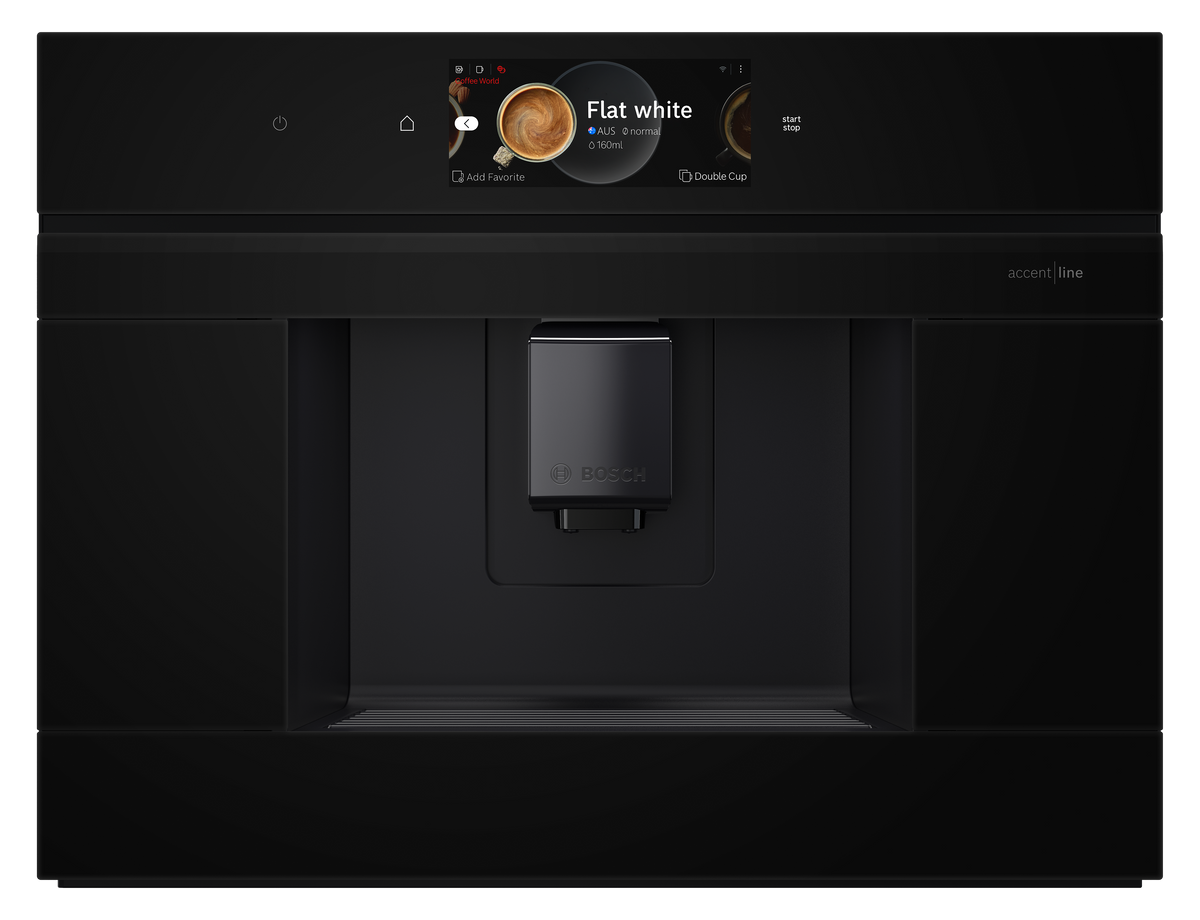

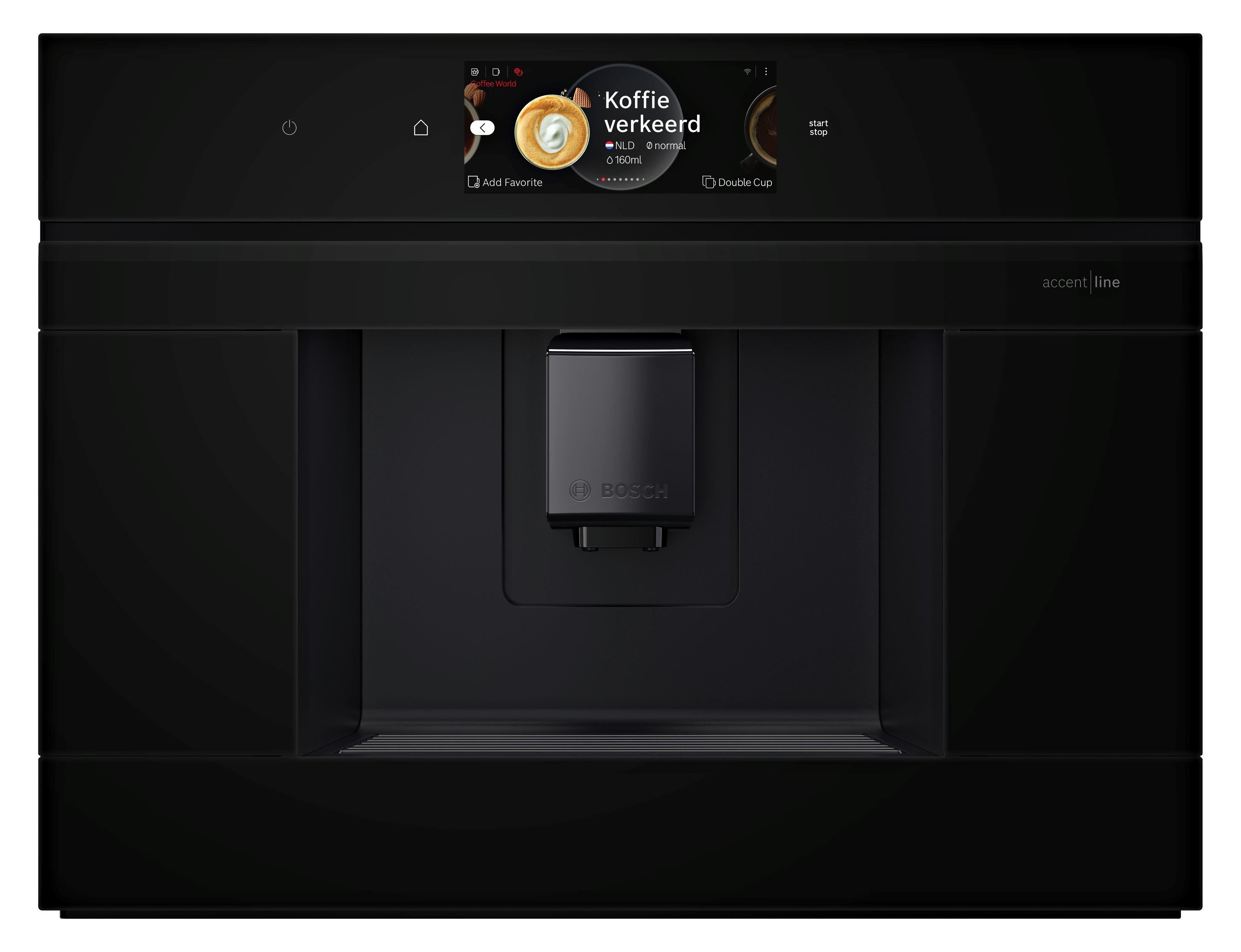

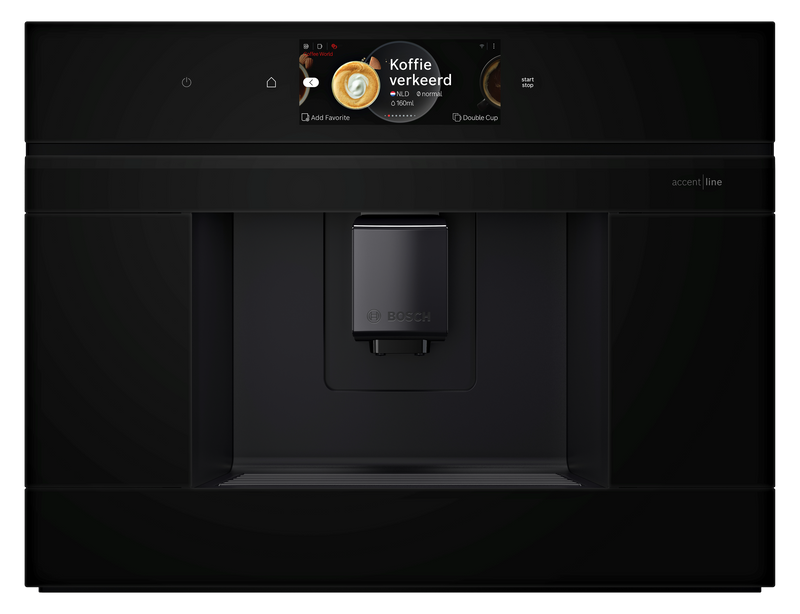

The CTL9181B0F forms part of the Bosch Series 8 compact appliance platform and is visually designed to pair with Bosch compact ovens, warming drawers and combination microwave ovens in integrated kitchen installations. The black glass fascia and horizontal trim alignment are intended to coordinate across the wider Series 8 cooking collection.

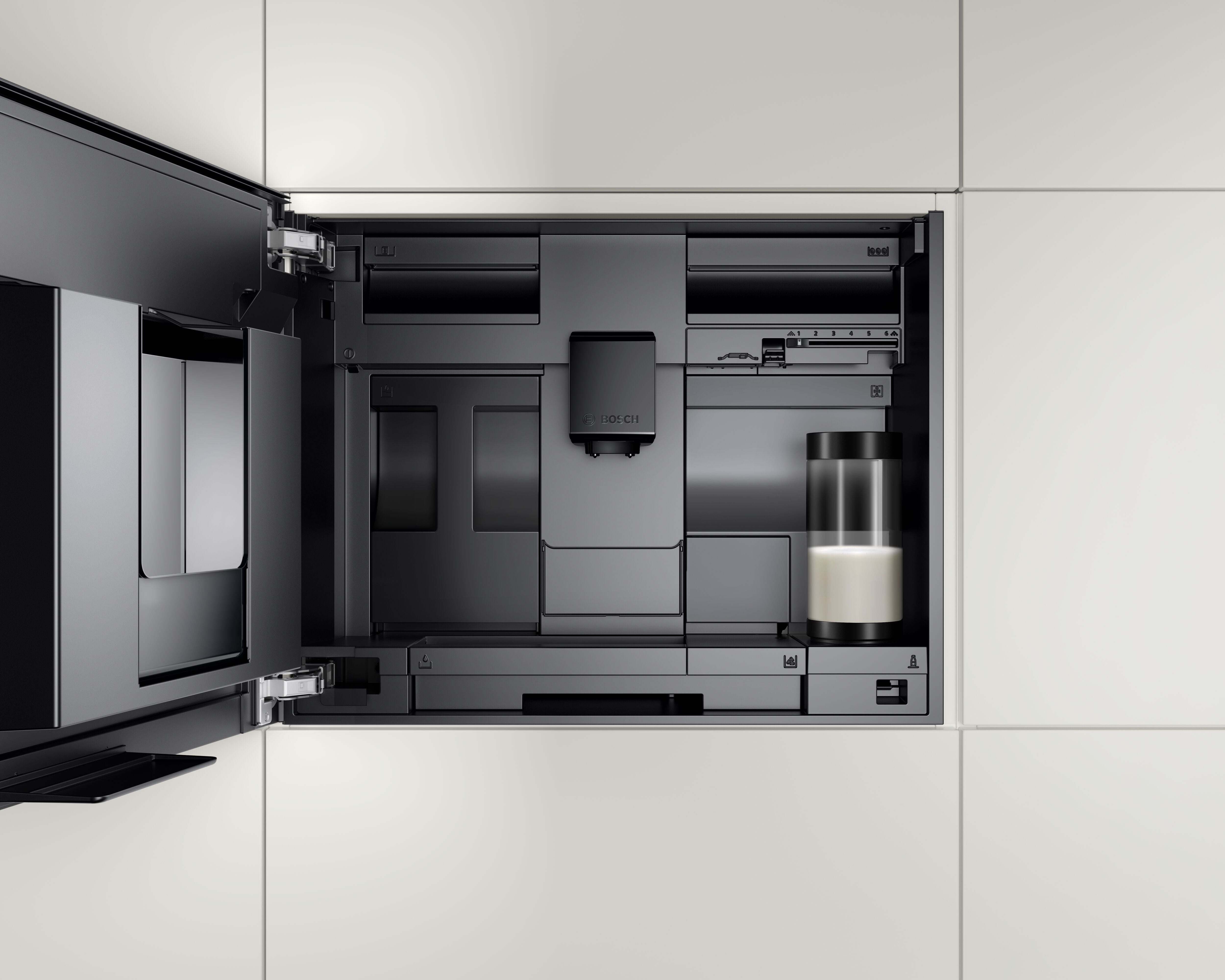

The removable 2.4 litre water tank and 500 g bean hopper are both front-accessible, allowing servicing and replenishment without removing the appliance from cabinetry. The integrated milk system supports external milk containers through the supplied milk hose arrangement.

Home Connect connectivity expands the appliance functionality beyond the onboard interface, including remote beverage preparation, CoffeePlaylist sequencing for multiple users, appliance notifications and downloadable beverage recipes.

• Integrated milk container
• Milk hose
• Connection hose for milk frother
• Water filter starter kit
• Assembly screws
• Test strip
• Cleaning tablets starter pack
• Welcome pack documentation
