• Coffee World: access international coffee specialities through the Home Connect app.
• Home Connect: connected appliance functionality with app-based beverage control and customisation.

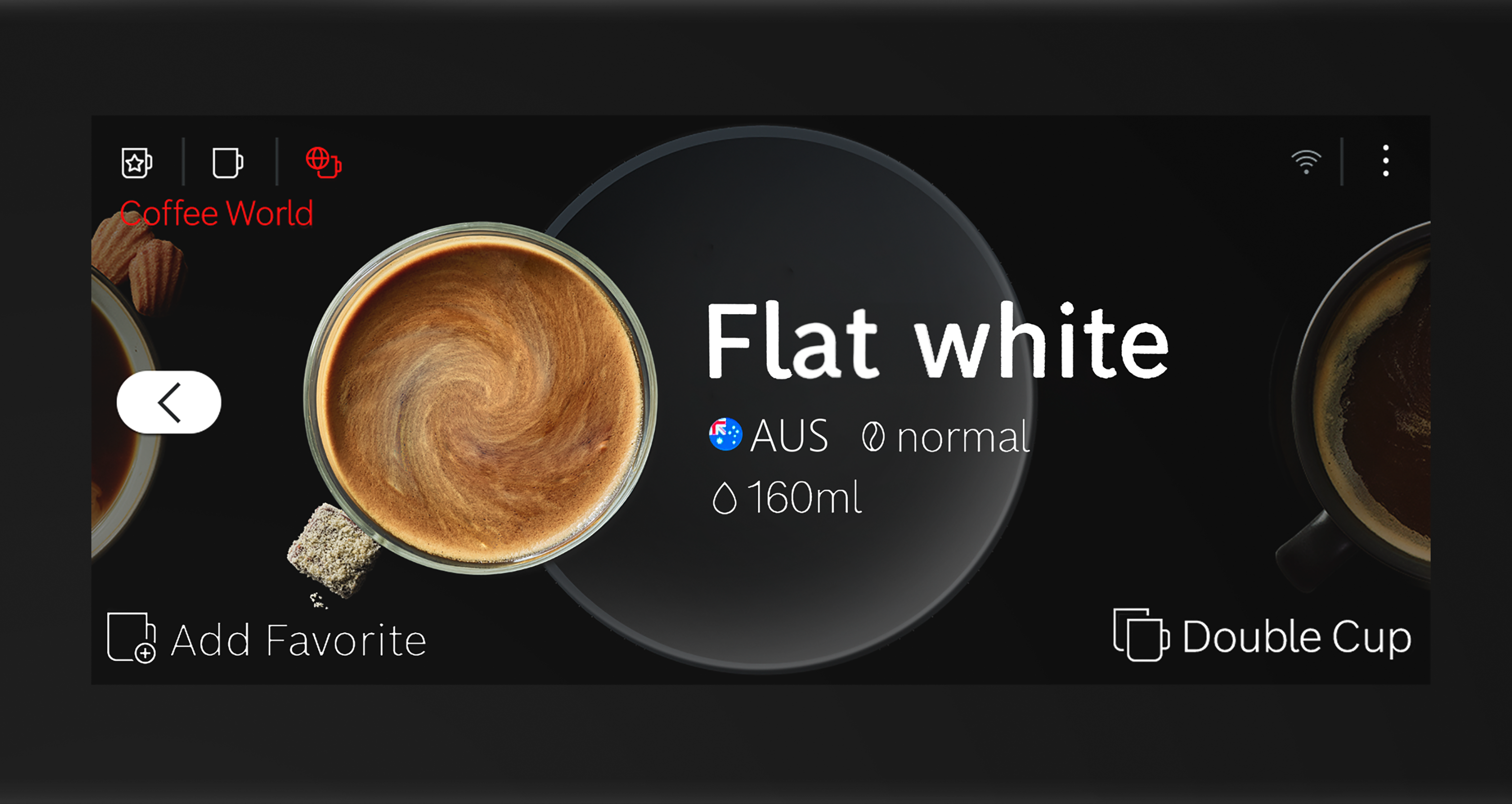

• TFT-touchdisplay Pro: full-colour slide-and-touch interface for intuitive beverage selection and adjustment.
• AromaDouble Shot: two-stage grinding and brewing process for stronger coffee with reduced bitterness.
• AromaSelect: selectable aroma profiles including mild, balanced and distinctive flavour settings.
• OneTouch DoubleCup: prepares two coffees or milk beverages simultaneously.
• Favourites: stores up to 30 personalised beverage settings.
• Integrated ceramic grinder: durable low-noise grinder system with adjustable grind settings.

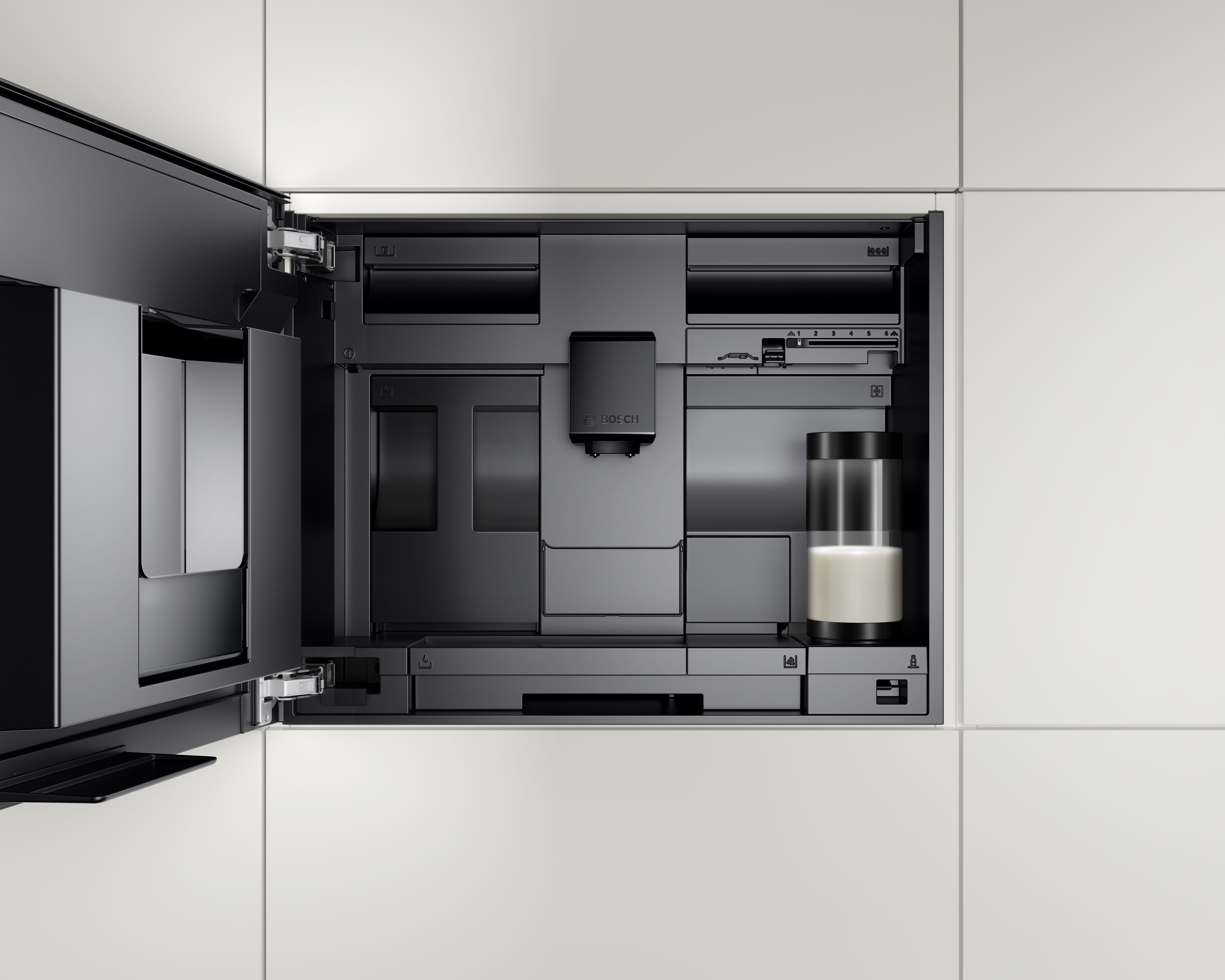

• Integrated milk system: automatic milk preparation for cappuccino, latte and milk-based beverages.
• AutoMilk Clean: automatic steam cleaning of the milk system after each beverage.
• Hot water function: suitable for tea and other hot beverages.
• Built-in installation: designed for integration into 60cm appliance cabinetry.

• Espresso: concentrated coffee extraction with rich flavour and crema.
• Espresso Macchiato: espresso topped with a small amount of milk foam.
• Cappuccino: espresso combined with steamed milk and milk foam.
• Latte Macchiato: layered milk-based coffee with espresso and milk foam.
• Latte: smooth espresso blended with steamed milk.
• Caffe Crema: longer-style coffee with a lighter flavour profile than espresso.
• Americano: espresso diluted with hot water for a smoother black coffee.
• Ristretto: shorter espresso extraction with concentrated flavour intensity.
• Doppio: double espresso serving for increased coffee strength.
• Hot Milk: heats milk for beverages and other drink preparation.
• Milk Froth: prepares frothed milk for cappuccino and milk-based drinks.
• Hot Water: dispenses hot water suitable for tea and other beverages.
• Coffee World: unlocks additional international coffee specialities through Home Connect.
• OneTouch Beverage Preparation: prepares selected beverages automatically at the touch of a button.
• Double Cup Preparation: dispenses two beverages simultaneously for paired serving.

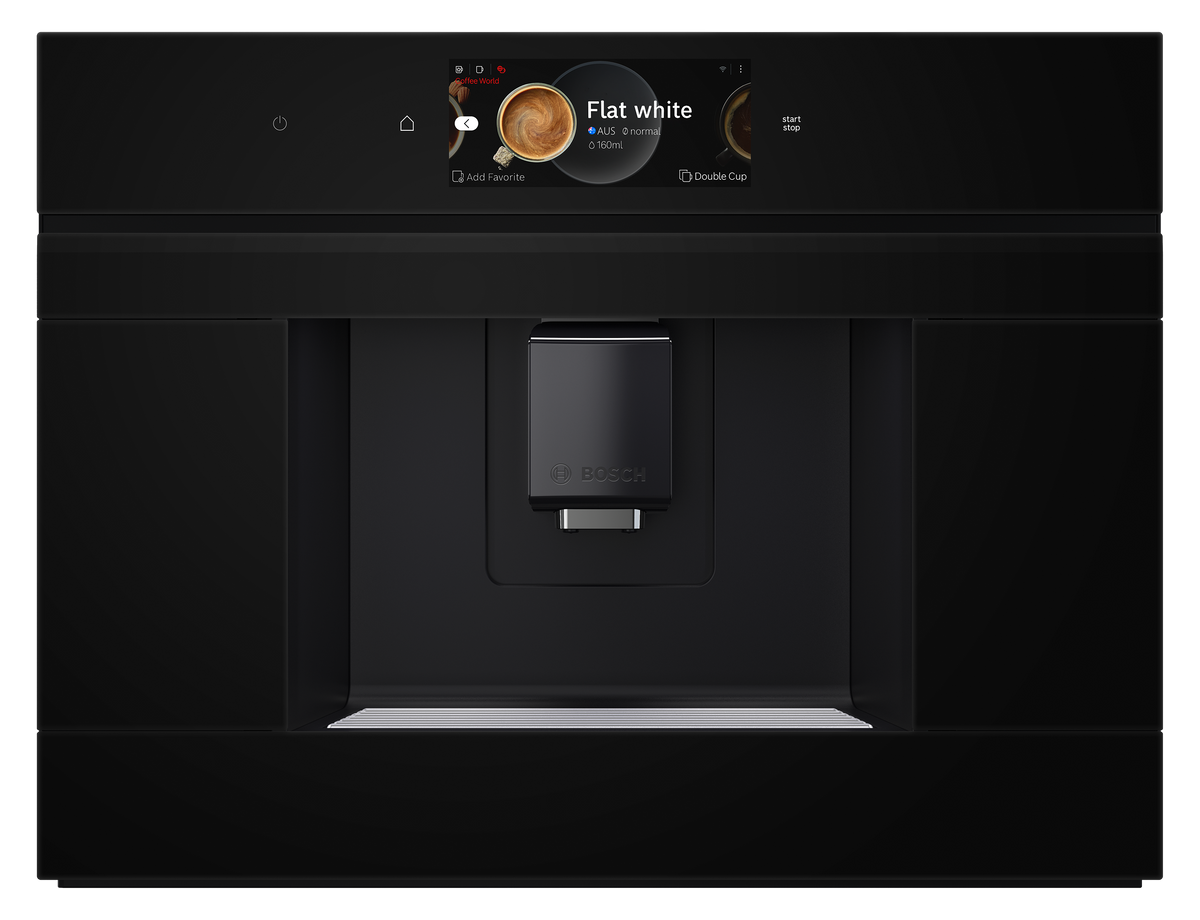

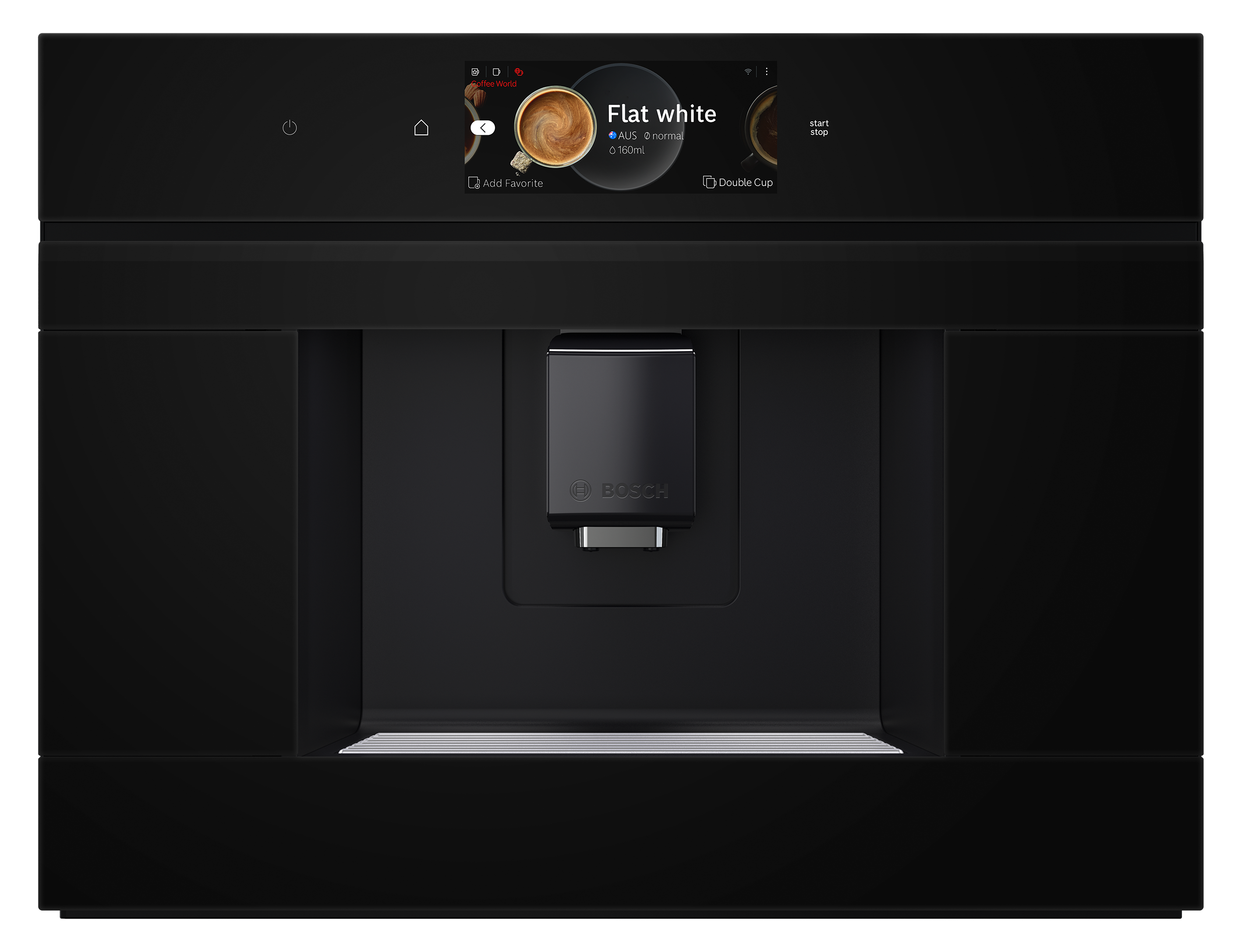

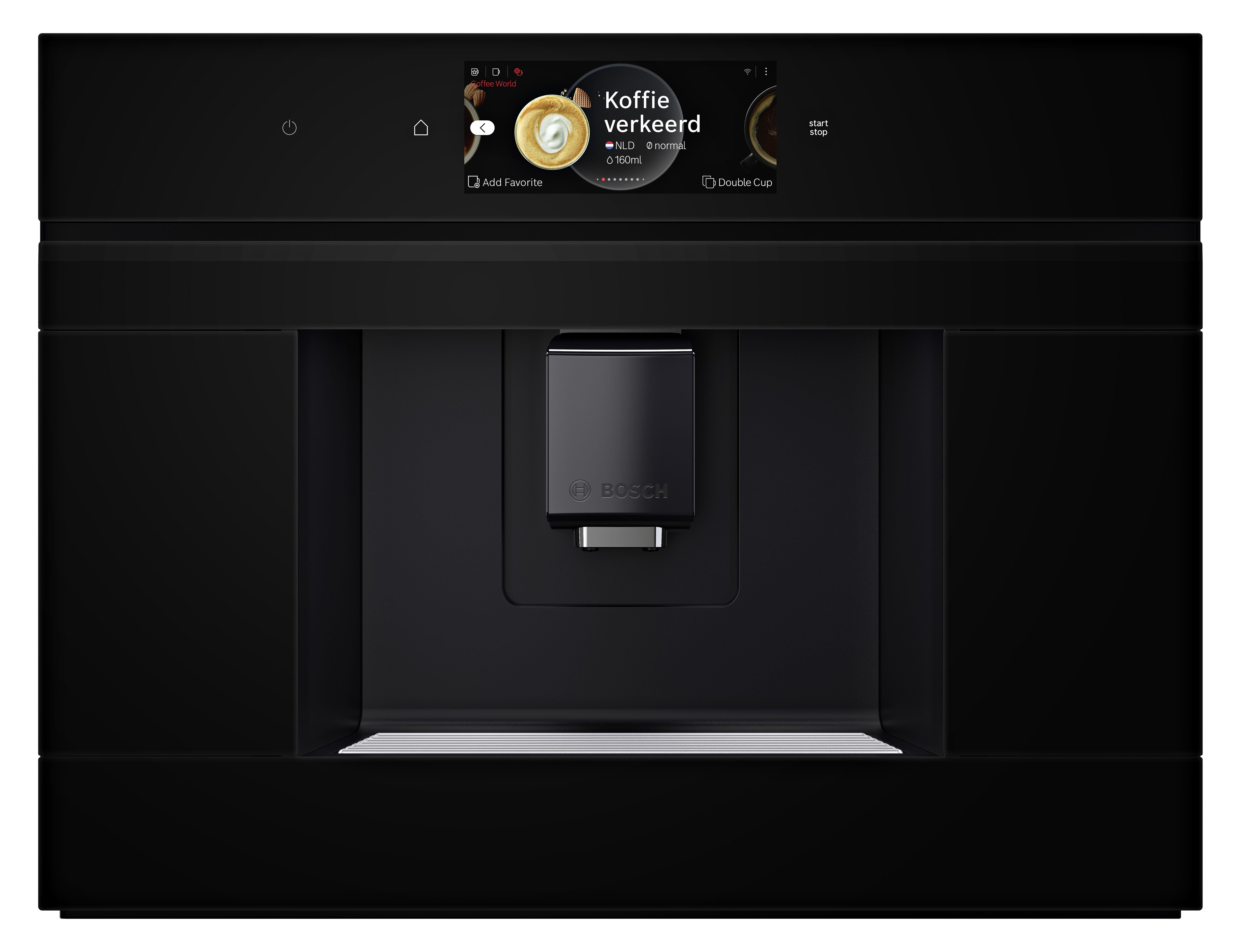

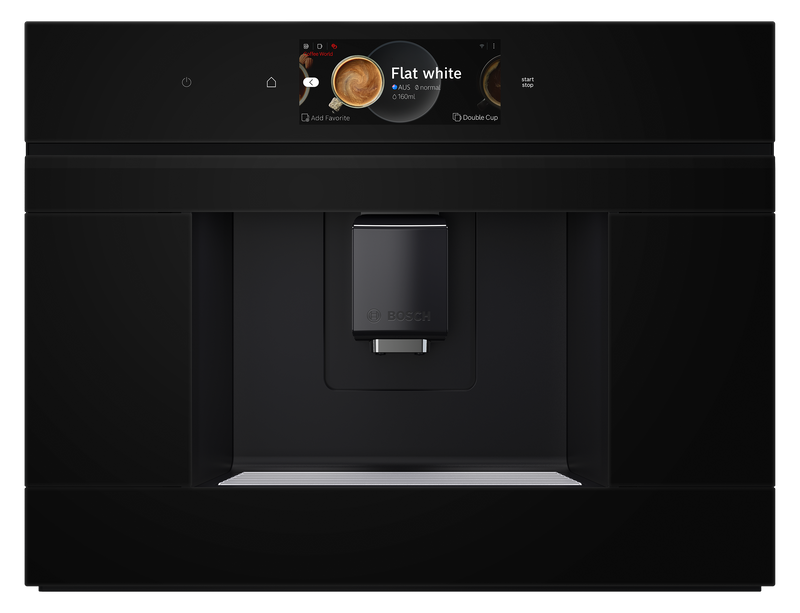

• Product type: Built-in fully automatic coffee machine
• Series: Bosch Series 8
• Coffee machine type: Fully automatic bean-to-cup
• Appliance placement: Built-in
• Pump pressure: 19 bar
• Water tank capacity: 2.4 L
• Bean container capacity: 500 g
• Milk container capacity: 0.5 L
• Coffee input type: Coffee beans and ground coffee
• Integrated grinder: Yes
• Grinder type: Ceramic grinder
• Number of grinder settings: 6
• Display type: TFT-touchdisplay Pro
• Home Connect: Yes
• Number of personalised favourites: Up to 30
• Coffee World beverages: Up to 20 international coffee variations
• Integrated milk system: Yes
• Hot water system: Yes
• Cup lighting: Yes
• Cord length: 1.7 m
• Voltage: 220–240 V
• Frequency: 50–60 Hz
• Fuse protection: 10 A

• Installation type: Built-in
• Electrical connection: Plug-in
• Power supply: 220–240 V / 50–60 Hz
• Fuse protection: 10 A
• Cord length: 1.7 m

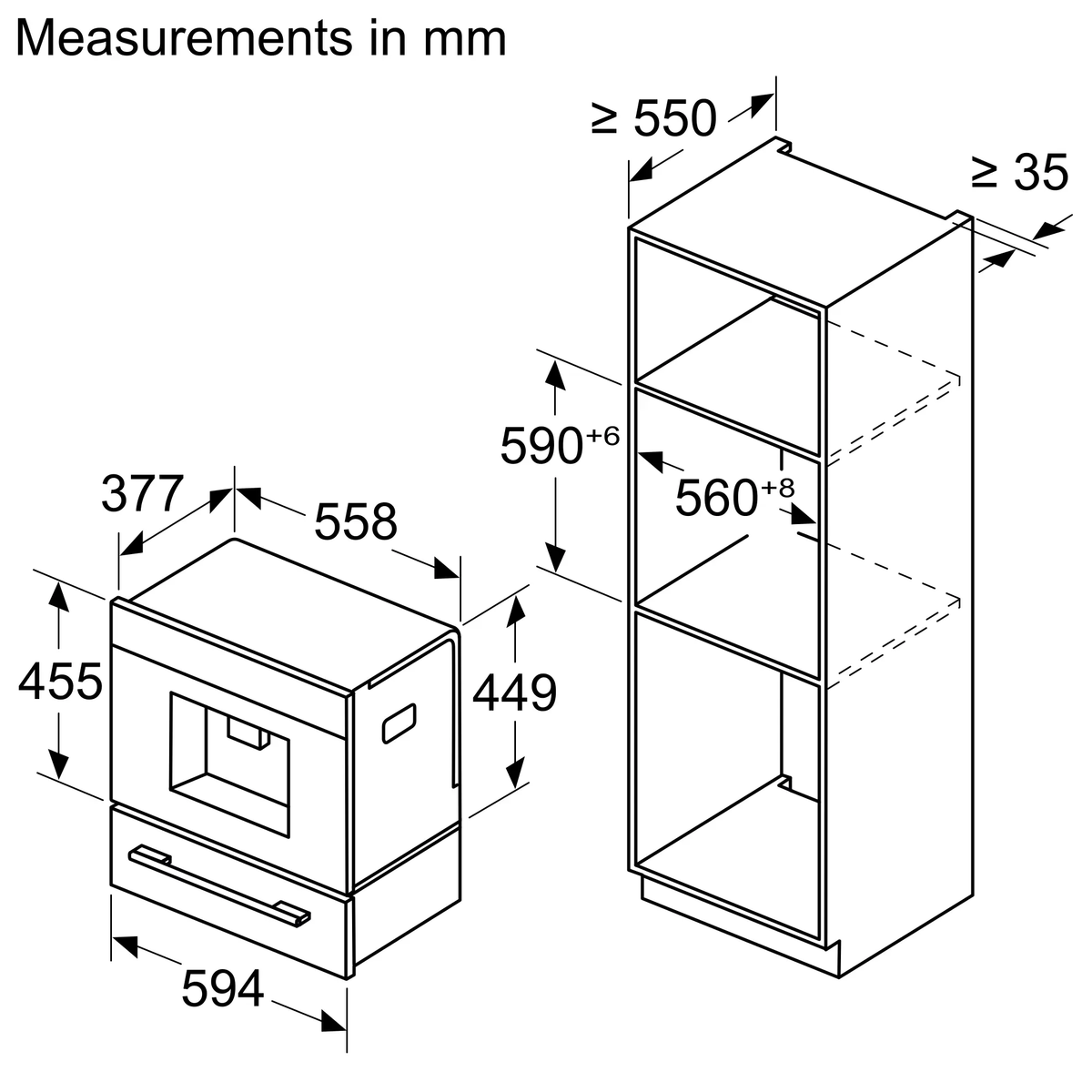

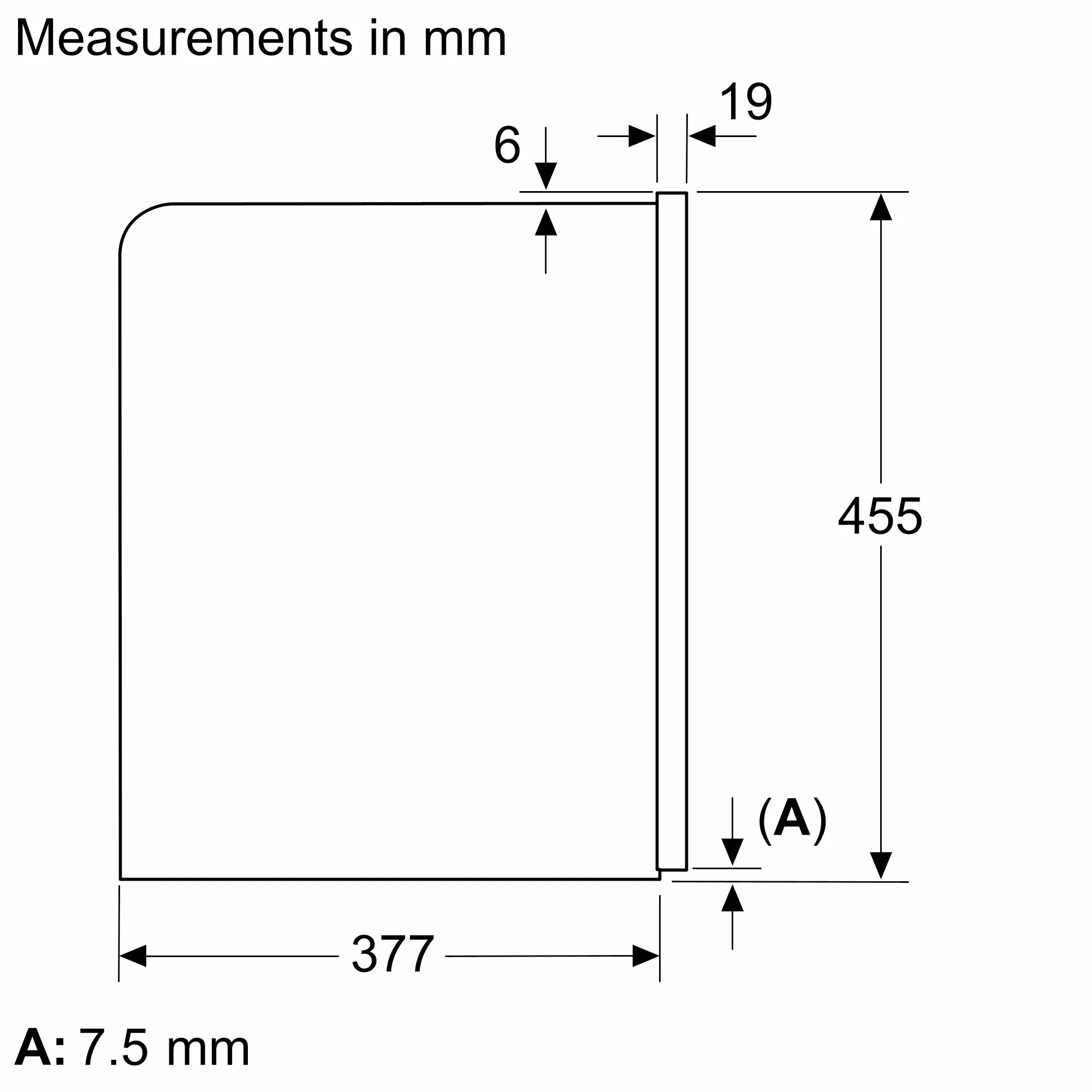

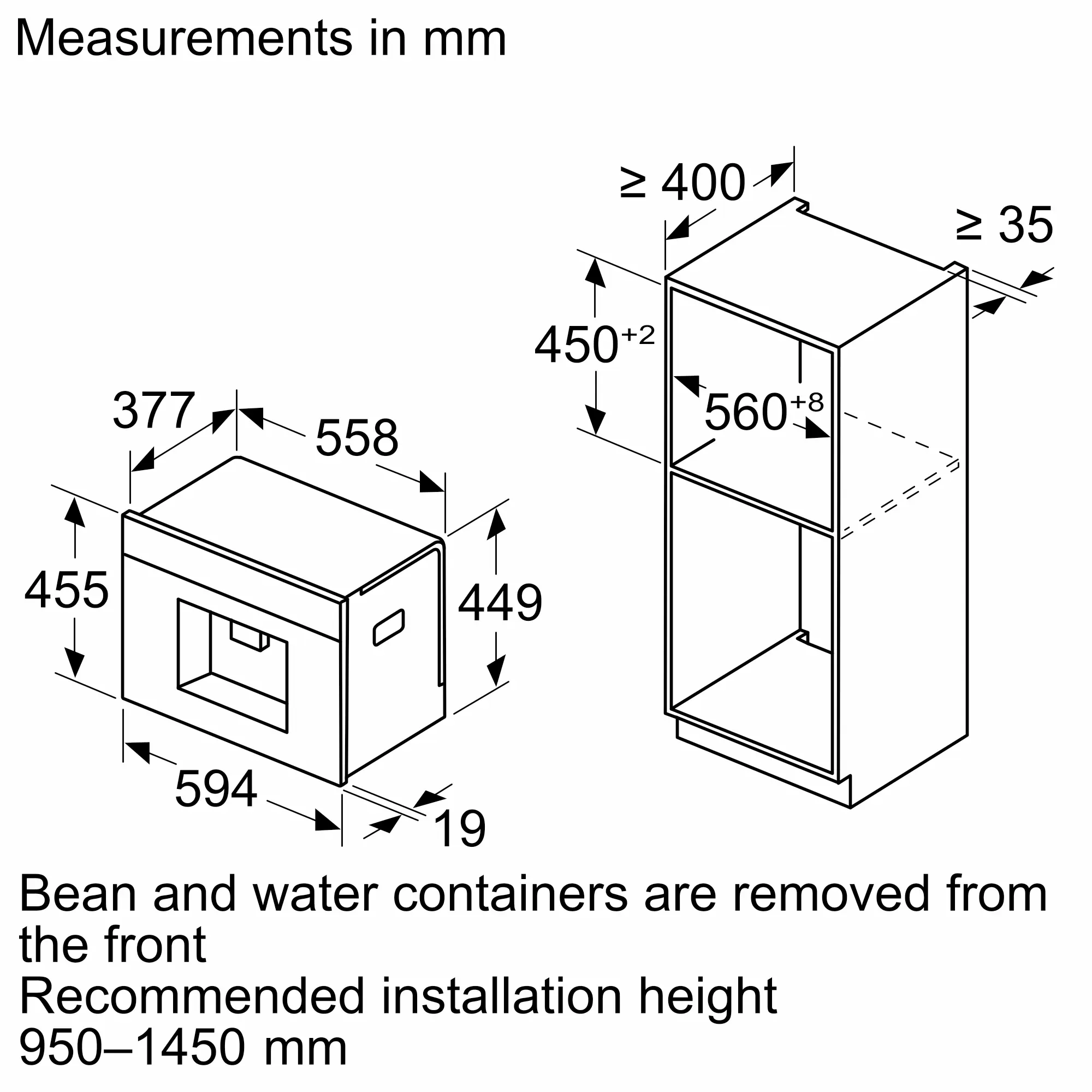

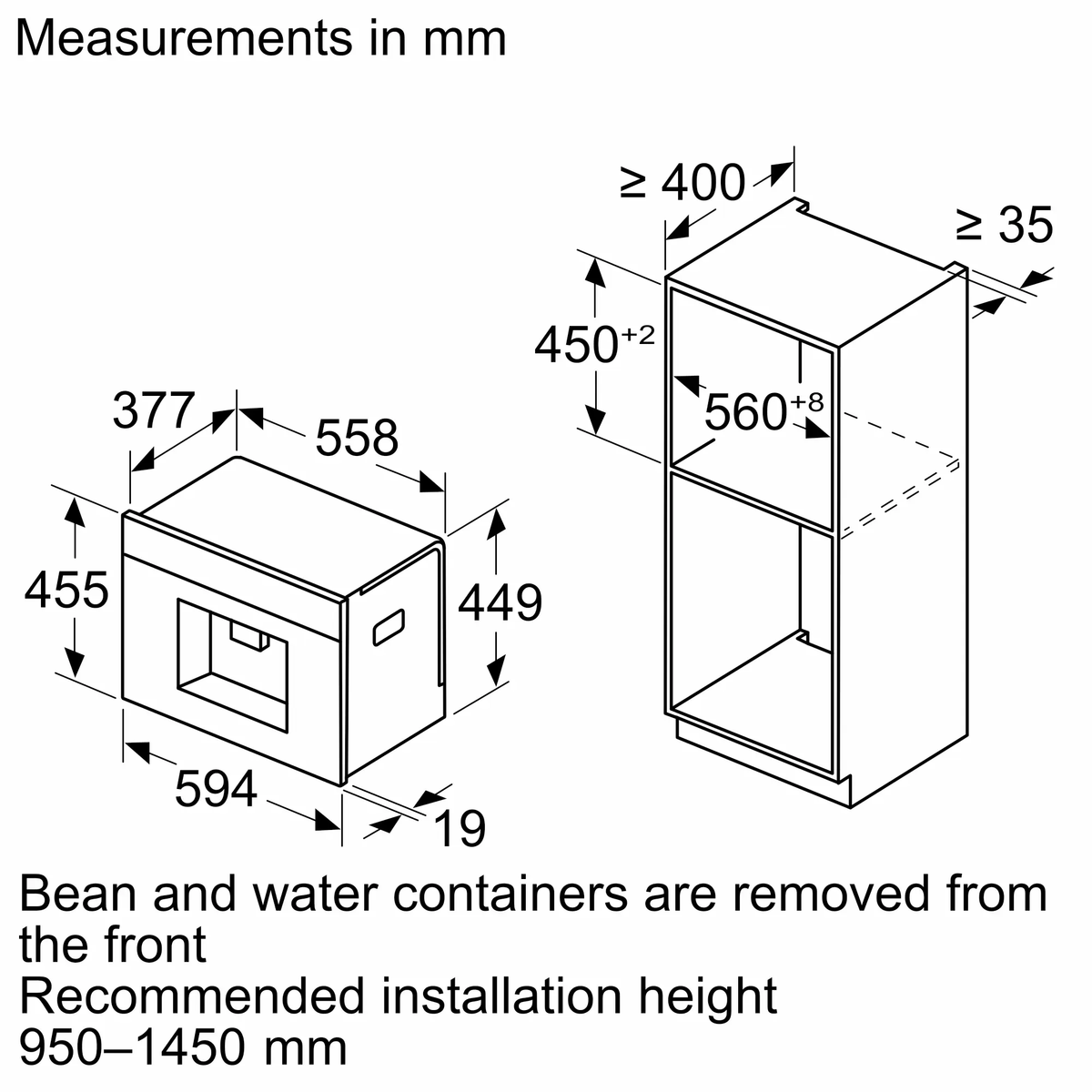

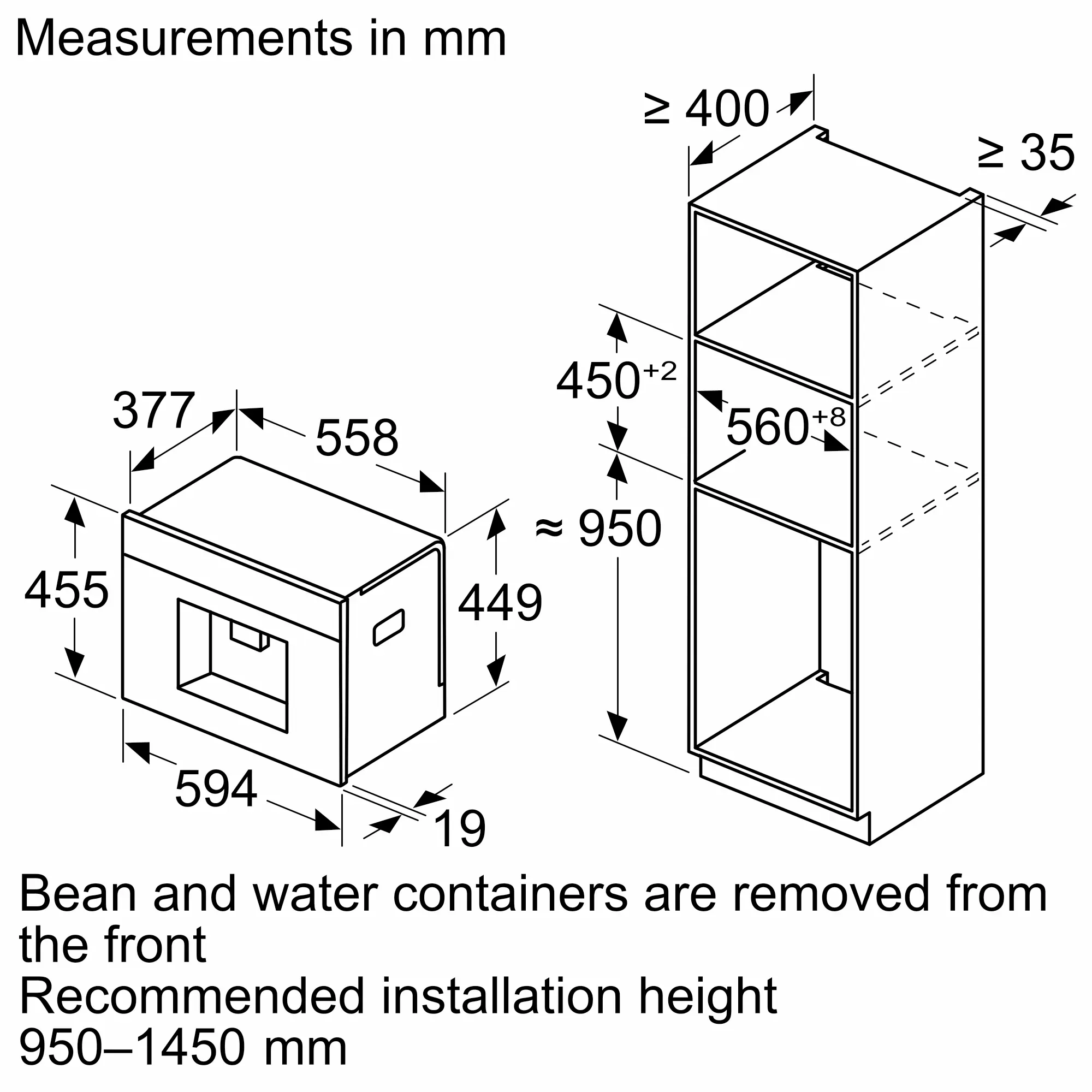

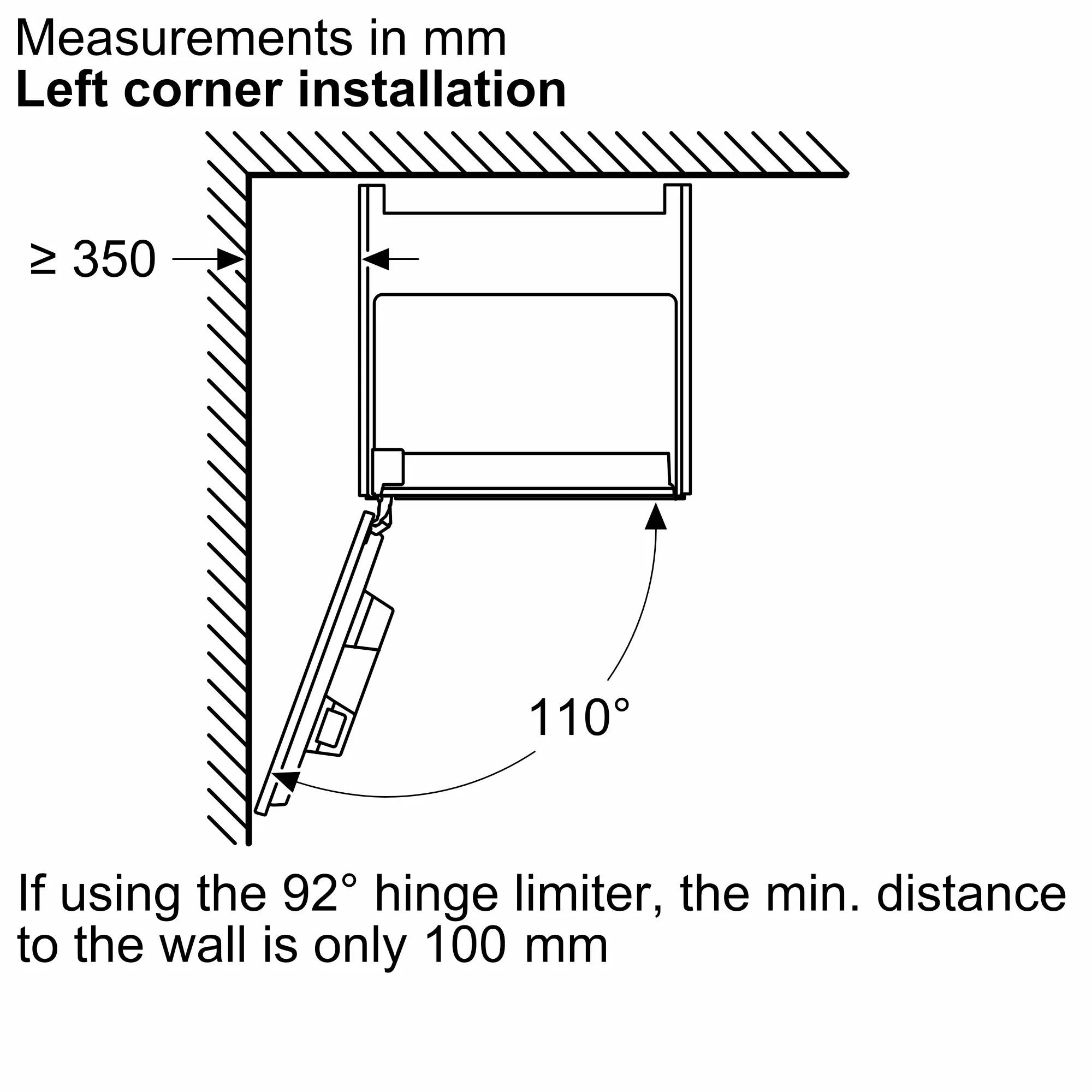

• Cabinet requirement: Standard 60cm built-in appliance cavity
• Ventilation requirements: Refer to Bosch installation instructions
• Installation recommendation: Suitable for integrated kitchen appliance towers and cabinetry installations

Bosch Warranty

• Bosch appliances are backed in Australia by BSH Home Appliances Pty Ltd, providing trusted after-sales support and service nationwide.

Warranty Coverage

Domestic Use:

• Bosch appliances are covered by a 2-year manufacturer’s warranty from the date of purchase, covering defects in materials and workmanship.

Commercial Use

• If used for commercial purposes, the warranty period is limited to 3 months.
• This warranty is provided in addition to your rights under Australian Consumer Law.

What’s Covered

Under normal domestic use, the warranty includes:

• Manufacturing defects
• Repair or replacement of faulty components
• Service within Bosch’s authorised service network

For minor failures, Bosch may choose to repair or replace the appliance.

• Proof of purchase is required to make a claim.
• To lodge a claim, contact Bosch Customer Care Australia on 1300 369 744.

What’s Not Covered

The warranty does not apply to damage caused by:

• Incorrect installation or operation
• Unauthorised repairs or non-approved parts
• Incorrect power, gas or water supply
• Commercial use beyond 3 months
• Normal wear and tear (filters, seals, globes, fuses, etc.)
• Blockages, misuse, operator error or storm damage
• Delivery or installation damage
• Appliances exported outside Australia

Travel or transport costs may apply if you are located outside a Bosch service area.

Australian Consumer Law

• Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The CTL7181B0F supports personalised beverage programming through the Favourites function, allowing multiple users to store preferred coffee strength, beverage size and milk ratios directly within the appliance memory. AromaSelect allows the flavour profile to be adjusted according to preference, while AromaDouble Shot is designed to produce stronger coffee with reduced bitterness by splitting the extraction process into two brewing cycles.

Home Connect integration enables remote beverage selection, Coffee World recipe access and appliance communication through compatible mobile devices. The Coffee World platform provides access to additional international coffee styles inspired by global coffee preparation traditions.

The integrated ceramic grinder is engineered for quieter operation and long-term durability compared with conventional steel grinder systems. The appliance supports both whole coffee beans and pre-ground coffee for additional brewing flexibility.

• Milk container
• Milk hose
• Connection hose for milk frother
• Assembly screws
• Water hardness test strip
• Welcome box
• Cleaning components supplied by manufacturer

• SPECIFICATIONS SHEET (PDF)
• USER MANUAL (PDF)
• INSTALLATION INSTRUCTIONS (PDF)
• HOME CONNECT (PDF)
