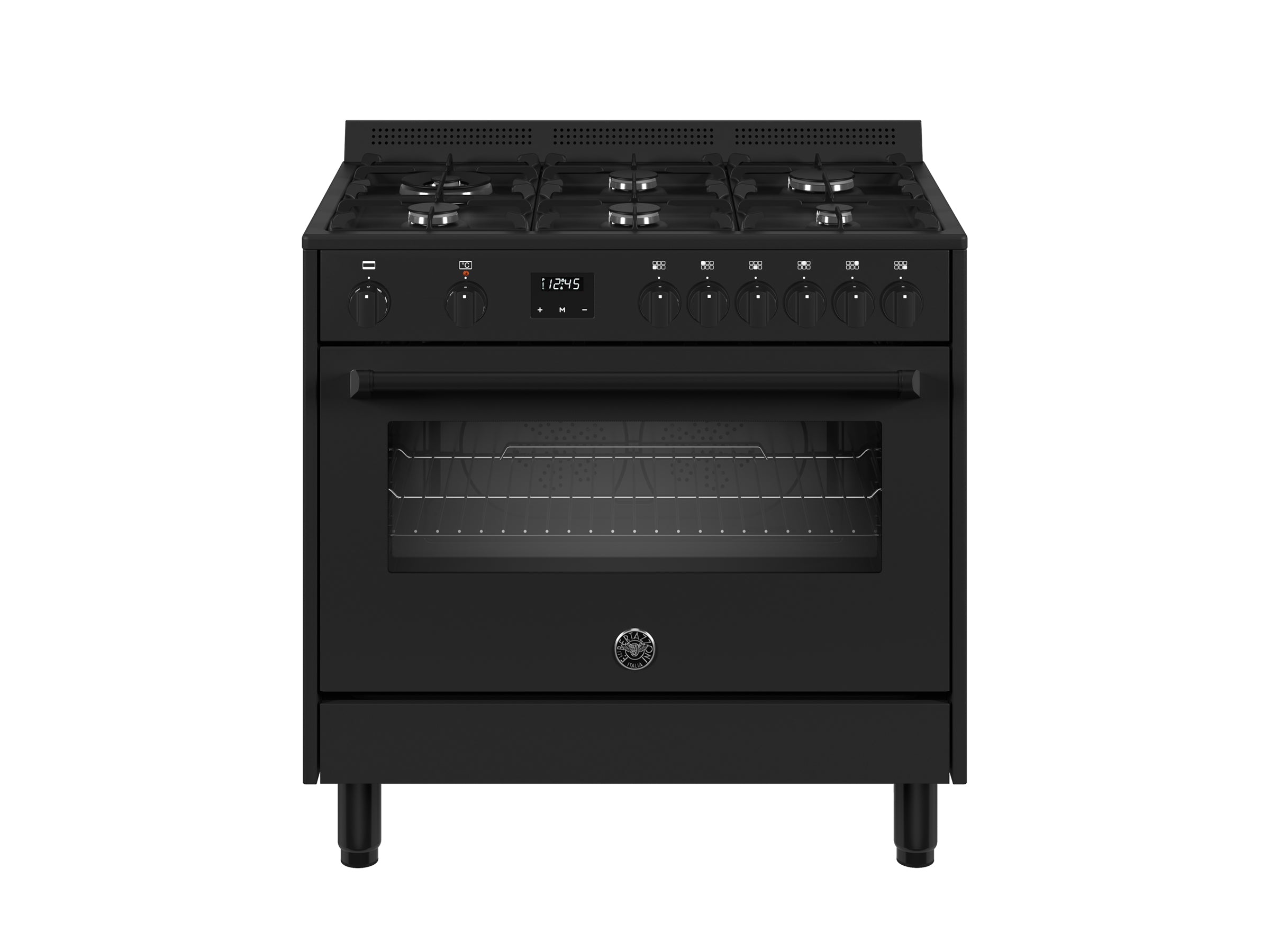

Bertazzoni MPL96L1ETNC Master Series 90cm Wide Freestanding Cooker

• Oven with 11 Functions: The oven offers versatile cooking options, including convection, baking, grilling, and a fast preheat function. The multifunction design makes it ideal for a variety of cooking styles.
• Triple-Glazed Door & Soft Motion Hinges: The oven door features triple glazing for better heat retention and efficiency, along with soft motion hinges and an anti-slam closing system to reduce wear and heat loss.
• Gas Cooktop with 6 Burners: The cooktop is equipped with six burners, including a powerful dual wok burner (4000W), a rapid burner (3000W), three semi-rapid burners (1750W), and an auxiliary burner (1000W). The burners are housed in a durable enamelled pressed worktop and supported by heavy-duty cast iron pan supports.
• Safety Features: The gas cooktop includes a flame failure device that cuts off the gas if the flame goes out, ensuring safe operation.
• Storage Compartment: The unit includes a convenient storage compartment with a flap door, providing space for kitchen essentials.
• Digital Controls & Oven Accessories: The oven features a digital programmer with buttons and knobs for easy control, and includes two premium wire shelves, an enameled tray, a grid tray, and a grill trivet for versatility in cooking.
• Stainless Steel Construction & Design: The cooker sits on stainless steel legs (Ø 6 cm), offering both durability and a sleek, modern look in your kitchen.
• Electrical Specs: It operates on 240V - 50Hz power with an absorption of 3500W, providing efficient performance.

Worktop:

• Size: 90 cm
• Cooking zones: 6
• Number of gas zones: 6 gas burners with lateral dual wok
• Worktop type: gas
• Worktop design: enamelled pressed

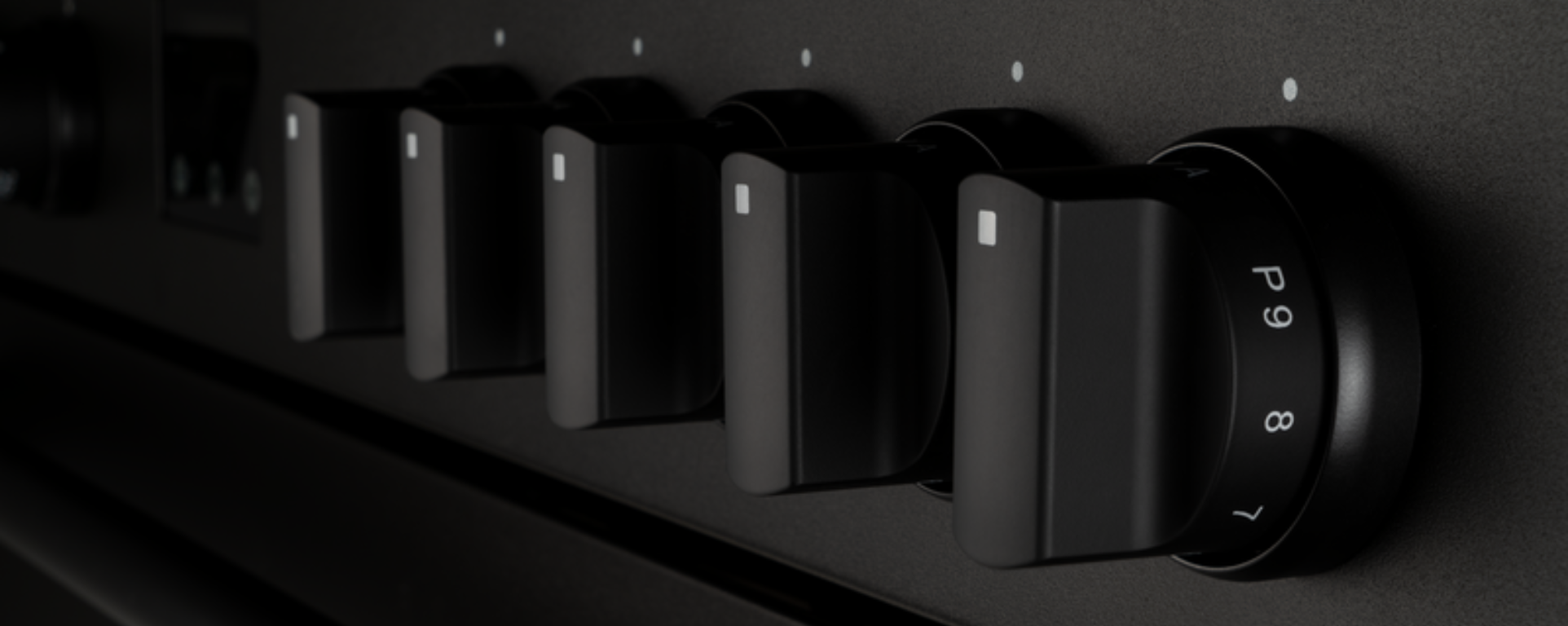

• Worktop controls: knobs
• Knobs: black soft touch with ring
• Burners type and caps: aluminium + matt burner cap
• Pan supports: cast iron
• Flame failure device: yes
• Ignition: yes
• Upstand: yes

Cooking Zones:

• Dual wok: 4000 W (1)
• Rapid: 3000 W (1)
• Semi-rapid: 1750 W (3)
• Auxiliary: 1000 W (1)

Oven Cavity:

• Oven configuration: single
• Oven fuel: electric
• Oven type: electric multifunction
• Gross volume oven: 142 L
• Oven controls: digital programmer with buttons knobs
• Inner oven door: modular 3 glasses
• Oven levels: 5
• Wire-shelves: 2 premium
• Tray: 1 enamelled + 1 grid tray
• Grill trivet for tray: yes
• Oven lights: 1

Bottom:

• Storage compartment: flap
• Legs: stainless steel black ø 6 cm

Technical Specifications:

• Voltage and frequency: 240 V - 50 Hz
• Absorbed power (W): 3500 W

• Warranty: 3 Years On Parts & Labour

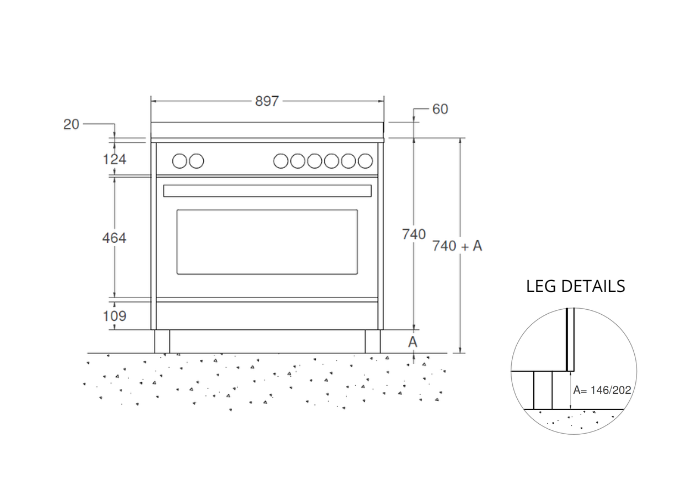

INSTALLATION DRAWING
