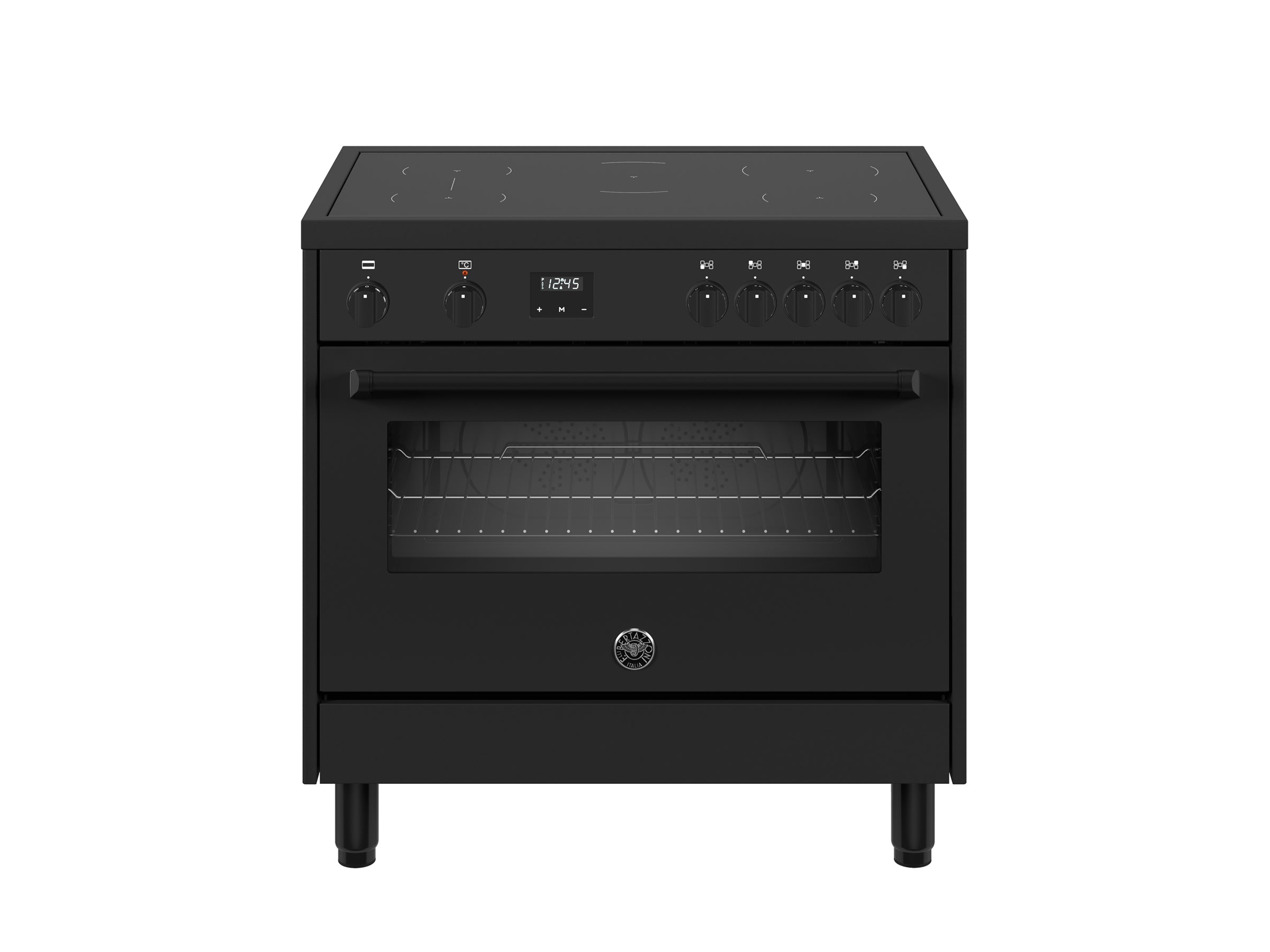

Bertazzoni MPL95I1ETNT Master Series 90cm Wide Freestanding Cooker

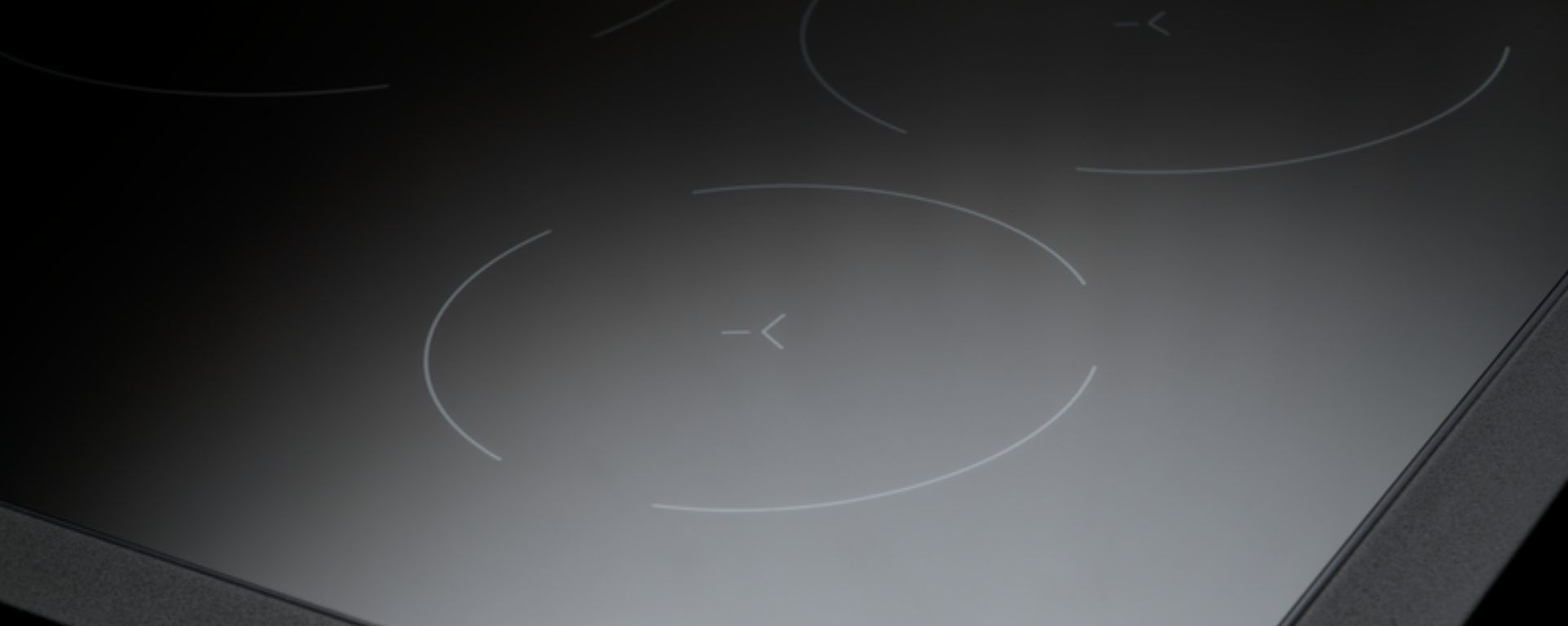

• Induction Cooktop with 5 Zones: The Bertazzoni MPL95I1ETNT features a 90cm induction cooktop with five efficient cooking zones, including a versatile single bridge zone for larger pots. The zones are positioned as follows: front left (1100W), back left (1400W), centre (2300W), front right (1100W), and back right (2300W). These induction zones provide fast, precise heating, offering versatility for everything from simmering to rapid boiling, making it ideal for a wide range of cooking tasks.
• Advanced Oven with 11 Functions: The electric multifunction oven offers 11 cooking modes, including bake, convection bake, grill, pizza, fast preheat, and defrost, catering to a variety of cooking styles. Its large 142L gross volume ensures ample space for bigger meals or multiple dishes at once.
• Triple-Glazed Oven Door: The oven door is equipped with triple-glazed glass, soft motion hinges, and an anti-slam closing system for safe and efficient cooking. The removable inner glass allows for easier cleaning.
• Convection Oven System: The oven features a convection system with a ring heating element for even heat distribution, ensuring perfectly cooked dishes every time.

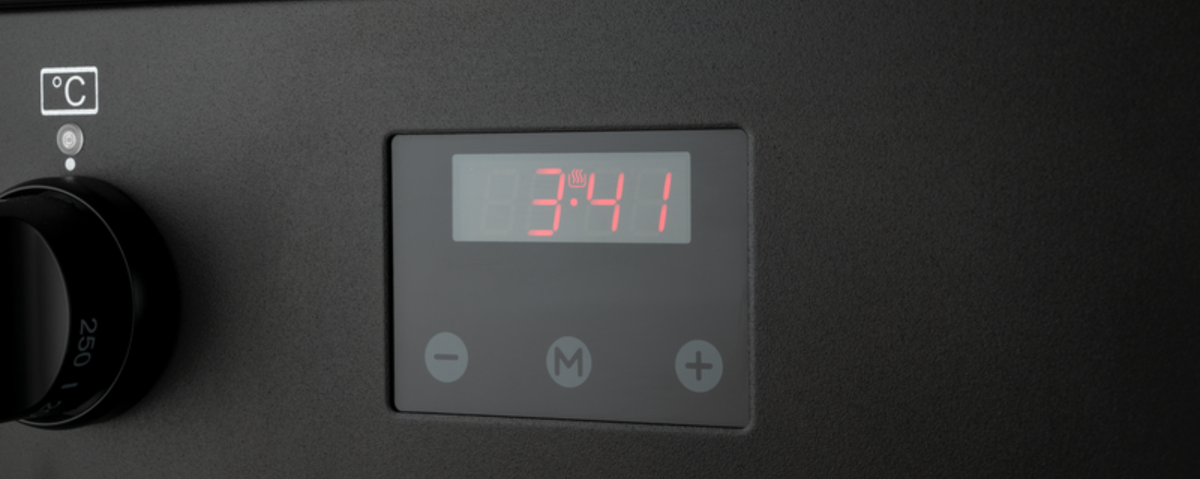

• Digital Controls and Timer: With a digital programmer, touch-button controls, and knob functionality, setting precise cooking times and modes is easy. The built-in timer adds further convenience for multitasking in the kitchen.
• Storage Compartment: A practical storage flap compartment at the bottom of the cooker provides additional space for kitchen essentials, helping you keep your kitchen organized.
• Safety and Cooling Features: Includes a cooling fan for ventilation, a flame failure device for the gas cooktop's safety, and double oven lights to illuminate the cooking area for better visibility.
• Modern Build and Design: The cooker features a sophisticated, squared induction worktop design with black soft-touch knobs and sits on stainless steel legs (Ø 6 cm), giving it a sleek, professional look in any kitchen.
• Power Specifications: Operating on 220/240V - 50Hz power, the appliance has a total absorbed power of 10,900W, with 7,400W dedicated to the induction cooktop, ensuring high performance and energy efficiency.

Worktop:

• Size: 90 cm
• Cooking zones: 5
• Number of induction zones: 5 induction zones, single bridge
• Worktop type: induction
• Worktop design: squared
• Worktop controls: knobs

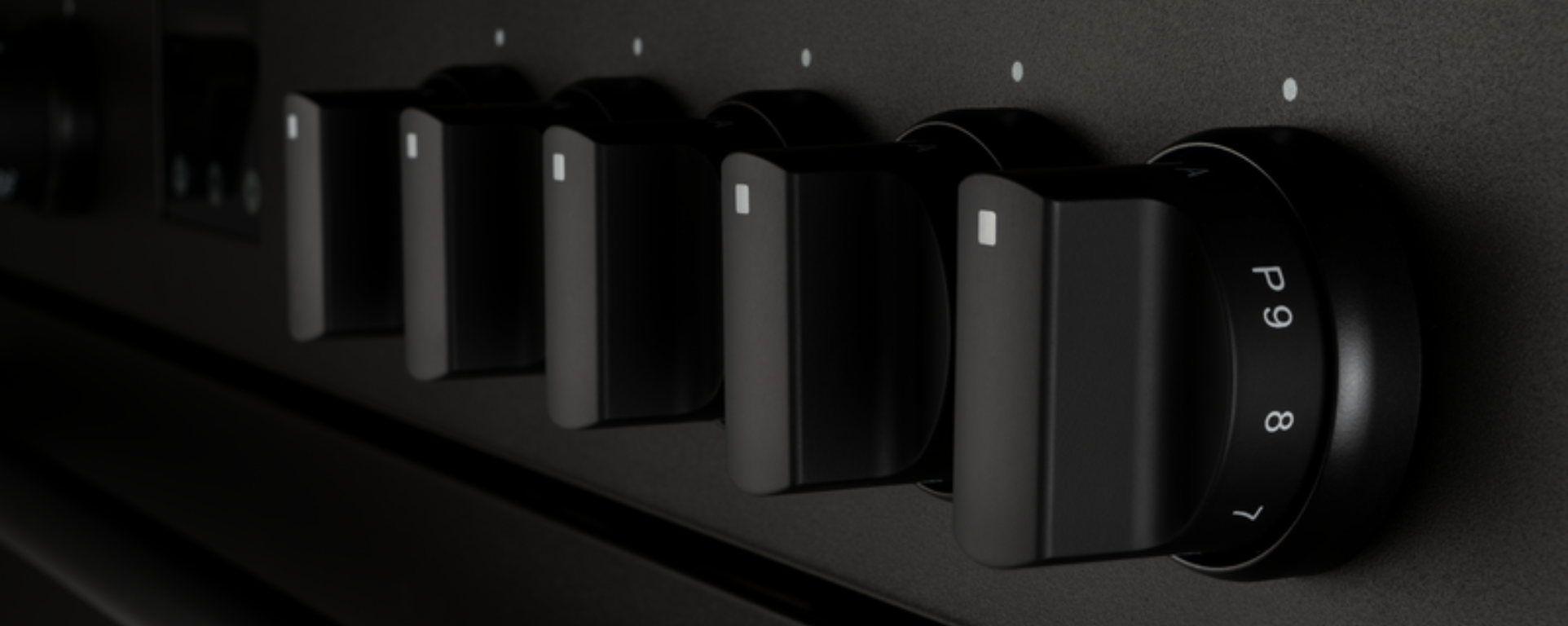

• Knobs: black soft touch with ring
• Upstand: yes

Cooking zones:

• Induction front left: (190 mm) 1100 W
• Induction back left: (190 mm) 1400 W
• Induction centre: (265 mm) 2300 W
• Induction front right: (190 mm) 1100 W
• Induction back right: (220 mm) 2300 W

Oven cavity:

• Oven configuration: single
• Oven fuel: electric
• Oven type: electric multifunction
• Oven grill type: electric
• Cooking modes: bake / bottom bake / convection / convection bake / convection grill /  defrosting / fast preheat / grill / oven light / pizza / upper bake
• Gross volume oven: 142 L
• Oven convection system: single with ring heating element
• Oven controls: digital programmer with buttons knobs
• Inner oven door: modular 3 glasses
• Removable inner glass: yes
• Cooling fan: yes
• Oven levels: 4
• Timer: touch digital programmer
• Wire-shelves: 2 premium
• Tray: 1 enameled + 1 grid tray
• Grill trivet for tray: yes
• Oven lights: double

Bottom:

• Storage compartment: flap
• Legs: stainless steel black ø 6 cm

Technical Specifications:

• Voltage and frequency: 220/240 V - 50 Hz
• Absorbed power (W): 10900 W (induction 7400 W)

• Warranty: 3 Years On Parts & Labour

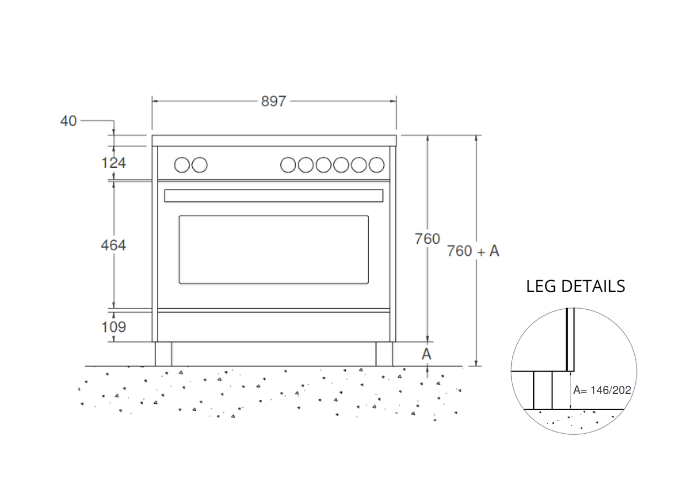

INSTALLATION DRAWING

USER MANUAL
