Product Description

Product Overview:

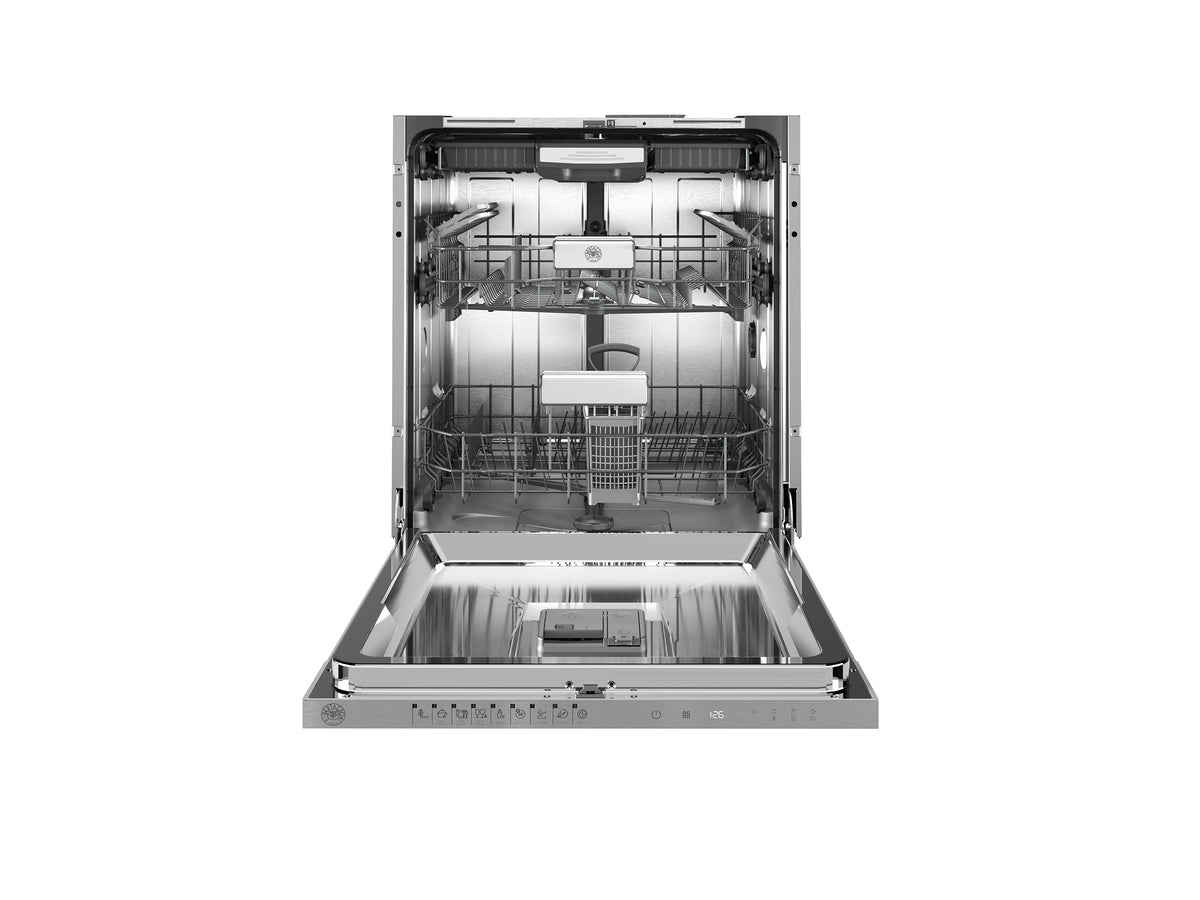

The Bertazzoni DW60BI/24 is a 60cm fully integrated dishwasher designed for installation behind a custom cabinetry panel. Its 15-place-setting capacity is arranged across three racks, including a dedicated full-width cutlery rack, providing flexible loading for everyday tableware, cookware and larger household wash loads.

Nine wash programmes cover applications ranging from delicate glassware and lightly soiled items through to intensive and hygiene-focused cleaning. A digital touch-control interface is concealed along the upper edge of the door, maintaining an uninterrupted cabinetry finish when the dishwasher is closed.

Operating at 44 dB(A), the DW60BI/24 is engineered for discreet use within open-plan kitchens. Turbo Drying supports moisture removal, while selectable Energy Save, Extra Fast, Extra Silent and Half Load functions allow each cycle to be adapted to the load and preferred balance of time, energy consumption and sound.

Product Features:

• 15-place-setting capacity: accommodates substantial household loads across three independently configured rack levels.
• Three-rack configuration: includes upper and lower baskets with a dedicated full-width cutlery rack for utensils and smaller items.
• Nine wash programmes: provides dedicated cycles for everyday, intensive, delicate, hygiene and rapid washing requirements.
• 44 dB(A) operating level: supports unobtrusive operation in open-plan kitchens and adjoining living areas.
• Turbo Drying system: enhances drying performance at the completion of compatible wash cycles.
• Energy Save function: activates automatic door opening at the end of the programme to support drying at lower final-rinse temperatures.
• Half Load selection: directs washing to both baskets, the upper basket or the lower basket according to the location of the load.
• Extra Fast function: increases washing temperature and water pressure to shorten compatible programme durations.
• Extra Silent function: reduces water pressure for a gentler and quieter wash cycle.
• Adjustable upper basket: raises or lowers without removal to create additional space for tall items.
• Folding rack sections: allow larger pots, pans and irregularly shaped items to be positioned more easily.
• Interior lighting: illuminates the dishwasher cavity for clearer loading and unloading.

Colour / Finishes:

• Panel Ready: designed to accept a custom kitchen cabinetry panel — DW60BI/24

Programmes / Functions:

• Eco: standard 138-minute programme for normally soiled everyday dishes with reduced energy and water consumption.
• Smart 60°C–70°C: automatic programme for heavily soiled dishes, with an operating duration of approximately 109–179 minutes.
• Smart 50°C–60°C: automatic programme for normally soiled dishes, operating for approximately 107–122 minutes.
• Smart 30°C–50°C: automatic programme for normally soiled delicate items, operating for approximately 72–91 minutes.
• Hygiene 70°C: 127-minute high-temperature programme for heavily soiled loads requiring hygienic washing.
• Super 50': 50-minute programme for normally soiled everyday dishes where a shorter cycle is preferred.
• Dual Pro Wash 60°C: applies differentiated washing conditions to delicate glassware in the upper rack and heavily soiled crockery in the lower rack.
• Quick 30': 30-minute programme for lightly soiled dishes requiring a rapid wash.
• Mini 14': 14-minute programme for up to four place settings of lightly soiled, recently used dishes.
• Delay Start: postpones programme commencement by between 1 and 19 hours.
• Energy Save: opens the door automatically at the end of a compatible programme to improve drying while reducing energy consumption.
• Extra Fast: shortens compatible programmes by increasing washing temperature and water pressure.
• Extra Silent: lowers water pressure to provide a quieter and more sensitive wash.
• Half Load: allows both baskets, the upper basket or the lower basket to be selected according to the load.

Cleaning & Maintenance:

• Three-part filtration system: combines micro, coarse and metal filters to capture food residue during operation.
• Removable filters: designed to be removed and rinsed under water, with weekly cleaning recommended by the manufacturer.
• Removable spray arms: upper and lower spray arms can be inspected and cleared if food residue obstructs the water outlets.
• Accessible drain pump: allows trapped food residue or foreign objects to be removed after the appliance has been disconnected from the power supply.
• Maintenance wash: a high-temperature empty cycle may be used with a dishwasher cleaning product when oil or limescale accumulates inside the appliance.

Specifications:

• Installation type: fully integrated, built-in
• Door configuration: panel ready, door-on-door
• Place settings: 15
• Number of racks: 3
• Cutlery storage: full-width cutlery rack
• Spray arms: 3
• Wash programmes: 9
• Selectable functions: Delay Start, Energy Save, Extra Fast, Extra Silent and Half Load
• Control type: concealed touch controls with internal digital display
• Maximum sound level: 44 dB(A)
• Drying system: Turbo Drying
• Energy rating: 4 Stars
• Energy consumption: 245 kWh per year, based on the Eco 50°C programme used seven times per week
• WELS water rating: 5 Stars
• Water consumption: 12.2 litres per wash
• Rinse-aid indicator: included
• Interior lighting: included
• Save Power Mode: included and active by default

The energy and water performance values are confirmed by the Australian energy and WELS label supplied for model DW60BI/24.

Product Measurements:

• Dimensions (W x H x D): 598 x 820–870 x 550 mm
• Width with installation clearance: 600 mm
• Cut-out dimensions (W x H x D): 600 x 824–874 x 600 mm
• Minimum flush-installation inset depth: 570 mm with a 20 mm-thick custom door panel
• Maximum depth with door fully open: 1160 mm
• Custom panel width: 592–596 mm
• Custom panel height: 647–717 mm
• Custom panel weight range: 3–8 kg
• Toe-kick height adjustment: 80–130 mm

The installation drawing distinguishes the 550 mm dishwasher chassis depth from the cabinetry dimensions required for the custom-panel installation.

Product Weight:

• Net weight: 38.6 kg

Installation & Requirements:

• Installation: built into 600 mm-wide kitchen cabinetry behind a correctly sized custom door panel.
• Electrical connection: grounded electrical outlet
• Operating voltage: 220–240 V
• Frequency: 50 Hz
• Total connected load: 1900 W
• Total current: 10 A
• Water supply pressure: 0.03–1 MPa
• Water connection: connect directly to the water inlet tap; cold water is preferred, with a maximum hot-water inlet temperature of 60°C where applicable.
• Drain connection: connect the drain hose to a suitable waste outlet in accordance with local plumbing requirements.
• Drain hose length: 1880 mm
• Drain height: connection must be at least 508 mm above floor level; the installation drawing specifies an air gap or a drain loop at least 762 mm high to prevent backflow.
• Connection location: electrical and water connections must be positioned to either side of the appliance cut-out.
• Levelling: adjustable feet must be set so the dishwasher is level and stable before the cabinetry panel is installed.
• Custom-panel adjustment: door tension can be adjusted to suit cabinetry panels weighing between 3 and 8 kg.
• Professional installation: installation and electrical work should be completed by appropriately qualified personnel in accordance with applicable regulations.

The manufacturer’s installation drawing provides the cabinetry, panel, plumbing and connection requirements, while the user manual confirms the electrical load and allowable water-pressure range.

Extra Information:

The Energy Save function automatically opens the dishwasher door at the end of a compatible programme. Bertazzoni advises leaving the door open for approximately 30 minutes to support effective drying and not attempting to close it during the first minute after automatic opening.

Short programmes do not include a drying stage. Powder detergent is recommended for these cycles, and the door may be opened slightly after completion to assist residual moisture removal.

The dishwasher is intended for domestic use. The manufacturer recommends using the appliance with a full load where practical and removing coarse food residue without manually pre-rinsing dishes, helping avoid unnecessary water and energy consumption.

Included Products / Accessories:

• Drain hose: 1880 mm drain hose supplied with the dishwasher
• Toe kick: supplied with the appliance
• Adjustable baskets and racks: upper basket, lower basket and full-width cutlery rack

Warranty:

Bertazzoni appliances are backed by a 5-year parts and labour warranty, providing long-term confidence and support.
