Product Description

Product Overview:

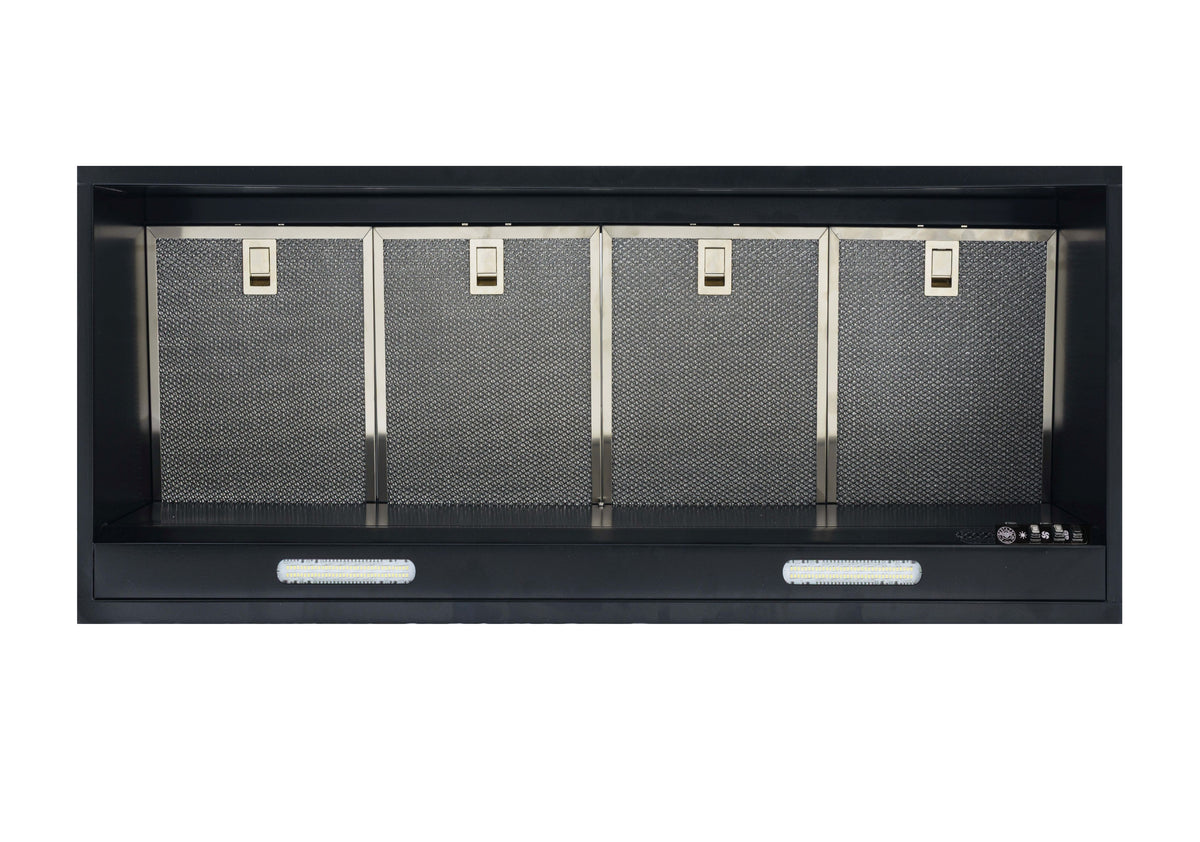

The Bertazzoni BZIRH860-380-2 is a premium 86cm under-cupboard rangehood designed to integrate seamlessly into custom cabinetry while delivering the extraction performance required for demanding home cooking environments. Concealed almost entirely within overhead cabinetry, it preserves clean architectural lines throughout the kitchen while providing powerful ducted ventilation directly above the cooking surface. The wider 860mm body and deeper 380mm profile provide generous cooktop coverage, making it particularly well suited to contemporary induction, ceramic and larger gas cooktops where effective capture of steam, grease and cooking vapours is essential.

Engineered around a twin internal motor system, the BZIRH860-380-2 delivers a maximum extraction capacity of up to 1,500m³/h, allowing it to rapidly remove airborne grease, smoke, heat and odours before they disperse throughout the kitchen. Dual-speed electronic controls allow extraction performance to be matched to everyday simmering or intensive cooking, while three removable aluminium grease filters intercept grease particles to help protect the motor and ducting system. Two integrated cool-running LED lights provide clear illumination across the cooking surface without generating unnecessary radiant heat, improving visibility during food preparation and cooking.

Unlike recirculating rangehoods, the BZIRH860-380-2 has been developed for fully ducted installation using 150mm metal ducting. Bertazzoni specifies rigid or semi-rigid metal ducting to minimise airflow resistance and maintain extraction efficiency, while discouraging flexible PVC ducting or exhausting into ceiling cavities due to both performance and safety considerations. The concealed installation, powerful airflow and commercial-inspired engineering make this rangehood well suited to premium residential kitchens where cooking performance and visual integration are equally important.

Product Features:

• Twin internal motor system: Dual motors provide high-capacity extraction of up to 1,500m³/h, helping remove smoke, grease, steam and cooking odours quickly during both everyday and high-output cooking.
• 86cm wide extraction canopy: Designed to provide broad coverage across larger cooktops while maintaining a discreet under-cabinet installation.
• 380mm canopy depth: The deeper body improves capture efficiency by extending further over the cooking surface, making it particularly suitable for induction cooking where steam often rises vertically.
• Concealed under-cupboard installation: Integrates neatly beneath overhead cabinetry, allowing the rangehood to remain largely hidden while maintaining effective extraction performance.
• Electronic push-button controls: Front-mounted controls provide simple operation of fan speeds and lighting without complicated programming.
• Two fan speed settings: Allows ventilation performance to be matched to light cooking or heavier extraction requirements.
• Three aluminium grease filters: Multi-filter arrangement captures grease before it enters the ducting system. The filters are removable for routine maintenance and are dishwasher safe.
• Dual LED cooktop lighting: Two cool-running LED lights provide clear task lighting across the cooking surface while consuming minimal energy.
• Matt black powder-coated finish: Provides a durable, understated finish that integrates naturally with darker cabinetry and Bertazzoni cooking appliances.
• 150mm duct outlet: Full-size duct connection supports maximum airflow while reducing pressure losses associated with undersized ducting.
• 10A plug-and-lead connection: Supplied with a standard 10A electrical connection for installation in accordance with manufacturer instructions.
• Designed for external ducting: Intended to exhaust cooking vapours outside the home rather than into roof spaces or wall cavities, supporting both extraction performance and long-term safety.

Colours & Finishes:

• Matt Black PowderKote - BZIRH860-380-2

Programmes / Functions:

• Fan Speed 1: Suitable for everyday cooking, simmering and light extraction requirements while maintaining quieter operation.
• Fan Speed 2: Provides maximum extraction performance for high-heat cooking, frying, grilling and wok cooking where greater airflow is required.
• LED Lighting: Independently controlled cooktop lighting provides clear task illumination without operating the extraction fan.
• Electronic Push-Button Controls: Dedicated controls allow simple operation of the lighting and extraction functions.

Cleaning & Maintenance:

• Aluminium grease filters: Remove and clean regularly using warm water with a mild detergent or place in a dishwasher on a low-temperature cycle. Ensure filters are completely dry before refitting.
• Exterior cleaning: Clean the powder-coated surfaces using a soft cloth and a non-abrasive detergent. Avoid steel wool, abrasive pads, solvents or aggressive chemical cleaners which may damage the finish.
• Duct inspection: Periodically inspect external ducting and wall or roof vents to ensure unrestricted airflow.
• LED lighting: Should replacement be required, Bertazzoni recommends replacement by an authorised service technician.
• Regular maintenance: Failure to clean grease filters in accordance with the manufacturer's recommendations may increase the risk of grease build-up and reduce extraction performance.

Specifications:

• Product type: Built-in under-cupboard rangehood
• Installation configuration: Concealed under-cupboard
• Extraction method: Fully ducted
• Motor configuration: Twin internal motors
• Maximum airflow: Up to 1,500m³/h (retailer verified)
• Fan speeds: 2
• Control type: Electronic push-button controls
• Lighting: 2 × cool white LED lights
• Number of light assemblies: 2
• Night light: No
• Grease filter type: Aluminium mesh grease filters
• Number of grease filters: 3
• Filter dimensions: 272 × 272mm
• Body finish: Matt black powder-coated steel
• Body width: 860mm
• Motor box width: 838mm
• Canopy depth: 380mm
• Duct outlet diameter: Ø150mm
• Electrical connection: 10A plug and lead
• Top ducting option: Yes
• Rear ducting option: No
• Recirculating operation: No – ducted installation only
• Suitable for induction cooktops: Yes
• Suitable for electric cooktops: Yes
• Suitable for gas cooktops: Yes
• Indoor installation: Yes
• Minimum duct diameter: 150mm rigid or semi-rigid metal ducting recommended
• Maximum recommended duct run: 15 metres
• Manufacturer finish: Matt Black PowderKote®

Product Measurements:

• Overall Dimensions (W × H × D): 860 × 556 × 380mm
• Visible body width: 860mm
• Motor box width: 838mm
• Cabinet cut-out (W × D): 840 × 348mm
• Filter dimensions: 272 × 272mm
• Duct outlet: Ø150mm round

Product Weight:

• Net Product Weight: 15kg

Installation & Requirements:

• Installation type: Concealed under-cupboard installation within overhead cabinetry.
• Extraction system: Designed exclusively for external ducting and must not be installed as a recirculating rangehood.
• Recommended ducting: Bertazzoni specifies rigid or semi-rigid metal ducting with a minimum diameter of Ø150mm to maximise extraction efficiency and minimise operating noise.
• Maximum duct length: 15 metres.
• Electrical supply: 220–240V / 50Hz.
• Connection: Standard 10A plug and lead.
• Isolation: Electrical disconnection must remain accessible after installation, either via an accessible power point or isolation switch.
• Indoor use only: This appliance is designed exclusively for indoor domestic installation.
• Installation by qualified personnel: Installation should be completed in accordance with local electrical regulations and the Bertazzoni installation instructions.

Minimum Cooktop Clearances

• Induction cooktops: Minimum 600mm from the cooking surface to the underside of the rangehood.
• Gas cooktops: Minimum 650mm from the highest burner.
• Recommended gas installation height: 650–800mm.
• Galley or partially enclosed kitchens: Bertazzoni advises installation between 900–1000mm where appropriate to improve capture performance.

Important Ducting Requirements

• Do not use PVC or plastic flexible ducting.
• Do not exhaust into ceiling spaces or wall cavities.
• Keep duct runs as straight as possible.
• Avoid crushing or sharply bending semi-rigid ducting.
• Ensure the external vent does not restrict airflow.
• Adequately ventilate the room whenever the rangehood operates simultaneously with gas appliances.
• Never discharge exhaust into a chimney or flue serving another appliance.

Country of Origin:

• Made In Australia

Extra Information:

Unlike conventional 275mm deep undermount rangehoods, the BZIRH860-380-2 has been engineered with an extended 380mm canopy depth to improve smoke and steam capture over modern induction cooktops, where cooking vapours tend to rise vertically before dispersing. This increased depth positions the leading edge of the rangehood further over the cooking surface, helping improve extraction effectiveness while maintaining a fully integrated appearance beneath overhead cabinetry.

The twin-motor design provides balanced airflow across the full width of the rangehood, making the appliance well suited to wider cooking appliances and frequent cooking. Combined with three removable aluminium grease filters and full-size 150mm ducting, the ventilation system is designed to maintain consistent airflow while simplifying routine maintenance.

For optimum long-term performance, Bertazzoni recommends designing the duct run before cabinetry is installed. Short, straight duct runs with gentle-radius bends will reduce airflow restriction, minimise operating noise and maximise extraction efficiency.

Included Products / Accessories:

• Twin internal motor assembly
• Three removable aluminium grease filters
• Two integrated cool white LED light assemblies
• 150mm duct outlet connection
• 10A power lead and plug
• Mounting hardware
• Installation & User Manual

Warranty:

Bertazzoni appliances are backed by a 5-year parts and labour warranty, providing long-term confidence and support.
