Product Description

Product Overview:

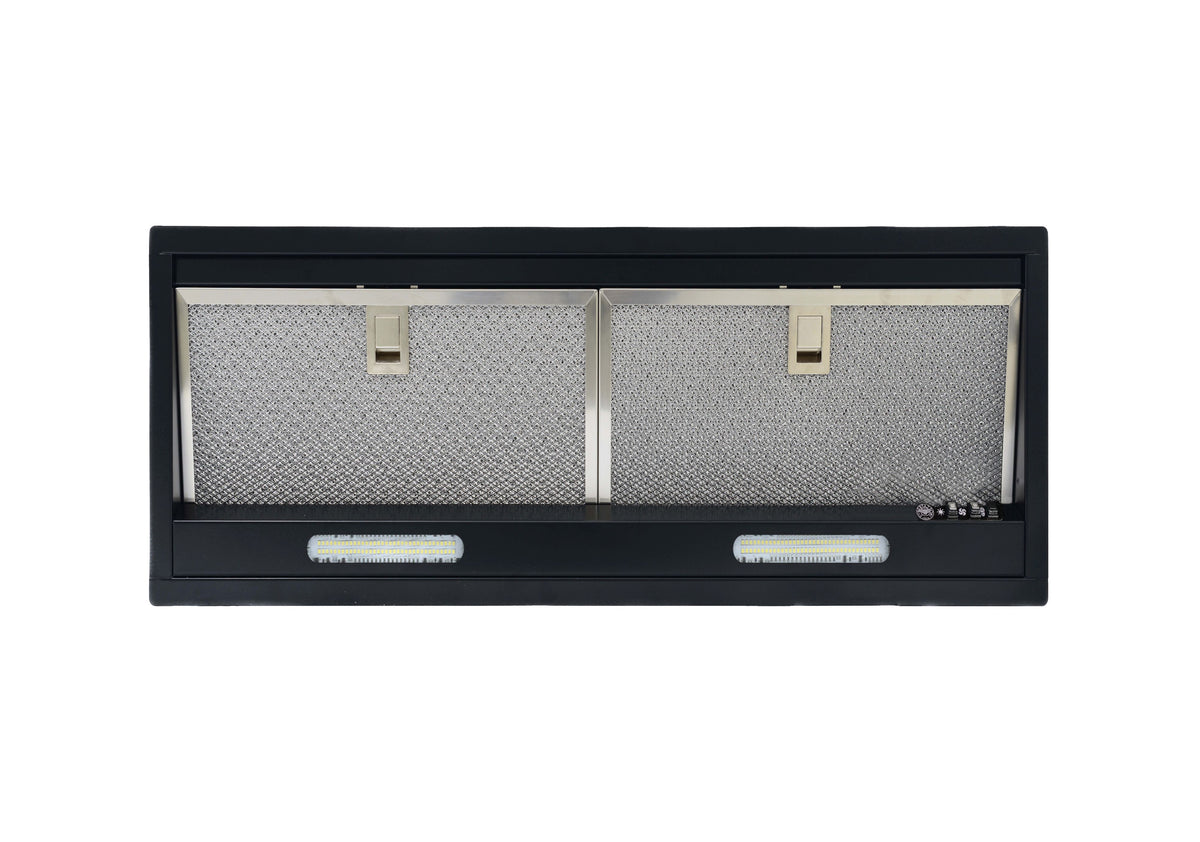

The Bertazzoni BZIRH860-275 is an 86cm under-cupboard rangehood developed for concealed integration into overhead kitchen cabinetry. Its 275mm-deep base and 840 × 243mm cabinet cut-out provide a broad extraction area across the cooktop while keeping the working components largely hidden from view. The exposed underside is finished in matt black powder coat, giving the rangehood a restrained appearance beneath surrounding cabinetry.

Two motor configurations are available within the same appliance platform. The BZIRH860-275-1 uses a single motor with a rated maximum extraction capacity of 750m³/h, while the BZIRH860-275-2 uses twin motors for a rated maximum extraction capacity of 1,500m³/h. Both versions retain the same external dimensions, cabinet cut-out, two-speed control system, twin grease filters and two cool LED lights, allowing the extraction capacity to be selected without changing the cabinetry plan.

The BZIRH860-275 is designed exclusively for ducted extraction to the outside atmosphere. Each motor requires a dedicated 150mm metal duct connection, with the manufacturer specifying rigid or semi-rigid metal ducting, a maximum duct run of 15 metres and unrestricted external discharge. Correct duct planning is central to the performance of this rangehood, particularly for the twin-motor model with its two separate 150mm outlets.

Product Features:

• Single or twin motor configuration: Choose the 750m³/h single-motor model for standard domestic extraction or the 1,500m³/h twin-motor model where greater airflow capacity is required.
• Concealed under-cupboard installation: The motor box installs within the overhead cabinetry while the slim matt black base remains positioned beneath the cupboard.
• Two fan speeds: Separate fan on/off and high/low controls provide direct selection between the two available extraction settings.
• Electronic press-button controls: Dedicated buttons manage the fan, speed setting and lighting without combining functions into a single control.
• Two cool LED lights: Twin integrated lights are spaced 407mm apart to provide illumination across the cooking surface.
• Two aluminium grease filters: Two removable 407 × 177mm filters collect airborne grease across the width of both motor configurations.
• Dishwasher-compatible filters: Filters may be hand washed or placed on the dishwasher’s upper rack using a suitable low-alkaline detergent, simplifying regular maintenance.
• Adjustable spring-bracket installation: Dual-position mounting brackets accommodate different cabinetry thicknesses and secure the rangehood within the prepared cut-out.
• Matt black powder-coated base: The visible underside has a durable powder-coated finish designed for routine cleaning with warm soapy water and a soft cloth.
• 10 Amp plug and lead: Both motor configurations connect through a standard 10 Amp lead, with an accessible means of electrical disconnection required after installation.

Colour / Finishes:

• Matt Black PowderKote® – Single Motor: BZIRH860-275-1
• Matt Black PowderKote® – Twin Motor: BZIRH860-275-2

Programmes / Functions:

• Fan On / Off: Starts or stops the rangehood’s extraction motor.
• Low Fan Speed: Provides reduced extraction for lighter cooking vapours and lower ventilation demand.
• High Fan Speed: Increases airflow for cooking that produces greater levels of steam, smoke or airborne grease.
• Light On / Off: Independently controls the two integrated cool LED lights above the cooking surface.

Cleaning & Maintenance:

• Filter cleaning interval: Bertazzoni recommends cleaning the grease filters at least once each month and immediately after particularly heavy cooking.
• Hand cleaning: Wash the filters in warm soapy water before rinsing and allowing them to dry completely.
• Dishwasher cleaning: Position the filters on the upper rack and use either no detergent or a suitable powder detergent with a pH of 8 or below.
• Filter discolouration: Dishwasher cleaning may alter the appearance of the aluminium filters without necessarily affecting their operation.
• Drying requirement: Filters must be completely dry before they are reinstalled.
• Safe operation: The rangehood must not be operated without the grease filters fitted.
• Surface cleaning: Disconnect the appliance from power, clean the powder-coated surface with warm soapy water and a soft cloth, remove soap residue with a clean damp cloth and dry thoroughly.
• Products to avoid: Do not use abrasive, corrosive, caustic, acidic, industrial or citric cleaning products on the rangehood or its filters.

Specifications:

• Product type: Under-cupboard rangehood
• Installation format: Concealed built-in installation beneath overhead cabinetry
• Extraction type: Ducted to the outside atmosphere
• Motor configuration — BZIRH860-275-1: Single motor
• Motor configuration — BZIRH860-275-2: Twin motor
• Maximum extraction capacity — BZIRH860-275-1: 750m³/h
• Maximum extraction capacity — BZIRH860-275-2: 1,500m³/h
• Fan speeds: 2
• Control type: Electronic press-button control
• Control functions: Fan on/off, high/low speed and light on/off
• Grease filter type: Aluminium mesh
• Grease filter quantity: 2
• Grease filter size: 407 × 177mm each
• Lighting type: Cool LED
• Light quantity: 2
• Light centres: 407mm
• Night light: No
• Duct outlet — BZIRH860-275-1: 1 × 150mm round
• Duct outlets — BZIRH860-275-2: 2 × 150mm round
• Electrical connection: 10 Amp plug and lead
• Duct direction conversion: Not available
• Top-to-back or back-to-top conversion: No
• Corner profile: Radius
• All-thread fixing centres: Not applicable
• Visible base finish: Matt black powder coat

Product Measurements:

• Overall dimensions (W × H × D): 860 × 344 × 275mm
• Rangehood base size (W × D): 860 × 275mm
• Motor box dimensions (W × D): 835 × 240mm
• Motor box height above base: 276mm
• Visible lower base height: 88mm
• Cabinet cut-out (W × D): 840 × 243mm
• Duct outlet diameter: 150mm
• Duct outlet centre from rear: 40mm
• Duct outlet centre from side: 335mm
• Power entry position from rear: 15mm
• Filter dimensions: 407 × 177mm each

Product Weight:

• BZIRH860-275-1 single-motor model: 12kg
• BZIRH860-275-2 twin-motor model: 15kg

Installation & Requirements:

• Cabinet installation: Install within an accurately prepared 840 × 243mm cabinet cut-out.
• Cabinet thickness — lower bracket position: Approximately 12–28mm
• Cabinet thickness — upper bracket position: Approximately 22–40mm
• Mounting system: Adjustable spring brackets engage with the cabinetry before the fixing screws are tightened.
• Electrical connection: 10 Amp plug and lead
• Electrical isolation: Install an accessible power point or incorporate an isolating wall switch into the fixed wiring supplying the appliance.
• Ducting material: Metal rigid or semi-rigid ducting only
• Plastic ducting: PVC piping and flexible PVC ducting must not be used.
• Minimum duct diameter: 150mm for each motor
• Maximum duct run: 15 metres
• Twin-motor ducting: The BZIRH860-275-2 requires two separate 150mm duct connections.
• Duct bends: Use broad, gentle-radius bends and do not crush or distort semi-rigid ducting.
• External outlet: The terminal vent must not restrict airflow.
• Discharge location: Exhaust air must be vented outside and must not terminate within a ceiling space, wall cavity, chimney or flue used by a fuel-burning appliance.
• Gas cooktop minimum clearance: 650mm between the highest part of the burner and the rangehood
• Gas cooktop recommended clearance: 650–800mm
• Galley or partially enclosed kitchen clearance: 900–1,000mm above the highest part of the gas burner
• Electric cooktop clearance: Follow the cooktop manufacturer’s installation instructions and recommendations.
• Induction cooktop suitability: Bertazzoni identifies the deeper 380mm BZIRH models as the designs intended for use over induction cooktops; installation planning is required before selecting this 275mm-deep version.
• Room ventilation: Maintain adequate room ventilation when the rangehood operates alongside appliances burning gas or other fuels.
• Installation environment: Indoor use only
• Installation compliance: Installation must follow the Bertazzoni instructions and all applicable local requirements.

Country of Origin:

• Made In Australia

Extra Information:

The single- and twin-motor versions share the same 860mm overall width, 344mm height, 275mm depth and 840 × 243mm cabinetry cut-out. This allows both configurations to sit within the same planned cabinet opening; however, the duct layout must be selected before installation because the single-motor model has one 150mm outlet and the twin-motor model has two.

Extraction performance depends on the complete duct system rather than the rangehood alone. Long runs, restrictive terminal vents, undersized ducting, compressed semi-rigid sections and tight bends can increase noise and reduce airflow. Bertazzoni therefore specifies metal ducting of at least 150mm per motor and limits the total run to 15 metres.

Do not flambé beneath the rangehood. Accessible surfaces may become hot during cooking, and the appliance should be switched off after use. A damaged supply cord must be replaced by an authorised service centre or licensed electrician, while damaged LED protective glass must be attended to by an authorised Bertazzoni technician.

Included Products / Accessories:

• 2 × Aluminium mesh grease filters (1 × filter on the single-motor model) supplied pre-installed, depending on the selected variant.
• 2 × Integrated cool LED lights pre-installed within the rangehood.
• 10 Amp plug and lead factory fitted for connection to a standard power outlet.
• Installation instructions and user manual.

Warranty:

Bertazzoni appliances are backed by a 5-year parts and labour warranty, providing long-term confidence and support.
