Product Description

Product Overview:

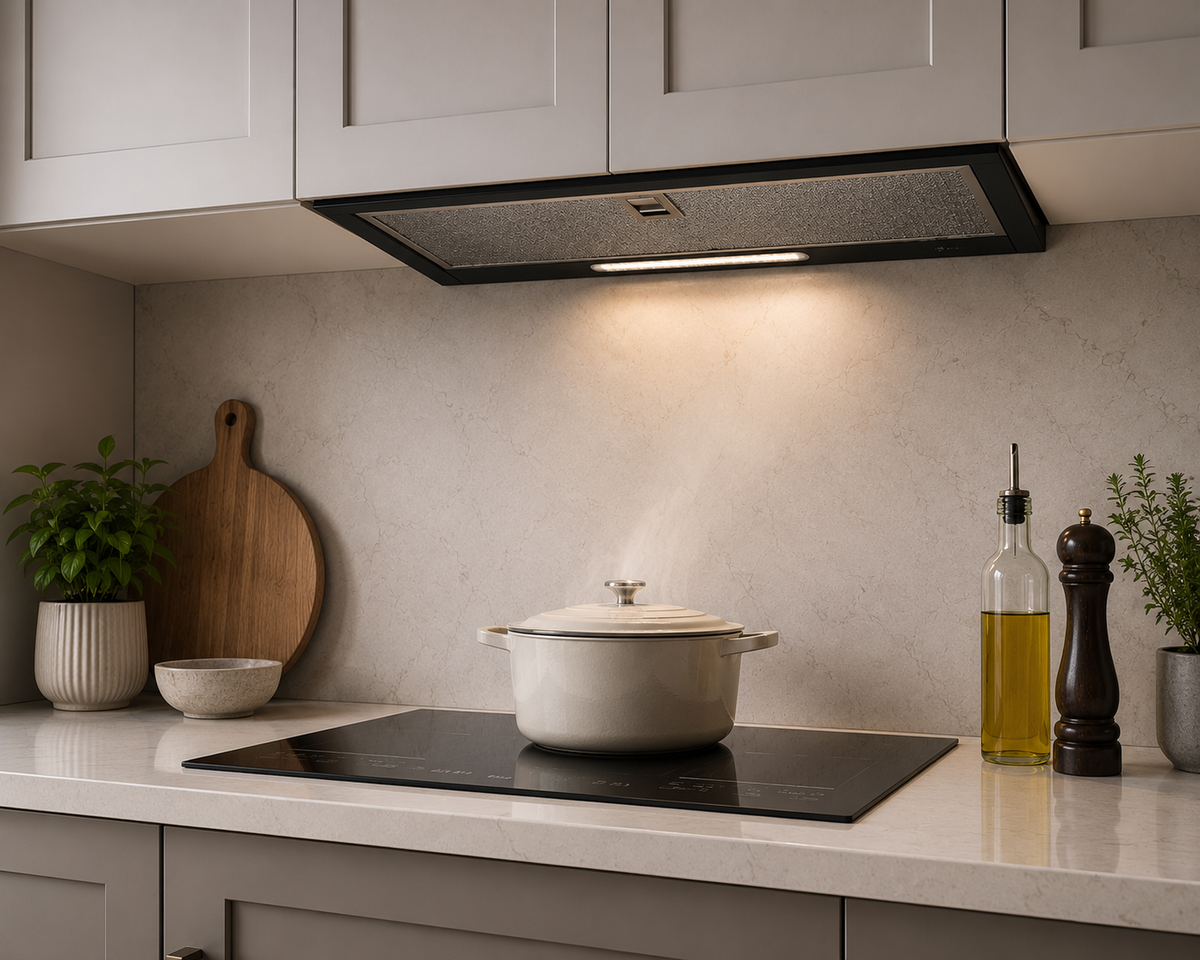

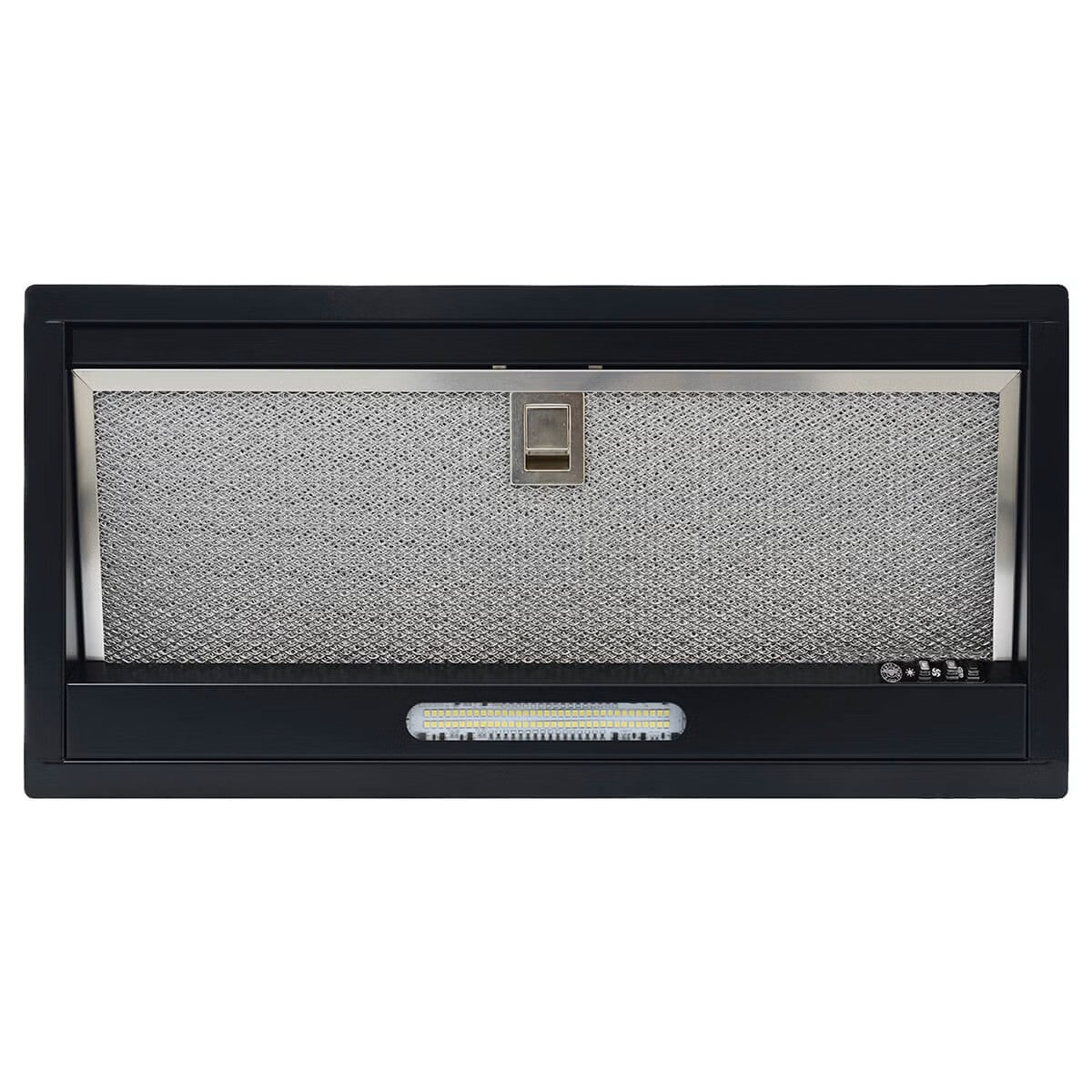

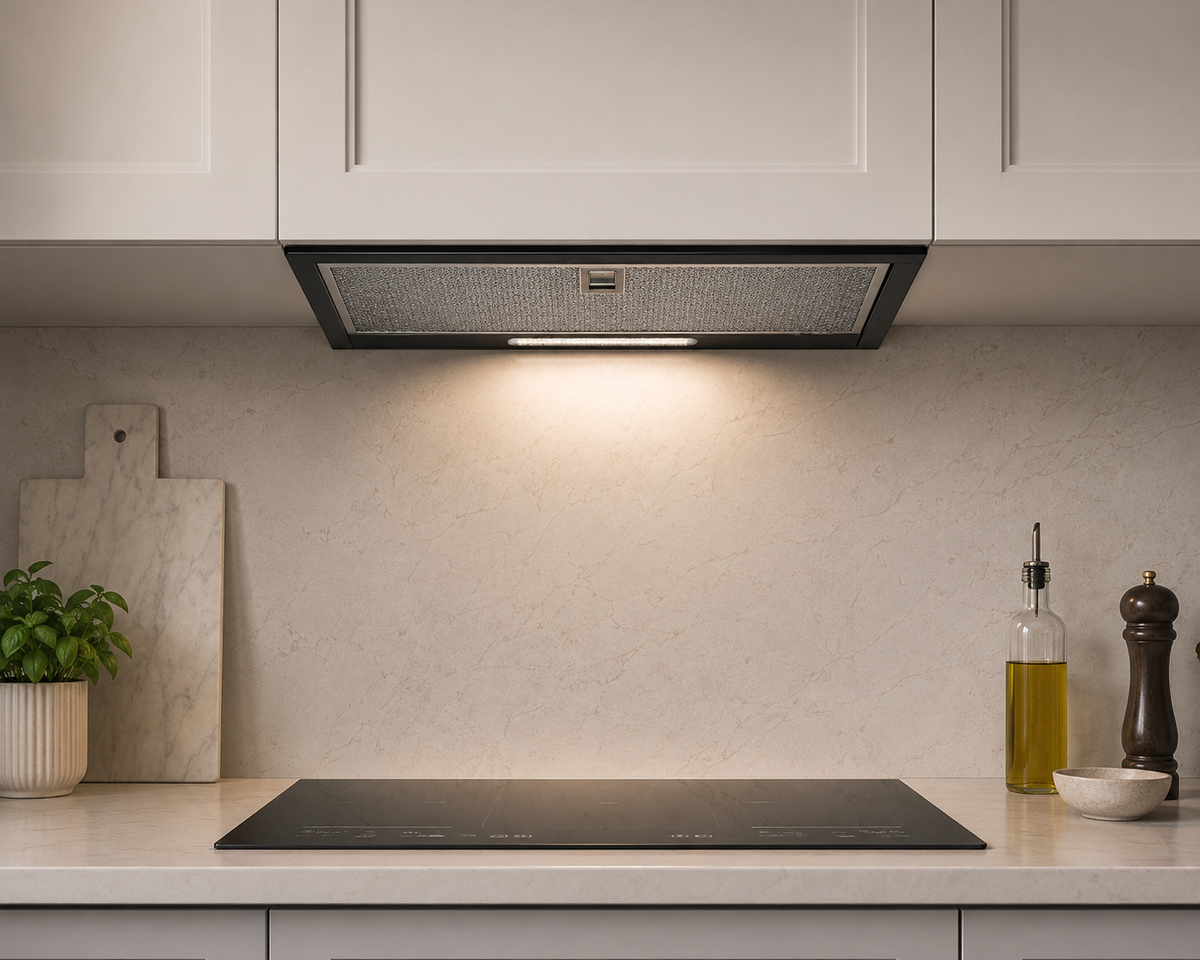

The Bertazzoni BZIRH560-275-1 is a premium 56cm under-cupboard rangehood designed to integrate discreetly beneath overhead cabinetry while delivering powerful extraction performance for everyday cooking. Finished in matte black, its concealed installation allows the focus to remain on the surrounding kitchen while providing effective removal of steam, smoke, grease and cooking odours.

A single internal motor delivers extraction rates of up to 750m³/h through a 150mm duct outlet, making the BZIRH560-275-1 well suited to compact kitchens, apartment living and standard 60cm cooking zones. Two selectable fan speeds allow ventilation to be adjusted according to cooking intensity, while electronic push-button controls provide simple, reliable operation.

Integrated LED lighting improves visibility across the cooktop without producing excessive heat, while the removable aluminium grease filter captures airborne grease before it enters the ducting system. The dishwasher-safe filter simplifies routine maintenance, helping to maintain extraction performance over time. Designed and manufactured in Australia for Bertazzoni's Australian rangehood programme, the BZIRH560-275-1 combines understated styling with practical day-to-day usability.

Product Features:

• Concealed under-cupboard installation: Mounts neatly beneath overhead cabinetry for a streamlined, integrated kitchen appearance.
• 750m³/h maximum extraction: Effectively removes cooking vapours, grease, smoke and odours during everyday cooking.
• Single internal motor: Provides dependable ventilation performance while maintaining a compact installation profile.
• Two fan speeds: Select lower extraction for light cooking or increased airflow when higher extraction is required.
• Electronic press-button controls: Front-mounted controls provide straightforward operation and quick fan speed selection.
• Twin LED lights: Two integrated LED lights illuminate the cooking surface for improved visibility during food preparation and cooking.
• Aluminium grease filter: Captures airborne grease before it enters the ducting system to help maintain efficient extraction.
• Dishwasher-safe filter: The removable aluminium filter can be cleaned in the dishwasher for convenient ongoing maintenance.
• Matte black enamel finish: Coordinates with contemporary Bertazzoni cooking appliances and modern kitchen cabinetry.
• 150mm duct outlet: Supports efficient ducted ventilation when installed with suitable external ducting.

Colour / Finishes:

• Matte Black - BZIRH560-275-1

Programmes / Functions:

• Low Speed: Provides quieter extraction for light cooking, simmering and warming.
• High Speed: Delivers maximum extraction performance for frying, searing and heavier cooking.
• LED Cooktop Lighting: Illuminates the cooking surface to improve visibility while preparing meals.

Cleaning & Maintenance:

• Dishwasher-safe aluminium grease filter: Removes easily for regular dishwasher cleaning to maintain extraction efficiency.
• Washable grease filter: Regular cleaning helps maintain airflow performance and extends the life of the ventilation system.
• LED lighting: Long-life LED lights require minimal maintenance under normal household use.
• Matte black finish: Wipe with a soft damp cloth and non-abrasive cleaner to maintain the exterior finish.
• Ducting maintenance: Periodically inspect ducting to ensure unrestricted airflow and optimum extraction performance.

Specifications:

• Rangehood type: Under-cupboard
• Installation: Built-in concealed under-cupboard
• Extraction type: Ducted
• Maximum airflow: 750m³/h
• Motor configuration: Single internal motor
• Fan speeds: 2
• Control type: Electronic press-button
• Lighting: 2 × LED lights
• Filter material: Aluminium
• Number of filters: 1
• Dishwasher-safe filter: Yes
• Filter size: 514 × 177mm
• Duct outlet diameter: 150mm
• Duct outlet location: Top
• Electrical connection: 10A plug and lead
• Maximum current rating: 10A
• Power rating: 2200W
• Corner profile: Radius
• Finish: Matte Black
• EAN: 8058801060084

Product Measurements:

• Overall dimensions (W × H × D): 560 × 344 × 275mm
• Cabinet cut-out width: 540mm
• Cabinet cut-out depth: 243mm
• Motor box width: 535mm

Product Weight:

• Net product weight: 9kg

Installation & Requirements:

• Installation type: Concealed under-cupboard installation.
• Ventilation: Ducted installation only.
• Duct size: 150mm round duct connection.
• Electrical connection: 10A plug and lead.
• Power supply: Standard 240V domestic supply via 10A outlet.
• External vent kit: Required for installation.
• Cabinet preparation: Suitable cabinetry should accommodate the specified cut-out dimensions and ducting route prior to installation.

Country of Origin:

• Made In Australia

Extra Information:

The BZIRH560-275-1 is distributed in Australia through Condari and has been engineered specifically for concealed installation beneath overhead cabinetry. Its understated matte black finish allows it to integrate seamlessly with contemporary kitchen designs while maintaining the clean visual lines often preferred in modern renovations.

Routine maintenance is straightforward, with the aluminium grease filter designed for removal and dishwasher cleaning. Regular cleaning helps maintain airflow performance and prolongs the efficiency of the ventilation system. The integrated LED lighting provides practical task illumination directly over the cooking surface while consuming minimal energy.

Included Products / Accessories:

• Aluminium grease filter
• Integrated LED lighting
• 10A power lead
• Technical specification sheet

Warranty:

Bertazzoni appliances are backed by a 5-year parts and labour warranty, providing long-term confidence and support.

Downloads / Product Files:

• SPECIFICATIONS SHEET (PDF)
