Product Description

Product Overview:

The Bertazzoni BZIRH1130-380-2 is a 113cm under-cupboard rangehood designed for concealed integration into wide overhead cabinetry. Its 380mm-deep base is specifically configured for use above induction cooktops, while the matt black powder-coated underside creates a discreet, coordinated finish beneath the cabinet.

Twin internal motors deliver a maximum extraction capacity of 1,500m³/h, providing substantial ventilation coverage across larger cooking surfaces. Two selectable fan speeds allow the extraction level to be adjusted through straightforward electronic press-button controls.

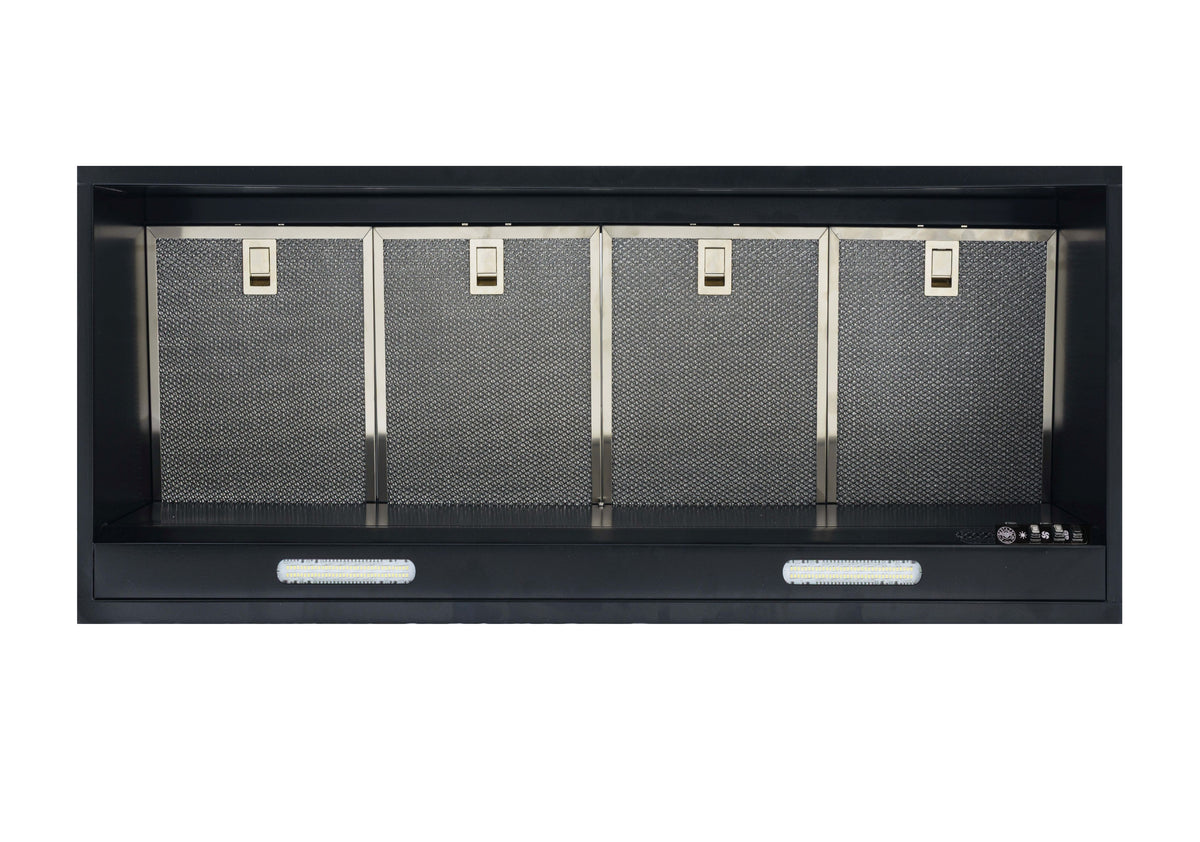

Four aluminium grease filters span the 1130mm body, supported by two cool LED lights positioned across the base to illuminate the cooking area. The undermount installation keeps the rangehood largely concealed while retaining accessible controls, lighting and filters beneath the cabinetry.

Product Features:

• Twin motor extraction: two internal motors provide a maximum airflow capacity of 1,500m³/h for larger cooking zones.
• Two fan speeds: high and low extraction settings allow ventilation to be matched to the intensity of cooking.
• Electronic press-button controls: dedicated controls operate the fan, speed selection and lighting.
• 113cm undermount design: installs beneath overhead cabinetry for a concealed, integrated appearance.
• 380mm-deep base: designed for use above induction cooktops and suited to deeper overhead cabinetry installations.
• Four aluminium grease filters: removable filters capture airborne grease and may be hand-washed or cleaned in the dishwasher.
• Two cool LED lights: integrated lighting illuminates the cooking surface without a separate night-light function.
• Matt black powder-coated finish: the exposed underside presents a uniform dark finish beneath the cabinetry.

Colour / Finishes:

• Matt Black Powder-Coat — BZIRH1130-380-2

Programmes / Functions:

• Fan On / Off: switches the rangehood’s twin extraction motors on or off.
• High / Low Fan Speed: selects between low extraction for lighter cooking and high extraction for heavier steam, smoke and cooking vapours.
• Light On / Off: switches the two integrated cool LED lights on or off to illuminate the cooking surface.

Cleaning & Maintenance:

• Filter cleaning interval: clean the grease filters at least once per month, or immediately following heavy use.
• Hand washing: wash the filters in warm, soapy water before rinsing and drying completely.
• Dishwasher cleaning: place the filters on the upper rack and use a detergent with a pH of 8 or lower; dishwasher cleaning may discolour the aluminium without affecting normal operation.
• Powder-coated surfaces: clean with warm, soapy water and a soft cloth, then wipe away remaining soap and dry thoroughly.
• Cleaning products: do not use abrasive, corrosive, caustic, acidic, industrial or citric cleaning products.
• Filter operation: do not operate the rangehood unless all four filters are correctly fitted.

Specifications:

• Rangehood type: under-cupboard / undermount
• Extraction configuration: ducted to the outside atmosphere
• Maximum extraction capacity: 1,500m³/h
• Motor quantity: 2
• Fan speeds: 2
• Control type: electronic press-button
• Filter type: aluminium grease filters
• Filter quantity: 4
• Individual filter size: 272 x 272mm
• Lighting: 2 x cool LED lights
• Light centres: 545mm
• Night-light: no
• Duct outlets: 2 x 150mm diameter
• Top-to-back duct conversion: not available
• Corner profile: radius
• Finish: matt black powder-coated base

Product Measurements:

• Overall Dimensions (W x H x D): 1130 x 516 x 380mm
• Rangehood Insert Size (W x D): 1113 x 345mm
• Motor Box / Flue Width: 1113mm
• Motor Box Height: 448mm
• Base Height: 193mm
• Cabinet Cut-Out Size (W x D): 1116 x 348mm

Product Weight:

• Product Weight: 25 kg

Installation & Requirements:

• Installation type: under-cupboard / undermount installation
• Connection type: 10A power lead
• Electrical isolation: an accessible power point or wall switch must remain available after installation.
• Ducting configuration: two separate 150mm-diameter duct outlets
• Ducting material: metal rigid or metal semi-rigid ducting only
• Maximum duct run: 15m for each fan
• External discharge: exhaust air must be ducted to the outside atmosphere and must not terminate inside a wall cavity or ceiling space.
• Induction cooktop clearance: minimum 600mm between the induction cooktop and the rangehood
• Gas cooktop clearance: minimum 650mm above the highest part of the burner
• Recommended gas installation height: 650–800mm above the highest part of the burner
• Galley or partially enclosed kitchen clearance: 900–1000mm above the highest part of a gas burner
• Electric cooktop clearance: install according to the cooktop manufacturer’s requirements.
• Cabinet thickness: lower bracket position accommodates approximately 12–28mm cabinetry; upper position accommodates approximately 22–40mm cabinetry.
• Installation environment: indoor use only
• Gas installation compliance: installation above gas appliances must comply with AS/NZS 5601.1.

Country of Origin:

• Made In Australia

Extra Information:

The BZIRH1130-380-2 must operate as a ducted rangehood and is not designed to discharge air into surrounding cabinetry, a ceiling cavity or a wall cavity. Each motor requires an unrestricted 150mm metal duct, with broad-radius bends used wherever direction changes are necessary. Restricted outlets, crushed semi-rigid ducting or undersized ducts may increase operating noise and reduce extraction performance.

The 380mm-deep configuration is intended to provide improved coverage above induction cooking surfaces. Correct installation height remains important, as induction cooking can produce condensation on rangehood filters when the appliance is installed too close to the cooking surface.

The rangehood must be switched off after use, and the filters require regular cleaning to maintain airflow and satisfy the manufacturer’s warranty conditions. Flambé cooking must not be performed beneath the rangehood.

Included Products / Accessories:

• Aluminium grease filters: 4 x 272 x 272mm filters
• Integrated lighting: 2 x cool LED lights
• Mounting system: adjustable spring mounting brackets
• Electrical connection: fitted 10A power lead

Warranty:

Bertazzoni appliances are backed by a 5-year parts and labour warranty, providing long-term confidence and support.
