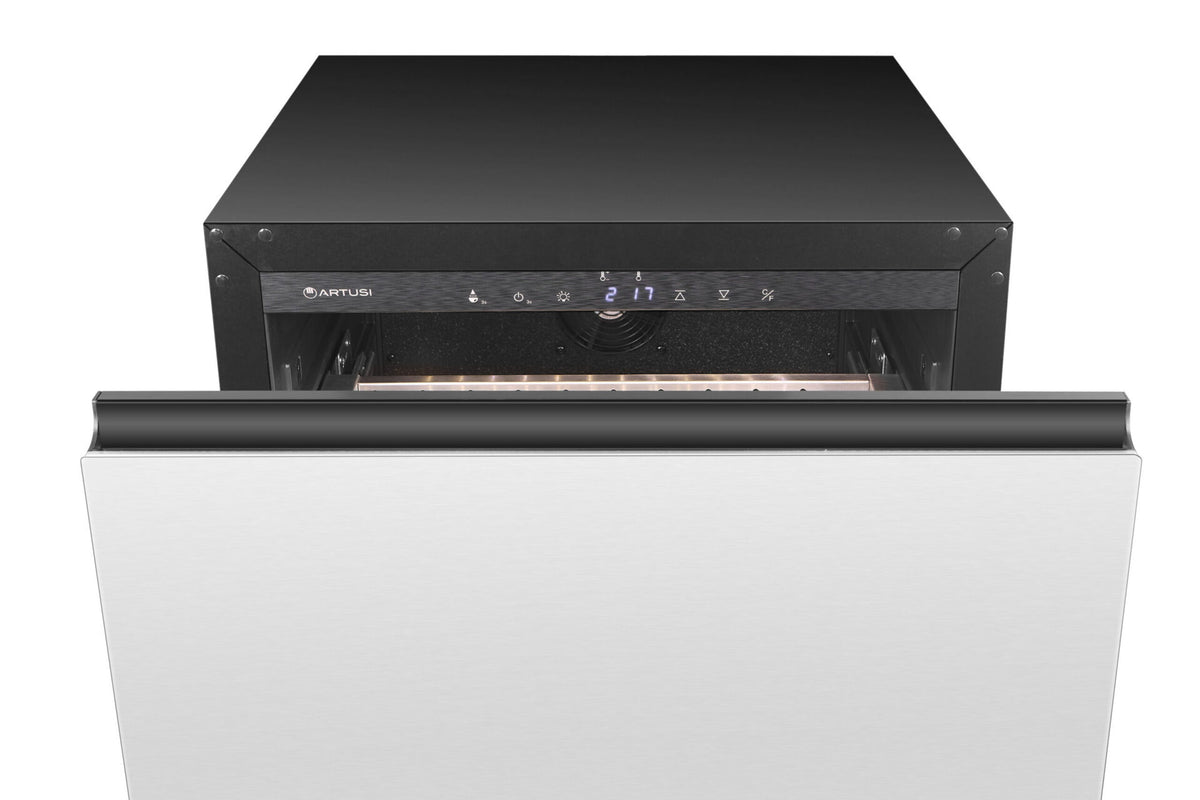

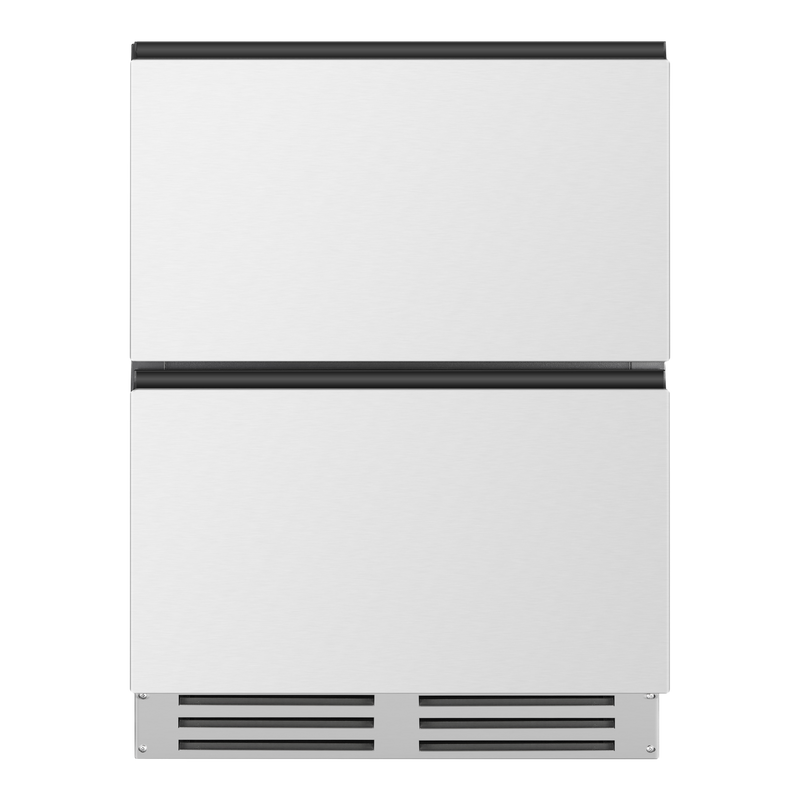

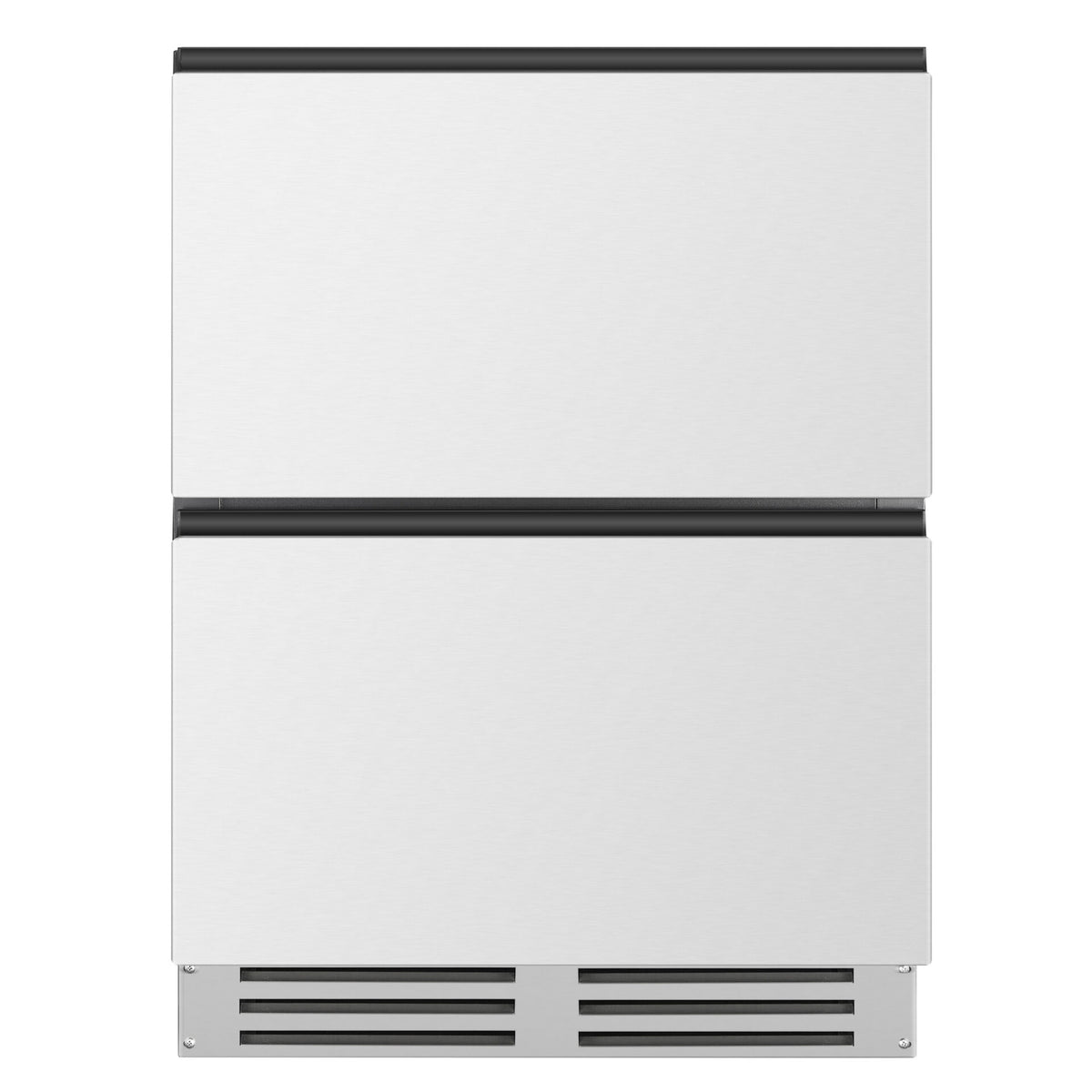

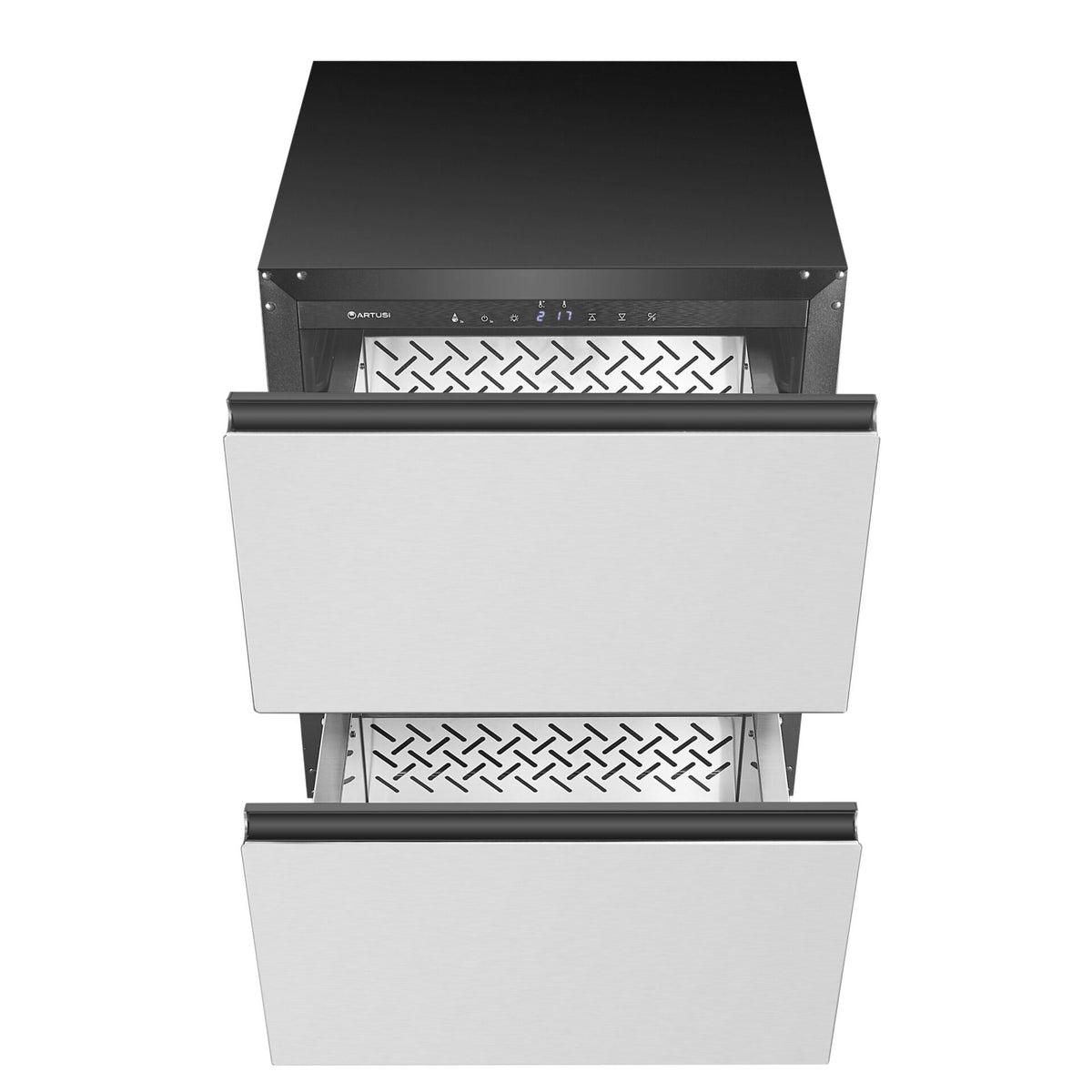

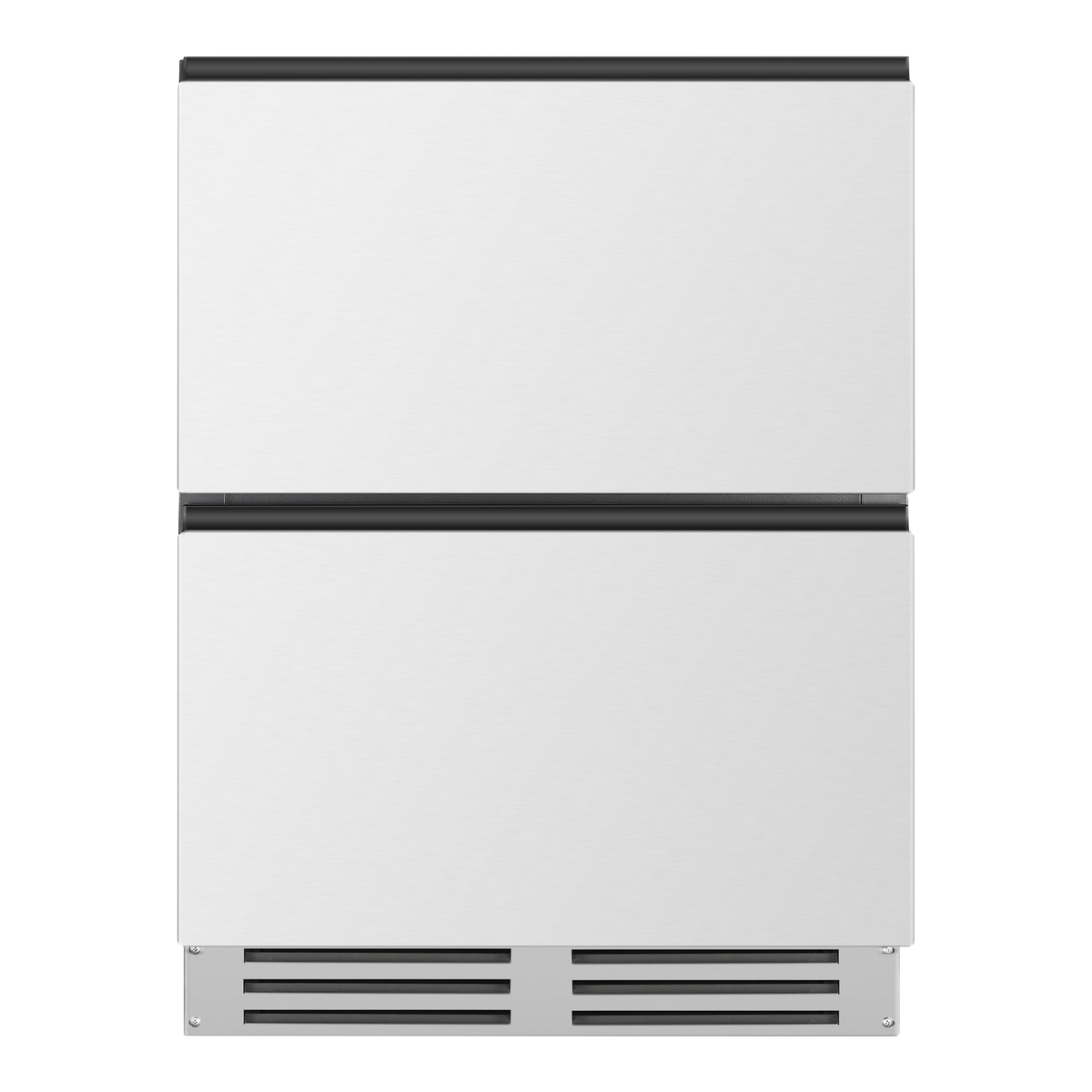

Artusi AUBF620X 97 Can Dual Drawer Underbench Beverage Chiller

• Dual drawer design: Two pull-out drawers for convenient organisation and access.
• 97 can capacity: Stores up to 97 x 330ml cans.
• Inverter compressor: Efficient, reliable temperature control with quieter operation and reduced energy consumption.
• Fan cooling system: Even temperatures through the cabinet.
• Charcoal filter: Helps preserve internal air quality.
• Digital touch controls: Adjust the temperature between 2°C and 10°C.
• White LED strip lights: Clear visibility of the contents.
• Stainless steel door fronts: Solid doors with a stainless steel covering on a black finished metal body.
• Flexible installation: Under counter or freestanding, in indoor and outdoor kitchen layouts.
• R600a refrigerant: An environmentally friendly hydrocarbon refrigerant.

• Temperature control: Adjustable from 2°C to 10°C using the digital touch controls.
• Energy saving mode: Hold the button for 3 seconds to enter energy saving mode.
• Display: Shows the set temperature and the actual temperature, switchable between °C and °F.
• Lighting: White LED strip lights, on by default when a drawer opens. Long press the lamp button to keep them on.
• Cooling system: Fan cooling with an inverter compressor.
• Air quality: Charcoal filter.
• Storage: Dual drawer design.

• Brand: Artusi
• Model: AUBF620X (Stainless Steel)
• Product Type: Dual drawer underbench beverage chiller
• Installation: Under counter or freestanding
• Capacity: 97 cans (330ml)
• Drawers: 2
• Temperature Range: 2°C to 10°C
• Cooling System: Fan cooling, inverter compressor
• Filtration: Charcoal filter
• Refrigerant: R600a
• Door: Solid door with stainless steel covering
• Body: Metal with black finished surface
• Lighting: White LED strip lights
• Controls: Digital touch control
• Voltage: 220-240V, 50-60Hz
• Rated Current: 0.7A
• Connection: 10A plug with 160cm power cord
• Weight: 42kg net
• Warranty: 2 years parts and labour

• Installation style: Built-in or freestanding. Built-in coolers are front venting and are not designed to be fully integrated behind a joinery door.
• Cavity size: Allow a cavity at least 605mm wide, 830-880mm high and 590-595mm deep, with a 85mm ventilated kickplate area at the base.
• Ventilation: The unit draws air in on the right of the ventilation frame and expels it on the left under the drawers. The cabinet should have good ventilation space and no back panel.
• Hot climates: Cut an air vent or grille of at least 200mm x 40mm at the rear top of the back partition, or the top of either side partition, so cool air can reach the 30mm gap at the rear of the cabinet. Do not open it on the same side as an oven or into a sealed area. Failing to follow the ventilation requirements could void the warranty.
• Electrical connection: Requires a standard 220-240V / 10A power point that stays accessible after installation. A surge protector is recommended and extension cords should not be used.
• Tilt prevention: A tilt-prevention kit is supplied. Fix one metal plate to the unit and the other to the wall with the anchor, keeping 50-70mm between the back of the unit and the wall.
• Levelling: Four adjustable feet. Tighten the back feet fully and adjust the front feet to level before loading.
• Drawer clearance: Allow enough space in front of the chiller for both drawers to pull out fully.
• Before first use: Allow 24 hours before switching on with the drawers open to clear residual odours. After any power loss or switch-off, wait 3 to 5 minutes before restarting.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Drawers change the way a drinks fridge works. Instead of crouching to scan a shelf, you pull a drawer out and see every can at once, which makes the AUBF620X a natural fit under a bench or outdoor kitchen counter. Its stainless steel fronts and black body also sit comfortably beside stainless appliances and dark joinery.

Before ordering, plan the opening and the power. The cavity needs to be at least 605mm wide, 830-880mm high and 590-595mm deep, with the required ventilation space, and a 10A outlet should be within reach of the power cord. The supplied tilt-prevention kit needs a solid wall behind the unit.

• Chiller: Artusi AUBF620X 97 Can Dual Drawer Underbench Beverage Chiller
• Drawers: 2 drawers
• Ventilation plinth: With mounting screws
• Tilt-prevention kit: 2 metal fixing plates, screws and wall anchor
• Power cord: 10A plug and power cord
• Documentation: Instruction manual

• AUBF620X SPECIFICATIONS SHEET (PDF)
• INSTRUCTION MANUAL (PDF)
