Artusi AOFDZ127X 127L Dual Zone Outdoor Beverage Chiller

• Dual zone temperature control: Independent upper (5°C to 20°C) and lower (2°C to 10°C) zones for wine and beverages.
• 127L capacity: Stores up to 14 bottles plus 71 cans (330ml).
• 304 grade stainless steel housing: A durable, premium stainless steel finish.
• IPX4 water resistance: Rated for outdoor use and suitable for indoor and outdoor kitchens and entertaining areas.
• Inverter compressor with dual evaporators: Efficient, stable cooling that maintains the right conditions in each zone.
• Fan cooling system: Even temperature distribution through the cabinet.
• Charcoal filter: Helps maintain fresh interior air.

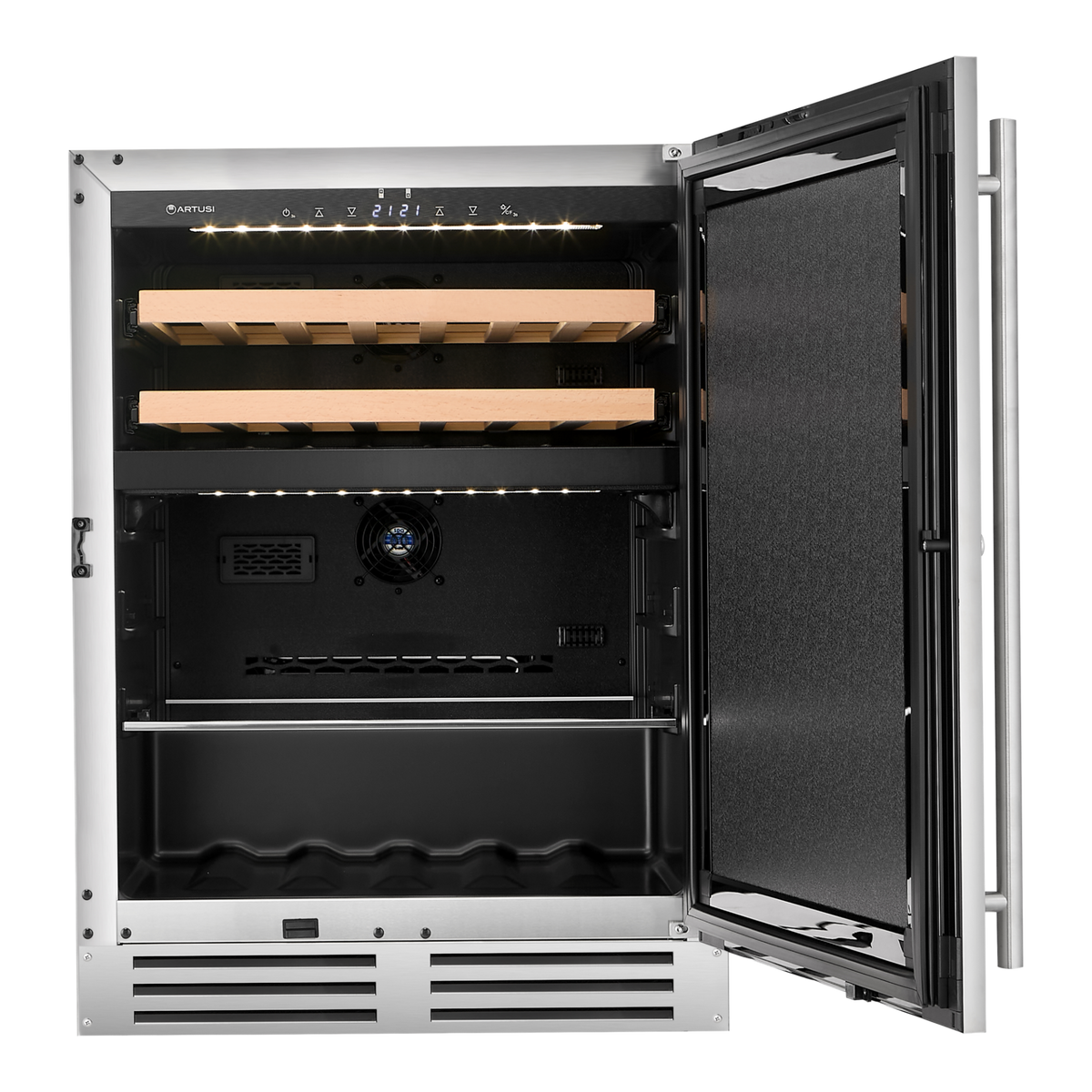

• Beech wood shelves: Two shelves on telescopic rails for smooth, easy access.

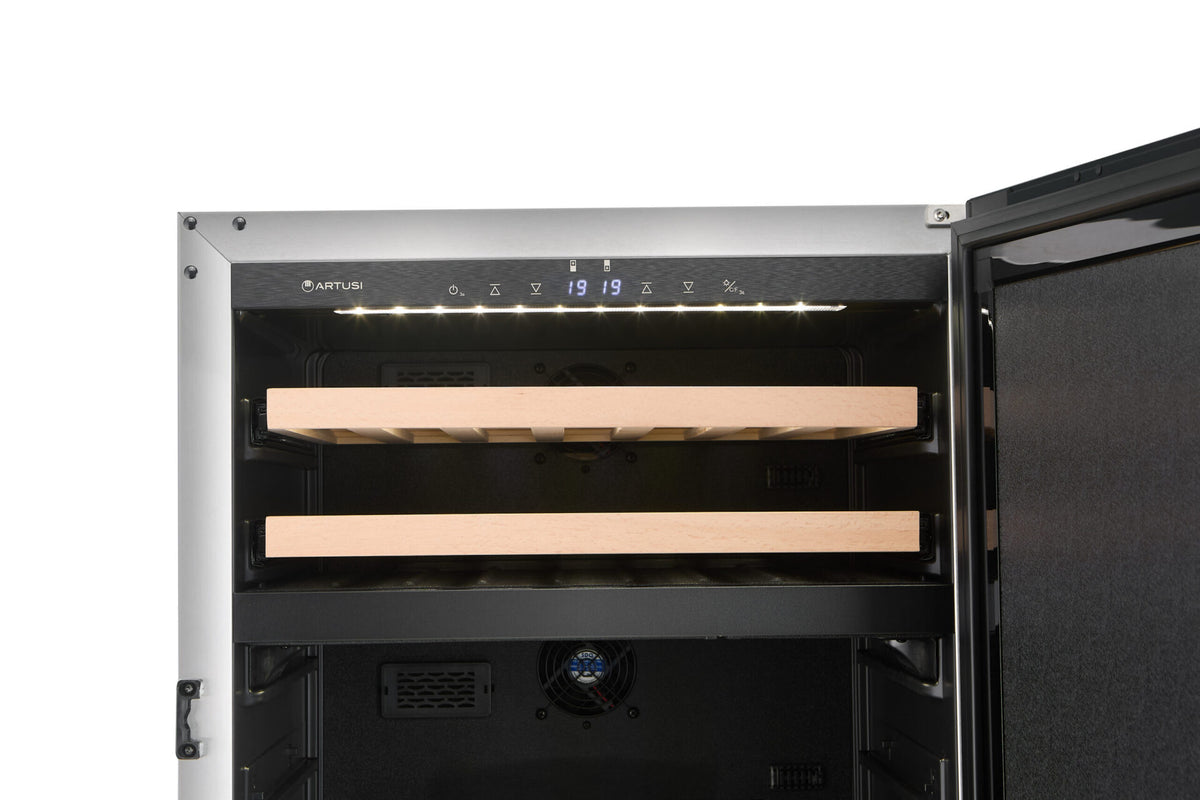

• White LED strip lights: Clear visibility of the contents.
• Digital touch control: Simple, precise temperature adjustment.
• Flexible installation: Under counter or freestanding.

• Upper zone: Adjustable from 5°C to 20°C.
• Lower zone: Adjustable from 2°C to 10°C.
• Cooling system: Fan cooling with an inverter compressor and dual evaporators.
• Air quality: Charcoal filter.
• Lighting: White LED strip lights.
• Controls: Digital touch control.

• Brand: Artusi
• Model: AOFDZ127X (Stainless Steel)
• Product Type: Dual zone outdoor beverage chiller
• Installation: Under counter or freestanding
• Capacity: 127 litres / 14 bottles + 71 cans (330ml)
• Zones: Dual zone
• Shelves: 2 beech wood shelves with telescopic rails
• Upper Zone Temperature Range: 5°C to 20°C
• Lower Zone Temperature Range: 2°C to 10°C
• Cooling System: Fan cooling, inverter compressor, dual evaporator
• Filtration: Charcoal filter
• Refrigerant: R600a
• Water Resistance: IPX4 (for outdoor use)
• Finish: 304 grade stainless steel housing
• Lighting: White LED strip lights
• Controls: Digital touch control
• Voltage: 220-240V, 50-60Hz
• Rated Current: 0.7A
• Connection: 10A plug with 160cm power cord
• Weight: 42kg net
• Warranty: 2 years parts and labour

• Installation style: Built-in or freestanding. Built-in coolers are front venting and are not designed to be fully integrated behind a joinery door.
• Cavity size: Allow a cavity at least 605mm wide, 830-880mm high and 590-595mm deep, with a 85mm ventilated kickplate area at the base.
• Ventilation: The unit draws air in on the right of the ventilation frame and expels it on the left under the door. The cabinet should have good ventilation space and no back panel.
• Hot climates: Cut an air vent or grille of at least 200mm x 40mm at the rear top of the back partition, or the top of either side partition, so cool air can reach the 30mm gap at the rear of the cabinet. Do not open it on the same side as an oven or into a sealed area. Failing to follow the ventilation requirements could void the warranty.
• Electrical connection: Requires a standard 220-240V / 10A power point that stays accessible after installation. A surge protector is recommended and extension cords should not be used.
• Levelling: Four adjustable feet. Tighten the back feet fully and adjust the front feet to level before loading.
• Outdoor use: Ideal operating environment 0-35°C. Do not use above 43°C or below -20°C. Keep out of direct sunlight and direct rain, place on flat ground with an incline of no more than 5 degrees, and keep outdoor power sockets dry and protected. Do not leave the chiller outdoors for long periods when not in use.
• Before first use: Allow 24 hours before switching on with the door open to clear residual odours. After any power loss or switch-off, wait 3 to 5 minutes before restarting.
• Door: The door can be reversed by following the manual, but the glass door is heavy so have an assistant help.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

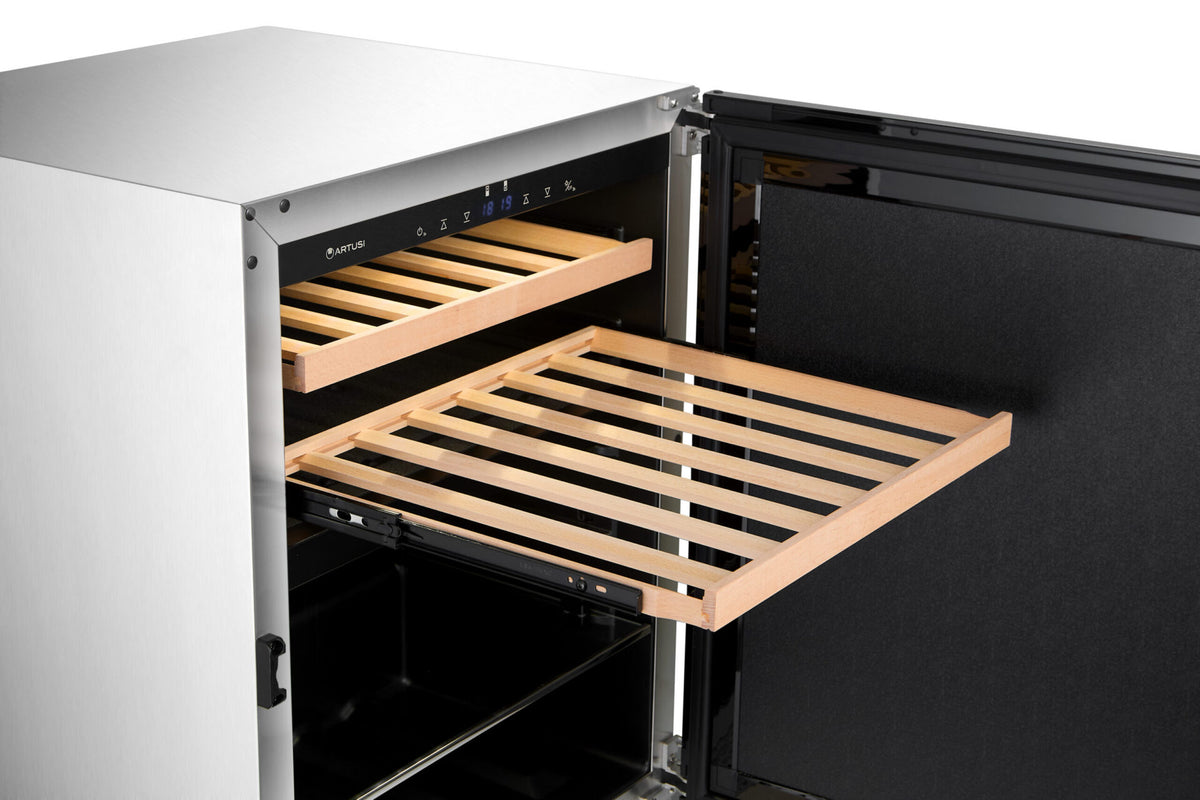

Dual zones are the AOFDZ127X's strength. With the upper zone set warmer for wine and the lower zone cooler for beer, soft drinks and mixers, one compact cabinet does the job of two. The beech wood shelves on telescopic rails slide fully out so bottles at the back are as easy to reach as those at the front, and each shelf holds up to 15kg.

Before ordering, plan the opening and the power. The cavity needs to be at least 605mm wide, 830-880mm high and 590-595mm deep, with the required ventilation space, and a 10A outlet should be within reach of the power cord.

• Chiller: Artusi AOFDZ127X 127L Dual Zone Outdoor Beverage Chiller
• Shelves: 2 beech wood shelves with telescopic rails
• Ventilation plinth: With mounting screws
• Power cord: 10A plug and power cord
• Documentation: Instruction manual

• AOFDZ127X SPECIFICATIONS SHEET (PDF)
• INSTRUCTION MANUAL (PDF)
