Artusi AINT7600IW 76cm Integrated French Door Fridge & Freezer with Ice & Water

• Integrated French door design: A built-in, bottom-freezer French door refrigerator-freezer made to sit behind your own cabinetry door panels, for a seamless, fully integrated kitchen.
• 449L total net capacity: 267L refrigerator, 56L Chill Zone and 126L freezer give generous space for family groceries, entertaining platters and bulk freezing.
• Chill Zone: A dedicated Chill Zone runs from -1°C to 5°C for meat, fish and deli items that keep best at a cooler temperature.
• Frost-free, fan-assisted cooling: A fan circulates cold air through the fridge and freezer and the cabinet defrosts automatically, so there is no manual defrosting routine.
• Internal LED touch control display: Set temperatures and functions from the touch display inside the fridge compartment, with an automatic keypad lock that prevents accidental changes.

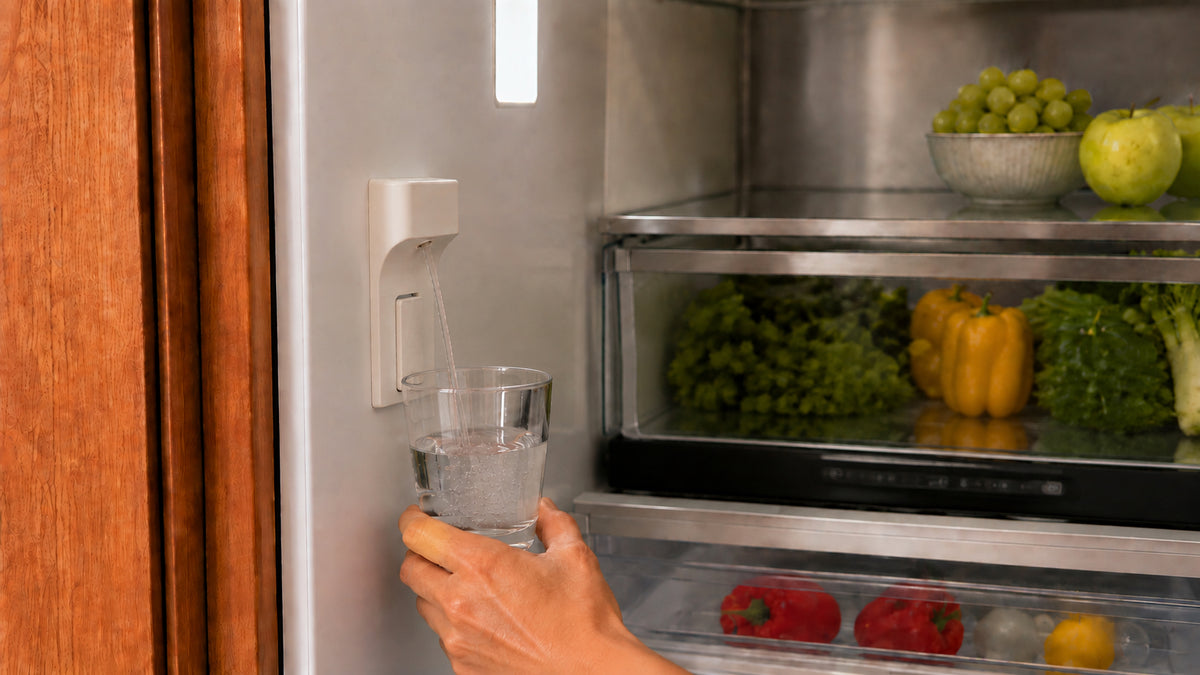

• Internal filtered water dispenser: Chilled filtered water is dispensed inside the fridge compartment, connected to your cold water supply.
• Automatic ice maker: An automatic ice maker with a removable tray produces up to 1.7 kg of ice per day.
• Super Cool and Super Freeze: Boost cooling after a big shop or freeze fresh food quickly to hold its quality.
• ECO, Holiday and Sabbath modes: ECO saves energy, Holiday holds the refrigerator at a higher temperature while you are away, and Sabbath switches off the lights, display and buzzers.
• Premium LED lighting: LED lighting runs through the fridge and freezer, with side wall panels lighting the whole fridge cavity, a ceiling panel in the freezer and lighting in the lower drawers.
• Flexible storage: Adjustable glass shelves, a crisper drawer, meat and cheese storage and three door shelf buckets, plus a large metal freezer drawer and two deep freezer compartments.
• Dual evaporator, frost-free cooling: Dual evaporator cooling with frost-free operation, running at 43 dB.
• Power failure storage: Holds frozen food for up to 11 hours without power.
• 7 kg per 24 hours freezing capacity: Freeze up to 7 kg of fresh food in 24 hours.

• Fridge temperature: Adjust the refrigerator from 2°C to 8°C. The recommended setting for everyday use is 4°C.
• Chill Zone (special) temperature: Adjust the Chill Zone from -1°C to 5°C. The default is 2°C.
• Freezer temperature: Adjust the freezer from -15°C to -24°C. The default is -18°C. Pressing beyond -24°C starts Super Freeze.
• Super Cool: Quickly chills a large amount of fresh food or drinks. Switch it on 4 to 8 hours before loading a large shop.
• Super Freeze: Quickly freezes fresh food to lock in quality. Switch it on 4 to 8 hours before loading a large amount of food.
• ECO mode: Runs the refrigerator at 8°C and the freezer at -15°C to save energy while the cabinet is lightly used.
• Holiday mode: Runs the refrigerator at 17°C and the freezer at -18°C while you are away. Do not store food in the refrigerator in this mode.
• Water dispenser: Dispenses chilled filtered water from inside the fridge compartment.
• Ice maker: Turns the automatic ice maker on or off. Discard the first two full containers of ice after connecting the water supply or replacing the filter.
• Water filter reminder: The display reminds you when the water filter needs replacing. Reset the reminder by holding SELECT for 5 seconds.
• Sabbath mode: Turns off all lights, buzzers and the display.
• Keypad lock: The control panel locks automatically. Hold MENU for 3 seconds to lock or unlock it.
• Temperature unit: Switch the display between °C and °F from the control panel.
• Hot-room settings: In ambient temperatures above 30°C, set the freezer to -20°C and the refrigerator to 3°C.
• Power on and off: Press the on/off button to switch on and hold it for about 1.5 seconds to switch off. After a power interruption the compressor restarts after about 6 minutes.

• Brand: Artusi
• Model: AINT7600IW
• Product Type: 76cm integrated French door refrigerator and freezer with ice and water
• Installation: Built-in, integrated, panel ready
• Total Net Capacity: 449 L
• Refrigerator Capacity: 267 L
• Chill Zone Capacity: 56 L
• Freezer Capacity: 126 L
• Fridge Temperature Range: 2°C to 8°C
• Chill Zone Temperature Range: -1°C to 5°C
• Freezer Temperature Range: -15°C to -24°C
• Cooling System: Fan-assisted, frost-free, dual evaporator
• Controls: Internal LED touch control display with automatic keypad lock
• Freezing Capacity: 7 kg per 24 hours
• Power Failure Storage: 11 hours
• Noise Level: 43 dB(A)
• Climate Class: T
• Energy Rating: 2 stars
• Annual Energy Consumption: 488 kWh per year (AS/NZS IEC 62552-3)
• Maximum Door Panel Thickness: 18 mm
• Maximum Door Panel Weight: 13.4 kg fridge door, 7.4 kg freezer door
• Ice Making Capacity: 1.7 kg per day
• Water Connection: Cold water only, 1.7 to 5.5 bar, 1.5 m of 1/4 inch hose
• Dimensions (W x D x H): 756 x 592 x 2123 mm (without door panel)
• Weight: 167 kg
• Electrical: 10A GPO plug and lead
• EAN: 9347777005496
• Warranty: 2 years parts and labour

• Installation style: Built-in and fully integrated, supplied ready for your own cabinetry door panels.
• Cabinet cavity: Allow a cabinet opening of 762 mm wide x 635 mm deep x 2134 mm high.
• Anti-tip brackets: Anti-tip brackets must be fitted to the wall. This is compulsory.
• Floor and walls: The floor must carry at least 544 kg. Cabinet side walls should be at least 16 mm thick.
• Door panels: Maximum door panel thickness is 18 mm. Doors thicker than 38 mm must not open past 90°.
• Ambient temperature: Climate class T. Install in ambient temperatures of 13°C to 43°C.
• Clearances: Keep at least 3 cm from an electric hob or oven and 30 cm from a gas hob. Allow 4 cm between two coolers installed side by side.
• Water supply: Connect to a potable cold water supply at 1.7 to 5.5 bar using the 1.5 m 1/4 inch hose, with an accessible shut-off valve. A reverse osmosis bypass is recommended.
• Electrical: 10A GPO with a 3-pin plug and lead. The socket must be earthed, accessible after installation and not on an extension lead.
• Before use: Allow the refrigerator to stand 3 to 6 hours before switching on, and at least 4 hours if it was transported on its side. Run it empty for 6 hours before loading food.
• Handling: Two people are needed to lift and position the appliance.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The AINT7600IW is the ice and water version of the AINT7600. It connects to a cold water supply at 1.7 to 5.5 bar, so work out the water position before the cabinetry is finished.

After connecting the water supply or changing the filter, the manual advises discarding the first two full containers of ice. The display reminds you when the water filter is due and the reminder resets by holding SELECT for five seconds.

The spec sheet lists a maximum door panel weight of 13.4kg for the fridge door and 7.4kg for the freezer door, and a maximum thickness of 18mm. A reverse osmosis bypass is recommended on the water line.

• Refrigerator-freezer: Artusi AINT7600IW 76cm integrated French door refrigerator freezer with ice and water
• Shelving and storage: 3 fridge shelves (2 adjustable), crisper drawer, meat and cheese storage, 3 door shelf buckets, large metal freezer drawer and 2 deep freezer compartments
• Egg tray: 1 egg tray
• Ice tray: 1 ice tray
• Documentation: Operation manual

• AINT7600IW SPECIFICATIONS SHEET (PDF)
• OPERATION MANUAL (PDF)
