Artusi AINT3000 54cm Integrated Bottom Mount Fridge & Freezer

• Integrated bottom-freezer design: A 54cm built-in fridge-freezer with the freezer below, made to sit behind your own cabinetry door panels.
• 244L net capacity: A 177L fridge sits above a 64L three-drawer freezer.
• Fresh Zone chiller box: A humidity-controlled Fresh Zone on telescopic rails runs from -2°C to 3°C for meat, fish and deli items.
• Touch control: Touch controls with an adjustable thermostat set the fridge and freezer, with a display for each.
• Smart, Holiday and Fast modes: Smart mode sets everyday temperatures in one touch, Holiday saves energy while you are away, and Fast Cool and Fast Freeze handle a big shop.
• LED lighting: LED lighting lights the fridge interior clearly.
• Flexible storage: Four glass shelves, a crisper with humidity slider, a meat compartment and three door balconies, plus a foldable chrome wine rack.
• Left-hand hinge, reversible: Supplied with a left-hand hinge, and the doors can be reversed to suit your kitchen.
• Acoustic door alarm: An alarm sounds if a door is left open.
• Quiet operation: Runs at 41 dBA.

• Fridge temperature: Adjust the fridge compartment from 2°C to 8°C.
• Freezer temperature: Adjust the freezer from -15°C to -25°C.
• Fresh Zone: Adjust the Fresh Zone chiller box from -2°C to 3°C. Hold the button for 3 seconds to use it as a child lock.
• Fast Cooling: Runs the fridge at 2°C for 2 hours, then returns to the previous setting.
• Fast Freezing: Runs the freezer at -25°C for 6 hours, then returns to the previous setting.
• Holiday: Runs the fridge at 17°C and the freezer at -18°C while you are away.
• Smart: Sets the fridge to 5°C and the freezer to -18°C in a single touch.
• Power: Hold the power button for 3 seconds to switch the appliance on or off.
• Forced defrost: Hold the freezer and power buttons for 3 seconds to start a forced defrost. It ends at 8°C or after a maximum of 50 minutes.
• Door-open alarm: An alarm sounds after a door has been open for 60 seconds.
• Crisper humidity: Close the crisper slider for high humidity for leafy greens, or open it for low humidity for fruit.
• Foldable wine rack: Fold the chrome rack out to hold Bordeaux-style bottles with the necks to the rear.

• Brand: Artusi
• Model: AINT3000
• Product Type: 54cm integrated bottom-freezer refrigerator and freezer
• Installation: Built-in, integrated, panel ready
• Total Capacity: 244 L
• Refrigerator Capacity: 177 L
• Freezer Capacity: 64 L
• Fridge Temperature Range: 2°C to 8°C
• Fresh Zone Temperature Range: -2°C to 3°C
• Freezer Temperature Range: -15°C to -25°C
• Controls: Touch control with LED display
• Freezing Capacity: 2.5 kg per 24 hours
• Noise Level: 41 dB(A)
• Energy Rating: 3 stars
• Annual Energy Consumption: 300 kWh per year
• Hinge: Left-hand supplied, reversible
• Dimensions (W x D x H): 540 x 550 x 1769 mm (without door panel)
• Weight: 58 kg
• Electrical: 10A GPO plug and lead, 190 cm cord
• EAN: 9347777003829
• Warranty: 2 years parts and labour

• Installation style: Built-in and integrated, supplied ready for your own cabinetry door panels. Left or right hinging is possible.
• Ventilation: A vent grille is supplied. Allow a plinth cut-out of about 300 x 300 mm, a rear channel of 40 to 50 mm and a recess vent of about 500 x 35 mm.
• Fixing: Fix the top plate and hinge-side screws, set the spacers at the base, leave a 3 to 4 mm gap on the non-hinge side, and set the slider brackets 20 to 22 mm from the fascia edge.
• Ambient temperature: Climate class T. Install in ambient temperatures of 18°C to 43°C, away from direct sunlight and not beside a cooker or oven.
• Electrical: Connect to its own 10A GPO. Do not use an extension lead or double adaptor.
• Before use: Allow the appliance to settle upright for 24 hours before switching on, then wait 5 minutes before restarting after switching off. Run it empty for 2 to 3 hours before loading food.
• Efficiency: Keep the fridge about two-thirds full for best efficiency.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The AINT3000 has a foldable chrome wine rack, so a few bottles of red can live in the fridge door without taking over a shelf. Fold it away when you need the space for tall bottles or containers.

The Fresh Zone chiller box is humidity controlled and slides out on telescopic rails. It suits meat, fish and delicatessen items that you want colder than the main compartment but not frozen.

The manual includes a set-up guide with fixing, spacer and gap measurements, and an installation video link on its cover, which helps a cabinetmaker or installer get a tidy result.

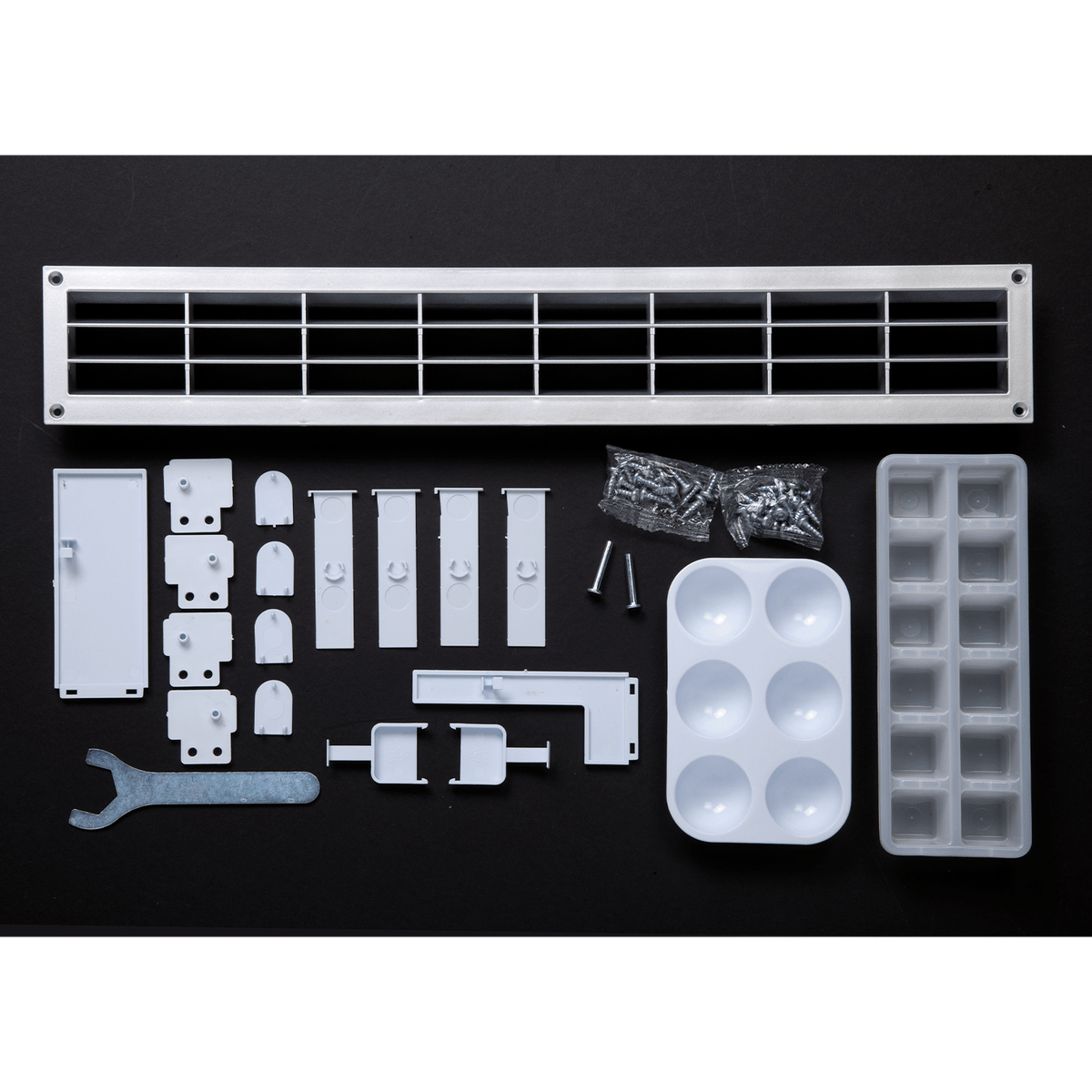

• Refrigerator-freezer: Artusi AINT3000 54cm integrated bottom mount refrigerator freezer
• Shelving and storage: 4 glass shelves, 1 crisper, meat compartment, Fresh Zone chiller box on telescopic rails, 3 door balconies, 3-drawer freezer, foldable chrome wine rack
• Trays: 1 egg tray and 1 ice tray
• Installation parts: Vent grille and fixing hardware
• Documentation: Operation manual

• AINT3000 SPECIFICATIONS SHEET (PDF)
• OPERATION MANUAL (PDF)
