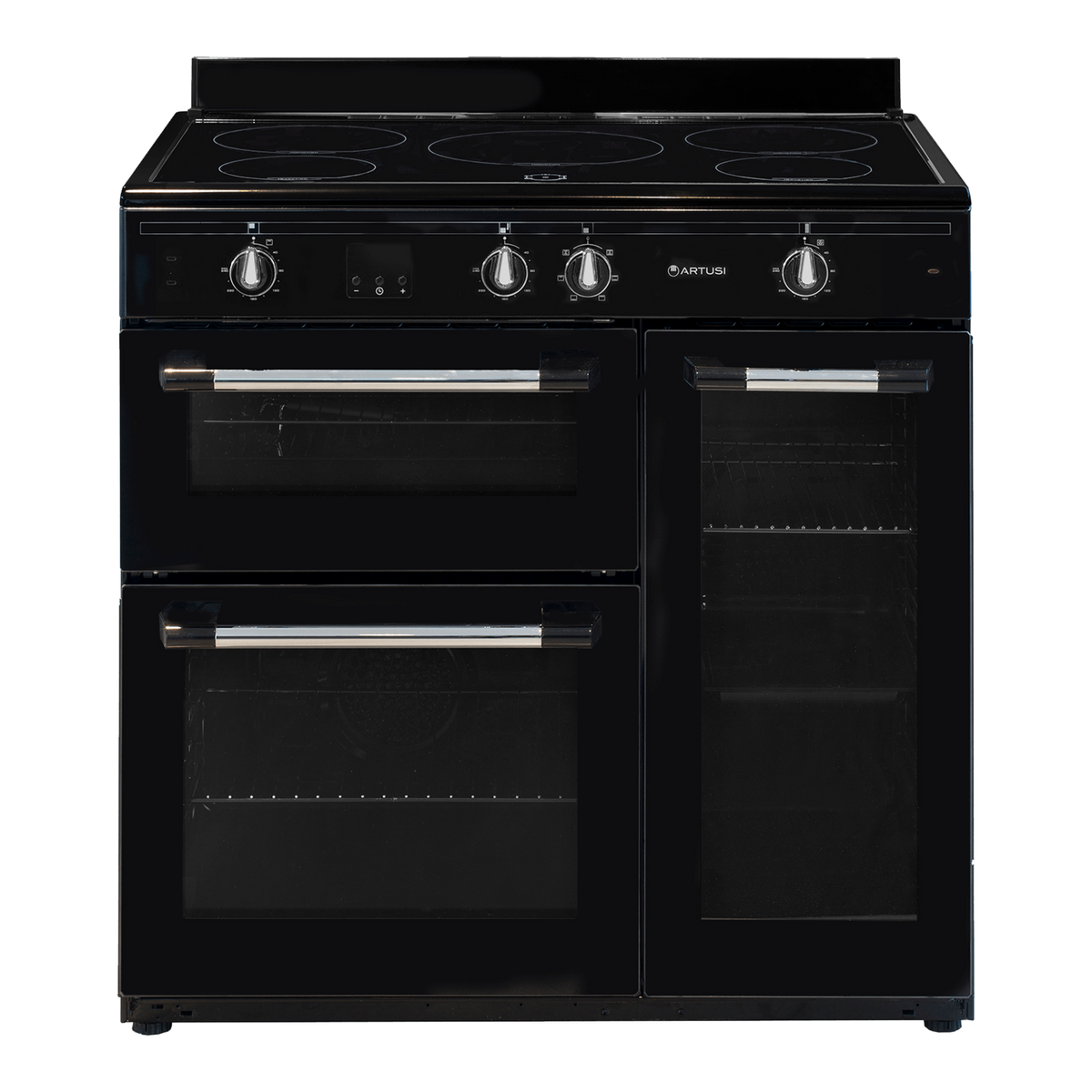

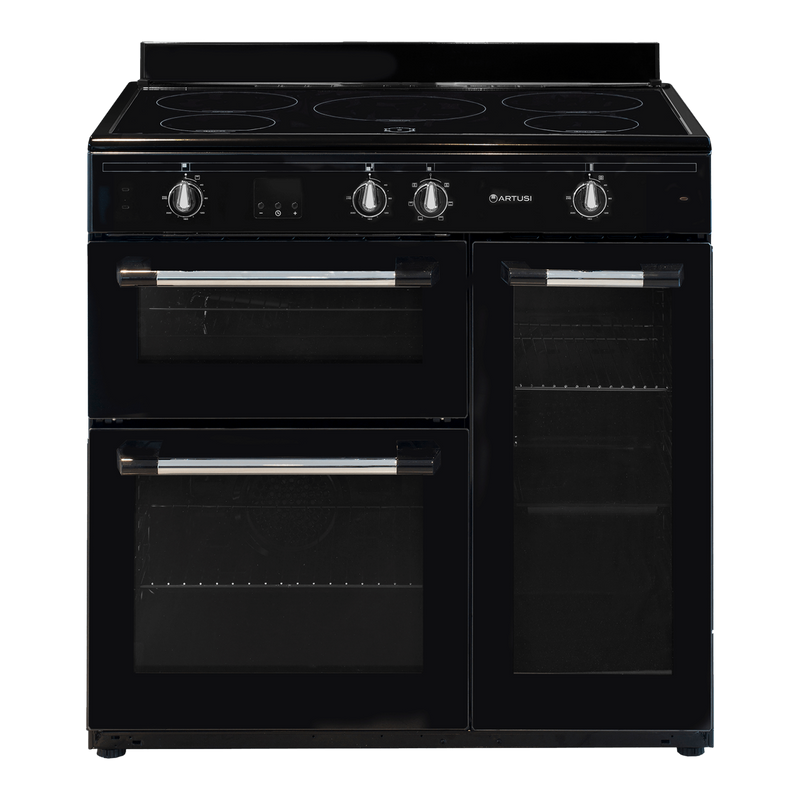

Artusi AFIR935B 90cm Freestanding Induction Cooker With 3 Electric Ovens

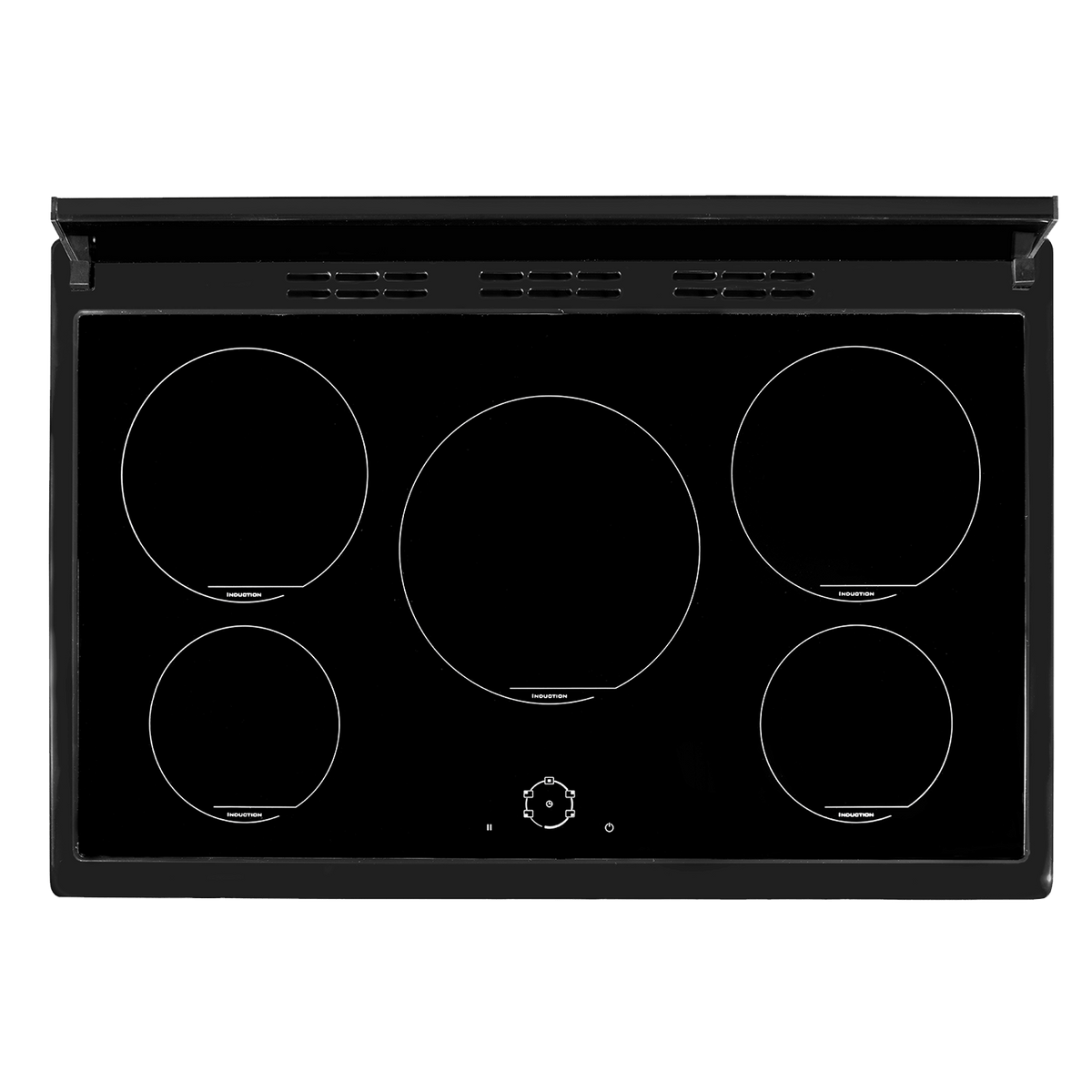

• Five-zone induction cooktop: Two Ø200mm rear zones, two Ø160mm front zones and one Ø250mm middle zone on a black glass surface.
• Boost on three zones: The two Ø200mm zones and the Ø250mm zone reach 2300W normally and 3000W on Boost.
• Touch-slide control: Heat settings 0–9 plus Boost, adjusted by a rotating slide control.
• Cooktop functions: Pause (start/stop), timer, auto cooking, pot detection and a memory that restores settings if switched off by accident.
• Cooktop safety: Child lock, a residual heat indicator while the glass is above 65°C, and automatic switch-off after 10 seconds of no use.
• 59.7L main oven: Six multifunction modes, four shelf positions, a cavity cooling fan and a left-opening door.
• 70L tall oven: Fan cooking with a rear heating element, ten shelf positions and a right-opening door.
• 32L electric grill: A 1400W static grill with three shelf positions.
• 40–240°C thermostat: Across all three cavities, each with its own light.
• Glazed doors: Triple-glazed on the main oven and grill, double-glazed on the tall oven, with an easy-clean inner door and enamel interiors.
• Analogue clock and timer: With a decorative black splashback.
• Included accessories: Baking trays, wire racks, telescopic racks and grill insert.

• Main oven modes: Fan assist, top and bottom element, top element, bottom element, grill and fan grill.
• Tall oven: Fan with a rear heating element, plus a light for cleaning.
• Grill cavity: Electric static grill at 1400W, used with the door closed. Preheat for about 5 minutes and turn the food if needed.
• Preheating: Preheat the oven for 7–10 minutes before placing food inside.
• Oven timer: Minute minder of up to 10 hours, time of day, semi-automatic and full automatic cooking, key lock and adjustable alarm tone and brightness.
• Induction heat settings: 1–3 keep warm; 4–5 slow heating and cooking; 6–7 reheating and fast cooking; 8 boiling; 9 maximum; P maximum power.
• Boost: Lasts up to 10 minutes and can be active on only one zone at a time.
• Auto cooking: Runs a zone at full power for a period set by the chosen heat level, then continues at that level.
• Pause (start/stop): Holds cooking and timers for up to 10 minutes, then the cooktop switches off.
• Cooktop timers: An independent 1–99 minute timer, plus a timer for each cooking zone.
• Recall: Switch back on within 6 seconds to restore heat levels, timers and child lock.
• Pan sizes by zone (manual): Large zone 14.5–26cm, medium zone 13–20cm, small zone 11–20cm.
• Cooking guide (manual): Cookies 170–180°C for 30–35 minutes; pizza 200–240°C for 20–25 minutes; tray cake 170–180°C for 35–40 minutes; apple pie 180–190°C for 60–65 minutes; steak on grill for 30–35 minutes.

• Brand: Artusi
• Model: AFIR935B (Black)
• Product type: 90cm freestanding cooker with induction cooktop and three electric cavities
• Cooktop: 5-zone induction, black glass surface, touch control with slide function
• Cooking zones: 2 x Ø200mm (2300W, Boost 3000W) rear, 2 x Ø160mm (1400W) front, 1 x Ø250mm (2300W, Boost 3000W) middle
• Boost: 3 zones
• Heat settings: 0–9 and Boost
• Cooktop safety: Child lock, residual heat indicator (glass above 65°C)
• Main oven (left): 59.7L usable, 455W x 410D x 320H mm cavity, 4 shelf positions, 6 modes, left-opening door, cavity cooling fan
• Tall oven (right): 70L usable, 270W x 430D x 610H mm cavity, 10 shelf positions, fan and rear heating element, right-opening door
• Grill (left): 32L usable, 455W x 410D x 175H mm cavity, 3 shelf positions, 1400W electric static grill
• Thermostat: 40–240°C (all cavities)
• Doors: Triple-glazed (main oven and grill), double-glazed (tall oven), easy-clean inner door
• Interior: Easy-clean enamel, 1 x 15–25W cavity light in each compartment
• Clock: Analogue clock and timer
• Total power load: 15.9kW
• Supply: 220–240V single phase (50A fuse) or 380–415V 3N three phase (3 x 20A), 50/60Hz
• Connection: Terminal box only; power cable not supplied
• Weight: 74.8kg
• Warranty: 2 years parts and labour, extendable to 5 years on registration

• Qualified installation: Installation and the electrical connection must be carried out by an authorised service person or qualified electrician in line with local regulations.
• Electrical supply: The cooker needs a 50A fuse on single phase (220–240V, H05VV-F 3G 4mm² cable) or 3 x 20A on three phase (380–415V, H05VV-F 5G 1.5mm² cable). The terminal box is supplied without a cable.
• Earthing and isolation: The appliance must be earthed. An all-pole switch that can disconnect the supply must be fitted and be accessible after installation.
• Clearances: Allow at least 400mm above the hob surface, 6.5mm to side furniture and 650mm to a rangehood, following the rangehood maker's instructions.
• Surroundings: Adjacent kitchen furniture must be heat resistant. Do not install beside a fridge or cooler, and do not place the feet on carpet or other soft surfaces.
• Anti-tilt chain: Fix the cooker to the wall with the chain and hooked screw supplied.
• Levelling: Adjust the feet so the cooker sits level with the benchtop.
• Handling: Do not use the door or handle to carry or move the appliance, and move it in its original packaging.
• Domestic use only: Not for commercial use and not to be used as a space heater.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Induction heats the pan rather than the glass, so cookware matters. Use pans with a flat, machined base that attract a magnet, such as steel or cast iron, and avoid glass, ceramic, copper and aluminium pans without induction compatibility. If no suitable pan is detected, the zone stops heating. Induction surfaces generate a magnetic field, so anyone with a pacemaker or insulin pump should seek medical advice first.

The left side holds the main oven above a separate grill, while the right side is a tall oven of its own, so you can run different temperatures side by side. Before first use, run the empty oven at 240°C for 30 minutes with the door closed to burn off any manufacturing smell. Never place trays or foil directly on the oven base.

At 15.9kW the cooker needs a hard-wired connection and either a 50A single-phase fuse or a three-phase supply, so confirm this with your electrician before ordering. Because it ships with a terminal box only, the supply cable is arranged by your installer.

• Cooker: Artusi AFIR935B 90cm Freestanding Induction Cooker
• Main oven: Deep baking tray with grill insert, 1 x wire oven rack and 1 x telescopic rack
• Tall oven: Deep baking tray, 2 x wire racks and 1 x telescopic rack
• Grill: 1 x grill insert
• Documentation: Operation manual and warranty card
