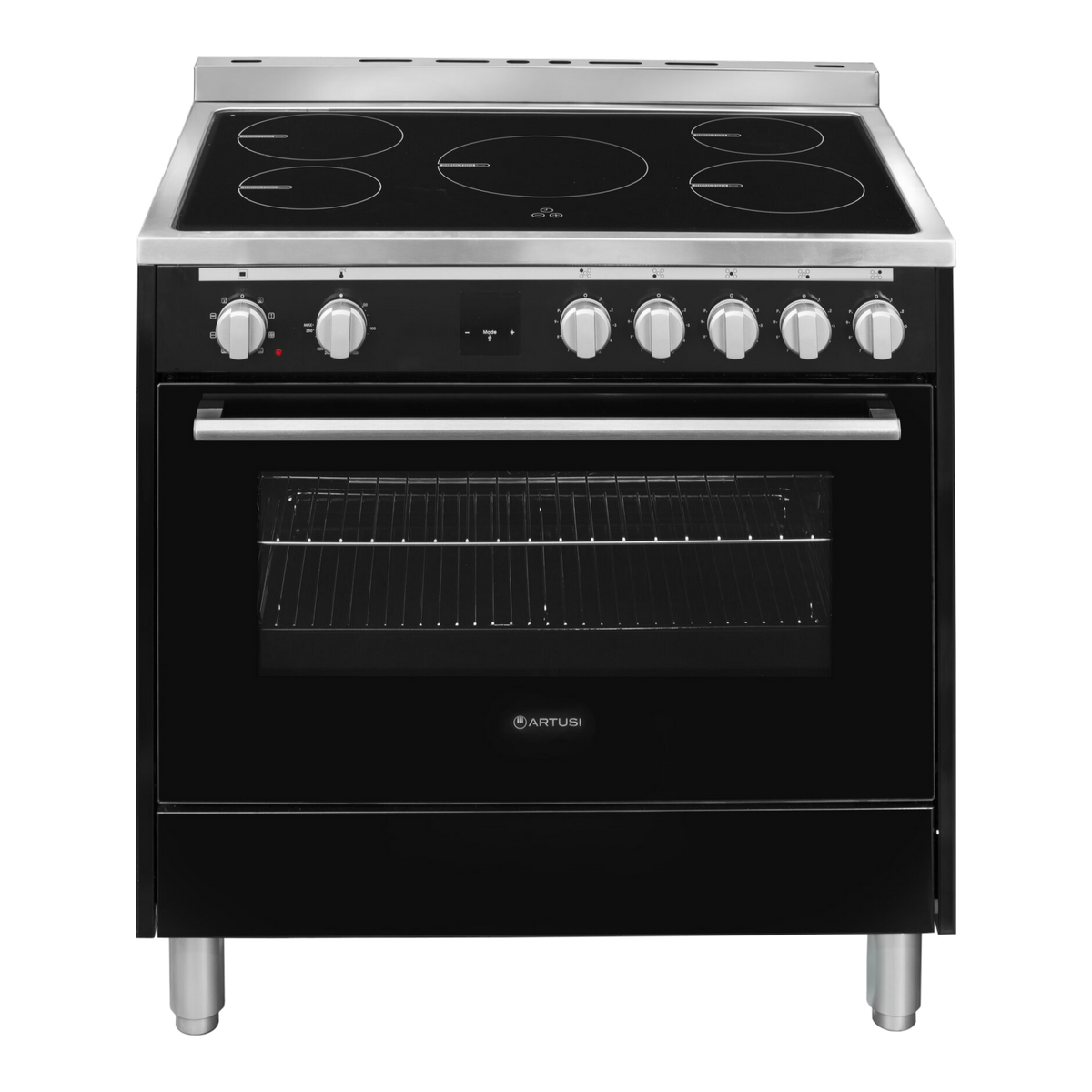

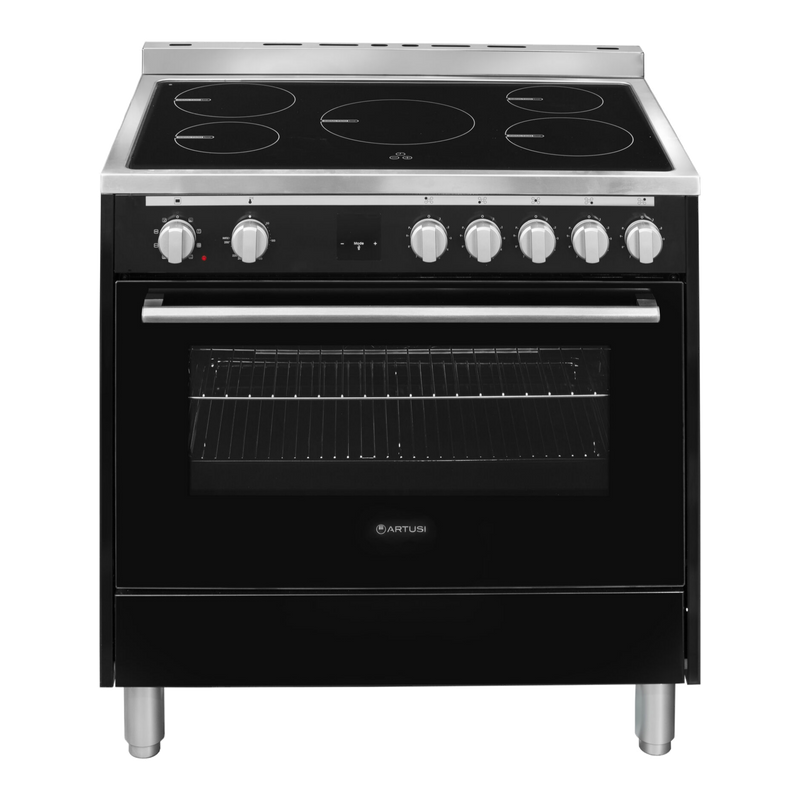

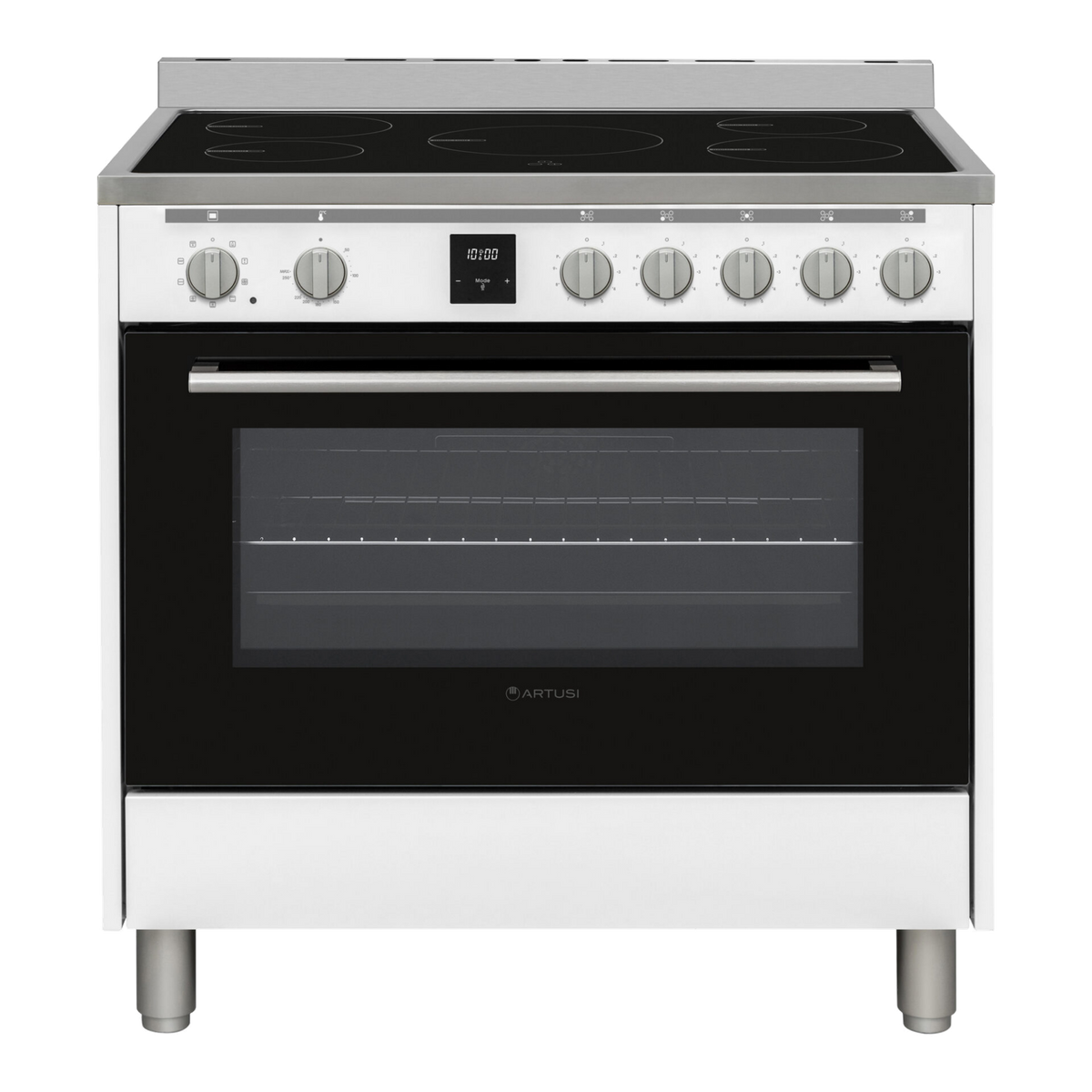

Artusi AFI902B/AFI902W 90cm Wide Freestanding Induction Cooker With Electric Oven

• Five-zone induction cooktop: Two 160mm, two 200mm and one 250mm zone on a Ceran glass surface.
• Boost on every zone: Boost lifts each zone to 1400–1800W (160mm), 2100–2500W (200mm) or 2800–3500W (250mm) for fast boiling.
• Nine-position knob control: Each zone has its own knob with settings 0 to 9 plus P (Boost) for intuitive, positive control.
• Pan detection: A flashing symbol warns when no suitable pan is on the zone, and the zone switches off automatically after 2 minutes.
• Cooking zone timer: Set an independent 1–99 minute timer for each induction zone.
• Cooktop safety: Child lock, an "H" residual heat indicator and automatic safety switch-off when heat settings are left unchanged.
• 100L usable oven: A 72cm wide x 42cm deep x 33cm high cavity suited to large trays and family roasts.
• Nine multifunction modes: Eight cooking functions plus an oven lamp, with a 50–250°C thermostat and a single fan.
• Digital touch timer: Minute minder, semi-automatic cooking period of up to 10 hours and key lock.
• Triple-glazed door: A full-width dark tinted glass door with a removable inner glass panel and a full internal width easy-clean panel.
• Flexible racking: Side wire racks plus a 50% extension telescopic rack for easier access to food.
• Convenient storage and finishing: Drop-down lower storage compartment, mini splash-back, removable adjustable feet and an anti-tilt chain.

• Oven lamp: Switches on the oven light only, and stays on for the duration of any cooking function.
• Defrost: Runs the fan without heat to help thaw frozen food. Place the food on the third shelf from the bottom with a tray beneath to catch meltwater; this function does not cook.
• Turbo: The ring heating element and fan distribute heat evenly so food on all racks cooks evenly. Preheat for about 10 minutes.
• Static cooking: Upper and lower heating elements for even heat, ideal for pastries, cakes, baked pasta, lasagne and pizza. Preheat for 10 minutes and use one shelf at a time.
• Fan: Upper and lower elements with the fan for air circulation and a slightly grilled effect, good for baking pastry. Preheat for about 10 minutes.
• Pizza: Ring element, lower element and fan to bake pizza and similar foods evenly in a short time.
• Grilling: The grill element for grilling and toasting on the upper shelves. Brush the wire grid with oil and place a tray beneath the food.
• Faster grilling: The grill and upper heating elements together for faster grilling and larger surface areas such as meat. Preheat for about 10 minutes.
• Double grill and fan: Grill, upper heating elements and fan for thicker foods and larger surface areas, with even cooking. Preheat for about 10 minutes.
• Grilling safety: Keep the oven door closed and set the oven temperature to 190°C when grilling.
• Induction heat settings: 1–3 delicate warming; 4–5 gentle simmering and slow warming; 6–7 reheating and rapid simmering; 8 boiling, sautéing and searing; 9 maximum heat; P Boost.
• Boost: Hold a knob at P for 2 seconds to activate Boost, then adjust to the desired level. Integrated power management may reduce power if Boost would exceed the maximum.
• Cooking zone timer: Select a zone, set the heat level and use the timer buttons to set 1–99 minutes. The zone switches off when the timer finishes.
• Safety switch-off: Zones switch off automatically if unchanged for 6 hours at settings 1–2, 5 hours at 3–4, 4 hours at 5 and 1.5 hours at 6–9.
• Digital touch timer: Manual and automatic cooking modes, an audible minute minder of up to 23:59, a semi-automatic cooking period of up to 10 hours and a key lock that engages after 5 seconds. Beep tones are adjustable.
• Cooking guide (static, fan and turbo): Puff pastry 170–190°C for 35–45 minutes (static and turbo) or 25–35 minutes (fan); cakes 150–170°C on fan or turbo and 170–190°C on static; stew 175–200°C for 40–50 minutes; chicken 200°C for 45–60 minutes.
• Cooking guide (grilling): Meatballs 200°C for 10–15 minutes on rack 4; chops 200°C for 15–25 minutes on racks 3–4; beefsteak 200°C for 15–25 minutes on rack 4; chicken 190°C for 50–60 minutes.

• Brand: Artusi
• Models: AFI902B (Black), AFI902W (White)
• Product type: Freestanding cooker with induction cooktop and electric oven
• Cooktop: 5-zone induction on a Ceran glass top, knob control operation
• Cooking zones: 2 x Ø160mm, 2 x Ø200mm, 1 x Ø250mm
• Zone power (Boost range): Ø160mm 1400–1800W, Ø200mm 2100–2500W, Ø250mm 2800–3500W
• Boost: All zones
• Cooktop timer: Cooking timer, 1–99 minutes
• Cooktop safety: Child lock, residual heat indicator
• Oven capacity: 100L usable
• Oven cavity: 72cm wide x 42cm deep x 33cm high
• Oven modes: 9 multifunction modes (8 cooking functions plus cleaning light)
• Thermostat: 50°C to 250°C
• Oven timer: Digital timer
• Fan: Single fan
• Oven door: Triple-glazed, full-width dark tinted glass with removable inner glass panel
• Racking: Side wire racks, 1 x 50% extension telescopic rack
• Storage: Drop-down lower storage compartment
• Total power: 10.2kW
• Supply: 220–240V 50/60Hz or 380–415V 3N 50/60Hz
• Connection: Hard-wired; power cable not supplied
• Weight: 69kg net / 75kg gross
• Country of origin: Turkey
• Warranty: 2 years parts and labour, extendable to 5 years on registration

• Qualified installation: Installation and the electrical connection must be carried out by an authorised service person or qualified electrician in accordance with the user manual and local regulations.
• Electrical supply: Hard-wired connection for 220–240V or 380–415V 3N, 50/60Hz, 10.2kW total. The appliance must be earthed, the power cable (H05VV-F) must be long enough to reach the terminal box and the cable must be secured in the cable clamp.
• Isolation: If not connected by a plug, use an all-pole disconnector with at least 3mm contact spacing. The fused switch must be easily accessible after installation.
• Clearances above: Allow at least 420mm to a cupboard above the cooktop and 650–700mm to a cooker hood.
• Side clearance: If adjacent furniture is higher than the cooktop, keep it at least 10cm from the sides of the appliance for air circulation.
• Surroundings: The worktop and surrounding furniture must withstand temperatures above 100°C. Do not install directly above a dishwasher, fridge, freezer, washing machine or dryer.
• Anti-tilt chain: Secure the supplied safety chain to the rear of the cooker and a wall hook, keeping the chain as short as practical.
• Levelling: Fit the four adjustable feet and level the cooker for safe operation.
• Handling: The cooker weighs 75kg gross; at least two people should lift it and it must never be dragged.
• Indoor use: Protect the appliance from sun, rain, snow and dust. It is designed for indoor installation.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Induction heats the pan rather than the glass, so cookware matters. Use thick, flat, smooth-bottomed pans made of steel, enamelled steel, cast iron or stainless steel, and avoid aluminium, copper, glass, ceramic and non-ferromagnetic stainless steel, which are unsuitable. Centre the pan on the zone, and match the pan base to the zone size for the best energy transfer. If a pan is unsuitable or missing, the zone's symbol flashes and the zone switches off by itself after two minutes. When the hob is in use, keep magnetic-sensitive items such as bank cards and watches away, and anyone with a pacemaker should consult their cardiologist first.

Treat the first use like a proper setup. Artusi recommends running the empty oven at maximum temperature for 45 minutes in a well-ventilated room to burn off the slight smell from the insulation on the heating elements. In everyday cooking, preheat for about 10 minutes for the fan, turbo and grill functions, keep the door closed with the temperature at 190°C when grilling, never line the oven with aluminium foil and do not place trays directly on the oven base.

Before buying, plan the electrics and the room. At 10.2kW and hard-wired, the cooker needs an electrician to confirm the right single-phase or three-phase connection for your switchboard. It is designed for indoor use only, and Artusi's warranty applies to indoor installation, with indoor appliances used in outdoor or alfresco settings covered for 3 months only. Both finishes share identical specifications, so the choice comes down to your kitchen's look.

• Cooker: Artusi AFI902 90cm Freestanding Induction Cooker (AFI902B or AFI902W)
• Racking: Side wire racks and 1 x 50% extension telescopic rack
• Safety and finishing: Anti-tilt chain and mini splash-back
• Feet: Adjustable feet (removable)
• Documentation: User manual

• USER MANUAL (PDF)
• AFI902 SPECIFICATIONS SHEET (PDF)
