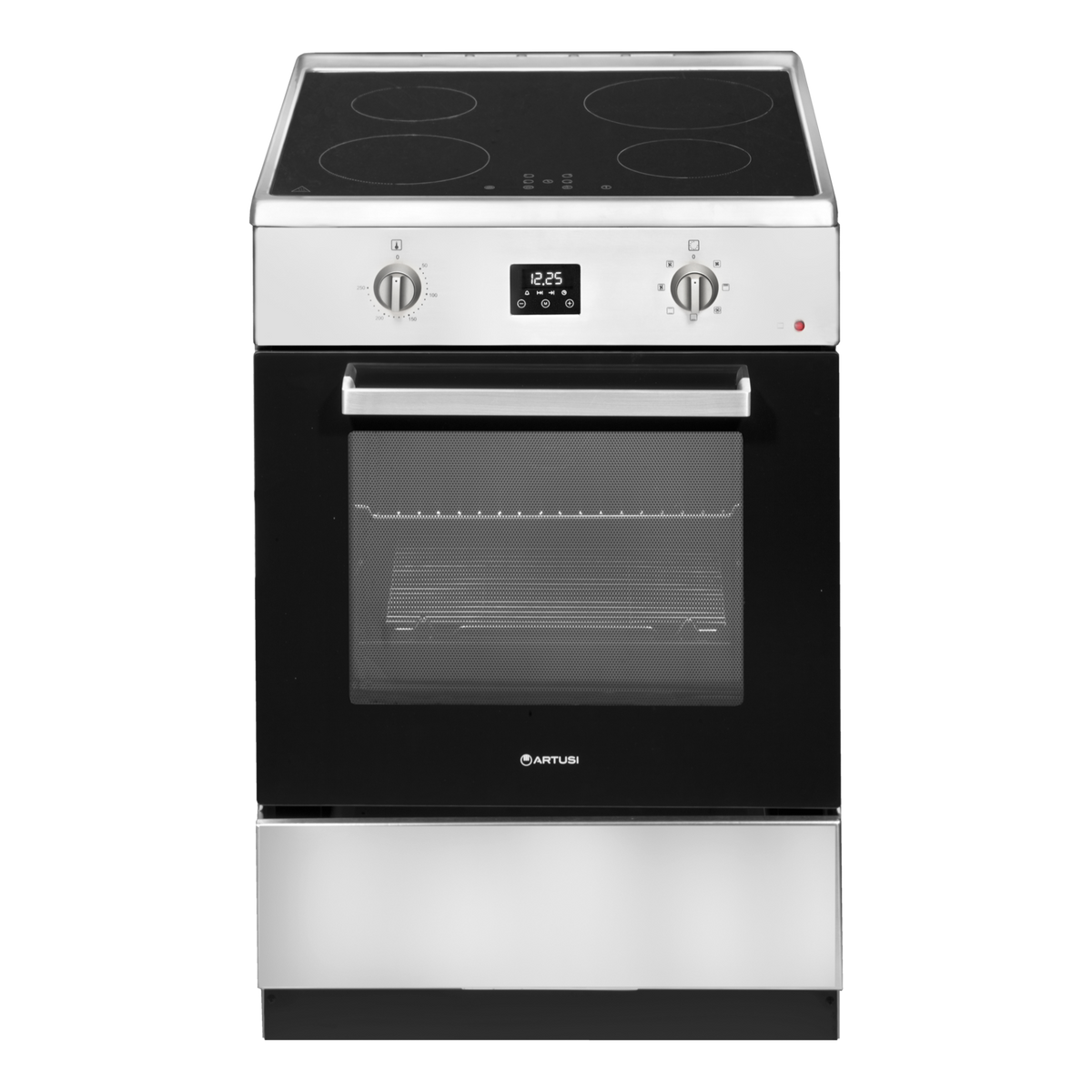

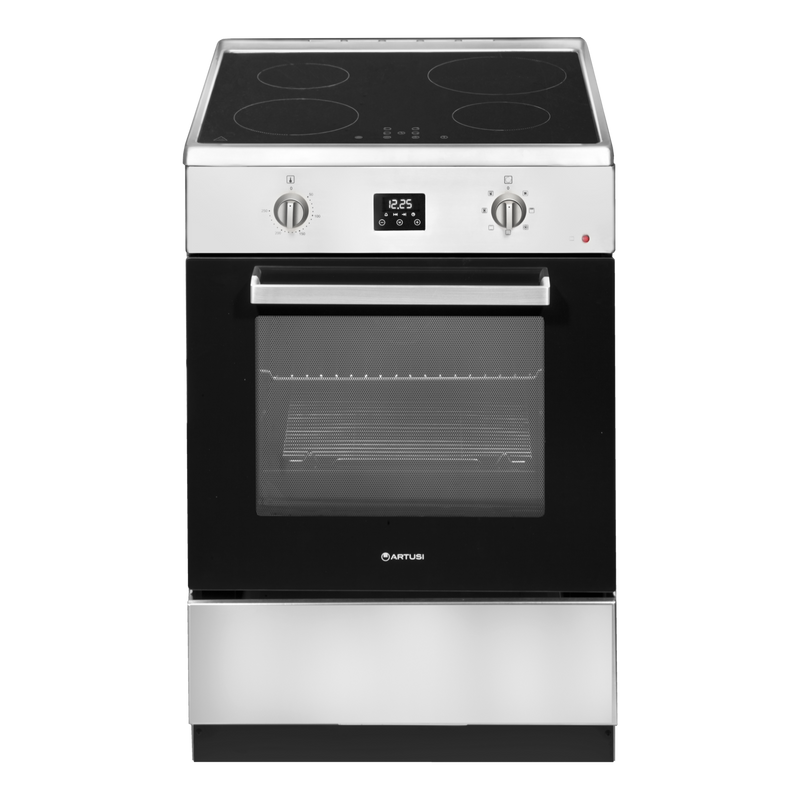

Artusi AFI607X 60cm Freestanding Induction Cooker With 4 Induction Zones

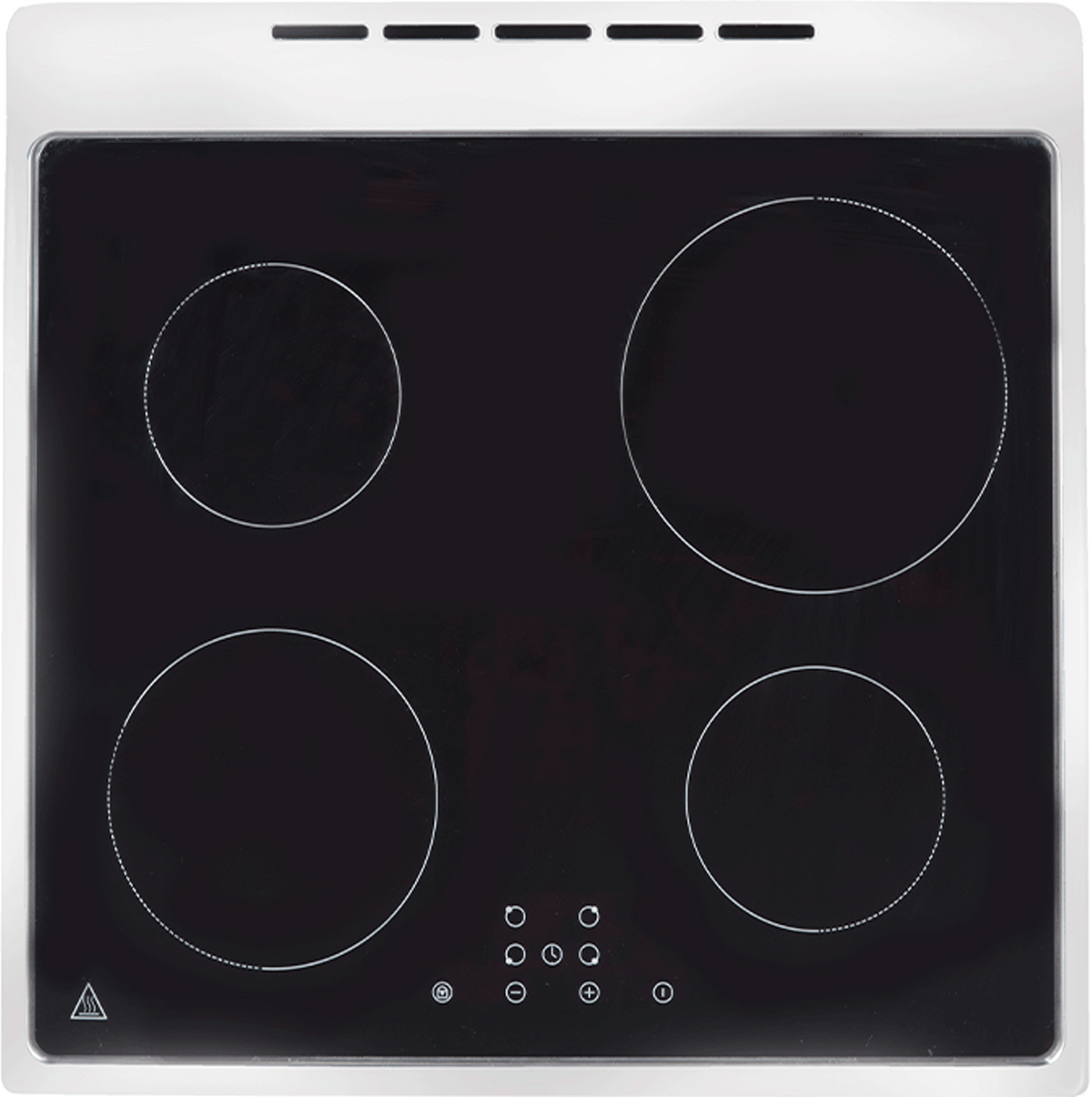

• Four-zone induction cooktop: Two 140mm 1200W zones, one 180mm 1500W zone and one 210mm 1500W zone, for fast, responsive heat that only works when a suitable pan is in place.
• Nine heat levels: Touch controls on a smooth glass surface, with a gentle response from delicate warming to boiling.
• Zone timers: Set a timer of up to 99 minutes so a cooking zone switches itself off.
• Hot surface and safety protection: A child lock, residual heat indicator, over-temperature protection, small-object detection and auto shutdown protection.

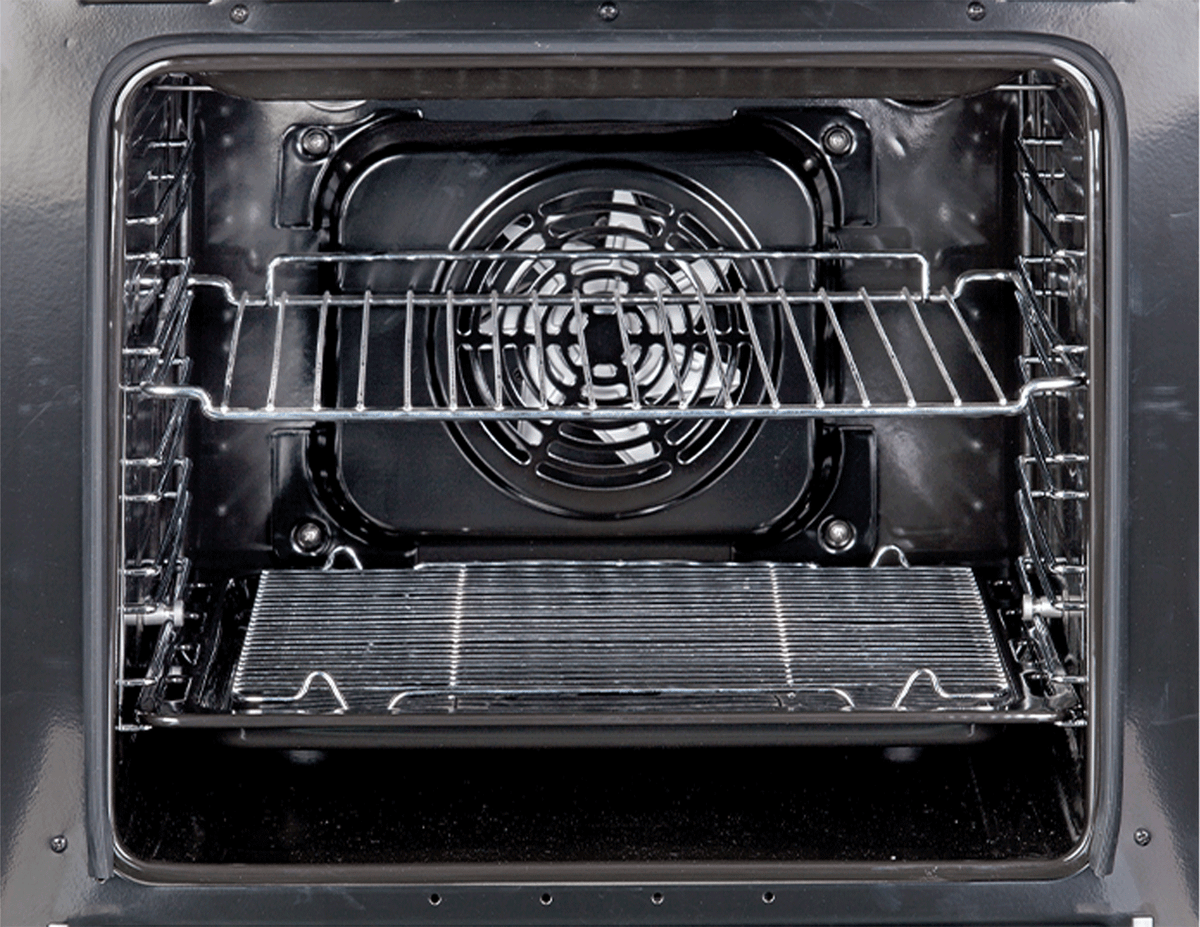

• 59L oven: A 44W × 41.5D × 45H cm cavity with five shelf levels and an Active Enamel interior.
• Seven oven functions: Classic, grill, base heat, half fan grill, fan forced, fan assisted and defrost, with an oven cavity light.

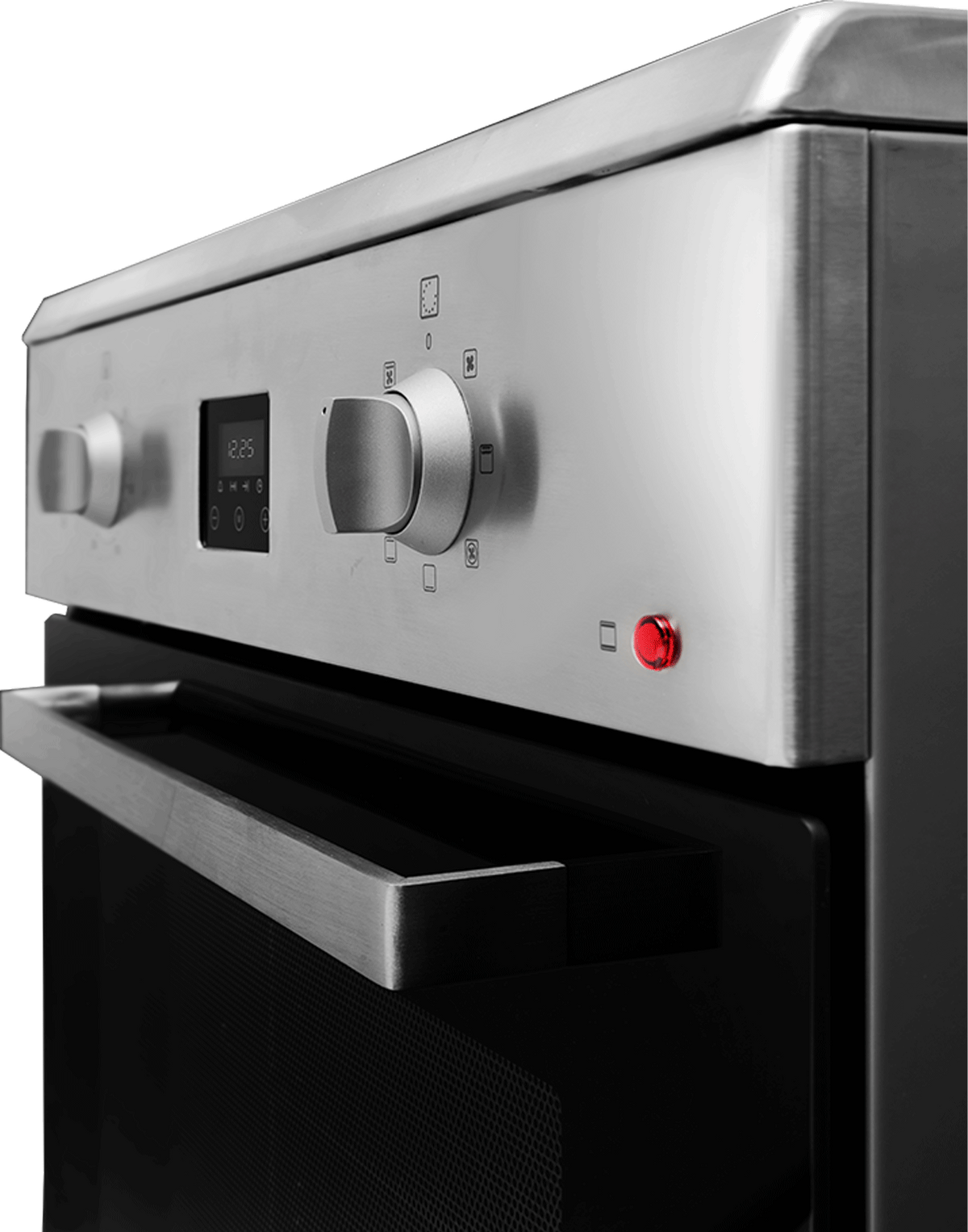

• 50–250°C thermostat: A temperature knob with an oven operation indicator light.
• Electronic clock and timer: A white LED display with semi-automatic and automatic operation so the oven switches off when cooking is finished.
• Triple-glazed door: A triple-glazed removable glass door, with a removable inner glass panel for cleaning.
• Telescopic storage drawer: A metal storage drawer on telescopic runners, with adjustable feet for levelling.
• Included accessories: A baking tray, grill rack, chrome-wire shelf, chrome side rack supports and heat-resistant tray handles.
• Stainless steel finish: A clean, contemporary look in a standard 60cm width with a removable splashback.

• Oven functions (specification sheet): Classic (lower + upper + light), grill, base heat, half fan grill, fan forced, fan assisted and defrost.
• Setting the oven: The oven only switches on after the temperature has been set with the temperature knob.
• Classic convection (top + bottom heat): Conventional heating from above and below.
• Static grill (grill): The grill and top heater together for more intense browning and larger portions. Set 250°C, preheat for about 5 minutes with the door shut and grill with the door closed.
• Base heat (bottom heat): The bottom heater only.
• Half fan grill (fan + grill): The grill with the fan for faster grilling and improved taste. Use with the door shut.
• Fan forced (rear heat + rear fan): A heating element around the fan for uniform heat, minimal preheating and cooking several different foods at once.
• Fan assisted (fan + bottom + top heat): The cake function, a conventional oven with a fan.
• Defrost (rear fan only): Circulates air without heat for defrosting.
• Electronic programmer: Set the clock, a timer from 1 minute to 23 hours 59 minutes, or a cooking time or end-of-cooking-time up to 10 hours so the oven switches off automatically and an alarm rings.
• Hob heat levels: Levels 1–2 for delicate warming, melting and gentle simmering; 3–4 for reheating and rapid simmering; 5–6 for pancakes; 7–8 for pasta; 9 for stir-frying, searing and boiling.
• Key lock: Lock the hob controls so they cannot be switched on accidentally. Only the on/off control stays active.
• Pan detection: No heating takes place without a suitable pan, and the zone switches off after 1 minute if none is detected.
• Auto shutdown: The hob switches itself off after a set period depending on the power level, from 8 hours at levels 1–3 to 2 hours at levels 7–9.
• Shelf levels: Five guide levels counted from the bottom upwards.

• Brand: Artusi
• Model: AFI607X (Stainless Steel)
• Product type: 60cm freestanding electric cooker with induction hob
• Cooktop: 4 induction zones with 9 heat levels and touch control
• Induction zones: 2 x 140mm 1200W, 1 x 180mm 1500W, 1 x 210mm 1500W
• Hob power: 5.0kW
• Oven capacity: 59L gross
• Oven cavity size: 44W × 41.5D × 45H cm
• Shelf levels: 5
• Oven interior: Active Enamel
• Oven functions: 7 functions
• Thermostat: 50–250°C
• Oven power: 2.0kW (top 0.85kW, bottom 1.15kW, grill 1.1kW, rear heater 2.0kW)
• Oven lamp: 25W, G9
• Timer: Electronic clock and timer with semi-automatic and automatic operation, white LED display
• Safety: Child lock, over-temperature protection, auto shutdown protection, triple-glazed removable door
• Finish: Stainless steel
• Accessories: Baking tray, grill rack, 1 x chrome-wire shelf, chrome side rack supports, heat-resistant tray handles, removable splashback
• Total connected power: 7.0kW (29.2A)
• Supply: 220–240V ~50Hz, 380–415V three-phase connection possible by bridging in the connection box
• Connection: Hard-wired; H05VV-F3G4 cable for single-phase or H05VV-F5G1.5 for three-phase, on a 32A or greater control switch
• Warranty: 2 years parts and labour

• Qualified installation: All electrical work must be carried out by a suitably qualified and authorised electrician in line with the user manual and local regulations.
• Electrical supply: 220–240V ~50Hz with a control switch (circuit breaker) of no less than 32A. The mains cable is already assembled at the rear and must be secured in the strain-relief device. Check the rating plate voltage matches your supply.
• Single or three-phase: Bridge terminals 1-2-3 and 4-5 for single-phase 220–240V, or bridge 4-5 with phases on 1, 2 and 3 for three-phase.
• Earthing: The safety wire must be connected to the earth terminal.
• Cookware: Use induction-suitable pans with a smooth, flat base at least as large as the zone. Pans smaller than 140mm may not be detected.
• Ventilation: The kitchen should be dry and well ventilated, for example with a ventilation grid or hood.
• Clearances: Leave about 2cm of free space around the cooker. The wall behind should resist high temperatures, as its back can warm to around 50°C above ambient.
• Furniture: Coatings and veneers on adjacent furniture must use heat-resistant adhesive rated to 100°C.
• Installation position: Do not install the cooker behind a decorative door, to avoid overheating.
• Floor and levelling: Stand it on a hard, even floor, not on a base, and level it using the adjustable feet reached after removing the drawer (±5mm).
• Anti-tilt chains: Secure the two chains at the rear of the cooker to the wall behind it, as short as practicable and diagonal to stop sideways movement.
• Splashback: Slide the lugs on the bottom of the panel into the slots at the rear of the cooker and fix with the screws provided.
• Pacemakers: People with a heart pacemaker or other electrical implants should consult their doctor before using the induction hob.
• Indoor use: Intended for household use only.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Check your pans before you order. Induction only heats magnetic cookware, so test with a magnet: if it sticks to the base, the pan is suitable. Pure stainless steel, aluminium, copper without a magnetic base, glass, ceramic and earthenware are not. Smaller pans under 140mm may not be detected, and you should lift pans rather than slide them to protect the glass.

Plan the electrics before you install. The cooker draws 7.0kW and needs a control switch of at least 32A, with a mains cable already fitted at the rear. The manual shows how to bridge the connection box for single-phase or three-phase supplies, so a licensed electrician should confirm the right set-up for your switchboard.

For first use, remove any protective film from the hob, wash the oven fittings and heat the empty oven at 250°C for about 30 minutes with the room ventilated. Always switch zones off with the touch controls rather than relying on pan detection, and keep metal objects off the glass because they can get hot.

• Cooker: Artusi AFI607X 60cm Freestanding Induction Cooker
• Oven accessories: Baking tray, grill rack, 1 x chrome-wire shelf, chrome side rack supports and heat-resistant tray handles
• Safety and finishing: Two anti-tilt chains and a removable rear splashback with fixing screws
• Drawer and feet: Metal telescopic storage drawer and adjustable feet
• Documentation: Operation manual and warranty registration card
