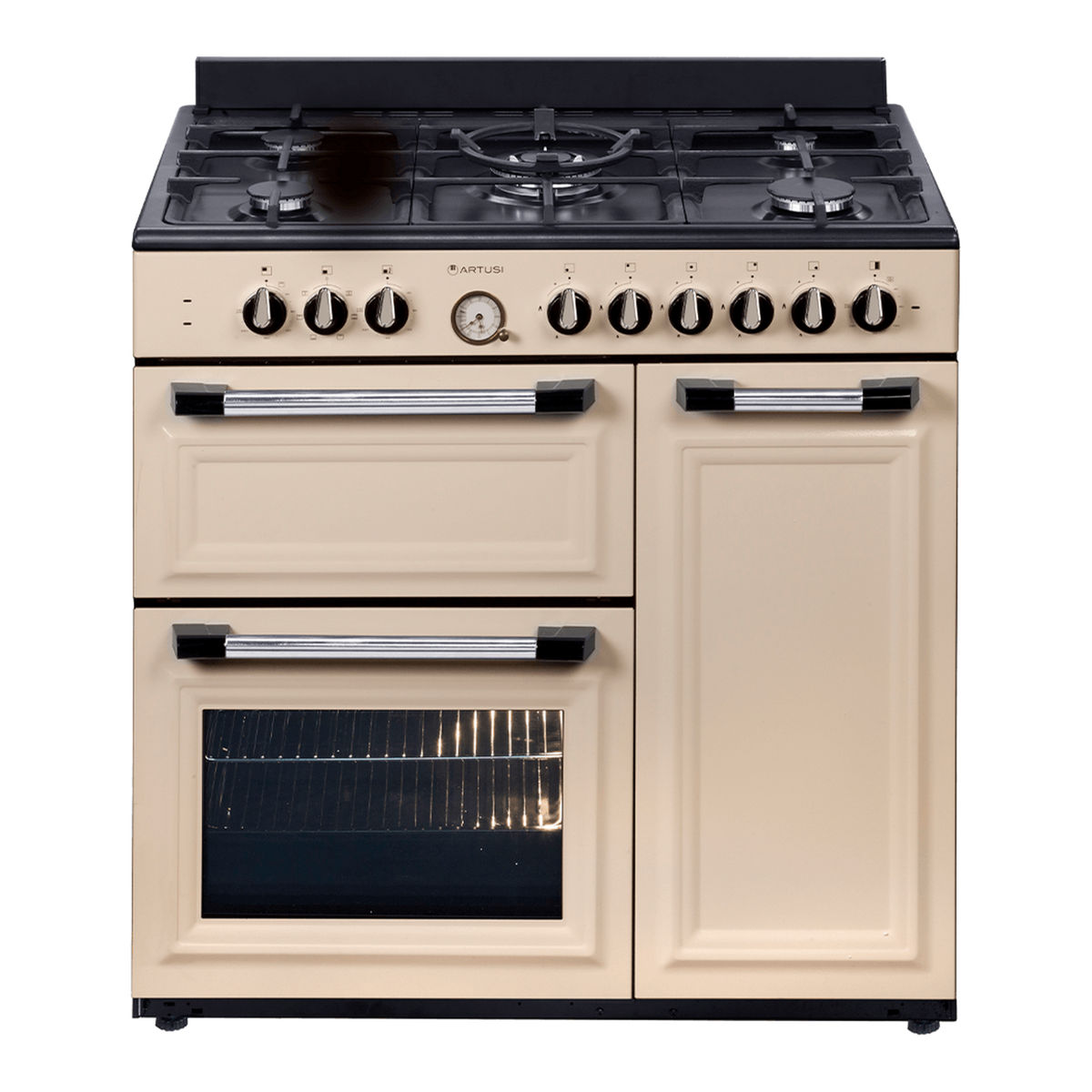

Artusi AFGR935 90cm Freestanding Cooker With 5 Gas Burners And 3 Electric Ovens

• Five-burner gas hob: A centre wok burner, one rapid burner, two semi-rapid burners and one auxiliary burner, with a total gas consumption of about 40 MJ/h.
• Wok burner and cradle: A double-ring wok burner and wok cradle for high-heat stir-frying, with cast-iron trivets and burner caps.
• Deep pressed hob: A black single-piece pressed hob with no crevices, so spills stay contained and the surface wipes clean easily.
• Flame failure protection: A flame failure safety device on each burner with automatic electronic ignition.
• Three cooking cavities: A 59.7L main oven, a 70L tall oven and a 32L electric grill, all with easy-clean enamel interiors.
• Six-function main oven: Fan assist, top and bottom element, top element, bottom element, grill and fan grill.
• Fan-cooking tall oven: A fan and rear heating element with a light-for-cleaning setting, and ten shelf positions.
• Electric static grill: A separate 1400W grill cavity with three shelf positions.
• 40–240°C thermostats: Temperature control for all ovens, with a cavity cooling fan in the main oven.
• Glazed doors: Triple-glazed glass on the grill and main oven and double-glazed glass on the tall oven, with easy-to-clean inner doors.
• Telescopic racks: A telescopic rack with the main oven and another with the tall oven for easy tray handling.
• Classic styling: An analogue clock and timer, decorative black splashback and a choice of Cream or Matte Black.

• Main oven functions (specification sheet): Fan assist, top + bottom element, top element, bottom element, grill and fan grill.
• Tall oven function (specification sheet): Fan with rear heating element, plus a light setting for cleaning.
• Grill (specification sheet): Electric static grill with 1400W of grill power.
• Thermostat: Turn the thermostat to the temperature you want between 40°C and 240°C. The oven only runs once the function switch has been turned.
• Heating elements (manual): Main oven bottom 1200W, top 1000W and turbo 1800W; tall oven turbo 1800W; grill 1400W.
• Using the grill: Set the function switch to the grill symbol, then set the temperature. Preheat for about 5 minutes if needed and keep food in the centre of the grill. Don't use the oven and grill burners at the same time.
• Burner ignition: Press the knob in and turn it anticlockwise to the large flame symbol. Keep it pressed until the burner lights, then hold for about 5–10 seconds so the flame safety device activates before releasing.
• If a burner does not light: Do not run the igniter for more than 15 seconds. Close the control valve and wait at least one minute before trying again.
• Burner sizes and pans: Wok burner 26–32cm pans, big (rapid) burner 22–26cm, normal burner 18–22cm and small burner 12–18cm. Remove the wok cradle when using a regular pot on the wok burner.
• Preheating: Preheat the oven for 7–10 minutes before placing food in it.
• Cooking guide: Cookies 170–180°C for 30–35 minutes and pizza 200–240°C for 20–25 minutes with turbo fan in the right cavity; tray cake 170–180°C for 35–40 minutes and apple pie 180–190°C for 60–65 minutes static in the left bottom oven on rack 2; steak on grill for 30–35 minutes.
• Multi-shelf baking: Cookies and pizza can be cooked on up to four shelves at once, swapping trays between shelves halfway through.

• Brand: Artusi

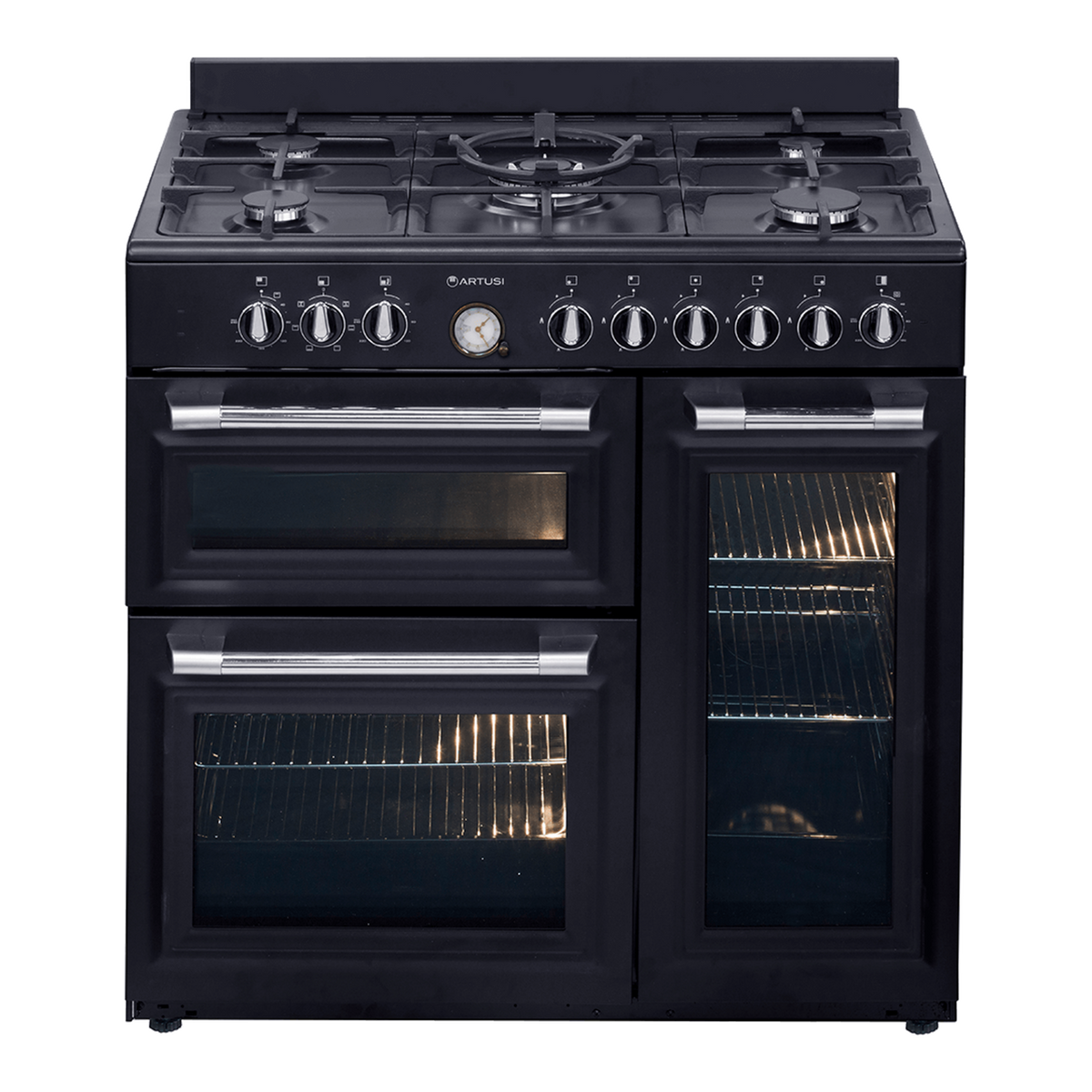

• Model: AFGR935CR (Cream), AFGR935B (Matte Black)
• Product type: 90cm freestanding cooker with 5 gas burners and 3 electric cavities
• Cooktop: Single-piece deep pressed black hob with centre wok placement
• Burners: Auxiliary, 2 x semi-rapid, rapid and wok
• Burner ratings (manual): Wok 12.0MJ/h, rapid 11.0MJ/h, semi-rapid 6.5MJ/h each, auxiliary 3.8MJ/h
• Total gas consumption: 40.8MJ/h (specification sheet); 39.8MJ/h natural gas or 40.3MJ/h LPG (manual)
• Gas type: Natural gas or ULPG, with conversion by an authorised installer
• Hob fittings: Cast-iron trivets, burner caps and wok cradle
• Main oven: 59.7L usable, 45.5W × 41D × 32H cm, 4 shelf positions
• Tall oven: 70L usable, 27W × 43D × 61H cm, 10 shelf positions
• Grill: 32L usable, 45.5W × 41D × 17.5H cm, 3 shelf positions
• Thermostat: 40–240°C, all ovens
• Interior: Easy-clean enamel
• Lighting: 1 cavity light of 15–25W in each compartment
• Timer: Analogue clock and timer
• Safety: Flame failure device on each burner, automatic electronic ignition, triple-glazed door on grill and main oven, double-glazed door on tall oven
• Accessories: Main oven deep baking tray with grill insert, wire rack and telescopic rack; tall oven deep baking tray, 2 wire racks and telescopic rack; grill insert
• Electrical: 220–240V AC 50/60Hz, 5500W
• Warranty: 2 years parts and labour, extended to 5 years on registration

• Qualified installation: Gas and electrical installation must be carried out by authorised persons in line with the manual, AS/NZS 5601 and local fitting regulations.
• Gas supply: Suitable for natural gas or ULPG. Natural gas uses the supplied regulator set to 1.00 kPa, and ULPG uses the supplied test point assembly set to 2.75 kPa with the supplied injectors. Use a flexible hose and test for leaks with soapy water only.
• Gas connection: Made at the rear of the appliance. Close the unused inlet with the supplied cap and gasket, and keep the hose and cable away from hot areas.
• Electrical supply: 220–240V AC 50/60Hz, 5500W, on a 16A or 32A fuse depending on the appliance, with an earthed connection and H05VV-F 3G 4mm² cable.
• Isolation: A means of electrical isolation accessible after installation is needed: a plug to a switched general purpose outlet, a double-pole isolating switch or a plug to a fixed socket outlet.
• Rangehood: Mount a hood or aspirator at least 650mm above the hob and follow the hood manufacturer's instructions.
• Clearances: Use non-combustible material within 200mm of the edge of any burner and to a height of 150mm for the full length of the back of the hob. Nearby surfaces must not exceed 65°C above ambient.
• Ventilation: Install and use only in a well-ventilated space, with natural ventilation openings or mechanical ventilation.
• Fixing: Fix the cooker to the wall with the supplied chain and hooked screw, as tight as possible, before use.
• Position: Do not install beside refrigerators or coolers, and the appliance feet must not sit on carpet or soft surfaces. Not for outdoor use.
• Moving: Do not use the door or handle to carry or move the cooker, and do not move it while connected to gas.
• Indoor use: Household use only.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Think about how you cook before you choose. The AFGR935 splits its oven space across three cavities: a 59.7L main oven with six functions on the left, a narrow 70L tall oven on the right for fan cooking, and a separate 32L electric grill. The tall oven opens to the side and has ten shelf positions, so it suits tall dishes and batch baking, while the main oven handles everyday roasting and baking.

Plan the gas and electrics together. It runs on natural gas or ULPG with the matching regulator and injectors, so an authorised gas fitter should set it up for your supply, and it needs a 5500W electrical supply with accessible isolation. Allow at least 650mm to the rangehood above, and keep non-combustible material within 200mm of the burners.

For first use, run the empty oven for about 45 minutes to burn off the factory odour, and allow 2–3 cycles for smoke from the heaters to stop. Use dark, enamel containers that conduct heat well, avoid opening the doors often, and never put trays or foil directly on the oven base.

• Cooker: Artusi AFGR935 90cm Freestanding Cooker in Cream or Matte Black
• Main oven accessories: Deep baking tray with grill insert, 1 x wire oven rack and 1 x telescopic rack
• Tall oven accessories: Deep baking tray, 2 x wire racks and 1 x telescopic rack
• Grill accessory: 1 x grill insert
• Hob fittings: Cast-iron trivets, burner caps, wok cradle and decorative black splashback
• Gas and fixing: Gas regulator, test point assembly, injectors, inlet cap and gasket, and wall chain with hooked screw
• Documentation: Operation manual and warranty registration card

• USER MANUAL (PDF)
• AFGR935CR SPECIFICATIONS SHEET (PDF)
• AFGR935B SPECIFICATIONS SHEET (PDF)
