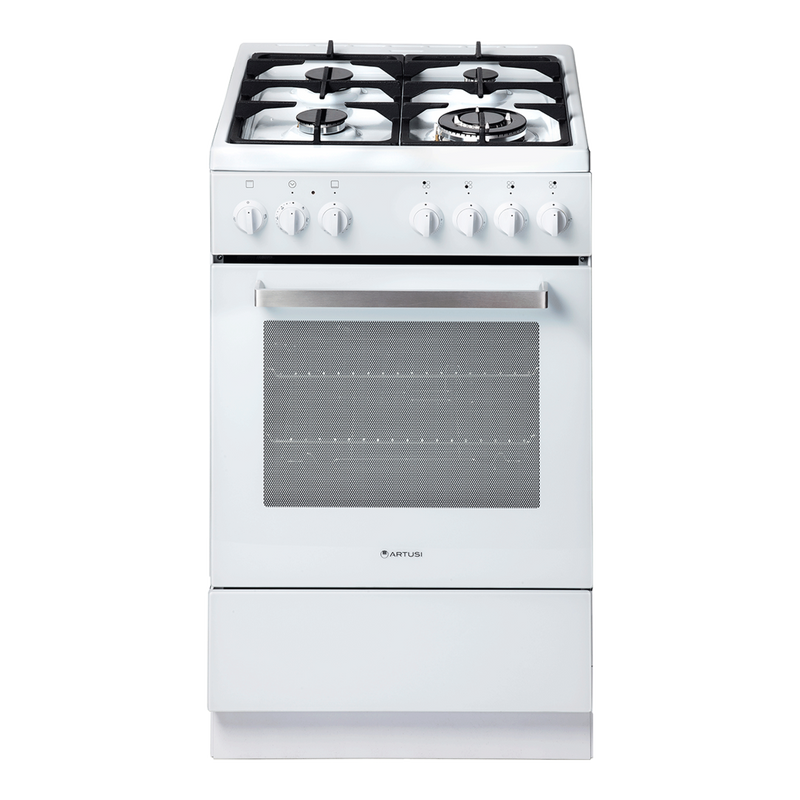

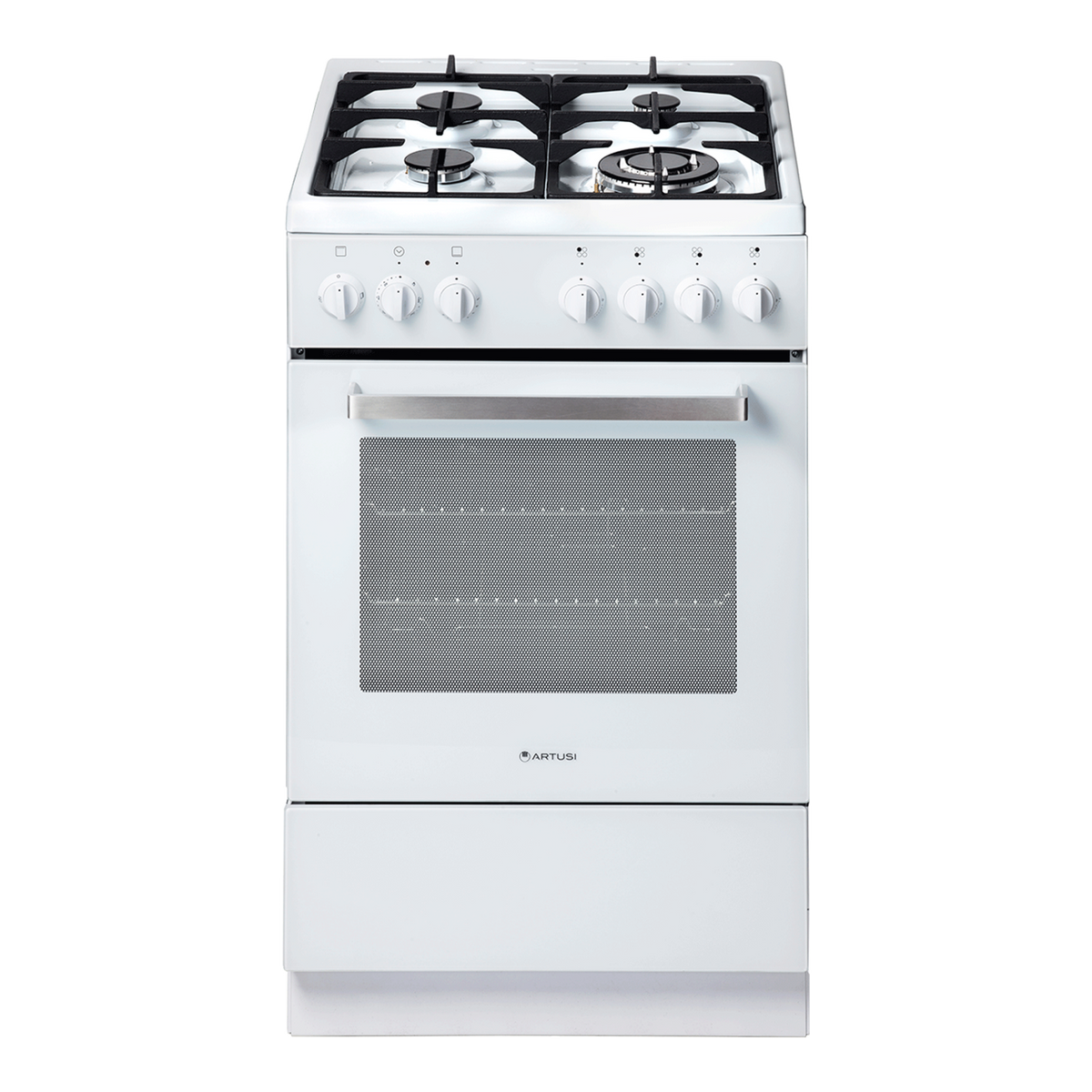

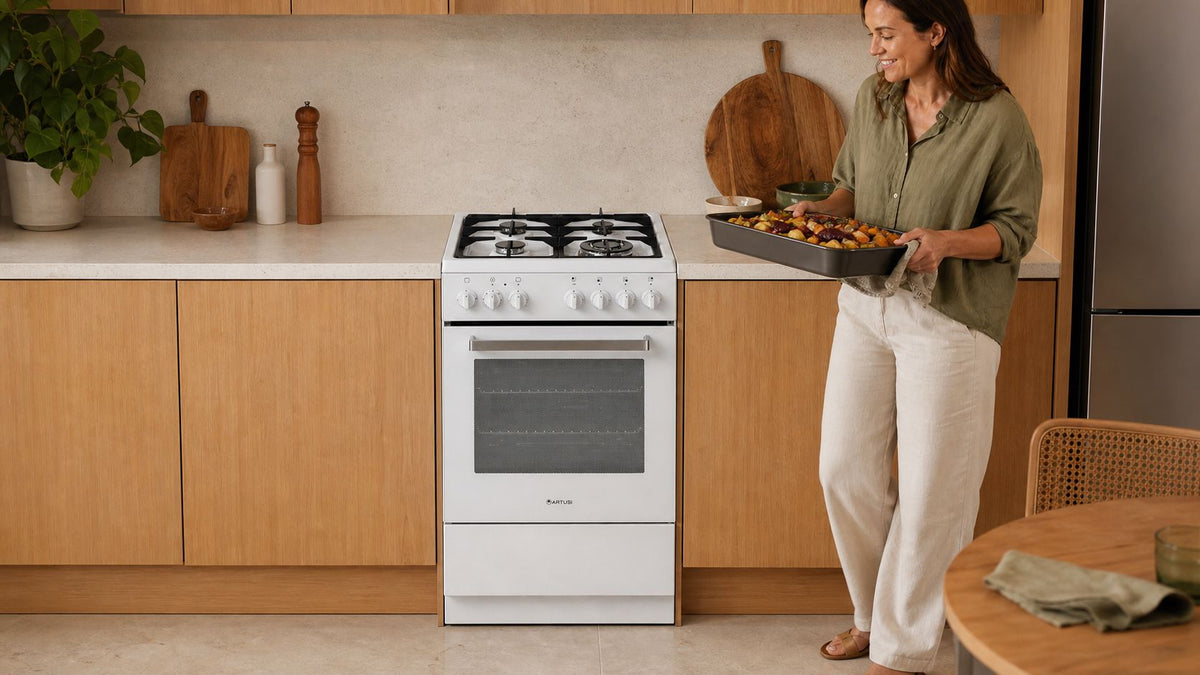

Artusi AFGG54W 54cm Freestanding Gas Cooker With 4 Gas Burners And Wok Burner

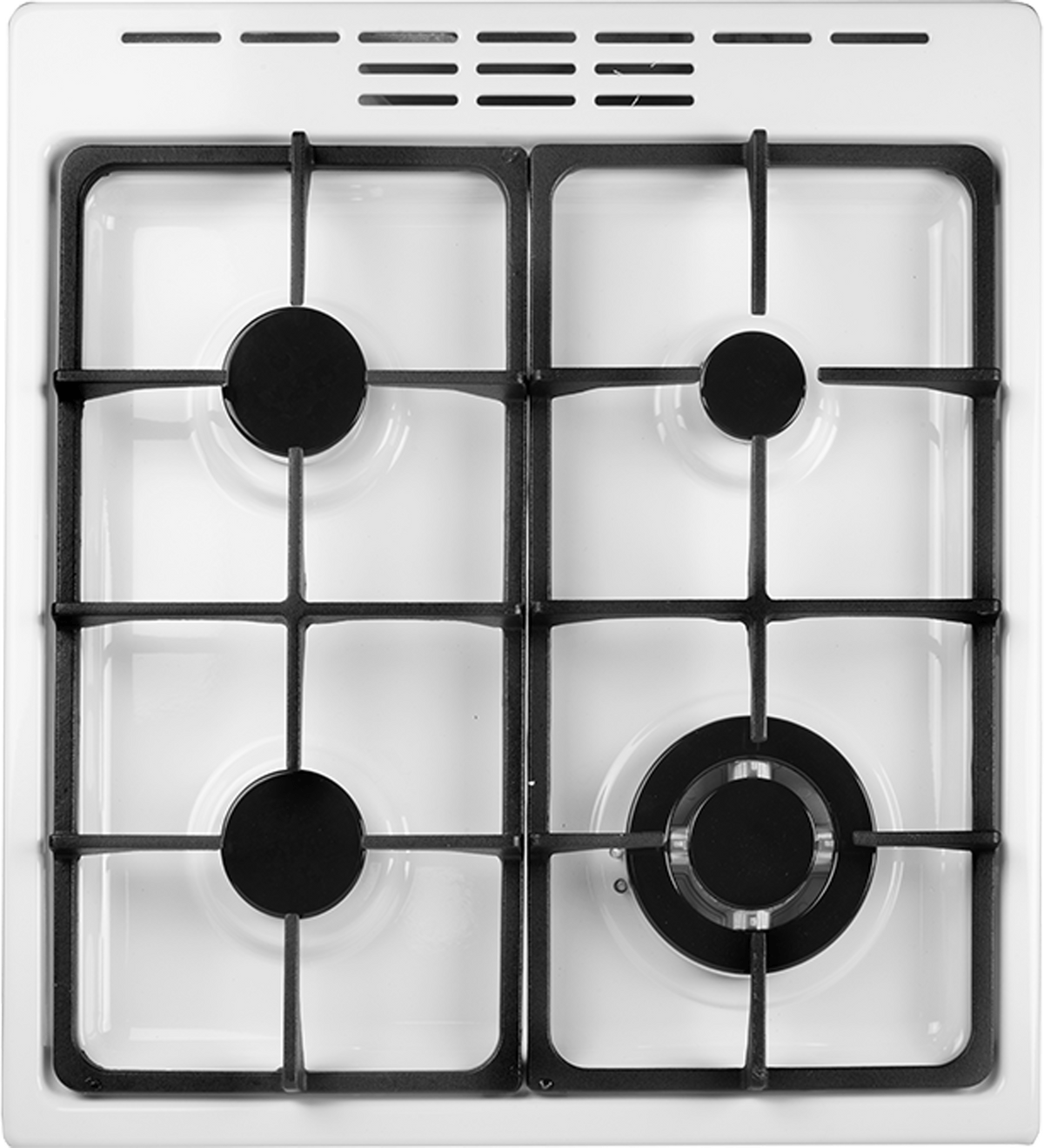

• Four gas burners: A 3.5kW wok burner, two 1.75kW semi-rapid burners and a 1.0kW auxiliary burner for everything from a gentle simmer to a fast stir-fry.
• Single-piece pressed hob: A one-piece hob with enamel trivets and burner caps that is easy to wipe down.
• Flame failure protection: A flame failure device on every burner cuts the gas if a flame goes out.

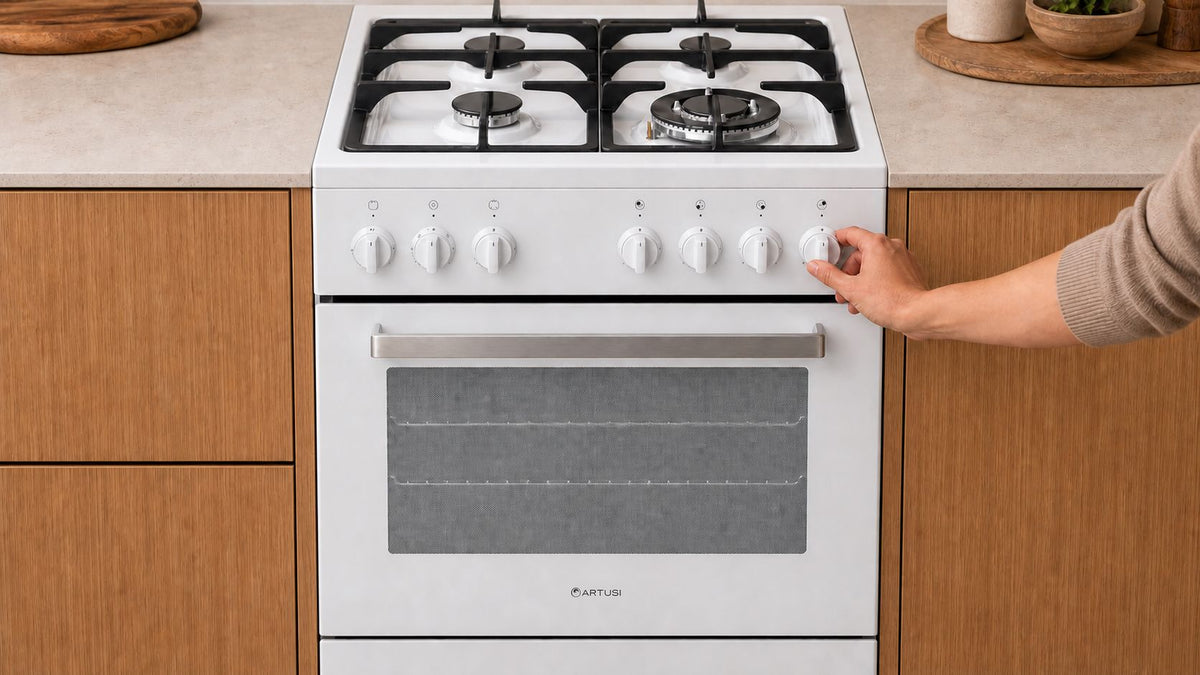

• Integrated ignition: Push in and turn the burner knob to light it, with a match or lighter as a backup if the ignition is unavailable.
• 60L gas oven: Five cooking levels and an Active Enamel interior for everyday roasting and baking.
• Adjustable temperature: A thermostat knob from 150°C to 265°C with 8 temperature options and anti-outflow protection.
• Mechanical cooking timer: Set the cooking time and an alarm sounds when it ends.
• Oven light and cooling fan: See the dish clearly while the cooling fan keeps the cooker comfortable to use.

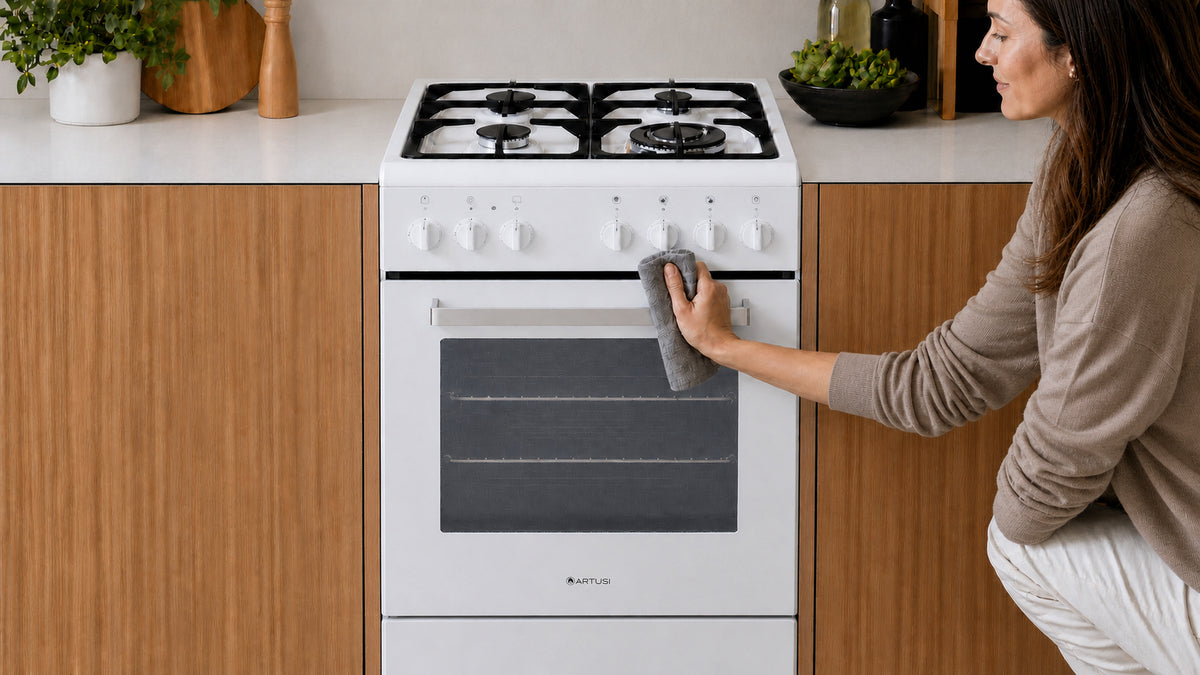

• Triple-glazed door: A triple-glazed glass door with an easy-clean full-glass inner door and a removable oven cavity floor.
• Storage drawer: A practical drawer below the oven with adjustable feet for levelling.
• Included accessories: A baking tray, two wire oven racks, a collection tray and a grill rack.
• Brilliant white finish: A clean, bright white enamel cooker in a compact 54cm width.

• Burner ignition: Press the knob in fully and turn it left to the large flame position. Hold until the gas lights, release, then set the flame size. Keep it pressed for about 10 seconds after ignition so the flame stabilises.
• If a burner does not light: If it has not lit after 15 seconds, switch it off and wait at least one minute before trying again.
• Flame sizes: Large flame, small economical flame and off, adjustable continuously between large and small. Avoid positions between off and large flame.
• Choosing pans: Use a pan base larger than the burner crown: 90 to 150mm for the auxiliary burner, 160 to 220mm for a medium burner and 200 to 240mm for the wok burner.
• Oven ignition: Press and hold the oven knob for about 3 seconds after the flame lights so the safety sensor warms up, then turn to the chosen temperature. If the flame goes out, repeat after 3 seconds, or after about 1 minute if it has not lit within 10 seconds.
• Temperature control: The thermostat runs from 150°C to 265°C and works with the oven door closed.
• Separate oven lighting: Turns the oven lamp on without heating, for example when washing the oven chamber.
• Mechanical timer: Turn the timer to the time you want, then set the oven. It sounds when the pre-set time ends. Turn it to the manual position to cook without the timer.
• Grilling: Grill with the door closed. The oven thermostat is off while grilling and the grill burner runs at full power, so preheating is not needed. Oil the grill grid and place the grease pan one level lower.
• Shelf levels: Five guide levels counted from the bottom upwards.
• Baking guide: Victoria sponge 170°C for 20–40 minutes on level 2–3; fruit cake 170°C for 60–70 minutes on level 2; puff pastry 230–250°C for 15–20 minutes on level 3.
• Roasting guide: Chicken 220–250°C for 50–80 minutes on level 2; roast pork joint 200–210°C for 90–140 minutes on level 2; lamb 200–220°C for 100–120 minutes on level 2.

• Brand: Artusi
• Model: AFGG54W (White)
• Product type: 54cm gas freestanding cooker with single gas oven
• Cooktop: Single-piece pressed hob with 4 gas burners, enamel trivets and burner caps
• Burners: 1 x wok 3.5kW, 2 x semi-rapid 1.75kW, 1 x auxiliary 1.0kW

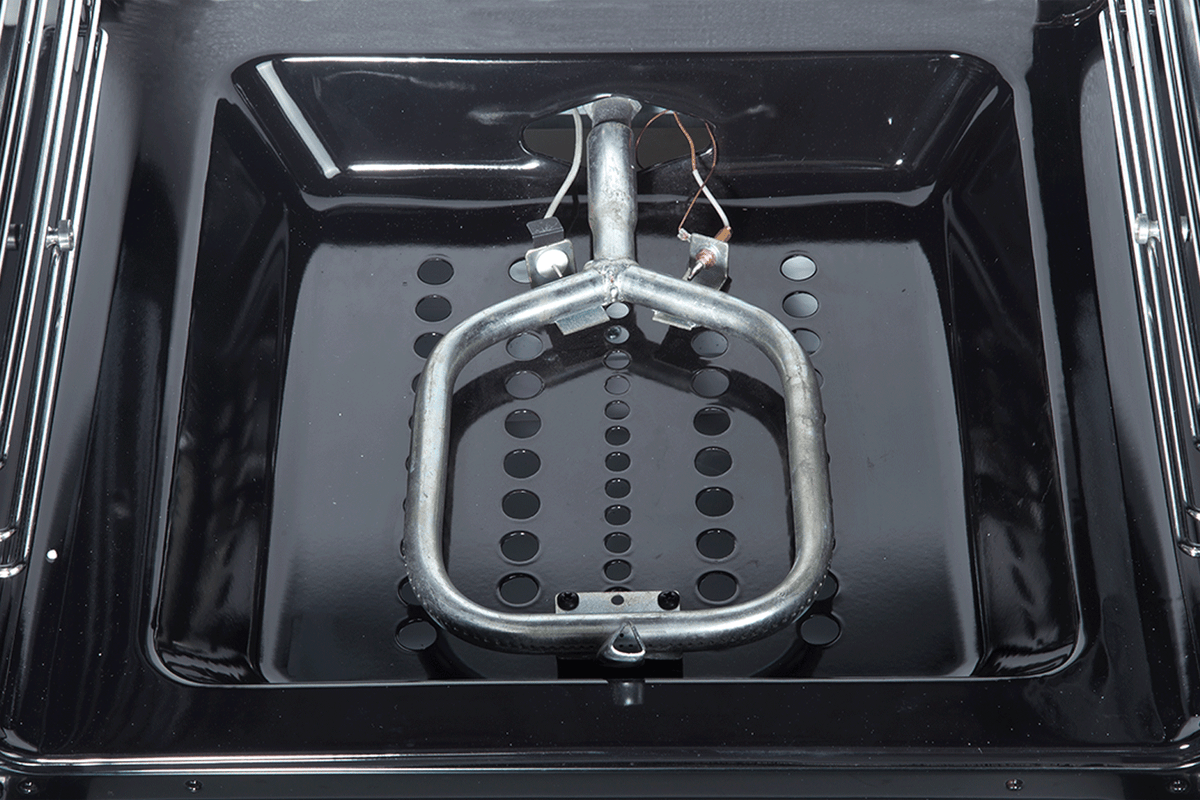

• Oven capacity: 60L gas oven (3.0kW burner)
• Cooking levels: 5
• Oven interior: Active Enamel
• Temperature range: 150–265°C, 8 temperature options
• Timer: Mechanical cooking timer
• Ignition: Integrated ignition
• Safety: Flame failure device on every burner, triple-glazed glass door
• Oven door: Triple-glazed with easy-clean full-glass inner door
• Gas type: Supplied set for natural gas (G20, 20mbar); convertible to universal LPG by an authorised gas fitter
• Total gas consumption: 39.6MJ/h

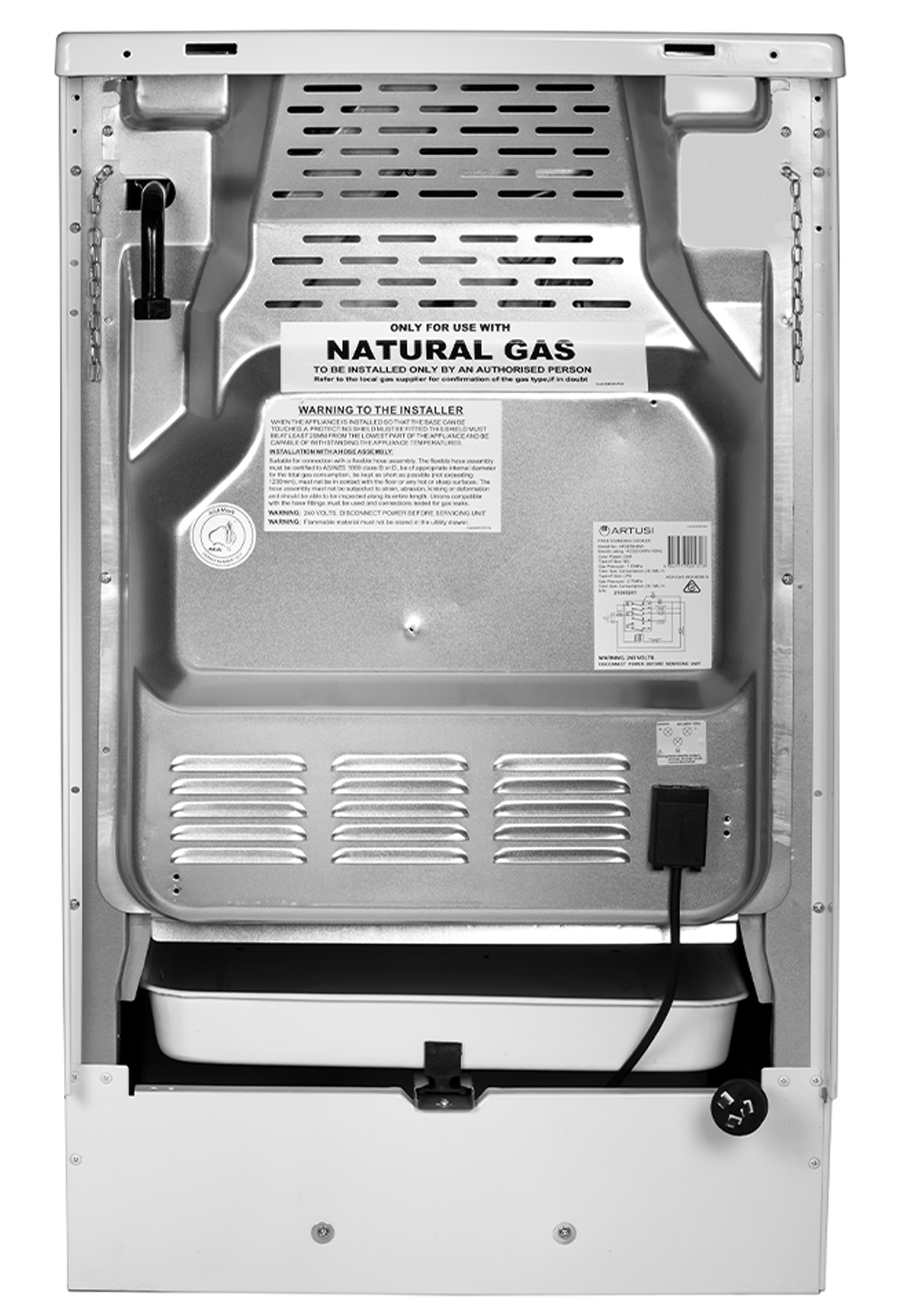

• Gas connection: R1/2 (ISO 7) at the right rear, 150mm from the top, with gas regulator supplied
• Electrical: 2kW, 10A plug with 1.5m lead supplied
• Finish: Brilliant White
• Accessories: Baking tray, 2 x wire oven racks, collection tray, grill rack
• Warranty: 2 years parts and labour

• Qualified installation: Must be installed by an authorised person in line with the manual, AS/NZS 5601.1 gas installations, local gas and electrical regulations and the Building Code of Australia.
• Gas supply: Supplied for natural gas. Conversion to universal LPG needs an injector change and flame adjustment by an authorised gas fitter. Use a certified flexible hose and check all connections for leaks with soapy water, never a flame.
• Gas access: The gas connection must be reachable without removing the oven.
• Electrical supply: Supplied with a 1.5m lead and 10A plug for a general power outlet.
• Overhead clearance: At least 600mm between the highest part of the hob and a rangehood, or 750mm to an overhead exhaust fan.
• Side clearance: Where a vertical combustible surface is less than 200mm from the nearest burner, protect it to a height of at least 150mm above the hob unless the cooker splashback provides protection.
• Ventilation: The kitchen must be dry and well ventilated, with a ventilation grid or rangehood to remove combustion fumes.
• Floor: Stand the cooker on a hard, even floor, not on a base.
• Levelling: Level the cooker before use. The adjustable feet are reached after removing the drawer, with an adjustment range of ±5mm.
• Anti-tilt chains: Secure the two chains at the rear of the cooker to the wall behind it, as short as practicable and diagonal to stop sideways movement.
• Splashback: The splashback is fixed to the rear wall of the cooker for transport. Remove it before installation and fit it to the rear of the cooktop section.
• Position: Do not install it near a refrigerator or freezer, and keep access to the controls free.
• Indoor use: Household use only. Not for use in a marine craft, caravan or mobile home unless each burner has a flame safeguard.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Match the gas before you order. The AFGG54W is supplied set for natural gas and can be converted to universal LPG by an authorised gas fitter who swaps the burner injectors and adjusts the flame, so tell your installer which supply you have. It plugs into a standard 10A outlet for the ignition and oven electrics, and the gas connection is at the right rear.

The wok burner gives you a strong, fast flame for stir-fries, while the auxiliary burner is gentle enough for sauces. Choose pans larger than the burner crown, covered where possible, and cook smaller pieces of meat on the hob rather than heating the oven for less than about a kilo.

For first use, wash the oven fittings with warm soapy water, open a window or switch on the rangehood and heat the empty oven to 250°C for about 30 minutes. If the oven flame goes out, wait for the oven to ventilate before relighting, and never blow out a burner flame.

• Cooker: Artusi AFGG54W 54cm Freestanding Gas Cooker
• Oven accessories: Baking tray, 2 x wire oven racks, collection tray and grill rack

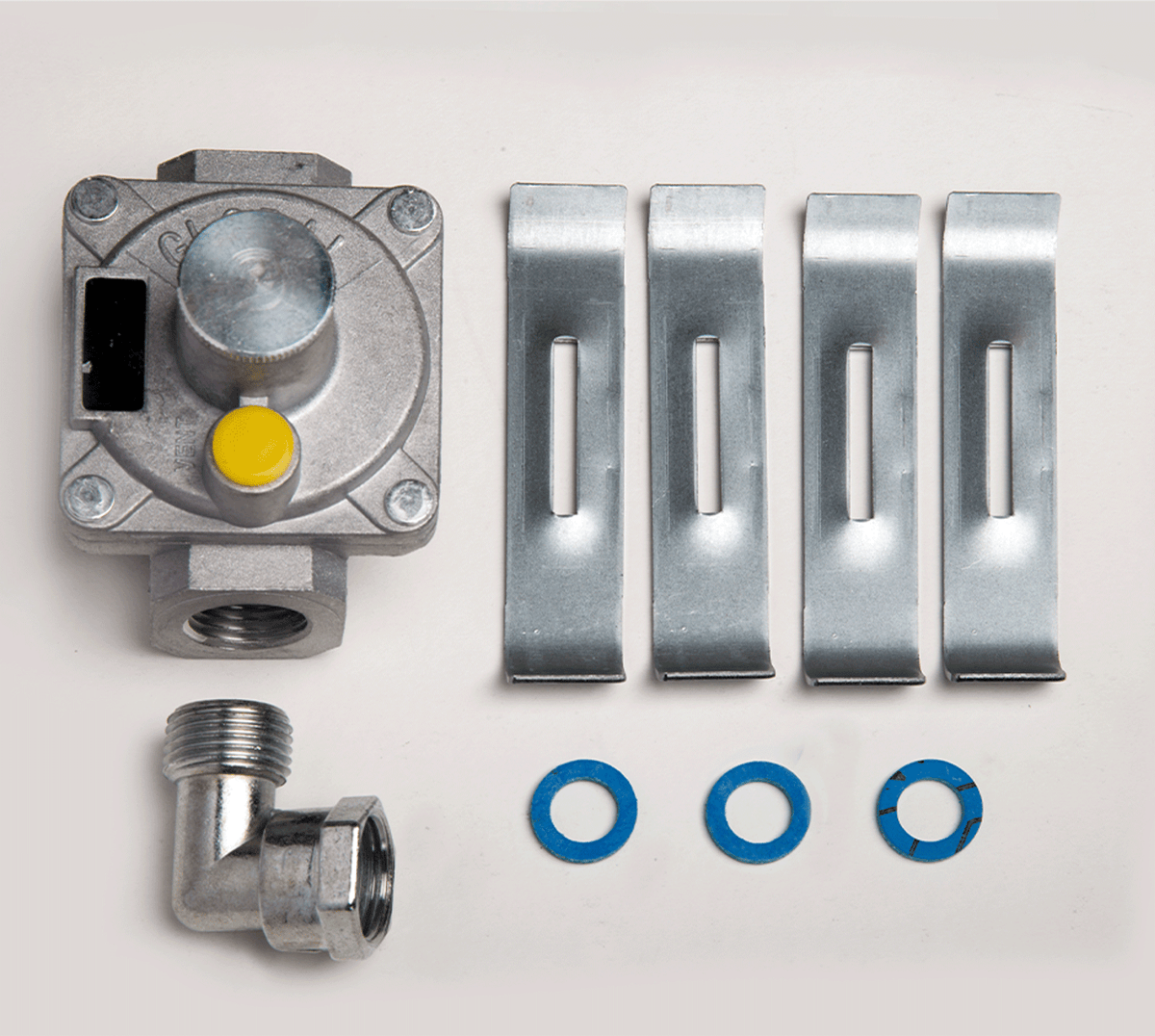

• Gas and electrical: Gas regulator and 10A plug with 1.5m lead
• Safety and finishing: Two anti-tilt chains and a rear splashback panel with fixing screws
• Documentation: Operation manual and warranty registration card

• USER MANUAL (PDF)
• AFGG54W SPECIFICATIONS SHEET (PDF)
