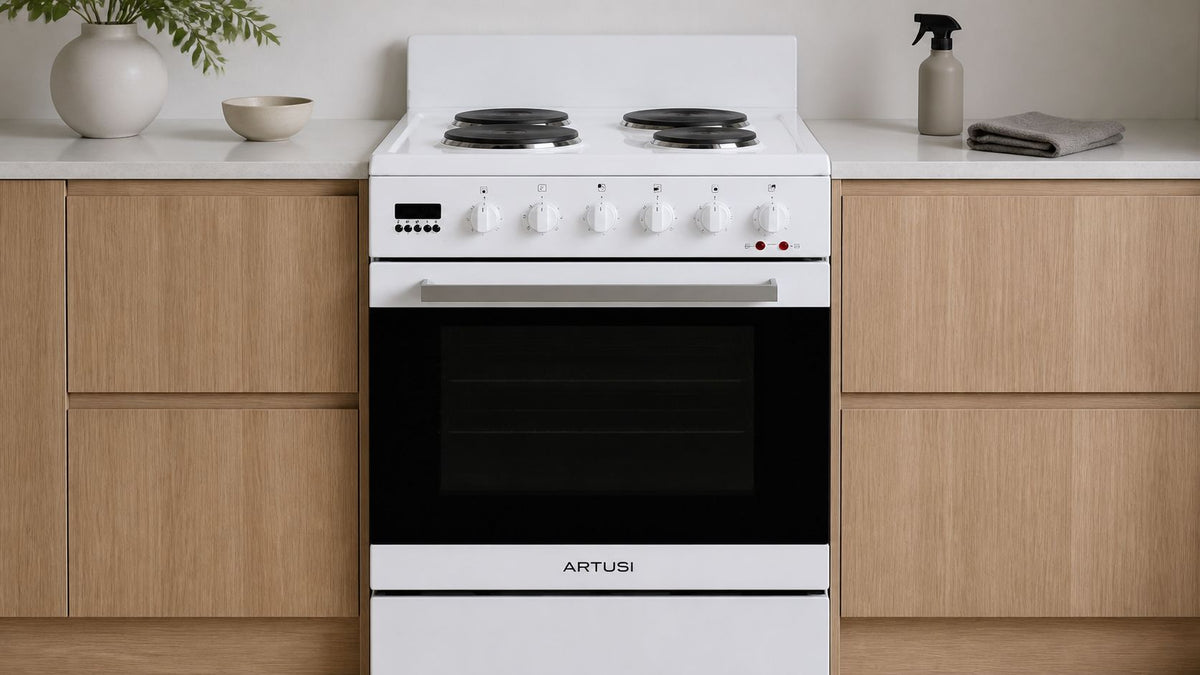

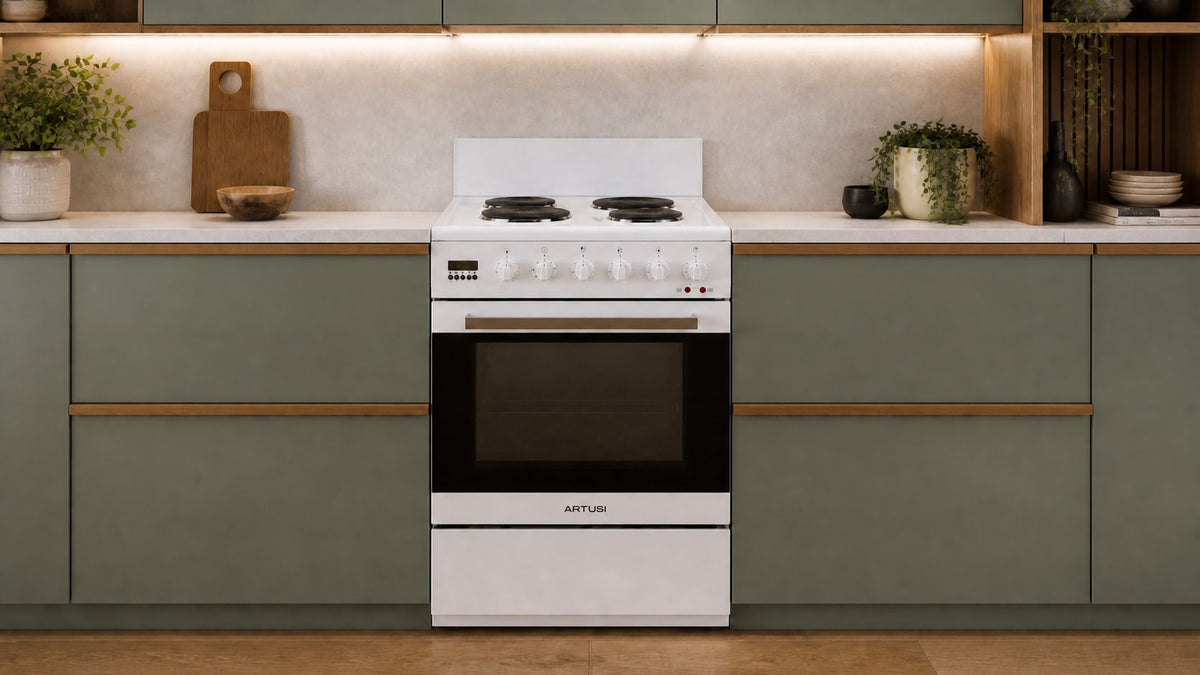

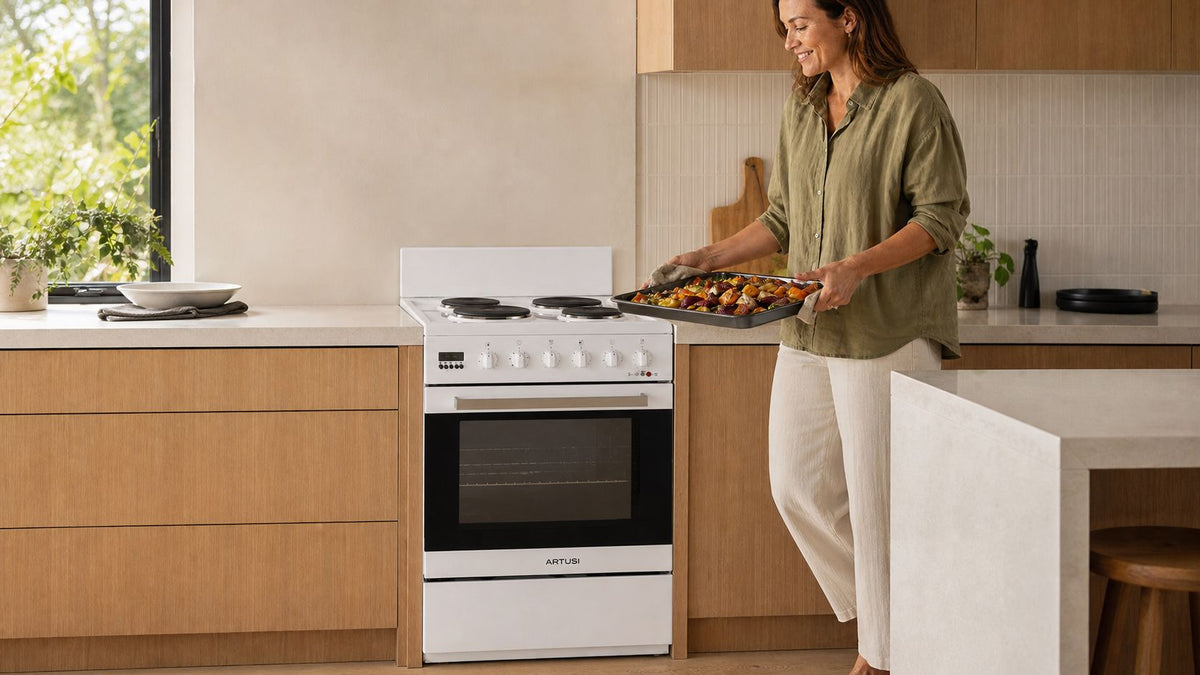

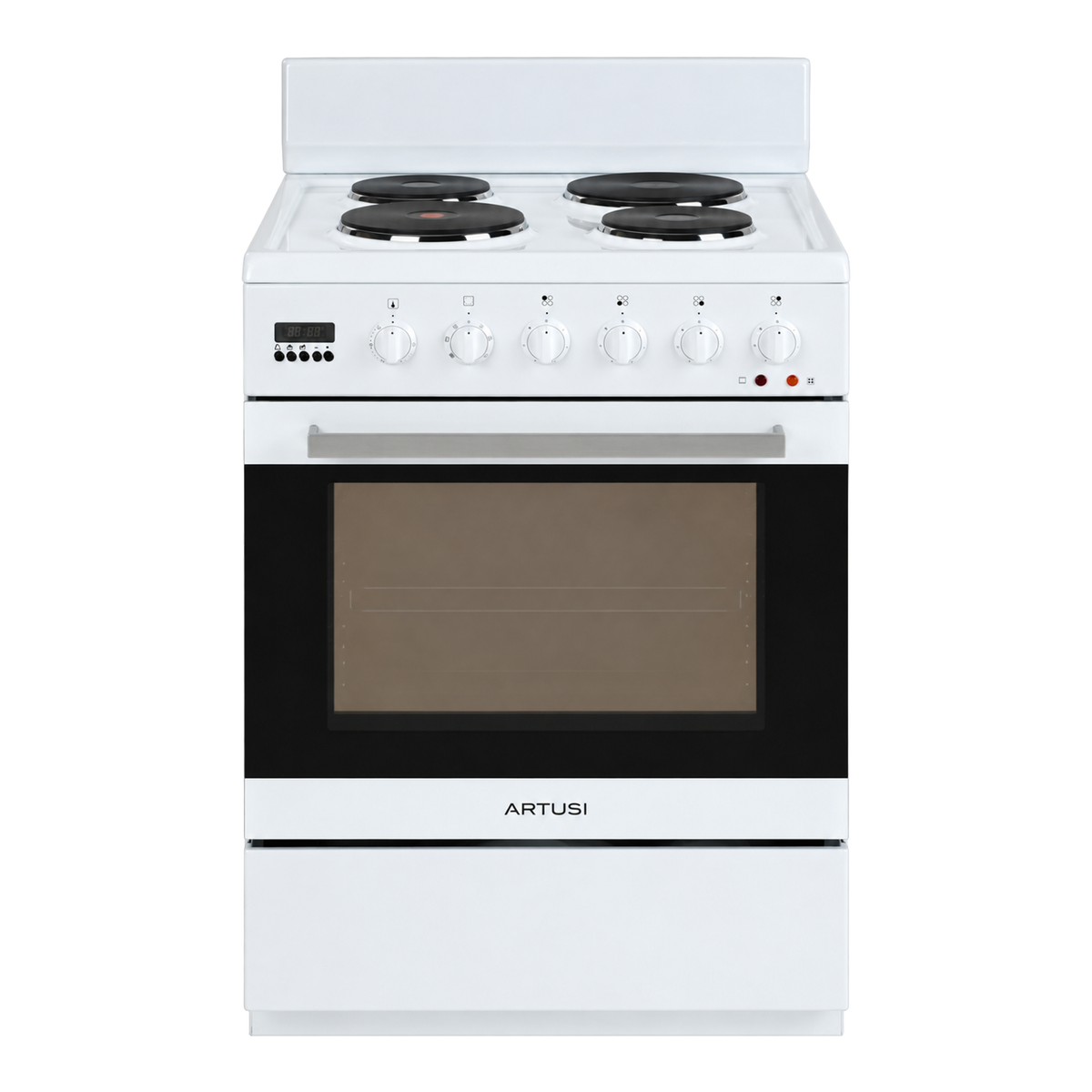

Artusi AFE607W 60cm Freestanding Electric Cooker With 4 Solid Hotplates

• Four solid EGO hotplates: Two 145mm 1.0kW plates, one 180mm 1.5kW plate and one 180mm 2.0kW rapid plate, for 5.5kW of hotplate power.

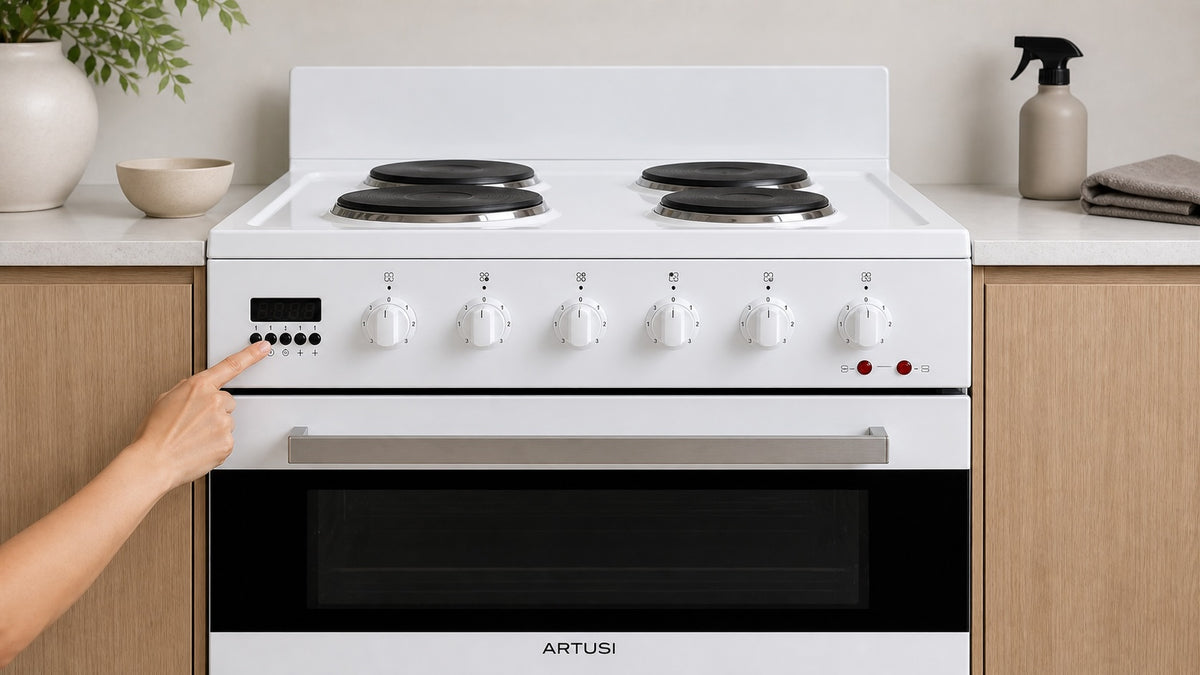

• Stepless plate control: Each plate has its own knob, adjusted gradually from minimum to maximum by turning left or right.
• 65L gross oven: Five shelf heights for large dishes and multi-level baking.
• Seven oven functions: Classic (upper and lower heat), grill, base heat, half fan grill, fan forced, fan assisted and defrost.
• 50–250°C thermostat: A temperature knob with an oven operation indicator light.
• Electronic programmer: A clock with timer, semi-automatic cooking of up to 10 hours and automatic start and stop.
• Triple-glazed door: A triple-glazed glass door with a removable inner glass panel, and a door that lifts off for cleaning.
• White enamel finish: A clean, classic white enamel cooker.
• Storage drawer: A drawer under the oven, with adjustable feet reached once it is removed.
• Single oven light: A 25W lamp lights the cavity, and the light function works without heating.
• Included accessories: A baking tray, two wire shelves, chrome side rack supports and heat-resistant tongs.
• Finishing and safety: A rear splashback panel and two anti-tilt chains for secure installation.

• Oven functions (specification sheet): Classic (lower, upper and light), grill, base heat, half fan grill, fan forced, fan assisted and defrost.
• Setting the oven: The oven only switches on after the temperature has been set with the temperature knob. Press buttons 2 and 3 on the programmer together to start the oven.
• Light: Turns the oven lamp on without heating, for example when washing the oven chamber.
• Classic convection: Top and bottom heaters for traditional baking, best for one dish at a time and suited to roasts, bread, cakes and fatty meats such as goose or duck. Use a single shelf level.
• Base heat: The bottom heater only, with a gentler browning effect that suits pies, tarts and pizzas.
• Fan assisted: Fan, bottom heater and top heater together for even cooking with complex recipes, effective for biscuits and cakes even on several levels.
• Fan forced: A heating element around the rear fan for the most uniform heating, with shorter preheating and cooking on two levels at once.
• Half fan grill: The grill with the fan softens the grill's intense heat, ideal for thick cuts of meat. Set the temperature to no more than 200°C.
• Grill and static grill: The grill, or the grill with the upper heater (double grill), gives more intense browning and suits larger portions. Set the temperature to 250°C.
• Defrost: Runs the rear fan only, to defrost food. When a fan function is selected with the temperature at zero, only the fan runs.
• Grilling guidance: Grill with the door closed and preheat for about 3 to 5 minutes. Oil the grill grid and place a drip tray on the level below.
• Programmer: Set the time of day, a timer from 1 minute to 23 hours 59 minutes, a semi-automatic cooking period or switch-off time of up to 10 hours, or an automatic start and stop. The alarm switches itself off after 7 minutes.
• Shelf levels: Five guide levels counted from the bottom upwards.
• Baking guide: Sponge cake 180–190°C for 30–40 minutes on level 2; pizza 220–240°C for 30–45 minutes on level 2; bread 200–220°C for 50–60 minutes on level 2.
• Grill guide: Two medium beefsteaks (400g) 240°C for 16–20 minutes on level 5; four grill sausages 240°C for 9–14 minutes on level 5; salmon fillets 240°C for 19–22 minutes on level 4; toast 240°C for 1.5–3 minutes on level 5.

• Brand: Artusi
• Model: AFE607W (White)
• Product type: 60cm freestanding electric cooker with solid hotplates and electric oven
• Cooktop: 4 EGO solid hotplates with knob control
• Hotplates: 2 x Ø145mm 1.0kW, 1 x Ø180mm 1.5kW, 1 x Ø180mm 2.0kW
• Hotplate power: 5.5kW
• Oven capacity: 65L gross
• Shelf heights: 5
• Oven functions: 7 functions
• Thermostat: 50–250°C
• Oven power: 2.0kW
• Oven lamp: 25W, single light
• Timer: Digital timer with electronic programmer
• Oven door: Triple-glazed glass, removable
• Finish: White enamel
• Storage: Drawer under the oven, with adjustable feet
• Accessories: Baking tray, 2 x wire shelves, chrome side rack supports, heat-resistant tongs
• Total main power: 7.5kW
• Supply: 380–415V 3N~ 50Hz, adaptable to 220–240V single-phase by bridging in the connection box
• Connection: Hard-wired, no cable supplied; H05VV-F5G1.5 cable for three-phase or H05VV-F3G4 for single-phase
• Standards: Complies with AS/NZS EN 50304 and AS/NZS 60335-1, 60335-2-6
• Warranty: 2 years parts and labour

• Qualified installation: All electrical work must be carried out by a suitably qualified and authorised electrician in line with the user manual.
• Electrical supply: Built for 380–415V 3N~ 50Hz, 7.5kW in total, with 220–240V heating elements. It can be adapted to single-phase 220–240V by bridging the terminals in the connection box as shown in the diagram.
• Earthing and isolation: The cooker must be earthed. The supply must include a safety switch that disconnects all poles with at least 3mm contact separation, and the connection cable must be secured in the strain-relief clamp. No cable is supplied.
• Ventilation: The kitchen should be dry and airy with effective ventilation, for example a ventilation grid or hood.
• Clearances: Leave about 2cm of free space around the cooker. The wall behind should resist high temperatures, as its back can warm to around 50°C above ambient.
• Furniture: Coatings and veneers on adjacent furniture must use heat-resistant adhesive rated to 100°C.
• Floor: Stand the cooker on a hard, even floor, not on a base.
• Levelling: Level the cooker before use. The adjustable feet are reached after removing the drawer, with an adjustment range of ±5mm.
• Anti-tilt chains: Secure the two chains at the rear of the cooker to the wall behind it, as short as practicable and diagonal to stop sideways movement.
• Splashback: Slide the lugs on the rear panel into the slots on the back of the cooker and fix with the screws provided.
• Position: Do not install it in the direct vicinity of a refrigerator or freezer, and keep access to the controls free.
• Indoor use: Intended for household use only.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Plan the electrics before you order. The cooker is built for a three-phase supply and 7.5kW in total, and Artusi's manual explains how to bridge the connection box for a single-phase 220–240V supply. It is supplied without a cable, so an electrician should confirm the right connection and cable for your switchboard.

Solid hotplates reward a little care. Use pans with thick, flat bases the same size as the plate, never place a large pot across two plates and do not leave the plates running without a pan. To keep the plates from rusting, rub on a thin coat of cooking oil or a hotplate protector after cleaning, since rust is not covered by the warranty. A little discolouration of the trim ring is normal.

For first use, wash the oven fittings with warm soapy water, ventilate the room and heat the empty oven at 250°C for about 30 minutes, with each hotplate also heated for about 4 minutes without a pan. Some smoke and a manufacturing odour are normal and fade within about 30 minutes. For everyday energy savings, switch the plates off 5 to 10 minutes before the end of long cooking times and use the residual heat.

• Cooker: Artusi AFE607W 60cm Freestanding Electric Cooker
• Oven accessories: Baking tray, 2 x wire shelves, chrome side rack supports and heat-resistant tongs
• Safety and finishing: Two anti-tilt chains and a rear splashback panel with fixing screws
• Storage: Drawer under the oven
• Feet: Adjustable feet
• Documentation: Instruction manual and warranty registration card
