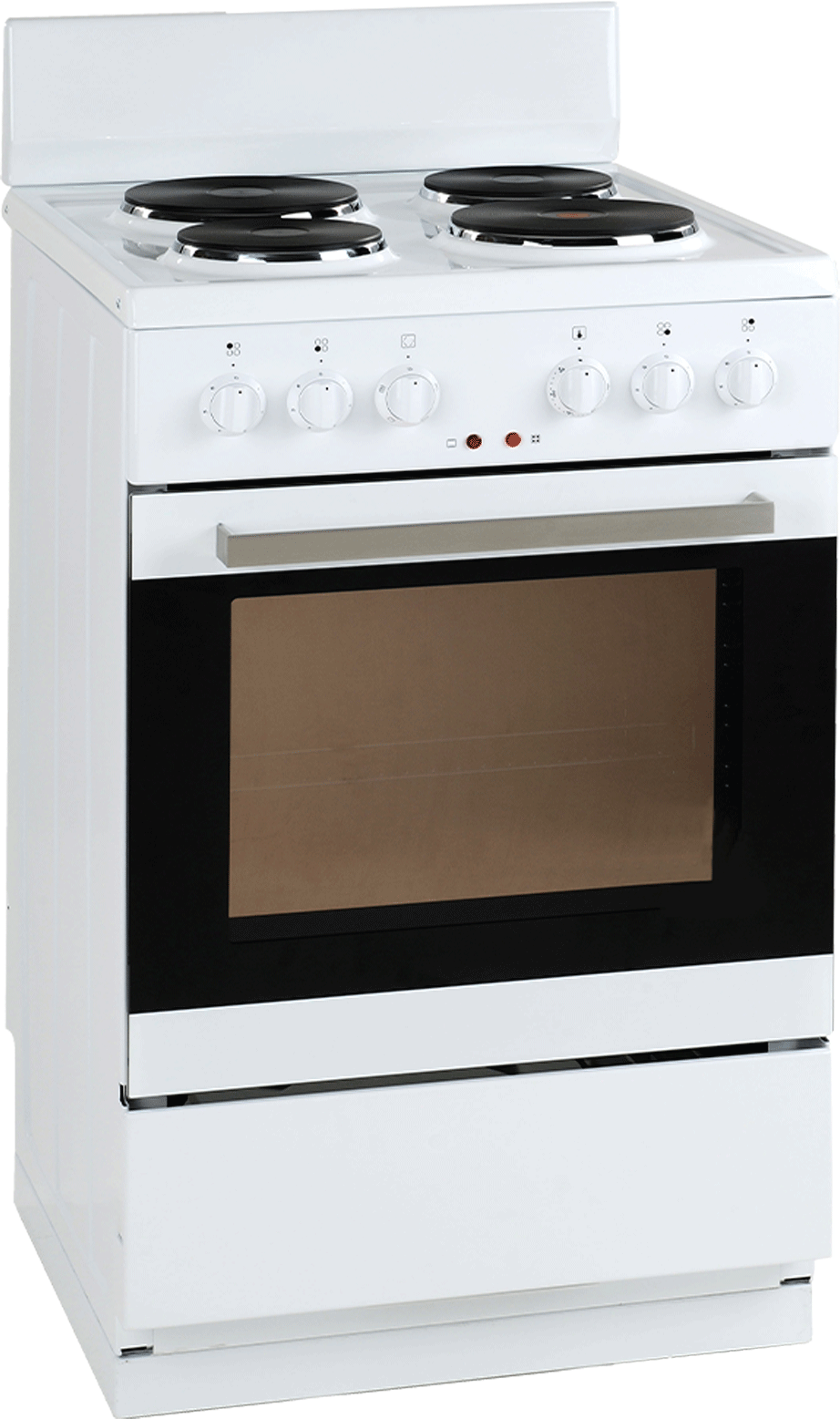

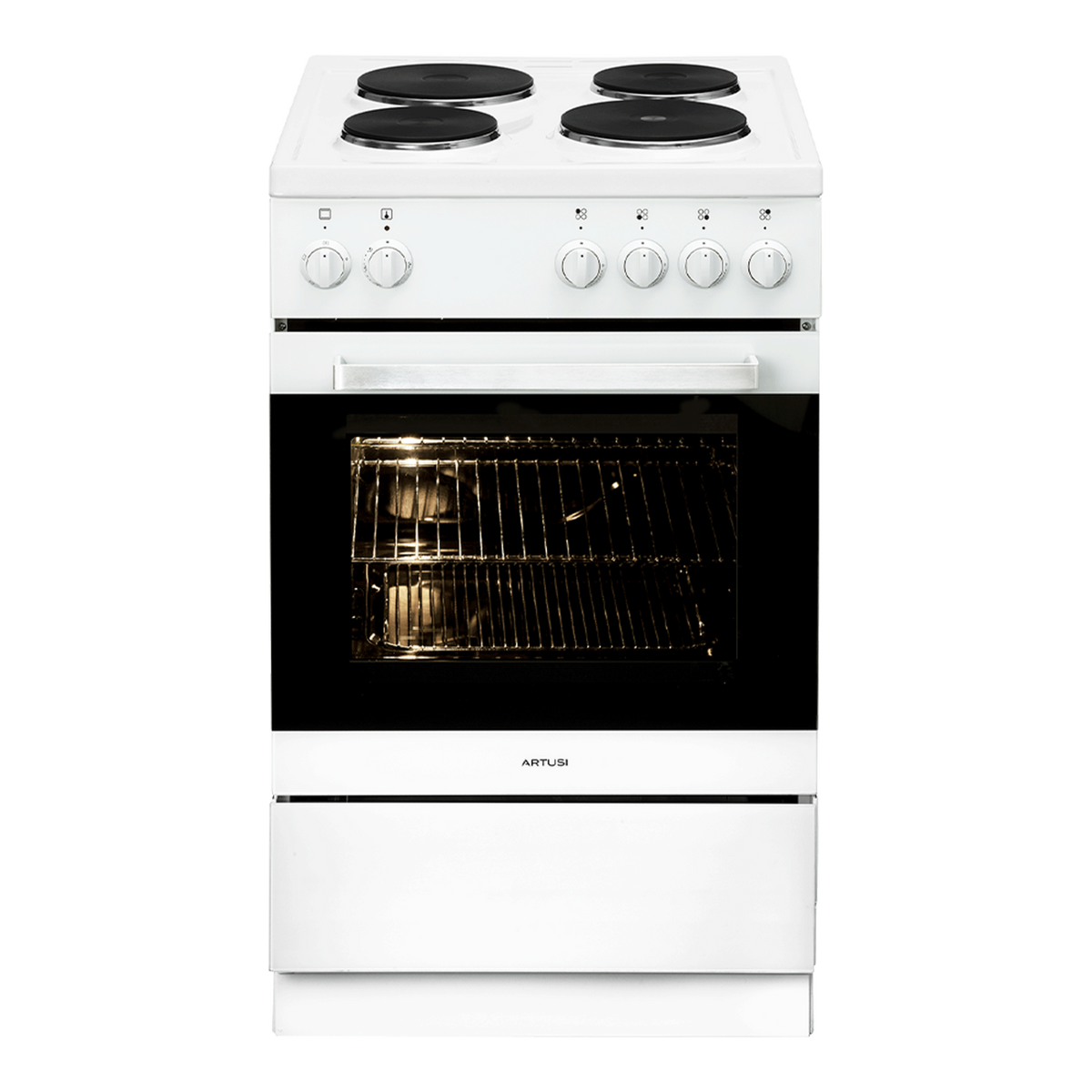

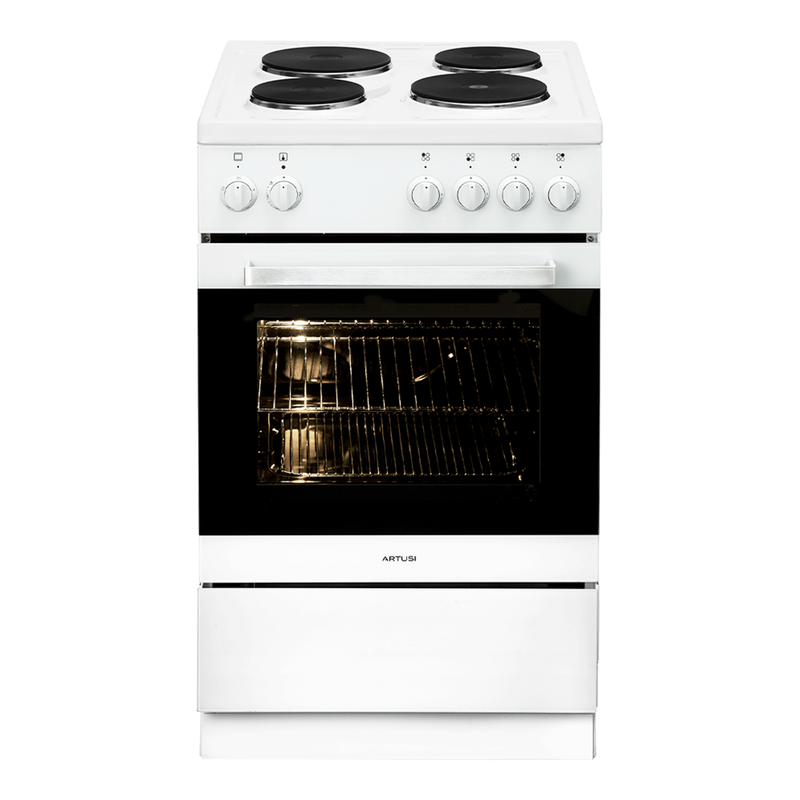

Artusi AFE544W 54cm Freestanding Electric Cooker With 4 Solid Hotplates

• Four solid EGO hotplates: Two 145mm 1.0kW plates, one 180mm 1.5kW plate and one 180mm 2.0kW rapid plate, for 5.5kW of hotplate power.
• Stepless plate control: Each plate has its own knob, adjusted gradually from minimum to maximum by turning left or right.
• 65L gross oven: A 58L net capacity with five shelf heights for everyday dishes.
• Four oven functions: Light, bottom element, top and bottom element, and grill with light.
• 50–250°C thermostat: A temperature regulating thermostat with an oven operation indicator light.
• Countdown timer: A timer with semi-automatic cooking so the oven switches off when the set time is up.
• Triple-glazed door: A triple-glazed glass door with a removable inner glass panel, and a door that lifts off for cleaning.
• White enamel finish: A clean, classic white enamel cooker.
• Compact 54cm width: A slimmer footprint for smaller kitchens, with adjustable feet for levelling.
• Included accessories: A baking tray, two grill racks, chrome side rack supports and heat-resistant tray handles.
• Finishing and safety: A rear splashback panel and two anti-tilt chains for secure installation.

• Oven functions (specification sheet): Light, bottom element, top and bottom element, and grill with light.
• Setting the oven: The oven only switches on after the temperature has been set with the temperature knob, which runs from 50°C to 250°C.
• Light: Turns the oven lamp on without heating, for example when washing the oven chamber.
• Bottom element (base heat): The bottom heater only, suited to pies, tarts and pizzas where a gentler browning effect is wanted.
• Top and bottom element (classic convection): Heat from above and below for conventional baking, best for one dish at a time on a single shelf level.
• Grill with light: The infrared grill element for steaks, sausages, fish fillets and toast. Set the temperature to 250°C, preheat for about 5 minutes with the door shut, and grill with the door closed.
• Grilling guidance: Oil the grill grid and place a drip tray on the level below the grate, turning the food halfway through.
• Countdown timer and semi-automatic cooking: Set a timer of up to 23 hours 59 minutes, or a cooking time or end-of-cooking time within 10 hours so the oven switches off automatically.
• Shelf levels: Five guide levels counted from the bottom upwards.
• Baking guide: Sponge cake 180–190°C for 30–40 minutes on level 2; pizza 220–240°C for 30–45 minutes on level 2; bread 200–220°C for 50–60 minutes on level 2.
• Grill guide: Two medium beefsteaks (400g) 240°C for 16–20 minutes on level 5; four grill sausages 240°C for 9–14 minutes on level 5; salmon fillets 240°C for 19–22 minutes on level 4; toast 240°C for 1.5–3 minutes on level 5.

• Brand: Artusi
• Model: AFE544W (White)
• Product type: 54cm freestanding electric cooker with solid hotplates and electric oven
• Cooktop: 4 EGO hotplates with knob control
• Hotplates: 2 x Ø145mm 1.0kW, 1 x Ø180mm 1.5kW, 1 x Ø180mm 2.0kW
• Hotplate power: 5.5kW
• Oven capacity: 65L gross (58L net)
• Shelf heights: 5
• Oven functions: 4 functions
• Thermostat: 50–250°C
• Oven power: 2.0kW
• Oven lamp: 25W, single light
• Timer: Countdown timer with semi-automatic programmability
• Oven door: Triple-glazed glass, removable
• Finish: White enamel
• Accessories: Baking tray, 2 x grill racks, chrome side rack supports, heat-resistant tray handles
• Total main power: 7.5kW (31.25A)
• Supply: 380–415V 3N~ 50Hz, adaptable to 220–240V single-phase by bridging in the connection box
• Connection: Hard-wired, no cable supplied; H05VV-F5G1.5 cable for three-phase or H05VV-F3G4 for single-phase
• Net weight: 43kg
• Standards: Complies with AS/NZS EN 50304 and AS/NZS 60335-1, 60335-2-6
• Warranty: 2 years parts and labour

• Qualified installation: All electrical work must be carried out by a suitably qualified and authorised electrician in line with the user manual.
• Electrical supply: Built for 380–415V 3N~ 50Hz, 7.5kW in total, with 220–240V heating elements. It can be adapted to single-phase 220–240V by bridging the terminals in the connection box as shown in the diagram.
• Earthing and isolation: The cooker must be earthed. The fixed supply must include an all-pole disconnection device, and the connection cable must be secured in the strain-relief clamp. No cable is supplied.
• Ventilation: The kitchen should be dry and airy with effective ventilation, for example a ventilation grid or hood.
• Clearances: Leave about 2cm of free space around the cooker. The wall behind should resist high temperatures, as its back can warm to around 50°C above ambient.
• Furniture: Coatings and veneers on adjacent furniture must use heat-resistant adhesive rated to 100°C.
• Floor: Stand the cooker on a hard, even floor, not on a base.
• Levelling: Level the cooker before use. The adjustable feet are reached after removing the drawer, with an adjustment range of ±5mm.
• Anti-tilt chains: Secure the two chains at the rear of the cooker to the wall behind it, as short as practicable and diagonal to stop sideways movement.
• Splashback: The splashback is fixed to the rear wall of the cooker for transport. Remove it before installation and fit it to the rear of the cooktop section.
• Position: Do not install it in the direct vicinity of a refrigerator or freezer, and keep access to the controls free.
• Indoor use: Intended for household use only.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Measure your gap before you order. At 540mm wide, the AFE544W suits cabinetry openings made for 54cm cookers and is slimmer than a standard 60cm cooker, so it is not a drop-in swap for a wider model without checking the cut-out. The oven is a simpler four-function design, which makes it easy to use and a good match for straightforward baking, roasting and grilling.

Plan the electrics before you order. The cooker is built for a three-phase supply and 7.5kW in total, and the manual explains how to bridge the connection box for a single-phase 220–240V supply. It is supplied without a cable, so an electrician should confirm the right connection and cable for your switchboard.

For first use, wash the oven fittings with warm soapy water, ventilate the room and heat the empty oven at 250°C for about 30 minutes, with each hotplate also heated for about 4 minutes without a pan. Some smoke and a manufacturing odour are normal and fade within about 30 minutes. Use pans with thick, flat bases the same size as the plate, never place a large pot across two plates, and switch the plates off 5 to 10 minutes before the end of long cooking times to use the residual heat.

• Cooker: Artusi AFE544W 54cm Freestanding Electric Cooker
• Oven accessories: Baking tray, 2 x grill racks, chrome side rack supports and heat-resistant tray handles
• Safety and finishing: Two anti-tilt chains and a rear splashback panel with fixing screws
• Feet: Adjustable feet
• Documentation: Operation manual and warranty registration card
