Artusi AFC607 60cm Freestanding Electric Cooker With Ceramic Cooktop

• Four-zone ceramic cooktop: Two 145mm 1.2kW and two 180mm 1.8kW Hi-light heating zones for cooking several dishes at once.

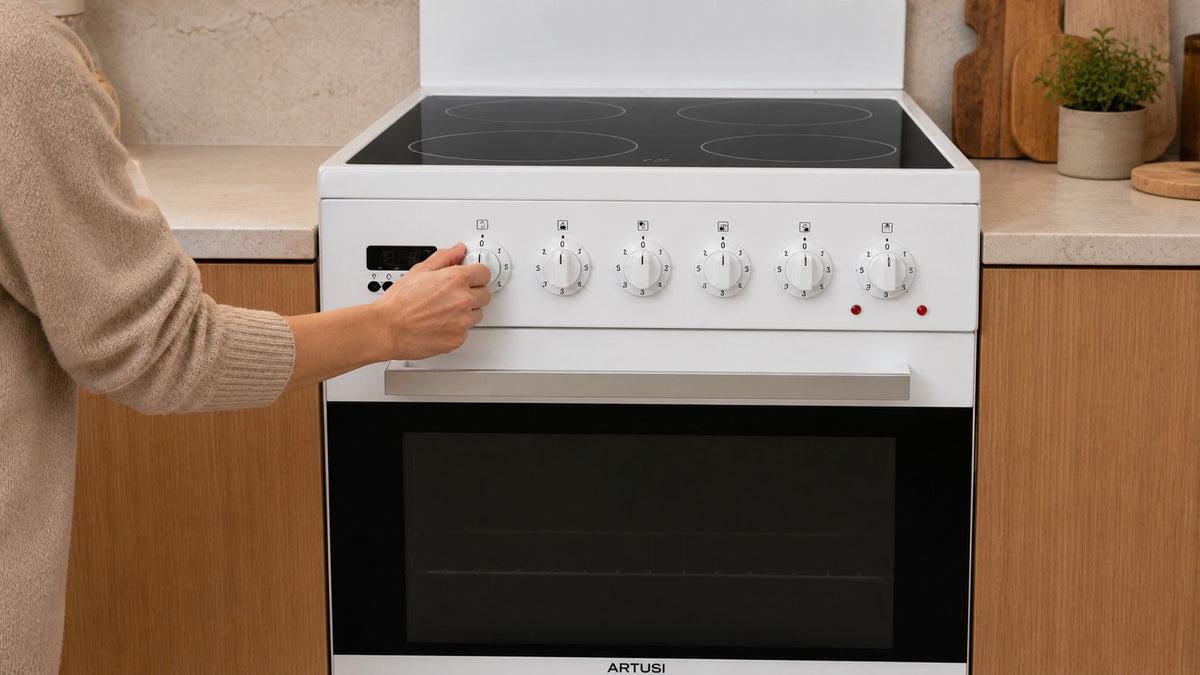

• Nine-step zone control: Each zone has its own knob with heat levels from 1 to 9, adjusted gradually by turning left or right.
• Zone heating indicators: A light comes on when a zone exceeds 65°C, and residual heat stays usable for 5 to 10 minutes after switching off.
• 61L gross oven: A 44cm wide x 41.5cm deep x 33.5cm high cavity with five shelf heights.
• Seven oven functions: Upper and lower heat, electric grill, base heat, fan grill, fan assisted, fan with base heat and fan with light for defrosting.
• 50–250°C thermostat: A temperature knob and oven heat indicator for accurate control.
• Digital programmer: A clock with minute minder timer, semi-automatic cooking time or finishing time of up to 10 hours and fully automatic start and stop. The AFC607B has a pre-programmable timer with the same functions.
• Triple-glazed door: A triple-glazed glass door with a removable inner glass panel, and a door that lifts off for cleaning.
• Included accessories: A baking tray, two chrome-wire shelves, chrome side rack supports and heat-resistant tray handles (the AFC607B tray comes with a grill insert).
• Slide-out drawer: A storage drawer under the oven, with adjustable feet accessible once it is removed.
• Finishing and safety: A rear splashback panel and two anti-tilt chains for secure installation.

• Oven functions (specification sheet): Upper and lower heat (conventional cooking), electric grill, base heat, fan grill, fan assisted, fan with base heat and fan with light.
• Base heat: Activates the bottom heater only.
• Fan, bottom and top heater: Runs the fan with both heaters for cake baking, like a conventional oven with a fan.
• Fan assisted: Rear heater and rear fan heat the oven in a forced way, shortening heat-up time and allowing baking on two levels at once.
• Half fan grill: The grill and fan together for grilling; set the temperature to no more than 200°C.
• Classic convection: Top and bottom heat for conventional baking, especially suited to dry pastry, bread and teacakes. Use a single shelf level.
• Static grill (double grill): The grill and the top heater together for more intense browning and larger portions. Set the temperature to 250°C.
• Defrost: Runs the rear fan only, to defrost food or cool the dish or oven chamber. When a fan function is selected with the temperature at zero, only the fan runs.
• Grilling guidance: Grill with the oven door closed and preheat for about 3 to 5 minutes. Oil the grill grid and place a drip tray on the level below.
• Cooktop heat levels: 1–2 keep warm and cook small quantities slowly; 3 slow cooking; 4–5 slow cooking large quantities; 6 frying and soup bases; 7–8 frying; 9 boiling, browning and frying at maximum power.
• Digital programmer (AFC607B: pre-programmable timer): Set the time of day, a timer from 1 minute to 23 hours 59 minutes, a semi-automatic cooking period or switch-off time of up to 10 hours, or an automatic start and stop. The alarm switches itself off after 7 minutes.
• Shelf levels: Five guide levels counted from the bottom upwards.
• Baking guide: Sponge cake 180–190°C for 30–40 minutes on level 2; pizza 220–240°C for 30–45 minutes on level 2; bread 200–220°C for 50–60 minutes on level 2.
• Grill guide: Two medium beefsteaks (400g) 240°C for 16–20 minutes on level 5; four grill sausages 240°C for 9–14 minutes on level 5; salmon fillets 240°C for 19–22 minutes on level 4; toast 240°C for 1.5–3 minutes on level 5.

• Brand: Artusi

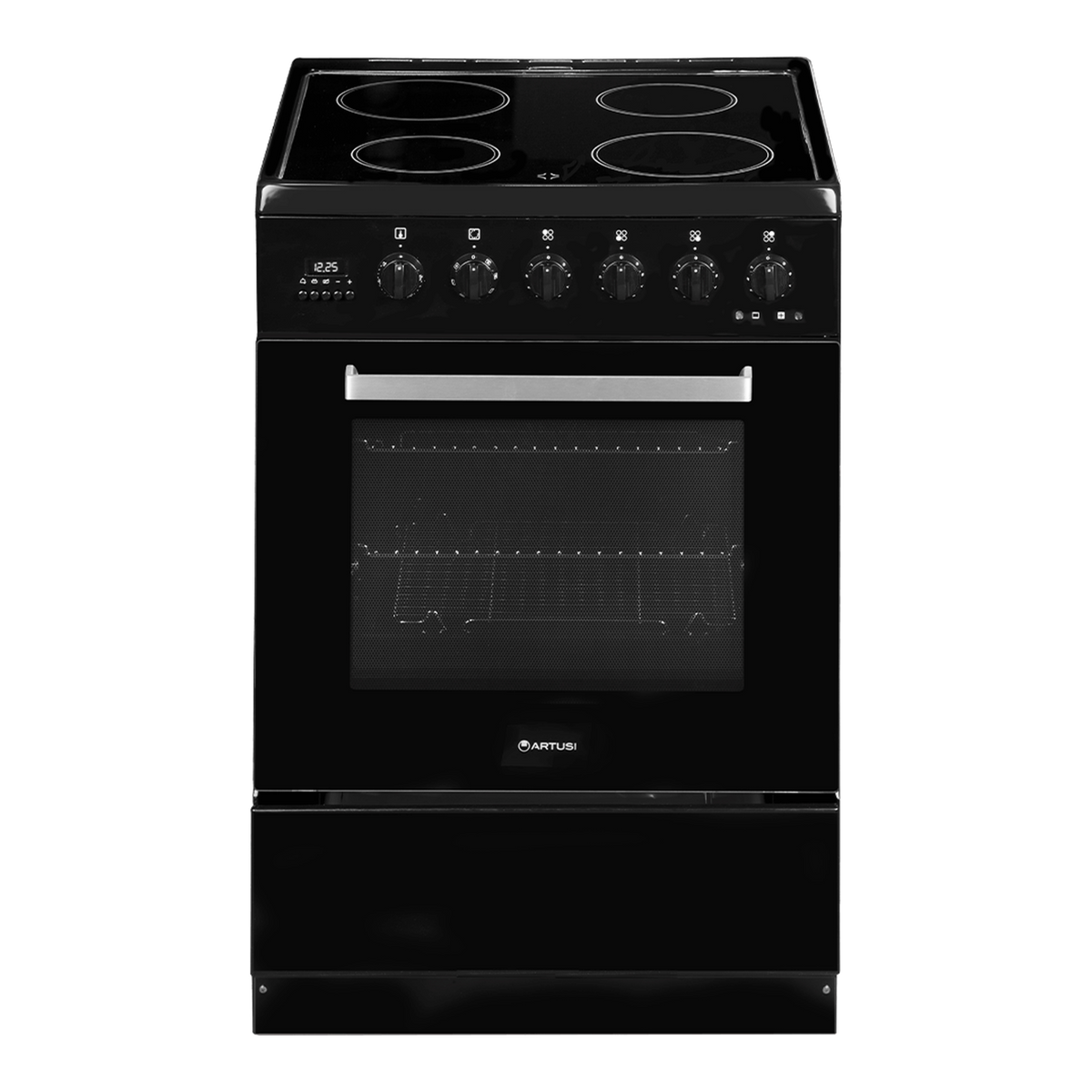

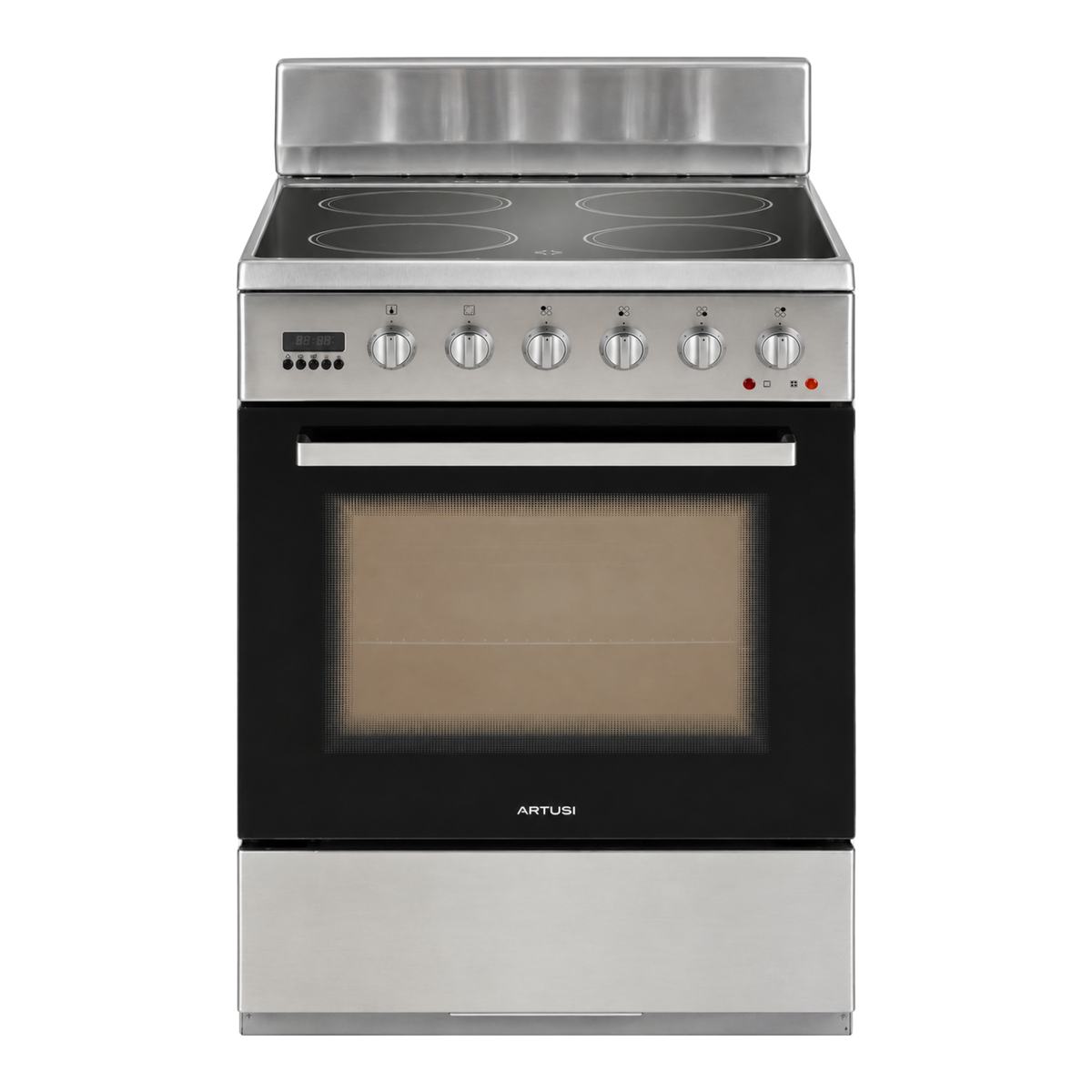

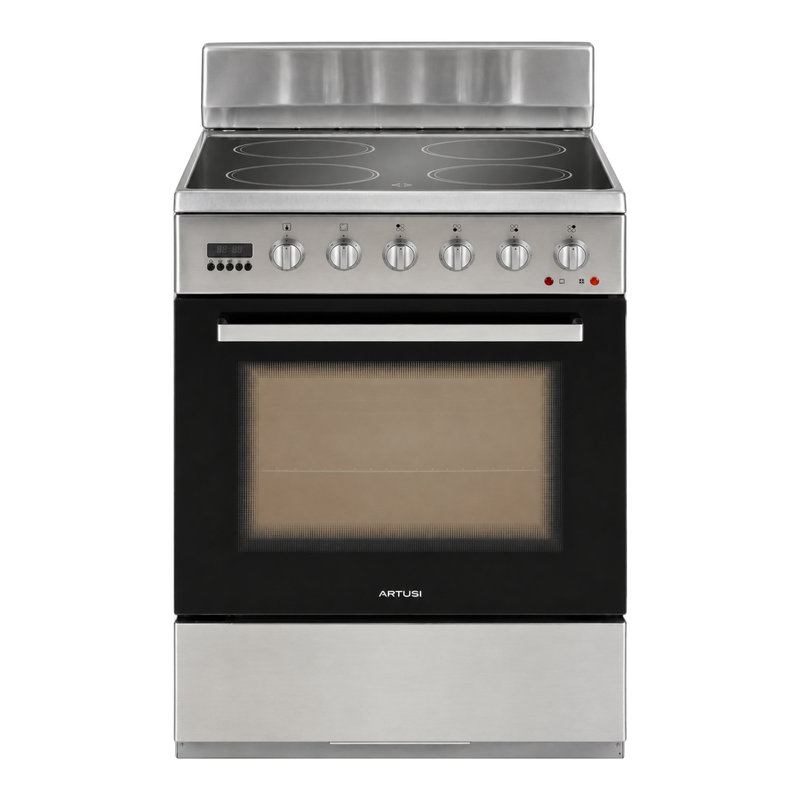

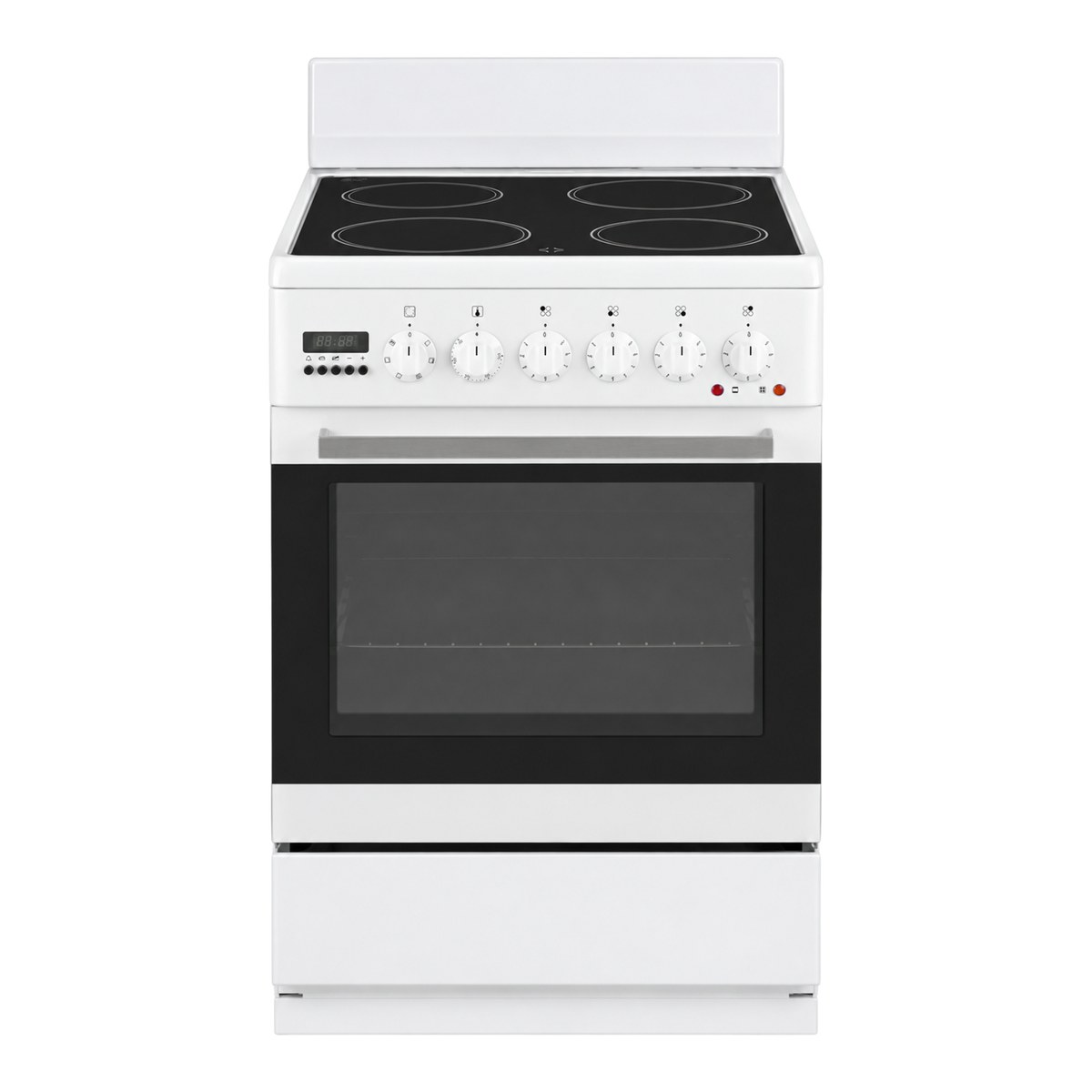

• Models: AFC607X (Stainless Steel), AFC607W (White), AFC607B (Gloss Black)
• Product type: Freestanding electric cooker with ceramic cooktop and electric oven
• Cooktop: 4-zone ceramic Hi-light cooktop with knob control
• Cooking zones: 2 x Ø145mm 1.2kW, 2 x Ø180mm 1.8kW
• Hotplate power: 6.0kW
• Oven capacity: 61L gross
• Oven cavity: 44cm wide x 41.5cm deep x 33.5cm high
• Shelf heights: 5
• Oven functions: 7 functions
• Thermostat: 50°C to 250°C with oven heat indicator
• Oven power: 2.0kW
• Oven lamp: 25W
• Timer: Digital programmer (AFC607X/W) or pre-programmable timer (AFC607B) with clock, timer and semi-automatic and automatic cooking
• Oven door: Triple-glazed glass, removable
• Finish: AFC607X stainless steel; AFC607W white enamel; AFC607B black glass with stainless steel handle
• Accessories: Baking tray (AFC607B: with grill insert), 2 x chrome-wire shelves, chrome side rack supports, heat-resistant tray handles
• Total power: 8.0kW
• Supply: 380–415V 3N~ 50Hz, adaptable to 220–240V single-phase by bridging in the connection box
• Connection: Hard-wired; H05VV-F5G1.5 cable for three-phase or H05VV-F3G4 for single-phase
• Standards: Complies with AS/NZS EN 50304 and AS/NZS 60335-1, 60335-2-6
• Warranty: 2 years parts and labour

• Qualified installation: All electrical work must be carried out by a suitably qualified and authorised electrician in line with the user manual.
• Electrical supply: Built for 380–415V 3N~ 50Hz, 8.0kW in total, with 220–240V heating elements. It can be adapted to single-phase 220–240V by bridging the terminals in the connection box as shown in the diagram.
• Earthing and isolation: The cooker must be earthed. The fixed supply must include an all-pole disconnection device, and the connection cable must be secured in the strain-relief clamp.
• Ventilation: The kitchen should be dry and airy with effective ventilation, for example a ventilation grid or hood.
• Clearances: Leave about 2cm of free space around the cooker. The wall behind should resist high temperatures, as its back can warm to around 50°C above ambient.
• Furniture: Coatings and veneers on adjacent furniture must use heat-resistant adhesive rated to 100°C.
• Floor: Stand the cooker on a hard, even floor, not on a base.
• Levelling: Level the cooker before use. The adjustable feet are reached after removing the drawer, with an adjustment range of ±5mm.
• Anti-tilt chains: Secure the two chains at the rear of the cooker to the wall behind it, as short as practicable and diagonal to stop sideways movement.
• Splashback: Slide the lugs on the rear panel into the slots on the back of the cooker and fix with the screws provided.
• Position: Do not install it in the direct vicinity of a refrigerator or freezer, and keep access to the controls free.
• Indoor use: Intended for household use only.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Plan the electrics before you order. The cooker is built for a three-phase supply and 8.0kW in total, and Artusi's manual explains how to bridge the connection box for a single-phase 220–240V supply. An electrician should confirm which connection suits your switchboard, and the supply cable size depends on the connection type.

The ceramic cooktop rewards the right cookware. Choose pans with thick, even, flat bases at least as large as the heating zone, avoid concave or convex bases and pans with sharp edges, and do not put pans with a wet bottom on a warm zone. Do not switch a zone on until a pan is on it. Pans over 25kg should not be placed on the cooktop and pans over 15kg should not be placed on the opened oven door.

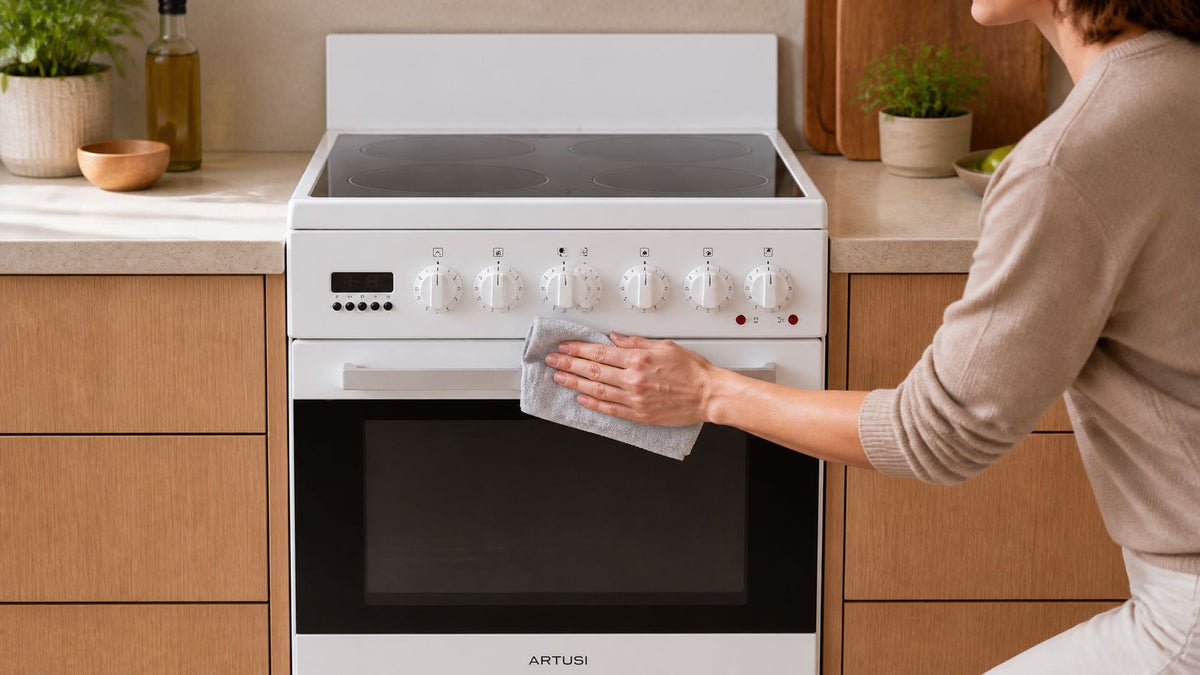

For first use, wash the oven fittings with warm soapy water, ventilate the room and heat the empty oven at 250°C for about 30 minutes, with each hotplate also heated for about 4 minutes without a pan. Some smoke and a manufacturing odour are normal and fade within about 30 minutes. For everyday energy savings, switch the oven off about 10 minutes before the end of long cooking times and use the residual heat. All three finishes share the same oven and cooktop, so the choice comes down to your kitchen's look. A Gloss Black glass front (AFC607B) shows fingerprints and splashes more than enamel, so a quick wipe with a soft cloth keeps it looking its best.

• Cooker: Artusi AFC607 60cm Freestanding Electric Cooker (AFC607X, AFC607W or AFC607B)
• Oven accessories: Baking tray (AFC607B: with grill insert), 2 x chrome-wire shelves, chrome side rack supports and heat-resistant tray handles
• Safety and finishing: Two anti-tilt chains and a rear splashback panel with fixing screws
• Storage: Slide-out drawer
• Feet: Adjustable feet
• Documentation: Instruction manual and warranty registration card
