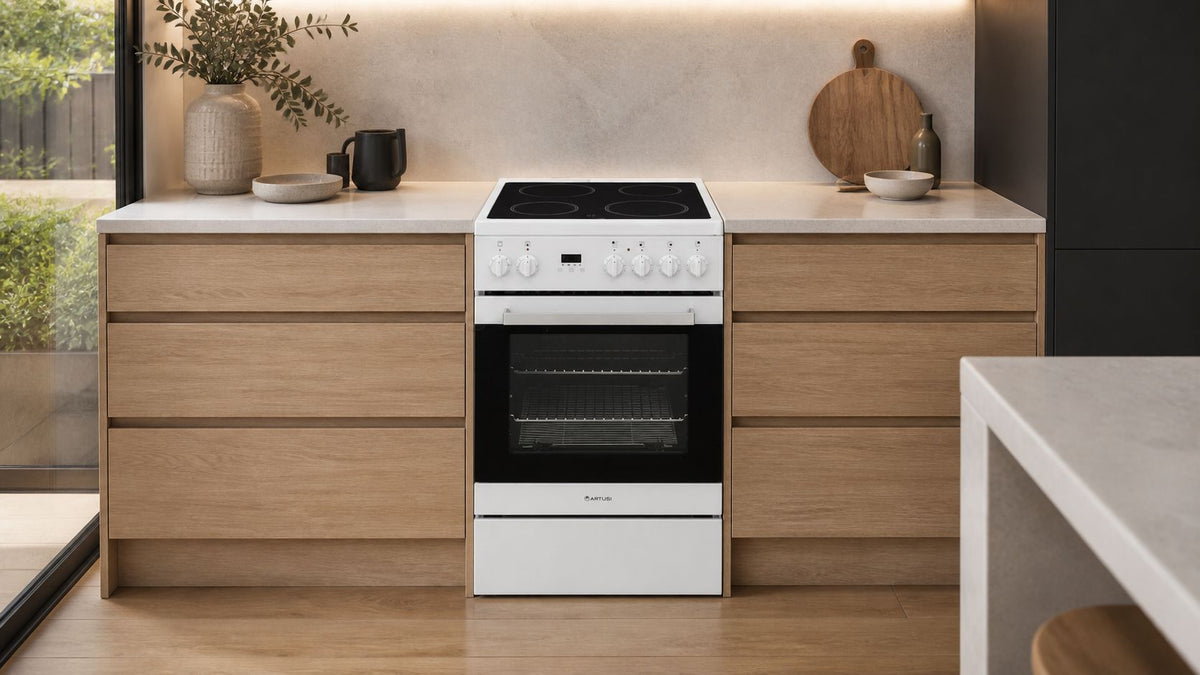

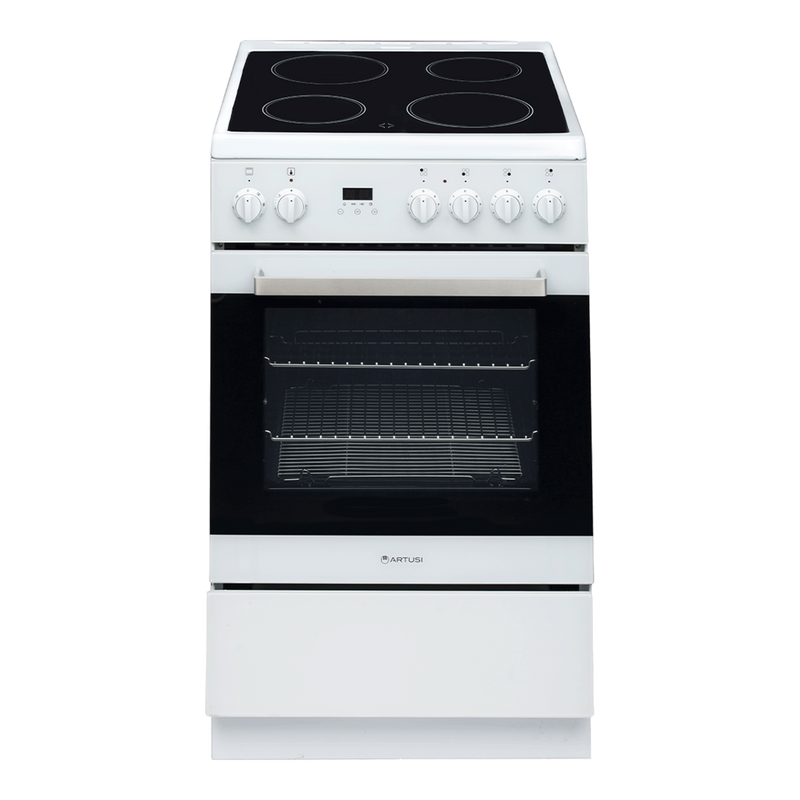

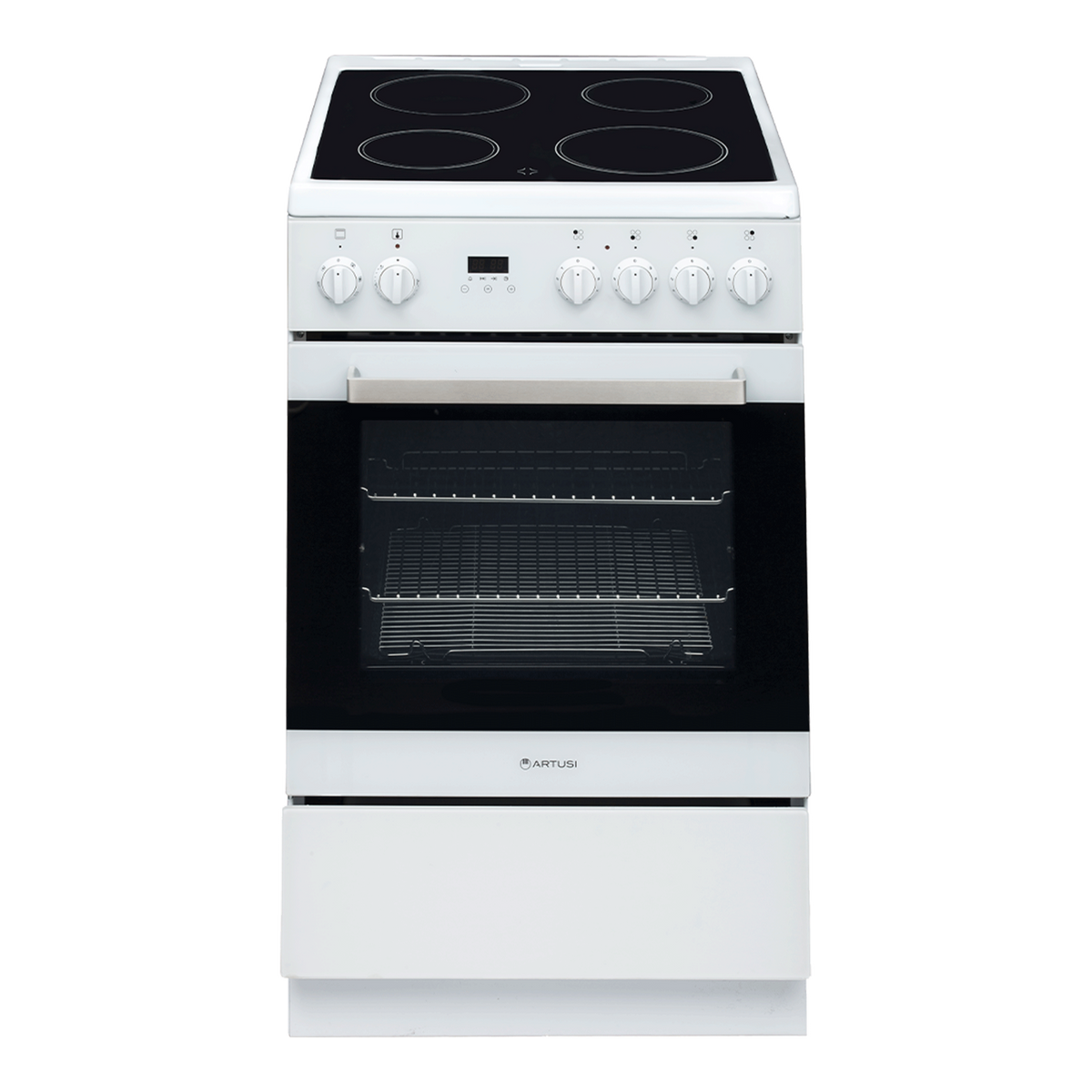

Artusi AFC547W 54cm Freestanding Electric Cooker With Ceramic Cooktop

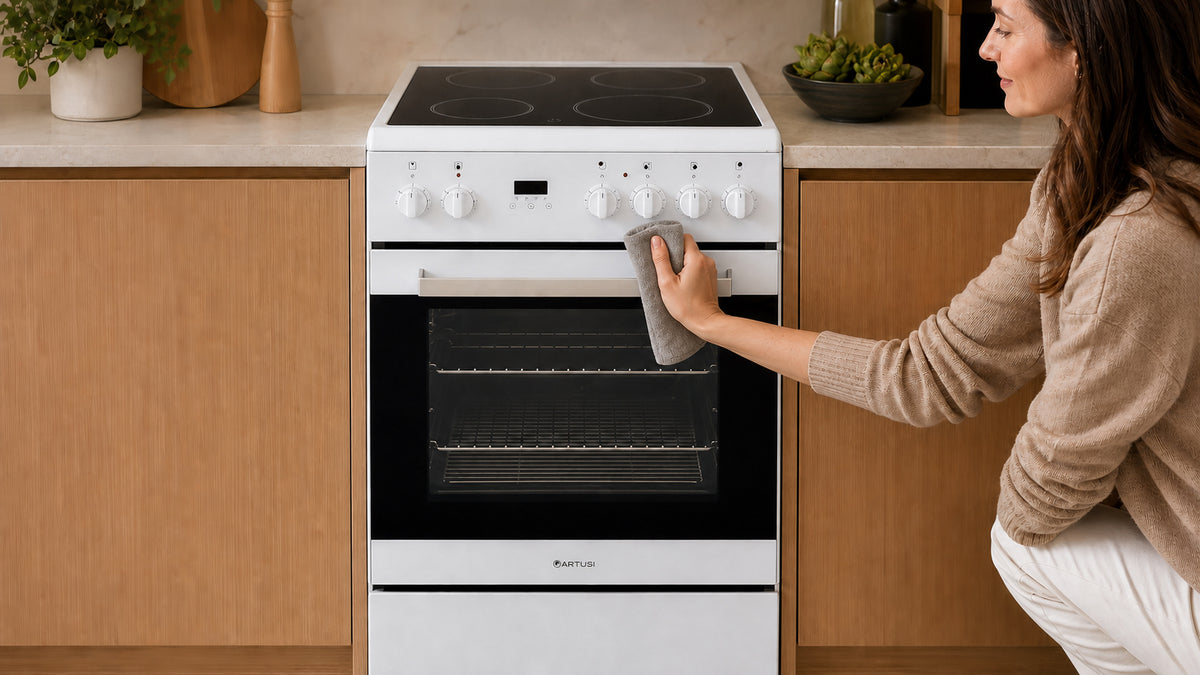

• Ceramic glass cooktop: A flat Schott glass hob with four cooking zones that wipes clean in moments.
• Four cooking zones: Two Ø145mm 1.2kW zones and two Ø180mm 1.8kW zones, for 6.0kW of hob power.

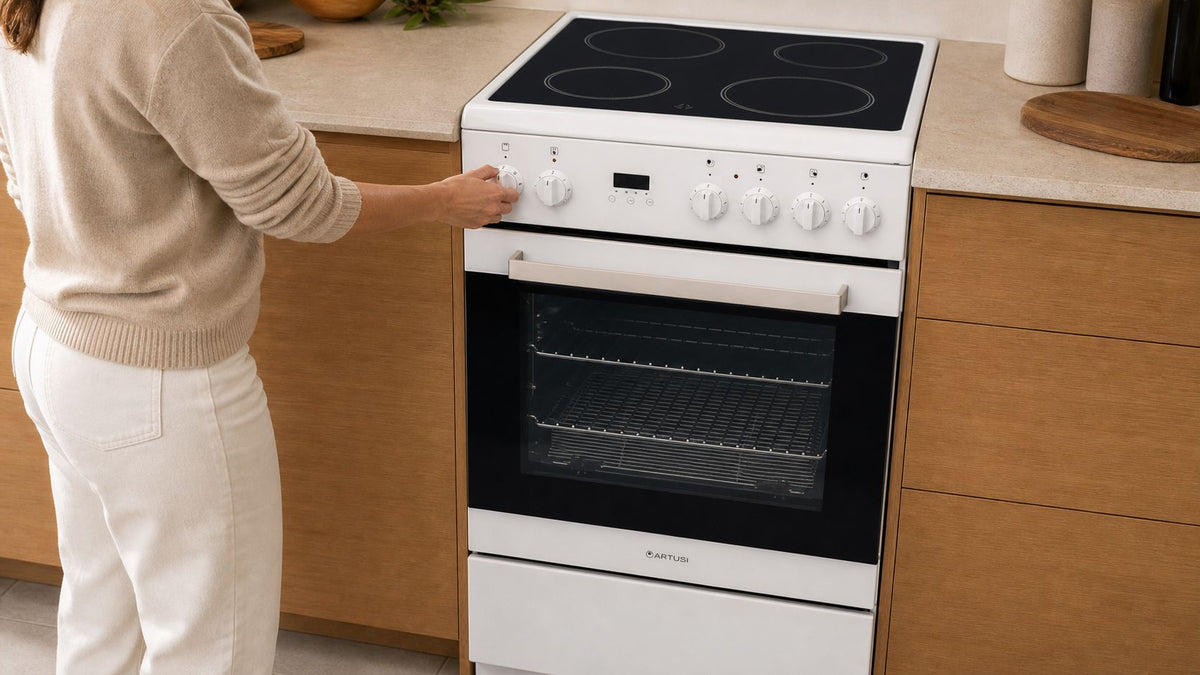

• Individual zone knobs: Each zone has its own control, adjusted gradually through nine heat levels from gentle warming to maximum power.
• Hot zone indicators: A light shows when a zone is above 65°C and stays on while residual heat remains.
• Energy regulator switch: A regulator switch for the Ceran hob helps manage zone power.

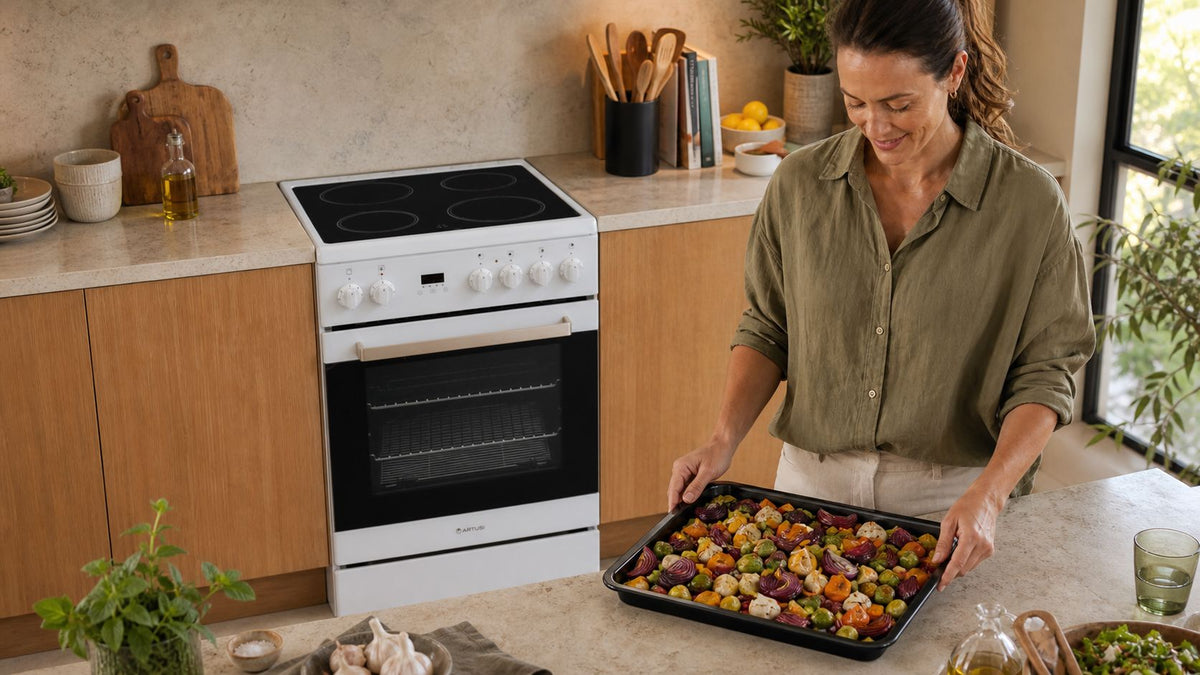

• 65L oven: Five cooking levels for everyday dishes and batch baking.
• Seven oven functions: Lower and upper element, upper element plus grill, lower element, fan grill, fan forced, fan assisted and defrost, with an oven lamp.
• 50–250°C thermostat: Knob control with a power light and an oven operation indicator.
• Electronic programmer: A clock, minute minder and cooking time or end-of-cooking-time setting so the oven switches off automatically.
• Triple-glazed door: A triple-glazed glass door with a removable inner glass panel, and a door that lifts off for cleaning.
• Storage drawer and feet: A handy storage drawer and adjustable feet for levelling.
• Brilliant white finish: A bright, classic white cooker with a compact 54cm width and included grill rack and heat-resistant tongs.

• Oven functions (specification sheet): Lower and upper element, upper element plus grill, lower element, fan grill, fan forced, fan assisted, defrost and oven lamp.
• Setting the oven: The oven only switches on after the temperature has been set with the temperature knob, which runs from 50°C to 250°C.
• Base heat (lower element): The bottom heater only, for pies, tarts and pizzas where a gentler browning effect is wanted.
• Classic convection (lower and upper element): Heat from above and below for conventional baking.
• Static grill (upper element + grill): The grill and top heater together for more intense browning and larger portions. Set 250°C.
• Half fan grill (fan grill): The grill with the fan, which speeds the process and improves the taste of the dish. Set a maximum of 200°C.
• Fan assisted (fan + bottom + top heater): The cake function, a conventional oven with a fan.
• Fan forced (rear heat + rear fan): Heats the oven with the thermofan to shorten heat-up time, with the option to bake on two levels at once.
• Defrost (rear fan only): Circulates air without heat for defrosting, or to cool a dish or the oven chamber.
• Hob heat levels: Settings run from 0 (off, using residual heat) through low levels for keeping warm and slow cooking, to the middle levels for frying and soup bases and 9 for boiling and browning at maximum power.
• Electronic programmer: Set the clock, a countdown timer, a cooking time or an end-of-cooking-time up to 10 hours, and the oven switches off automatically. The alarm turns off after 2 minutes.
• Grilling guidance: Grill with the door closed, preheat for about 5 minutes, oil the grill grid and place a drip tray on the level below.
• Shelf levels: Five guide levels counted from the bottom upwards.
• Baking guide: Sponge cake 180–190°C for 30–40 minutes on level 2; pizza 220–240°C for 30–45 minutes on level 2; bread 200–220°C for 50–60 minutes on level 2.
• Grill guide: Two medium beefsteaks (400g) 240°C for 16–20 minutes on level 5; four grill sausages 240°C for 9–14 minutes on level 5; salmon fillets 240°C for 19–22 minutes on level 4; toast 240°C for 1.5–3 minutes on level 5.

• Brand: Artusi
• Model: AFC547W (White)
• Product type: 54cm freestanding electric cooker with ceramic cooktop and electric oven
• Cooktop: Schott ceramic glass hob with 4 cooking zones and knob control
• Cooking zones: 2 x Ø145mm 1.2kW, 2 x Ø180mm 1.8kW
• Hob power: 6.0kW
• Oven capacity: 65L
• Cooking levels: 5
• Oven functions: 7 functions plus oven lamp
• Thermostat: 50–250°C
• Oven power: 2.0kW
• Oven lamp: 25W, G9
• Programmer: Electronic programmer with clock, timer and automatic cooking
• Oven door: Triple-glazed glass, removable
• Finish: Brilliant White
• Accessories: Grill rack, heat-resistant tongs
• Total main power: 8.0kW
• Supply: 380–415V 3N~ 50Hz, adaptable to 220–240V single-phase by bridging in the connection box
• Connection: Hard-wired; H05VV-F5G1.5 cable for three-phase or H05VV-F3G4 for single-phase
• Standards: Complies with AS/NZS EN 50304 and AS/NZS 60335-1, 60335-2-6
• Warranty: 2 years parts and labour

• Qualified installation: All electrical work must be carried out by a suitably qualified and authorised electrician in line with the user manual.
• Electrical supply: Built for 380–415V 3N~ 50Hz, 8.0kW in total, with 220–240V heating elements. It can be adapted to single-phase 220–240V by bridging the terminals in the connection box as shown in the diagram.
• Earthing and isolation: The safety wire must be connected to the earth terminal. The fixed supply must include an all-pole disconnection device, and the connection cable must be secured in the strain-relief clamp.
• Ventilation: The kitchen should be dry and airy with effective ventilation, for example a ventilation grid or hood.
• Clearances: Leave about 2cm of free space around the cooker. The wall behind should resist high temperatures, as its back can warm to around 50°C above ambient.
• Furniture: Coatings and veneers on adjacent furniture must use heat-resistant adhesive rated to 100°C.
• Floor: Stand the cooker on a hard, even floor, not on a base.
• Levelling: Level the cooker before use. The adjustable feet are reached after removing the drawer, with an adjustment range of ±5mm.
• Anti-tilt chains: Secure the two chains at the rear of the cooker to the wall behind it, as short as practicable and diagonal to stop sideways movement.
• Splashback: The splashback is fixed to the rear wall of the cooker for transport. Remove it before installation and fit it to the rear of the cooktop section.
• Position: Do not install it in the direct vicinity of a refrigerator or freezer, and keep access to the controls free.
• Indoor use: Intended for household use only.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

Check the gap and the switchboard before you order. At 540mm wide, the AFC547W suits cut-outs made for 54cm cookers and is not a drop-in swap for a 60cm model. It is built for three-phase 8.0kW with a bridging option for single-phase 220–240V, so an electrician should confirm the connection and cable for your home.

The flat glass hob makes cleaning easy, but it rewards the right pans. Choose thick, flat-based pans at least as large as the zone, never concave or convex, and avoid putting wet-bottomed pans on a warm zone. Switch zones off 5 to 10 minutes before the end of long cooking times to use the residual heat.

For first use, wash the oven fittings with warm soapy water, ventilate the room and heat the empty oven at 250°C for about 30 minutes, then heat each hob zone for about 4 minutes without a pan. Some smoke and a manufacturing odour are normal and fade within about 30 minutes. The cooker must be secured with its anti-tilt chains.

• Cooker: Artusi AFC547W 54cm Freestanding Electric Cooker
• Oven accessories: Grill rack and heat-resistant tongs
• Safety and finishing: Two anti-tilt chains and a rear splashback panel with fixing screws
• Feet: Adjustable feet
• Documentation: Operation manual and warranty registration card
