Artusi AFBM462X 70cm Bottom Mount Fridge & Freezer

• Bottom mount design: The freezer sits below, so the fridge is at eye level.
• 405L net capacity: A 303L fridge and a 102L freezer.
• Multi Cooling: Even cooling through the fridge and freezer.
• Fresh Zone chiller: A chill drawer keeps meat, fish and chicken colder.
• Freezer Shield: Helps keep frozen food in good condition even in a cooler room.
• Natural Ion Technology: Helps keep the air inside the fridge fresh.
• Maxi Fresh Preserver: A special filter helps keep produce fresh for longer.
• LCD display: Set the temperatures and modes from the display, with ECO, Super Cool, Super Freeze, Holiday and Child Lock.

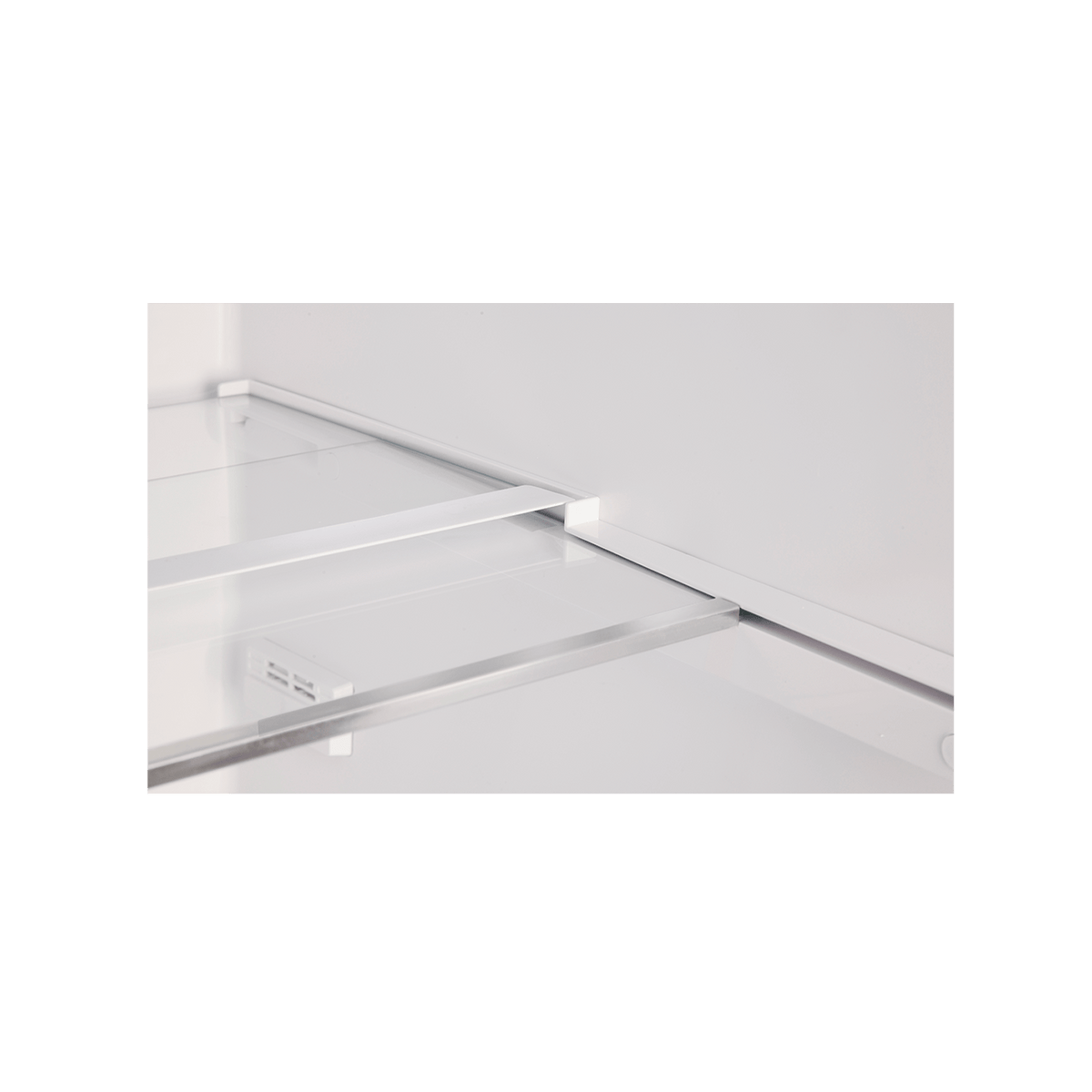

• Tempered glass shelves: Two adjustable shelves and a retractable shelf.
• Crisper with humidity control: A vegetable box with a humidity controller keeps fruit and vegetables fresh.
• Integrated finger-pull handle: A clean front with no handle sticking out.
• Zero-clearance door: The door opens in a tight space.
• Freezing capacity: Freeze up to 8 kg of fresh food in 24 hours.
• Door-open alarm: An alarm sounds if a door is left open.

• Freezer temperature: Choose -16, -18, -20, -22 or -24°C, or switch on Super Freeze.
• Fridge temperature: Choose 8, 6, 5, 4 or 2°C, or switch on Super Cool.
• Eco mode: Runs the appliance with lower energy use. It cannot be combined with Holiday.
• Holiday: Sets the freezer to -18°C while you are away, and the fridge display shows '--'. Super modes cancel it.
• Drink Cool: Hold the mode and screen buttons for 5 seconds to set a timer from 5 to 30 minutes. Check the bottles so they do not freeze and burst.
• Child Lock: Hold the lock button for 5 seconds to lock or unlock the controls.
• Screen Saver: The display switches to a screen saver after 30 seconds. Hold the mode button for 3 seconds to turn this on or off.
• Door-open alarm: An alarm sounds if a door is left open for more than 2 minutes.
• Fresh Dial: Open the dial on the crisper if it is very full or if condensation forms.
• Fast freezing shelf: The bottom freezer drawer is the fast-freezing shelf.

• Brand: Artusi
• Model: AFBM462X
• Product Type: 70cm freestanding bottom mount refrigerator freezer
• Total Net Capacity: 405 L
• Refrigerator Capacity: 303 L
• Freezer Capacity: 102 L
• Fridge Temperature Range: 2°C to 8°C
• Freezer Temperature Range: -16°C to -24°C
• Cooling System: Multi Cooling
• Freezing Capacity: 8 kg per 24 hours
• Energy Rating: 4 stars
• Annual Energy Consumption: 335 kWh per year (AS/NZS 4474.2)
• Noise Level: 41 dB(A)
• Climate Class: T / SN
• Dimensions (W x D x H): 700 x 712 x 1730 mm
• Supply Cord: 2 m plug and lead
• EAN: 9347777005182
• Warranty: 2 years parts and labour

• Installation style: Freestanding.
• Clearances: Leave 150mm above the appliance, 100mm to the ceiling if it sits in a recess, 50mm at each side and no more than 75mm at the rear.
• Heat sources: Keep at least 50cm from stoves and gas ovens, 5cm from electric ovens, and 2cm from a deep freezer.
• Ambient temperature: Climate class T. Install in ambient temperatures of 16°C to 43°C.
• Doors: The door hinge side cannot be changed on this model.
• Moving: Carry the appliance upright.
• Before use: Let the appliance run for 24 hours before loading food, and wait 5 minutes before restarting after switching off.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

The Fresh Zone chiller drawer is made for meat, fish and chicken, while the crisper has a humidity controller for fruit and vegetables. Together they let you keep each type of food in the conditions it likes.

Super Freeze can be used to freeze up to 8 kg of fresh food in 24 hours, so you can stock up when you find a good deal.

The Drink Cool timer chills bottles quickly. Set it for 5 to 30 minutes and check the bottles so they do not freeze.

• Refrigerator freezer: Artusi AFBM462X 70cm freestanding bottom mount refrigerator freezer
• Fridge storage: 2 adjustable shelves, 1 retractable shelf, 3 door bins, 1 crisper, 1 meat, fish and chicken drawer
• Freezer storage: 2 freezer drawers
• Trays: 1 egg tray and 1 ice tray
• Documentation: Operation manual

• AFBM462X SPECIFICATIONS SHEET (PDF)
• OPERATION MANUAL (PDF)
