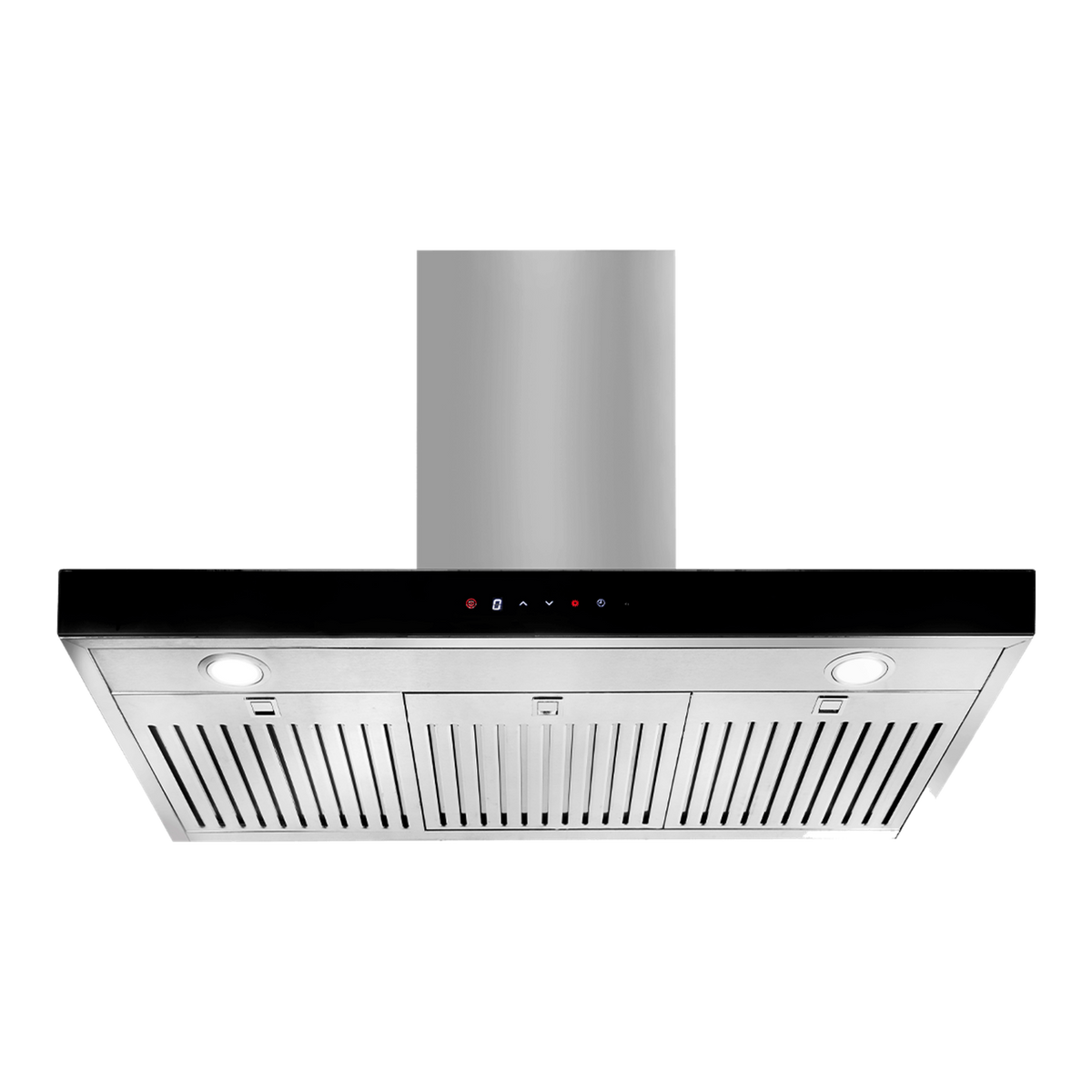

Artusi ACH9BBQB 90cm Wide Stainless Steel Wall-Mounted BBQ Hood

• 850m³/h extraction: A single motor delivers up to 850m³/h of airflow to draw smoke, steam, grease and cooking odours away from the BBQ area.
• Single 198W motor: One 198W motor discharges through a 150mm ducted outlet, keeping the hood compact and the installation simple.
• Three speed settings: Choose a lower speed for light grilling or a higher speed for heavy smoke and high-heat cooking. Artusi advises using a higher setting if you notice strong cooking smells.
• Touch controls with LCD display: Simple touch operation with a clear LCD display of the hood's current settings.
• Remote control: Adjust the hood from a distance while you cook. The remote works within the effective control area shown in the manual.

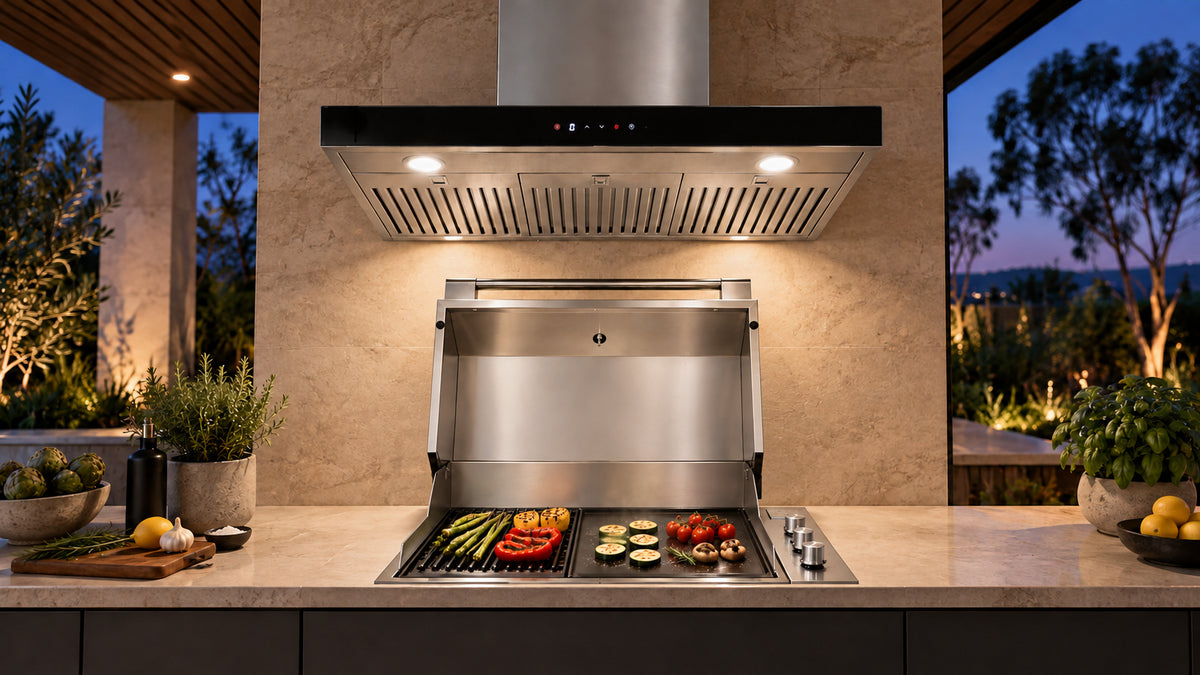

• Two integrated LED lights: Two LED lights illuminate the BBQ cooking surface for better visibility when cooking after dark.
• Dishwasher-safe baffle filters: Stainless steel baffle filters capture grease and can be washed by hand in warm soapy water or on a normal dishwasher cycle, with the filters loaded on their own.
• Easy-release filters: A latch-and-slot design lets you lift the latch, pull the filter down and remove it.
• 65dB(A) noise level: Rated at 65dB(A) on the specification sheet.
• 304 stainless steel with black glass fascia: A durable 304 stainless steel body and black glass fascia, designed to suit Artusi's outdoor kitchen and BBQ range.
• Two-piece flue: Two 500mm flue sections conceal the ducting and motor above the hood, with a flue height range of 500-1000mm shown on the technical drawing.
• Compact 900mm width: Measures 900mm wide, 490mm deep and 1065mm high including the flue sections.
• Plug-in connection: Connects to a standard 240V, 10 amp outlet with a 10 amp plug and a 2m power cord.
• Overheat protection: A high-temperature safety device stops the motor if the hood is installed too close to the cooking surface or the area is not sufficiently ventilated.
• Suitable for BBQ use: Artusi's manual states the range hood can be used over a BBQ.

• Touch control operation: Switch the hood on and off and select functions from the touch control panel.
• Three fan speeds: Select from speeds 1 to 3 to match cooking intensity, from gentle grilling through to heavy smoke.
• LCD display: Shows the hood's current settings.
• Remote control: Operate the hood from a distance. Remove the battery film before first use, and use the remote within the effective control area shown in the manual.
• LED cooking lights: Two LED lights illuminate the cooking surface. They are intended for use while cooking, not for prolonged general lighting, as prolonged use may shorten the life of the LEDs.
• High-heat cooking: Always turn the hood on when cooking at high heat, and never leave surface cooking unattended at high settings.
• Speed selection: If you notice a strong cooking smell, move up to a higher fan speed.
• Overheat protection: A high-temperature safety device stops the motor if the hood is installed too close to the cooking surface or the area is not sufficiently ventilated. The motor stopping after a few minutes is a sign to check ventilation and the 650mm minimum height above the cooking surface.
• Pre-installation test: Plug in and test all functions before mounting the hood, with the filters removed to prevent damage during installation.
• Filters and grills in place: Always leave the safety grills and filters in place when operating the hood so the blower cannot catch hair, fingers or loose clothing.
• Troubleshooting: If the hood vibrates, check the installation and tighten the mounting screws. If airflow is poor, clean the baffle filters. If oil drips onto the BBQ, wash the saturated filters. For a damaged power cord, a motor that runs with no airflow, a whirring sound, or lights or fan not working, contact a technician.

• Brand: Artusi
• Model: ACH9BBQB (Stainless Steel)
• Product Type: 90cm wall-mounted BBQ hood
• Installation: Wall mounted
• Finish: 304 stainless steel with black glass fascia
• Extraction Type: External ducted
• Motor: Single motor, 198W
• Airflow: 850m³/h
• Fan Speeds: 3
• Noise Level: 65dB(A)
• Controls: Touch control with LCD display
• Remote Control: Yes
• Lighting: 2 x LED lights, intended for use while cooking
• Filters: Stainless steel baffle filters, dishwasher safe
• Duct Diameter: 150mm
• Flue: 2 pieces, 500mm each
• Flue Height Range: 500-1000mm (technical drawing)
• Recommended Duct Length: Up to about 5m, counting each 90° bend as 1m
• Minimum Height Above Cooking Surface: 650mm, and at least 600mm above the highest burner of a gas appliance
• Electrical Connection: 10 amp plug and lead
• Supply: 240V AC, earthed (Class I appliance)
• Power Cord Length: 2m
• Dimensions (W x D x H): 900 x 490 x 1065mm
• Intended Use: Domestic installations
• EAN: 9347777004529
• Warranty: 2 years parts and labour

• Qualified installation: Installation and all electrical work must be carried out by a qualified person in line with applicable codes and standards.
• Ducted extraction only: The hood must be ducted to the outdoors using metal ductwork. Use 150mm duct and do not reduce the diameter, as a narrower duct reduces airflow.
• Duct runs: Rigid or semi-rigid duct with a short run and minimal bends performs best. Flexible ribbed duct is discouraged. Keep runs to about 5 metres or fit an in-line motor (TD500 or TD350) about 1 metre from the external vent, on a separate switch.
• Mounting height: Allow at least 650mm between the cooking surface and the hood. Use the greater of the hood and cooktop clearances, with at least 600mm above the highest burner of a gas appliance.
• Level and secure: The hood must be level to operate correctly. Use fixings suitable for its weight and two people to lift it into place.
• Electrical: Requires an earthed 240V, 10 amp power point that stays accessible without removing covers. Use the supplied 2m power cord and keep it clear of the flue sections.
• Flue sections: Fit the two 500mm flue sections over the ducting, positioning the flue bracket as high as possible.
• Gas appliances: Ensure adequate ventilation when the hood runs with gas or other fuel burning appliances. After installation, have any flued gas appliances tested by a competent person to confirm there is no back flow of combustion gases.
• Intended use: For exhausting cooking fumes in domestic installations only.

Warranty coverage

Artusi appliances are backed by a comprehensive manufacturer's warranty, providing peace of mind and reliable after-sales support across their full range of kitchen and outdoor appliances.

• Built-in ovens, cooktops, rangehoods, freestanding cookers (900mm) & dishwashers: 2 years — Parts and labour. Extended to 5 years upon product registration.
• Freestanding cookers (50cm, 54cm & 60cm) & portable appliances: 2 years — Parts and labour
• Outdoor BBQs, BBQ lids & beverage chillers: 2 years — Parts and labour (extension not applicable)
• Indoor appliances used in outdoor/alfresco settings: 3 months only

Proof of purchase is required for all warranty claims. Register your product at artusi.com.au to activate the 5-year extended warranty where applicable.

What's covered

• Manufacturing defects in materials and workmanship
• Repair or replacement of faulty products
• Parts and labour within the applicable warranty period

What's not covered

• Damage during shipping, delivery, or installation
• Incorrect installation or failure to follow manufacturer guidelines
• Misuse, abuse, accidental damage, or neglect
• Normal wear and tear or cosmetic damage
• Indoor appliances used in outdoor or alfresco settings
• Repairs or modifications carried out by unauthorised parties
• Commercial use of domestic appliances

Conditions

• Cooktops must be installed by a licensed electrician or licensed gas plumber
• Products must be used and maintained in accordance with manufacturer instructions
• Register your product at artusi.com.au to activate the 5-year extended warranty
• Proof of purchase must be provided with all claims
• Warranty applies to products sold in Australia only

Making a claim

Claims should be directed through the original place of purchase. For after-sales service and warranty support, contact Artusi directly and have your proof of purchase ready when submitting your claim.

Australian Consumer Law

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if they fail to be of acceptable quality and the failure does not amount to a major failure.

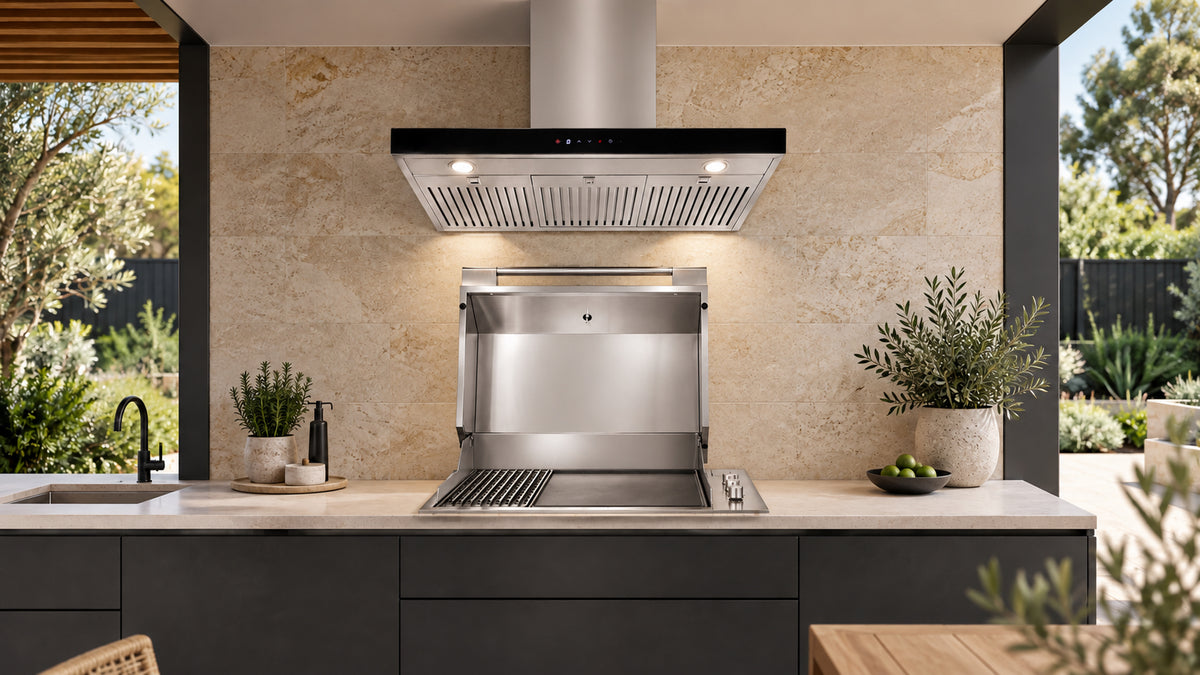

The ACH9BBQB is Artusi's 90cm wall-mounted hood for outdoor BBQ areas. A single 198W motor delivers 850m³/h through 150mm ducting, with touch controls, an LCD display, a remote control and two LED cooking lights in a 304 stainless steel and black glass body. For larger or more demanding setups, the 120cm ACH12BBQB steps up to twin motors and 2000m³/h with six LED lights.

The ACH9BBQB specification sheet lists touch control operation, three speeds, an LCD display, a remote control and two LED lights.

Duct the hood to the outdoors with metal ductwork of 150mm diameter and keep the run short with minimal bends. Artusi recommends a maximum duct length of about 5 metres, counting each 90° bend as 1 metre. Longer runs need a TD500 or TD350 in-line motor fitted about 1 metre from the external vent and run from a separate switch. The manual shows three duct exit options: rear, through the roof, or through the soffit or eave.

The manual states that the range hood can be used over a BBQ, and that it must be level, at least 650mm above the cooking surface, and at least 600mm above the highest burner of a gas appliance, using whichever clearance is greater. Always leave the filters and safety grills in place while the hood is running, switch it on whenever you cook at high heat, and never leave frying or high-heat cooking unattended.

The hood is for domestic use only. It conforms with the WEEE Regulations and must not be disposed of as household waste. Take it to a recycling centre for electrical and electronic equipment. Please read the manual and the specification label on the product for further requirements.

• Hood: Artusi ACH9BBQB 90cm Wall-Mounted BBQ Hood with 2 x LED lights
• Filters: Stainless steel baffle filters
• Remote control: Supplied with the hood
• Flue: 2 x 500mm flue sections
• Power lead: 2m cord with 10 amp plug
• Documentation: Operation manual

• ACH9BBQB SPECIFICATIONS SHEET (PDF)
• OPERATION MANUAL (PDF)
