Product Description

Product Overview:

The Armando Vicario LUZ-1 Lead Free Gooseneck Pull-Out Kitchen Mixer combines elegant Italian design with practical flexibility for everyday kitchen work. Its tall curved profile, slim flat lever and refined finish options make it an expressive centrepiece for contemporary sink areas.

A 1500mm pull-out hose extends reach for rinsing produce, cookware and the sink surrounds, while the 360-degree swivel spout supports convenient movement between bowls. Forward and backward lever operation provides intuitive control of hot and cold water.

Made in Italy and available in five finishes, the LUZ-1 is lead free and carries a 5-star WELS rating at 5.5L/min. It suits new kitchens and renovations where strong visual character, water efficiency and functional reach are equally important.

Product Features:

• Pull-out flexibility: A 1500mm hose extends reach for targeted rinsing and cleaning.
• 360-degree swivel spout: Provides flexible access across single and multiple-bowl sinks.
• Lead-free construction: Designed for contemporary drinking-water applications.
• Italian design and manufacture: Pairs sculptural gooseneck styling with a slim flat lever.
• Water-efficient operation: Rated 5 stars under WELS at 5.5L/min.

Colour / Finishes:

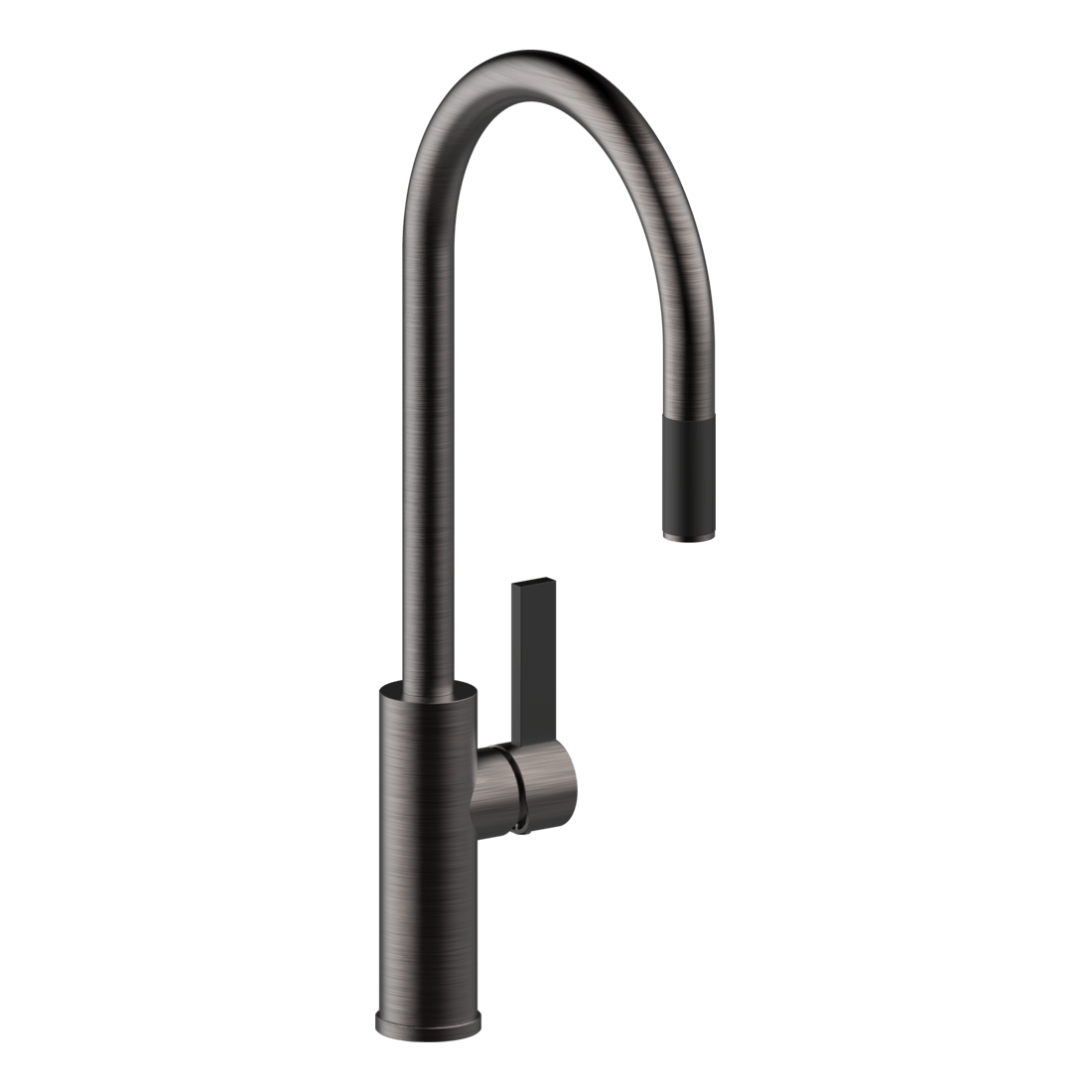

• Black Brushed Nickel - LUZ-1BBN-LF

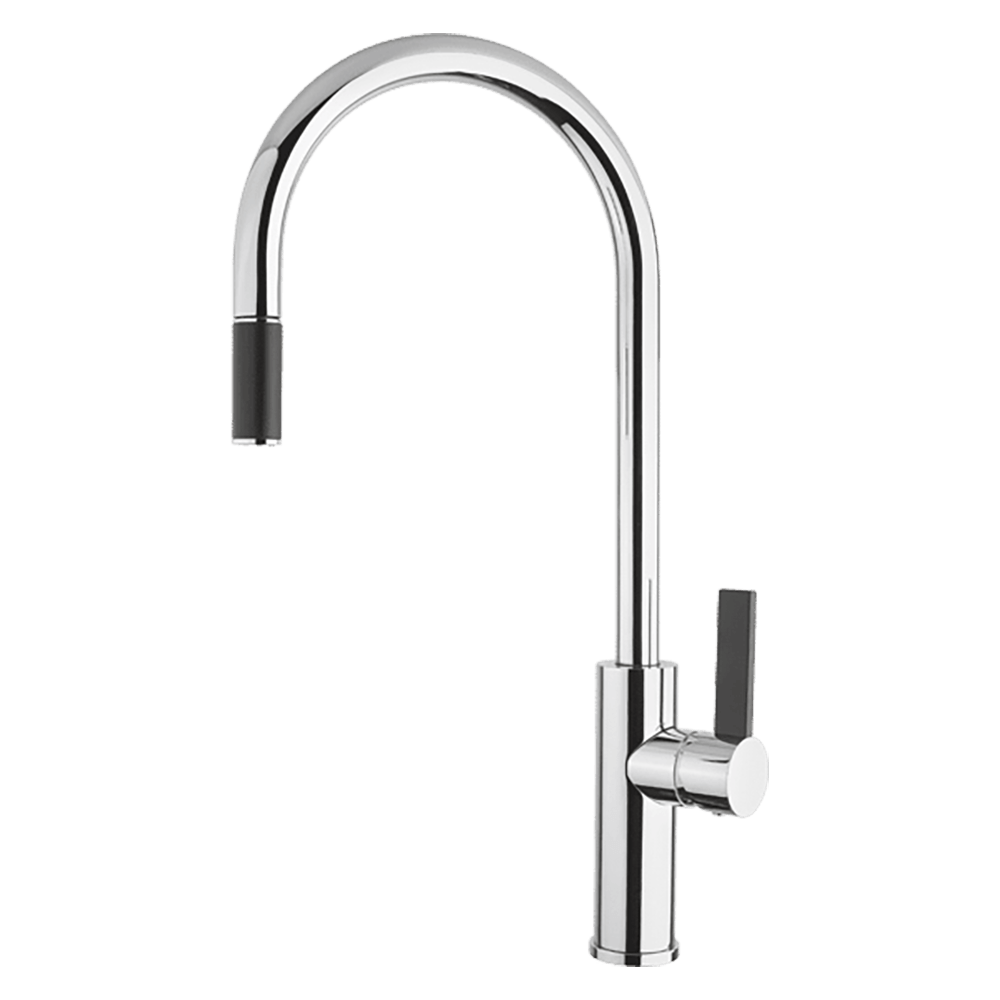

• Chrome - LUZ-1-LF

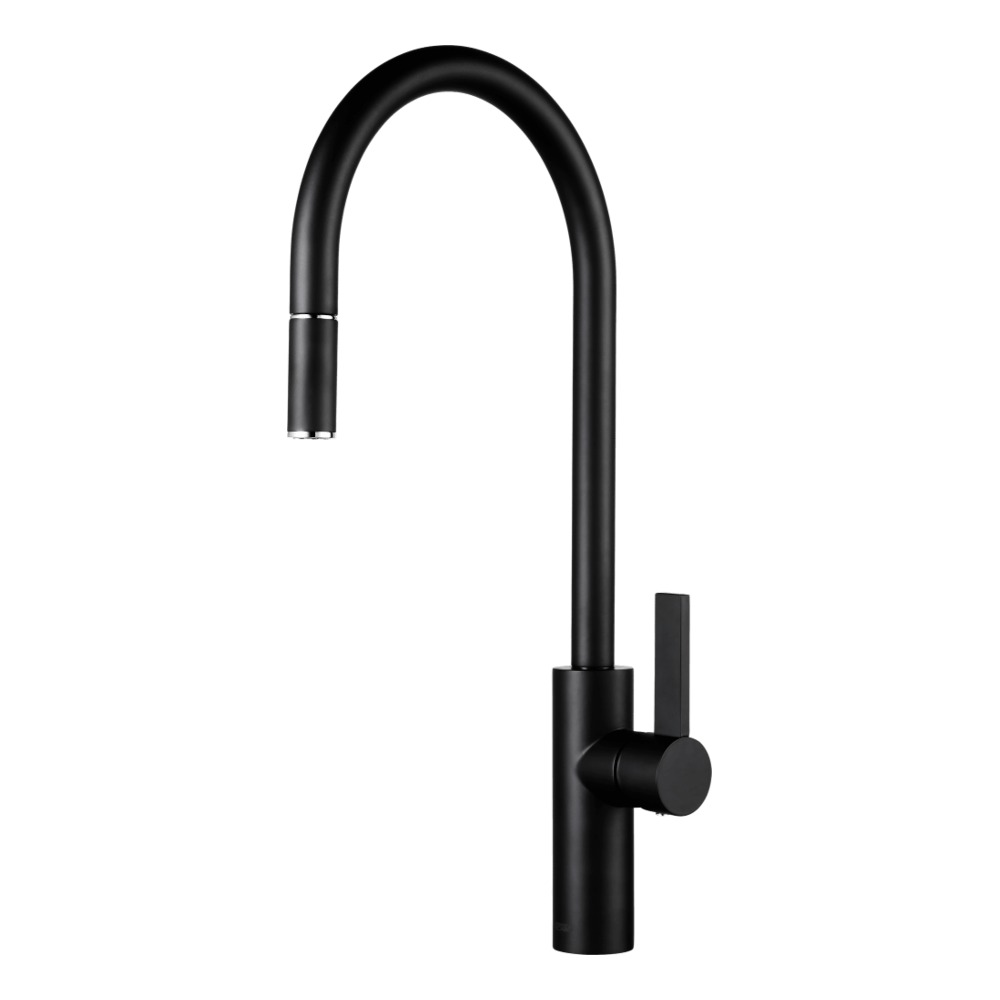

• Black - LUZ-1B-LF

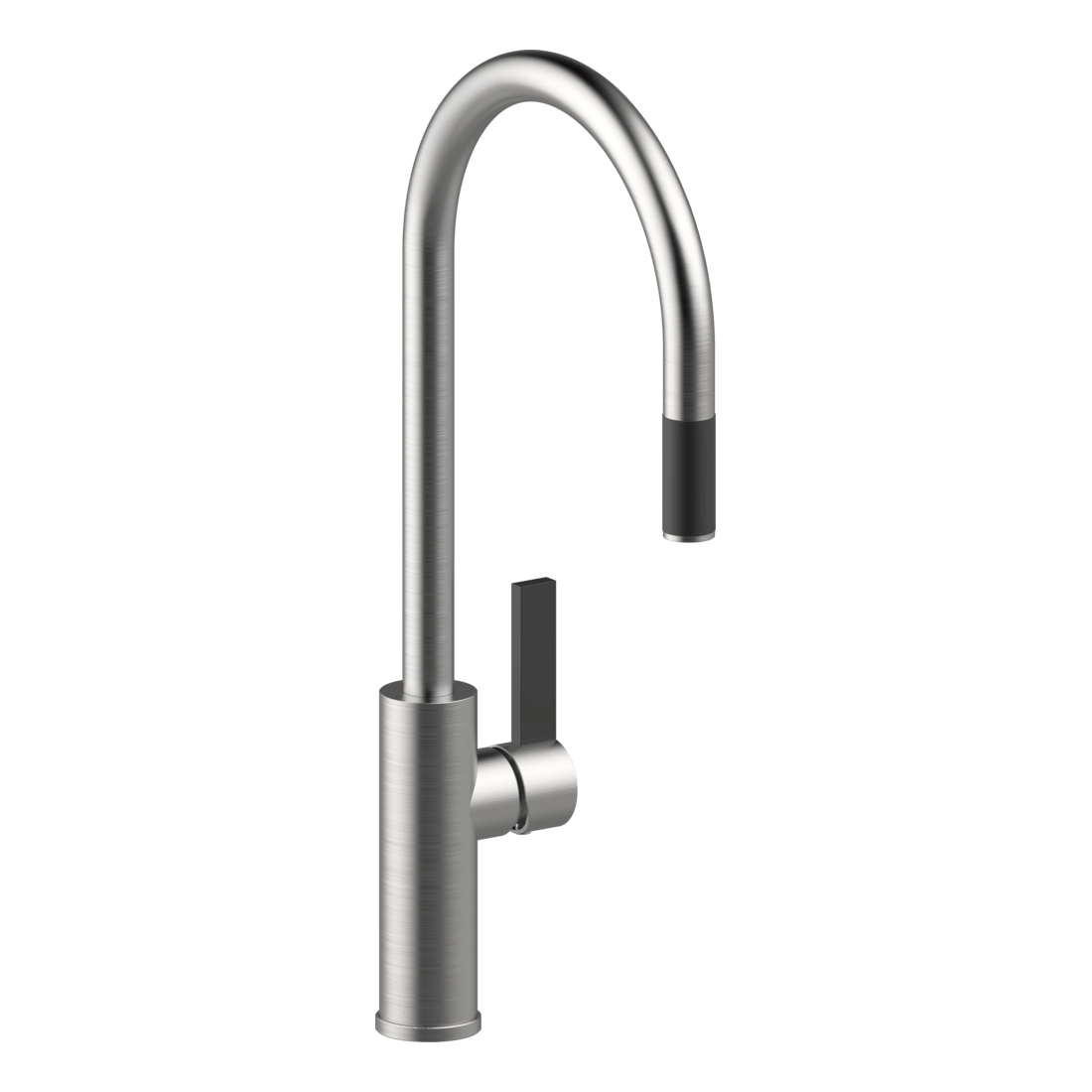

• Brushed Nickel - LUZ-1BN-LF

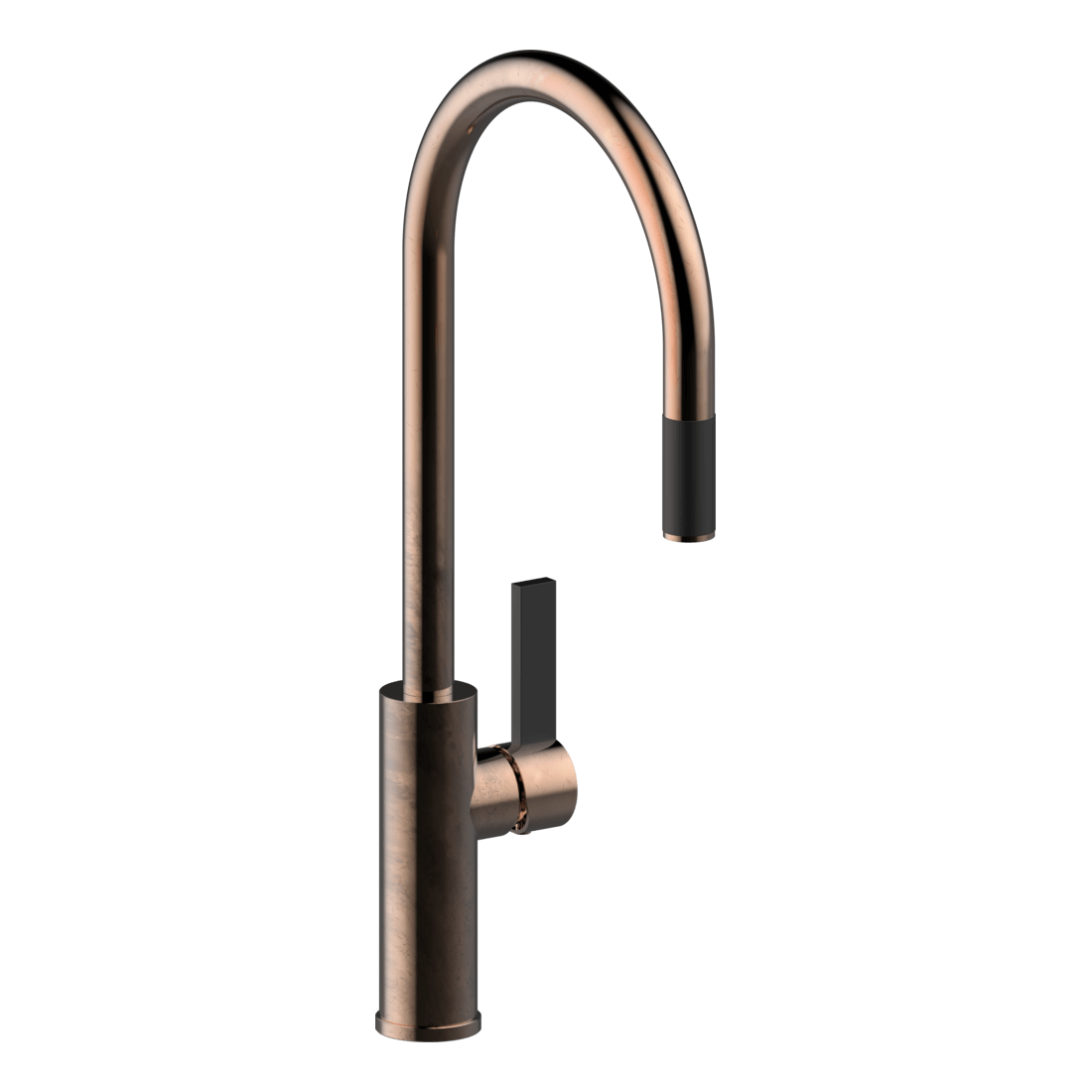

• Natural Brass - LUZ-1NBR-LF

Functions:

• Pull-Out Hose: Extends up to 1500mm for focused rinsing.
• Swivel Function: Rotates through 360 degrees for flexible sink access.
• Single-Lever Control: Moves forward for hot water and backward for cold water.

Cleaning & Maintenance:

• Clean with a soft cloth, warm water and mild non-abrasive detergent.
• Dry after use to help minimise water marks and preserve the finish.
• Do not use abrasive pads, bleach, acidic products or harsh chemicals.
• Periodically check the pull-out hose and connections for unrestricted movement and leakage.

Specifications:

• Product Type: Gooseneck pull-out kitchen mixer
• Collection: LUZ
• Design Style: Modern
• Construction: Lead free
• Handle Direction: Forwards (hot), backwards (cold)
• Pull-Out Hose Length: 1500mm
• Spout Rotation: 360 degrees
• Maximum Operating Pressure: 500kPa
• WELS Rating: 5 stars
• Water Consumption: 5.5L/min
• WELS Registration Number: T45551
• Compliance: In accordance with AS/NZS 6400

Product Measurements:

• Overall Height: 502mm
• Spout Reach: 210mm
• Outlet Height: 282mm
• Maximum Benchtop Thickness: 40mm
• Mounting Hole: Ø35mm

Installation & Requirements:

• Installation Type: Bench-mounted kitchen mixer.
• Operating Pressure: Do not exceed 500kPa; install pressure-limiting equipment where required.
• Clearance: Allow adequate under-sink clearance for the 1500mm pull-out hose.
• Professional Installation: Installation must be completed by a licensed plumber in accordance with supplied instructions and applicable requirements.

Country of Origin:

• Made In: Italy

Extra Information:

The LUZ-1’s high gooseneck form creates useful clearance beneath the outlet, while its pull-out hose makes it easier to rinse large cookware, fill vessels and clean beyond the centre of the bowl. The swivel spout also supports flexible placement with a broad range of kitchen-sink layouts.

Finish appearance may vary between displays and surrounding materials. Review a physical finish sample where precise matching is important, follow the supplied care advice, and confirm plumbing pressure, mounting-hole and clearance requirements with your licensed plumber before installation.

Included Products / Accessories:

• 1 x Armando Vicario LUZ-1 lead-free gooseneck pull-out kitchen mixer in the selected finish
• Pull-out hose and standard installation components supplied with the mixer

Warranty:

Armando Vicario tapware is backed by a 20-year cartridge replacement warranty, 10-year product/parts replacement warranty, 1-year labour warranty and 5-year warranty for PVD and plated finishes. Conditions and exclusions apply; refer to Abey Australia’s current warranty terms.

Downloads / Product Files:

• SPECIFICATIONS SHEET (PDF)

• INSTALLATION GUIDE (PDF)

• ABEY KITCHEN COLLECTION 2026 BROCHURE (PDF)
