Product Description

Product Overview:

The Armando Vicario Lumiere Lead Free Pull-Out Dual Spray Kitchen Mixer combines Italian manufacture with a distinctive squared profile inspired by Art Deco design. Its tall architectural form and broad finish selection create a statement mixer for contemporary kitchen sink areas.

A pull-out outlet extends working reach for rinsing cookware, produce and the sink surrounds, while dual-spray operation provides a choice of water patterns for everyday kitchen tasks. The spout rotates through 360 degrees to support flexible access across single and multiple-bowl sinks.

Made in Italy and lead free, the Lumiere carries a 5-star WELS rating at 5.5 litres per minute. Eight finishes allow the mixer to coordinate with a wide range of sinks, cabinetry and kitchen hardware.

Product Features:

• Dual-spray pull-out outlet: Extends working reach and provides two spray patterns for focused rinsing and general washing.
• 360-degree spout rotation: Supports flexible positioning across single and multiple-bowl sinks.
• Lead-free construction: Suitable for contemporary drinking-water applications.
• Italian design and manufacture: Combines a strong squared silhouette with refined Armando Vicario detailing.
• Water-efficient operation: Rated 5 stars under WELS at 5.5 litres per minute.

Colour / Finishes:

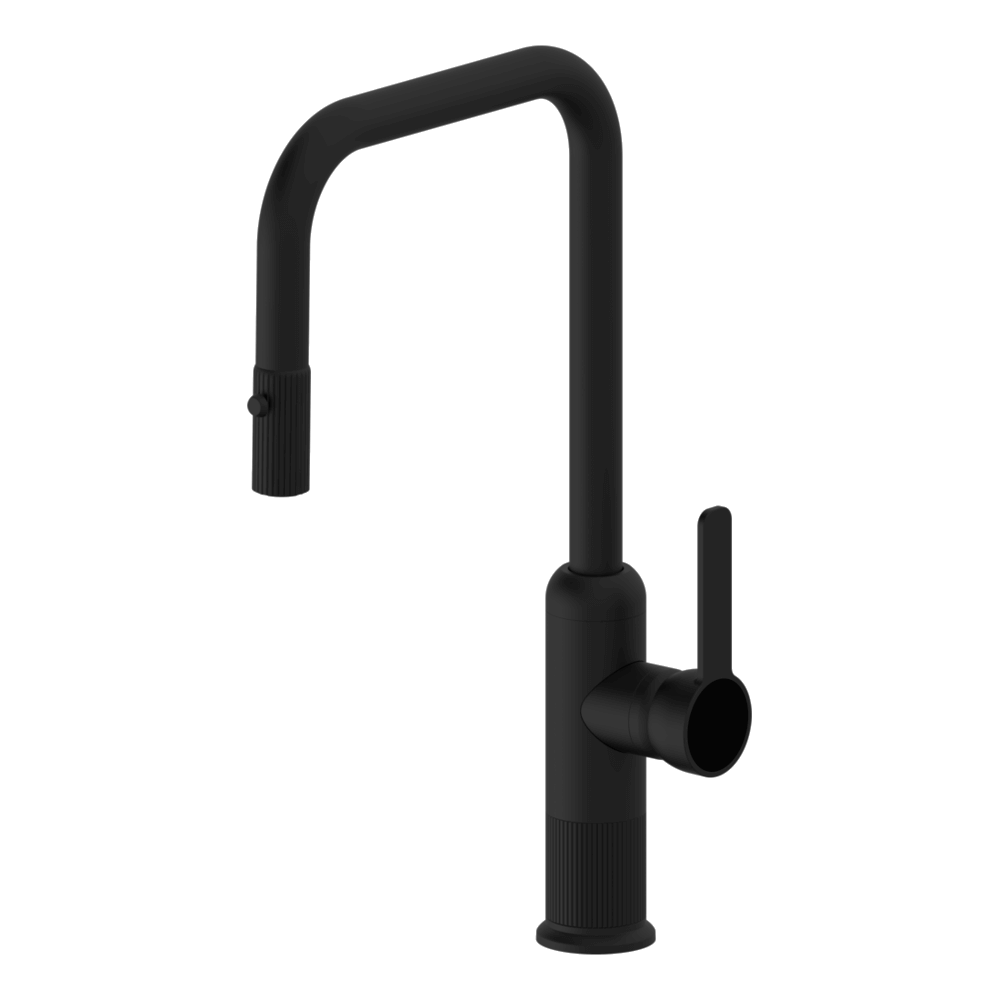

• Black: 400782-B-LF

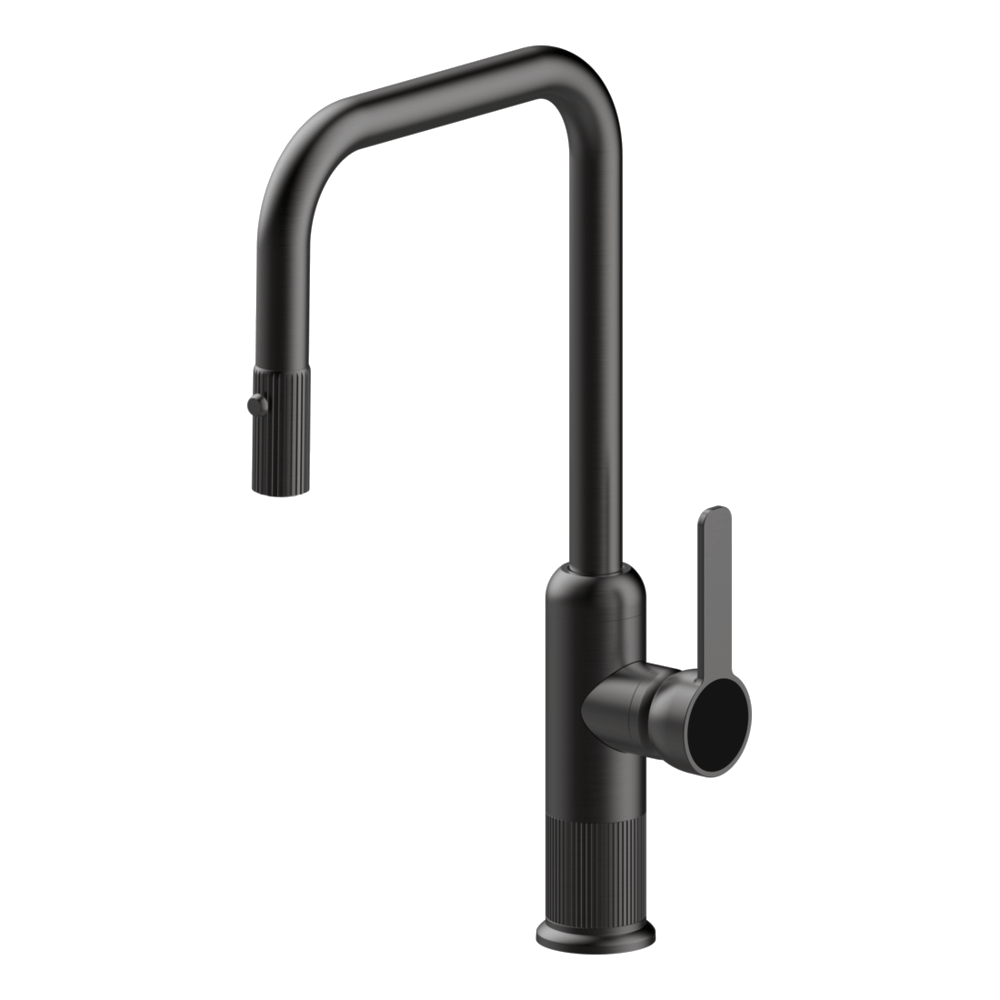

• Black Brushed Nickel: 400782-BBN-LF
• Brushed Gold: 400782-BG-LF - Image not currently available. Please ring or email showroom

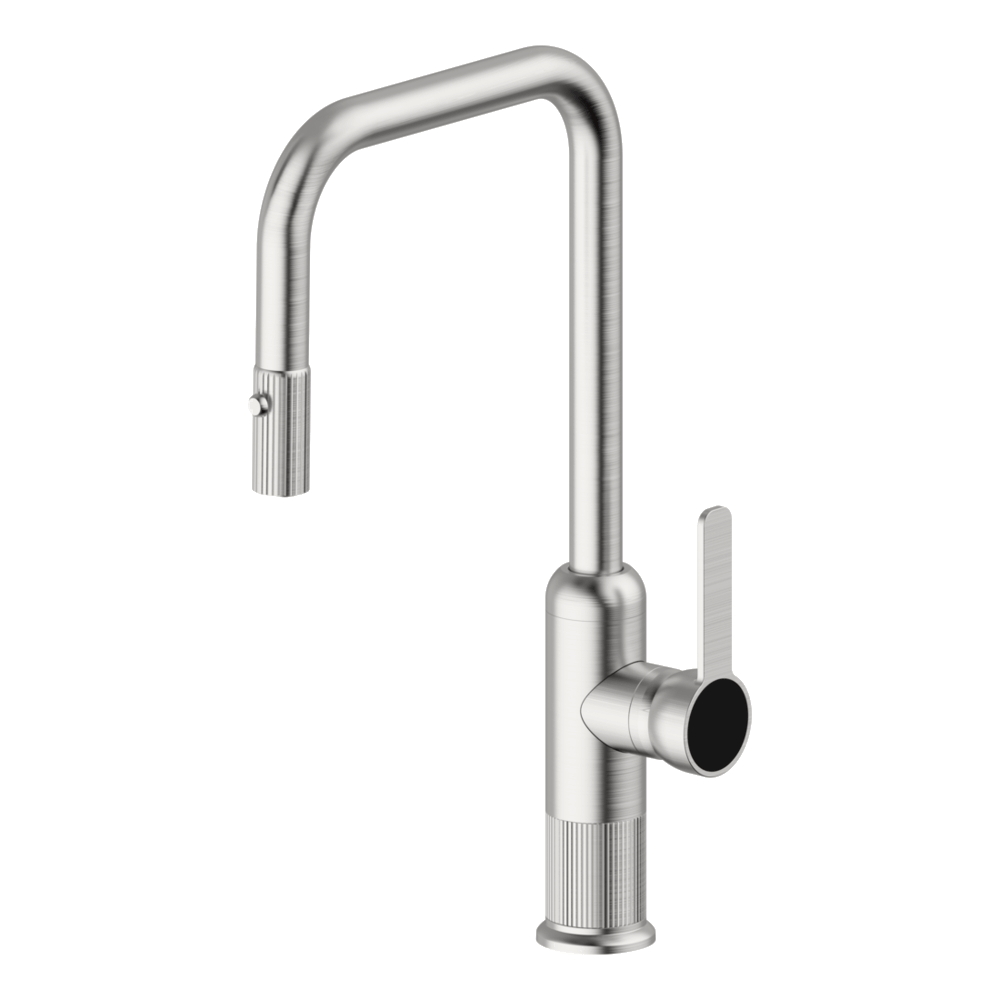

• Brushed Nickel: 400782-BN-LF

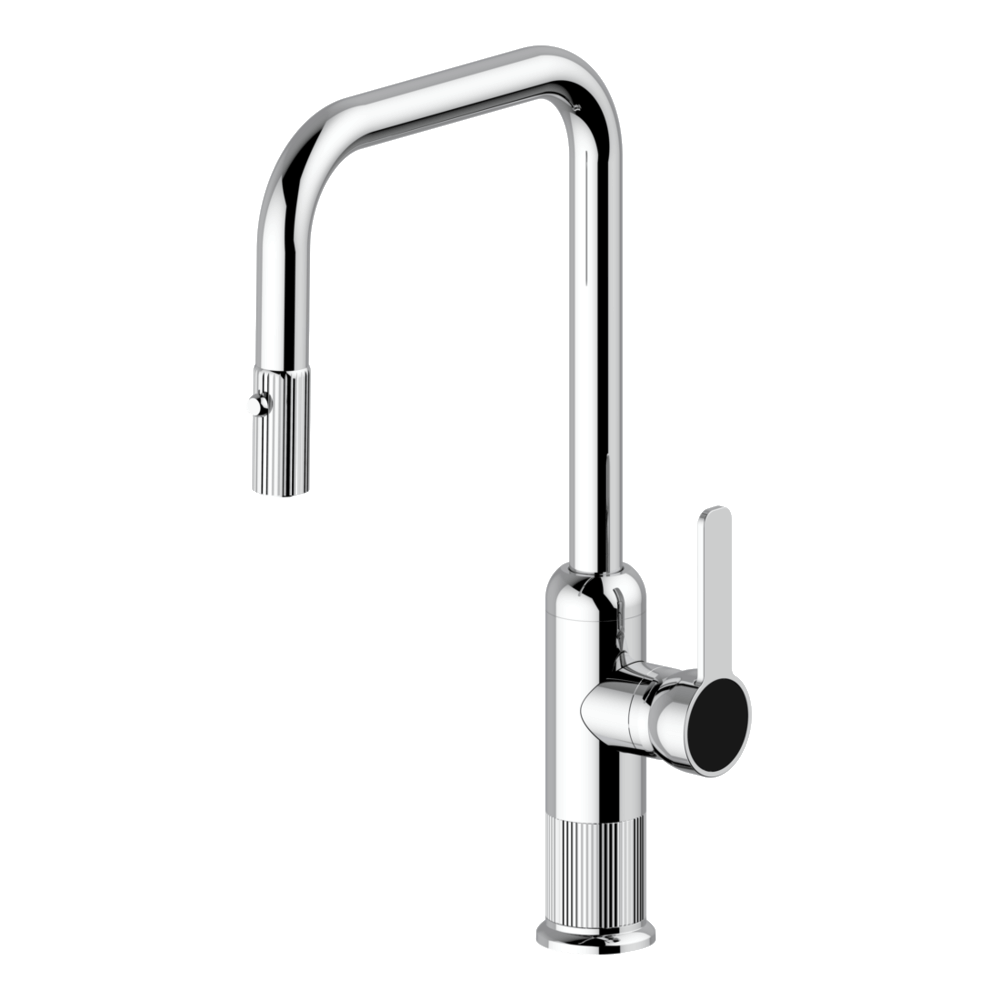

• Chrome: 400782-LF

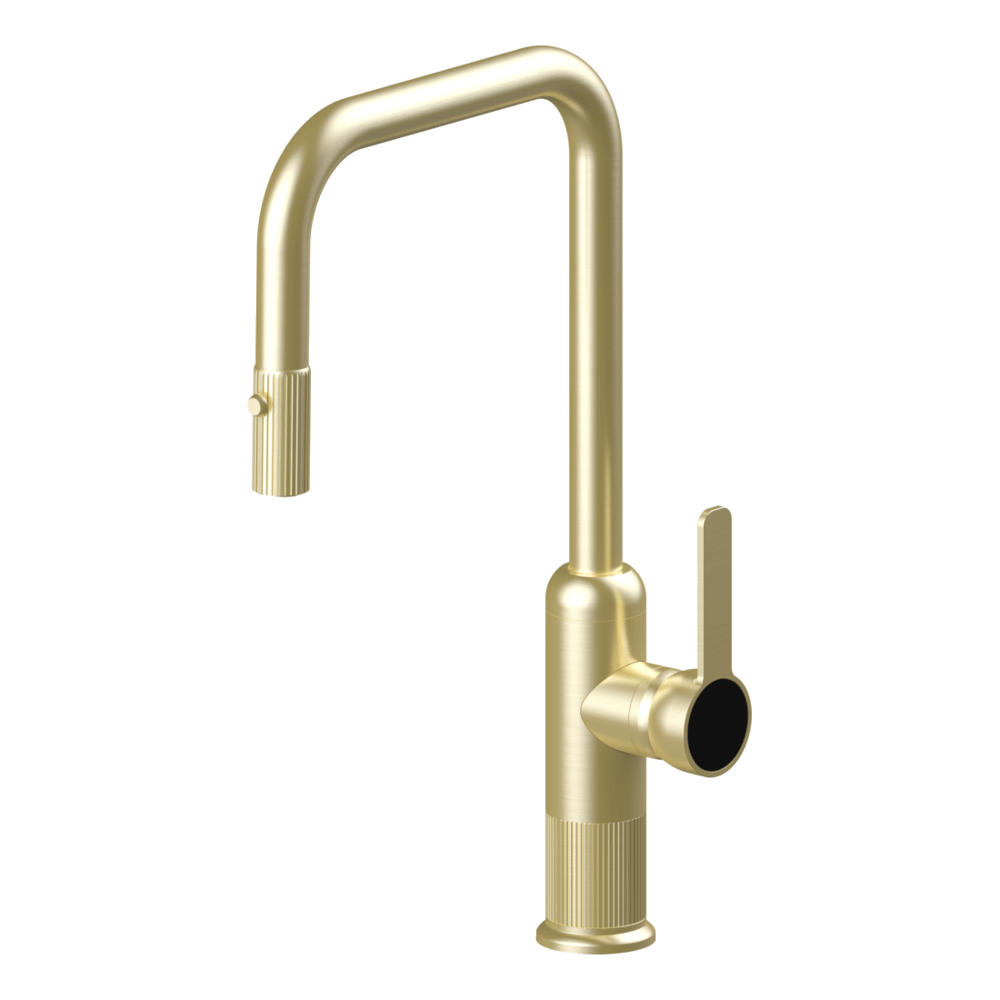

• Light Gold: 400782-LG-LF
• Polished Nickel: 400782-PN-LF - Image not currently available. Please ring or email showroom
• Tobacco: 400782-T-LF - Image not currently available. Please ring or email showroom

Programmes / Functions:

• Pull-out function: Extends the outlet for targeted rinsing beyond the centre of the sink bowl.
• Dual-spray function: Provides two selectable water patterns for different rinsing and cleaning tasks.
• Swivel function: Rotates through 360 degrees for flexible sink access.
• Single-lever control: Provides one-handed control of water flow and temperature.

Cleaning & Maintenance:

• Routine cleaning: Use a soft cloth, warm water and mild non-abrasive detergent.
• Finish protection: Dry after use to help minimise water marks and preserve the selected finish.
• Avoid damage: Do not use abrasive pads, bleach, acidic products or harsh chemical cleaners.
• Connection checks: Periodically inspect the pull-out hose and connections for unrestricted movement and leakage.

Specifications:

• Product Type: Pull-out dual-spray kitchen mixer
• Collection: Lumiere
• Design Style: Traditional / Art Deco inspired
• Construction: Lead free
• Pull-Out: Yes
• Spray Function: Dual spray
• Spout Rotation: 360 degrees
• Maximum Operating Pressure: 500kPa
• WELS Rating: 5 stars
• Water Consumption: 5.5 litres per minute
• WELS Registration Number: T45451
• Compliance: In accordance with AS/NZS 6400

Product Measurements:

• Overall Height: 427mm
• Overall Projection: 257mm
• Spout Reach: 220mm
• Outlet Height: 248mm
• Mixer Base Diameter: Ø35mm
• Maximum Benchtop Thickness: 40mm
• Pull-Out Hose Length: 1500mm
• Water Connections: G1/2 inch

Installation & Requirements:

• Installation Type: Bench-mounted kitchen mixer.
• Static Water Pressure: Minimum 150kPa and maximum 1000kPa.
• Recommended Dynamic Pressure: 300kPa.
• Operating Pressure: The supplier product specification states a maximum operating pressure of 500kPa; install pressure-limiting equipment where required.
• Clearance: Allow adequate under-sink clearance for the 1500mm pull-out hose.
• Professional Installation: Installation must be completed by a licensed plumber in accordance with the supplied instructions, the Plumbing Code of Australia and AS 3718:2021.

Extra Information:

The Lumiere’s tall squared form provides generous clearance beneath the outlet, while its pull-out hose and dual-spray function support cleaning and rinsing beyond the centre of the bowl. The 360-degree spout also allows the outlet to be positioned around a broad range of kitchen-sink layouts.

Finish appearance may vary between displays and surrounding materials. Review a physical finish sample where precise matching is important, follow the supplied care advice, and confirm water pressure, mounting and under-sink clearance requirements with a licensed plumber before installation.

Included Products / Accessories:

• Kitchen Mixer: 1 x Armando Vicario Lumiere lead-free pull-out dual-spray kitchen mixer in the selected finish
• Installation Components: Pull-out hose, flexible G1/2-inch connections and standard mounting components supplied with the mixer

Warranty:

Armando Vicario products are distributed in Australia by Abey Australia Pty Ltd and are backed by a 10-year warranty on tapware and a 5-year warranty on showers and bathroom accessories. All warranties are in addition to your rights under the Australian Consumer Law.

Downloads / Product Files:

• SPECIFICATIONS SHEET (PDF)

• INSTALLATION INSTRUCTIONS (PDF)
