Product Description

Product Overview:

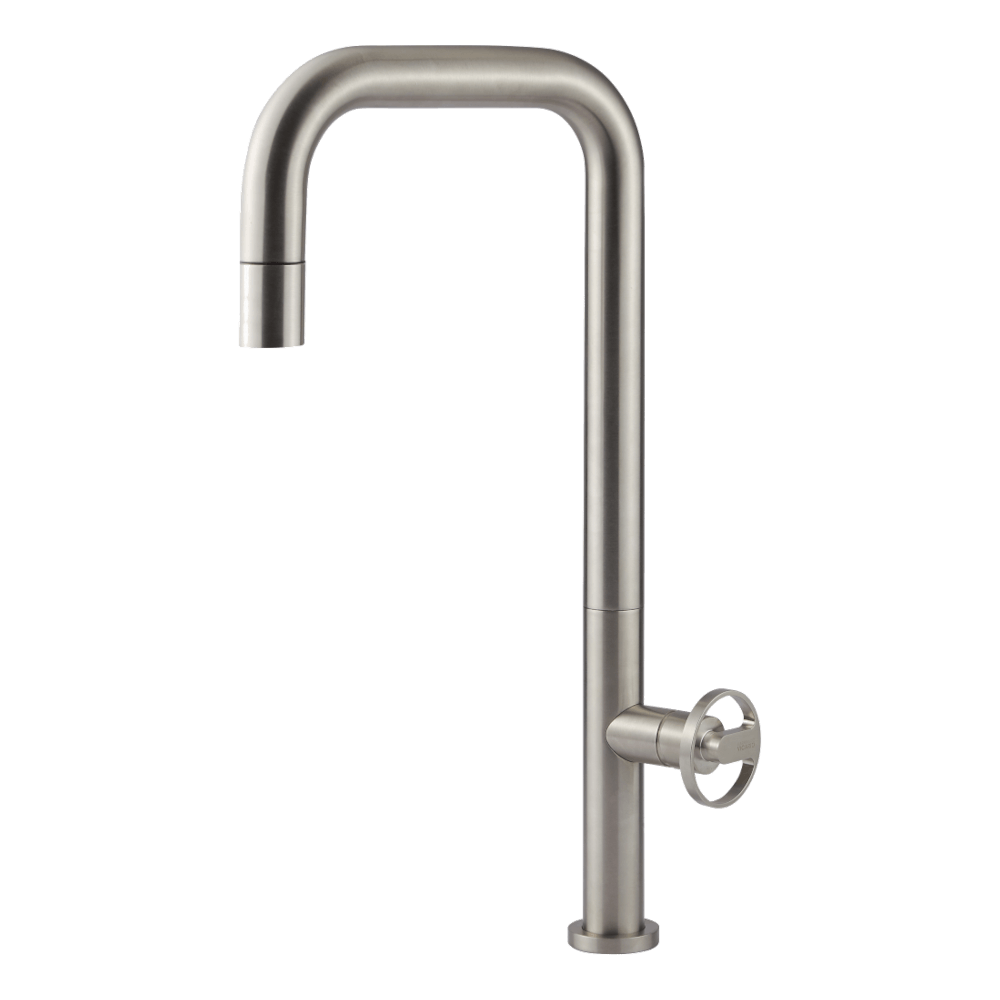

The Armando Vicario 400727-LF Patio Lead Free Pull-Out Kitchen Mixer brings durable Italian craftsmanship to outdoor entertaining areas and alfresco kitchens. Manufactured from 316 marine-grade stainless steel, its clean industrial profile is designed to complement hardworking outdoor sink spaces while delivering a refined architectural finish.

A 1500mm pull-out hose extends the mixer’s reach for rinsing cookware, preparing food and cleaning around the sink, while the 360-degree swivel spout supports convenient movement across the bowl. The vertical and horizontal lever positions provide intuitive hot and cold control, and the mixer is rated 5 stars under WELS at 5L/min.

Made in Italy by Armando Vicario, the Patio mixer suits projects seeking corrosion-conscious stainless-steel construction, practical pull-out flexibility and efficient water use in one cohesive design.

Product Features:

• 316 marine-grade stainless steel: Built for alfresco and outdoor kitchen applications.
• 1500mm pull-out hose: Extends reach for focused rinsing and easier sink clean-up.
• 360-degree swivel spout: Provides flexible access across the sink area.
• Lead-free construction: Designed for contemporary drinking-water applications.
• Water-efficient performance: Rated 5 stars under WELS at 5L/min.

Colour / Finishes:

• Stainless Steel

Functions:

• Pull-Out Function: A 1500mm hose extends the outlet for targeted rinsing.
• Swivel Function: The spout rotates through 360 degrees for flexible sink access.
• Single-Lever Control: Vertical and horizontal lever positions control cold and hot water.

Cleaning & Maintenance:

• Clean regularly with a soft cloth, warm water and mild non-abrasive detergent.
• Rinse and dry the stainless-steel surface after cleaning to help minimise water marks.
• Do not use abrasive pads, bleach, acidic products or harsh chemical cleaners.
• Periodically check the pull-out hose and connections for free movement and leakage.

Specifications:

• Product Type: Pull-out kitchen mixer
• Collection: Patio
• Application: Alfresco and outdoor kitchens
• Material: 316 marine-grade stainless steel
• Construction: Lead free
• Handle Direction: Vertical for cold water and horizontal for hot water
• Pull-Out Hose Length: 1500mm
• Spout Rotation: 360 degrees
• Maximum Operating Pressure: 500kPa
• Connection: G1/2 inch
• WELS Rating: 5 stars
• Water Consumption: 5L/min
• WELS Registration Number: T45447
• Compliance: In accordance with AS/NZS 6400

Product Measurements:

• Overall Height: 360mm
• Spout Reach: 230mm
• Outlet Height: 272mm
• Base Diameter: 60mm
• Maximum Benchtop Thickness: 40mm
• Mounting Hole: Ø35mm

Installation & Requirements:

• Installation Type: Bench-mounted kitchen mixer.
• Operating Pressure: Do not exceed 500kPa; install pressure-limiting equipment where required.
• Clearance: Allow adequate under-sink clearance for the 1500mm pull-out hose and its free movement.
• Pre-Installation Check: Confirm the mounting hole, benchtop thickness, plumbing connections and surrounding clearances.
• Professional Installation: Installation must be completed by a licensed plumber in accordance with the supplied instructions and applicable requirements.

Country of Origin:

• Made In: Italy

Extra Information:

The Patio mixer’s 316 marine-grade stainless-steel construction makes it a considered choice for alfresco kitchens, where material selection and ongoing care are especially important. Its pull-out hose helps with larger cookware and food preparation, while the rotating spout makes it easier to direct water around the sink.

Outdoor exposure varies significantly between installations. Position, shelter and local environmental conditions should be considered before selection, and the mixer should be cleaned and dried regularly in accordance with the supplied care guidance. Confirm water pressure, mounting requirements and under-sink clearances with your licensed plumber before installation.

Included Products / Accessories:

• 1 x Armando Vicario Patio lead-free pull-out kitchen mixer
• 1500mm pull-out hose and standard installation components supplied with the mixer

Warranty:

Armando Vicario products are distributed in Australia by Abey Australia Pty Ltd and are backed by a 10-year warranty on tapware and a 5-year warranty on showers and bathroom accessories. All warranties are in addition to your rights under the Australian Consumer Law.

Downloads / Product Files:

• SPECIFICATIONS SHEET (PDF)

• INSTALLATION INSTRUCTIONS (PDF)
